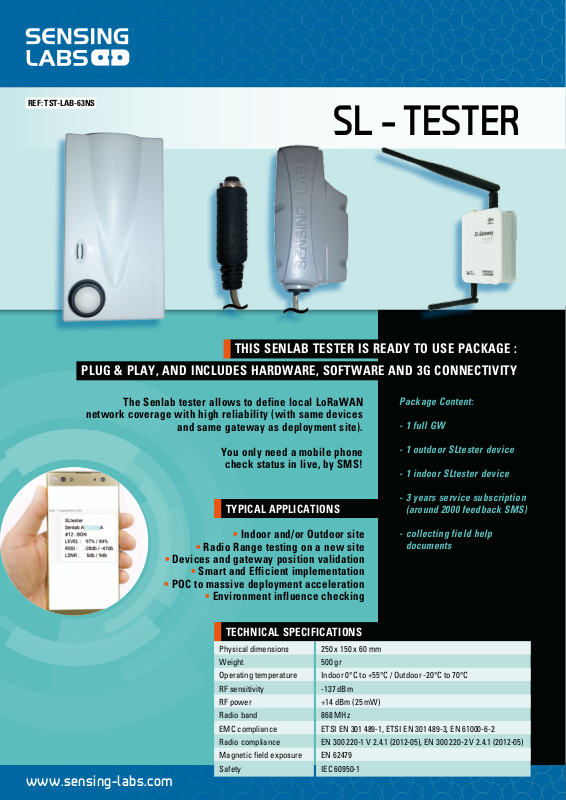

REF: TST-LAB-63NS
PLUG & PLAY, AND INCLUDES HARDWARE, SOFTWARE AND 3G CONNECTIVITY
SL - TESTER
THIS SENLAB TESTER IS READY TO USE PACKAGE :
The Senlab tester allows to define local LoRaWAN
network coverage with high reliability (with same devices
• Devices and gateway position validation
• POC to massive deployment acceleration
www.sensing-labs.com
and same gateway as deployment site).
You only need a mobile phone
check status in live, by SMS!
TYPICAL APPLICATIONS
• Indoor and/or Outdoor site
• Radio Range testing on a new site
• Smart and Efficient implementation
• Environment influence checking
TECHNICAL SPECIFICATIONS
Physical dimensions
Weight
Operating temperature
RF sensitivity
RF power
Radio band
EMC compliance
Radio compliance
Magnetic field exposure
Safety
250 x 150 x 60 mm
500 gr
Indoor 0°C to +55°C / Outdoor -20°C to 70°C
-137 dBm
+14 dBm (25 mW)
868 MHz
ETSI EN 301 489-1, ETSI EN 301 489-3, EN 61000-6-2
EN 300 220-1 V 2.4.1 (2012-05), EN 300 220-2 V 2.4.1 (2012-05)
EN 62479
IEC 60950-1
Package Content:
- 1 full GW
- 1 outdoor SLtester device
- 1 indoor SLtester device
- 3 years service subscription
(around 2000 feedback SMS)
- collecting field help
documents
