SENSING LABS SL SVC-LAB-13NS Datasheet

SMART
IRRIGATION

SOLENOID

Ref : SVC-LAB-13NS

developed with

OUTDOOR

DC LATCH

SOLENOID DRIVER

SENLAB™ V IS A DC LATCH SOLENOID DRIVER

WITH A LORAWAN™ COMMUNICATION INTERFACE.

IT IS DESIGNED FOR 9-12V DC LATCH SOLENOIDS.

+ 20 years

15 km *

Local or Public
Network compliant

* Depending on the
operating conditions

Senlab™ V allows to control either a single 2-wires DC latch solenoid, or
a single 3-wires DC latch solenoid, or two 2-wires DC latch solenoid. It is
able to check the good execution of orders through dry contact interfaces

IP66
(Outdoor use)

• Drive your hydraulic equipment

• Control the solenoid valve remotely

(one per solenoid) and count pulses from a single water meter.

This Senlab offers best in class features as :

• Battery Life time

• Rich Data Content

• Radio Performances

• Advanced set of functionalities (see on verso)

TECHNICAL SPECIFICATIONS

Physical

specications

RF

specications

EC Conformity :

Compliant with Directive

2014/53/UE (RED)

Dimensions 102 x 56 x 35 mm

Weight 458 gr

Operating temperature -20°C to +55°C

RF sensitivity -137dBm

RF power +14dBm (25mW)

Radio band 868 MHz

EMC

Radio EN 300 220-2 v3.1.1

Magnetic eld exposure EN 62479

Safety IEC 60950-1, EN 60950-22

SMART IRRIGATION

• Configure valve open cycle (periodic pattern mode)

• Notication of each open/close switch of valve

Final draft EN 301 489-3 v2.1.1

Draft EN 301 489-1 v2.2.0

www.sensing-labs.com

developed with

60 mm

TECHNICAL FEATURES FOCUS

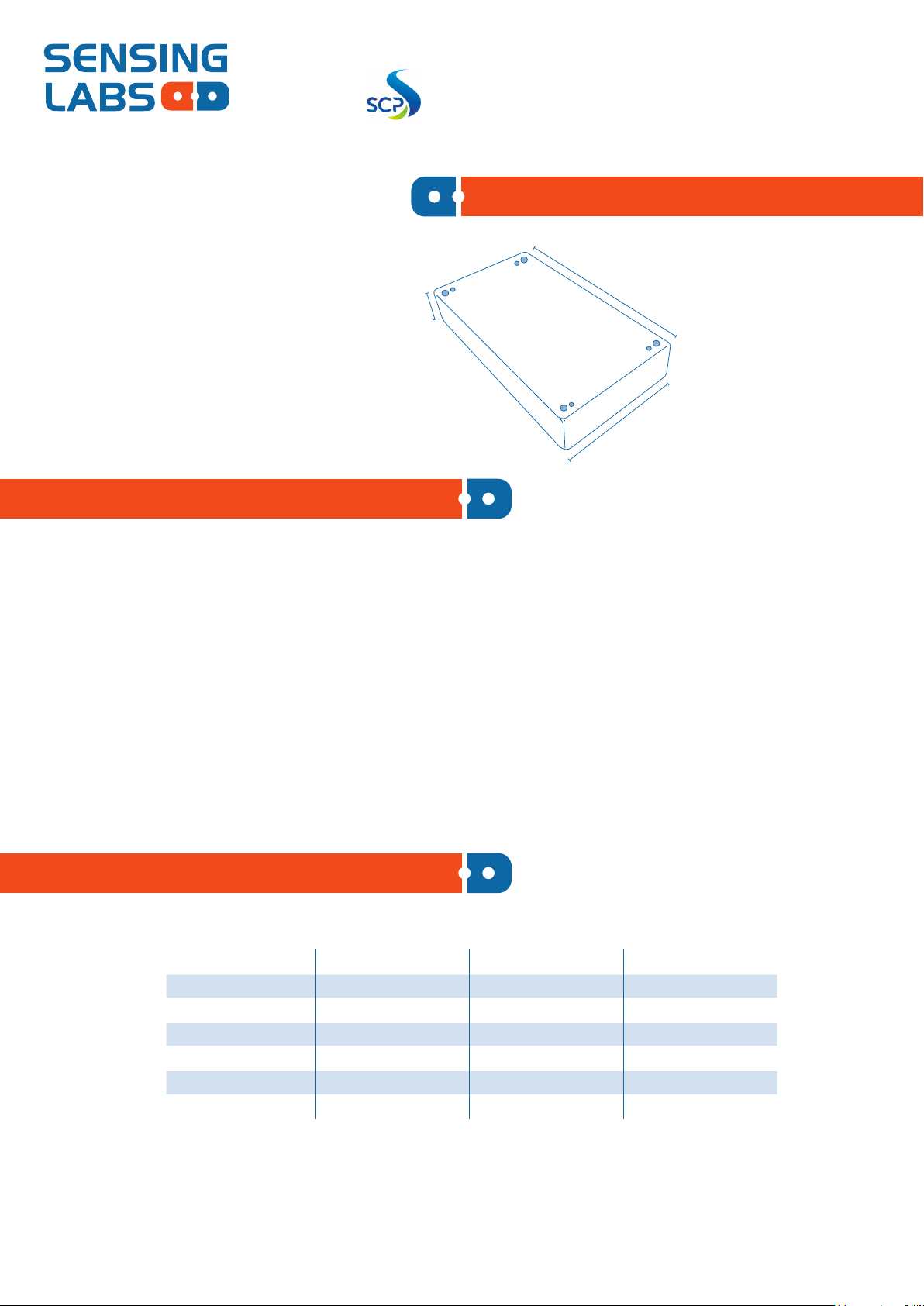

DIMENSIONAL DRAWING

160 mm

90 mm

Driving capabilities

• Orders for opening or closing

the valves can be sent directly by
downlink messages

• The local maintenance interface

also allows requesting some orders

through the Senlab V UHF link

• Periodic valve open/close

patterns can be configured
by downlink messages

BATTERY LIFE DURATION ESTIMATION

A single Valve managed - 10 open/close cycle per day

Battery life (years) Tx every 5mn Tx every 15mn Tx once an hour

SF7 >20

SF8 >20

SF9

SF10

SF11

SF12

>20

16,4

10,3

6,0

Installation & congurability

• Senlab V periodically logs and transmits :

- The state of dry contact inputs (reports on valves states)

- The index of the water meter connected to the pulse input

- The last order executed on each of its drive outputs

• From start, transmission happens every 5 mn

for installation convenience

• In operational mode, this transmission period can be

configured up to one hour per 5 mn steps

• Senlab V can also transmit a specic event frame for

each or the last order executed on each of its drive outputs

>20 >20

>20 >20

>20 >20

>20 >20

19,4 >20

12,6 >20

www.sensing-labs.com

T : [phone]

[e-mail]

Given only as preliminary information.

Sensing Labs - 187 rue Hélène Boucher
34170 Castelnau-le-Lez
