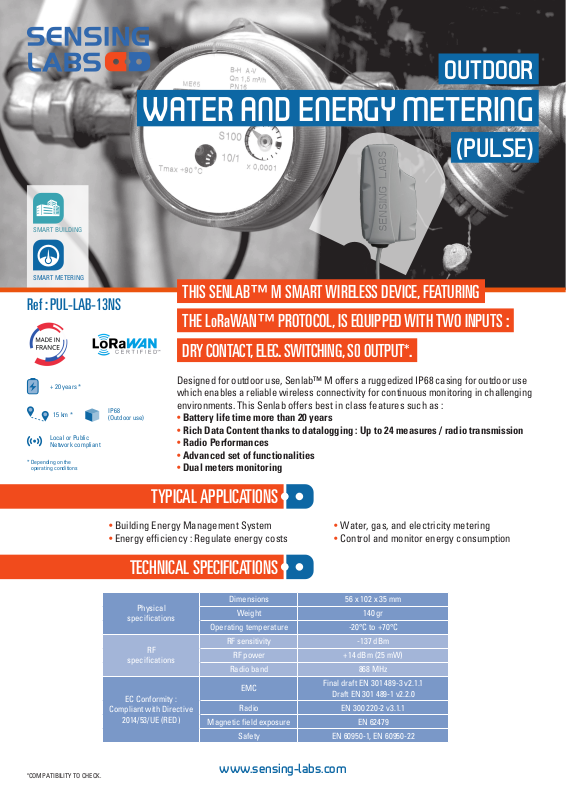

SMART BUILDING
SMART METERING
Ref : PUL-LAB-13NS
OUTDOOR
WATER AND ENERGY METERING
(PULSE)
THIS SENLAB™ M SMART WIRELESS DEVICE, FEATURING
THE LoRaWAN™ PROTOCOL, IS EQUIPPED WITH TWO INPUTS :
+ 20 years *
15 km *
Local or Public
Network compliant
* Depending on the
operating conditions
DRY CONTACT, ELEC. SWITCHING, S0 OUTPUT*.
Designed for outdoor use, Senlab™ M offers a ruggedized IP68 casing for outdoor use
which enables a reliable wireless connectivity for continuous monitoring in challenging
IP68
(Outdoor use)
environments. This Senlab offers best in class features such as :
• Battery life time more than 20 years
• Rich Data Content thanks to datalogging : Up to 24 measures / radio transmission
• Radio Performances
• Advanced set of functionalities
• Dual meters monitoring
TYPICAL APPLICATIONS
• Building Energy Management System
• Energy efciency : Regulate energy costs
TECHNICAL SPECIFICATIONS
Physical
specications
RF
specications
EC Conformity :
Compliant with Directive
2014/53/UE (RED)
Dimensions 56 x 102 x 35 mm
Weight 140 gr
Operating temperature -20°C to +70°C
RF sensitivity -137 dBm
RF power +14 dBm (25 mW)
Radio band 868 MHz
EMC
Radio EN 300 220-2 v3.1.1
Magnetic eld exposure EN 62479
Safety EN 60950-1, EN 60950-22
• Water, gas, and electricity metering
• Control and monitor energy consumption
Final draft EN 301 489-3 v2.1.1
Draft EN 301 489-1 v2.2.0
*COMPATIBILITY TO CHECK.
www.sensing-labs.com
TECHNICAL FEATURES FOCUS
DIMENSIONAL DRAWING
102 mm
35 mm
56 mm
Plug & Play installation
• Product fixing with 2 cable ties
on wall or pipe
• Provided with 1 meter cable
ready to be plugged on pulse
emitter
• Activation with magnet
(LED feedback)
• LED indication of pulse during
few minutes after activation
BATTERY LIFE DURATION ESTIMATION
This following matrix provides the estimated battery lifetime depending on
the average spreading factor used by the Senlab and the transmission period.
High congurability
of pulse counting
• 2 inputs configurable for dry contact
or open collector interfaces
• Set/Reset of start index
• Wirecut and minimal flowrate
information
• Log and transmit mode
for battery lifetime enhancement
(up to 24 compressed measures
per transmission)
• Stream mode (timestamp for each
pulse) for consumption profile analysis
• Reconfiguration possible
over the air
Network Conguration
• LoRaWAN parameters
(OTAA or ABP activation mode,
initial datarate,...)
• Encryption keys customizable
by client
• Standard LoRaWAN retries
support
• Radio collisions avoidance
by pseudo-randomization
of transmissions
• Advanced transmission
reliability mechanisms
(redundancy of data, recovery
of lost messages, …)
Battery life (years) 10 min 15 min 30 min 1 h 2 h 4 h 6 h 8 h 12 h 24 h
SF7 15,8 17,6 >20 >20 >20 >20 >20 >20 >20 >20
SF8 12,9 15,1 18,3 >20 >20 >20 >20 >20 >20 >20
SF9
SF10
SF11
SF12
www.sensing-labs.com
9,4 11,7 15,6 18,6 >20 >20 >20 >20 >20 >20
6,2 8,2 12,2 16,0 18,9 >20 >20 >20 >20 >20
3,9 5,3 8,7 12,6 16,3 19,2 >20 >20 >20 >20
2,3 3,2 5,7 9,1 13,1 16,7 18,4 19,4 >20 >20
For guidance and information purposes only.6 measures per frame.
T : +33 (0)4 67 47 55 67
contact@sensing-labs.com
Sensing Labs - 187 rue Hélène Boucher
34170 Castelnau-le-Lez
