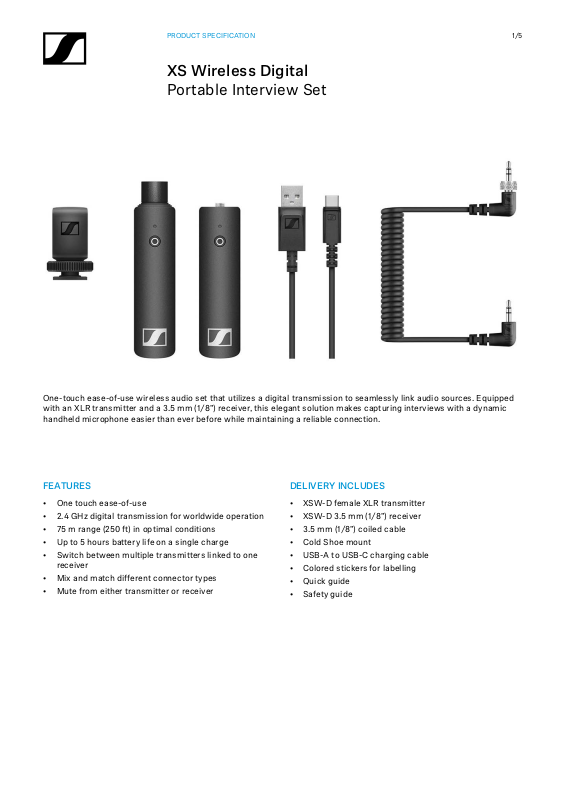

Page 1
PRODUCT SPECIFICATION
XS Wireless Digital
Portable Interview Set
1/5
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped
with an XLR transmitter and a 3.5 mm (1/8") receiver, this elegant solution makes capturing interviews with a dynamic
handheld microphone easier than ever before while maintaining a reliable connection.
FEATURES
• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75 m range (250 ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one
receiver
• Mix and match different connector types
• Mute from either transmitter or receiver
DELIVERY INCLUDES
• XSW-D female XLR transmitter
• XSW-D 3.5 mm (1/8") receiver
• 3.5 mm (1/8") coiled cable
• Cold Shoe mount
• USB-A to USB-C charging cable
• Colored stickers for labelling
• Quick guide
• Safety guide
Page 2
PRODUCT SPECIFICATION
XS Wireless Digital
Portable Interview Set
SPECIFICATIONS
USB C interface for charging:
Input voltage typ. 5.0 V
Charging temperature 0 °C - 60 °C (32 °F - 140 °F)
Charging time typ. 3 h
Battery pack:
Cell type Li-Ion
Nominal voltage 3.7 V
Cell capacity 850 mAh
Operating time up to 5 h
AF characteristics:
Codec aptX® Live
Audio frequency response 3.5 mm Jack/XLR:
80 - 18,000 Hz
6.3 mm Jack:
10 - 18,000 Hz
Audio output max. 12 dBu
Signal-to-noise ratio ≥ 106 dB
THD < 0.1 %
Audio latency < 4 ms
2/5
Product properties:
Dimensions
XSW-D XLR FEMALE TX
XSW-D MINI JACK TX
XSW-D INSTRUMENT TX
XSW-D XLR MALE RX
XSW-D MINI JACK RX
XSW-D INSTRUMENT RX
XSW-D PEDALBOARD RX
Frequency range 2,400 - 2,483.5MHz
Transmission power (EIRP) max. 10 mW
Modulation GFSK with TDMA
Environmental conditions:
Operating temperature -10 °C to +55 °C
Relative humidity 95 % (non-condensing)
approx. 102 x 24 x 28 mm
approx. 86 x 24 x 28 mm
approx. 122 x 24 x 28 mm
approx. 109 x 24 x 28 mm
approx. 86 x 24 x 28 mm
approx. 122 x 24 x 28 mm
approx. 130 x 82 x 51 mm
(14 °F to 131 °F)
Page 3
PRODUCT SPECIFICATION
XS Wireless Digital
Portable Interview Set
3/5
PRODUCT VARIANTS
XSW-D PORTABLE INTERVIEW SET
Female XLR transmitter, 3.5mm (1/8")
receiver
Other sets:
XSW-D VOCAL SET
XS 1 handheld, female XLR transmitter,
male XLR receiver
XSW-D LAVALIER SET
ME2-II, 3.5mm (1/8") transmitter, male
XLR receiver
XSW-D PEDALBOARD SET
6.3mm (1/4") transmitter, pedalboard
receiver
XSW-D PORTABLE LAVALIER SETt
ME2-II, 3.5mm (1/8") transmitter &
3.5mm (1/8") receiver
XSW-D PORTABLE ENG SET
ME2-II, 3.5mm (1/8") transmitter,
female XLR transmitter, 3.5mm (1/8")
receiver
XSW-D XLR BASE SET
Female XLR transmitter, male XLR
receiver
XSW-D PRESENTATION BASE SET
3.5mm (1/8") transmitter, male XLR
receiver
XSW-D INSTRUMENT BASE SET
6.3mm (1/4") transmitter, 6.3mm (1/4")
receiver
XSW-D PORTABLE BASE SET
3.5mm (1/8") transmitter, 3.5mm (1/8")
receiver
Art. no. 508489
Art. no. 508484
Art. no. 508485
Art. no. 508486
Art. no. 508488
Art. no. 508490
Art. no. 508491
Art. no. 508492
Art. no. 508493
Art. no. 508621
ACCESSORIES
XSW-D XLR FEMALE TX
Transmitter with female XLR input
XSW-D MINI JACK TX
Transmitter with 3.5mm (1/8") input
XSW-D INSTRUMENT TX
Transmitter with 6.3mm (1/4") input
XSW-D XLR MALE RX
Receiver with male XLR output
XSW-D INSTRUMENT RX
Receiver with 6.3mm (1/4") output
XSW-D PEDALBOARD RX
Receiver with 6.3mm (1/4") & male
XLR outputs
XSW-D MINI JACK RX
Receiver with 3.5mm (1/8") output
NT XSW-D PEDALBOARD
Power supply for pedalboard receiver
CL 35
3.5mm (1/8") coiled output cable
CI 63
6.3mm (1/4") extension input cable
XSW-D BELTPACK CLIP
Transmitter belt clip
XSW-D HOTSHOE MOUNT
Camera mount for XSW-D receivers
Art. no. 508494
Art. no. 508495
Art. no. 508496
Art. no. 508497
Art. no. 508498
Art. no. 508499
Art. no. 508500
Art. no. 508647
Art. no. 508648
Art. no. 508649
Art. no. 508650
Art. no. 508651
Page 4
DIMENSIONS
XSW-D XLR FEMALE TX
USB-C
PRODUCT SPECIFICATION
XS Wireless Digital
Portable Interview Set
101.74
4.01
4/5
86.44
3.4
27.39
23.76
XLR3F
1.08
0.94
Ein/Aus-Schaltknopf
On/Off push button
Page 5
DIMENSIONS
XSW-D MINI JACK RX
USB-C
PRODUCT SPECIFICATION
XS Wireless Digital
Portable Interview Set
5/5
88.85
3.5
86.44
3.4
1.09
27.61
0.94
23.75
Buchse 3.5mm
Jack 3.5mm
Ein/Aus-Schaltknopf
On/Off push button
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
