Page 1
Set 830 S
Cordless TV Listening System
Instruction manual
Page 2
I
1
3
4
7
5
7
6
2
Q
Page 3
II
D
C
9
8
0
A
H
G
F
E
B
Page 4
Page 5
1
Contents
Contents
Safety instructions ................................................................. 2
Delivery includes ..................................................................... 4
Product overview .................................................................... 5
Putting the Set 830 S into operation ................................. 6
Setting up the transmitter ............................................... 6
Connecting the transmitter to a sound source ............ 7

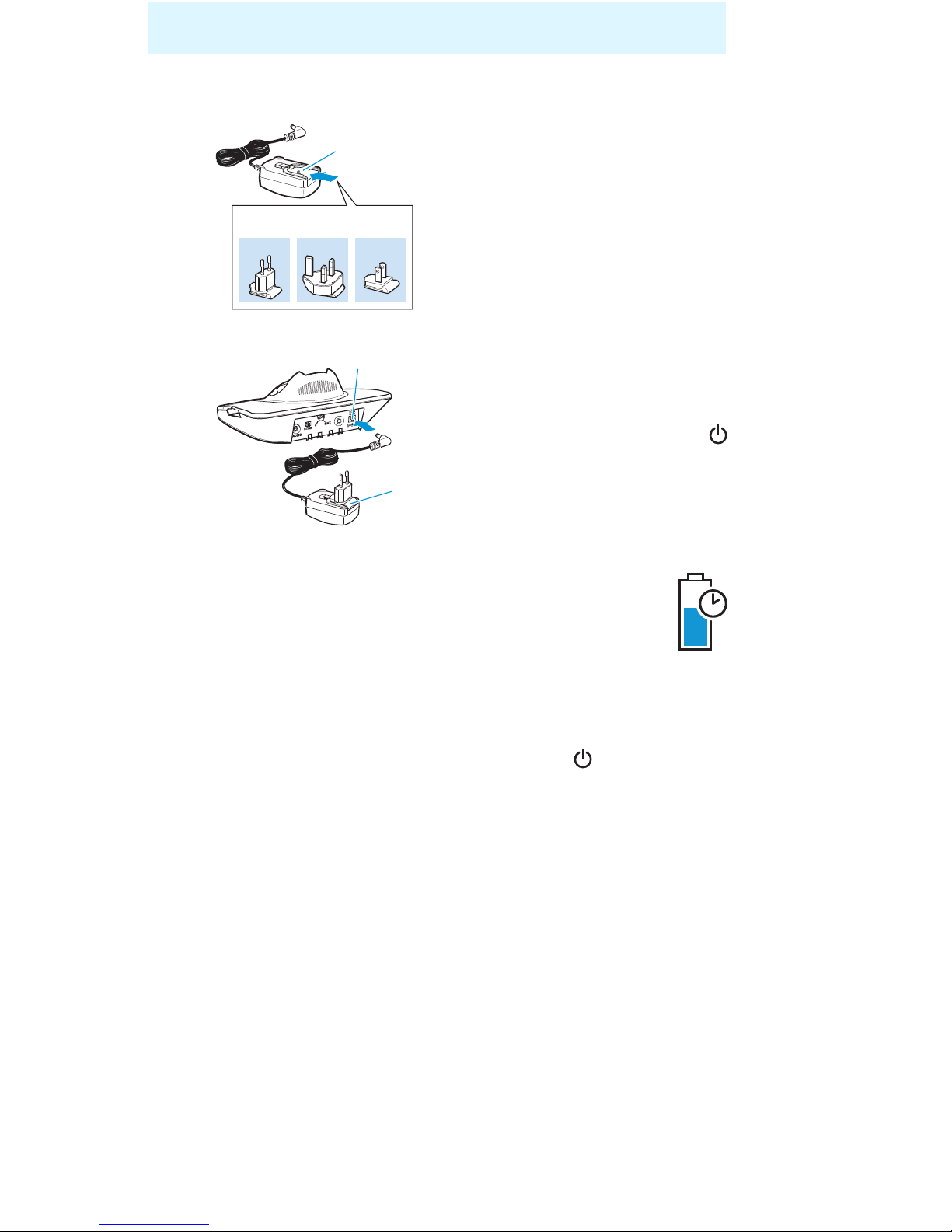

Connecting the transmitter to the mains ................... 10

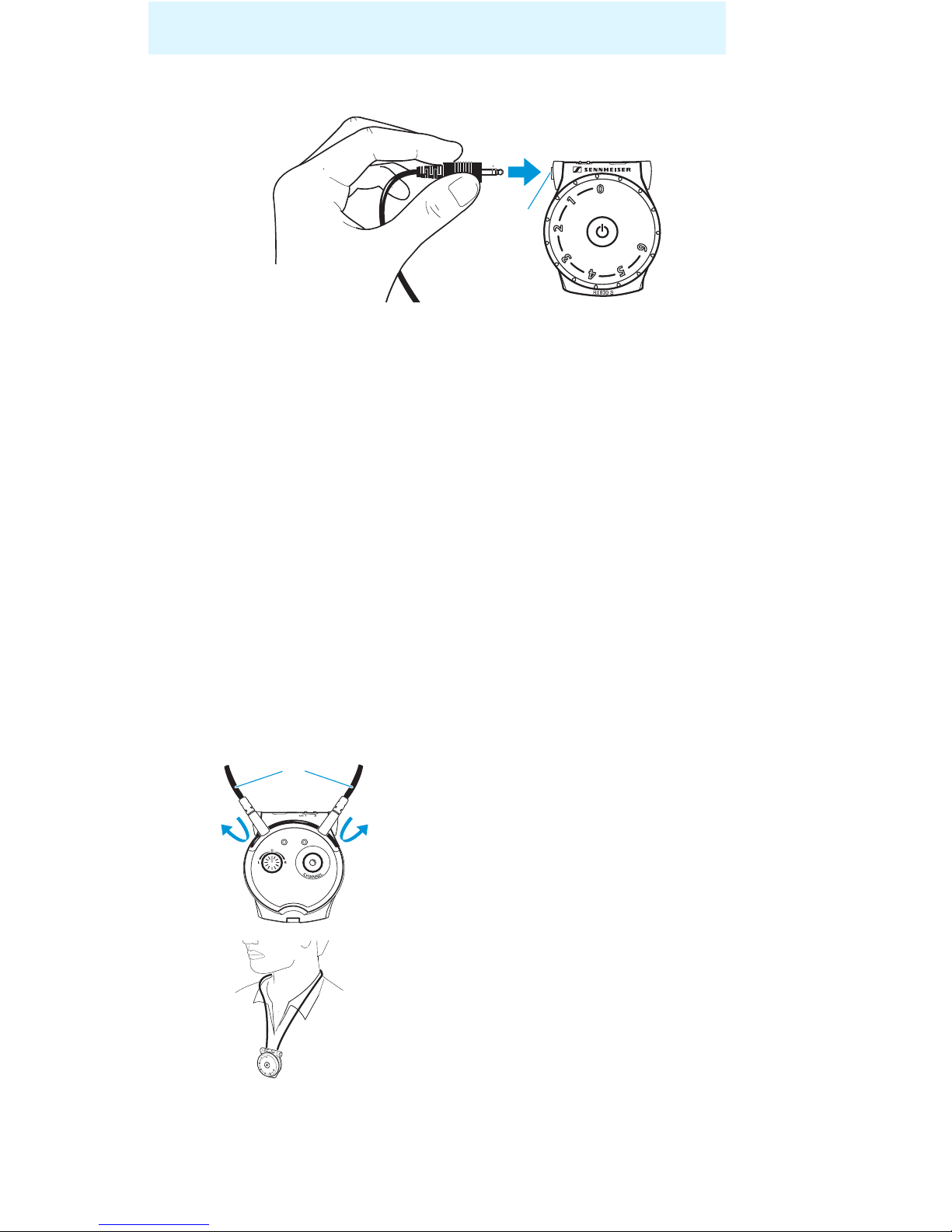

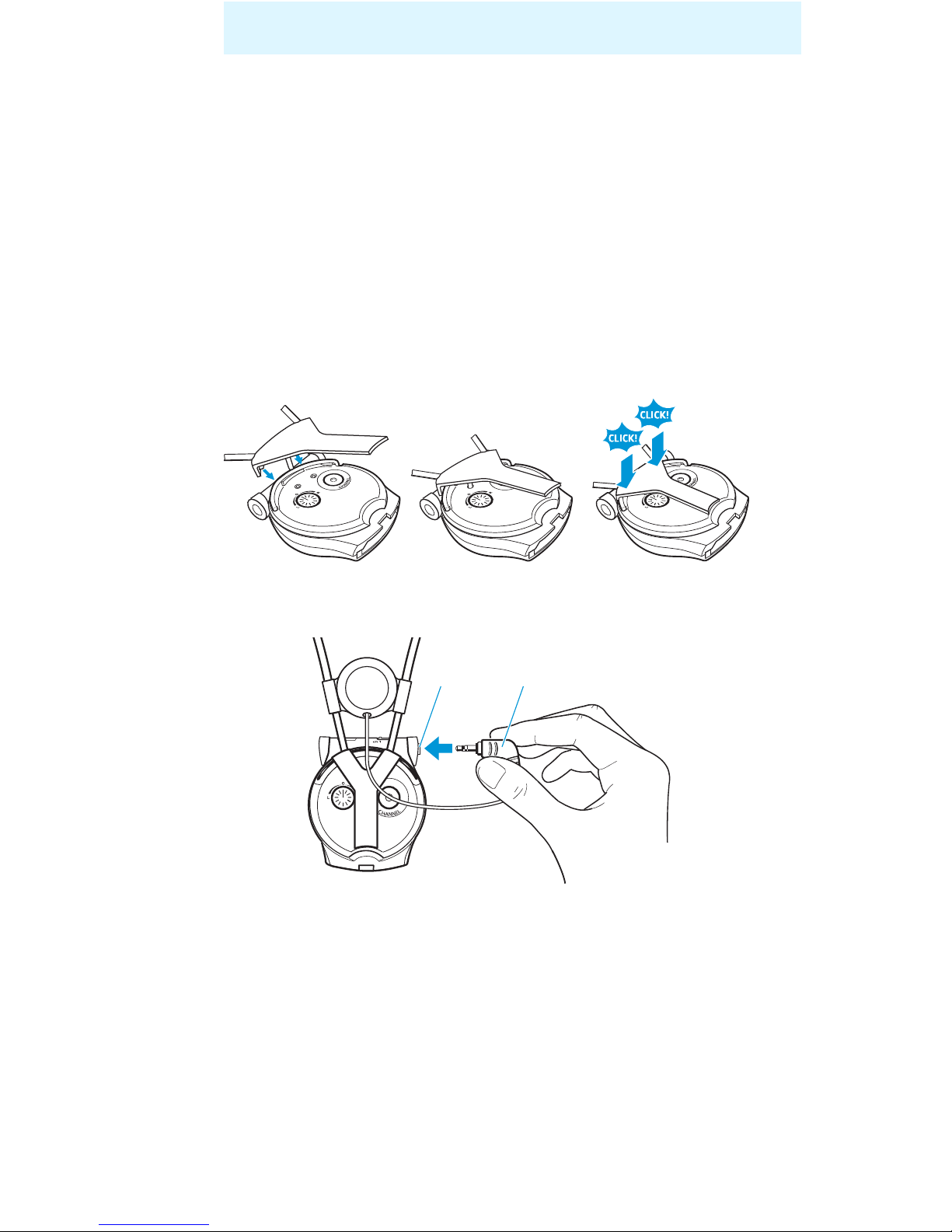

Connecting headphones or the induction loop
for hearing aids to the receiver ..................................... 11
Wearing the receiver ....................................................... 12
Using the Set 830 S system ............................................... 14
Switching the transmitter on/off ................................. 14
Switching the receiver on/off ........................................ 15

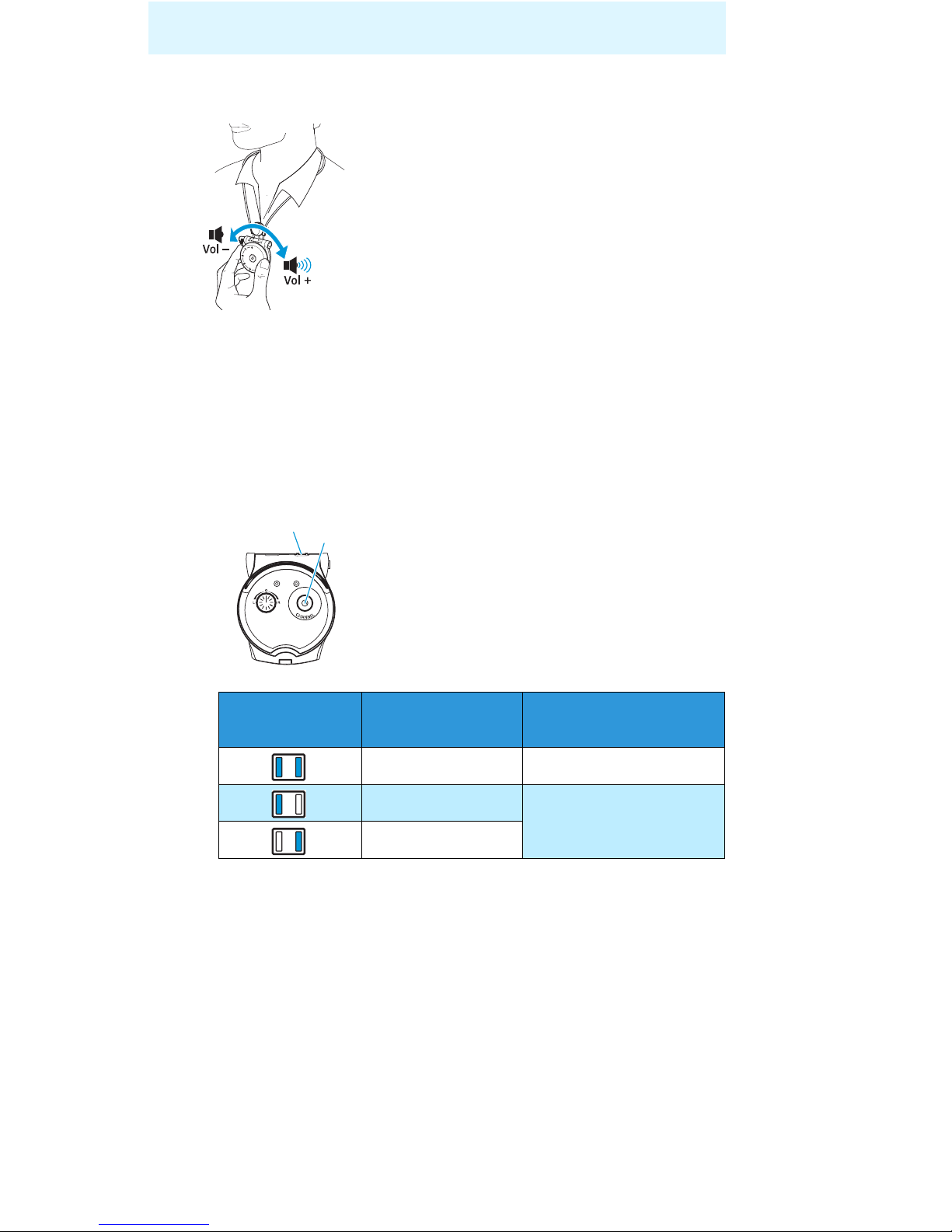

Adjusting the volume ...................................................... 16
Searching for a sound source ......................................... 16

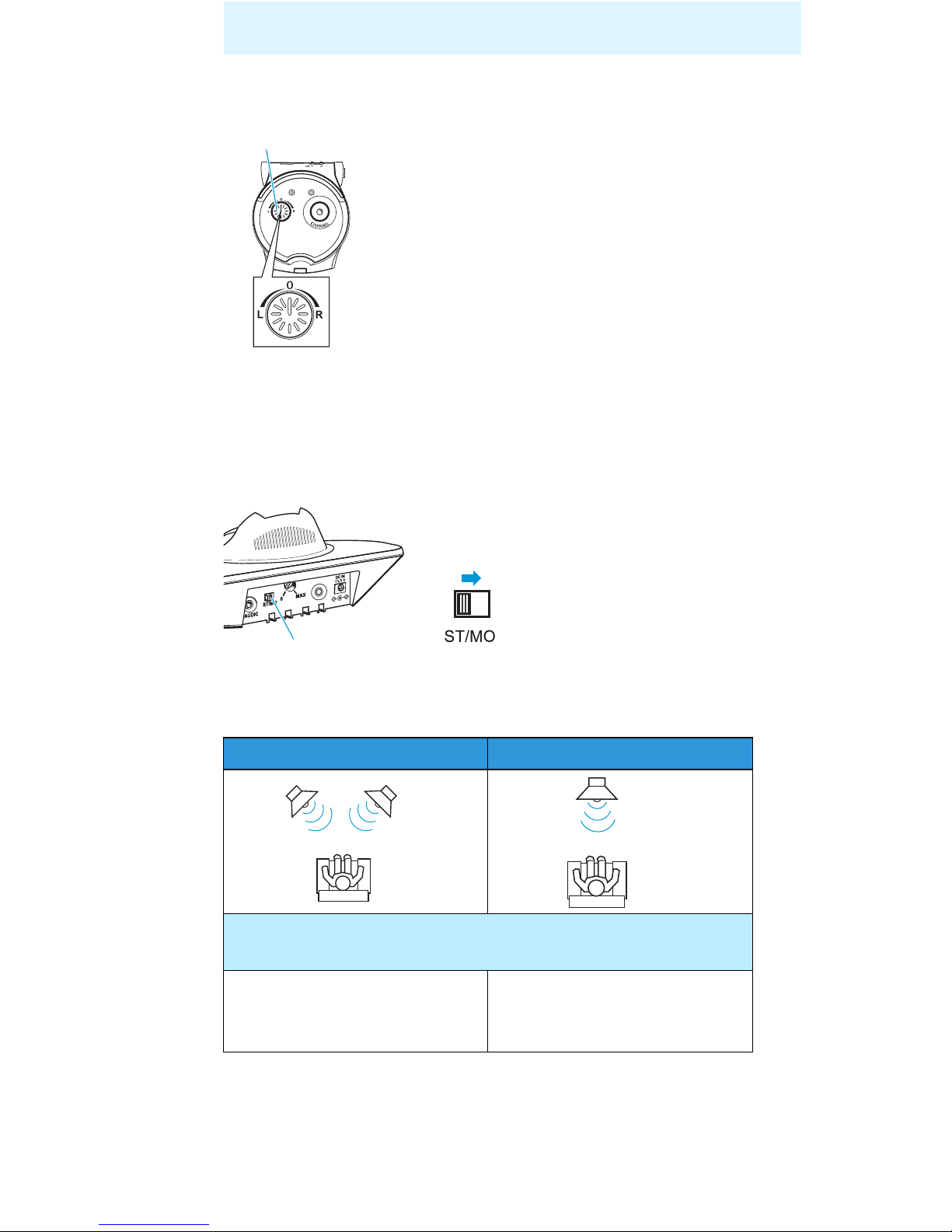

Adjusting the balance ..................................................... 17
Switching between mono and stereo operation ........ 17

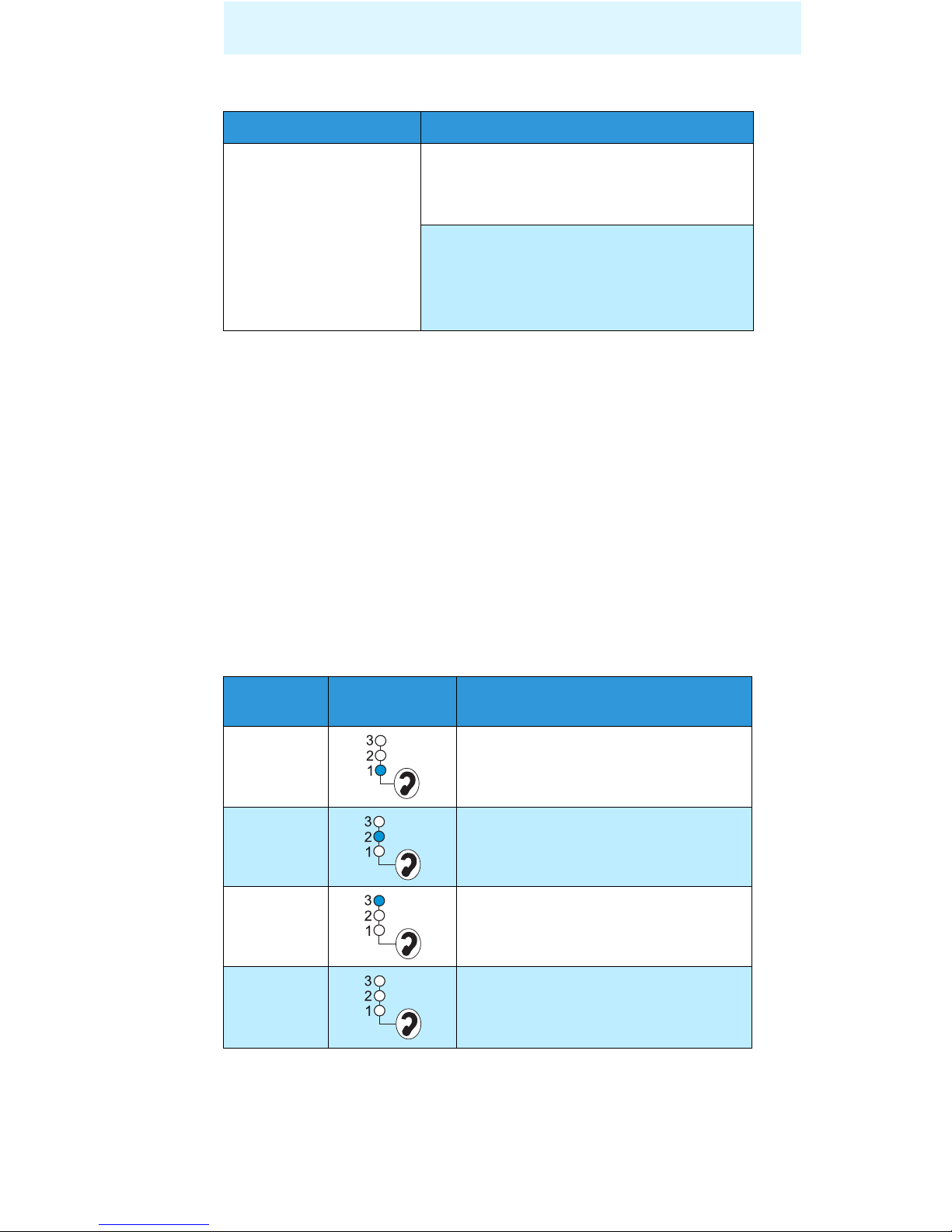

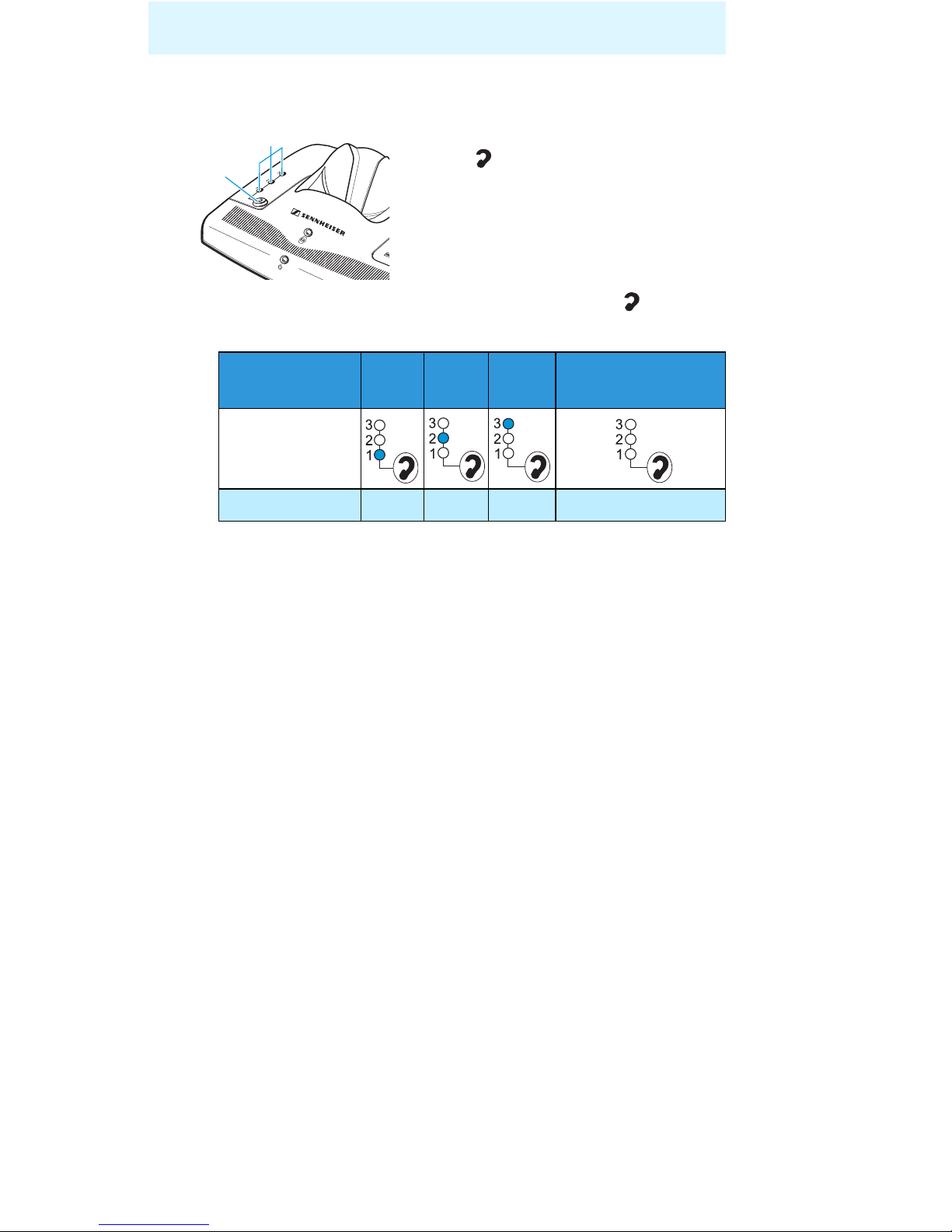

Individually enhancing the speech intelligibility ....... 18

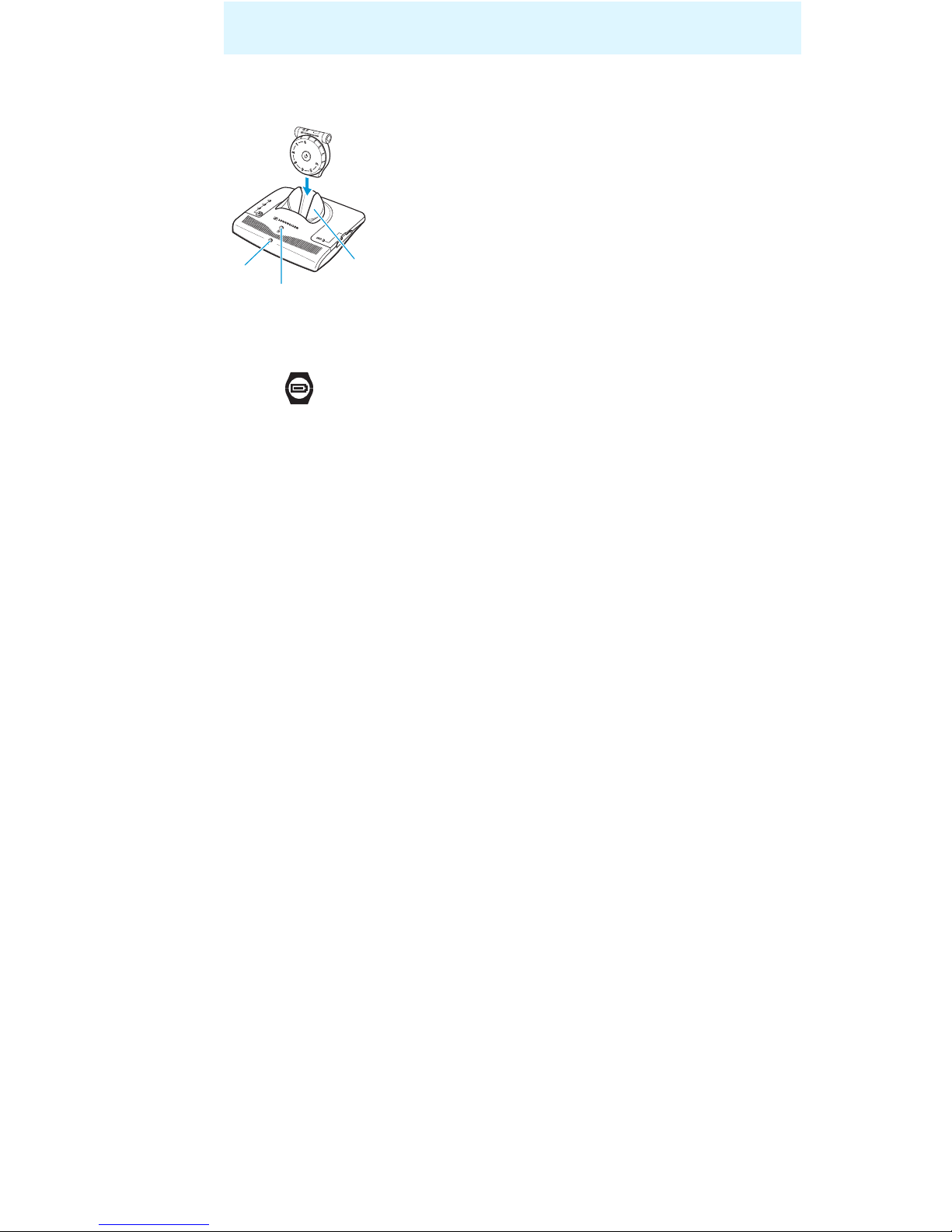

Storing and charging the receiver ................................ 19
Charging a rechargeable battery in the
transmitter’s charging compartment .......................... 20
What if... ................................................................................. 21
...this indicator lights up? ............................................... 21
...you press this button? ................................................. 21
...you change the position of this control/switch? .... 22

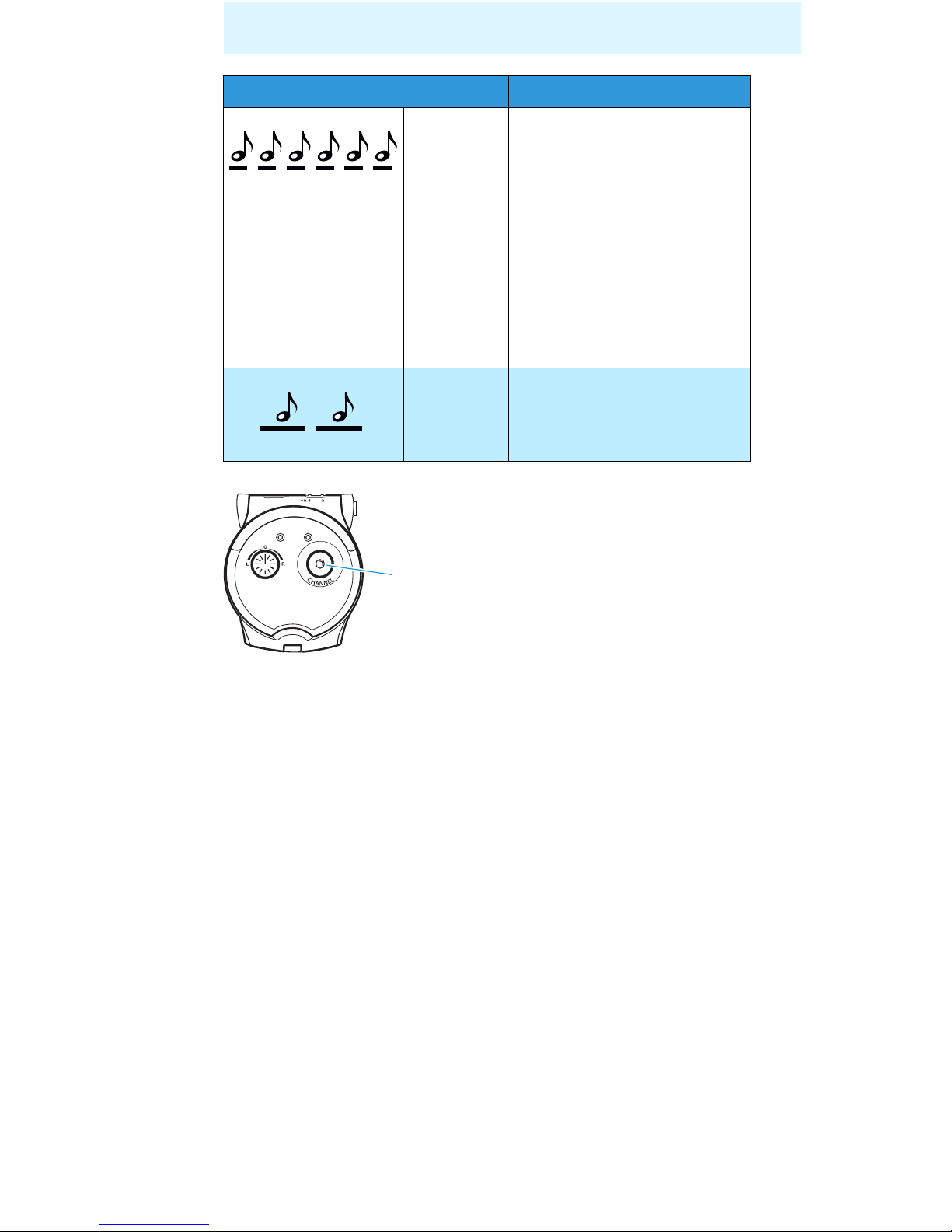

...you hear acoustic signals or warning signals? ........ 22
Cleaning the Set 830 S ........................................................ 24
Cleaning the transmitter and the receiver .................. 24
If a problem occurs ... ........................................................... 24
Additional technical information ...................................... 27

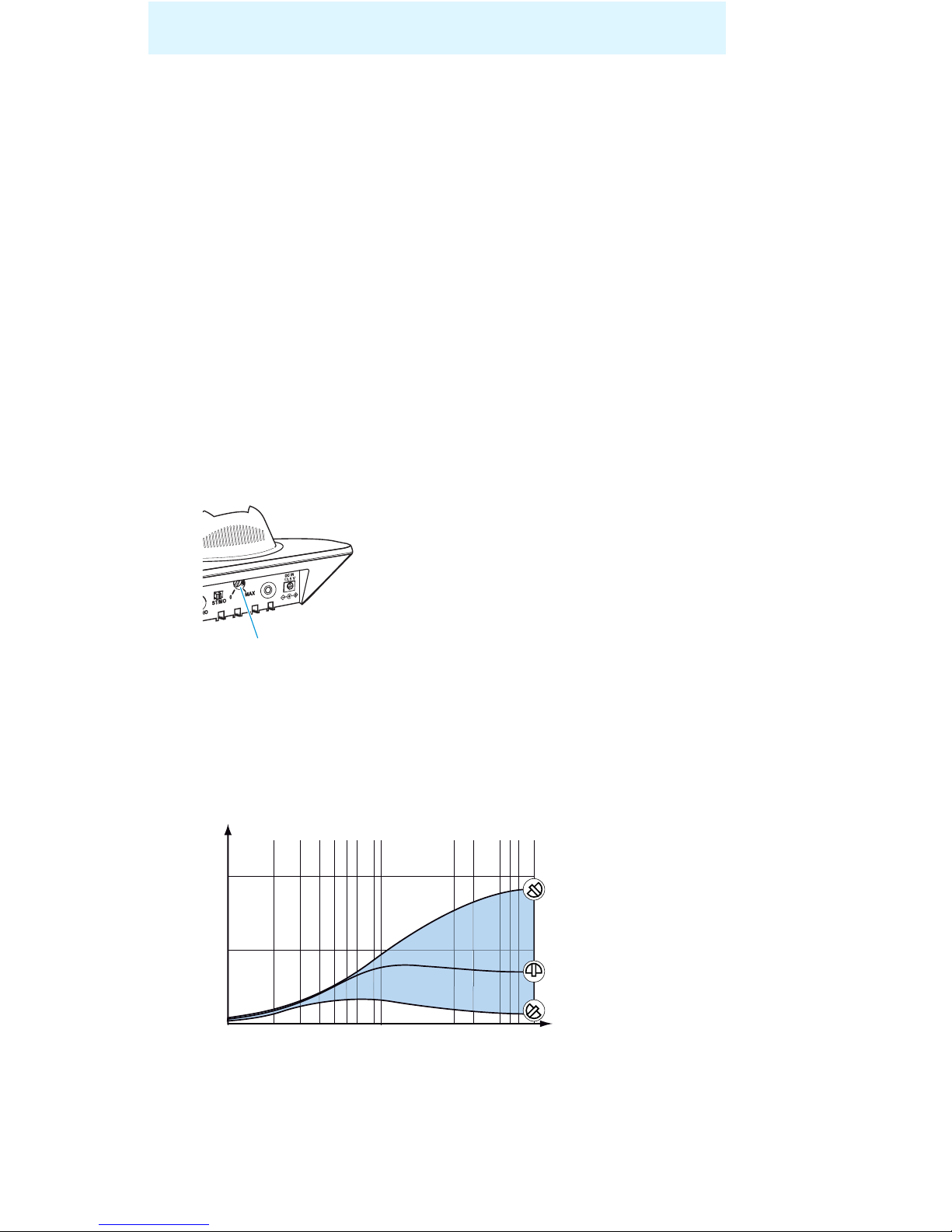

Fine adjusting the speech intelligibility ........................ 27
Changing the operating mode ........................................ 28
Accessories and spare parts ............................................... 30
Specifications ........................................................................ 32
Manufacturer Declarations ................................................. 34
Index ........................................................................................ 36
Page 6
2
Safety instructions
Safety instructions
• Please read this instruction manual carefully and completely before
using the devices.
• Make this instruction manual easily accessible to all users at all
times. Always include this instruction manual when passing the
devices on to third parties.
• Do not use the devices in situations which require special attention
(e.g. when performing skilled jobs).
• Always keep the devices dry and do not expose them to extreme
temperatures.
• Use the devices with care and set them up in a clean, dust-free
environment.
• Varnish or furniture polish may degrade the feet of the transmitter,
which could stain your furniture. You should therefore place the
transmitter on a non-slip pad to avoid potential staining of
furniture.
• Connected headphones contain magnets that generate a magnetic
field which could cause dangerous interference with cardiac pacemakers and implanted defibrillators. Keep connected headphones at
least 1.2” (3 cm) from cardiac pacemakers or implanted defibrillators.
• This receiver allows you to set higher volumes than conventional
headphones. This can cause hearing damage in persons with healthy
hearing and especially in children.
• Refer all servicing to qualified service personnel. Servicing is
required if the devices have been damaged in any way, liquid has
been spilled, objects have fallen inside, the devices have been
exposed to rain or moisture, do not operate properly or have been
dropped.
• WARNING: To reduce the risk of fire or electric shock, do not expose
the device and the mains unit to rain or moisture.
• Use only the supplied mains unit.
• Disconnect the mains connector from the wall socket
– to completely disconnect the device from the mains,
– during lightning storms or when unused for long periods of time.
• Ensure that the mains unit is
– always readily operable and easily accessible,
– properly plugged into the wall socket,
– not covered or exposed to direct sunlight for longer periods of
time in order to prevent heat accumulation,
– only operated within the permissible temperature range (see
“Specifications” on page 32),
– not operated near heat sources.
Page 7
3
Safety instructions
Intended use
Intended use includes:
• having read this instruction manual, especially the chapter “Safety
instructions”,
• using the devices within the operating conditions and limitations
described in this instruction manual.
“Improper use” means using the devices other than as described in this
instructions, or under operating conditions which differ from those
described herein.
Safety instructions for the Lithium-Polymer rechargeable battery
The BA 300 is a Lithium-Polymer rechargeable battery. If abused or
misused, this rechargeable battery may be damaged. Please understand that Sennheiser does not accept liability for damage arising from
abuse or misuse.
WARNING! In extreme cases, the rechargeable battery may even
present a
•heat hazard
•fire hazard
• explosion hazard
•smoke and gas hazard
Do not heat above
70°C/158°F, e.g. do
not expose to sunlight
or throw into a fire.
Only charge rechargeable
batteries with the appropriate Sennheiser chargers.
Do not expose to
moisture.
When not using the
rechargeable battery for
extended periods of time,
charge it regularly (every
six months for about one
hour).
Do not short-circuit. Only charge rechargeable
batteries at ambient
temperatures between
10°C/50°F and
40°C/104°F.
Do not mutilate or
dismantle.
Do not charge the
rechargeable battery if the
device is obviously defective.
!
Store the devices/
rechargeable batteries
in a cool and dry place
at room temperature.
Return defective devices or
exhausted rechargeable
batteries to your specialist
dealer.
Page 8
4
Delivery includes
Delivery includes
Delivery of the Set 830 S system includes:
1 RI 830 S receiver
with BA 300 Lithium-Polymer rechargeable battery
1 TI 830 transmitter with integrated charging
compart-ments
1 EZT 3011 induction loop
1 NT 13 mains unit with
3 country adapters (EU, UK, US)
1 connection cable
with two 3.5 mm stereo jack plugs
for connection to a headphone socket
3 audio adapters:
1 adapter 3.5 mm to
¼“ (6.3 mm) jack plug
1 adapter for RCA socket
1 adapter for SCART socket
1lanyard
1 clip for attaching the receiver
1 instruction manual
Page 9
5
Product overview
Product overview
The overview pictures of the receiver and the transmitter
can be found on the inside front cover of this instruction
manual.
Receiver
1 Channel indicator
2 Volume control
3 On/off button
4 Balance control
5 Channel search button
6 Battery compartment
7 Socket for headphones,
induction loop or
connection cable to
hearing aid
Transmitter
8 Charging compartment for receiver
9 Charging compartment for optional spare rechargeable
battery
0 Charging indicator for optional spare rechargeable
battery
A Charging indicator for receiver’s rechargeable
battery
B Operation indicator
C “Speech intelligibility” button
D Indicator for the selected speech intelligibility
E Socket (marked blue) for connection of sound source or
external microphone
F Mono/stereo slide switch
G Treble adjustment control
H DC socket (marked yellow) for connection of mains unit
I
II
Page 10
6
Putting the Set 830 S into operation
Putting the Set 830 S into operation
Setting up the transmitter
왘 Place the transmitter so that:
– there are no obstacles in the light path between trans-
mitter and receiver and
– transmitter and receiver are not exposed to direct
sunlight. Direct sunlight may interfere with the reception and may damage the transmitter.
If you are using a plasma TV screen:
Plasma TV screens radiate an infra-red signal that can
adversely affect the transmission quality.
왘 Make sure that the transmitter is placed as far as
possible from your plasma TV screen.
왘 If necessary, use a standard extension cable (3.5 mm
stereo jack plug) to reduce the distance between transmitter and receiver. This extension cable is available from
your Sennheiser dealer.
Note:
One transmitter can be used to transmit to several
receivers on the same frequency.
Page 11
7
Putting the Set 830 S into operation
Connecting the transmitter to a sound source
왘 Switch your sound source (e.g. TV) off before connecting
the transmitter.
왘 Plug one end of the connection cable I into the blue
socket
E of the transmitter.
왘 Check the available connection possibilities of your
sound source (e.g. TV).
왘 Connect the transmitter as described in the corre-
sponding chapter , , or .
Note:
– If there are several connections ( , or ) avail-
able, select the SCART socket .
– SCART adapter and microphone are also available as
accessories (see page 30).
Connection possibility Name of connection possibility
Headphone socket
RCA socket
SCART socket
MKE 800 TV-N
external microphone
E
I
A
B
LR
C
D
ABCDABC
C
Page 12
8
Putting the Set 830 S into operation
Connecting the transmitter to a headphone socket
왘 Adjust the volume of the headphone socket on your
sound source to a medium level.
This improves the quality of cordless sound transmission.
For detailed information, please refer to the instruction
manual of your sound source (e.g. TV).
Note:
With most TVs, the headphone socket is located at the
front or sides.
Connecting the transmitter to an RCA socket
Notes:
– With most TVs, the RCA socket is located at the rear.
– If your TV has several RCA sockets, use the socket RCA
output.
왘 Plug the other end of the connection
cable I into the head-phone socket
on your sound source.
Is the plug on the connection cable
too small for the headphone socket?
왘 Plug the adapter to ¼“ (6.3 mm) jack
socket J onto the connection cable.
왘 Plug the adapter for RCA
socket K onto the connection
cable I.
왘 Connect the red connector of
the adapter K to the red RCA
socket R of your sound source.
왘 Connect the white connector of
the adapter K to the white
or black RCA socket L of your
sound source.
A
I
J
B
I
K
Page 13
9
Putting the Set 830 S into operation
Connecting the transmitter to a SCART socket
Note:
If your TV has several SCART sockets, use the socket
SCART output.
Using the MKE 800 TV-N external microphone
What if your sound source doesn’t have any of the connections mentioned above?
You can then use the optional MKE 800 TV-N microphone
(see page 30).
What if your sound source mutes the external loudspeakers if you use one of the connections mentioned
above?
왘 Via the operating menu of your TV, check if the muting
can be deactivated.
왘 If the muting persists, use the optional MKE 800 TV-N
microphone (see page 30) instead of the connection
cable.
To connect the MKE 800 TV-N microphone:
왘 Directly connect the microphone to the blue socket E of
the transmitter.
왘 Position the microphone in front of the loudspeaker of
your sound source.
Note:
You can change the sound by varying the position of the
microphone in front of the loudspeaker.
왘 Plug the SCART adapter L
onto the connection cable I.
왘 Connect the SCART adapter L
to the SCART socket on your
TV.
C
L
I
D
Page 14
10
Putting the Set 830 S into operation
Connecting the transmitter to the mains
– If there is no audio signal from the sound source
for about 3 minutes, the transmitter automatically
switches off. The operation indicator goes off.
왘 Select the suitable country
adapter
N for your wall
socket.
왘 Slide the supplied country
adapter onto the mains
unit M.
왘 Connect the yellow connector
of the mains unit to the yellow
socket H of the transmitter.
왘 Plug the mains unit M into a
wall socket.
The operation indicator B
on the transmitter lights up
green.
Notes:
– When connecting the transmitter to the mains
for the first time, charge the rechargeable
battery for 3 hours as described in the chapter
“Storing and charging the receiver” on
page 19.
EU
UK
US
N
M
H
M
3h
Page 15
11
Putting the Set 830 S into operation
Connecting headphones or the induction loop for
hearing aids to the receiver
The socket 7 of the receiver allows you to connect
• the supplied induction loop
Q,
• headphones or
• a connection cable to your hearing aid.
Connecting the induction loop
왘 Carefully remove the clip O from the receiver.
왘 Attach the clip of the induction loop as shown.
왘 Connect the induction loop Q to the socket 7 of the
receiver.
왘 Set your hearing aid to position “T”.
If your hearing aid has no position “T”, please contact your
hearing aid acoustician.
Note:
For alternative connection possibilities to your hearing
aid as well as the connection to cochlea implants, please
contact your hearing aid acoustician.
7
Q
Page 16
12
Putting the Set 830 S into operation
Connecting headphones
왘 Connect the 3.5 mm jack plug of the headphones to the
socket
7 of the receiver.
Wearing the receiver
In order to wear the receiver, you can use the supplied
lanyard P, the clip O or the supplied induction loop Q.
The induction loop is suitable for users of hearing aids, the
lanyard and the clip are useful if you are using headphones.
Wearing the receiver around the neck
If you want to wear the receiver around your neck, use
• the supplied lanyard P or
• the connected induction loop Q (where applies).
To attach the lanyard P:
왘 Connect the fasteners of the
lanyard P to the metal ring at the
rear of the receiver.
왘 Wear the receiver around your
neck, with the Sennheiser logo
facing away from your body.
7
P
Page 17
13
Putting the Set 830 S into operation

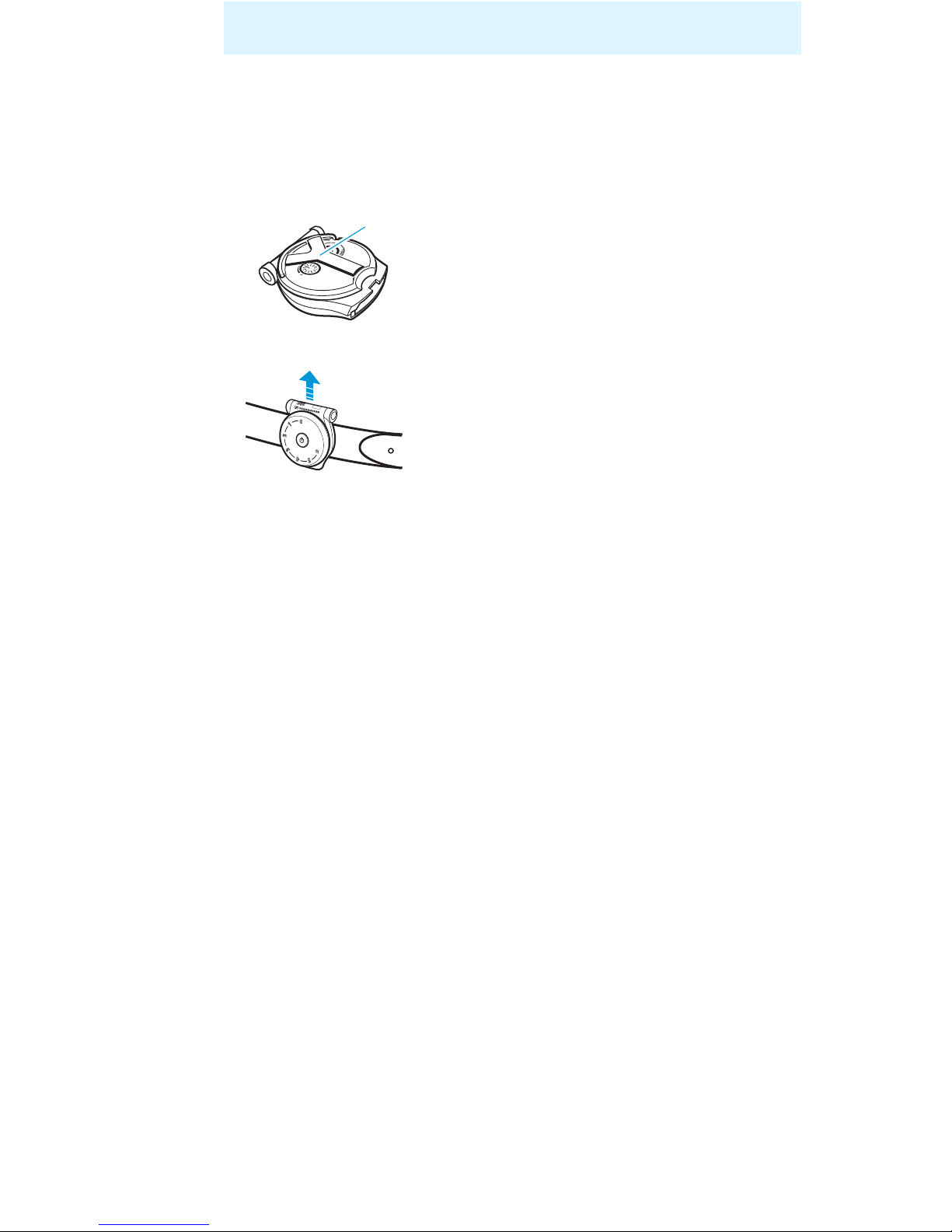

Attaching the receiver to clothing or belt
If you want to attach the receiver to your clothing or belt,
use the attachment clip O.
To attach the receiver:
To remove the receiver:
왘 Attach the clip O to your clothing
or belt.
왘 Pull the clip O with the receiver
away from your clothing or belt.
O
Page 18
14
Using the Set 830 S system
Using the Set 830 S system
To switch the Set 830 S system on, proceed as follows:
Switching the transmitter on/off
To switch the transmitter on:
왘 Switch your sound source on.
The transmitter automatically switches on. The operation indicator B lights up green.
If the transmitter doesn’t switch on:
왘 Read the chapter “If a problem occurs ...” on page 24.
To switch the transmitter off:
왘 Switch your sound source off.
The transmitter automatically switches off after
3 minutes. The operation indicator B goes off.
To disconnect the transmitter from the mains:
왘 Pull out the mains connector from the wall socket.
Note:
When not using the transmitter for extended periods of
time (e.g. when you are on holiday), pull out the mains
connector from the wall socket. In this case, however, the
receiver’s rechargeable battery will not be recharged.
Sequence of steps Page
1. Switch your sound source (e.g. TV) on.
The transmitter automatically switches on.
14
2. Adjust the volume on the receiver to a low
level.
15, 16
3. Switch the receiver on. 15
4. Adjust the desired volume on the receiver. 16
Page 19
15
Using the Set 830 S system

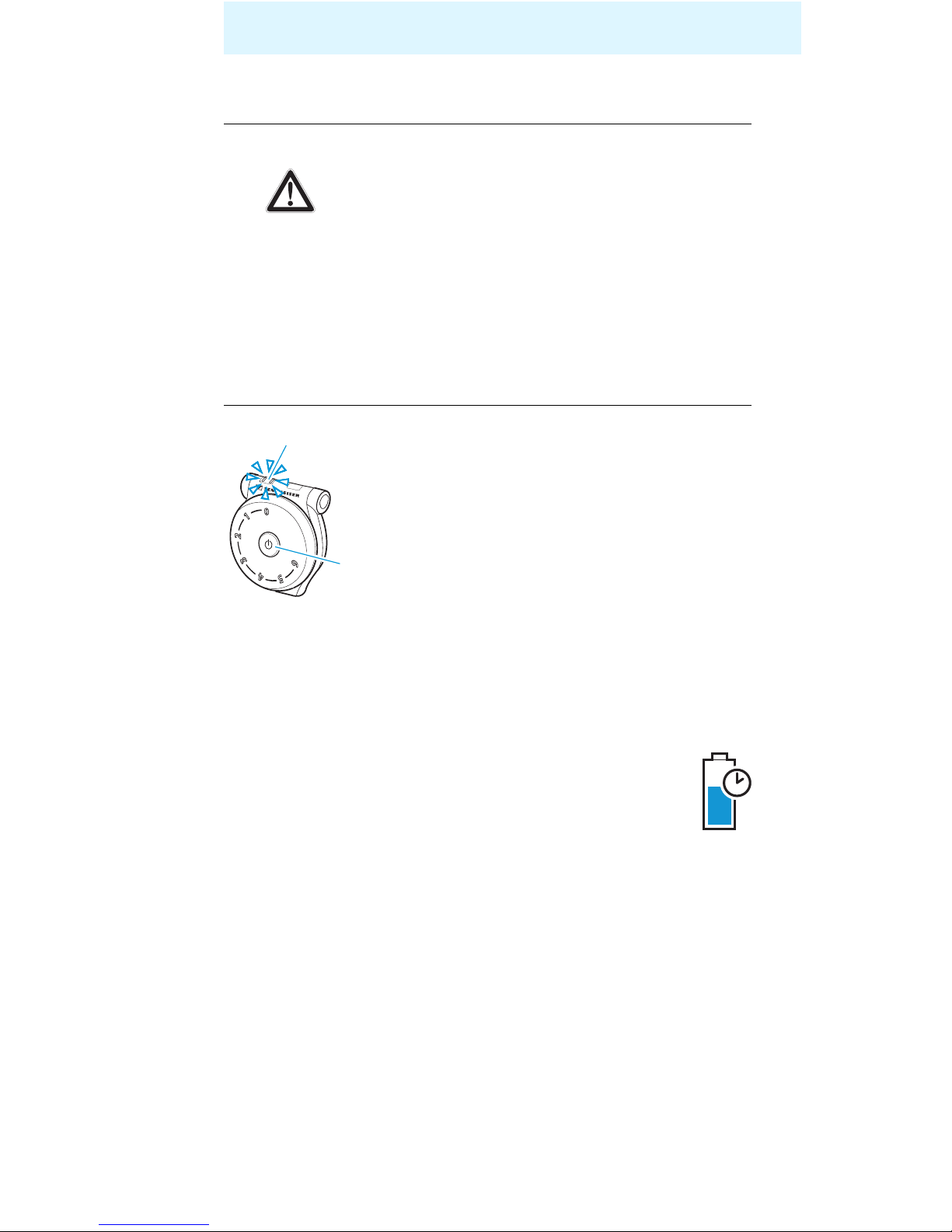

Switching the receiver on/off
To switch the receiver off:
왘 Press the on/off button 3 until the channel indicator 1
goes off.
Hearing damage due to high volumes!
This receiver allows you to set higher
volumes than conventional headphones.
This can cause hearing damage in persons
with healthy hearing and especially in children.
왘 Before using the receiver, set the volume
on the receiver to a low level.
왘 Do not continuously expose yourself to
high volumes.
To switch the receiver on:
왘 Press the on/off button 3 until the
channel indicator 1 lights up.
The channel indicator 1 goes off after
30 seconds.
Notes:
– For how to store and charge the receiver,
seepage19.
– If you are not within the range of the trans-
mitter, the receiver automatically switches off
after 3 minutes.
CAUTION!
1
3
3h
Page 20
16
Using the Set 830 S system
Adjusting the volume
Searching for a sound source
왘 Switch the receiver on.
Do you hear the desired sound source?
Yes: The receiver has already found the sound source.
왘 If you have not yet found your sound source, press the
channel search button once more.
If you still cannot find your sound source:
왘 Read the chapter “If a problem occurs ...” on page 24.
Note:
The channel indicator goes off after 30 seconds so
that the light won’t disturb you in a dark room.
왘 Use the volume control
2 to
adjust
the volume to a sufficient and
comfortable level.
No:
왘 Briefly press the channel search
button 5.
The sound source is searched for.
On the receiver, the channel indicator 1 can light up as follows:
Channel
indicator Frequency
You hear the
sound in
2.3+2.8 MHz stereo
2.,3 MHz
mono
2.8 MHz
5
1
Page 21
17
Using the Set 830 S system
Adjusting the balance
Switching between mono and stereo operation
If, despite a correct balance adjustment, you can hear the
sound only with one ear:
Meaning of the terms “mono” and “stereo”
The balance control allows for right/left
volume adjustment. Adjust the balance
so that you hear equally well with both
ears.
왘 Turn the balance control 4 to the left L
or right R in order to increase the
volume for the corresponding ear.
왘 Set the ST/MO switch F of the
transmitter to MO (mono).
Stereo (ST) Mono (MO)
Example: L: Speech from the left
R: Music from the right
You hear speech from the
left and music from the
right.
You hear speech and music
coming from the front.
4
F
LR
L + R
Page 22
18
Using the Set 830 S system
Individually enhancing the speech intelligibility
왘 Press the “speech intelligibility” button C until the
sound is optimally adjusted to your needs.
If necessary, you can have the speech intelligibility fine
adjusted to your hearing ability (see page 27).
The “speech intelligibility” button C allows you to adjust the
sound to your individual needs.
Try out which setting works best
for you.
Press the
button 1 x 2 x 3 x 4 x
Indicator D
is lit yellow
Setting 1 2 3 Default setting
D
C
Page 23
19
Using the Set 830 S system
Storing and charging the receiver
Notes:
– With a fully charged battery, the operating time is up
to 12 hours.
– If you have several receivers, they can be used during
charging.
– Always store the receiver in the transmitter’s charging
compartment 8 to ensure that it is fully charged.
The intelligent battery charging technology prevents
over-charging.
왘 After use, place the receiver into
the transmitter’s charging compartment 8 without exerting too much
pressure.
The receiver automatically switches
off.
When the receiver is placed correctly
into the charging compartment, the
indicator
A lights up:
red: The battery is being charged.
green: The battery is fully charged.
8
B
A
Page 24
20
Using the Set 830 S system

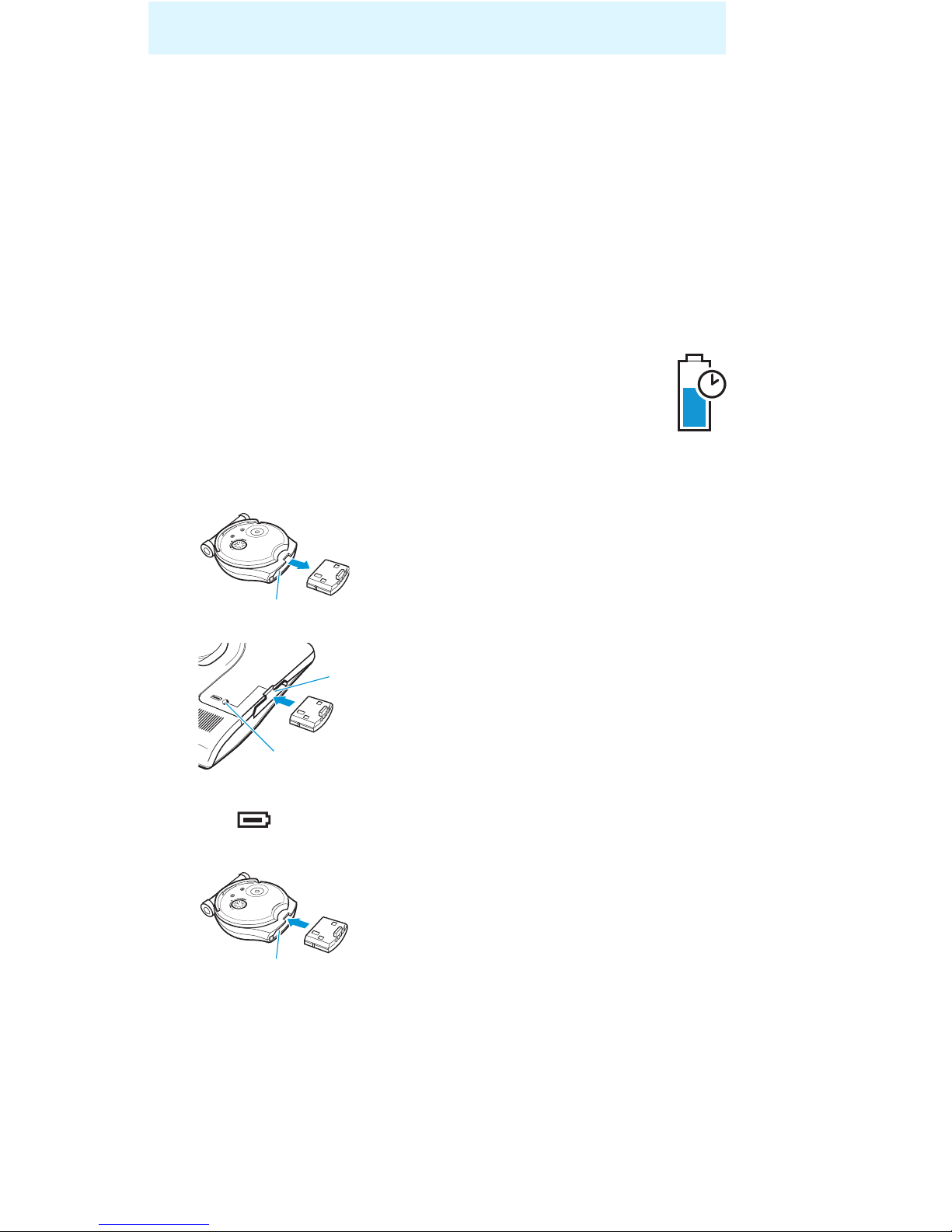

Charging a rechargeable battery in the
transmitter’s charging compartment
You can charge the receiver’s rechargeable battery or a
spare BA 300 rechargeable battery (not included in the
delivery of the Set 830 S) in the charging compartment
9
at the side of the transmitter.
The spare battery offers extended listening time while the
discharged first battery is being recharged.

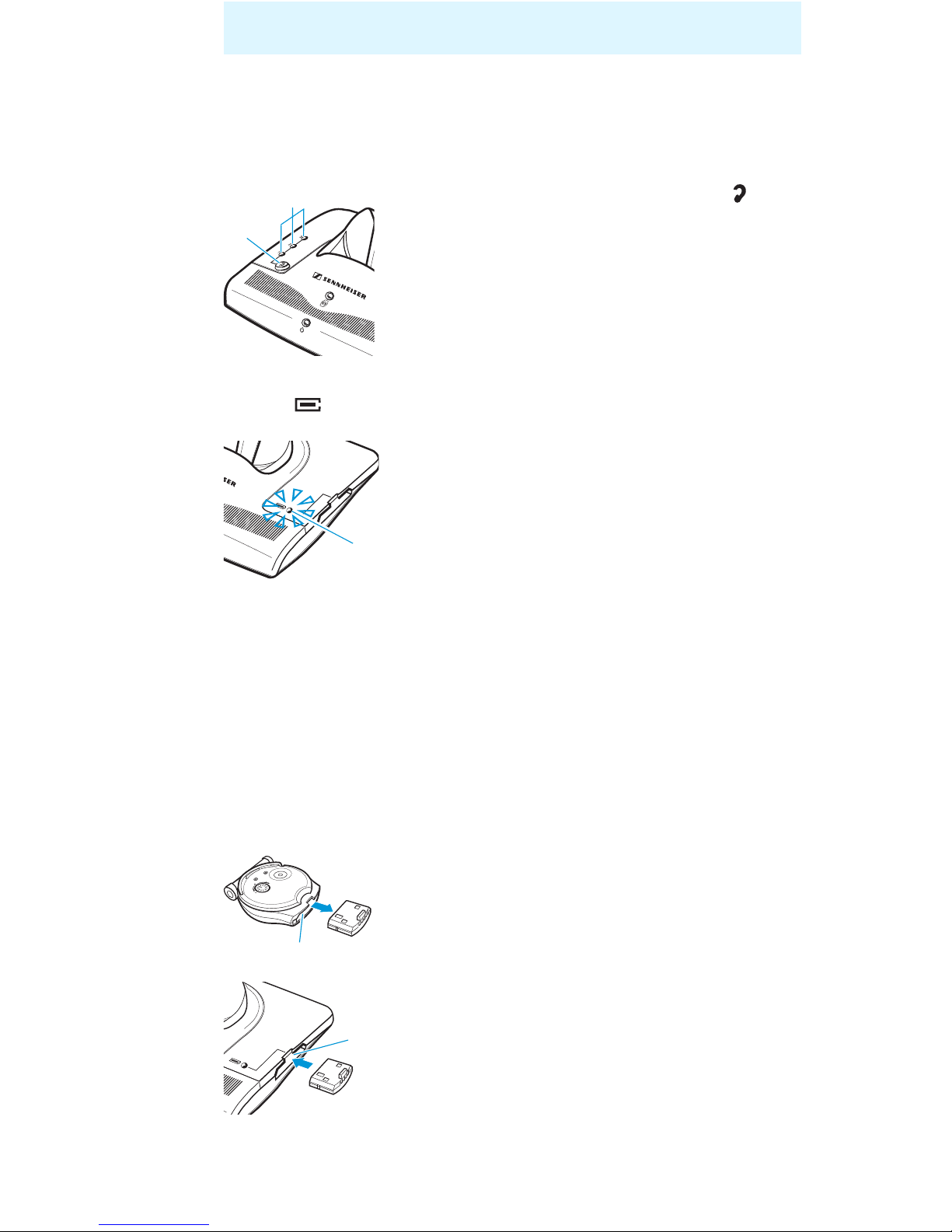

Removing and charging the receiver’s battery
Note:
Before using the spare rechargeable battery for
the first time, charge it for at least 3 hours.
To remove the receiver’s battery:
왘 Pull the battery out of the receiver’s
battery compartment 6.
왘 Insert the receiver’s battery into the
charging compartment 9 at the side
of the transmitter as shown.
When the battery is inserted correctly,
the indicator 0 lights up:
red: The battery is being charged.
green: The battery is fully charged.
왘 Slide the battery into the receiver’s
battery compartment 6 as far as it
will go.
3h
6
9
0
6
Page 25
21
What if...
What if...
...this indicator lights up?
...you press this button?
Indicator Status Meaning
Channel
indicator 1
on the receiver
lit yellow Receiver has just been
switched on or a button
has just been pressed.
off Receiver is switched on
for more than 30 secs.
and no button has been
pressed.
Receiver is switched off.
Operation
indicator B
on the transmitter
lit green Transmitter is switched
on.
off Transmitter is switched
off.
Charging
indicator A
Charging
indicator 0
lit red Rechargeable battery is
being charged.
lit green Rechargeable battery is
fully charged.
“Speech
intelligibility”
indicator D on
the transmitter
lit yellow Speech intelligibility
enhancement is
switched on.
off Speech intelligibility
enhancement is
switched off.
Button Function Page
Channel search
button 5 on
the receiver
Searches for the sound source
or a different channel.
16
“Speech
intelligibility”
button C
on the transmitter
Selects one of the possible
settings in order to individually enhance the speech
intelligibility.
18
Page 26
22
What if...
...you change the position of this control/switch?
...you hear acoustic signals or warning signals?
Control/switch Function Page
Volume control 2
on the receiver
Reduces or increases the
volume of the receiver.
16
Balance control 4
on the receiver
Increases the volume for the
left or the right ear.
17
Mono/stereo slide
switch F on the
transmitter
Sets the transmitter to mono
or stereo operation.
17
Treble adjustment control G
on the transmitter
Treble adjustment is only to
be made by a hearing aid
technician / an expert.
28
Acoustic signal Meaning
3 ascending beeps
The receiver has just
been switched on.
2 descending beeps
The receiver has just
been switched off.
1 acknowledgement
beep
The channel search
button has been
pressed once briefly.
The channel search
button has been
pressed for
5 seconds.
1–2 short beeps
The receiver is set to
channel 1 or 2.
Page 27
23
What if...
Note:
Warning signals cannot be switched off.
Warning signal Meaning
6 short
beeps
The receiver does not
receive any signal from
the transmitter:
• The distance between
transmitter and
receiver is too great.
The receiver switches
off after 3 minutes.
• The transmitter is
switched off.
2 long
beeps
The rechargeable battery
is almost flat.
To switch the acoustic signals on
and off:
왘 Press the channel search
button 5 of the receiver for
approx. 5 seconds.
You hear a short acoustic signal.
5
Page 28
24
Cleaning the Set 830 S
Cleaning the Set 830 S
Cleaning the transmitter and the receiver
왘 Before cleaning, disconnect the transmitter from the
mains.
왘 Use only a slightly damp cloth to clean the devices.
If a problem occurs ...
The transmitter does not switch on
Liquids can damage the electronics of the
devices!
Liquids entering the housing of the devices
can cause a short-circuit and damage the
electronics.
왘 Keep all liquids far away from the devices.
왘 Do not use any cleansing agents or
solvents.
Possible cause Solution
Is the mains unit
connected correctly?
Check the connection of the mains
unit to the transmitter and to the
mains (see page 10).
Is the sound source
switched on?
Switch your sound source on.
Is the volume of
the sound source
sufficient?
Set the volume on your sound
source to a medium level.
Is the transmitter
set to operating
mode 2 (see
page 29)?
Take the receiver out of the
charging compartment. The transmitter automatically switches on.
CAUTION!
Page 29
25
If a problem occurs ...
You cannot hear anything
Possible cause Solution
Is there a free line
of sight between
receiver and transmitter?
Remove obstacles in the light path
between receiver and transmitter.
Are transmitter and
receiver exposed to
direct sunlight?
Avoid exposure to direct sunlight.
Is the receiver still
within the transmitter’s range?
Move the receiver closer to the
transmitter. If necessary, switch
the receiver on again.
Are all connectors
connected correctly?
Check the connection between the
transmitter and your sound source
(see page 7).
Is the operation
indicator B lit?
Check if the transmitter is switched
on (see page 14).
Is the transmitter
set up the wrong
way round?
Set up the transmitter so that the
cables are guided away from the
receiver (see page 6).
Does the receiver’s
Sennheiser logo face
the transmitter?
Wear the receiver the right way
round, with the Sennheiser logo
facing the transmitter.
Is the volume of
the sound source
sufficient?
Set the volume on your sound
source to a medium level.
Is the volume of the
receiver sufficient?
Increase the volume by turning the
volume control 2 of the receiver
(see page 16).
Is the rechargeable
battery inserted
properly into the
receiver and fully
charged?
Check if the channel indicator 1
is lit. If it is not lit: recharge the
rechargeable battery (see
page 19).
Remove the rechargeable battery
and reinsert it into the receiver.
If this doesn’t help: recharge
the rechargeable battery
(see page 19).
Page 30
26
If a problem occurs ...
You hear the sound only with one ear
The sound of your sound source is hardly intelligible
Possible cause Solution
Is the balance
adjusted correctly?
Turn the balance control
4 to the
left or right (see page 17).
Is the transmitter
set to mono?
Set the mono/stereo switch F
on the transmitter to the left
(see page 17).
Possible cause Solution
Is the speech intelligibility enhancement out of adjustment?
Press the “speech intelligibility”
button C on the transmitter
until the sound is optimally
adjusted to your needs
(see page 18).
Do you use a plasma
TV screen?
Make sure that the transmitter is
placed as far as possible from your
plasma TV screen (see page 6).
Is the receiver still
within the transmitter’s range?
Move the receiver closer to the
transmitter. If necessary, switch
the receiver on again.
Page 31
27
Additional technical information
The loudspeakers of your TV are muted
If a problem occurs that is not listed in the above tables or if
the problem cannot be solved with the proposed solutions,
please contact your Sennheiser partner for assistance.
Additional technical information
Fine adjusting the speech intelligibility
The speech intelligibility can be enhanced individually on the transmitter (see page 18).
There are the following settings:
Possible cause Solution
Some TVs have a
function that mutes
the loudspeakers
when you connect a
transmitter.
Via the operating menu of your TV,
check if and how the muting can be
deactivated.
Use a different audio socket on
your TV or use the MKE 800 TV-N
external microphone (see “Accessories and spare parts” on page 30).
Setting
Indicator D lit
yellow
Fine adjustment
1 Compression
2 Treble boost
3 Compression and treble boost
Default
setting
No fine adjustment made
Page 32
28
Additional technical information
Compression (settings 1 and 3)
Deterioration of the ability to hear quiet sounds as well as loud ones is
a typical symptom of old age. Compression compensates for these
volume differences by boosting the volume of quiet sounds and
reducing the volume of loud sounds if necessary.
Compression seems to put the speech in the foreground, making it
easier to understand.
Compression is self-regulating; once it has been activated, it is not
necessary to make any other settings.
Treble boost (settings 2 and 3)
Another typical age-related phenomenon is the deterioration of the
hearing with regard to high frequencies. However, high frequencies are
important for the intelligibility of speech.
The treble boost makes the speech clearer and easier to understand.
With the treble boost (settings 2 and 3), additional fine adjustment is
possible using the treble boost control
G at the rear of the transmitter.
Function of the treble boost control
By means of the transmitter’s steplessly adjustable treble boost
control
G, the audio signal is boosted as shown in the diagram. The
treble boost control
G allows you to select one of the curves shown in
the diagram below.
왘 Use a screwdriver to turn the treble boost
control
G to the left or right until the sound
can be heard very well.
The position “0” corresponds to a minimum
boost, the position “MAX” corresponds to a
maximum boost, and the control is factorypreset to the medium position.
G
10
0,1 1 10
20
dB
kHz
„MAX“
„0“
Factory-preset setting
Page 33
29
Additional technical information
Changing the operating mode
The transmitter can be set to a different operating mode. This is useful
when the sound of your sound source is very low and the transmitter
therefore does not always switch on automatically.
Particularities of operating mode 2:
In operating mode 2, the transmitter is not switched on by the sound
signal from the sound source.
To switch the transmitter on:
왘 Take the receiver out of the charging compartment.
To switch the transmitter off:
왘 Place the receiver into the charging compartment.
If – in operating mode 2 – you want to use a second receiver and charge
its rechargeable battery during operation:
왘 Press the “speech intelligibility” button
C
for approx. 5 seconds.
The indicator
D goes off. The charging indi-
cator for the spare rechargeable battery
0
flashes several times:
red: operating mode 2
green: operating mode 1 (factory-preset)
If the operating mode was changed successfully, the charging indicator for the spare
rechargeable battery
0 goes off and the
indicator
D lights up again.
왘 Pull the battery out of the receiver’s battery
compartment
6.
왘 Slide the battery into the transmitter’s
charging compartment
9 as far as it will go.
D
C
0
6
9
Page 34
30
Accessories and spare parts
Accessories and spare parts
For the Set 830 S, the following receivers and stethoset
receivers are available from your specialist dealer:
CAUTION!
Danger of damage to the device!
Components from other manufacturers (e.g.
for power supply or rechargeable battery)
may cause damage to the device and will
invalidate the warranty!
왘 Use only original Sennheiser accessories
and spare parts.
Cat. No. Accessory/spare part
502021 RI 830 S receiver
502020 RI 830 stethoset receiver
502023 RI 900 stethoset receiver
Page 35
31
Accessories and spare parts
The following Set 830 S accessories are available from your
specialist dealer:
Cat. No. Accessory/spare part
500898 BA 300 spare rechargeable battery
502566 EZT 3011 induction loop
504061 EZT 3012 induction loop
003448 EZI 120 induction couplers
528185 Lanyard
528184 Clip for attaching the receiver
517627 Extension cable, 3 m (3.5 stereo jack plug)
500974 MKE 800 TV-N external microphone (mono)
502710 L 300 10-10 charger
HZL connection cables
001676 HZL 30-6
(3.5 mm jack plug to 1 mini-plug, 40 cm)
004658 HZL 30-600
(3.5 mm jack plug to 1 mini-plug, 60 cm)
001678 HZL 32-6
(3.5 mm jack plug to 2 mini-plugs, 40 cm)
004657 HZL 32-600
(3.5 mm jack plug to 2 mini-plugs, 60 cm)
002408 HZL 34-6E
(3.5 mm jack plug to 1 Euro plug, 40 cm)
004652 HZL 34-600E
(3.5 mm jack plug to 1 Euro plug, 60 cm)
002409 HZL 36-6E
(3.5 mm jack plug to 2 Euro plugs, 40 cm)
004653 HZL 36-600E
(3.5 mm jack plug to 2 Euro plugs, 60 cm)
Page 36
32
Specifications
Specifications
System
Modulation FM, stereo
Carrier frequencies 2.3 MHz/2.8 MHz
Frequency response 50 Hz–16,000 Hz
THD < 1 %
Charging time for
rechargeable battery approx. 3 hrs
Signal-to-noise ratio
(1 mV, peak deviation) typ. 75 dBA
Operating temperature 10 °C to 40 °C
Transmitter
Range up to 12 m within a room
Audio/microphone
connection 3.5 mm stereo jack socket
Power supply 13.5 V DC/500 mA
via NT 13 mains unit
Weight approx. 260 g
Dimensions approx. 112 x 146 x 58 mm
Receiver
Audio connection 3.5 mm stereo jack socket
Power supply via BA 300 rechargeable Li-Pol
battery (3.7 V / 150 mAh)
Operating time up to 12 hours
Weight approx. 50 g (Incl. BA 300)
Dimensions approx. 70 x 60 x 25 mm
Page 37
33
Specifications
The NT 13 mains unit is certified in accordance with the
legal safety requirements of Europe, the United States,
Canada, Russia and Japan.
The devices comply with the following standards:
NT 13 mains unit
Nominal input voltage 100 V~ to 240 V~
Mains frequency 50–60 Hz
Max. power consumption 2.4 W (incl. battery charging)
Nominal output voltage 13.5 V DC
Nominal output current 500 mA
Standby consumption approx. 0.9 W
(w/o battery charging)
Ambient temperature +5°C to +40°C
Europe EMC: EN 55013, EN 55020
Safety: EN 60065, EN 61558, EN 60950
USA 47CFR15_B
Canada IC ICES-003
Page 38
34
Manufacturer Declarations
Manufacturer Declarations
Warranty
Sennheiser GmbH & Co. KG gives a warranty of 24 months
on this product.
For the current warranty conditions, please visit our web
site at www.sennheiser.com or contact your Sennheiser
partner.
Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant provisions of Directives
2004/108/EU and 2006/95/EU.
The declaration is available at www.sennheiser.com.
Batteries and rechargeable batteries
Please dispose of exhausted batteries and rechargeable batteries as special waste or return them to your
specialist dealer.
WEEE Declaration
Please dispose of this product at the end of its operational lifetime by taking it to your local collection
point or recycling centre for such equipment.
Statements regarding FCC and Industry Canada
This device complies with Part 15 of the FCC Rules and with
RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Page 39
35
Manufacturer Declarations
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This class B digital device complies with the Canadian
ICES-003.
Changes or modifications made to this equipment not
expressly approved by Sennheiser electronic Corp. may
void the FCC authorization to operate this equipment.
Before putting the device into operation, please observe
the respective country-specific regulations!
Page 40
36
Index
Index
Receiver
Adjusting the balance 17
Adjusting the volume 16
Attaching the receiver to clothing 13
Channel indicator (meaning) 21
Cleaning 24
Indicators (meaning) 21
No sound signal 25
Operating time 19
Sound only audible with one ear 26
Storing and charging the receiver 19
Switching the acoustic signals off 23
Switching the receiver on/off 15
Rechargeable battery
Replacing and charging the rechargeable battery 20
Special functions
Changing the operating mode 28
Fine adjusting the speech intelligibility 27
Treble boost control 28
Terms
Compression/treble boost 27
Mono/stereo 17
Transmitter
Cleaning 24
Connection to a headphone socket 8
Connection to a SCART socket 9
Connection to a sound source 7
Connection to an RCA socket 8
Connection to the mains 10
Enhancing the speech intelligibility 18
Installation 6
Operation indicator (meaning) 21
Switching between mono and stereo operation 17
Switching the transmitter on/off 14
Troubleshooting 24
Using the MKE 800 TV-N external microphone 9
Page 41
Page 42
Sennheiser electronic GmbH & Co. KG Printed in China
Am Labor 1, 30900 Wedemark, Germany Publ. 04/09
www.sennheiser.com 5282 /A0251
Loading...
