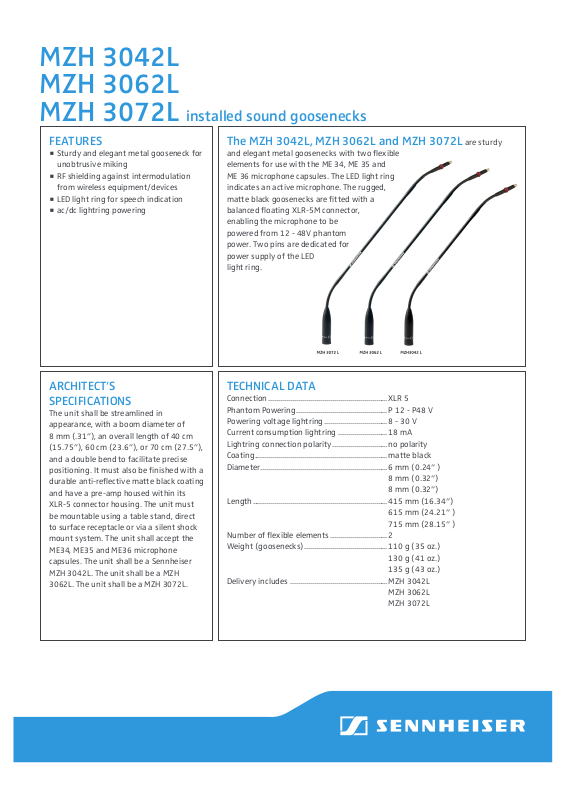

Sennheiser MZH 3062-L, MZH 3072-L, MZH 3042 L Datasheet

MZH 3042L MZH 3062L MZH 3072L installed sound goosenecks

FEATURES



Sturdy and elegant metal gooseneck for unobtrusive miking



RF shielding against intermodulation from wireless equipment/devices



LED light ring for speech indication



ac/dc lightring powering

ARCHITECT’S SPECIFICATIONS

The unit shall be streamlined in appear ance, with a boom diameter of 8 mm (.31”), an overall length of 40 cm (15.75”), 60 cm (23.6”), or 70 cm (27.5”), and a double bend to facilitate precise positioning. It must also be ﬁnished with a durable anti-reﬂective matte black coating and have a pre-amp housed within its XLR-5 connector housing. The unit must be mountable using a table stand, direct to surface receptacle or via a silent shock mount system. The unit shall accept the ME34, ME35 and ME36 microphone capsules. The unit shall be a Sennheiser MZH 3042L. The unit shall be a MZH 3062L. The unit shall be a MZH 3072L.

The MZH 3042L, MZH 3062L and MZH 3072L are sturdy

and elegant metal goosenecks with two ﬂexible elements for use with the ME 34, ME 35 and ME 36 microphone capsules. The LED light ring indicates an active microphone. The rugged, matte black goosenecks are ﬁtted with a balanced ﬂoating XLR-5M connector, enabling the microphone to be powered from 12 - 48V phantom power. Two pins are dedicated for power supply of the LED light ring.

TECHNICAL DATA

Connection ............................................................ XLR 5

Phantom Powering .............................................. P 12 - P48 V

Powering voltage lightring ................................8 - 30 V

Current consumption lightring .........................18 mA

Lightring connection polarity ............................ no polarity

Coating ...................................................................matte black

Diameter ................................................................ 6 mm (0.24“ )

8 mm (0.32“) 8 mm (0.32“)

Length .................................................................... 415 mm (16.34“)

615 mm (24.21“ )

715 mm (28.15“ )

Number of ﬂexible elements .............................2

Weight (goosenecks) .......................................... 110 g (35 oz.)

130 g (41 oz.)

135 g (43 oz.)

Delivery includes ................................................. MZH 3042L

MZH 3062L

MZH 3072L

MZH 3042L MZH 3062L MZH 3072L installed sound goosenecks

Contact your local Service Partner:

DIMENSIONS

CONNECTIVITY

LED

(9 - 30 V DC

any polarity)

PRODUCT VARIANTS

MZH 3042-L, black Cat. No. 009437 MZH 3062-L, black Cat. No. 504609 MZH 3072-L, black Cat. No. 504610

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com

Mic –

Mic +

RECOMMENDED ACCESSORIES

MZT 30L, installation XLR5F connector Cat. No. 009446 MZS 31, shockmount Cat. No. 005087
