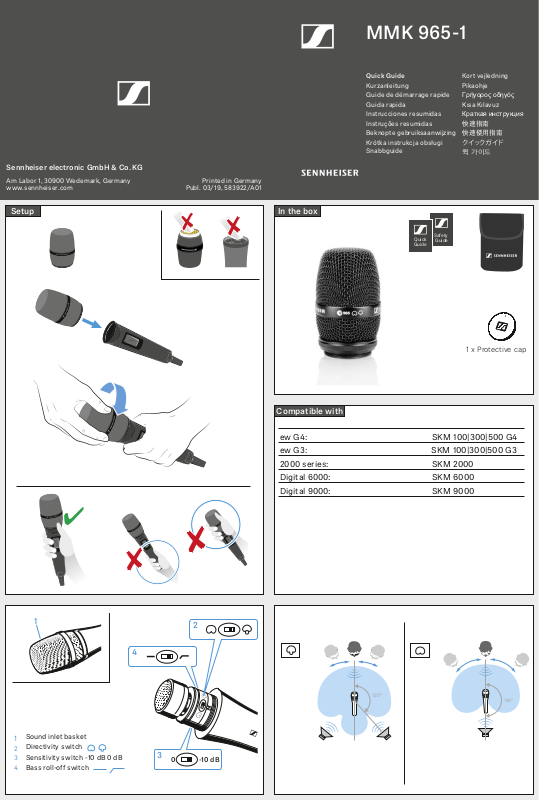

Page 1
MMK 965-1
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Setup
Printed in Germany
Publ. 03/19, 583922/A01
In the box
Quick Guide
Kurzanleitung
Guide de démarrage rapide
Guida rapida
Instrucciones resumidas
Instruções resumidas
Beknopte gebruiksaanwijzing
Krótka instrukcja obsługi
Snabbguide
Safety
Quick
Guide
Guide
Kort vejledning
Pikaohje
Γρήγορος οδηγός
Kısa Kılavuz
Краткая инструкция
快速指南
快速使用指南
クイックガ イド
퀵 가이드
1 x Protective cap
Compatible with
ew G4:
ew G3:
2000 series:
Digital 6000:
Digital 9000:
1
2
SKM 100|300|500 G4
SKM 100|300|500 G3
SKM 2000
SKM 6000
SKM 9000
4
Sound inlet basket
1
Directivity switch
2
Sensitivity switch -10 dB 0 dB
3
Bass roll-off switch
4
120°
3
-10 dB0
180°
Page 2
Cleaning
Accessories
*
MZW 5000
– 20 dB
Polar pattern and frequency response
*MZW 5000 not included
Specifications
Transducer principle
Pick-up pattern
Sensitivity
with preattenuation
Max. SPL at 1 kHz
with preattenuation
Dynamic range
Diameter of diaphragm
Frequency response
Equivalent noise level
A-weighted (DIN IEC 651)
Weight
supercardioid
dBV
-30
-40
-50
-60
-70
-80
50 10 0 20 0 50 0 1k 2k 5k 1 0k 20 k
externally polarized dual
diaphragm condenser microphone
cardioid/supercardioid, switchable
7.0 mV/Pa
2.2 mV/Pa (factory setting)
144 dB
154 dB factory setting
126 dB(A)
2.54 cm (1“)
40 to 20,000 Hz
18 dB
162 g
H z
PAD
0° 1 m
cardioid
dBV
-30
-40
-50
-60
-70
-80
50 1 00 20 0 5 00 1k 2 k 5k 10 k 2 0k
H z
0° 1 mPAD
