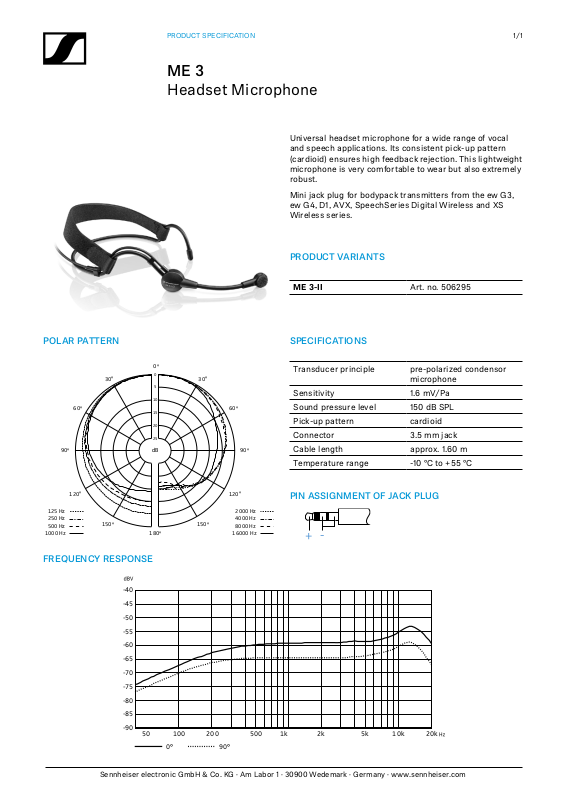

PRODUCT SPECIFICATION

ME 3

Headset Microphone

Universal headset microphone for a wide range of vocal
and speech applications. Its consistent pick-up pattern
(cardioid) ensures high feedback rejection. This lightweight
microphone is very comfortable to wear but also extremely
robust.

Mini jack plug for bodypack transmitters from the ew G3,
ew G4, D1, AVX, SpeechSeries Digital Wireless and XS
Wireless series.

PRODUCT VARIANTS

ME 3-II Art. no. 506295

1/1

POLAR PATTERN

°

30

°

60

°

90

°

120

125 Hz
250 Hz
500 Hz

1000 Hz

150

°

FREQUENCY RESPONSE

-40

-45

-50

-55

-60

-65

-70

-75

-80

-85

-90

SPECIFICATIONS

°

0

dB

180

0

5

10

15

20

25

°

30

150

°

°

60

°

90

°

120

2000 Hz

4000 Hz

°

8000 Hz

16000 Hz

10 10 k50 200 500 2k 5k 10k 20k

0° 90°

Transducer principle pre-polarized condensor

Sensitivity 1.6 mV/Pa
Sound pressure level 150 dB SPL
Pick-up pattern cardioid
Connector 3.5 mm jack
Cable length approx. 1.60 m
Temperature range -10 °C to +55 °C

PIN ASSIGNMENT OF JACK PLUG

-

+

microphone
