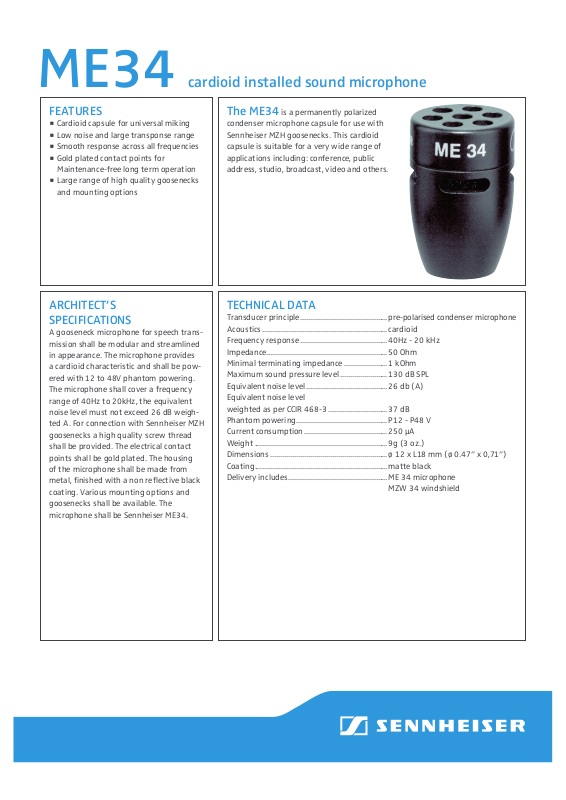

Sennheiser ME 34 W, ME 34, I42-C, I 40-C, I 30 H-C Datasheet
ME34 cardioid installed sound microphone
FEATURES
Cardioid capsule for universal miking
Low noise and large transponse range
Smooth response across all frequencies
Gold plated contact points for
Maintenance-free long term operation
Large range of high quality goosenecks
and mounting options
ARCHITECT’S
SPECIFICATIONS
A gooseneck microphone for speech transmission shall be modular and streamlined
in appearance. The microphone provides
a cardioid characteristic and shall be powered with 12 to 48V phantom powering.
The microphone shall cover a frequency
range of 40Hz to 20kHz, the equivalent
noise level must not exceed 26 dB weighted A. For connection with Sennheiser MZH
goosenecks a high quality screw thread
shall be provided. The electrical contact
points shall be gold plated. The housing
of the microphone shall be made from
metal, finished with a non reflective black
coating. Various mounting options and
goosenecks shall be available. The
microphone shall be Sennheiser ME34.
The ME34 is a permanently polarized
condenser microphone capsule for use with
Sennheiser MZH goosenecks. This cardioid
capsule is suitable for a very wide range of
applications including: conference, public
address, studio, broadcast, video and others.
TECHNICAL DATA
Transducer principle ............................................
Acoustics ............................................................... cardioid
Frequency response ............................................ 40Hz - 20 kHz
Impedance .............................................................50 Ohm
Minimal terminating impedance ...................... 1 kOhm
Maximum sound pressure level ........................130 dB SPL
Equivalent noise level ......................................... 26 db (A)
Equivalent noise level
weighted as per CCIR 468-3 ..............................37 dB
Phantom powering .............................................. P12 - P48 V
Current consumption .......................................... 250 µA
Weight ................................................................... 9g (3 oz.)
Dimensions ...........................................................ø 12 x L18 mm (ø 0.47“ x 0,71“)
Coating ...................................................................matte black
Delivery includes .................................................. ME 34 microphone
pre-polarised condenser microphone
MZW 34 windshield
ME34 cardioid installed sound microphone
Contact your local Service Partner:
DIMENSIONS POLAR PATTERN
FREQUENCY RESPONSE
PRODUCT VARIANTS
ME 34, black Cat.No. 005060
ME 34 NX, Nextel grey Cat.No. 500816
ME 34 W, white Cat.No. 005061
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
RECOMMENDED ACCESSORIES
MZH gooseneck series: MZH 3015, MZH 3040, MZH 3042,
MZH 3062, MZH 3072
06/10 Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 2010. All rights reserved. Errors and omissions excepted.
