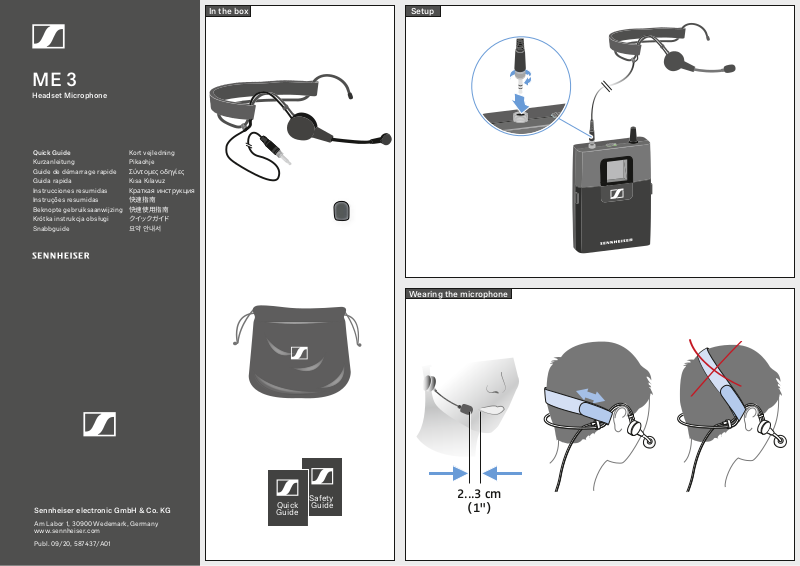

Page 1
ME 3
Headset Microphone
In the box
Setup
Quick Guide
Kurzanleitung
Guide de démarrage rapide
Guida rapida
Instrucciones resumidas
Instruções resumidas
Beknopte gebruiksaanwijzing
Krótka instrukcja obsługi
Snabbguide
Kort vejledning
Pikaohje
Σύντομες οδηγίες
Kısa Kılavuz
Краткая инструкция
快速指南
快速使用指南
クイック ガ イド
요약 안내서
Wearing the microphone
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ. 09/20, 587437/A01
Quick
Guide
Safety
Guide
2...3 cm
(1")
Page 2
Cleaning
Frequency response
-40
-45
-50
-55
-60
-65
-70
-75
-80
-85
-90
0° 90°
10 10 k50 200 500 2k 5k 10k 20k
Specifications
Transducer principle
Pick-up pattern
Sensitivity in free field (1 kHz)
Max. SPL at 1 kHz
Frequency response
Connector
Cable length
Supply voltage
Weight
pre-polarized condensor microphone
cardioid
1.6 mV/Pa
150 dB
50 to 18,000 Hz
3.5 mm jack
approx. 1.60 m
7.5 V
approx. 60 g
Temperature range -10 °C to +55 °C (14 °F to 131 °F)
Connector assignment
+
-
Polar pattern
125 Hz
250 Hz
500 Hz
1000 Hz
90
°
120
60
°
0
10
15
20
25
dB
180
0
5
°
30
150
°
°
60
°
90
°
120
2000 Hz
°
4000 Hz
8000 Hz
16000 Hz
°
30
°
°
°
150
