Sennheiser HME 120, HME 110, HMD120, HME 105 User Manual

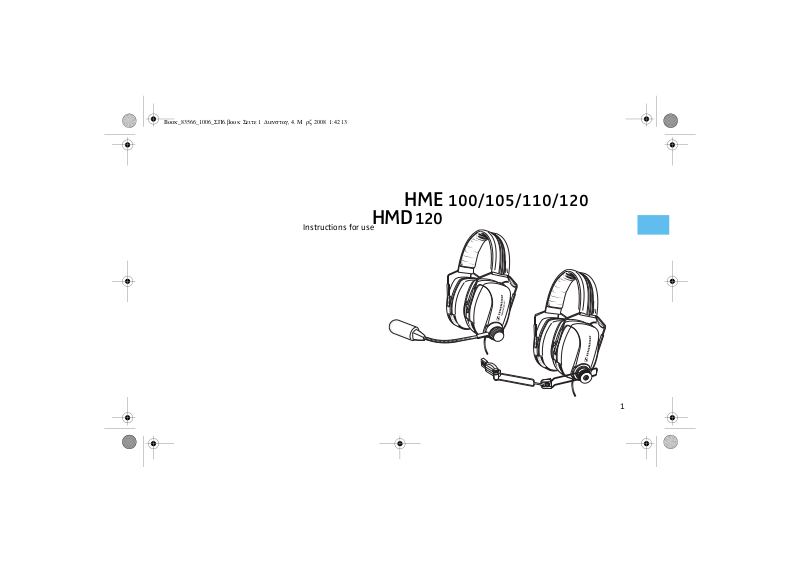

HME 100/105/110/120
Instructions for use
HMD 120
1
2
Contents
Safety tips............................................................................................................. 4
Headset features ................................................................................................. 5
Product variants ......................................................................................................................... 6
Delivery includes .................................................................................................. 8
Preparing the headsets for use......................................................................... 9
Connecting the headsets .......................................................................................................... 9
Adjusting the headband .........................................................................................................10
Positioning the microphone ................................................................................................... 11
Using the headsets ............................................................................................13
Mono/Stereo selection (HME 100 only)............................................................................... 13
Adjusting the volume ..............................................................................................................13
Adjusting the microphone gain .............................................................................................14
Folding up the headphones ....................................................................................................14
Spare parts ..........................................................................................................15
Replacing the wind screen ......................................................................................................15
Replacing the ear cushions .....................................................................................................15
Connector assignment...................................................................................... 16
In case of difficulty............................................................................................ 17
Technical data .................................................................................................... 18
Manufacturer declarations ..............................................................................20
3
The HME 100, HME 105, HME 110, HME 120 and HMD 120 are pilot headsets with closed ear
protector headphones for use in helicopters, propeller and turboprop aircraft.
Safety requirements
y When using a headset, typical aircraft sounds (for example, those from engines, propellers,
warning alarms, etc.) may sound different to you. Before operating any aircraft, make sure
that, while wearing a headset, you can hear and recognize these sounds. Set the volume to safe
levels that do not interfere with your ability to hear informational sounds and warning alarms.
y Do not attempt to repair the headset yourself. If problems occur, contact your Sennheiser agent
for assistance.
y Only replace parts of the headset whose replacement is described in this manual. All other parts
of the headset must be replaced by your Sennheiser agent.
y Do not immerse the headset in water! For information on how to clean the headset, contact
your Sennheiser agent.
4
Headset features
HME 100 headset
y New passive headset with excellent noise attenuation
y Excellent comfort due to very low weight, soft ear cushions STANDARD and padded headband
as well as best possible freedom of movement due to unilateral connecting cable
y Foldable headband for easy and space-saving storage
y Clear communications due to MKE 45-1 electret microphone with adjustable sensitivity
(sensitivity adjustment must be carried out by authorized personnel)
y Microphone can be easily positioned and worn on either left or right side due to flexible
microphone boom with quick-fixing device
y Optimum radio reception due to headphone systems with wide frequency response
y Integrated volume control
y Adaption to the aircraft intercom system via Mono/Stereo switch
y JTSO approval
y Made in Germany, five-year warranty
y Personalization of the headset
Name:
5
Product variants
HME 105 headset
The HME 105 differs from the HME 100 in the following features:
y No Mono/Stereo switch
y Connection of headphones and microphone via XLR-5 plug
Headset HME 110
The HME 110 differs from the HME 100 in the following features:
y black caps
y soft earpads LUXURY
y headband with soft headcushion
HME 120 headset
The HME 120 differs from the HME 100 in the following features:
y No Mono/Stereo switch
y Coiled cable
y Connection of headphones and microphone via U-174/U jack plug to a high impedance
interface in the helicopter
6
