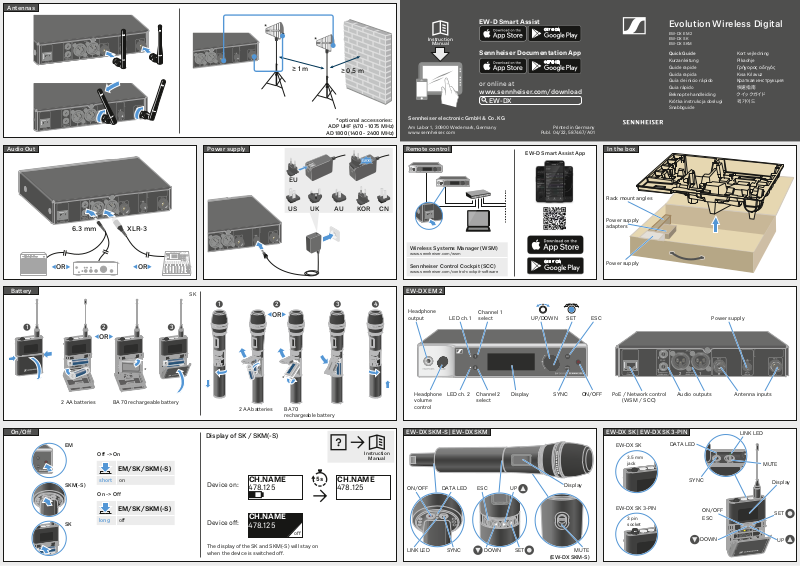

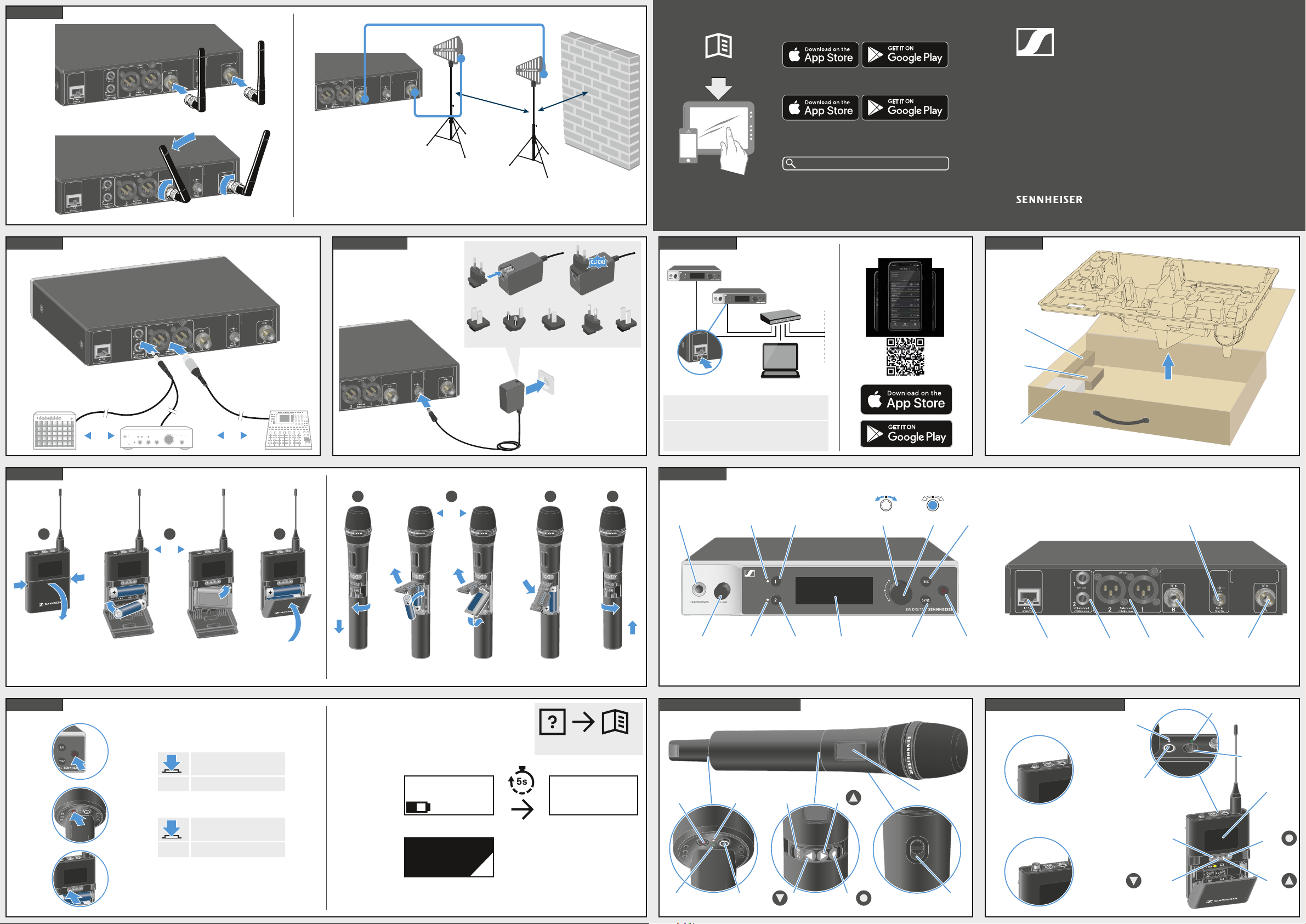

Antennas
MUTESYNC
5s
Audio Out
6.3 mm XLR-3
Power supply
*
*
Instruction
Manual
EW-D Smart Assist
Sennheiser Documentation App
≥ 1 m
≥ 0,5 m
or online at
www.sennheiser.com/download
EW-DX
*optional accessories:
ADP UHF (470 - 1075 MHz)
AD 1800 (1400 - 2400 MHz)
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Remote control In the box
EW-D Smart Assist App
Printed in Germany
Publ. 04/22, 587467/A01
Evolution Wireless Digital
EW-DX EM 2
EW-DX SK
EW-DX SKM
Quick Guide
Kurzanleitung
Guide rapide
Guida rapida
Guía de inicio rápido
Guia rápido
Beknopte handleiding
Krótka instrukcja obsługi
Snabbguide
Kort vejledning
Pikaohje
Γρήγορος οδηγός
Kısa Kılavuz
Краткая инструкция
快速指南
クイック ガ イド
퀵 가이드
EU
Rack mount angles
KOR CNUS UK AU
Power supply
adapters
Battery
1
On/Off
OR OR
2 3
OR
*
2 AA batteries BA 70 rechargeable battery
EM
Off -> On
EM/SK/SKM(-S)
SKM(-S)
short on
On -> Off
SK
1 2 3 4
2 AA batteries BA 70
Display of SK / SKM(-S)
Device on:
OR
CH.NAME
478.125
*
rechargeable battery
Instruction
Manual
CH.NAME
478.125
Wireless Systems Manager (WSM)
www.sennheiser.com/wsm
Sennheiser Control Cockpit (SCC)
www.sennheiser.com/control-cockpit-software
EW-DX EM 2
Headphone
output
volume
control
ON/OFF
LED ch. 1
DATA LED
Channel 1
select
Channel 2
select
ESC
Display
UP
SETUP/DOWN ESC
SYNC
Display
Power supply
Power supply
ON/OFFLED ch. 2Headphone
PoE / Network control
(WSM / SCC)
EW-DX SK | EW-DX SK 3-PIN EW-DX SKM-S | EW-DX SKM
EW-DX SK
3.5 mm
jack
DATA LED
SYNC
Antenna inputsAudio outputs
LINK LED
MUTE
Display
EM/SK/SKM(-S)
SK
long off
Device off:
The display of the SK and SKM(-S) will stay on
when the device is switched off.
CH.NAME
478.125
off
LINK LED
SYNC
DOWN
SET
(EW-DX SKM-S)
MUTE
EW-DX SK 3-PIN
3 pin
socket
ON/OFF
ESC
DOWN
SET
UP
Page 2
Display LEDs
MUTESYNC
MUTESYNC
MUTESYNC
MUTESYNC
Instruction
Manual

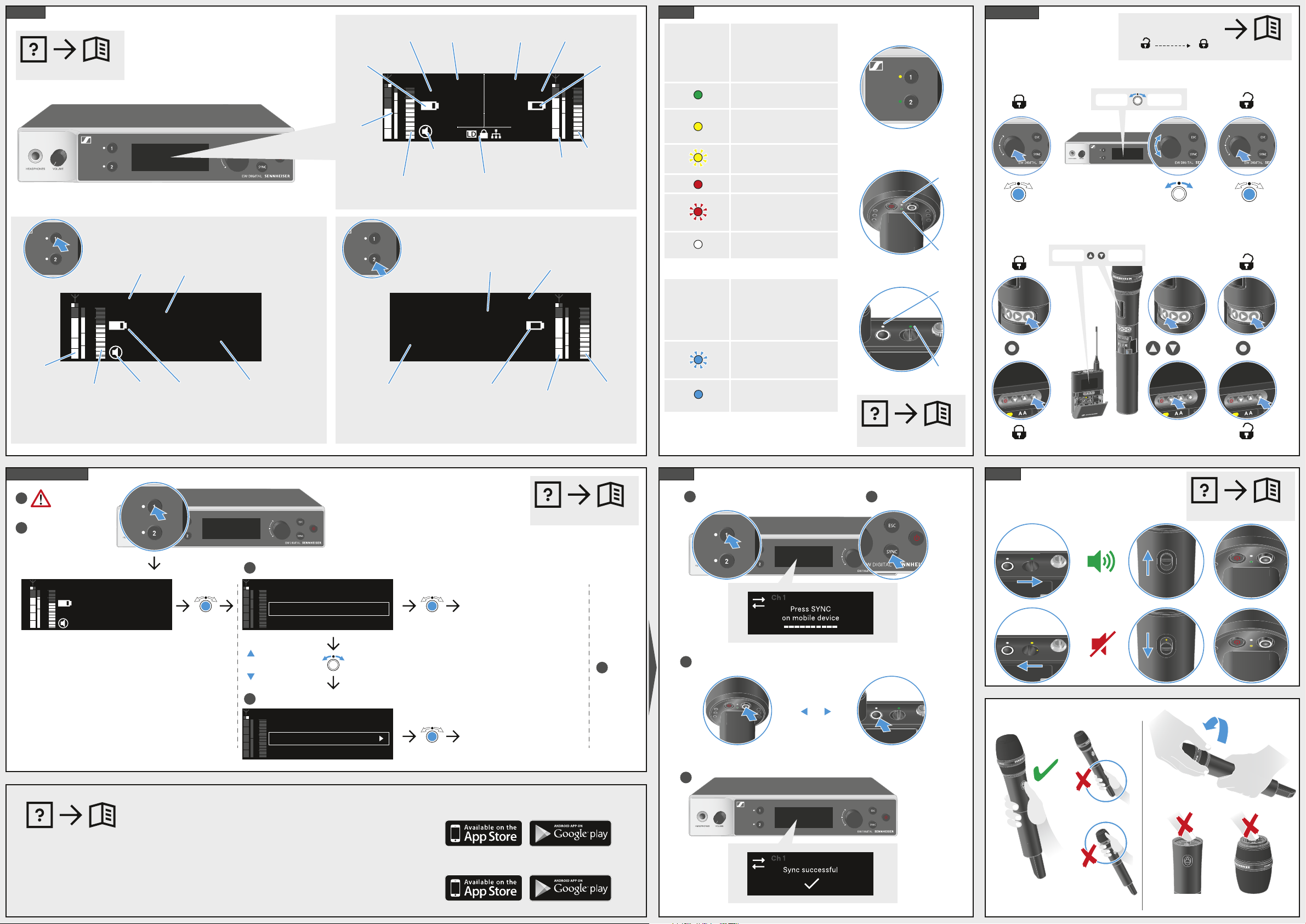

System Home Screen
Transmitter
battery (Ch.1)
Radio
frequency
level and
link quality
(Channel 1)
Frequency
(Channel 1)
Link name
(Channel 1)
AQ AQ
GUITAR
Link name
(Channel 2)
510.100 521.100
Mute mode
(Channel 1)
Transmitter
audio level
(Channel 1)
System icons
(see instruction
manual)
VOICE
Frequency
(Channel 2)
Radio
frequency
level and
link quality
(Channel 2)
Transmitter
battery (Ch.2)
Transmitter
audio level
(Channel 2)
LED Ch.1/2
(EM 2)
LINK LED
(SK/SKM)
Channel 1 Home Screen Channel 2 Home Screen
Radio
frequency
level and
link quality
100
-60
80
60
-80
40
-100
-120
20
Transmitter
audio level
Link name Link name
AQ
GUITAR
510.100 MHz
Mute
mode
Frequency Frequency
Gain -10 dB
AF Out +18 dB
Low Cut 80 Hz
Transmitter
battery
Audio settings Audio settings
Gain -10 dB
AF Out +18 dB
Low Cut 80 Hz
Transmitter
battery
VOICE
521.100 MHz
Radio
frequency
level and
link quality
AQ
100
-60
80
60
-80
40
-100
-120
20
LED Ch.1/2
(EM 2)
DATA LED
(SK/SKM)
Transmitter
audio level
--Link ok
audio active
--Link ok
audio muted or
no capsule on SKM
--Link ok
audio clip
- No link
--Link ok
Low transmitter
battery
--No link
Device switched off
Bluetooth active to
- sync with transmitter
- connect with app
Firmware update
in progress
EM 2
SKM(-S)
SK
DATA
LINK
DATA
LINK
Instruction
Manual
Key Lock
Auto Lock
Locked Unlock?
SET UP/DOWN
Locked Unlock?
SET SETUP/DOWN
10 s
Instruction
Manual
SET
1
select channel
2
AQ
100
-60
80
60
-80
40
-100
-120
20
SKM/SK off!
GUITAR
510.100 MHz
Gain -10 dB
AF Out +18 dB
Low Cut 80 Hz
3
select frequency
AQ
Ch 1
Name
Frequency
Gain
OR
3 perform auto setup
AQ
Ch 1
Mute Mode
Scan & Auto-Setup
Walktest
GUITAR
510.100 MHz
-10 dB
select preset from channel list
or set frequency manually
follow on-screen instructions
Instruction
Manual
4 SYNC
SyncFrequency setup
short pressselect channel & set parameters
21
Mute
Instruction
Manual
SKM-SSK
3
SKM(-S) SK
OR
short press
4
short press
