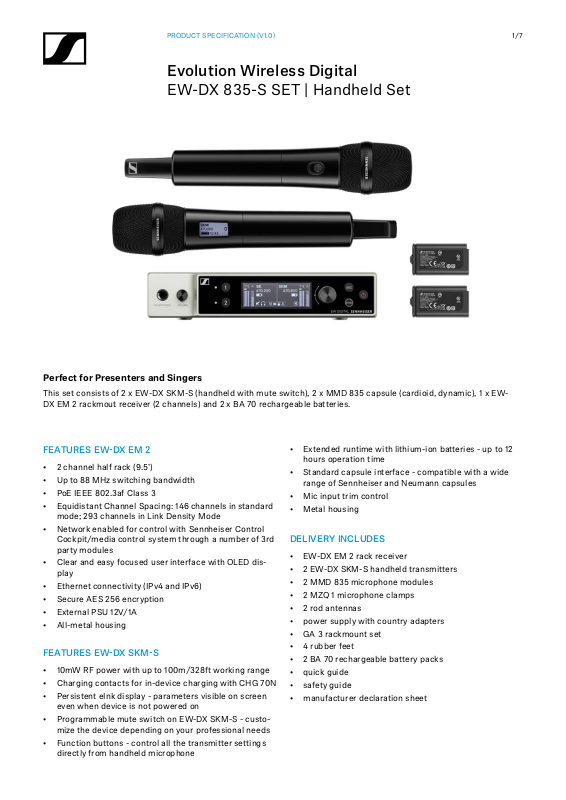

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

1/7

Perfect for Presenters and Singers

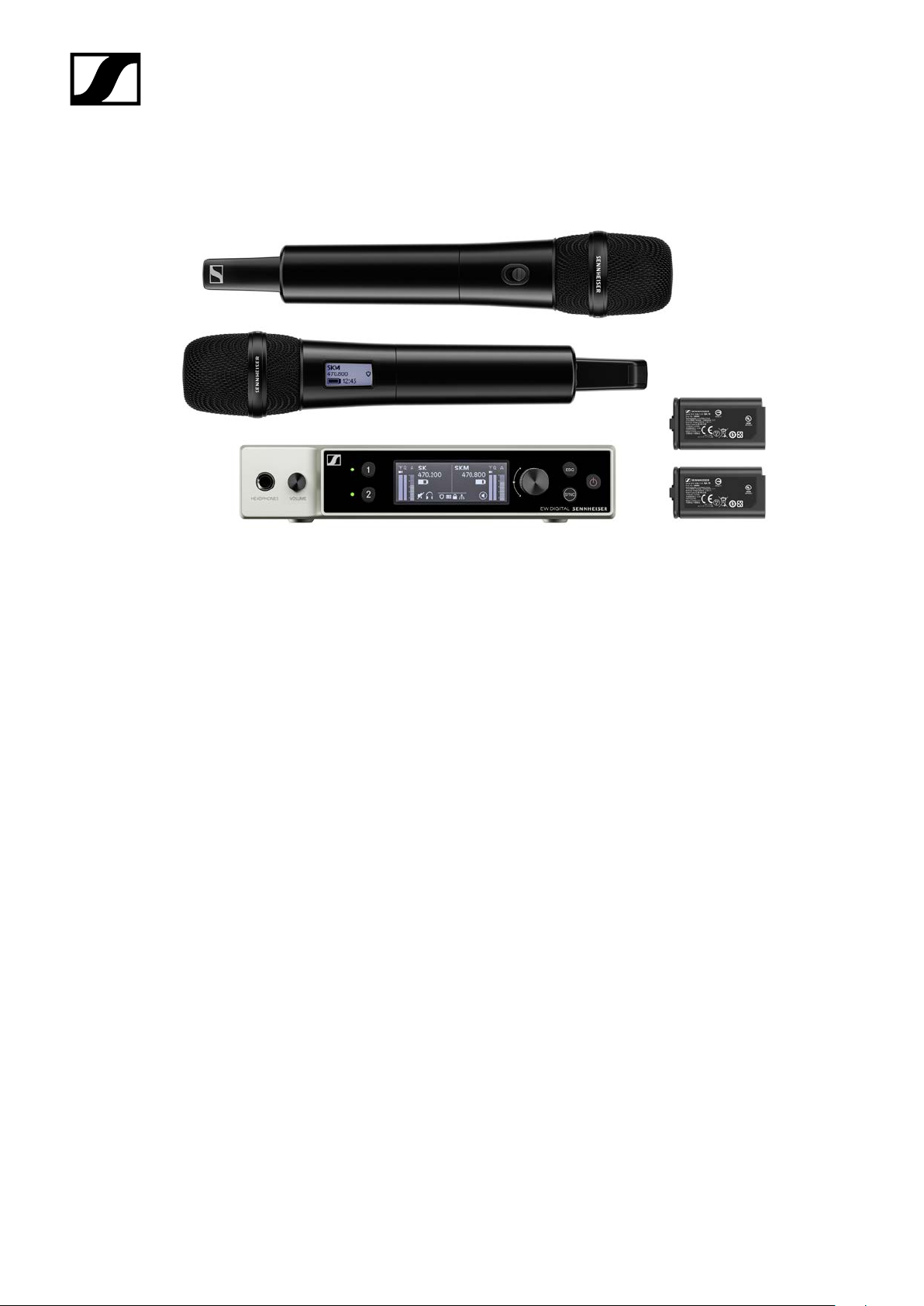

This set consists of 2 DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries.

FEATURES EW-DX EM 2

• 2 channel half rack (9.5’)

• Up to 88 MHz switching bandwidth

• PoE IEEE 802.3af Class 3

• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode

• Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules

• Clear and easy focused user interface with OLED display

• Ethernet connectivity (IPv4 and IPv6)

• Secure AES 256 encryption

• External PSU 12V/1A

• All-metal housing

FEATURES EW-DX SKM-S

• 10mW RF power with up to 100m/328ft working range

• Charging contacts for in-device charging with CHG 70N

• Persistent eInk display - parameters visible on screen even when device is not powered on

• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs

• Function buttons - control all the transmitter settings directly from handheld microphone

x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-

• Extended runtime with lithium-ion batteries - up to 12 hours operation time

• Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules

• Mic input trim control

• Metal housing

DELIVERY INCLUDES

• EW-DX EM 2 rack receiver

• 2 EW-DX SKM-S handheld transmitters

• 2 MMD 835 microphone modules

• 2 MZQ 1 microphone clamps

• 2 rod antennas

• power supply with country adapters

• GA 3 rackmount set

• 4 rubber feet

• 2 BA 70 rechargeable battery packs

• quick guide

• safety guide

• manufacturer declaration sheet

Page 2

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

PRODUCT VARIANTS

EW-DX MKE2 SET (Q1-9) 470.2 - 550 MHz Art. no. 509300 EW-DX MKE2 SET (R1-9) 520 - 607.8 MHz Art. no. 509301 EW-DX MKE2 SET (S1-10) 606.2 - 693.8 MHz Art. no. 509302 EW-DX MKE2 SET (S1/10) 606.2 - 637.8 MHz & 650.2 - 693.8 MHz Art. no. 509303 EW-DX MKE2 SET (S2-10) 614.2 - 693.8 MHz Art. no. 509305 EW-DX MKE2 SET (S4-10) 630 - 693.8 MHz Art. no. 509306 EW-DX MKE2 SET (U1/5) 823.2 - 831.8 MHz & 863.2 - 864.8 MHz Art. no. 509307 EW-DX MKE2 SET (V3-4) 925.2 - 937.3 MHz Art. no. 509309 EW-DX MKE2 SET (V5-7) 941.7 - 951.8 MHz & 953.05 - 956.05

MHz & 956.65 - 959.65 MHz

EW-DX MKE2 SET (X1-6) 1350.2 - 1398.8 MHz Art. no. 509311 EW-DX MKE2 SET (X9-18) 1435.2 - 1524.8 MHz Art. no. 509312 EW-DX MKE2 SET (Y1-3) 1785.2 - 1799.8 MHz Art. no. 509313

Art. no. 509310

2/7

ACCESSORIES

EW-D ASA (Q-R-S) Active Antenna Splitter 470 - 694 MHz Art. no. 508879 EW-D ASA (T-U-V-W) Active Antenna Splitter 694 - 1075 MHz Art. no. 508880 EW-D ASA (X-Y) Active Antenna Splitter 1350 - 1805 MHz Art. no. 508881 EW-D ASA CN/ANZ (Q-R-S) Active Antenna Splitter 470 - 694 MHz Art. no. 508998

EW-D AB (Q) Antenna Booster 470 - 550 MHz Art. no. 508873 EW-D AB (R) Antenna Booster 520 - 608 MHz Art. no. 508874 EW-D AB (S) Antenna Booster 606 - 694 MHz Art. no. 508875 EW-D AB (U) Antenna Booster 823 - 865 MHz Art. no. 508876 EW-D AB (V) Antenna Booster 902 - 960 MHz Art. no. 508877 EW-D AB (Y) Antenna Booster 1785 - 1805 MHz Art. no. 508878

ADP UHF (470 - 1075 MHz) Passive directional antenna 470 - 1075 MHz Art. no. 508863

BA 70 Rechargeable battery pack for SK and SKM-S Art. no. 508860 L 70 USB Charger for BA 70 rechargeable battery pack Art. no. 508861 EW-D CHARGING SET Set of L 70 USB charger and 2 BA 70 rechargeable battery packs Art. no. 508862

EW-D COLOR CODING SET Colored labels for wireless link identiﬁcation for EM, SKM-S, SK Art. no. 508989 EW-D SK COLOR CODING Colored labels for wireless link identiﬁcation for SK Art. no. 508990 EW-D SKM COLOR CODING Colored labels for wireless link identiﬁcation for SKM-S Art. no. 508991 EW-D EM COLOR CODING Colored labels for wireless link identiﬁcation for EM Art. no. 508992

Page 3

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

MICROPHONE COMPATIBILITY

Microphone modules compatible with the EW-DX SKM-S handheld transmitter

MMD 835-1 Dynamic microphone module with cardioid polar pattern MMD 845-1 Dynamic microphone module with supercardioid polar pattern MME 865-1 Pre-polarized condenser microphone module with supercardioid polar pattern MMD 935-1 Dynamic microphone module with cardioid polar pattern MMD 945-1 Dynamic microphone module with supercardioid polar pattern MMK 965-1 Condenser microphone module with switchable cardioid and supercardioid polar pattern MMD 42-1 Dynamic microphone module with omni-directional polar pattern Neumann KK 204 Condenser microphone module with cardioid polar pattern Neumann KK 205 Condenser microphone module with supercardioid polar pattern MM 435 Dynamic microphone module with cardioid polar pattern MM 445 Dynamic microphone module with supercardioid polar pattern ME 9002 Pre-polarized condenser microphone module with omni-directional polar pattern ME 9004 Pre-polarized condenser microphone module with cardioid polar pattern ME 9005 Pre-polarized condenser microphone module with supercardioid polar pattern

3/7

Page 4

SPECIFICATIONS

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

4/7

System

Audio link frequency ranges

Bluetooth® Low Energy (BLE) frequency range

Audio frequency response 20 Hz - 20 kHz (-3 dB)

Audio THD ≤ -60 dB for 1 kHz

Dynamic range 134 dB System latency 1.9 ms Operating temperature -10 °C - +55 °C

Relative humidity 5 - 95 % (non-condensing)

Q1-6 R1-6 R4-9 S1-7 S4-7 S7-10 U1/5

V3-4 Y1-3

2402 - 2480 MHz

@ 3 dBfs

@ -3 dBfs input level

(14 °F - 131 °F)

470.2 - 526 MHz 520 - 576 MHz 552 - 607.8 MHz

606.2 - 662 MHz 630 - 662 MHz 662 - 693.8 MHz

823.2 - 831.8 MHz &

863.2 - 864.8 MHz

925.2 - 937.3 MHz

1785.2 - 1799.8 MHz

EW-DX SKM-S (Handheld Transmitter)

Input voltage 2.0 - 4.35 V Input current < 300 mA Power supply 2 AA batteries 1.5 V (al-

kali manganese) or BA 70

rechargeable battery pack Occupied bandwidth 200 kHz Transmit power (radiated) Audio link: 10 mW ERP

(Range Y1-3: 12 mW ERP)

BLE: max. 10 mW EIRP Dimensions (ø x l)

(incl. MMD 835 microphone module)

(without microphone module)

Weight (without batteries) (incl. MMD 835 microphone module)

(without microphone module)

50 x 268 mm (1.97" x 10.55")

40 x 200 mm (1.57" x 7.87")

approx. 304 g (0.67 lbs)

approx. 195 g (7.14 lbs)

EW-DX EM 2 (Rack Receiver)

Input voltage 11 - 13 V ⎓

or PoE IEEE 802.3af Class 0

(CAT5e or higher) Input current ≤ 1 A Transmit power

(radiated) Audio output power 18 dBu max. Headphone output 2x 70 mW @ 32 Ω Ethernet RJ-45 socket, IEEE802.3

Dimensions 212 x 44 x 189 mm

Weight approx. 1000 g (2.2 lbs)

BLE: max. 10 mW EIRP

100Base-TX (half+full duplex)

10Base-T (half+full duplex)

(CAT5e or higher)

(8.35" x 1.73" x 7.44")

(without antennas and power

supply)

MMD 835 (Microphone Module)

Transducer principle dynamic Sensitivity 2.1 mV/Pa Sound pressure level 154 dB SPL Pick-up pattern cardioid

Page 5

DIMENSIONS

212.1

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

5/7

EW-DX EM 2

91.38

3.6

72.88

44.2

1.74

1.65

20.7

0.81

13.4

0.53

2.87

6.3mm Klinkenbuchse

6.3mm Phone-Jack

33.13

1.3

8.35

59.63

2.35

79.5

3.13

92.75

3.65

0.55

23.2

0.91

14.9

0.59

8.4

0.33

XLR-3 Steckverbinder XLR-3 Connector

6.3mm Klinkenbuchse

6.3mm Phone-Jack

1.34

33.95

0.92

23.45

0.69

17.45

RJ45 Buchse RJ45 Jack

3.46

1.89

0.04

25.5

21.5

0.85

169

6.65

2.2

Zugentlastung Cable Grip

90.5

3.56

DC-Power-Jack

BNC-Jack

31.2

1.23

17.5

0.69

0.55

Page 6

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

ARCHITECT‘S SPECIFICATION

EW-DX EM 2 rack receiver

The stationary two-channel receiver with switching diversity technology shall be for use with up to two companion transmitters as part of a digital wireless RF transmission system.

The receiver shall operate within the following UHF frequency ranges, with a switching bandwidth of up to 88 MHz: 470.2 – 550 MHz, 520 – 607.8 MHz, 606.2 – 693.8 MHz, 614.2 – 693.8 MHz, 630 – 693.8 MHz, 823.2 – 831.8 MHz, 863.2 – 846.8 MHz, 925.2 – 937.3 MHz, 941.7 – 951.8 MHz, 953.05 – 956.05 MHz, 956.65 – 959.65 MHz, 1350.2 – 1398.8 MHz, 1435.2 – 1524.8 MHz, 1785.2 – 1799.8 MHz. Different frequency variants shall be available depending on country-speciﬁc regulations.

The receiver shall feature Bluetooth® Low Energy (BLE) at a frequency range between 2402 and 2480 MHz for remote controlling the devices via a control App for iOS and Android.

The receiver shall feature an automatic frequency setup function with spectrum scan functionality in order to establish an equidistant frequency grid with 146 channels in standard mode and 293 channels in Link Density Mode.

The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB). Audio total harmonic distortion (THD) shall be ≤ -60 dB for 1 kHz @ -3 dBfs input level. Dynamic range shall be 134 dB. System latency shall be 1.9 ms.

The receiver shall be menu-driven with an OLED display showing the current frequency, channel number, metering of RF level, metering of AF level, lock status, muting function, antenna switching diversity, app connection, gain, audio output level, menu and battery status for each of the two associated transmitters. An auto-lock feature shall be provided to prevent settings from being accidentally altered.

The following settings shall be conﬁgurable by function buttons and an encoder for each channel in the menu: frequency, channel name, gain, trim, AF output, low cut, AES 256 encryption, test tone, network settings, integrated antenna booster settings, display brightness, device name, auto setup settings for automatic frequency setup.

For each of the two channels the receiver shall feature a balanced XLR-3M audio output with a maximum output of +18 dBu along with an unbalanced 6.3 mm (¼“) audio output with a maximum output of +12 dBu.

For secure transmission the receiver shall feature AES 256 encryption.

The receiver shall provide a walktest mode for monitoring the RF and AF signal status in the location over time.

Two BNC-type input sockets shall be provided for connecting the antennas. The receiver shall be usable with active and passive wide range UHF antennas for the entire supported RF spectrum.

6/7

A headphone output with headphone volume control shall be provided and shall utilize a 6.3 mm stereo jack socket.

The receiver shall have an Ethernet port (RJ-45) for remote network-based monitoring and control using the Sennheiser Control Cockpit software or the Sennheiser Wireless Systems Manager software.

The receiver shall operate on 12 V DC power supplied from the power supply unit or on Power over Ethernet (PoE IEEE

802.af Class 0). Power consumption shall be ≤ 1 A. The receiver shall have a rugged metal housing; dimensi-

ons shall be approximately 212 x 44 x 206 mm (8.35“ x 1.73“ x 8.11“). Weight shall be approximately 1000 grams (2.2 lbs) without antennas and power supply. Operating temperature shall range from −10 °C to +50 °C (+14 °F to +122 °F).

The receiver shall be the Sennheiser EW-DX EM 2.

Page 7

PRODUCT SPECIFICATION (V1.0)

Evolution Wireless Digital

EW-DX 835-S SET | Handheld Set

EW-DX SKM-S handheld transmitter

The handheld transmitter shall be for use with a companion receiver as part of a digital wireless RF transmission system.

The handheld transmitter shall operate within the following UHF frequency ranges, with a switching bandwidth of up to 88 MHz: 470.2 – 550 MHz, 520 – 607.8 MHz, 606.2 –

693.8 MHz, 614.2 – 693.8 MHz, 630 – 693.8 MHz, 823.2 – 831.8 MHz, 863.2 – 846.8 MHz, 925.2 – 937.3 MHz, 941.7 – 951.8 MHz, 953.05 – 956.05 MHz, 956.65 – 959.65 MHz,

1350.2 – 1398.8 MHz, 1435.2 – 1524.8 MHz, 1785.2 – 1799.8 MHz. Different frequency variants shall be available depending on country-speciﬁc regulations.

Occupied bandwidth shall be 200 kHz. Transmit power (radiated) shall be 10 mW ERP (1785.2 – 1799.8 MHz Range: 12 mW ERP).

A programmable mute switch shall be provided for muting or unmuting either the audio signal or the radio signal. The mute switch can also be deactivated.

The handheld transmitter shall be menu-driven with a backlit eInk display showing the relevant status information such as frequency, battery status or AES 256 encryption status.

All transmitter parameters shall be adjustable with function buttons on the device itself or by Bluetooth Low Energy (BLE) synchronization via the associated receiver. The function buttons shall be lockable against accidental misuse.

Power shall be supplied to the handheld transmitter by two

1.5 V AA size batteries or by one Sennheiser BA 70 rechargeable battery pack. Operating time shall be typically 12 hours with a battery pack and up to 8 hours with AA batteries.

The handheld transmitter shall feature charging contacts for direct charging of the transmitter with inserted BA 70 battery pack in a Sennheiser CHG 70N network-enabled charger.

The handheld transmitter shall utilize Sennheiser’s standard capsule interface serving Sennheiser microphone modules of the evolution wireless and 2000 series and Digital 6000 and 9000 as well as the Neumann KK 204 / 205 microphone modules.

The handheld transmitter shall have a rugged metal housing; dimensions shall be approximately 50 mm (1.97“) in diameter and 268 mm (10.55“) in length including a Sennheiser MMD 835 microphone module. Weight including MMD 835 microphone module shall be approximately 304 grams (0.67 lbs). Operating temperature shall range from −10 °C to +50 °C (+14 °F to +122 °F).

The handheld transmitter shall be the Sennheiser EW-DX SKM-S.

7/7
