PRODUCT SPECIFICATION
Evolution Wireless Digital

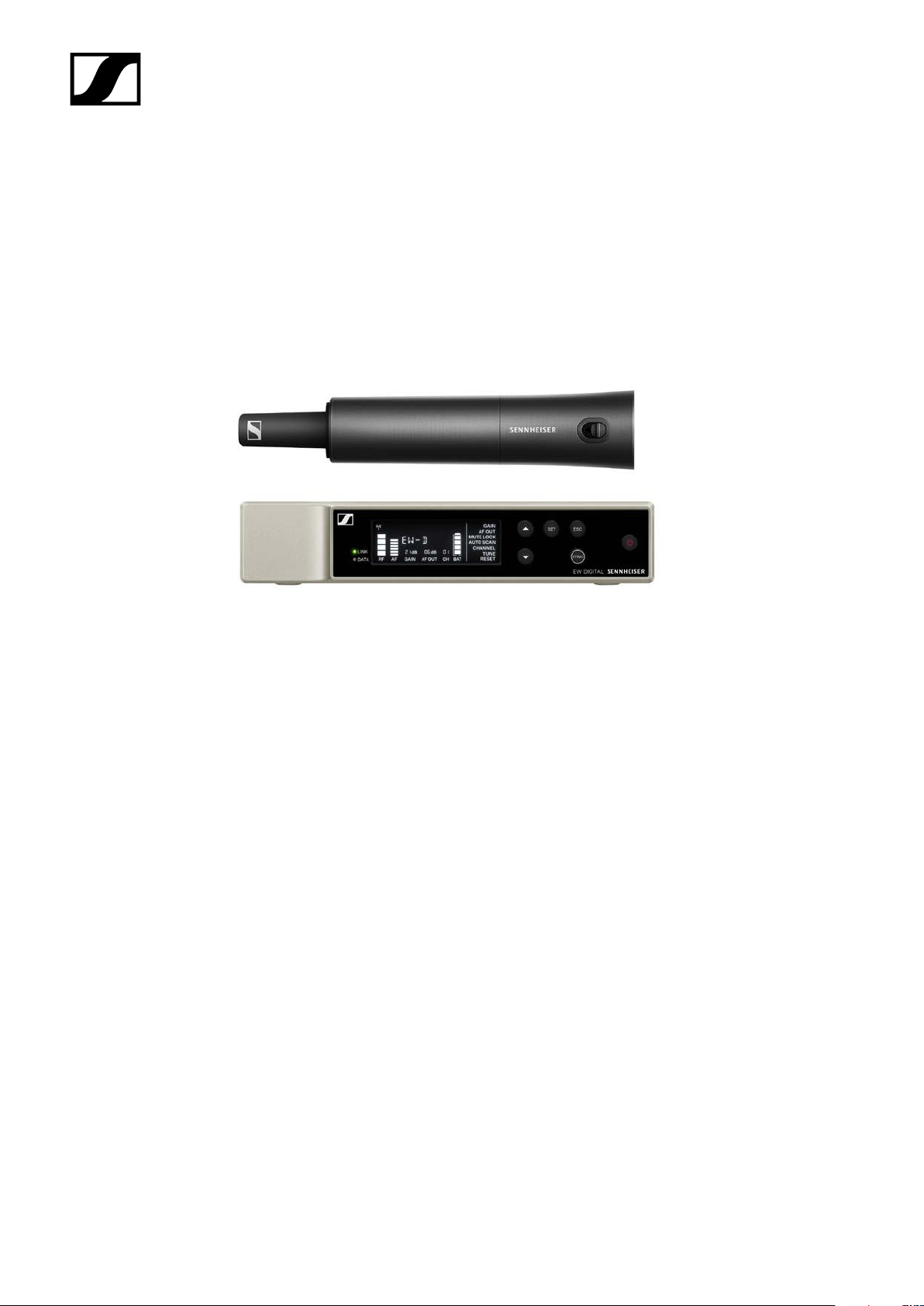

EW-D SKM-S BASE SET | Base Set
1/6
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless
product pairing and management via the EW-D Smart Assist App.
With a metal housing, the robust handheld transmitter suits perfectly for daily use on stage.
FEATURES
• Digital wireless eliminates noise, interference and
static bursts
• UHF transmission greatly enhances range, reliability
and scalability
• Mobile App streamlines setup and operation and eliminates complicated menus
• Automated setup creates reliable connections with
minimal time and effort
• Up to 2,240 selectable frequencies
• Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
• 56 MHz Bandwidth will allow for up to 90 channels
• Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
DELIVERY INCLUDES
• EW-D EM rack receiver
• EW-D SKM-S handheld transmitter
• MZQ 1 microphone clamp
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
Page 2
PRODUCT SPECIFICATION
Evolution Wireless Digital
EW-D SKM-S BASE SET | Base Set
PRODUCT VARIANTS
EW-D SKM-S BASE SET (Q1-6) 470.2 - 526 MHz Art. no. 508760
EW-D SKM-S BASE SET (R1-6) 520 - 576 MHz Art. no. 508761
EW-D SKM-S BASE SET (R4-9) 552 - 607.8 MHz Art. no. 508762
EW-D SKM-S BASE SET (S1-7) 606.2 - 662 MHz Art. no. 508763
EW-D SKM-S BASE SET (S4-7) 630 - 662 MHz Art. no. 508764
EW-D SKM-S BASE SET (S7-10) 662 - 693.8 MHz Art. no. 508765
EW-D SKM-S BASE SET (U1/5) 823.2 - 831.8 MHz &
863.2 - 864.8 MHz
EW-D SKM-S BASE SET (V3-4) 925.2 - 937.3 MHz Art. no. 508768
EW-D SKM-S BASE SET (Y1-3) 1785.2 - 1799.8 MHz Art. no. 508769
Art. no. 508766
2/6
ACCESSORIES
EW-D ASA (Q-R-S) Active Antenna Splitter 470 - 694 MHz Art. no. 508879
EW-D ASA (T-U-V-W) Active Antenna Splitter 694 - 1075 MHz Art. no. 508880
EW-D ASA (X-Y) Active Antenna Splitter 1350 - 1805 MHz Art. no. 508881
EW-D ASA CN/ANZ (Q-R-S) Active Antenna Splitter 470 - 694 MHz Art. no. 508998
EW-D AB (Q) Antenna Booster 470 - 550 MHz Art. no. 508873
EW-D AB (R) Antenna Booster 520 - 608 MHz Art. no. 508874
EW-D AB (S) Antenna Booster 606 - 694 MHz Art. no. 508875
EW-D AB (U) Antenna Booster 823 - 865 MHz Art. no. 508876
EW-D AB (V) Antenna Booster 902 - 960 MHz Art. no. 508877
EW-D AB (Y) Antenna Booster 1785 - 1805 MHz Art. no. 508878
ADP UHF (470 - 1075 MHz) Passive directional antenna 470 - 1075 MHz Art. no. 508863
BA 70 Rechargeable battery pack for SK and SKM-S Art. no. 508860
L 70 USB Charger for BA 70 rechargeable battery pack Art. no. 508861
EW-D CHARGING SET Set of L 70 USB charger and 2 BA 70 rechargeable battery packs Art. no. 508862
EW-D COLOR CODING SET Colored labels for wireless link identification for EM, SKM-S, SK Art. no. 508989
EW-D SK COLOR CODING Colored labels for wireless link identification for SK Art. no. 508990
EW-D SKM COLOR CODING Colored labels for wireless link identification for SKM-S Art. no. 508991
EW-D EM COLOR CODING Colored labels for wireless link identification for EM Art. no. 508992
Page 3
PRODUCT SPECIFICATION
Evolution Wireless Digital
EW-D SKM-S BASE SET | Base Set
MICROPHONE COMPATIBILITY
Microphone modules compatible with the EW-D SKM-S handheld transmitter
MMD 835-1 Dynamic microphone module with cardioid polar pattern
MMD 845-1 Dynamic microphone module with supercardioid polar pattern
MME 865-1 Pre-polarized condenser microphone module with supercardioid polar pattern
MMD 935-1 Dynamic microphone module with cardioid polar pattern
MMD 945-1 Dynamic microphone module with supercardioid polar pattern
MMK 965-1 Condenser microphone module with switchable cardioid and supercardioid polar pattern
MMD 42-1 Dynamic microphone module with omni-directional polar pattern
Neumann KK 204 Condenser microphone module with cardioid polar pattern
Neumann KK 205 Condenser microphone module with supercardioid polar pattern
MM 435 Dynamic microphone module with cardioid polar pattern
MM 445 Dynamic microphone module with supercardioid polar pattern
ME 9002 Pre-polarized condenser microphone module with omni-directional polar pattern
ME 9004 Pre-polarized condenser microphone module with cardioid polar pattern
ME 9005 Pre-polarized condenser microphone module with supercardioid polar pattern
3/6
Page 4
SPECIFICATIONS
PRODUCT SPECIFICATION
Evolution Wireless Digital
EW-D SKM-S BASE SET | Base Set
4/6
System
Audio link
frequency ranges
Bluetooth® Low Energy
(BLE) frequency range
Audio frequency response 20 Hz - 20 kHz (-3 dB)
Audio THD ≤ -60 dB for 1 kHz
Operating temperature -10 °C - +55 °C
Relative humidity 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver)
Input voltage 11 - 13 V ⎓
Input current ≤ 300 mA
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power 18 dBu max.
Dimensions 212 x 44 x 189 mm
Weight approx. 1000 g (without an-
Q1-6
R1-6
R4-9
S1-7
S4-7
S7-10
U1/5
V3-4
Y1-3
2402 - 2480 MHz
@ 3 dBfs
@ -3 dBfs input level
(14 °F - 131 °F)
tennas and power supply)
470.2 - 526 MHz
520 - 576 MHz
552 - 607.8 MHz
606.2 - 662 MHz
630 - 662 MHz
662 - 693.8 MHz
823.2 - 831.8 MHz &
863.2 - 864.8 MHz
925.2 - 937.3 MHz
1785.2 - 1799.8 MHz
EW-D SKM-S (Handheld Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (al-
kali manganese) or BA 70
rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP
(Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (ø x l) 50 x 268 mm (incl. MMD
835 microphone module)
40 x 200 mm (without
microphone module)
Weight (without batteries) approx. 304 g (incl. MMD
835 microphone module)
approx. 195 g (without
microphone module)
Set in packaging
Dimensions 405 x 350 x 73 mm
Weight 2.9 kg
Page 5
DIMENSIONS
PRODUCT SPECIFICATION
Evolution Wireless Digital
EW-D SKM-S BASE SET | Base Set
5/6

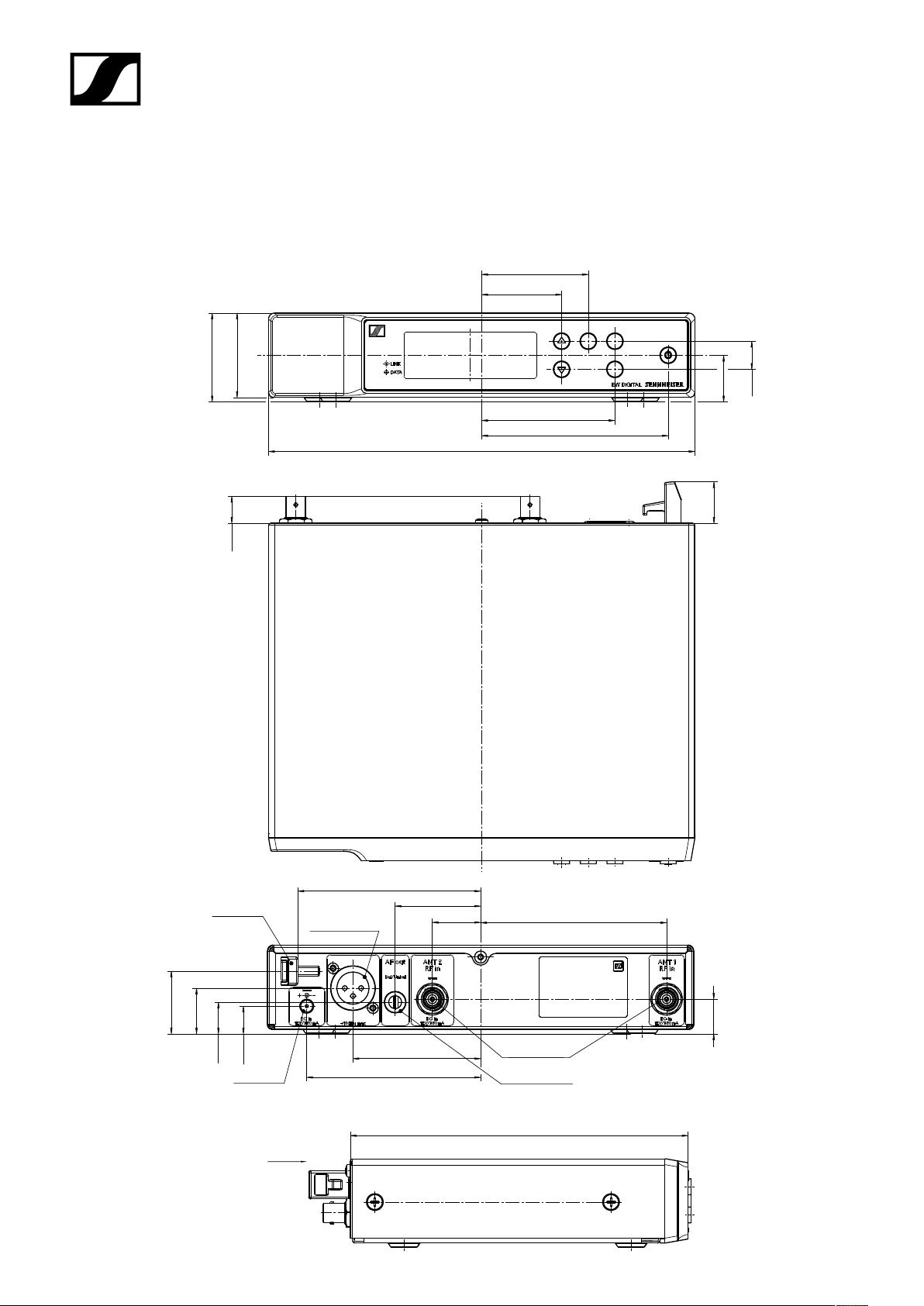

EW-D EM
53
2.09"
39.75
1.56"
92.75
3.65"
SET ESC
SYNC
14
23.2
0.91"
0.55"
20.7
0.81"
42
44.2
1.65"
1.74"
66.25
2.61"
212.1
8.35"
13.4
0.53"
90.9
Zugentlastung
Cable Grip
XLR-3 Steckverbinder
XLR-3 Connector
3.58"
42.5
1.67"
0.94"
24
92.5
3.64"
X
31.2
1.23"
0.9"
22.75
168
6.61"
BNC-Jack, 50 Ohm
6.3mm Klinkenbuchse
6.3mm Phone-Jack
15.75
0.62"
13.75
0.54"
DC-Power-Jack
86.5
3.41"
63.5
2.5"
17.25
0.68"
X
Page 6
DIMENSIONS
PRODUCT SPECIFICATION
Evolution Wireless Digital
EW-D SKM-S BASE SET | Base Set
6/6

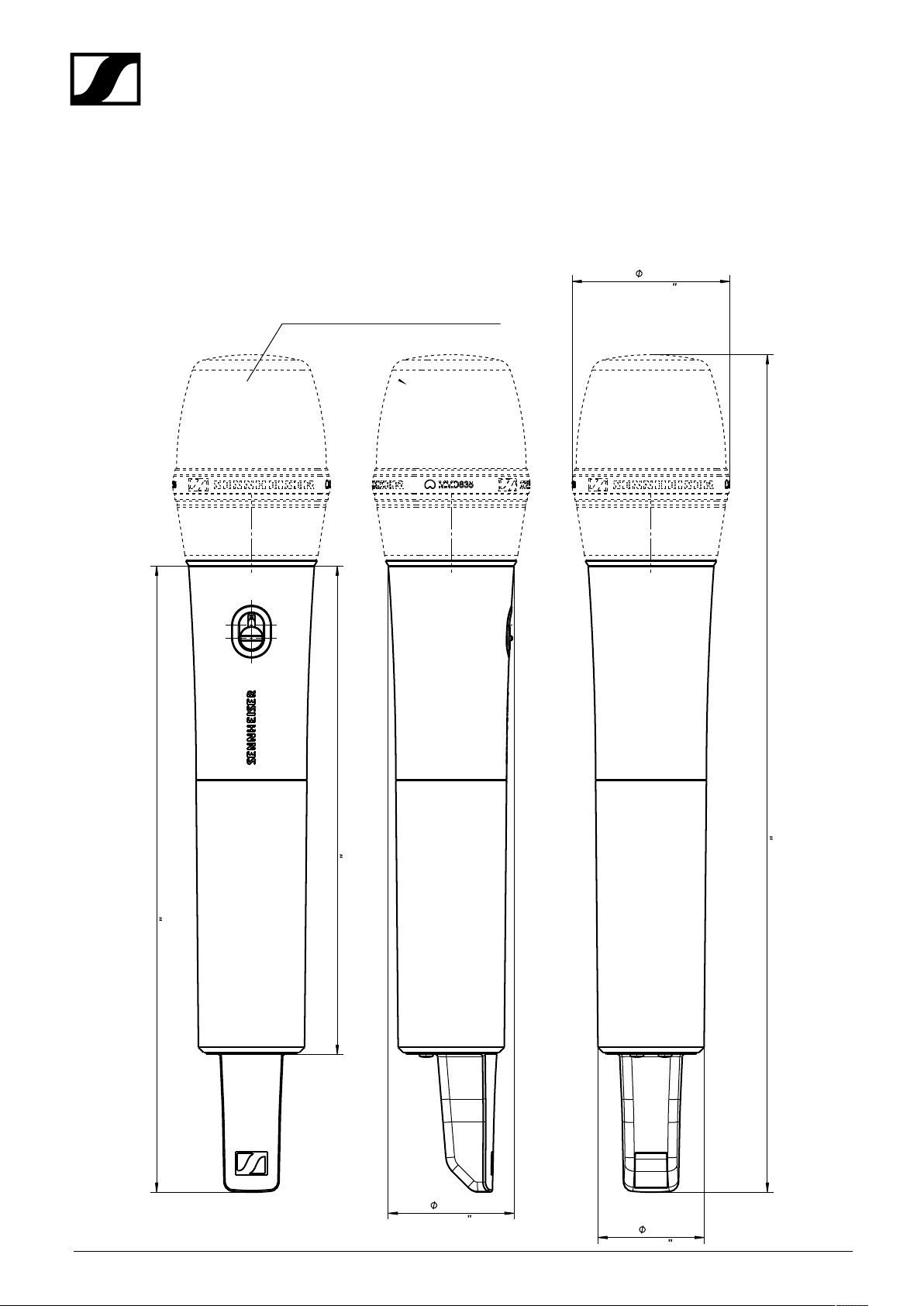

EW-D SKM-S
50.5
1.99
Mikrofonmodul MMD835 - nur Beispiel
microphone module MMD835 - example only
6.16
156.5
7.9
200.7
40.3
1.59
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
34
1.34
268.5
10.57
