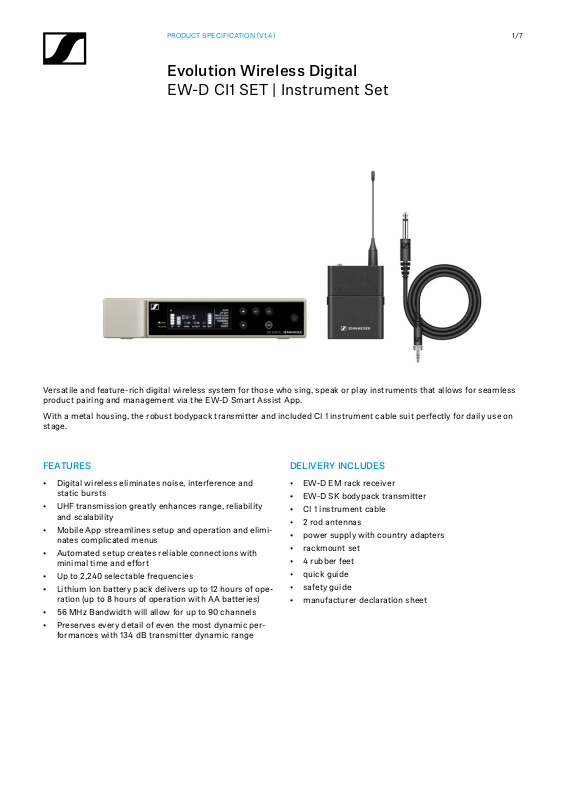

PRODUCT SPECIFICATION (V1.4)

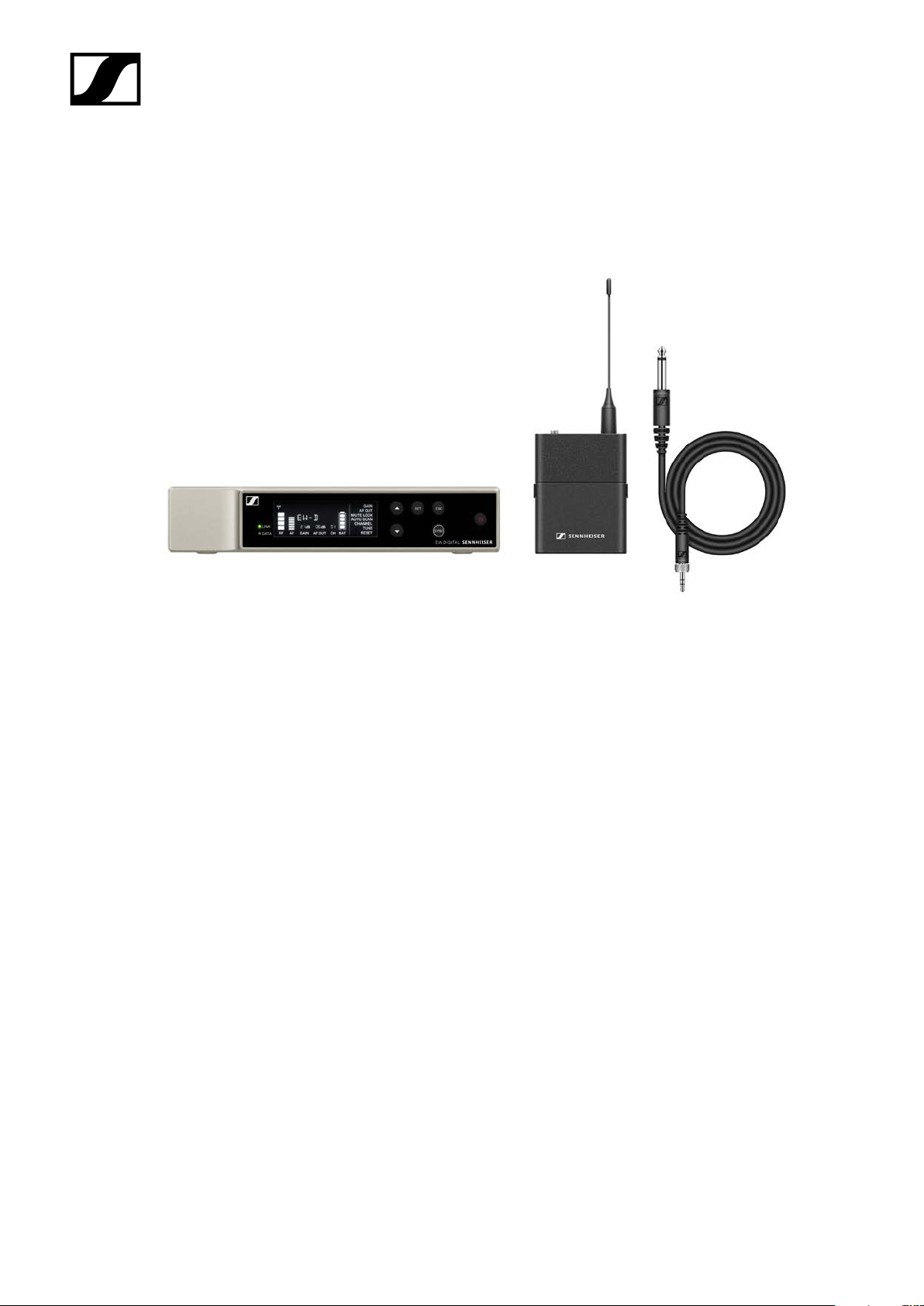

Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
1/7
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless
product pairing and management via the EW-D Smart Assist App.
With a metal housing, the robust bodypack transmitter and included CI 1 instrument cable suit perfectly for daily use on
stage.
FEATURES
• Digital wireless eliminates noise, interference and
static bursts
• UHF transmission greatly enhances range, reliability
and scalability
• Mobile App streamlines setup and operation and eliminates complicated menus
• Automated setup creates reliable connections with
minimal time and effort
• Up to 2,240 selectable frequencies
• Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
• 56 MHz Bandwidth will allow for up to 90 channels
• Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
DELIVERY INCLUDES
• EW-D EM rack receiver
• EW-D SK bodypack transmitter
• CI 1 instrument cable
• 2 rod antennas
• power supply with country adapters
• rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
Page 2
PRODUCT SPECIFICATION (V1.4)
Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
PRODUCT VARIANTS
EW-D CI1 SET (Q1-6) 470.2 - 526 MHz Art. no. 508730
EW-D CI1 SET (R1-6) 520 - 576 MHz Art. no. 508731
EW-D CI1 SET (R4-9) 552 - 607.8 MHz Art. no. 508732
EW-D CI1 SET (S1-7) 606.2 - 662 MHz Art. no. 508733
EW-D CI1 SET (S4-7) 630 - 662 MHz Art. no. 508734
EW-D CI1 SET (S7-10) 662 - 693.8 MHz Art. no. 508735
EW-D CI1 SET (U1/5) 823.2 - 831.8 MHz &
863.2 - 864.8 MHz
EW-D CI1 SET (V3-4) 925.2 - 937.3 MHz Art. no. 508738
EW-D CI1 SET (Y1-3) 1785.2 - 1799.8 MHz Art. no. 508739
Art. no. 508736
2/7
ACCESSORIES
EW-D ASA (Q-R-S) Active Antenna Splitter 470 - 694 MHz Art. no. 508879
EW-D ASA (T-U-V-W) Active Antenna Splitter 694 - 1075 MHz Art. no. 508880
EW-D ASA (X-Y) Active Antenna Splitter 1350 - 1805 MHz Art. no. 508881
EW-D ASA CN/ANZ (Q-R-S) Active Antenna Splitter 470 - 694 MHz Art. no. 508998
EW-D AB (Q) Antenna Booster 470 - 550 MHz Art. no. 508873
EW-D AB (R) Antenna Booster 520 - 608 MHz Art. no. 508874
EW-D AB (S) Antenna Booster 606 - 694 MHz Art. no. 508875
EW-D AB (U) Antenna Booster 823 - 865 MHz Art. no. 508876
EW-D AB (V) Antenna Booster 902 - 960 MHz Art. no. 508877
EW-D AB (Y) Antenna Booster 1785 - 1805 MHz Art. no. 508878
ADP UHF (470 - 1075 MHz) Passive directional antenna 470 - 1075 MHz Art. no. 508863
BA 70 Rechargeable battery pack for SK and SKM-S Art. no. 508860
L 70 USB Charger for BA 70 rechargeable battery pack Art. no. 508861
EW-D CHARGING SET Set of L 70 USB charger and 2 BA 70 rechargeable battery packs Art. no. 508862
EW-D COLOR CODING SET Colored labels for wireless link identification for EM, SKM-S, SK Art. no. 508989
EW-D SK COLOR CODING Colored labels for wireless link identification for SK Art. no. 508990
EW-D SKM COLOR CODING Colored labels for wireless link identification for SKM-S Art. no. 508991
EW-D EM COLOR CODING Colored labels for wireless link identification for EM Art. no. 508992
Page 3
PRODUCT SPECIFICATION (V1.4)
Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
MICROPHONE COMPATIBILITY
Lavalier and headset microphones compatible with the EW-D SK bodypack transmitter
ME 2 Omni-directional lavalier microphone
Models produced from 2021 onward, featuring a gold-plated connector*
ME 4 Cardioid lavalier microphone
Models produced from 2021 onward, featuring a gold-plated connector*
MKE Essential Omni Omni-directional lavalier microphone
MKE 2 Gold Omni-directional lavalier microphone
Models produced from 2018 onward, featuring a blue serial number plate
MKE 1 Omni-directional lavalier microphone
ME 3 Cardioid headset microphone
Models produced from 2021 onward, featuring a gold-plated connector*
HSP Essential Omni Omni-directional headset microphone
HSP 2 Omni-directional headset microphone
Models produced from March 2020 onward (featuring code 1090 or later)
HS 2 Omni-directional headset microphone
Models produced from 2021 onward, featuring a gold-plated connector*
SL Headmic 1 Omni-directional headset microphone
* Models produced prior to 2021 will feature a nickel connector. Earlier models may pick up noise when placed close to the transmitter and are not
recommended for use
3/7
Page 4
SPECIFICATIONS
PRODUCT SPECIFICATION (V1.4)
Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
4/7
System
Audio link
frequency ranges
Bluetooth® Low Energy
(BLE) frequency range
Audio frequency response 20 Hz - 20 kHz (-3 dB)
Audio THD ≤ -60 dB for 1 kHz
Operating temperature -10 °C - +55 °C
Relative humidity 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver)
Input voltage 11 - 13 V ⎓
Input current ≤ 300 mA
Transmit power (radiated) BLE: max. 10 mW EIRP
Audio output power 18 dBu max.
Dimensions 212 x 44 x 189 mm
Weight (without antennas
and power supply)
Q1-6
R1-6
R4-9
S1-7
S4-7
S7-10
U1/5
V3-4
Y1-3
2402 - 2480 MHz
@ 3 dBfs
@ -3 dBfs input level
(14 °F - 131 °F)
(8.35" x 1.73" x 7.44")
approx. 1000 g (2.2 lbs)
470.2 - 526 MHz
520 - 576 MHz
552 - 607.8 MHz
606.2 - 662 MHz
630 - 662 MHz
662 - 693.8 MHz
823.2 - 831.8 MHz &
863.2 - 864.8 MHz
925.2 - 937.3 MHz
1785.2 - 1799.8 MHz
EW-D SK (Bodypack Transmitter)
Input voltage 2.0 - 4.35 V
Input current < 300 mA
Power supply 2 AA batteries 1.5 V (al-
kali manganese) or BA 70
rechargeable battery pack
Occupied bandwidth 200 kHz
Transmit power (radiated) Audio link: 10 mW ERP
(Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions (without anten-
na)
Weight (without batteries) approx. 120 g (0.26 lbs)
63 x 80 x 20 mm
(2.48" x 3.15" x 0.79")
Set in packaging
Dimensions 405 x 350 x 73 mm
(15.91" x 13.78" x 2.87")
Weight 2.8 kg (6.17 lbs)
Page 5
DIMENSIONS
PRODUCT SPECIFICATION (V1.4)
Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
5/7

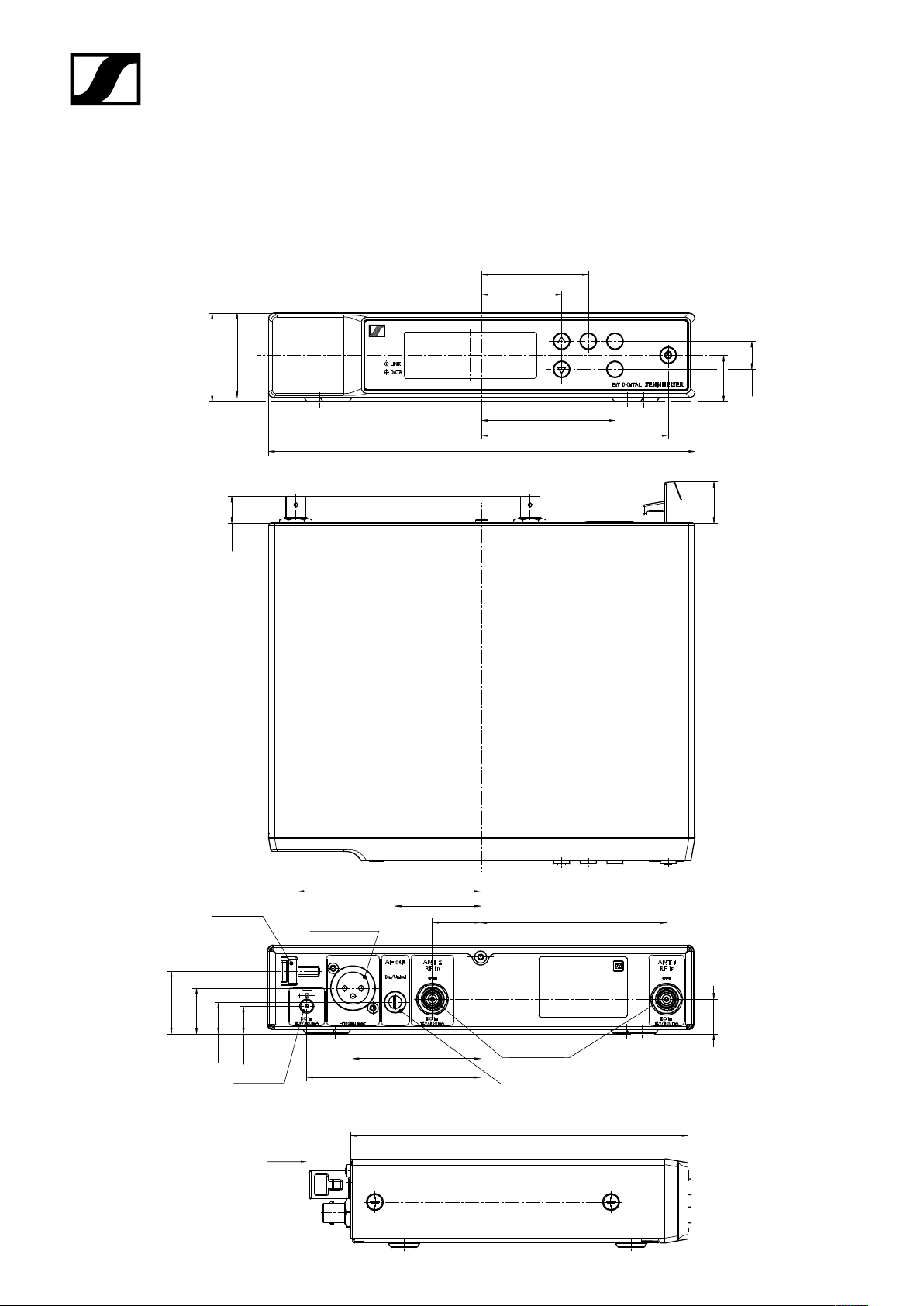

EW-D EM
53
2.09"
39.75
1.56"
92.75
3.65"
SET ESC
SYNC
14
23.2
0.91"
0.55"
20.7
0.81"
42
44.2
1.65"
1.74"
66.25
2.61"
212.1
8.35"
13.4
0.53"
90.9
Zugentlastung
Cable Grip
XLR-3 Steckverbinder
XLR-3 Connector
3.58"
42.5
1.67"
0.94"
24
92.5
3.64"
X
31.2
1.23"
0.9"
22.75
168
6.61"
BNC-Jack, 50 Ohm
6.3mm Klinkenbuchse
6.3mm Phone-Jack
15.75
0.62"
13.75
0.54"
DC-Power-Jack
86.5
3.41"
63.5
2.5"
17.25
0.68"
X
Page 6
PRODUCT SPECIFICATION (V1.4)
Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
6/7
DIMENSIONS
Frequenzbereich
Frequency range
1785-1805 MHZ 198.8 / 7.83"
925-937.5 MHZ 152.8 / 6.02"
902-928 MHZ 152.8 / 6.02"
823-832 MHZ / 863-865 MHZ 161.8 / 6.37"
662-694 MHZ 190.8 / 7.51"
630-662 MHZ 190.8 / 7.51"
606-662 MHZ 190.8 / 7.51"
552-608 MHZ 212.8 / 8.38"
520-576 MHZ 212.8 / 8.38"
470.2-526 MHZ 226.8 / 8.93"

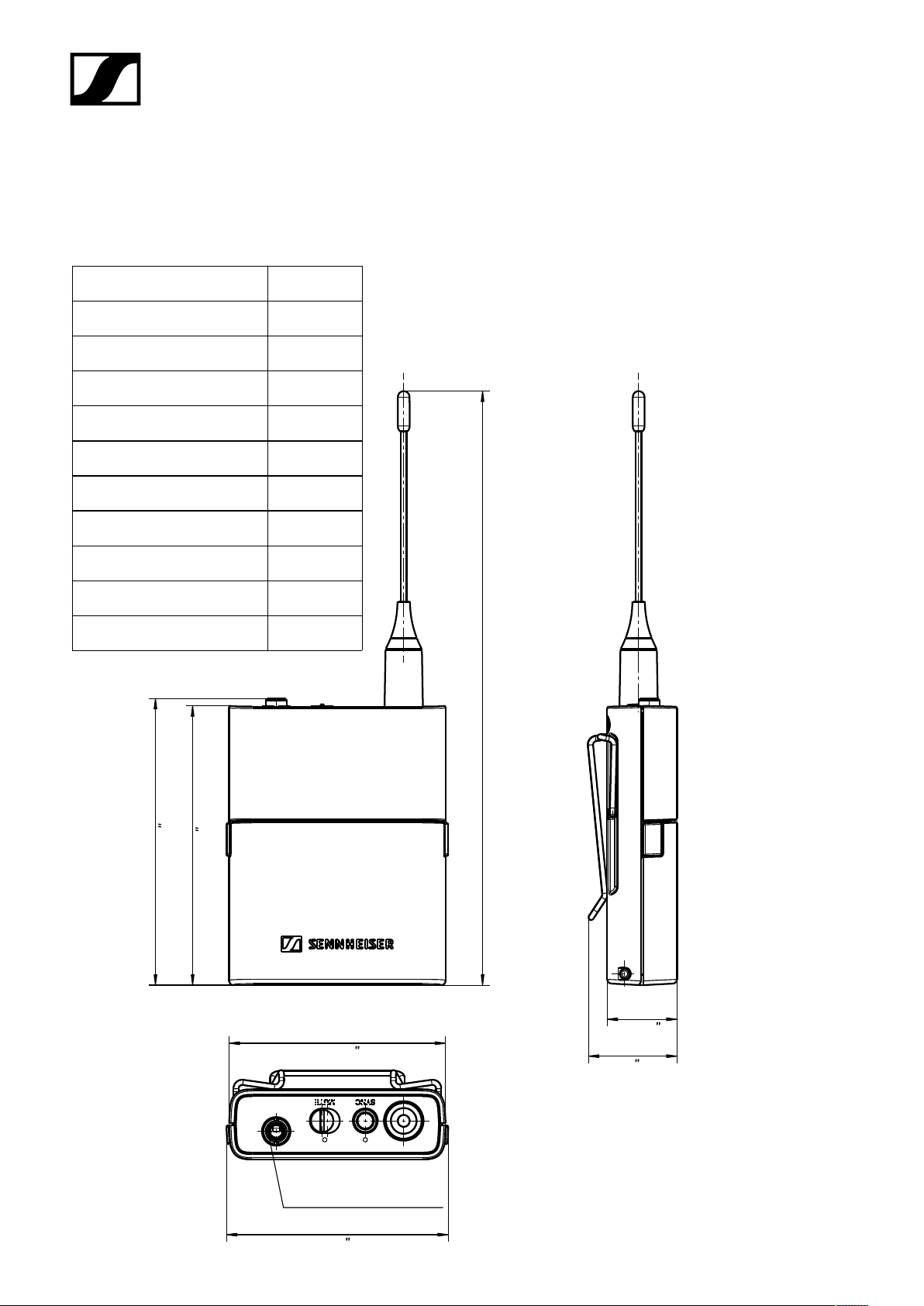

EW-D SK
L
L
3.23
82.08
3.15
79.98
20
61.97
2.44
Stereo-Klinkenbuchse 3.5mm
Stereo Jack 3.5mm
63.52
2.5
0.79
25.35
1
Page 7
PRODUCT SPECIFICATION (V1.4)
Evolution Wireless Digital
EW-D CI1 SET | Instrument Set
ARCHITECT‘S SPECIFICATION
7/7
EW-D EM rack receiver
The stationary receiver with switching diversity technology
shall be for use with a companion transmitter as part of a
digital wireless RF transmission system.
The receiver shall operate within ten UHF frequency
ranges, with a switching bandwidth of up to 56 MHz:
470.2 – 526 MHz, 520 – 576 MHz, 552 – 607.8 MHz, 606.2
– 662 MHz, 630 – 662 MHz, 662 – 693.8 MHz, 823.2 –
831.8 MHz, 863.2 – 846.8 MHz, 925.2 – 937.3 MHz, 1785.2 –
1799.8 MHz; selectable frequencies shall be up to 2,240.
®
The receiver shall feature Bluetooth
a frequency range between 2402 and 2480 MHz for remote
controlling the devices via a control App for iOS and Android.
The audio frequency response shall be between 20 Hz and
20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion
(THD) shall be ≤ -60 dB for 1 kHz @ -3 dBfs input level.
Dynamic range shall be 134 dB.
The receiver shall be menu-driven with a backlit LC display
showing the current frequency, channel number, metering of RF level, metering of AF level, lock status, muting
function, mute lock status, antenna switching diversity,
app connection, gain, audio output level, menu and battery
status of the associated transmitter. An auto-lock feature
shall be provided to prevent settings from being accidentally altered.
The receiver shall feature a balanced XLR-3M audio output
with a maximum output of +18 dBu along with an unbalanced ¼“ (6.3 mm) audio output with a maximum output of
+12 dBu. Two BNC-type input sockets shall be provided for
connecting the antennas.
The receiver shall operate on 12 V power supplied from
the power supply unit or from a Sennheiser EW-D ASA antenna splitter. Power consumption shall be ≤ 300 mA. The
receiver shall have a rugged metal housing; dimensions
shall be approximately 212 x 44 x 189 mm (8.35“ x 1.73“ x
7.44“). Weight shall be approximately 1000 grams (2.2 lbs)
without antennas and power supply. Operating temperature shall range from −10 °C to +55 °C (+14 °F to +131 °F).
The receiver shall be the Sennheiser EW-D EM.
Low Energy (BLE) at
EW-D SK bodypack transmitter
The bodypack transmitter shall be for use with a companion receiver as part of a digital wireless RF transmission
system.
The bodypack transmitter shall operate within ten
UHF frequency ranges, with a switching bandwidth of
up to 56 MHz: 470.2 – 526 MHz, 520 – 576 MHz, 552
– 607.8 MHz, 606.2 – 662 MHz, 630 – 662 MHz, 662 –
693.8 MHz, 823.2 – 831.8 MHz, 863.2 – 846.8 MHz, 925.2
– 937.3 MHz, 1785.2 – 1799.8 MHz; selectable frequencies
shall be up to 2,240.
The audio frequency response shall be between 20 Hz and
20 kHz (-3 dB) @ 3 dBfs. Audio total harmonic distortion
(THD) shall be ≤ -60 dB for 1 kHz @ -3 dBfs input level.
Dynamic range shall be 134 dB.
A programmable mute switch shall be provided to mute or
unmute the audio signal.
The bodypack transmitter’s parameters shall be configurable in the associated receiver’s menu and synchronized
with the bodypack transmitter via Bluetooth Low Energy
(BLE).
Power shall be supplied to the bodypack transmitter by
two 1.5 V AA size batteries or by one Sennheiser BA 70
rechargeable battery pack. Operating time shall be typically 12 hours with a battery pack and up to 8 hours with AA
batteries.
Occupied bandwidth shall be 200 kHz. Transmit power
(radiated) shall be 10 mW ERP (1785.2 – 1799.8 MHz Range:
12 mW ERP).
The bodypack transmitter shall have a rugged metal
housing; dimensions shall be approximately 63 x 80 x
20 mm (2.48“ x 3.15“ x 0.79“) without antenna. Weight
without the batteries shall be approximately 120 grams
(0.26 lbs). Operating temperature shall range from −10 °C
to +55 °C (+14 °F to +131 °F).
The bodypack transmitter shall be compatible with microphones for every application: Sennheiser lavalier microphones ME 2, ME 4, MKE 1, MKE 2 Gold and MKE Essential
Omni, Sennheiser headset microphones HS 2, HSP 2,
HSP Essential Omni, ME 3 and SL Headmic 1.
The bodypack transmitter shall be the Sennheiser
EW-D SK.
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
