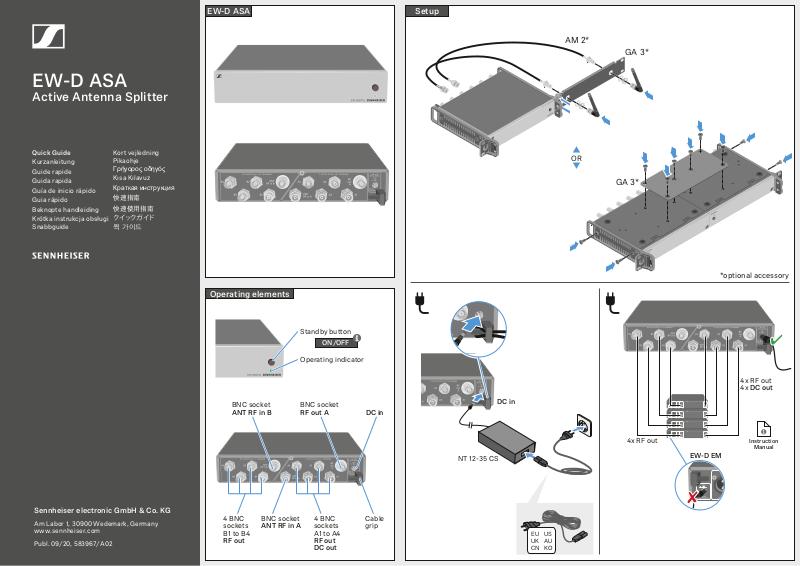

Page 1
EW-D ASA
Active Antenna Splitter
EW-D ASA
Setup
AM 2*
GA 3*
Quick Guide
Kurzanleitung
Guide rapide
Guida rapida
Guía de inicio rápido
Guia rápido
Beknopte handleiding
Krótka instrukcja obsługi
Snabbguide
Kort vejledning
Pikaohje
Γρήγορος οδηγός
Kısa Kılavuz
Краткая инструкция
快速指南
快速使用指南
クイックガ イド
퀵 가이드
Operating elements
ASA 214
BNC socket
ANT RF in B
Standby button
ON/OFF
Operating indicator
BNC socket
RF out A
DC in
DC in
OR
GA 3*
*optional accessory
4x RF out
4x DC out
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Publ. 09/20, 583967/A02
4 BNC
sockets
B1 to B4
RF out
BNC socket
ANT RF in A
4 BNC
sockets
A1 to A4
RF out
DC out
Cable
grip
NT 12-35 CS
EU
US
AU
CNUKKO
4x RF out
EW-D EM
Instruction
Manual
Page 2
Block diagram Connecting devices
out A in A
(DC out)
DC in
Power
in B
(DC out)
B: Linking two 4-channel systemsA: Two antennas supplying a 4-channel system
ANT AANT B
ANT A
ANT B
A1 A2A3A4
RF out (DC out)
ON/OFF
ON/Standby
B1 B2B3B4
RF out
Antenna booster
Antenna booster
Remote antennas,
maximum cable lengths
and antenna booster setup
Instruction
Manual
Antenna booster Antenna booster
in B
out A
C: Two antennas supplying an 8-channel system
ANT A
in B
out A
ANT B
Antenna boosterAntenna booster
short on
long standby
OFF
EW-D ASA
NT 12-35 CS
OR
in B
out A
in B
out A
