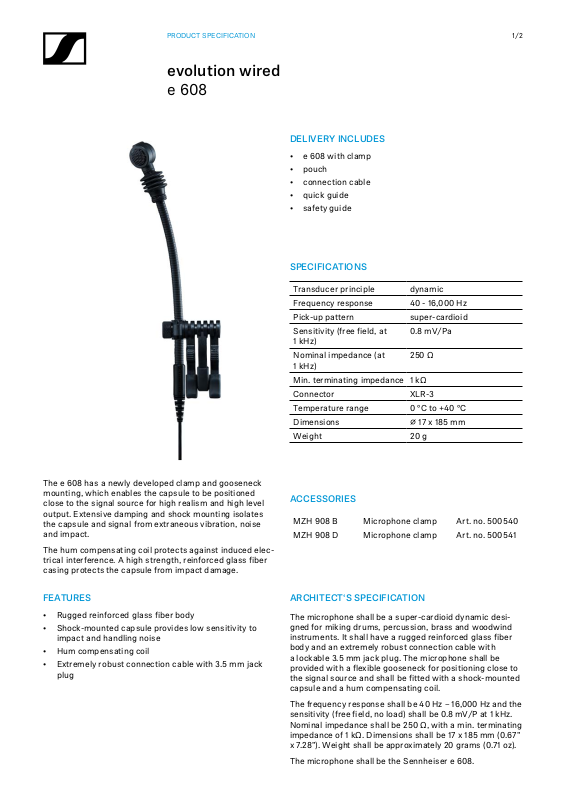

Sennheiser e 608 Specifications
PRODUCT SPECIFICATION
evolution wired
e 608
DELIVERY INCLUDES
• e 608 with clamp
• pouch
• connection cable
• quick guide
• safety guide
SPECIFICATIONS
Transducer principle dynamic
Frequency response 40 - 16,000 Hz
Pick-up pattern super-cardioid
Sensitivity (free field, at
1 kHz)
Nominal impedance (at
1 kHz)
Min. terminating impedance 1 kΩ
Connector XLR-3
Temperature range 0 °C to +40 °C
Dimensions ⌀ 17 x 185 mm
Weight 20 g
0.8 mV/Pa
250 Ω
1/2
The e 608 has a newly developed clamp and gooseneck
mounting, which enables the capsule to be positioned
close to the signal source for high realism and high level
output. Extensive damping and shock mounting isolates
the capsule and signal from extraneous vibration, noise
and impact.
The hum compensating coil protects against induced electrical interference. A high strength, reinforced glass fiber
casing protects the capsule from impact damage.
FEATURES
• Rugged reinforced glass fiber body
• Shock-mounted capsule provides low sensitivity to
impact and handling noise
• Hum compensating coil
• Extremely robust connection cable with 3.5 mm jack
plug
ACCESSORIES
MZH 908 B Microphone clamp Art. no. 500540
MZH 908 D Microphone clamp Art. no. 500541
ARCHITECT‘S SPECIFICATION
The microphone shall be a super-cardioid dynamic designed for miking drums, percussion, brass and woodwind
instruments. It shall have a rugged reinforced glass fiber
body and an extremely robust connection cable with
a lockable 3.5 mm jack plug. The microphone shall be
provided with a flexible gooseneck for positioning close to
the signal source and shall be fitted with a shock-mounted
capsule and a hum compensating coil.
The frequency response shall be 40 Hz – 16,000 Hz and the
sensitivity (free field, no load) shall be 0.8 mV/P at 1 kHz.
Nominal impedance shall be 250 Ω, with a min. terminating
impedance of 1 kΩ. Dimensions shall be 17 x 185 mm (0.67"
x 7.28"). Weight shall be approximately 20 grams (0.71 oz).
The microphone shall be the Sennheiser e 608.
PRODUCT SPECIFICATION
evolution wired
e 608
POLAR PATTERN FREQUENCY RESPONSE
2/2
90°
60°
120°
150°
30°
180°
0°
0°
0
5
10
15
20
25
dB
180°
30°
150°
60°
120°
90°
125 Hz
250 Hz
500 Hz
1,000 Hz
2,000 Hz
4,000 Hz
8,000 Hz
16,000 Hz
dBV
-40
-50
-60
-70
-80
-90
50
0°, 1 m
0°, 5 cm
100
200
500
1,000
2,000
5,000
10,000
20,000
Hz
Sennheiser electronic GmbH & Co. KG · Am Labor 1 · 30900 Wedemark · Germany · www.sennheiser.com
