Sennheiser 500206 User Manual
Cat. No. 500206
Microphones | evolution

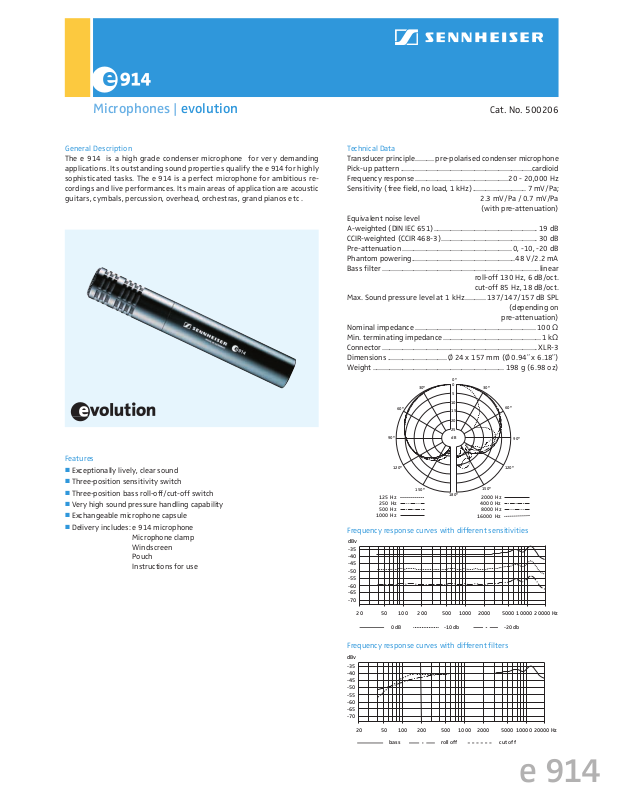

General Description
The e 914 is a high grade condenser microphone for very demanding
applications. Its outstanding sound properties qualify the e 914 for highly
sophisticated tasks. The e 914 is a perfect microphone for ambitious recordings and live performances. Its main areas of application are acoustic
guitars, cymbals, percussion, overhead, orchestras, grand pianos etc .
Features
J
Exceptionally lively, clear sound
J
Three-position sensitivity switch
J
Three-position bass roll-off/cut-off switch
J
Very high sound pressure handling capability
J
Exchangeable microphone capsule
J
Delivery includes: e 914 microphone
Microphone clamp
Windscreen
Pouch
Instructions for use
Technical Data
Transducer principle .......... pre-polarised condenser microphone
Pick-up pattern .......................................................................cardioid
Frequency response ..................................................20 - 20,000 Hz
Sensitivity (free field, no load, 1 kHz) ............................. 7 mV/Pa;
2.3 mV/Pa / 0.7 mV/Pa
(with pre-attenuation)
Equivalent noise level
A-weighted (DIN IEC 651) ........................................................ 19 dB
CCIR-weighted (CCIR 468-3) .................................................... 30 dB
Pre-attenuation ...........................................................0, -10, -20 dB
Phantom powering ........................................................48 V/2.2 mA
Bass filter .....................................................................................linear
roll-off 130 Hz, 6 dB/oct.
cut-off 85 Hz, 18 dB/oct.
Max. Sound pressure level at 1 kHz ...........137/147/157 dB SPL
(depending on
pre-attenuation)
Nominal impedance ................................................................. 100
Min. terminating impedance .....................................................1 k
Connector .................................................................................... XLR-3
Dimensions ................................Ø 24 x 157 mm (Ø 0.94˝ x 6.18˝)
Weight ....................................................................... 198 g (6.98 oz)
0°
5
10
15
20
25
dB
30°
60°
90°
30°
60°
90°
120°
150°
180°
150°
120°
0
2000 Hz
4000 Hz
8000 Hz
16000 Hz
125 Hz
250 Hz
500 Hz
1000 Hz
Frequency response curves with different filters
-40
-45
-50
-55
-60
20
50 100
200
500
1000
2000 5000
10000
20000
Hz
-35
dBv
-65
-70
bassro
ll of
f
cut of
f
Frequency response curves with different sensitivities
-40
-45
-50
-55
-60
20
50 100
200
500
1000
2000 5000
10000
20000
Hz
-35
dBv
-65
-70
0 dB-10 db
-20
db
e 914
