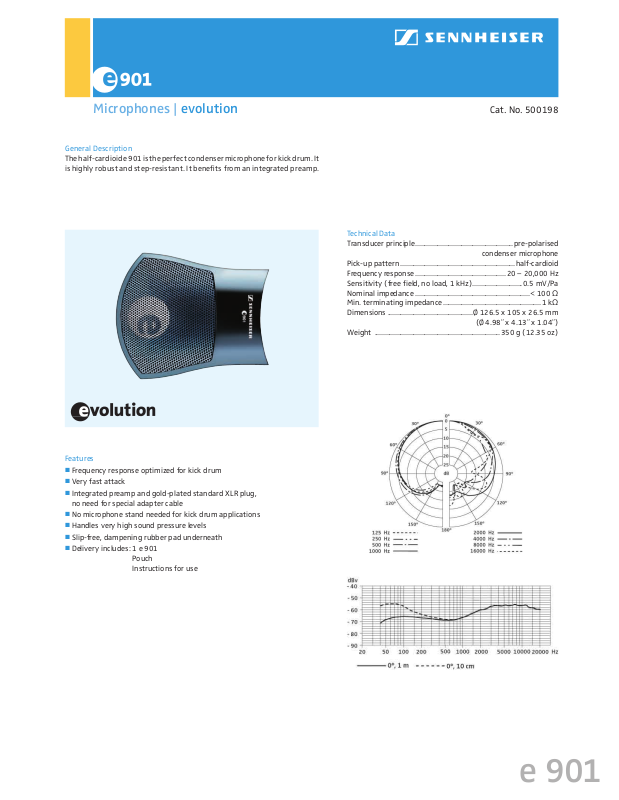

Sennheiser 500198 User Manual
Cat. No. 500198
Microphones | evolution
General Description
The half-cardioid e 901 is the perfect condenser microphone for kick drum. It
is highly robust and step-resistant. It benefits from an integrated preamp.
Features
J
Frequency response optimized for kick drum
J
Very fast attack
J
Integrated preamp and gold-plated standard XLR plug,
no need for special adapter cable
J
No microphone stand needed for kick drum applications
J
Handles very high sound pressure levels
J
Slip-free, dampening rubber pad underneath
J
Delivery includes: 1 e 901
Pouch
Instructions for use
Technical Data
Transducer principle .....................................................pre-polarised
condenser microphone
Pick-up pattern ..............................................................half-cardioid
Frequency response .................................................20 – 20,000 Hz
Sensitivity (free field, no load, 1 kHz) ...........................0.5 mV/Pa
Nominal impedance ..............................................................< 100
Min. terminating impedance ..................................................... 1 k
Dimensions ..............................................Ø 126.5 x 105 x 26.5 mm
(Ø 4.98˝ x 4.13˝ x 1.04˝)
Weight .................................................................... 350 g (12.35 oz)
e 901
