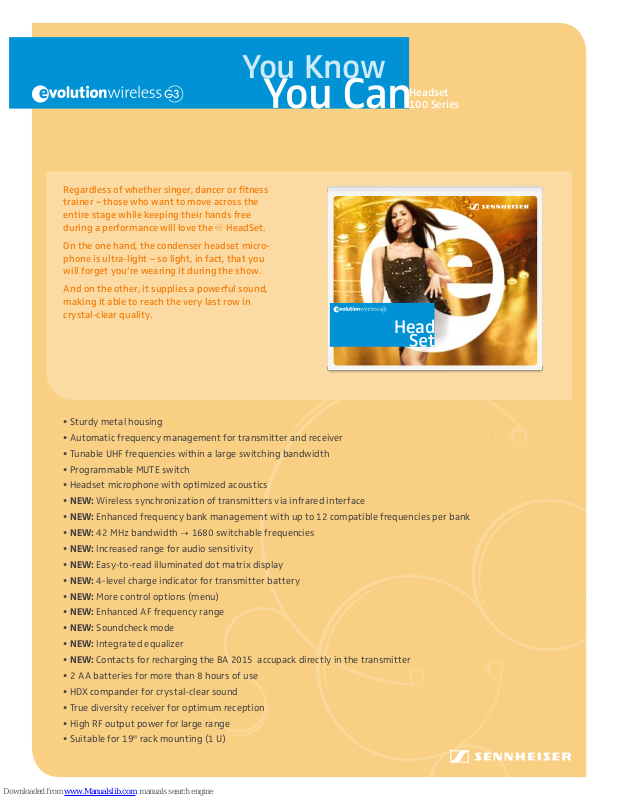

• Sturdy metal housing
• Automatic frequency management for transmitter and receiver
• Tunable UHF frequencies within a large switching bandwidth
• Programmable MUTE switch
• Headset microphone with optimized acoustics
• NEW: Wireless synchronization of transmitters via infrared interface
• NEW: Enhanced frequency bank management with up to 12 compatible frequencies per bank
• NEW: 42 MHz bandwidth 1680 switchable frequencies
• NEW: Increased range for audio sensitivity
• NEW: Easy-to-read illuminated dot matrix display
• NEW: 4-level charge indicator for transmitter battery
• NEW: More control options (menu)
• NEW: Enhanced AF frequency range
• NEW: Soundcheck mode
• NEW: Integrated equalizer
• NEW: Contacts for recharging the BA 2015 accupack directly in the transmitter
• 2 AA batteries for more than 8 hours of use
• HDX compander for crystal-clear sound
• True diversity receiver for optimum reception
• High RF output power for large range
• Suitable for 19" rack mounting (1 U)
Regardless of whether singer, dancer or fitness
trainer – those who want to move across the
entire stage while keeping their hands free
during a performance will love the g HeadSet.
On the one hand, the condenser headset microphone is ultra-light – so light, in fact, that you
will forget you’re wearing it during the show.
And on the other, it supplies a powerful sound,
making it able to reach the very last row in
crystal-clear quality.
You Know
You Can
Headset
100 Series
Head
Head
Designed and engineered in Germany
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
For more accessories, please visit www.sennheiser.com
Technical Data
ew 100 g
Modulation wideband FM
Frequency ranges 516-558, 566-608, 626-668, 734-776, 780-822, 823-865
Transmission/Receiving frequencies 20 channel banks, 1 xed bank, 12 factory preset channels each
Switching bandwidth 42 MHz
Noise reduction system Sennheiser HDX
AF frequency response 25 – 18.000 Hz
S/N ratio (at 1mV and peak deviation) ≥ 110 dBA
THD (at nominal deviation and 1 kHz) ≤ 0,9 %
EM 100 g
SK 100 g
ME 3-ew
Receiver principle True Diversity
Sensitivity (with HDX, peak deviation) <2,5 µV at 52 dBA
eff
S/N
Adjacent channel rejection 65 dB
Intermodulation attenuation 65 dB
Blocking 70 dB
Pilot-tone squelch detachable
Antenna inputs 2 BNC sockets
AF output voltage (at peak deviation, 1kHz AF) ¼" (6.3 mm) jack socket, unbalanced: +12 dBu XLR socket,
balanced: +18 dBu
Power supply 12 V DC
Dimensions 190 x 212 x 43 mm (7.48" x 8.35" x 1.69")
Weight approx. 900 g (1.99 lbs)
RF output power at 50 typ. 30 mW
AF frequency response 25 – 18.000 Hz (Line)
80 – 18.000 Hz (Mic)
Max input voltage transmitter / line 3 V
eff
Input impedance transmitter / line 40 kO, unbalanced / 1 MO
Power supply 2 AA batteries, 1.5 V
Nominal voltage 2.4 V
Operating time typ. 8h
Dimensions 82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
Weight approx. 160 g (5.64 oz)
Transducer principle condenser
Sensitivity 1.6 mV/Pa
Pick-up pattern cardioid
Max. SPL 150 dB SPL
Delivery includes
• EM 100 g rack-mount receiver
• SK 100 g handheld transmitter
• ME 3-ew headset microphone
For recommended accessories please visit www.sennheiser.com
ew 152 g
