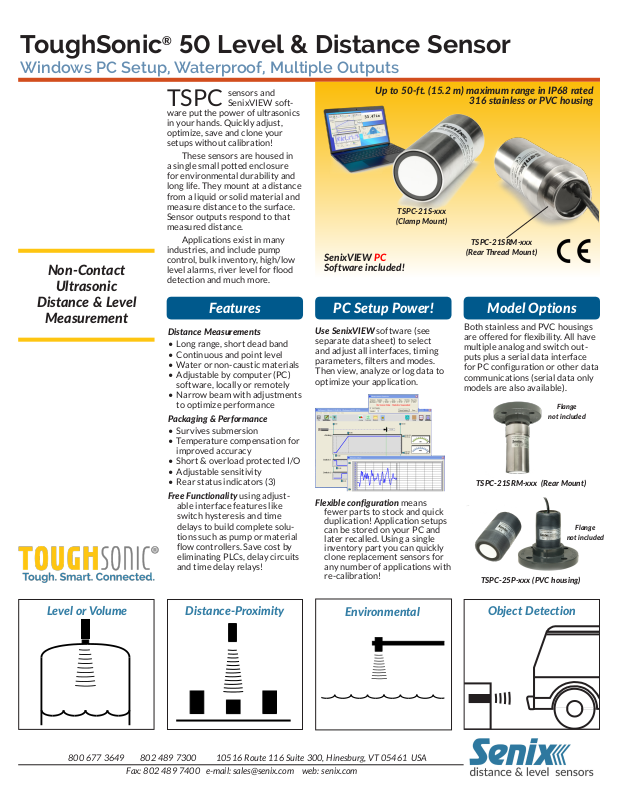

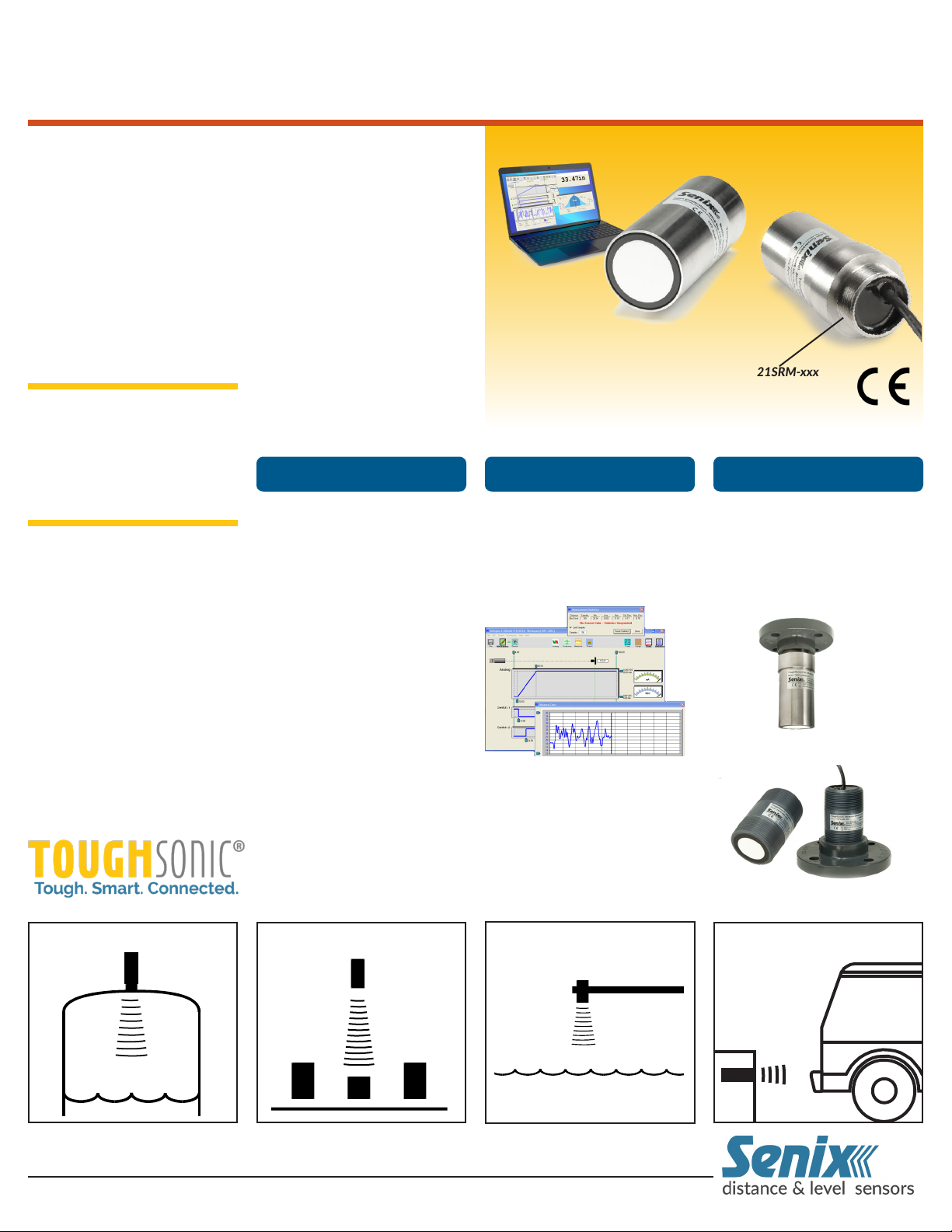

Page 1
ToughSonic® 50 Level & Distance Sensor
Windows PC Setup, Waterproof, Multiple Outputs
Non-Contact
Ultrasonic
Distance & Level
Measurement
sensors and
TSPC
ware put the power of ultrasonics
in your hands. Quickly adjust,
optimize, save and clone your
setups without calibration!
These sensors are housed in
a single small potted enclosure
for environmental durability and
long life. They mount at a distance
from a liquid or solid material and
measure distance to the surface.
Sensor outputs respond to that
measured distance.
Applications exist in many
industries, and include pump
control, bulk inventory, high/low
level alarms, river level for flood
detection and much more.
Distance Measurements
• Long range, short dead band
• Continuous and point level
• Water or non-caustic materials
• Adjustable by computer (PC)
software, locally or remotely
• Narrow beam with adjustments
to optimize performance
Packaging & Performance
• Survives submersion
• Temperature compensation for
improved accuracy
• Short & overload protected I/O
• Adjustable sensitivity
• Rear status indicators (3)
Free Functionality using adjust-
able interface features like
switch hysteresis and time
delays to build complete solutions such as pump or material
flow controllers. Save cost by
eliminating PLCs, delay circuits
and time delay relays!
SenixVIEW soft-
Up to 50-ft. (15.2 m) maximum range in IP68 rated
TSPC-21S-xxx
(Clamp Mount)
SenixVIEW PC
Software included!
PC Setup Power!Features
Use SenixVIEW software (see
separate data sheet) to select
and adjust all interfaces, timing
parameters, filters and modes.
Then view, analyze or log data to
optimize your application.
Flexible configuration means
fewer parts to stock and quick
duplication! Application setups
can be stored on your PC and
later recalled. Using a single
inventory part you can quickly
clone replacement sensors for
any number of applications with
re-calibration!
316 stainless or PVC housing
TSPC-21SRM-xxx
(Rear Thread Mount)
Model Options
Both stainless and PVC housings
are offered for flexibility. All have
multiple analog and switch outputs plus a serial data interface
for PC configuration or other data
communications (serial data only
models are also available).
Flange
not included
TSPC-21SRM-xxx (Rear Mount)
Flange
not included
TSPC-25P-xxx (PVC housing)
Level or Volume Distance-Proximity Object Detection
800 677 3649 802 489 7300 10516 Route 116 Suite 300, Hinesburg, VT 05461 USA
Fax: 802 489 7400 e-mail: [email protected] web: senix.com
Environmental

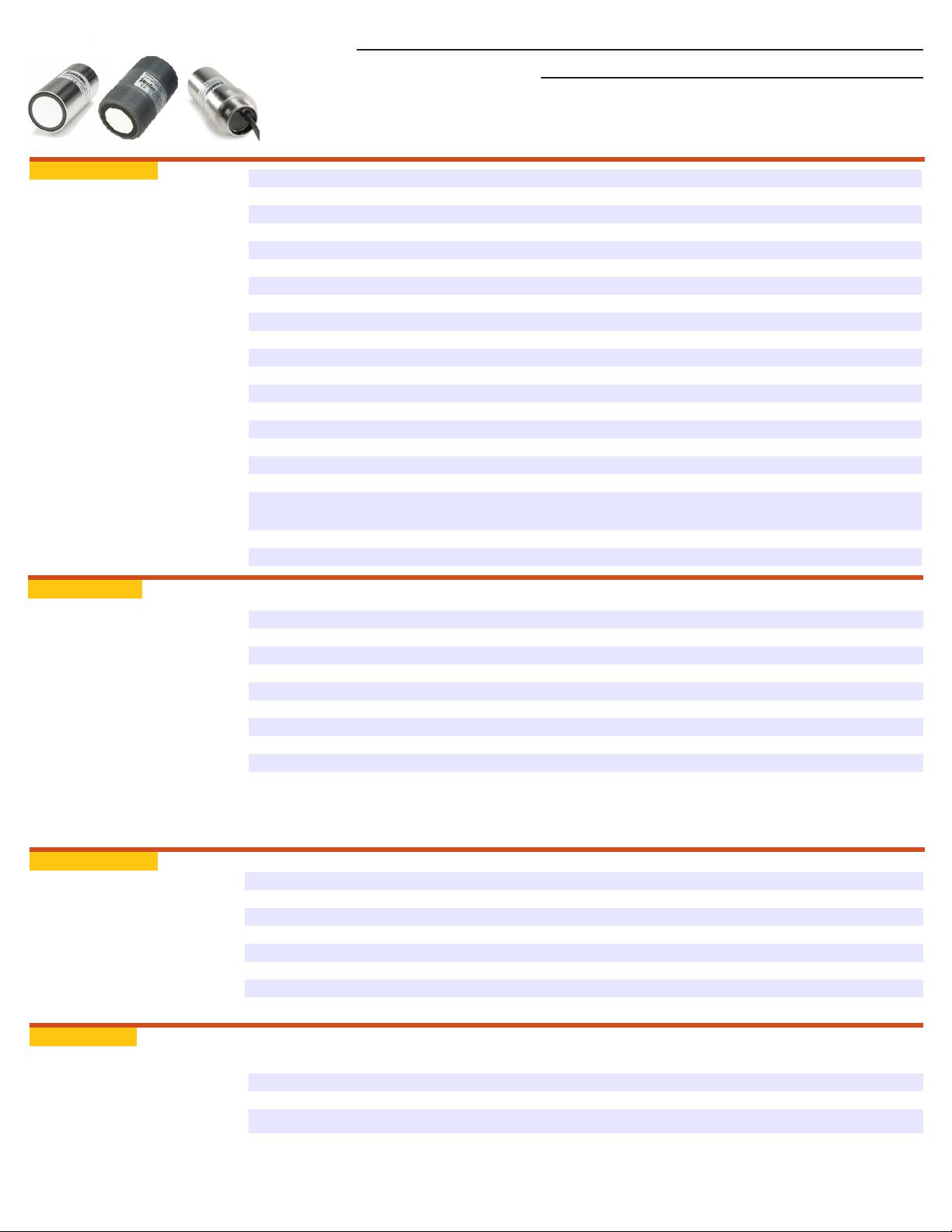

Page 2
Specifications
Senix® Corporation, 10516 Route 116 Suite 300, Hinesburg, VT 05461 USA
Phone: 800 677 3649 or 802 489 7300 FAX: 802 489 7400
Web: senix.com e-mail: [email protected]
Optimum Range 33 ft. (10 m) Max Range 50 ft. (15.2 m)
Deadband Typ. < 12 inches (30.3 cm) Adjustment SenixVIEW software (included)
Case Material 316 stainless steel or PVC Configuration Stored in non-volatile memory
Temperature -40 to 158 F (-40 to 70 C) Outputs Five selectable, plus serial data
Humidity 0 to 100% operating Transducer Ruggedized piezoelectric
Compensation Temperature compensated Protection NEMA-4X, NEMA-6P, IP68
Resolution Serial data: 0.0135 in. (0.3438 mm); Analog steps: 4099 (0-10 VDC), 3279 (4-20 mA)
Repeatability Nominal 0.2% of range @ constant temp. Affected by target, distance, environment
Update Rate 5 Hz (200 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections
Voltage Output 0-10, 0-5 VDC or PC customized; 10 mA max. (*)
Current Loop #1 Current sourcing 4-20 mA or SenixVIEW adjustable, max. loop 450Ω (*)
Current Loop #2 Current sinking 4-20 mA or SenixVIEW adjustable, max. loop 450Ω (*)
Sinking Switch 150 mA max. @ 40 VDC max., adjustable set point & polarity, fault indication
Sourcing Switch 150 mA max. @ input voltage, adjustable set point & polarity, fault indication
RS-232, RS-485 Modbus protocol, 9600-115200 baud (selectable), 8 data bits, 1 stop, no parity
SYNC feature Permits up to 32 sensors to operate in close proximity without interaction
Target Requirements
Objects Detects flat or curved objects. Surface must reflect ultrasound back to sensor.
Max. Distance
Orientation Flat surfaces should be oriented perpendicular to sensor output beam
Optical Unaffected by target color, transparency, light, or other optical characteristics
Affected by size, shape, orientation of target (sound level reflected back to sensor), environment
Restrict use to Optimum Range when using over a wide range of environmental conditions
Connections
Part Numbers
Cable Connection Wire Description
Power Brown 10-30 VDC @ 70 mA maximum; Typical: 45 mA @ 24 VDC (**)
Ground Blue Power and interface common
Voltage Output * Violet 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC
Current Loop Output * Green 4-20 mA sourcing (adjustabled end values between 4 and 20 mA)
Current Loop Output * Orange 4-20 mA sinking (adjustabled end values between 4 and 20 mA)
Switch #1 Output Black Sinking ("NPN") or Sourcing ("PNP"), user selected
Switch #2 Output White Sinking ("NPN") or Sourcing ("PNP"), user selected
RS-232 out / RS-485- Gray Serial data connection (depends on model - see model selection)
RS-232 in / RS-485+ Yellow Serial data connection (depends on model - see model selection)
(*) Analog outputs share common distance endpoints. Both 4-20 mA outputs share the same adjustable max / min end values. The
max. loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included.
Model Number Description
TSPC-21S-232 Clamp mounted, 316SS housing, serial RS-232 interface (PC COM port compatible)
TSPC-21S-485 Clamp mounted, 316SS housing, serial RS-485 interface (allows multi-sensor networking)
TSPC-21SRM-232 Rear mount 1.5" NPT thread, SS316 housing, serial RS-232 interface (PC COM port compatible)
TSPC-21SRM-485 Rear mount 1.5" NPT thread, SS316 housing, serial RS-485 interface (allows multi-sensor networking)
TSPC-25P-232 Threaded 2.5" NPT front and rear, PVC housing, serial RS-232 interface (PC COM port compatible)
TSPC-25P-485 Threaded 2.5" NPT front & rear, PVC housing, serial RS-485 interface (allows multi-sensor networking)
ToughSonic 50 models are also available with only the serial data interface
Senix also offers interconnection, communication, mounting, and display components
Dimensions
1 July 2019 Rev L
Model
TSPC-21S 4.8 in (122 mm) x 2.312 in (59mm) 29.9 oz (0.82 kg)
21S with Rear Mount 5.9 in (150 mm) x 2.50 in (63 mm) 31.5 oz (0.89 kg)
TSPC-25P 5.0 in (127 mm) x 2.5 in (63.5mm) 29.1 oz (0.82 kg)
All have 6.5 ft (2m) shielded cable attached. Other lengths available
Copyright Senix Corporation. All rights reserved. Specifications subject to change without notice. This Senix product is not recommended for
applications with hazardous or explosive materials, or as a primary device for personal safety.
Length x Diameter Weight
