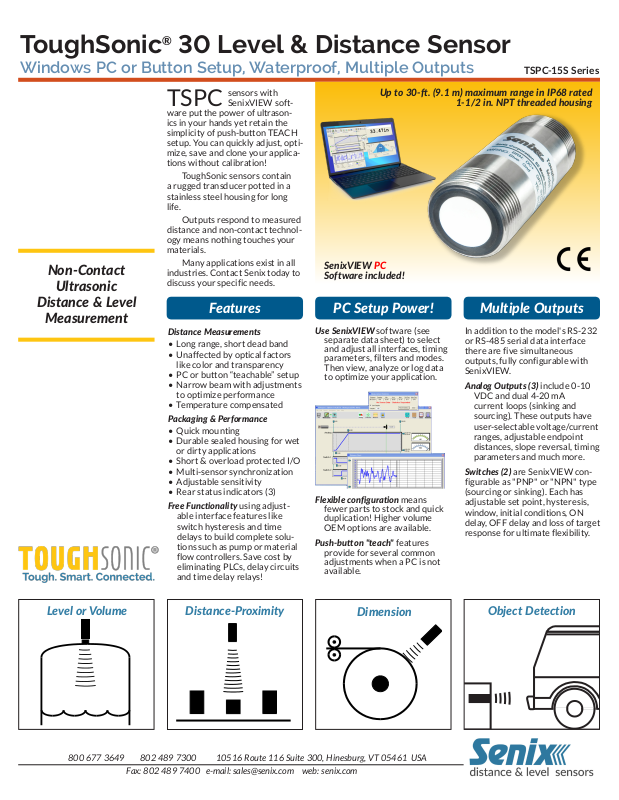

Page 1

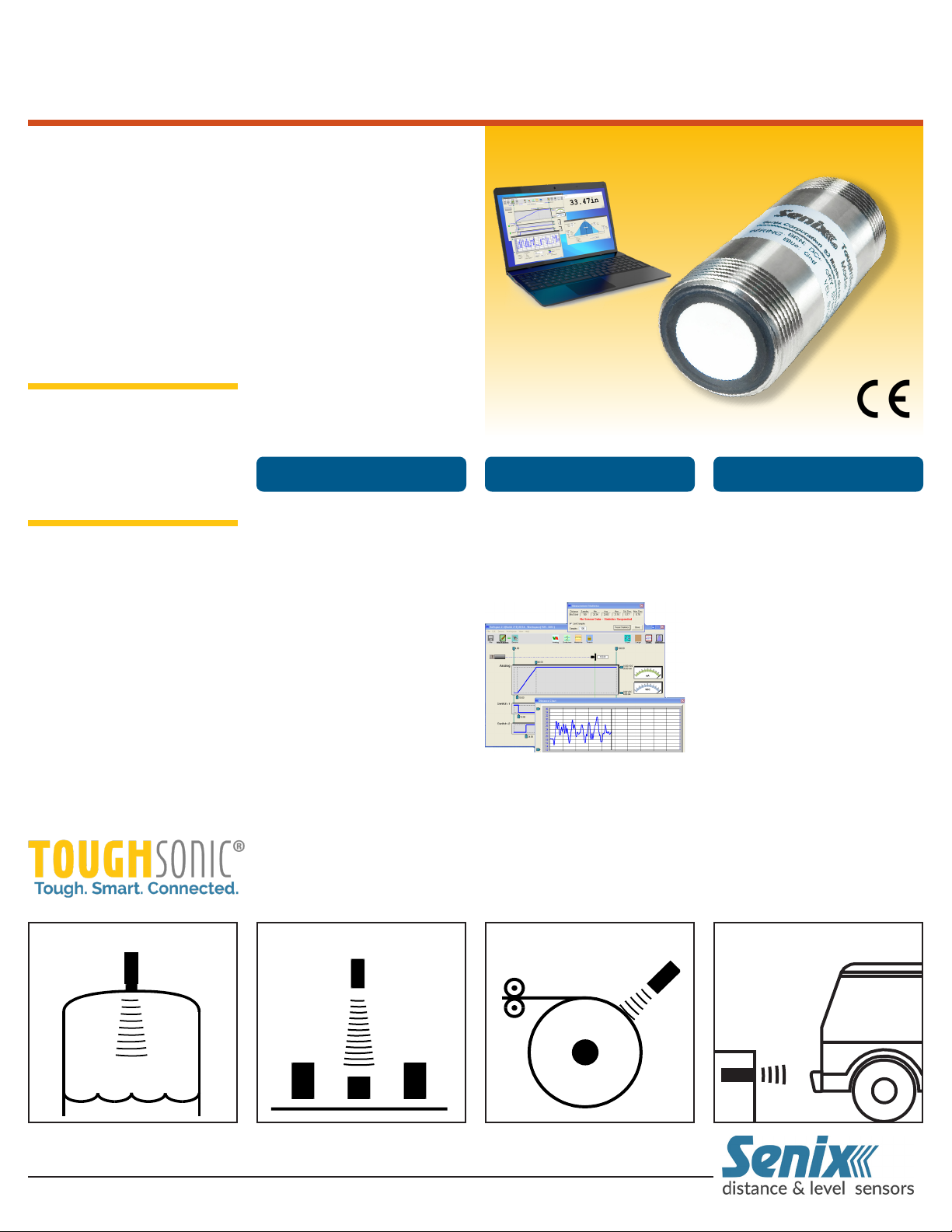

ToughSonic® 30 Level & Distance Sensor
Windows PC or Button Setup, Waterproof, Multiple Outputs
Non-Contact
Ultrasonic
Distance & Level
Measurement
sensors with
TSPC
ware put the power of ultrasonics in your hands yet retain the
simplicity of push-button TEACH
setup. You can quickly adjust, optimize, save and clone your applications without calibration!
ToughSonic sensors contain
a rugged transducer potted in a
stainless steel housing for long
life.
Outputs respond to measured
distance and non-contact technology means nothing touches your
materials.
Many applications exist in all
industries. Contact Senix today to
discuss your specific needs.
SenixVIEW soft-
Features PC Setup Power!
Distance Measurements
• Long range, short dead band
• Unaffected by optical factors
like color and transparency
• PC or button “teachable” setup
• Narrow beam with adjustments
to optimize performance
• Temperature compensated
Packaging & Performance
• Quick mounting
• Durable sealed housing for wet
or dirty applications
• Short & overload protected I/O
• Multi-sensor synchronization
• Adjustable sensitivity
• Rear status indicators (3)
Free Functionality using adjust-
able interface features like
switch hysteresis and time
delays to build complete solutions such as pump or material
flow controllers. Save cost by
eliminating PLCs, delay circuits
and time delay relays!
SenixVIEW PC
Software included!
Use SenixVIEW software (see
separate data sheet) to select
and adjust all interfaces, timing
parameters, filters and modes.
Then view, analyze or log data
to optimize your application.
Flexible configuration means
fewer parts to stock and quick
duplication! Higher volume
OEM options are available.
Push-button "teach" features
provide for several common
adjustments when a PC is not
available.
Up to 30-ft. (9.1 m) maximum range in IP68 rated
1-1/2 in. NPT threaded housing
In addition to the model's RS-232
or RS-485 serial data interface
there are five simultaneous
outputs, fully configurable with
SenixVIEW.
Analog Outputs (3) include 0-10
Switches (2) are SenixVIEW con-
figurable as "PNP" or "NPN" type
(sourcing or sinking). Each has
adjustable set point, hysteresis,
window, initial conditions, ON
delay, OFF delay and loss of target
response for ultimate flexibility.
TSPC-15S Series
Multiple Outputs
VDC and dual 4-20 mA
current loops (sinking and
sourcing). These outputs have
user-selectable voltage/current
ranges, adjustable endpoint
distances, slope reversal, timing
parameters and much more.
Level or Volume Distance-Proximity
800 677 3649 802 489 7300 10516 Route 116 Suite 300, Hinesburg, VT 05461 USA
Fax: 802 489 7400 e-mail: [email protected] web: senix.com
Dimension
Object Detection
Page 2

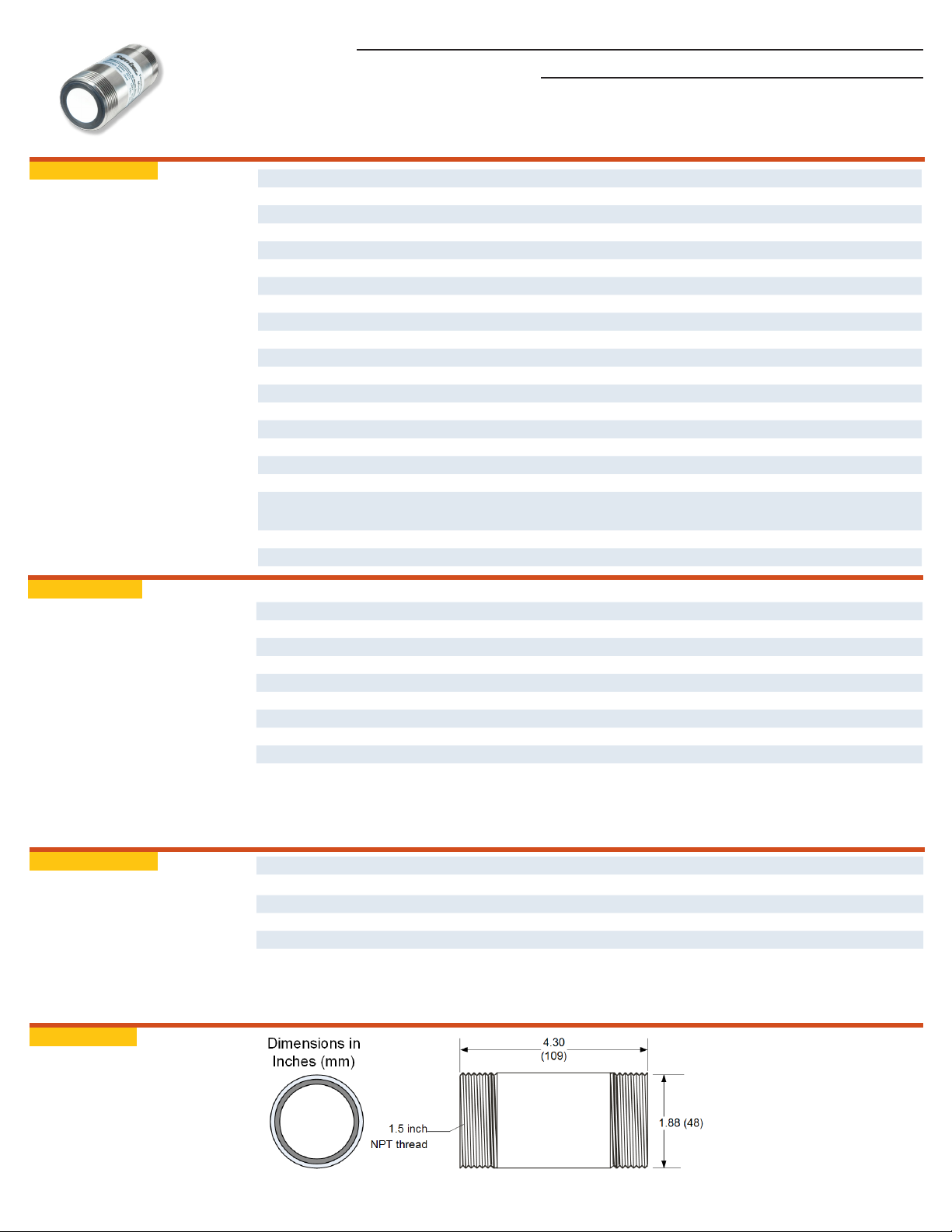

Specifications
Senix® Corporation, 10516 Route 116 Suite 300, Hinesburg, VT 05461 USA
Phone: 800 677 3649 or 802 489 7300 FAX: 802 489 7400
Web: senix.com e-mail: [email protected]
ToughSonic® 30 Level & Distance Sensor
Optimum Range 20 ft. (6.1 m) Max Range 30 ft. (9.1 m)
Deadband Typ. < 10 in. (25.4 cm) Adjustment Button "teach" or SenixVIEW
Case Material 316 stainless steel Configuration Stored in non-volatile memory
Temperature -40 to 158 F (-40 to 70 C) Outputs Five selectable, plus serial data
Humidity 0 to 100% operating Transducer Ruggedized piezoelectric
Compensation Temperature compensated Protection NEMA-4X, NEMA-6P, IP68
Resolution Serial data: 0.0068 in. (0.172 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA)
Repeatability Nominal 0.2% of range @ constant temp. Affected by target, distance, environment
Update Rate 10 Hz (100 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections
Voltage Output 0-10, 0-5 VDC or PC customized; 10 mA max. (*)
Current Loop #1 Current sourcing 4-20 mA or PC customized, max. loop 450Ω (*)
Current Loop #2 Current sinking 4-20 mA or PC customized, max. loop 450Ω (*)
Sinking Switch 150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication
Sourcing Switch 150 mA max. @ input voltage, teachable set point & polarity, fault indication
RS-232, RS-485 Modbus protocol, 9600-115200 baud (selectable), 8 data bits, 1 stop, no parity
SYNC feature Permits up to 32 sensors to operate in close proximity without interaction
Target Requirements
Objects Detects flat or curved objects. Surface must reflect ultrasound to sensor
Max. Distance
Orientation Flat surfaces should be oriented perpendicular to sensor output beam
Optical Unaffected by target color, transparency, light, or other optical characteristics
Affected by size, shape, orientation of target (sound level reflected back to sensor), environment
Restrict use to Optimum Range when using over a wide range of environmental conditions
Connections
Part Numbers
Dimensions
Cable Connection Wire Description
Power Brown 10-30 VDC @ 70 mA maximum; Typical: 45 mA @ 24 VDC (** )
Ground Blue Power and interface common
Voltage Output * Violet 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC
Current Loop Output * Green 4-20 mA sourcing (adjustabled end values between 4 and 20 mA)
Current Loop Output * Orange 4-20 mA sinking (adjustabled end values between 4 and 20 mA)
Switch #1 Output Black Sinking ("NPN") or Sourcing ("PNP"), user selected
Switch #2 Output White Sinking ("NPN") or Sourcing ("PNP"), user selected
RS-232 out / RS-485- Gray Serial data connection (depends on model - see model selection)
RS-232 in / RS-485+ Yellow Serial data connection (depends on model - see model selection)
(*) Analog outputs share common distance endpoints. Both 4-20 mA outputs share the same adjustable max / min end values. The
maximum loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included.
Model Number
TSPC-15S-485 Analog, switch and RS-485 serial interface (allows addressable multi-sensor networks)
TSPC-15S-485A * Same as above but with only RS-485 serial data interface *
TSPC-15S-232 Analog, switch and RS-232 serial data interface (PC COM port compatible)
TSPC-15S-232A * Same as above but with only RS-232 serial data interface *
* Models with "A" suffix are data communications only; Analog & switch outputs, pushbutton and interface LEDs are removed.
Senix also offers interconnection, communications, mounting and display accessories.
Description
Mechanical
Mounting: 1.5 inch NPT thread,
top or bottom
1 July 2019 Rev L
Attached Cable: 6.5ft (2 m)
Total Weight: 22.6 oz. (0.64 kg)
Copyright Senix Corporation. All rights reserved. Specifications subject to change without notice. This Senix product is not recommended for
applications with hazardous or explosive materials, or as a primary device for personal safety.
