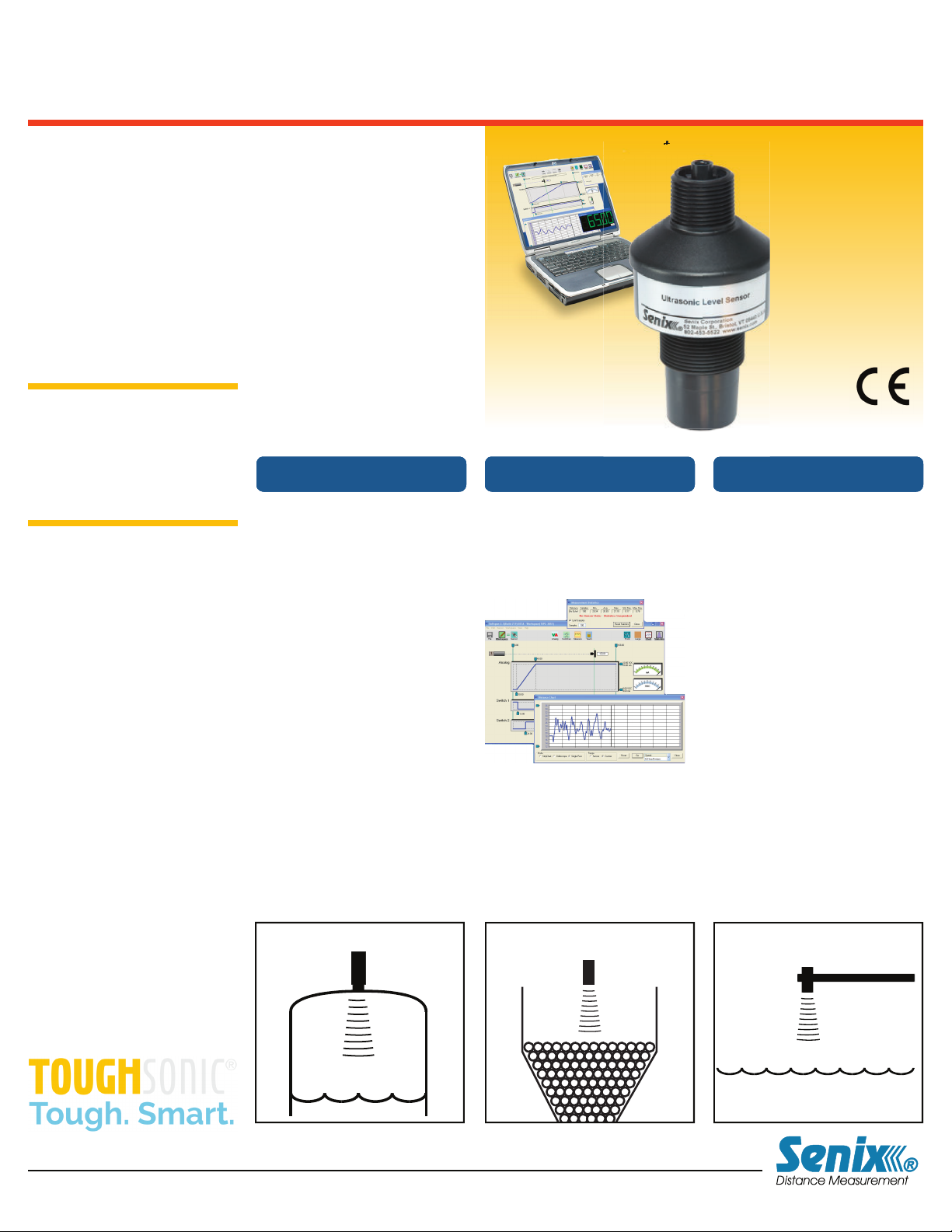

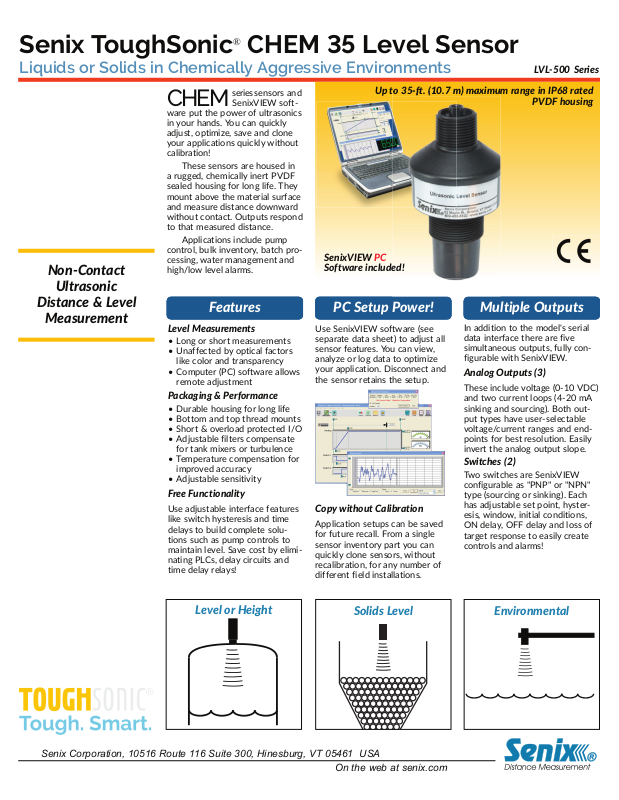

Senix ToughSonic® CHEM 35 Level Sensor
Liquids or Solids in Chemically Aggressive Environments
Up to 35-ft. (10.7 m) maximum range in IP68 rated
Non-Contact
Ultrasonic
Distance & Level
Measurement
series sensors and
CHEM
ware put the power of ultrasonics
in your hands. You can quickly
adjust, optimize, save and clone
your applications quickly without
calibration!
These sensors are housed in
a rugged, chemically inert PVDF
sealed housing for long life. They
mount above the material surface
and measure distance downward
without contact. Outputs respond
to that measured distance.
Applications include pump
control, bulk inventory, batch processing, water management and
high/low level alarms.
SenixVIEW soft-
Features
Level Measurements
• Long or short measurements
• Unaffected by optical factors
like color and transparency
• Computer (PC) software allows
remote adjustment
Packaging & Performance
• Durable housing for long life
• Bottom and top thread mounts
• Short & overload protected I/O
• Adjustable filters compensate
for tank mixers or turbulence
• Temperature compensation for
improved accuracy
• Adjustable sensitivity
Free Functionality
Use adjustable interface features
like switch hysteresis and time
delays to build complete solutions such as pump controls to
maintain level. Save cost by eliminating PLCs, delay circuits and
time delay relays!
SenixVIEW PC
Software included!
PC Setup Power!
Use SenixVIEW software (see
separate data sheet) to adjust all
sensor features. You can view,
analyze or log data to optimize
your application. Disconnect and
the sensor retains the setup.
Copy without Calibration
Application setups can be saved
for future recall. From a single
sensor inventory part you can
quickly clone sensors, without
recalibration, for any number of
different field installations.
LVL-500 Series
PVDF housing
Multiple Outputs
In addition to the model's serial
data interface there are five
simultaneous outputs, fully configurable with SenixVIEW.
Analog Outputs (3)
These include voltage (0-10 VDC)
and two current loops (4-20 mA
sinking and sourcing). Both output types have user-selectable
voltage/current ranges and endpoints for best resolution. Easily
invert the analog output slope.
Switches (2)
Two switches are SenixVIEW
configurable as "PNP" or "NPN"
type (sourcing or sinking). Each
has adjustable set point, hysteresis, window, initial conditions,
ON delay, OFF delay and loss of
target response to easily create
controls and alarms!
Level or Height
Senix Corporation, 10516 Route 116 Suite 300, Hinesburg, VT 05461 USA
On the web at senix.com
Solids Level Environmental
Page 2

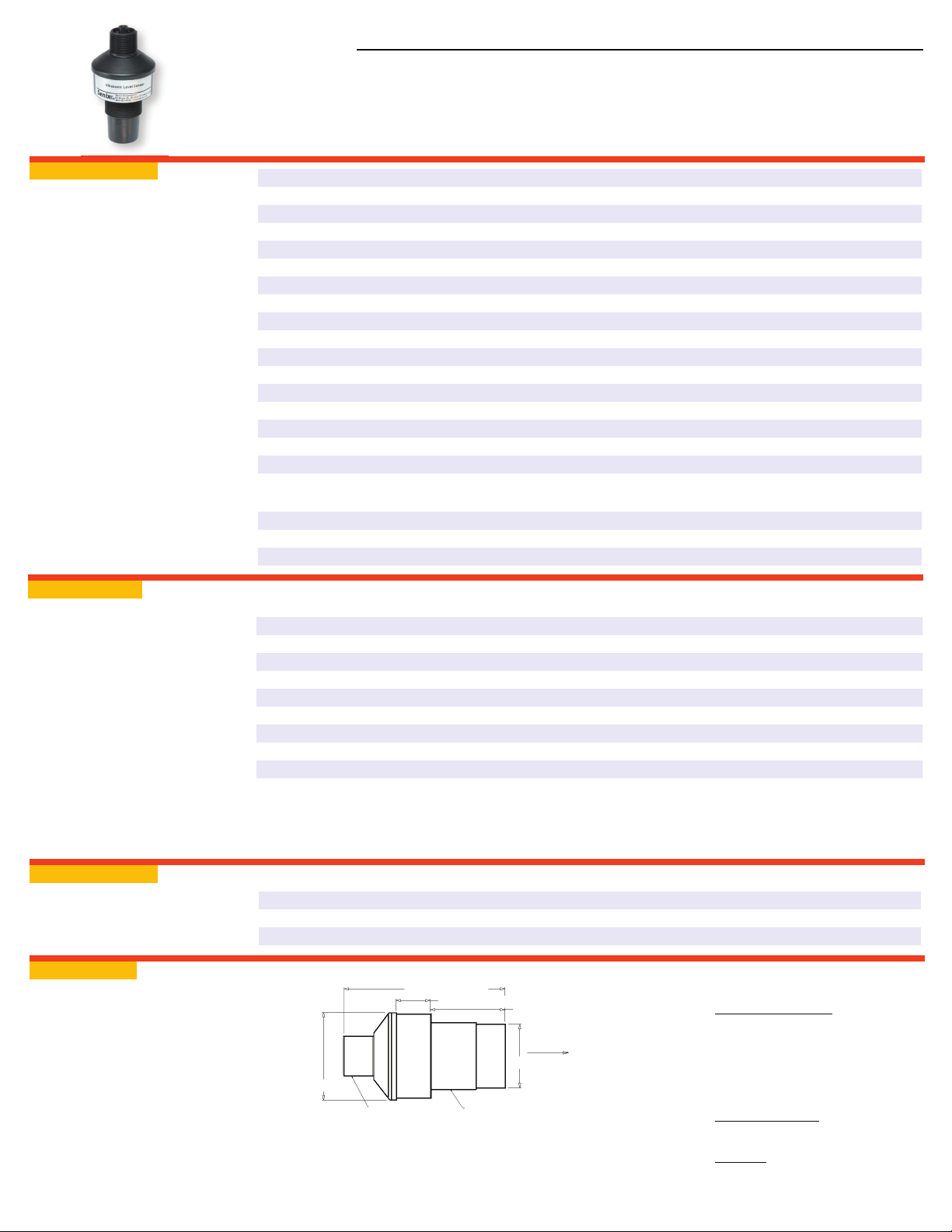

Specifications
Senix® Corporation, 10516 Route 116 Suite 300, Hinesburg, VT 05461 USA
On the web at senix.com
ToughSonic® CHEM 35 Level Sensor
Optimum Range 25 ft. (7.6 m) Max Range 35 feet (10.7 m)
Deadband Typ. < 12 in. (30.5 cm) Adjustment SenixVIEW software
Case Material PVDF Configuration Stored in non-volatile memory
Temperature -40 to 158 F (-40 to 70 C) Outputs Five selectable, plus serial data
Humidity 0 to 100% operating Transducer Rugged piezoelectric
Compensation Temperature compensated Protection NEMA-4X, NEMA-6P, IP68
Resolution Digital: 0.0135 in. (0.344 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA)
Repeatability Nominal 0.2% of range @ constant temp. Affected by target, distance, environment
Update Rate 5 Hz (200 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections
Voltage Output 0-10, 0-5 VDC or PC customized; 10 mA max. (*)
Current Loop #1 Current sourcing 4-20 mA or PC customized, max. loop 450Ω (*)
Current Loop #2 Current sinking 4-20 mA or PC customized, max. loop 450Ω (*)
Sinking Switch 150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication
Sourcing Switch 150 mA max. @ input voltage, teachable set point & polarity, fault indication
RS-232, RS-485 Modbus protocol, 9600-115200 baud (selectable), 8 data bits, 1 stop, no parity
Target Requirements
Target Detects flat or irregular surfaces. Target surface must reflect sound back to sensor.
Max. Distance
Granular Solids De-rate max range by 50%; range affected by material density and orientation
Orientation Orient sensor beam perpendicular to target surface for best performance
Optical Unaffected by target color, light level, transparency or other optical characteristics
Affected by size, shape, orientation of target (sound level reflected back to sensor), environment
Restrict use to Optimum Range when using over a wide range of environmental conditions
Connections
Part Numbers
Dimensions
1 Dec 2015 Rev B1
Cable Connection Wire Description
Power Brown 10-30 VDC @ 50 mA maximum; Typical: 45 mA @ 24 VDC (**)
Ground Blue Power and interface common
Voltage Output * Violet 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC
Current Loop Output * Green 4-20 mA sourcing (adjustable end values between 4 and 20 mA)
Current Loop Output * Orange 4-20 mA sinking (adjustable end values between 4 and 20 mA)
Switch #1 Output Black Sinking ("NPN") or Sourcing ("PNP"), user selected
Switch #2 Output White Sinking ("NPN") or Sourcing ("PNP"), user selected
RS-232 out / RS-485- Gray Serial data connection (depends on model - see model selection)
RS-232 in / RS-485+ Yellow Serial data connection (depends on model - see model selection)
(*) Analog outputs share common distance endpoints. Both 4-20 mA outputs share the same adjustable max / min values. The
max. loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included. Sensitivity reduced below 15 VDC input voltage.
Model Number
LVL-500-232 Serial RS-232 interface (PC COM port compatible)
LVL-500-485 Serial RS-485 interface (allows addressable multi-sensor networks)
Senix also offers interconnection, communication, mounting, and display components
Description
Mechanical
5.59 [142 mm]
1.18 [30 mm]
3.05 [77mm]
Upper Threads
1-inch NPT
1-in. BSP or M32)
All rights reserved. Specifications subject to change without notice. Senix products are not recommended for applications with hazardous or
explosive materials, or as a primary device for personal safety. Copyright 2015 Senix Corporation. Printed in U.S.A.
Lower Mounting threads
2-inch parallel universal
(optional
2.60 [66 mm]
Direction of Measurement
2.22 [56mm]
Mounting Threads:
Lower 2-in. Parallel
Upper 1-in. NPT
(optional 1-in. BSP or M32 x 1.5
metric by special order)
Attached Cable:
PUR jacket, 6.5ft (2 m) long
Weight: 24.7 oz. (0.70kg)
