USER MANUAL
Z-GPRS3
Z-UMTS
Z-LOGGER3
Multi-protocol Datalogger, RTU, with ethernet, modem 2G/3G and embedded I/O
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
2
Date
Version
Changes
20/06/2016
1.00
First Revision
20/06/2016
1.01
Added Address Book chapter, added Registers in the Modbus TCP Server
chapter
21/07/2016
1.02
Added SEAL configuration and program Update from webserver.
Updated Firmware Update procedure.
29/07/2016
1.03
Deleted the GET DOUT SMS commands
06/09/2016
1.04
Added UPS off mode (from Firmware version 2.2).
Added Cloudbox Support.
08/09/2016
1.05
Added SMS commands for read/write extended variables
13/12/2016
1.06
Added Z-UMTS and Z-LOGGER3
Updated the Download FW and Download SETUP SMS commands
Added Modbus RTU Slave
Added Log on Trigger(s)
Added info on UPS
01/02/2017
1.07
Fixed lower Supply voltage limit for Z-UMTS product
20/04/2017
1.08
Added Revision FW Registers
Fix DOUT2 Commands (Supported commands from Modbus)
Added new “Emergency Mode” function (from firmware 1.2.1 Z-UMTS, 2.4.2
Z-GPRS3/Z-LOGGER3)
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
3
1. Table of Contents
SENECA Z-GPRS3, Z-UMTS, Z-LOGGER3 ....................................................................... 6
PRELIMINARY INFORMATION .......................................................................................... 6
2. CHARACTERISTICS .................................................................................................... 8
2.1. RTU Models characteristics ............................................................................................................................ 8
2.2. Digital Inputs .................................................................................................................................................10
2.3. Digital outputs ..............................................................................................................................................10
2.4. Analog Inputs ................................................................................................................................................10
2.5. Communication Ports....................................................................................................................................11
2.6. Storage units .................................................................................................................................................11
2.7. Power supply ................................................................................................................................................11
2.8. Regulations ...................................................................................................................................................11
2.9. Case specifications ........................................................................................................................................12
2.10. Insulation ......................................................................................................................................................12
3. CONNECTIONS .......................................................................................................... 13
3.1. Power supply connections ............................................................................................................................13
3.2. Analog input connections ..............................................................................................................................13
3.3. Auxiliary voltage connections .......................................................................................................................13
3.4. Serial communication RS485/RS232 ports connections .................................................................................14
3.5. Digital outputs connections ..........................................................................................................................14
3.6. Digital inputs connections .............................................................................................................................15
4. SIGNAL LEDS ............................................................................................................ 16
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
4

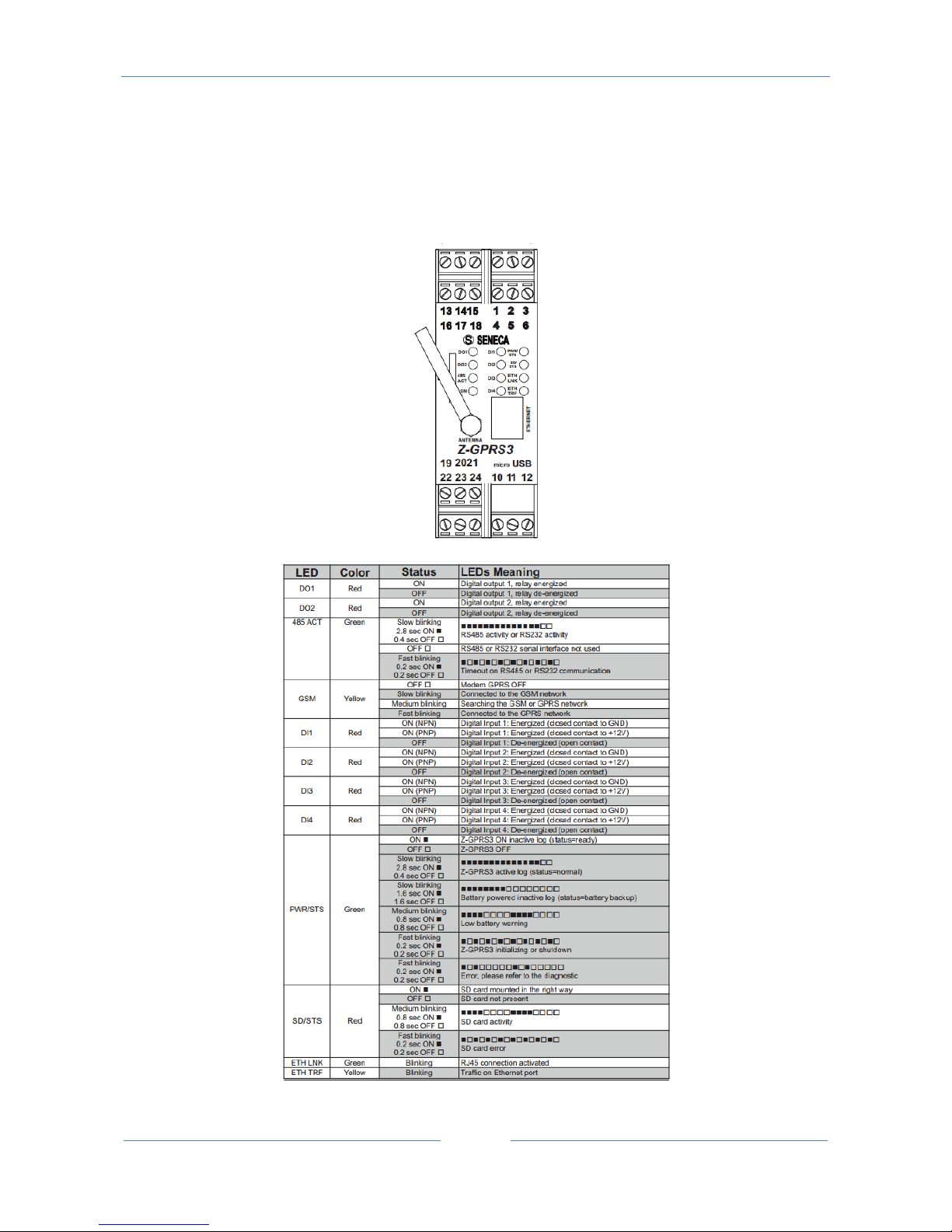

4.1. Z-GPRS3 leds .................................................................................................................................................16

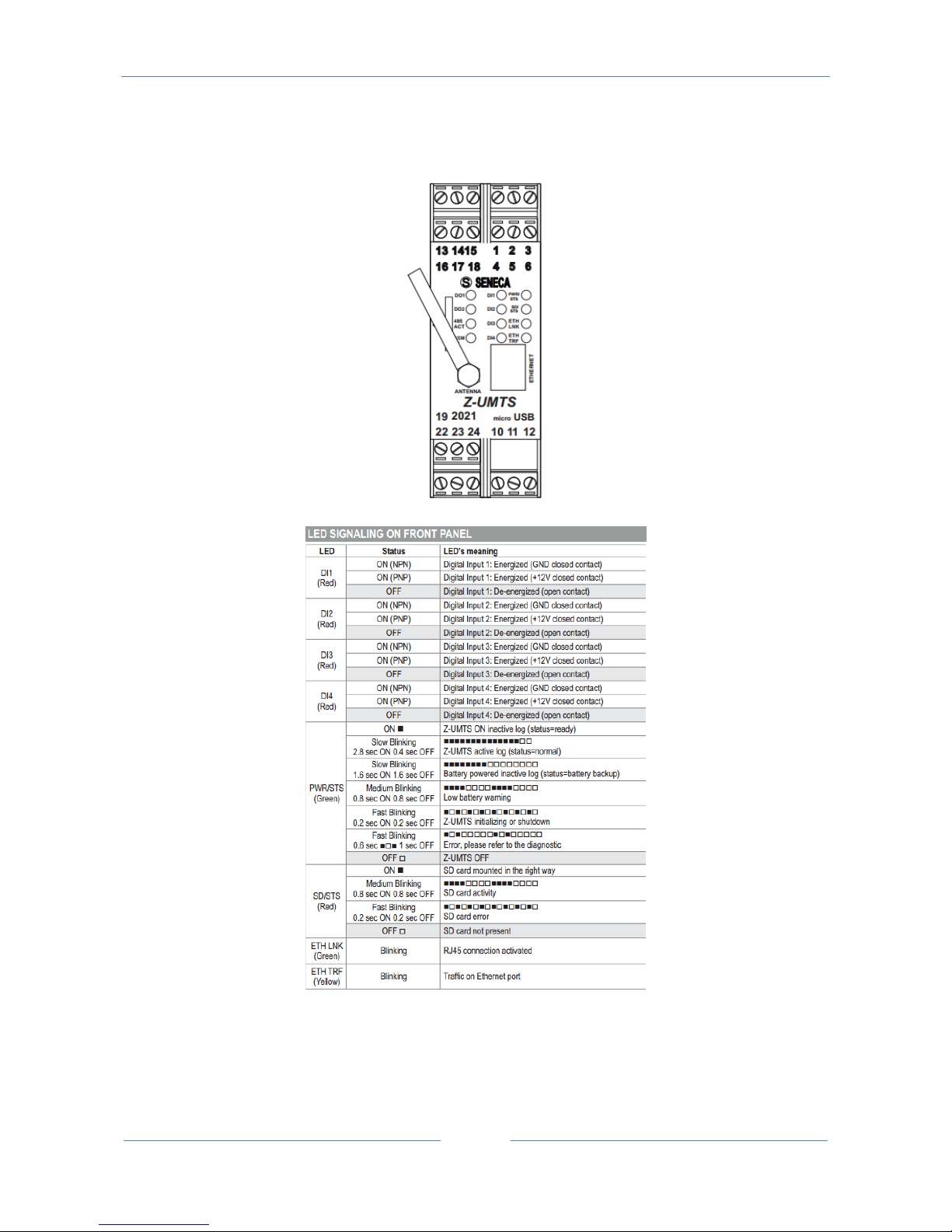

4.2. Z-UMTS leds ..................................................................................................................................................17

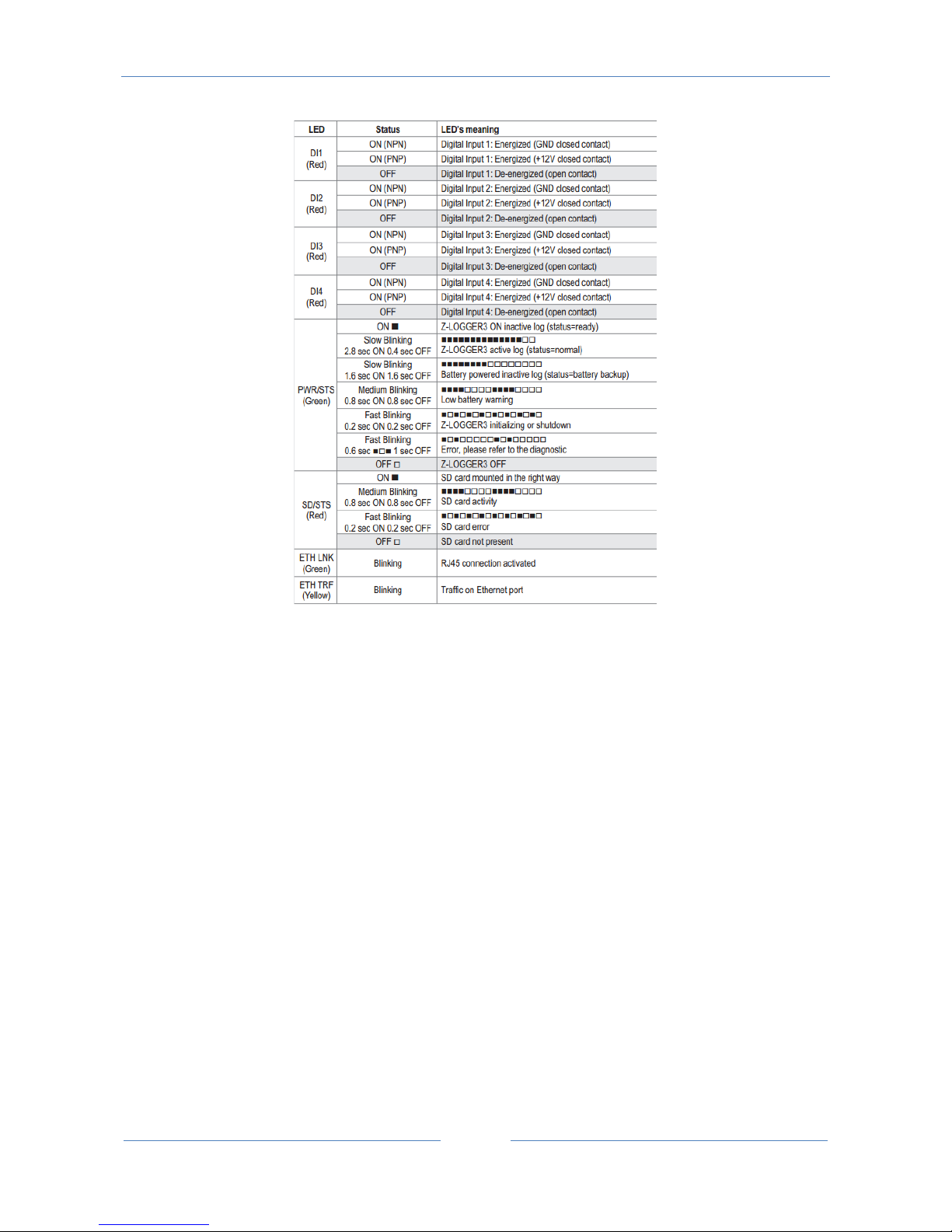

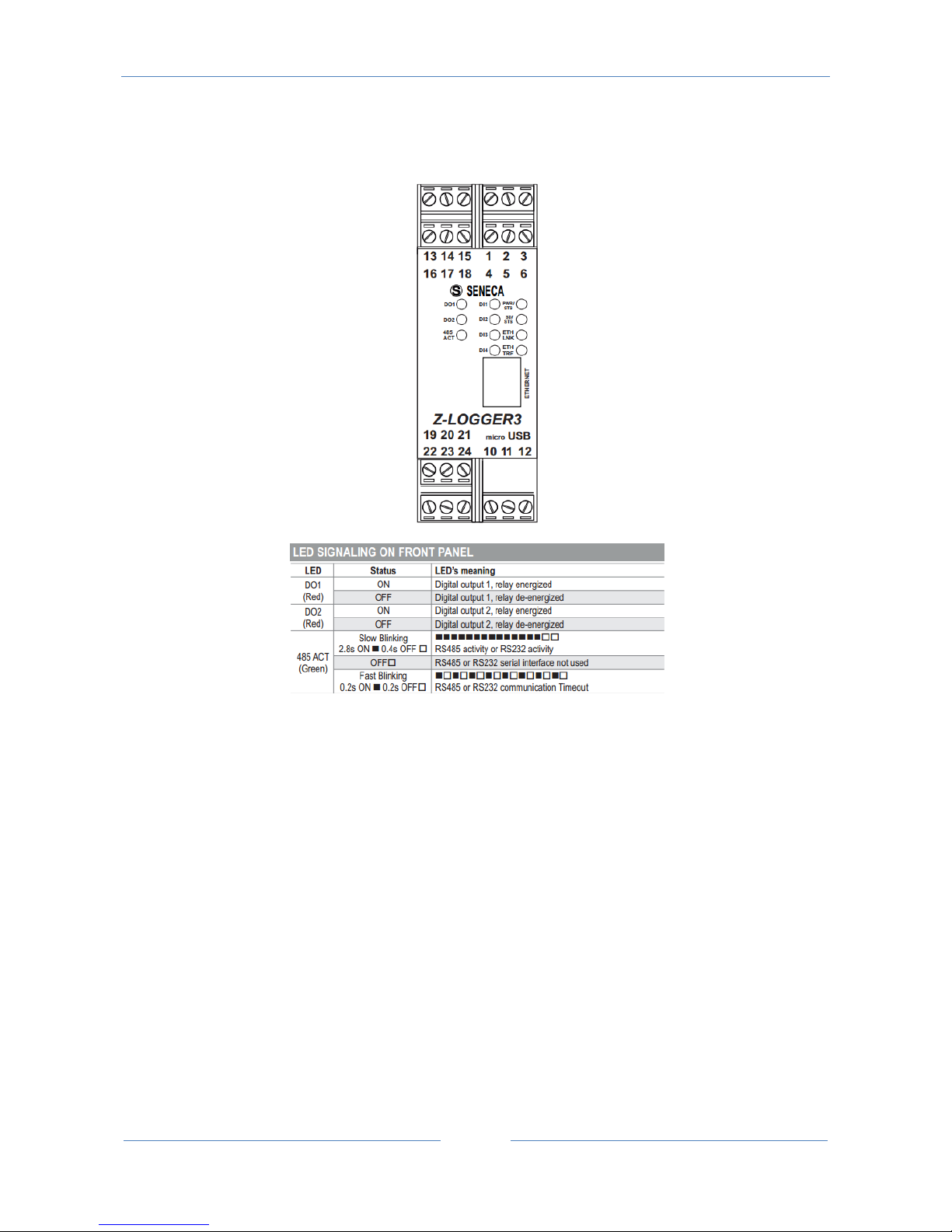

4.3. Z-LOGGER3 leds ............................................................................................................................................18
5. DEVICES OVERVIEW ................................................................................................ 19
6. SWITCH ON, AND SWITCH OFF THE RTU .............................................................. 20
7. SUPPORTED SIM CARDS (ONLY Z-GPRS3 / Z-UMTS) ........................................... 20
8. GSM SIGNAL (ONLY Z-GPRS3 / Z-UMTS) ............................................................... 22

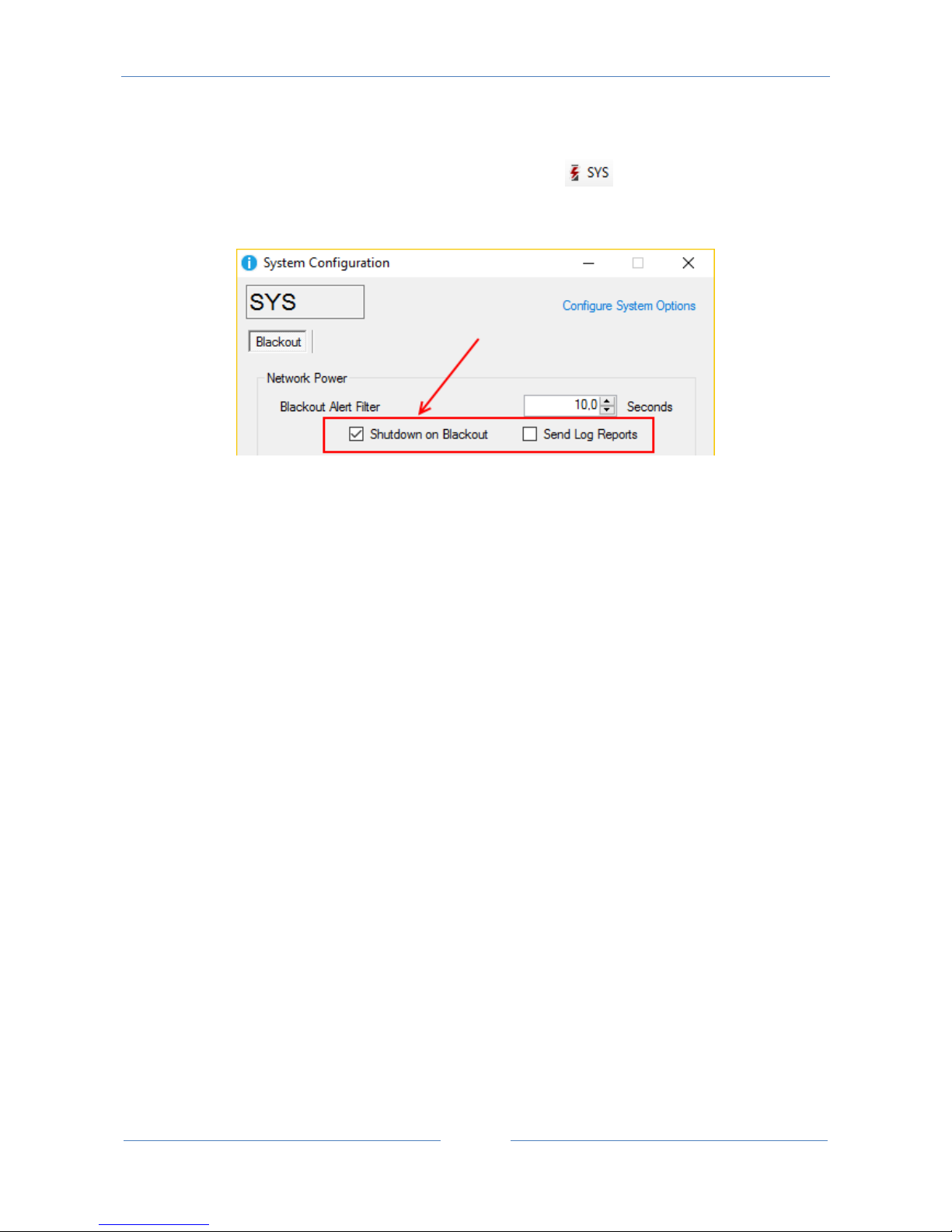

9. INTERNAL UPS .......................................................................................................... 23
10. ADDRESS BOOK .................................................................................................... 24
10.1. SENDING A SMS COMMAND USING THE PASSWORD (ONLY Z-GPRS3 / Z-UMTS) ..........................................25
10.2. MICROSD CARD PHONE BOOK (ONLY Z-GPRS3 / Z-UMTS) .............................................................................25
11. ACQUIRING AND SENDING LOG DATA ............................................................... 26
11.1. THE EVENT LOGGER ......................................................................................................................................26
11.1.1. Sending event logger file to an FTP server .................................................................................................. 26
11.1.2. Sending event logger file to an EMAIL server ............................................................................................. 28
11.1.3. Saving event logger file to the microSD card .............................................................................................. 30
11.2. THE DATA LOGGER AND THE DATA LOGGER ON TRIGGER .............................................................................30
11.2.1. Sending data logger file to a FTP server ...................................................................................................... 31
11.2.2. Sending data logger and data logger on trigger data to an E-MAIL server ................................................. 32
11.2.1. Sending data logger and data logger on trigger data to an HTTP server .................................................... 34

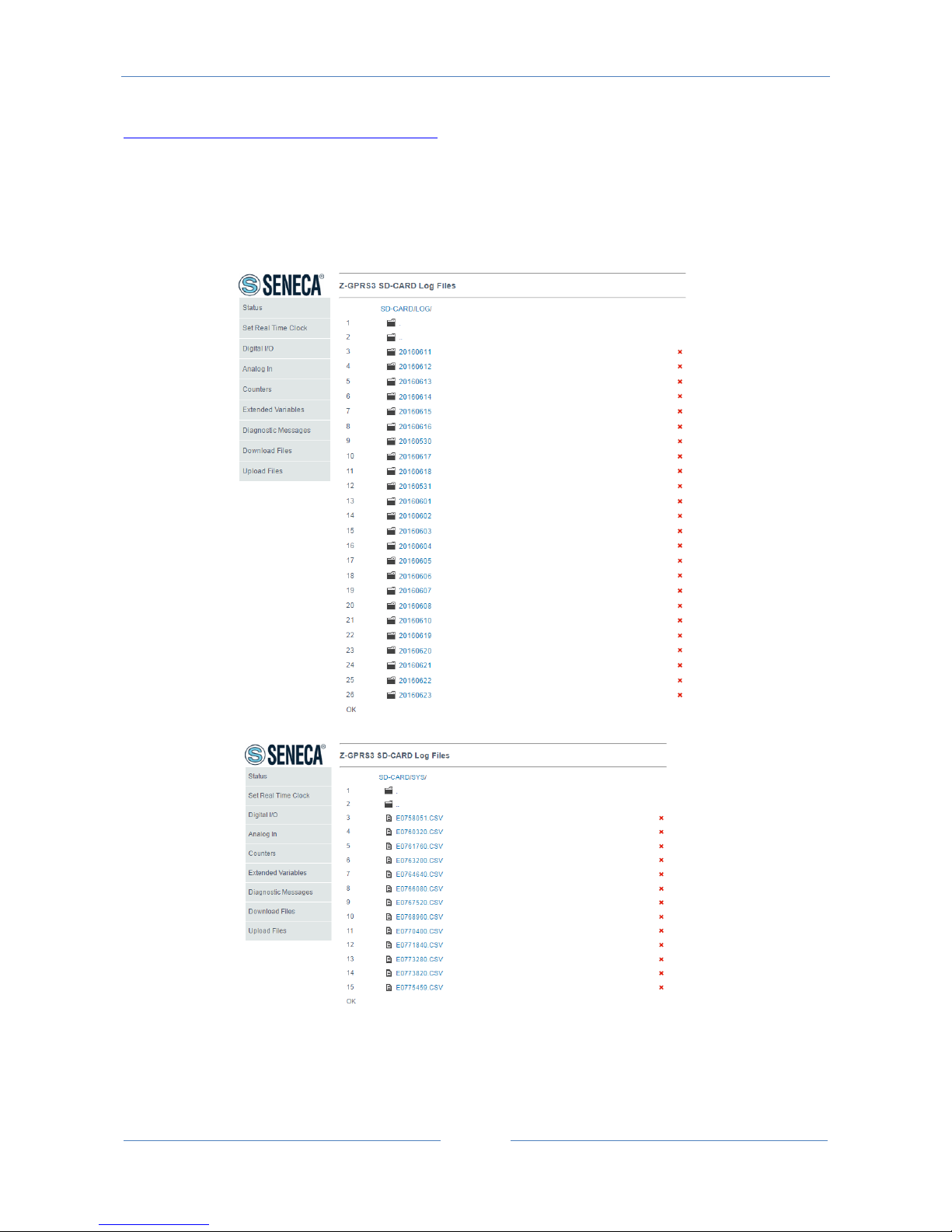

11.2.2. Saving data logger data to the microSD card .............................................................................................. 34
13. ACTIONS AND MESSAGES ................................................................................... 36

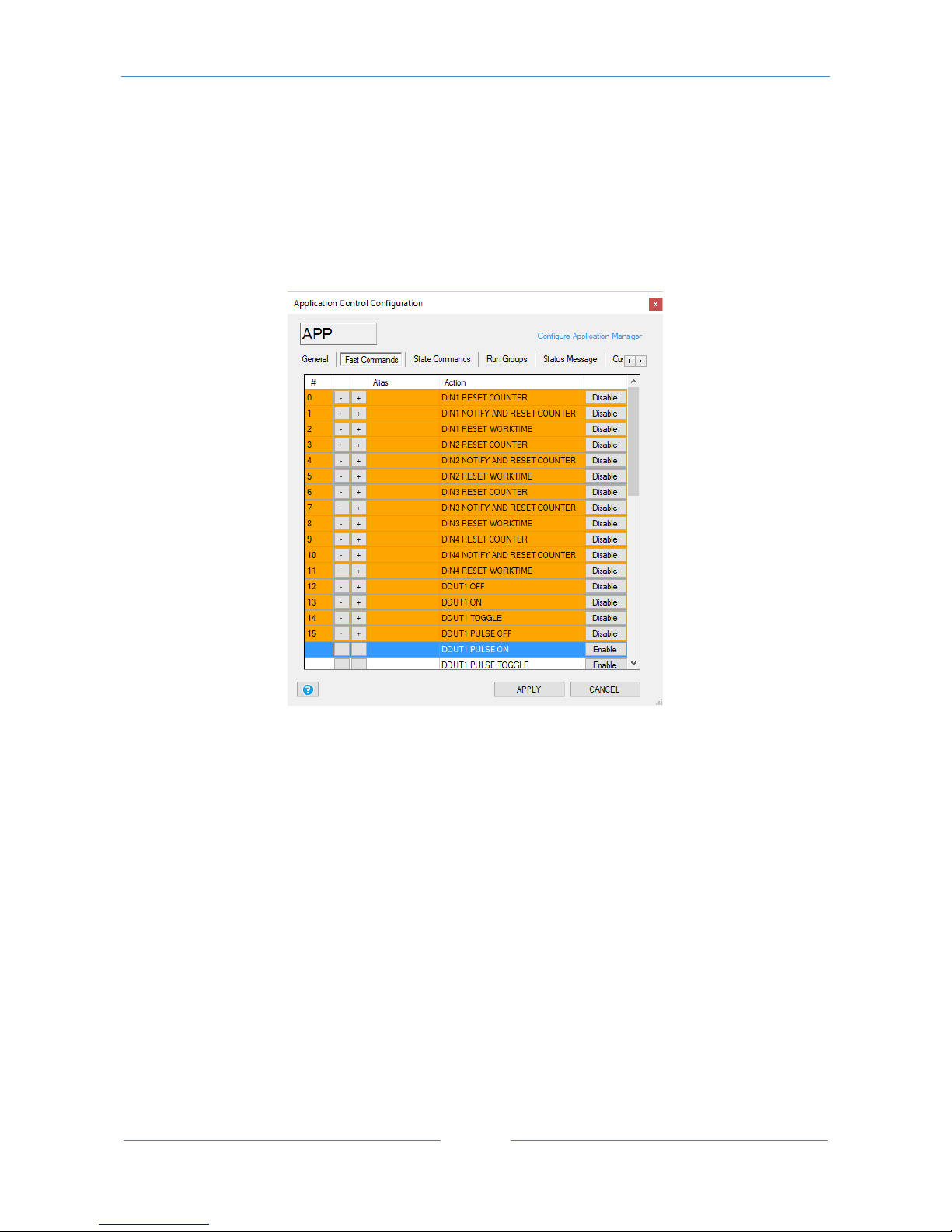

13.1. ACTIONS........................................................................................................................................................36
13.2. TEXT AND AUDIO MESSAGES ........................................................................................................................36
14. SENDING AUDIO (DTMF) COMMANDS TO Z-GPRS3 AND Z-UMTS ................... 36
15. THE WEBSERVER .................................................................................................. 37

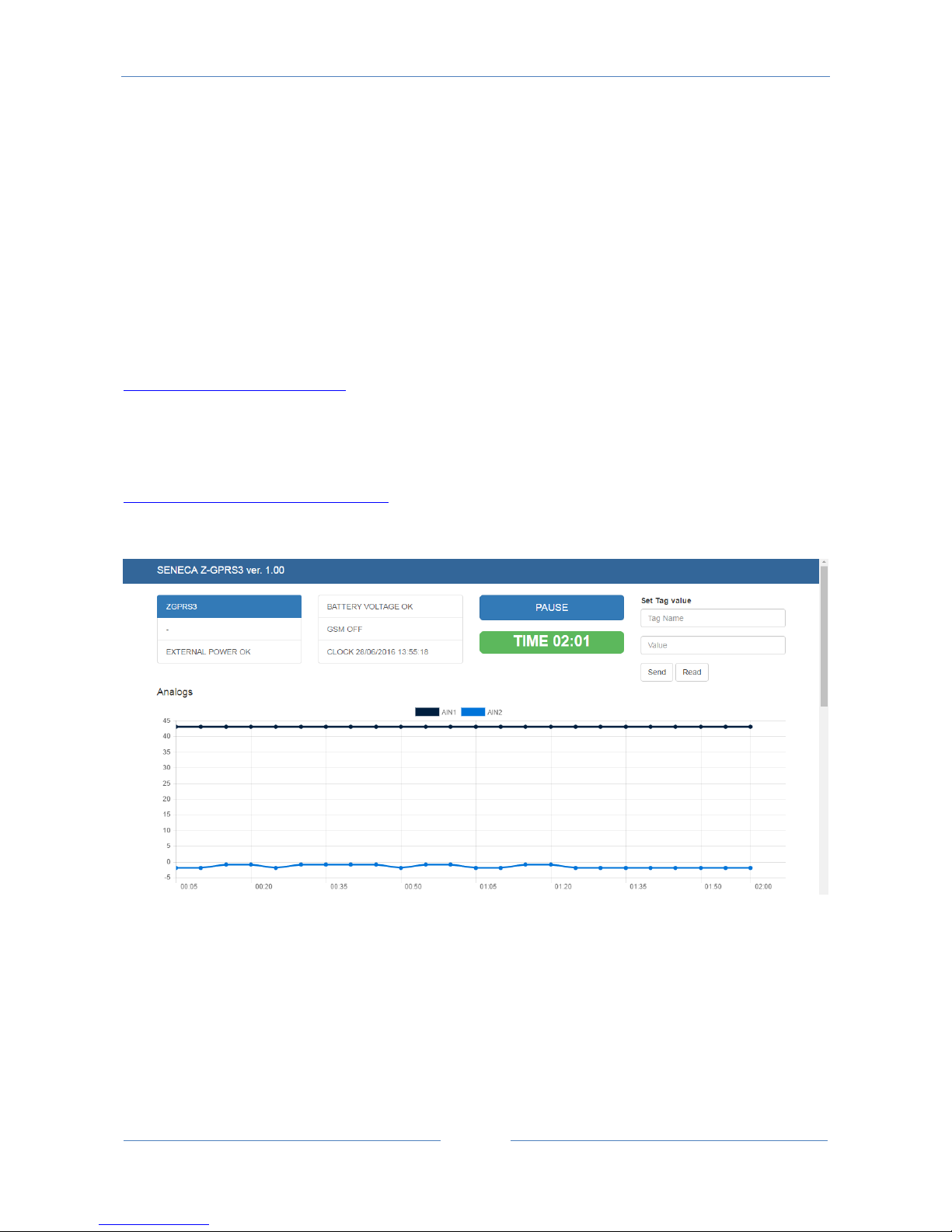

15.1. MAINTENANCE WEBSERVER .........................................................................................................................37
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
5
15.2. CUSTOM WEBSERVER ...................................................................................................................................39
16. SEAL (SENECA ADVANCED LANGUAGE) .......................................................... 40
17. FIRMWARE UPDATE.............................................................................................. 41

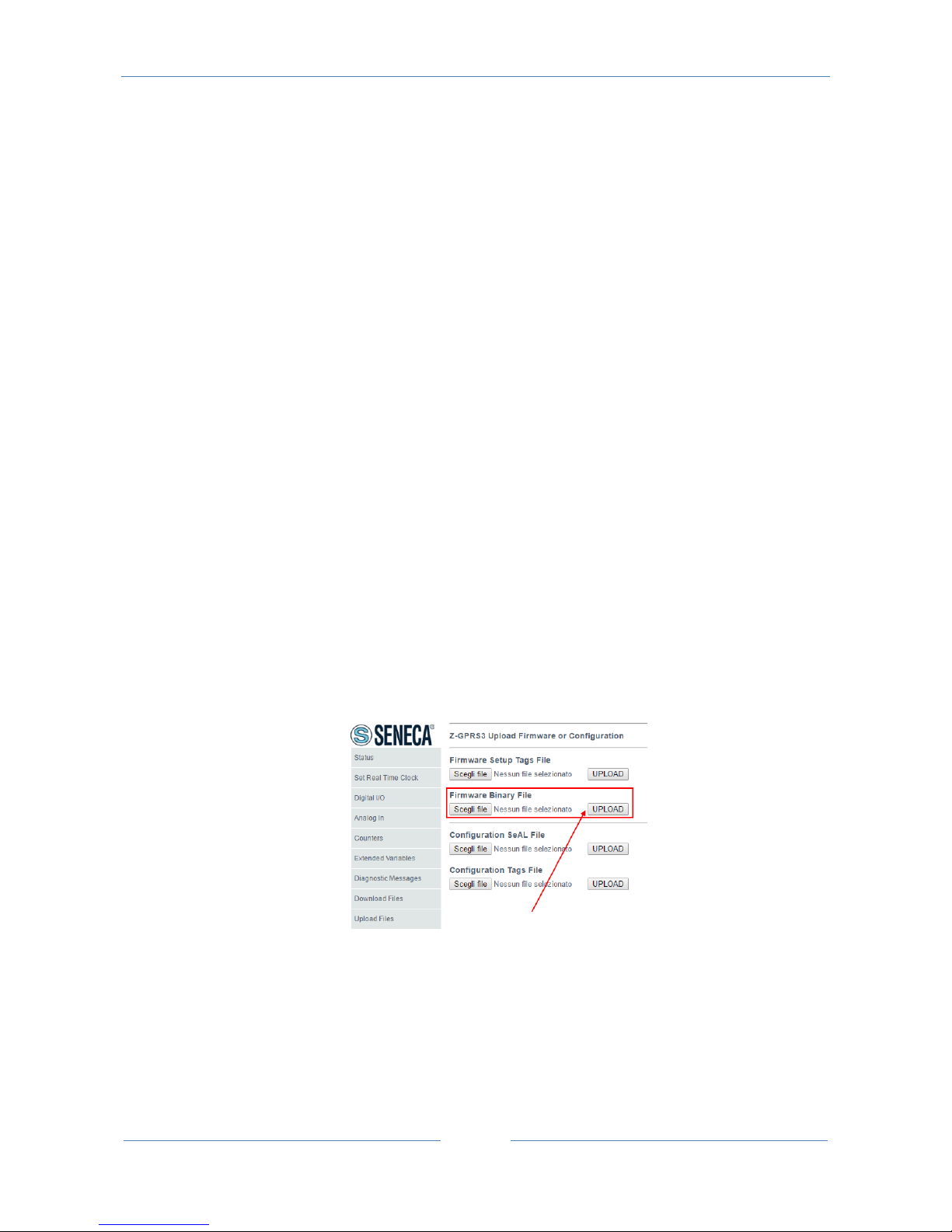

17.1. Firmware update by Webserver ....................................................................................................................41
17.2. Firmware update by microSD card ................................................................................................................42
18. SEAL PROGRAM AND SEAL CONFIGURATION REMOTE UPDATE ................. 42
18.1. SEAL PROGRAM AND SEAL CONFIGURATION UPDATE FROM WEBSERVER ...................................................42
18.2. UPLOAD A PROJECT BACKUP TO THE RTU .....................................................................................................43
19. MODBUS TCP-IP SERVER AND MODBUS RTU SLAVE ...................................... 44
19.1. MODBUS ADDRESSES TABLE .........................................................................................................................45
19.2. SUPPORTED COMMANDS FROM MODBUS ...................................................................................................47
20. SUPPORTED SMS COMMANDS (Z-GPRS3 AND Z-UMTS ONLY) ...................... 49
20.1. Set the Telephone Sms Character Alphabet ..................................................................................................49
20.2. List of Supported Sms Commands .................................................................................................................50
21. EMERGENCY MODE .............................................................................................. 56
22. TROUBLESHOOTING............................................................................................. 56
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
6
Seneca Z-GPRS3, Z-UMTS, Z-LOGGER3
PRELIMINARY INFORMATION
CAUTION!
Contact your telephone provider for information on GSM and GPRS service costs. It is best to
quantify log and SMS costs before setting up and installing Z-GPRS3, Z-UMTS OR Z-LOGGER3.
The use of Z-GPRS3 and Z-UMTS in data roaming (for example, abroad with an Italian SIM card)
may generate unexpected costs. Contact your telephone provider for further information.
IN NO CASE MAY SENECA OR ITS SUPPLIERS BE HELD LIABLE FOR ANY INCOMING DATA OR
PROFIT LOSSES DUE TO INDIRECT, CONSEQUENTIAL OR INCIDENTAL CAUSES (INCLUDING
NEGLIGENCE) CONNECTED WITH THE USE OR INABILITY TO USE Z-GPRS3, Z-UMTS OR ZLOGGER3, EVEN IF SENECA WAS INFORMED OF THE POTENTIAL OF THESE DAMAGES.
SENECA, ITS SUBSIDIARIES OR AFFILIATES OR GROUP PARTNERS OR DISTRIBUTORS AND SENECA
DEALERS DO NOT GUARANTEE THAT THE FUNCTIONS FAITHFULLY MEET THE EXPECTATIONS AND
THAT Z-GPRS3, Z-UMTS, Z-LOGGER3, THEIR FIRMWARE AND SOFTWARE ARE FREE OF ERRORS
OR FUNCTION UNINTERRUPTEDLY.
SENECA HAS TAKEN THE UTMOST CARE AND CAUTION IN DRAFTING THIS MANUAL. HOWEVER,
IT MAY CONTAIN ERRORS OR OMISSIONS. SENECA SRL RESERVES THE RIGHT TO MODIFY
AND/OR VARY PARTS OF THIS MANUAL TO CORRECT ERRORS OR TO ADJUST TO PRODUCT
FEATURE CHANGES WITHOUT ANY PRIOR NOTICE.
CAUTION!
-Contact your telephone service provider for GSM and GPRS service costs especially when using
Z-GPRS3 and Z-UMTS with a sim issued by a country other than the one in which it is used
(international roaming).
-It is best to estimate telephone costs before setting up Z-GPRS3 and Z-UMTS.
-The cost of each SMS is set by the telephone service provider.
-Internet send/receive costs can be tied to Kbytes sent/received, a monthly ceiling included in a
package or internet connection time. Contact your telephone service provider for further
information.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
7
-For internet connections whose costs is associated with connection time, please remember that
communications are active for an amount of time that depends on the number of log rows to be
sent. Typically, a 2 Kbyte data log takes about 10-15 seconds (in GPRS mode) to be sent in
addition to the time necessary to establish the connection (from 5 to 30 seconds) and the time
due to any server login attempts.
-When use PPP the internet connection is ALWAYS ON
-Check the data quantity sent via internet and SMS before using Z-GPRS3 and Z-UMTS.
Please remember that mobile phone service providers also consider the entire communication
that permits file transmission (and thus data transmission overhead, the number of connection
attempts, etc.) and not just the dimensions as data traffic in each transaction.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
8
2. CHARACTERISTICS
2.1. RTU Models characteristics
Supply voltage (Z-GPRS3 and Z-LOGGER3) 11..40 Vdc; 19..28 Vac max 6.5 W
Supply voltage (Z-UMTS) 19..40 Vdc; 19..28 Vac max 6.5 W
Internal UPS for up to 1h works without external power
MODEM: Z-Logger3: No modem
Z-GPRS3: GSM/GPRS quad-band 850/900/1800/1900 MHz
DL max: 85.6 Kbps, UL max: 42.8 Kbps
Coding scheme CS-1, CS-2, CS-3, CS-4
Class 4 (2W) at GSM 850 and EGSM 900
Class 2 (1W) at DCS 1800 and PCS 1900
GPRS multi slot class 10
Z-UMTS: HSPA+/UMTS dual-band 900/2100 MHz (standard)
HSPA+/UMTS tri-band 850/1900/2100 MHz (optional)
GSM/GPRS/EDGE quad-band 850/900/1800/1900 MHz
GPRS: UL 85.6 kbit/s; DL 85.6 kbit/s
EDGE: UL 236.8 kbit/s; DL 236.8 kbit/s
WCDMA PS: UL 384 kbit/s; DL 384 kbit/s
HSPA+: UL 5.76 Mbit/s; DL 21.6 Mbit/s
500 Vac insulation between remaining circuit power
Quick installation on DIN 46277 guide
Status indication LED
NR 4 digital inputs (PNP/NPN programmable)
NR 2 16-bit voltage/current programmable analog inputs
NR 2 relay digital outputs
10/100 Mbps frontal Ethernet RJ45
NR 1 RS232 or RS484 port
NR 1 RS485 port
1 microUSB port for settings
MicroSD support (microSD or microSDHC max 32 Gb)
NR4 32 bits max 30 Hz totalizers
NR4 32 bits max 30 Hz resettable counters
Possibility of expanding the number of I/O via Modbus TCP-IP or Modbus RTU
Maximum number of channels on datalogger: 133 (of which 100 via Modbus RTU or
Modbus TCP-IP)
Supported system protocols via GSM: SMS, audio voice calls (also with zero cost
command)
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
9
Supported system protocols via 2G/3G or Ethernet: FTP client, SMTP client, ModBUS TCP-
IP Server, ModBUS TCP-IP Client, Webserver, HTTP Rest, Custom Webserver ( Web pages
in Sd card)
Protocol on RS485/RS232: Modbus RTU Master/Slave
Memory expansion up to 32 GigaBytes with micro SD
32 bits ARM processor
Real Time multitasking operating system
Firmware update via USB / microSD/ Webserver or by remote connection
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
10
2.2. Digital Inputs
Channels number
4
Input type
PNP, NPN configurable.
Voltage supply
12 Vdc
Current supply
20 mA
Maximum frequency
30 Hz
Current consumption
3 mA
2.3. Digital outputs
Channels number
2
Output type
Relay
Maximum Voltage
250 Vac
Maximum Current
2 A
2.4. Analog Inputs
Channels number
2
Input type
Current / Voltage configurable
Voltage input
0..30V accuracy 0,1% FS
Current input
0..20 mA accuracy 0,1% FS
Input protection
yes, 12Vdc or 25mA
Resolution
16 bit
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
11
2.5. Communication Ports
RS 485 #1
Port #1, on IDC10 connector
RS 485 or RS232 #2
Port #2, terminals M10/M11/M12
Ethernet
10/100 Mbit, RJ45 with autoswitch
USB micro B
Micro B
2.6. Storage units
Internal Flash
8 Mbytes for configuration, datalogger
and firmware update
MicroSD
microSD and microSDHC, max 32 GB
(supplied with 4 GBytes* microSD)
*= This value can be changed
2.7. Power supply
Voltage
11...40 Vdc; 19…28 Vac (Z-GPRS3 / Z-LOGGER3)
19..24 Vdc; 19…28 Vac (Z-UMTS)
Power consumption
6,5 W
Protection rating
IP20
2.8. Regulations
EN61000-6-4/2002-10
Electromagnetic emission, industrial
environment.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
12
EN61000-6-2/2006-10
Electromagnetic immunity, industrial
environment.
EN 301 511 (only Z-GPRS3, Z-UMTS)
Harmonized standard for mobile stations in the
GSM
900 and 1800 bands.
EN 301 489-1 (only Z-GPRS3, Z-UMTS)
ElectroMagnetic Compatibility standard for
radio equipment and services.
EN 301 489-7 (only Z-GPRS3, Z-UMTS)
Specific (EMC) conditions for mobile radio
equipment
(GSM 900 and 1800).
EN 60950
Safety of information Technology Equipment.
2.9. Case specifications
Dimensions and weight
100 x 111 x 35 mm, 280 g
Material
Black PBT

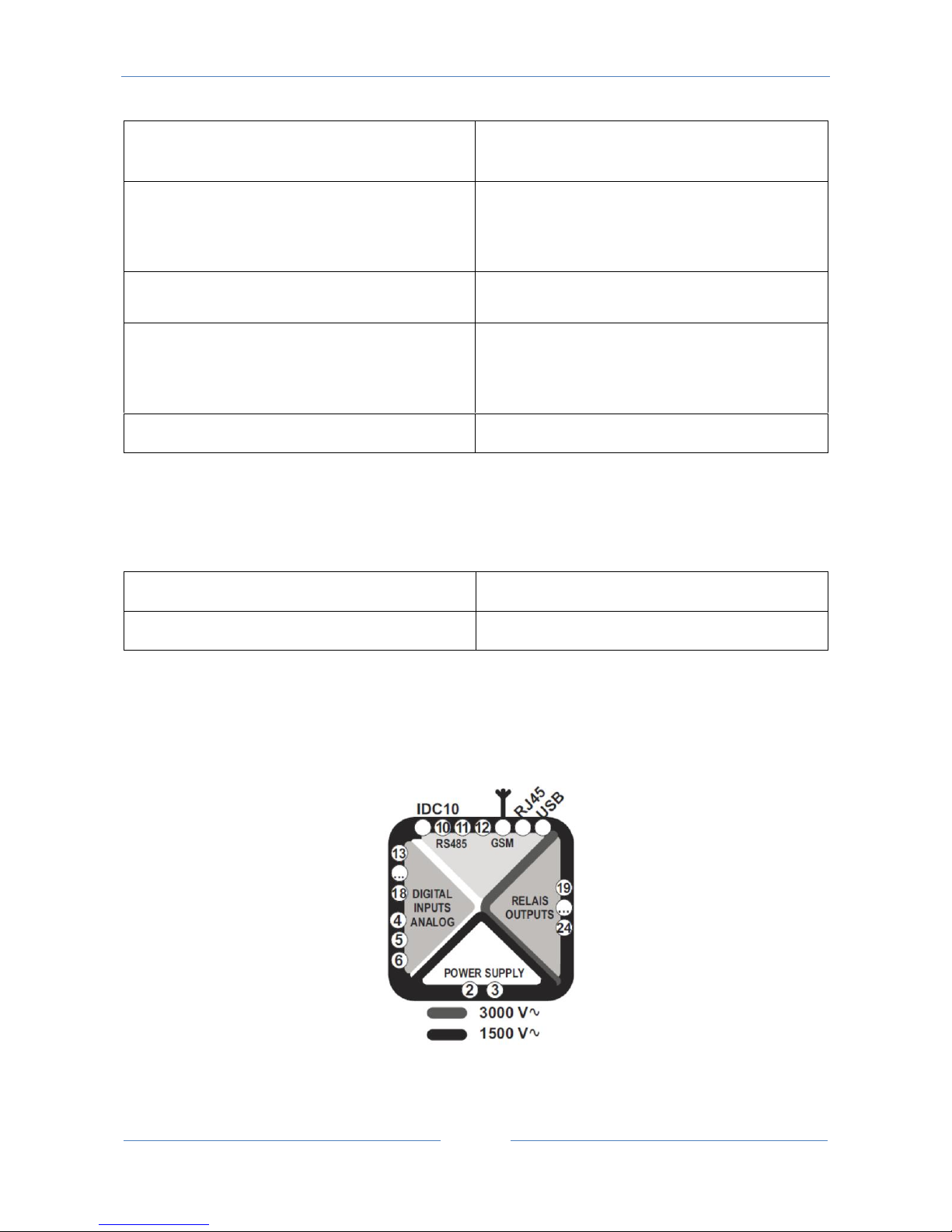

2.10. Insulation
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
13
3. CONNECTIONS

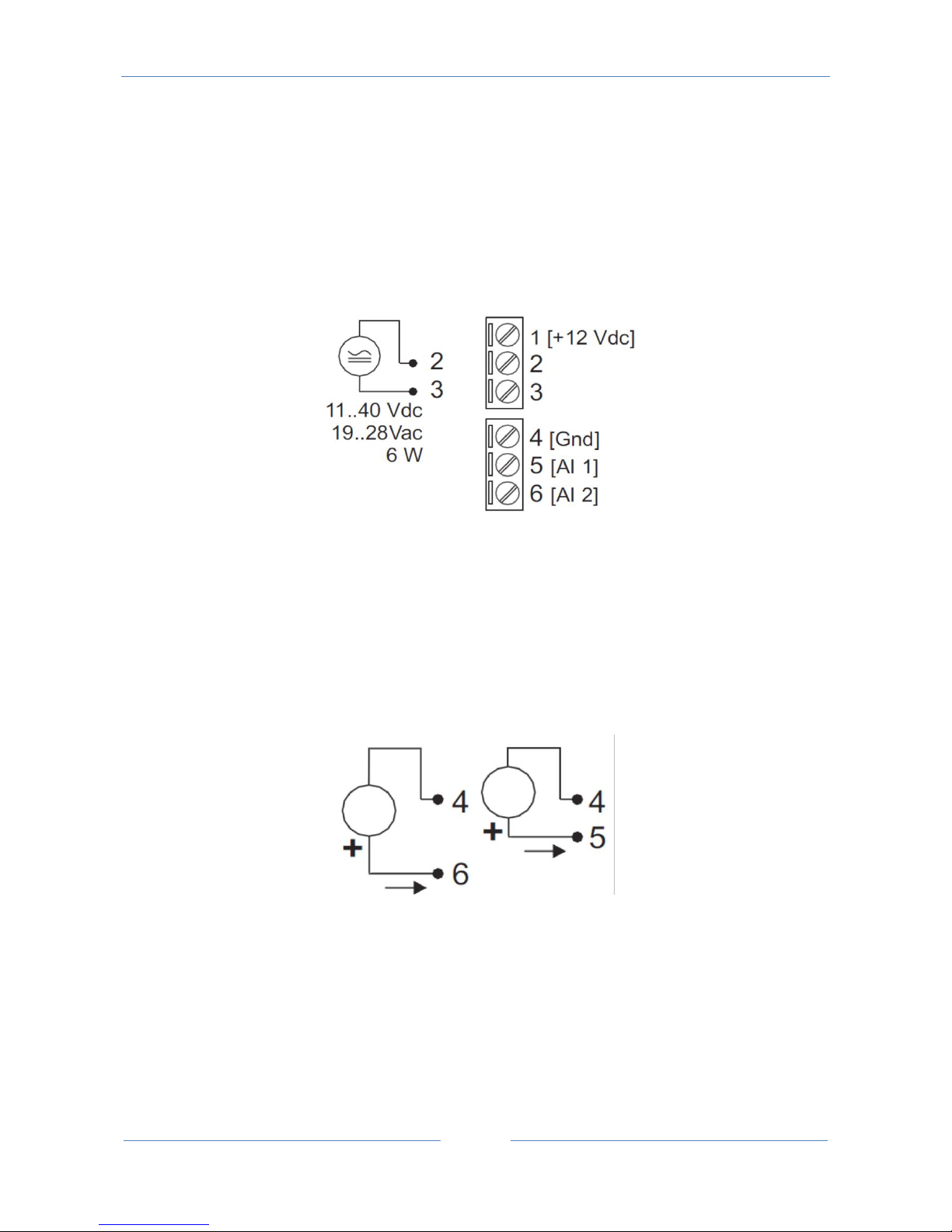

3.1. Power supply connections
You can supply DC or AC power to terminals 2-3, in the case of DC power supply is not necessary to
distinguish between the "+" from the "-" cable:
3.2. Analog input connections
The analog input 1 voltage / current is connected to terminal 4 (- sign for the voltage, the current exit) and
6 (+ sign to the voltage, the current incoming).
The analog input 2 voltage / current is connected to terminal 4 (- sign for the voltage, the current exit) and
5 (+ sign to the voltage, the current incoming).
3.3. Auxiliary voltage connections
The device can provide from 12 to 15 VDC (max 40mA) to an external sensor connected to terminals 1 (+)
and 4 (-):
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
14

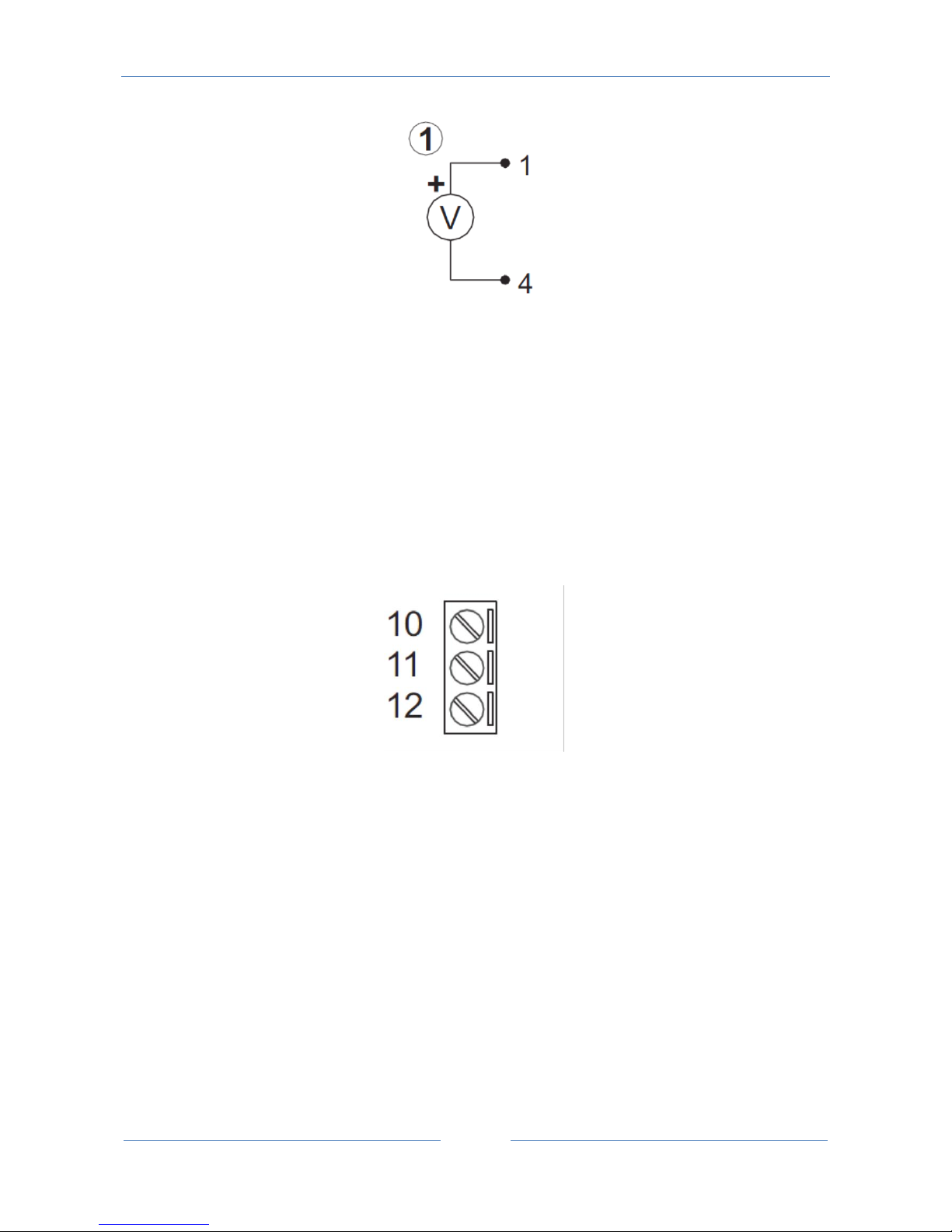

3.4. Serial communication RS485/RS232 ports connections
The RS485 port # 1 is connected to the bottom connector "IDC10" for connecting to the Z-BUS Seneca.
The Serial #2 port is connected to terminal 10-11-12, can be configured in RS232 or RS485 mode.
SW2 = ON Configure PORT#2 as RS232
SW2 = OFF Configure PORT#2 as RS485
10 = RS485#2 GND / RS232 GND
11 = RS485#2 A / RS232 RX
12 = RS485#2 B / RS232 TX

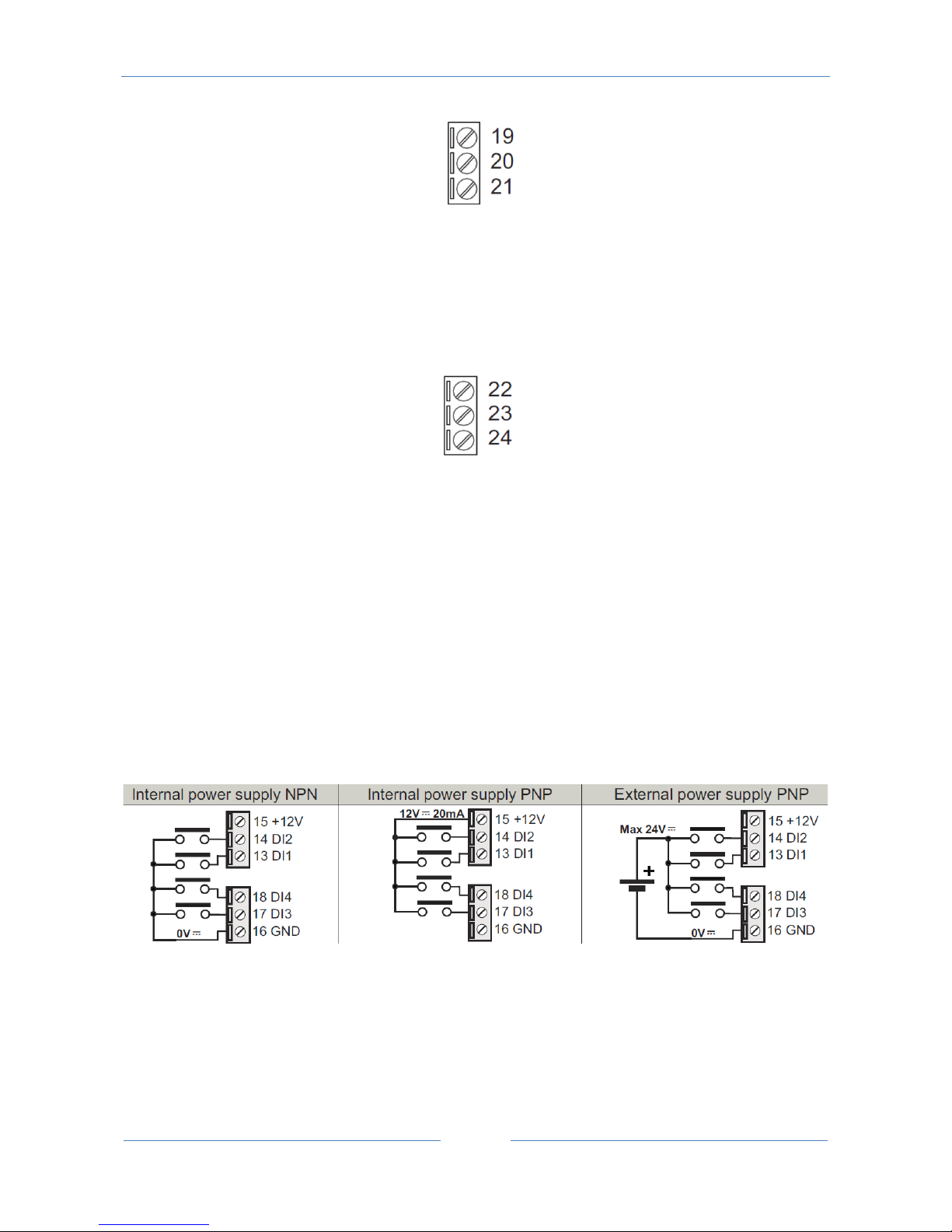

3.5. Digital outputs connections
The output relay is connected between terminals 19-20-21:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
15
19 = Normally open relay #1
21 = Shared relay #1
22 = Normally close relay #1
22 = Normally open relay #2
23 = Shared relay #2
24 = Normally close relay #2
3.6. Digital inputs connections
It’s possible to provide power to an external sensor by terminals 15-16 (max 40mA) .
The inputs can be configured in NPN or PNP mode, see below:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
16
4. SIGNAL LEDS
4.1. Z-GPRS3 leds
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
17
4.2. Z-UMTS leds
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
18
4.3. Z-LOGGER3 leds
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
19
5. DEVICES OVERVIEW
Z-GPRS3, Z-LOGGER3, Z-UMTS are equipped with 4 counters and 4 totalizers. Up to a maximum of
30 Hz signals can be acquired, 4 digital inputs, 2 analog inputs and 2 relay digital outputs.
A maximum of 100 External TAGs (Modbus RTU and/or Modbus TCP) and a maximum of 33
internal TAGs (Embedded IO and signals) can be logged.
The logs are sent in csv format (comma separated values, microsoft excel™ compatible) via ftp,
email or microSD card.
Http REST functions can also be used for send logs, alarms and send/receive commands.
Z-GPRS3 and Z-UMTS can also send the last row of the log file via SMS.
An internal UPS is also available, in UPS mode the RTUs will works for about 1h without external
power.
All configurations are possible via the SEAL software, available for free download at www.seneca.it
in the Z-GPRS3 or Z-UMTS or Z-LOGGER3 section.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
20
SEAL is a graphical environment that allow you to configure the datalogger and to create simple
automation without knowing any programming language.
For more info refers to the SEAL help, SEAL is available for free download at address:
http://www.seneca.it/en/linee-di-prodotto/software/seal/
Others manuals, quickstart and examples on SEAL are availables on the SEAL RTUs sections on website.
6. SWITCH ON, AND SWITCH OFF THE RTU
RTUs are equipped with back-up batteries (internal UPS) to perform programmable actions in case
of blackout.
Switch ON:
1 ) Supply power to the RTU via screw terminal or via BUS IDC10
2) The Board will boot-up (led PWR will flash)
Switch OFF:
1) Unplug the Power supply (from terminal or from BUS IDC10 )
2 ) The board is powered by internal UPS
3) Press the button PS1 until the led PWR will flash fast.
4) Release the button, the board will power off.
7. SUPPORTED SIM CARDS (ONLY Z-GPRS3 / Z-UMTS)
Z-GPRS3 and Z-UTMS support the following types of SIM CARDS:
Top-up voice SIM CARD
Subscription voice SIM CARD
Data transmission only SIM CARD
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
21
"Zero cost" operations can be run only on voice type SIM CARDS, if the RTU receive a ring an action can be
made.
For "top-up" SIM CARDS RTU can manage residual credit requesting the amount from the telephone service
provider.
CAUTION!
-Before inserting the SIM CARD, CANCEL ALL MESSAGES ON THE CARD USING A MOBILE PHONE.
-Before inserting the SIM CARD, CANCEL ALL ADDRESS BOOK CONTACTS ON THE CARD USING A
MOBILE PHONE.
-UMTS SIM CARDS are supported only on Z-UMTS product.
-The Product was tested with leading international provider SIM CARDS. However, operations
are not guaranteed with all providers.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
22
8. GSM SIGNAL (ONLY Z-GPRS3 / Z-UMTS)
The GSM signal level can be found via SEAL software (in the “test“ section) or in the Webserver.
To view the GSM signal level, the SIM CARD must be inserted (signal may change radically based
on the selected provider).
Into the log fileThe field is expressed in DBm where -115 dBm it’s the minimum, -52 dBm it’s the
maximum.
This table can be used:
GSM Signal
GSM signal [dBm]
0 (MINIMUM)
-115
1
-106 2 -97
3
-88 4 -79 5 -70 6 -61
7 (MAXIMUM)
-52
Where 0 it’s the minimum, and 7 it’s maximum.
For correct ftp or email log operations the minimum required field level is 2/7 (please remember
that the signal often fluctuates).
For SMS operations only the minimum required field level is 2/7.
Refer to the following table for signal values:
SIGNAL LEVEL 0 = NO SIGNAL (INSUFFICIENT)
SIGNAL LEVEL 1 = INSUFFICIENT SIGNAL (NOT RELIABLE FOR SMS AND GPRS)
SIGNAL LEVEL 2 = MINIMUM SIGNAL (MINIMUM SIGNAL FOR SMS AND GPRS)
SIGNAL LEVEL 3 = RELIABLE SIGNAL (RELIABLE FOR SMS AND GPRS)
SIGNAL LEVEL 4 = GOOD SIGNAL
SIGNAL LEVEL 5 = VERY GOOD SIGNAL
SIGNAL LEVEL 6 = OPTIMAL SIGNAL
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
23
SIGNAL LEVEL 7 = EXCELLENT SIGNAL
To increase the GSM signal level, Seneca provides various GSM antenna models to reach the
minimum signal level in most situations.
Visit www.seneca.it, refer to the general catalogue or contact Seneca srl for further information.
CAUTION!
-Insert the SIM card only with RTU off.
-Before inserting the SIM card, delete all SMS on the SIM using a mobile phone
-Wait at least 5 minutes in order for the GSM signal to be correctly read.
CAUTION!
-Contact your telephone service provider for GSM and GPRS service costs especially when using
the RTU with a sim issued by a country other than the one in which it is used (international
roaming).
9. INTERNAL UPS
The RTUs are equipped with rechargeable battery.
In the event of a blackout the board can be configured for:
A) Will work for up to 1h without external power.
When the voltage batteries is insufficient the RTU will runs the following algorithm:
1) Ends sending data
2) Closes all files opened on microSD
3) Turned off
B) Will shutdown without external power.
C) Without external power the board will send log data and then shutdown
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
24
In SEAL this behavior can be changed in System Configuration :
CAUTION!
RTUs ARE SUPPLIED WITHOUT CHARGED BATTERIES.
CHARGE THE BATTERIES BY POWER UP RTUs FOR AT LEAST 48H BEFORE USE
CAUTION!
THE BATTERIES CAN BE RECHARGED FOR A MAXIMUM OF ABOUT 300 TIMES.
CAUTION!
TO CONSERVE BATTERY, IN CASE OF DAILY BACKUP, USE THE CONFIGURATION WITH POWEROFF WHEN BACKUP
10. ADDRESS BOOK
For security reason Z-GPRS3 and Z-UMTS accept SMS command or audio call only from numbers that are in
the Address Book.
The address book is composed of a maximum of 8 telephone numbers / emails.
Groups of numbers/emails can be used for sending alarms/logs to a restrict number of users.
For more info refers to the SEAL Help on line.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
25
10.1. SENDING A SMS COMMAND USING THE PASSWORD (ONLY Z-GPRS3 / Z-
UMTS)
A SMS command can be accepted also if the telephone number isn’t in the address book.
For obtain this feature you must insert before the SMS command a password.
The password is different for every RTUs and is obtained from the last 4 digits of the modem IMEI.

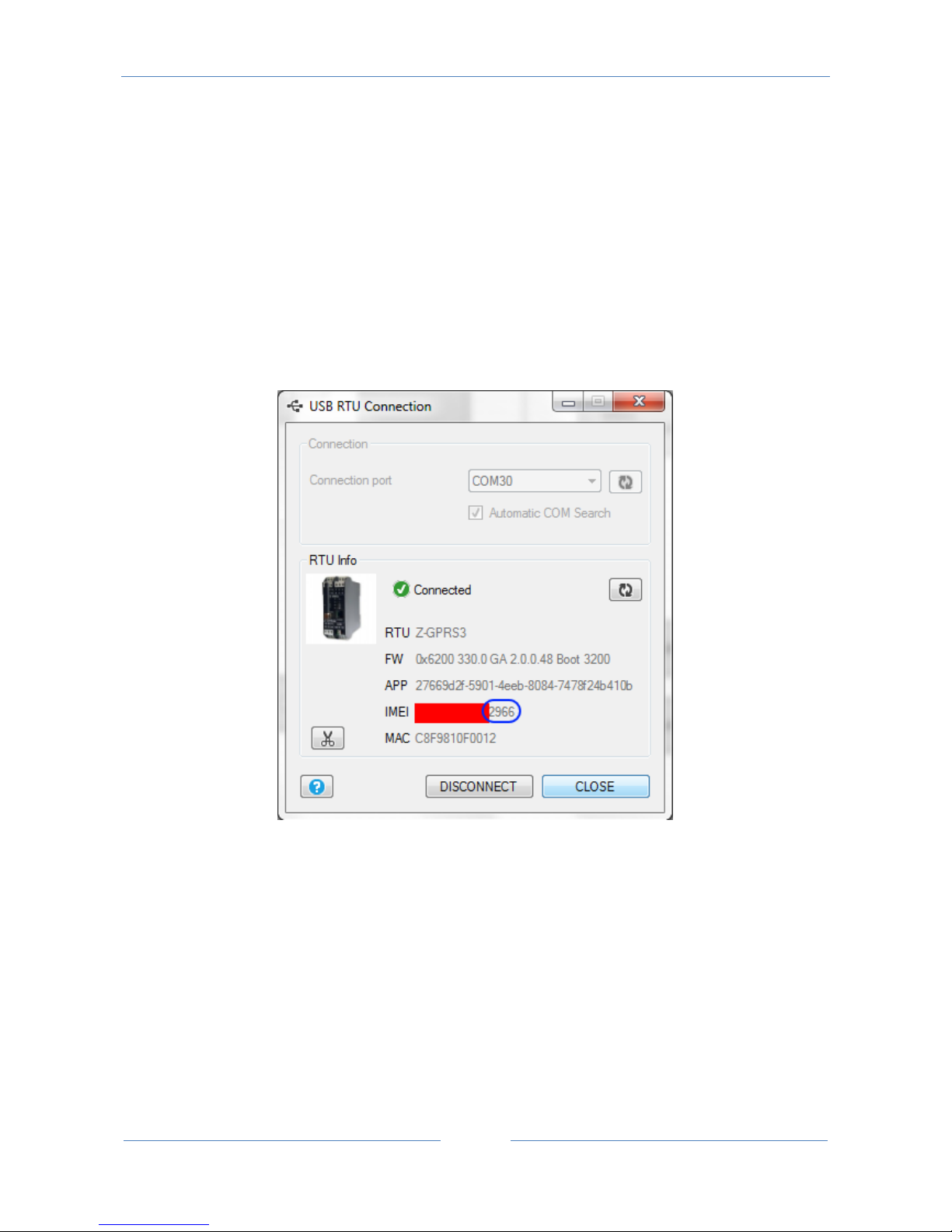

For obatin the password you must connect the RTU with SEAL:
So sending the SMS command:
“2966 NET”
The RTU will respond also if the telephone number isn’t in the address book.
10.2. MICROSD CARD PHONE BOOK (ONLY Z-GPRS3 / Z-UMTS)
It’ s possible to expand the internal phone book using a file in the microSD card.
You can add a maximum of 1000 telephone number but this numbers are enabled only to send a ring (and
so execute a ring command).
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
26
For editing the MicroSD card phone book refers to the SEAL Help on line.
11. ACQUIRING AND SENDING LOG DATA
When the logger is activated the RTU save data into an internal Flash, then can send it to email server, ftp
server, http server or MicroSD card.
When the internal Flash space is full the oldest data will be overwritten (circular buffer).
The files are in standard csv text format (windows excel ™ compatible).
There are 3 types of logs:
The Event Logger, The Data logger and the Data logger on Trigger
The internal flash stores at maximum of 8192 rows for the Event Logger and 16384 rows for the Data
Logger, A new row will overwrite the oldest (circular buffer).
11.1. THE EVENT LOGGER
The event logger works defining Events (Digital input/output Events, Blackout, Analog Alarms etc…) with
the SEAL software configuration.
When an event is created a new row text (with the Timestamp) is inserted into the log, the event must be
configured with the SEAL software.
The event logger can be sent a minimum of 1 time for day if files are sent to FTP, E-MAIL or microSD card.
NOTE:
If no events are generated, the Event logger file will be composed of only 1 row with the text :
INDEX
LEVEL
TIMESTAMP
SOURCE
MESSAGE
140
INFO
06/06/2016 00:00
SYS
OK: No Messages
11.1.1. Sending event logger file to an FTP server
The RTUs are compatible with ftp server configured into passive mode.
If the connection with the server is lost the RTU will accumulate the data and when the connection returns
all data is sent up to align to actual acquisition.
An event log can include also the diagnostic, for example:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
27
INDEX
LEVEL
TIMESTAMP
SOURCE
MESSAGE
119
ERR
01/06/2016 14:11
SYS
FTP Connect Error
120
ERR
01/06/2016 20:34
PRT1
Bus Disconnected
121
ERR
01/06/2016 23:05
PRT1
Bus Disconnected
122
ERR
02/06/2016 05:37
PRT1
Bus Disconnected
123
ERR
02/06/2016 06:39
SYS
FTP Connect Error
124
WARN
02/06/2016 06:40
SYS
PING Timeout
125
ERR
02/06/2016 13:14
PRT1
Bus Disconnected
126
ERR
02/06/2016 16:46
PRT1
Bus Disconnected
127
ERR
02/06/2016 19:48
PRT1
Bus Disconnected
128
ERR
02/06/2016 21:26
PRT1
Bus Disconnected
For events (Digital1 and Digital2 alarm state for example):
INDEX
LEVEL
TIMESTAMP
SOURCE
MESSAGE
674
INFO
25/06/2016 00:18:23
SEC2
INPUT 2 ALARM ON!
675
INFO
25/06/2016 00:18:23
SEC2
INPUT 2 ALARM END!
676
INFO
25/06/2016 00:18:24
SEC2
INPUT 2 ALARM ON!
677
INFO
25/06/2016 00:18:25
SEC2
INPUT 2 ALARM END!
678
INFO
25/06/2016 00:18:25
SEC1
INPUT 1 ALARM ON!
679
INFO
25/06/2016 00:18:26
SEC1
INPUT 1 ALARM END!
680
INFO
25/06/2016 00:18:26
SEC1
INPUT 1 ALARM ON!
681
INFO
25/06/2016 00:18:26
SEC1
INPUT 1 ALARM END!
682
INFO
25/06/2016 00:18:28
SEC2
INPUT 2 ALARM ON!
683
INFO
25/06/2016 00:18:28
SEC2
INPUT 2 ALARM END!
The Event Logger filename is:
RTUNAME_msgyyyyMMddhhmmss.csv
Where:
RTUNAME is the name of the RTU
yyyy is the year at the send file
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
28
MM is the mounth at the send file
dd is the day at the send file
hh are the hours at the send file
mm are the minutes at the send file
ss are the seconds at the send file
So the filename for example can be:
ZGPRS3TEST_msg20160606000057.csv
11.1.2. Sending event logger file to an EMAIL server
RTUs are compatible only with SMTP servers without encryption using the Ethernet or GPRS Always ON
(PPP) connection.
Z-GPRS3 and Z-UMTS are compatible also with SMTPS server with SSL 3.0 encryption (for example GMAIL™)
but only with GPRS connection NOT always ON (PPP must be off)
An example of SMTP server that works without encryprion is hMailServer for windows™ , for more info:
https://www.hmailserver.com/.
See the application note for installing and use hMailServer on a windows™ machine.
If the connection with the server is lost the RTU will accumulate the data and when the connection is
returned all data is sent up to align to actual acquisition.
A tipical mail sent has a text in the body with the timestamp and the log file in attachment.
An event log can include also the diagnostic, for example:
INDEX
LEVEL
TIMESTAMP
SOURCE
MESSAGE
119
ERR
01/06/2016 14:11
SYS
FTP Connect Error
120
ERR
01/06/2016 20:34
PRT1
Bus Disconnected
121
ERR
01/06/2016 23:05
PRT1
Bus Disconnected
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
29
122
ERR
02/06/2016 05:37
PRT1
Bus Disconnected
123
ERR
02/06/2016 06:39
SYS
FTP Connect Error
124
WARN
02/06/2016 06:40
SYS
PING Timeout
125
ERR
02/06/2016 13:14
PRT1
Bus Disconnected
126
ERR
02/06/2016 16:46
PRT1
Bus Disconnected
127
ERR
02/06/2016 19:48
PRT1
Bus Disconnected
128
ERR
02/06/2016 21:26
PRT1
Bus Disconnected
For events (Digital1 and Digital2 alarm state for example):
INDEX
LEVEL
TIMESTAMP
SOURCE
MESSAGE
674
INFO
25/06/2016 00:18:23
SEC2
INPUT 2 ALARM ON!
675
INFO
25/06/2016 00:18:23
SEC2
INPUT 2 ALARM END!
676
INFO
25/06/2016 00:18:24
SEC2
INPUT 2 ALARM ON!
677
INFO
25/06/2016 00:18:25
SEC2
INPUT 2 ALARM END!
678
INFO
25/06/2016 00:18:25
SEC1
INPUT 1 ALARM ON!
679
INFO
25/06/2016 00:18:26
SEC1
INPUT 1 ALARM END!
680
INFO
25/06/2016 00:18:26
SEC1
INPUT 1 ALARM ON!
681
INFO
25/06/2016 00:18:26
SEC1
INPUT 1 ALARM END!
682
INFO
25/06/2016 00:18:28
SEC2
INPUT 2 ALARM ON!
683
INFO
25/06/2016 00:18:28
SEC2
INPUT 2 ALARM END!
The Event Logger filename is:
RTUNAME_msgyyyyMMddhhmmss.csv
Where:
RTUNAME is the name of the RTU
yyyy is the year at the send file
MM is the mounth at the send file
dd is the day at the send file
hh are the hours at the send file
mm are the minutes at the send file
ss are the seconds at the send file
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
30
So the filename for example can be:
ZGPRS3TEST_msg20160606000057.csv
11.1.3. Saving event logger file to the microSD card
RTUs are compatible only with microSD card formatted in FAT32 (FAT16 filesystem is not recommended).
The event log files are stored into the /SYS directory.
The file name is different from the name that is sent to the FTP/EMAIL and is
Exxxxxxx.csv
Where xxxxxxx is an incremental number.
11.2. THE DATA LOGGER AND THE DATA LOGGER ON TRIGGER
The data logger works defining a Data acquisition time (sample time).
The minimum sample time is 1 minute.
The board can send data in two ways:
1) Notification
2) Report
The Notification sends data every sample time (minimum = 1 minute), the file will have only 1 row data. This
row can be sent to SMS, EMAIL or HTTP POST.
The Report sends data every report time (for sample time = 1 minute and report time = 5 minutes then the
report is made of 5 rows data).
The data logger on trigger works defining one or more event trigger actions, when the event trigger action is
true a row acquisition is made.
If no event trigger actions are performed, no Notifications or Reports are sent.
NOTE:
For http POST function only the Notification data can be used so only one row will be sent at a
time.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
31
11.2.1. Sending data logger file to a FTP server
Z-GPRS3 is compatible with ftp server configured into passive mode.
If the connection with the server is lost the RTU will accumulate the data and when the connection is
returned all data is sent up to align to actual acquisition.
A tipical Data logger file when is open with excel™ is:
INDEX
TYPE
TIMESTAMP
DIN1
DIN2
DIN3
DIN4
DOUT1
DOUT2
VBAT
POW
VAL1
AVG1
MIN1
MAX1
51764
LOG
05/06/2016 14:36
0 0 0 0 0 0 1 1 43
43
42
44
51765
LOG
05/06/2016 14:37
0 0 0 0 0 0 1 1 43
43
43
44
51766
LOG
05/06/2016 14:38
0 0 0 0 0 0 1 1 43
43
42
44
51767
LOG
05/06/2016 14:39
0 0 0 0 0 0 1 1 43
43
42
44
51768
LOG
05/06/2016 14:40
0 0 0 0 0 0 1 1 43
43
42
44
Where:
INDEX is a progressive acquisition number.
LOG is a constant text.
TIMESTAMP is the Real Time Clock when the acquisition is made.
The others values are the TAG name and variables entered by the user in the SEAL configuration.
The Data Logger on Trigger file when is open with excel™ is:
INDEX
TYPE
TRIGGER
TIMESTAMP
POW
VBAT
DIN1
DIN2
DIN3
DIN4
DOUT1
DOUT2
VAL1
AVG1
MIN1
MAX1
1
ASYNC
A-------
05/12/2016 16:11
1 1 1 0 0 0 0 0 -4
-3
-5
-3
2
ASYNC
A-------
05/12/2016 16:11
1 1 1 0 0 0 0 0 -5
-3
-5
-3
3
ASYNC
A-------
05/12/2016 16:11
1 1 1 0 0 0 0 0 -5
-3
-5
-3
4
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
5
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
6
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
7
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
8
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
9
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
10
ASYNC
AB------
05/12/2016 16:11
1 1 1 1 0 0 0 0 -4
-3
-5
-3
A New column named Trigger is the Trigger Source that generated the log line.
For example the line indexed 9 is generated from the “B” trigger (DIN2 HIGH).
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
32
The line indexed 10 is generated from “A” and “B” trigger at the same time (DIN1 and DIN2 HIGH).
Note that the RTU directly calculates Average/Minimum/Maximum of an embedded analog input.
The Data Logger filename is:
RTUNAME_logyyyyMMddhhmmss.csv
Where:
RTUNAME is the name of the RTU
yyyy is the year of the first row data in the file
MM is the mounth of the first row data in the file
dd is the day of the first row data in the file
hh are the hours of the first row data in the file
mm are the minutes of the first row data in the file
ss are the seconds of the first row data in the file
So the filename of the first example can be:
ZGPRS3TEST_log20160605143600.csv
11.2.2. Sending data logger and data logger on trigger data to an E-MAIL server
RTUs are compatible only with SMTP servers without encryption using the Ethernet or GPRS/UMTS+ Always
ON (PPP) connection.
Z-GPRS3 and Z-UMTS are compatible also with SMTPS server with SSL encryption (for example GMAIL™)
but only with GPRS/UMTS+ connection NOT always ON (PPP must be off).
An example of SMTP server that works without encryprion is hMailServer for windows™ , for more info:
https://www.hmailserver.com/.
If the connection with the server is lost the RTU will accumulate the data and when the connection is
returned all data is sent up to align to actual acquisition.

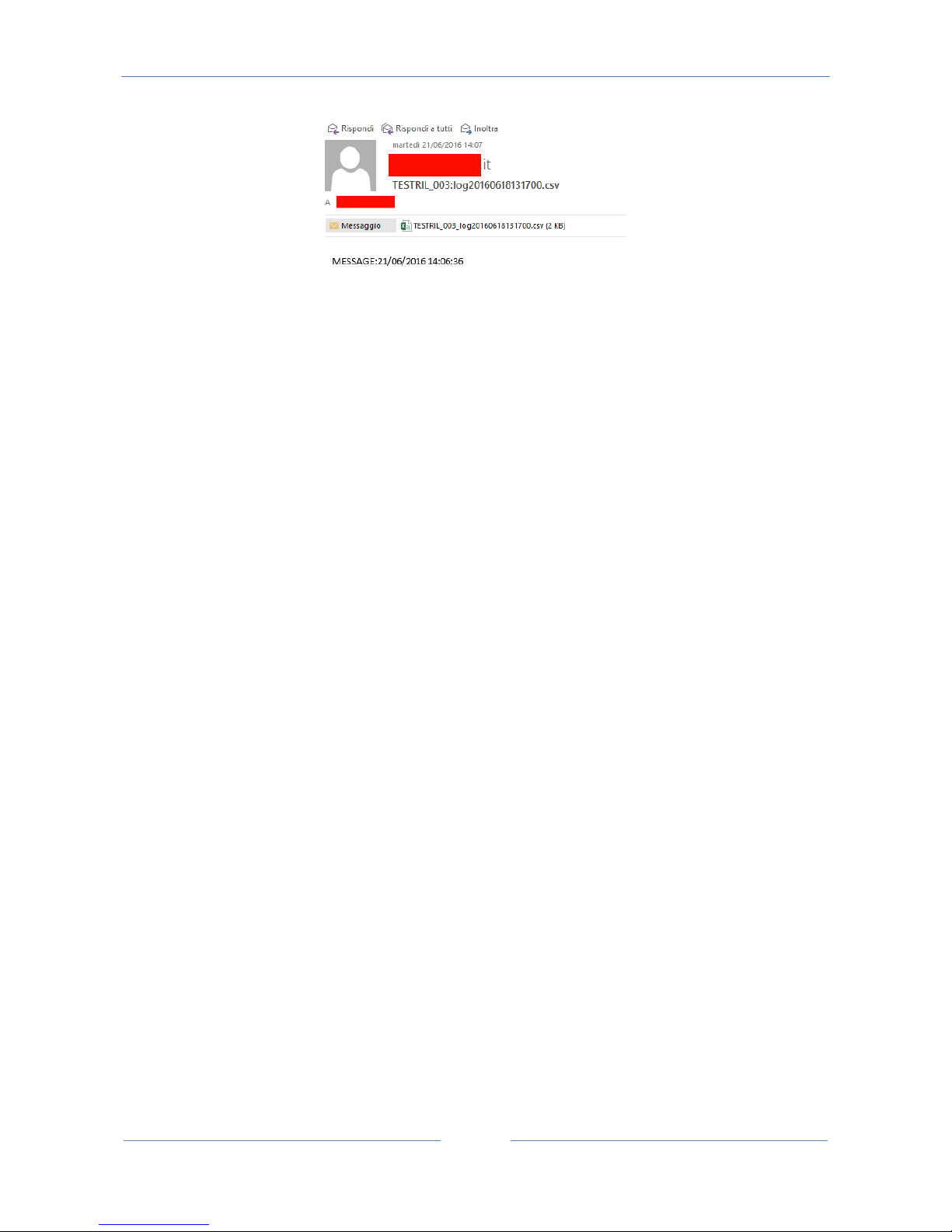

A typical mail sent has a text in the body with the timestamp and the log file in attachment:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
33
A typical Data logger file when is open with excel™ is:
INDEX
TYPE
TIMESTAMP
DIN1
DIN2
DIN3
DIN4
DOUT1
DOUT2
VBAT
POW
VAL1
AVG1
MIN1
MAX1
51764
LOG
05/06/2016 14:36
0 0 0 0 0 0 1 1 43
43
42
44
51765
LOG
05/06/2016 14:37
0 0 0 0 0 0 1 1 43
43
43
44
51766
LOG
05/06/2016 14:38
0 0 0 0 0 0 1 1 43
43
42
44
51767
LOG
05/06/2016 14:39
0 0 0 0 0 0 1 1 43
43
42
44
51768
LOG
05/06/2016 14:40
0 0 0 0 0 0 1 1 43
43
42
44
Where:
INDEX is a progressive acquisition number.
LOG is a constant text.
TIMESTAMP is the Real Time Clock when the acquisition is made.
The others values are the TAG name and variables entered by the user in the SEAL configuration.
The Data Logger on Trigger file when is open with excel™ is:
INDEX
TYPE
TRIGGER
TIMESTAMP
POW
VBAT
DIN1
DIN2
DIN3
DIN4
DOUT1
DOUT2
VAL1
AVG1
MIN1
MAX1
1
ASYNC
A-------
05/12/2016 16:11
1 1 1 0 0 0 0 0 -4
-3
-5
-3
2
ASYNC
A-------
05/12/2016 16:11
1 1 1 0 0 0 0 0 -5
-3
-5
-3
3
ASYNC
A-------
05/12/2016 16:11
1 1 1 0 0 0 0 0 -5
-3
-5
-3
4
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
5
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
6
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
7
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
8
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
9
ASYNC
-B------
05/12/2016 16:11
1 1 0 1 0 0 0 0 -4
-3
-5
-3
10
ASYNC
AB------
05/12/2016 16:11
1 1 1 1 0 0 0 0 -4
-3
-5
-3
A New column named Trigger is the Trigger Source that generated the log line.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
34
For example the line indexed 9 is generated from the “B” trigger (DIN2 HIGH).
The line indexed 10 is generated from “A” and “B” trigger at the same time (DIN1 and DIN2 HIGH).
Note that the RTU directly calculates Average/Minimum/Maximum of an embedded analog input.
If the Data Logger file is sent to an ftp server or by email the filename is:
RTUNAME_logyyyyMMddhhmmss.csv
Where:
RTUNAME is the name of the RTU
yyyy is the year of the first row data in the file
MM is the mounth of the first row data in the file
dd is the day of the first row data in the file
hh are the hours of the first row data in the file
mm are the minutes of the first row data in the file
ss are the seconds of the first row data in the file
So the filename of the example can be:
ZGPRS3TEST_log20160605143600.csv
11.2.1. Sending data logger and data logger on trigger data to an HTTP server
Data logger Logs are sent using the Notification (connection is made every sample time).
The standard used for send data is the JSON.
For more info refers to the SENECA CLOUDBOX user manual.
11.2.2. Saving data logger data to the microSD card
Z-GPRS3 is compatible only with microSD card formatted in FAT32 (FAT16 filesystem is not recommended).
The log files are stored into the /LOG directory.
If the log report must be sent more frequently than daily, the RTU will create a directory for every days, for
example:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
35
ROOT
--LOG
--20160618
--20160619
--20160620
The file name is different from the name that is sent to the FTP/EMAIL and is
Lxxxxxxx.csv
Where xxxxxxx is an incremental number.
12. HOW MANY LOGS IN A SINGLE MICROSD?
A microSD is pre-formatted FAT32 with allocation unit that depends from the constructor.
The number of logs data that can be stored in a microSD card depends from the microSD and the allocation
unit size.
Using a classic microSD of 4GBytes formatted with a file allocation of 32768 bytes, the number of allocation
are about:
4 000 000 000 / 32768 = about 122070 allocation units
Typically the RTU can save data to a microSD every 15 minutes, in this case the microSD will be full in:
122070 / 96 files for day = about 1272 days = about 3.5 years
Writing to a microSD every 1 minute, in this case the microSD will be full in:
122070 / 3600 files for day = about 34 days
If you need to increase the number of log that can be stored, you must format the microSD with the
minimum allocation unit size.
In a dos shell “cmd” type:
format x: /FS:FAT32 /A:1024 /Q
Where “x” is the microSD drive letter
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
36
You will obtain an allocation unit of 1024byes so the number of allocation units is:
4 000 000 000 / 1024 = about 3906250 allocation units.
Saving a file every 15 minutes will create a file of about 10K so use 10 allocation unit:
3906250/(10 allocation units*96 file for day) = about 4096 days => about 11 years
The minimum unit size are typically:
512 Bytes for 2GB microSD
1024 Bytes for 4GB microSD
13. ACTIONS AND MESSAGES
The SEAL software configurator can manage Actions, and Messages.
13.1. ACTIONS
Actions are commands that must be executed from the RTU when an event is TRUE or FALSE.
Example of actions are: writing to a modbus register, Toggle the digital output 1, reset a totalizer etc…
13.2. TEXT AND AUDIO MESSAGES
Messages are text that must be sent from the RTU when an event is TRUE or FALSE.
A Messages can be sent to: EMAILS, SMS, AUDIO CALL and HTTP POST
Example of messages are: sending a text alarm “Input 1 high ALARM!” when the analog input 1 is higher
than 15 mA.
Audio messages are located into the /AUDIO directories, a preset of audio messages are loaded with seal
but can be edited.
14. SENDING AUDIO (DTMF) COMMANDS TO Z-GPRS3 and Z-UMTS
Z-GPRS3 and Z-UMTS can receive audio calls for executing commands using DTMF code.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
37
When a RTU is called the audio file in SD card:
/AUDIO/80.pcm
Now the RTU can execute the FAST COMMANDS from 0 to 15 simply typing the command number and then
confirm with the “*”, use “#” for cancel.
The FAST COMMANDS are editable from SEAL in the APP icon -> Fast command, for example:
15. THE WEBSERVER
The Webserver is reachable from the Ethernet or from the Modem PPP connection.
There are 2 different webserver:
A Maintenance Webserver and a Custom Webserver.
15.1. MAINTENANCE WEBSERVER
The maintenance webserver can be used for maintenance and debug purposes, for accessing this
webserver type in a chrome browser (with default ip address):
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
38
http://192.168.90.101/maintenance/index.html
192.168.90.101 must be replaced with the Ethernet or the Modem PPP IP address.
With the webserver is possible to download all the log files that are store in SD card:
By clicking on the file is possible to download or delete a single log file.
For debug you can see in real time all the external/internal TAGs values in the “Extended Variables”/
“Status” / “Digital IO” / “Analog IN” / “Counters” sections.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
39
The last 16 Diagnostic Messages can be viewed in the “Diagnostic Messages” section.
The “Upload file” section can be used for sending a new configuration or a new firmware to the Z-GPRS3
RTU.
15.2. CUSTOM WEBSERVER
The custom webserver is located in the provided microSD card ( /WEB directory ).
For accessing this webserver type in a chrome browser (with default ip address):
http://192.168.90.101/index.html
192.168.90.101 must be replaced with the Ethernet or the Modem PPP IP address.
Various Custom webserver can be downloaded from:
http://www.seneca.it/products/z-gprs3/
For example is possible to write directly to an external modbus tag entering in upper right corner a tag
name and the new value.

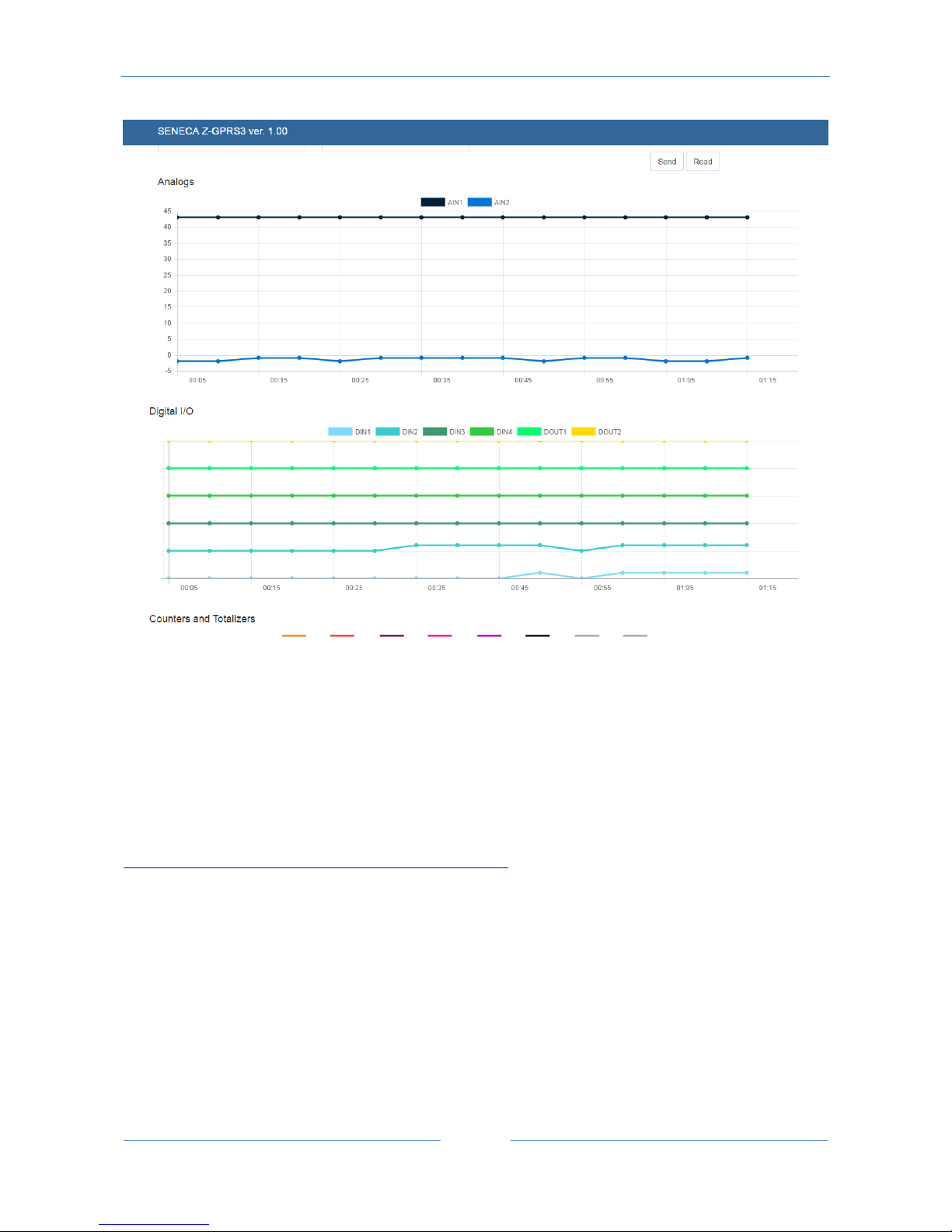

An example of real time graph is also provided:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
40
16. SEAL (SEneca Advanced Language)
Seal is a programming environment for the Seneca RTU, for more info refers to the SEAL help.
The last Seal software version can be downloaded from:
http://www.seneca.it/en/linee-di-prodotto/software/seal/
For more info install SEAL and go to the on line help.
CAUTION!
For a full support of SEAL the microSD card must be inserted!
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
41
17. FIRMWARE UPDATE
In order to include new functions, the system includes Z-GPRS3 firmware update options.
Various different update modes are available for firmware:
Via Webserver: Connect to the section “Upload File” for updating the firmware
Via USB: A complete update takes about 8 minutes. Z-GPRS3 / Z-Logger must be connected to a PC with
SEAL software installed.
Via microSD card: A complete update takes about 20 seconds. A microSD adapter for PC (many mobile
phones can also read/write microSD) is required.
Via FTP Server: When the RTU is not reachable directly, the firmware update can be made by sending a
SMS or a HTTP command, then the update file is downloaded directly by the Z-GPRS3 RTU from a FTP
server.
17.1. Firmware update by Webserver
1) Download and Install the last SEAL software from Seneca Website (the last firmware is located in
C:\Program Files\Seneca\SeAL\devices).
2) Connect to the RTU webserver at address:
http://ipaddress/maintenance/index.html
where “ipaddress” is the PPP modem or Ethernet ip address.
3) Go to the “Upload File” section.
4) Under “Firmware Binary File” select the “fw.bin” file from the last firmware folder and then click
“UPLOAD”
5) The RTU will reboot with the new firmware.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
42
17.2. Firmware update by microSD card
Firmware can be updated via microSD card formatted with the FAT16 or FAT32 filesystem
(purchased microSD cards are usually already formatted this way).
Proceed as follows to update firmware:
1. Copy the file called “fw.bin” containing the firmware to a microSD card, The file must be
copied to the main microSD folder.
2. With the Z-GPRS3 RTU OFF, insert the microSD card in the slot
3. Turn ON the Z-GPRS3 RTU.
4. The SD/STS led starts to flash at 1 second intervals for about 20 seconds. The new firmware
is written in flash memory during this phase.
5. When finished, the SD/STS led starts to flash fast
6. At this point, remove the microSD
7. The green PWR led starts to flash fast (several times a second); in this phase the module is
copying firmware from flash to the microprocessor flash.
8. When finished, the module automatically turns off and back on
The firmware update can be checked:
-Connecting the module to SEAL software, the firmware version has changed.
CAUTION!
-BEFORE UPDATING firmware, copy the current configuration.
-Once the firmware is updated, the previous setup may be deleted so Z-GPRS3 must be reconfigured.
18. SEAL PROGRAM AND SEAL CONFIGURATION REMOTE UPDATE
18.1. SEAL PROGRAM AND SEAL CONFIGURATION UPDATE FROM WEBSERVER
You can update a SEAL program and or configuration from the Z-GPRS3 Webserver.
For update a new program and configuration follow the procedure:
1) In SEAL create a new program or change the parameters configuration
2) Go to Build -> Generate
3) Now Seal will create 3 files: .seal, .debug, .out
4) Rename the .out file to “setup.tag”
5) Connect to the webserver at address:
http://ipaddress/maintenance/index.html
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
43
where “ipaddress” is the PPP modem or Ethernet ip address.

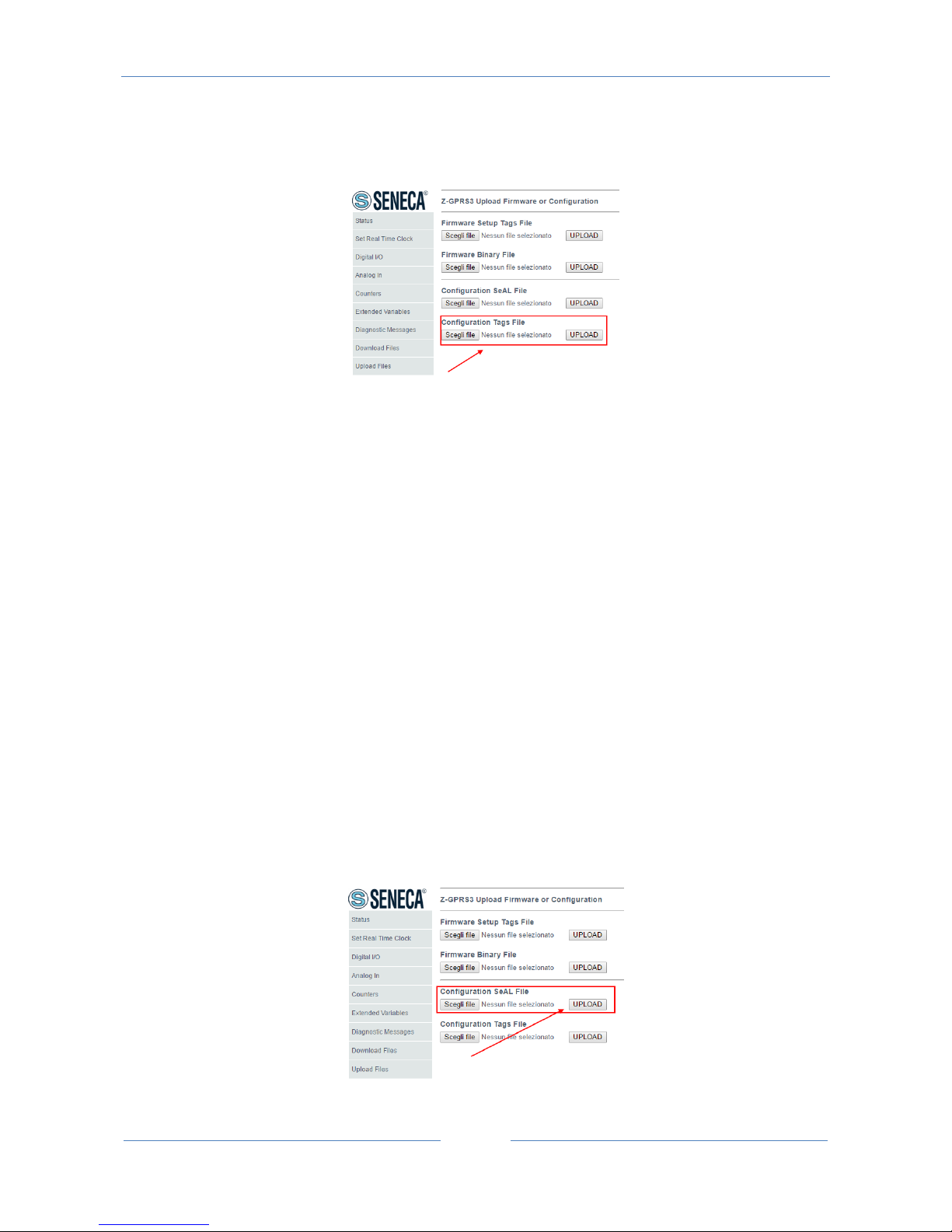

6) Go to the “Upload File” section.
7) Under “Configuration Tags File” select the “setup.tag” file and then click “UPLOAD”
8) The RTU will restart with the new SEAL Program/Configuration
CAUTION!
When use this feature with Remote RTU be sure that the connection parameters are correct
before upload the new SEAL Program/Configuration or the RTU will be unreachable!
18.2. UPLOAD A PROJECT BACKUP TO THE RTU
You can create a backup file for the SEAL program (.seal file) for archive and upload it to the RTU.
For to do that follow the procedure:
1) Connect to the webserver at address:
http://ipaddress/maintenance/index.html
where “ipaddress” is the PPP modem or Ethernet ip address.
2) Go to the “Upload File” section.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
44
3) Under “Configuration SEAL File” select the “.seal” file and then click “UPLOAD”
4) The RTU will store the .seal file to the SD card
CAUTION!
When a “.seal” file is uploaded the RTU will not change the actual program/configuration.
This operation is only for backup purpose, for changing the program/configuration you must
upload the “setup.tag” file (see chapter 18.1)
19. MODBUS TCP-IP SERVER AND MODBUS RTU SLAVE
The RTUs can activate a Modbus TCP-IP Server and a Modbus RTU Slave (on serial ports) for accessing the
Embedded and Modbus I/O.
The server accept up to 2 clients from Ethernet or Modem (PPP) connection.

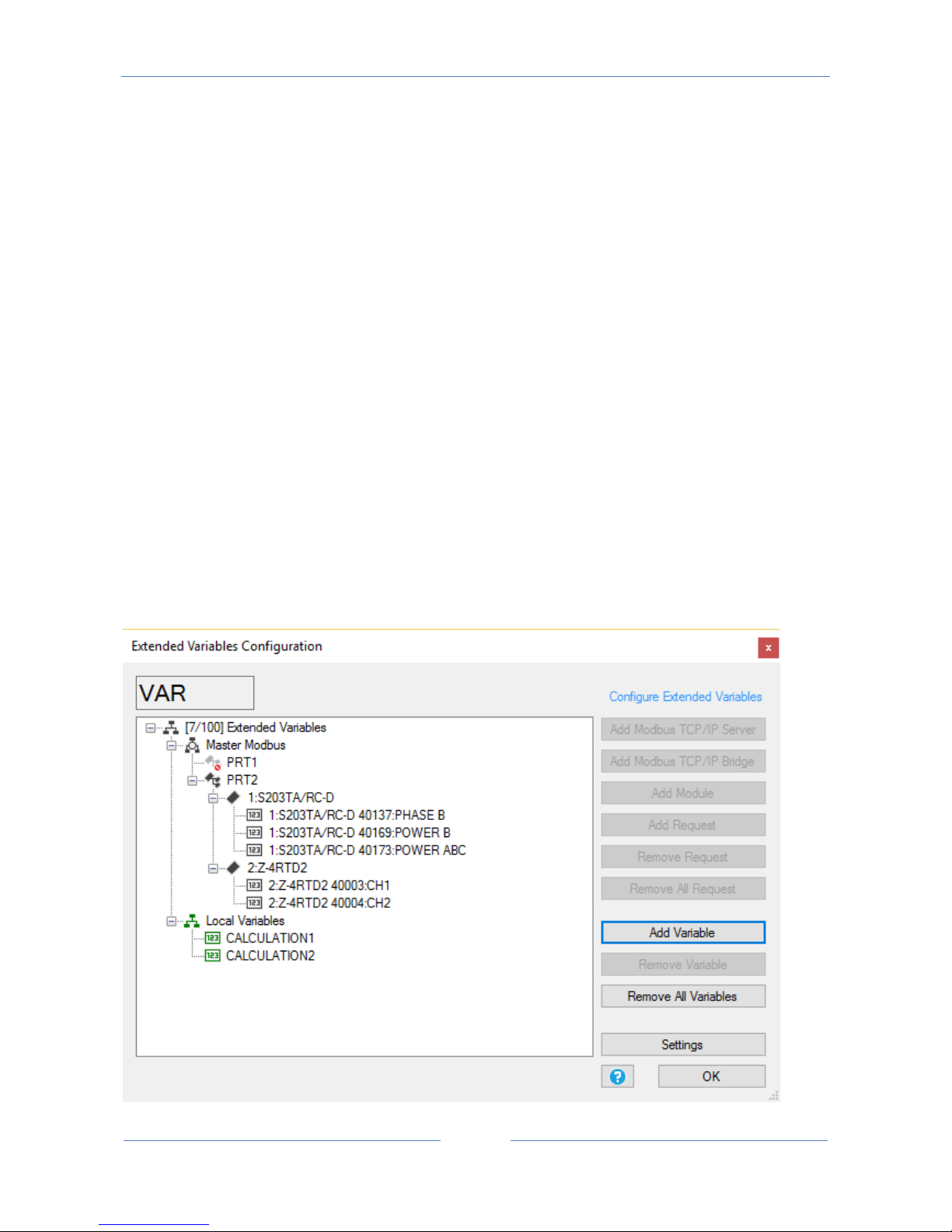

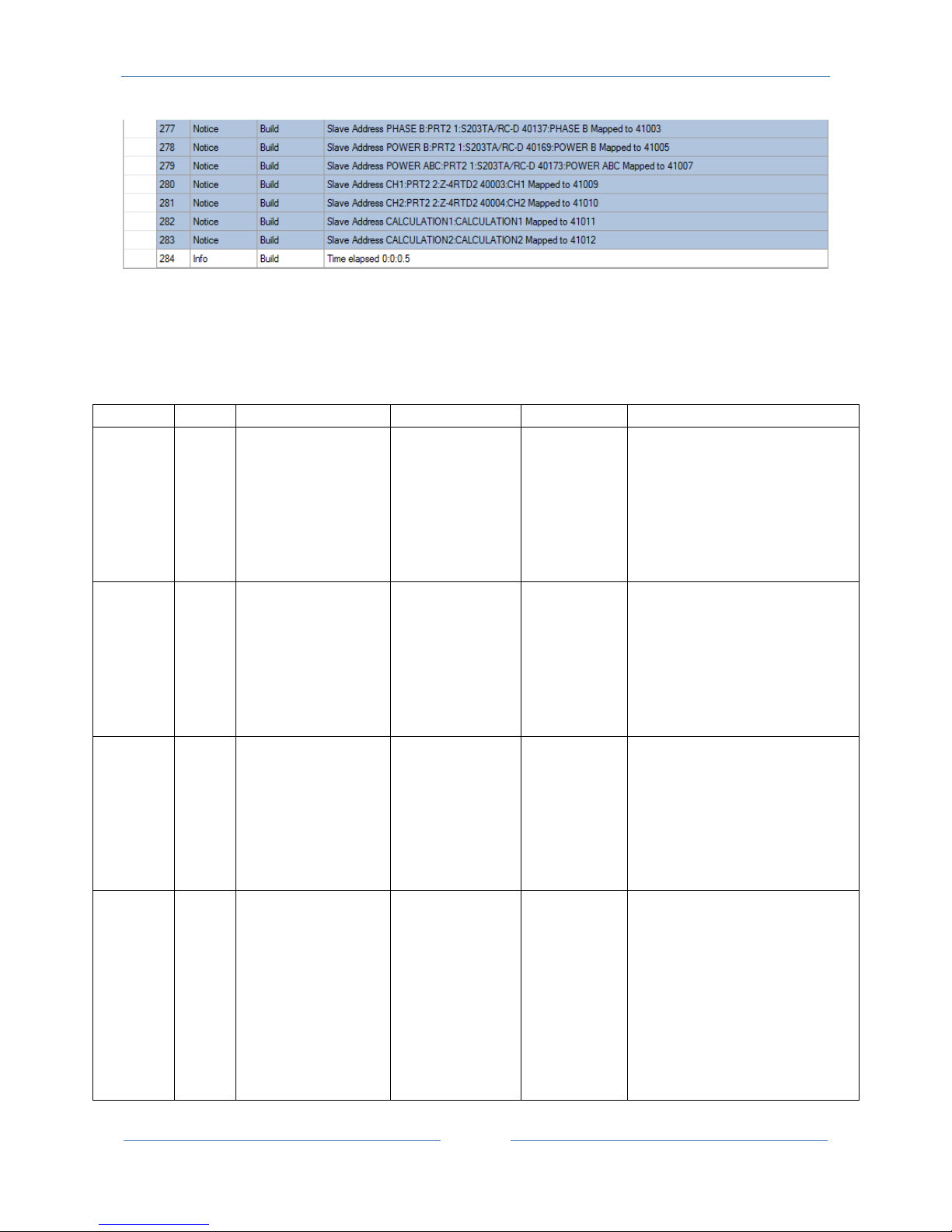

The external variables addresses are placed from the SEAL compiler so, after compiling, the addresses can
be showed:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
45
19.1. MODBUS ADDRESSES TABLE
ADDRRESS
OFFSET
TAG
REGISTER TYPE
RO/RW
INFO
40001 0 MACHINE ID
UNSIGNED 16
READ ONLY
INTERNAL CODE
40002
1
FIRMWARE CODE
UNSIGNED 16
READ ONLY
INTERNAL CODE
40003
2
FIRMWARE MAJOR
REVISION
UNSIGNED 16
READ ONLY
(EXAMPLE 204 = 2.04)
40004
3
FIRMWARE MINOR
REVISION
UNSIGNED 16
READ ONLY
In decimal format
KMMBB
Where:
K=4= Bugfix Release
K=3= New Release
MM = Minor Revision
BB = Build
Example:
Value = 40110
4 = Bugfix Release
01 = Minor revision 1
10 = Build 10
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
46
40008
7
DIGITAL INPUTS
AND SIGNALS
BIT
READ ONLY
Digital Inputs
Bit 0 = INPUT1 VALUE
Bit 1 = INPUT2 VALUE
Bit 2 = INPUT3 VALUE
Bit 3 = INPUT4 VALUE
Bit 7 = EXTERNAL POWER
Bit 8 = BATTERY GOOD
40009
8
DIGITAL OUTPUTS
BIT
READ ONLY
Bit 14 = DIGITAL OUTPUT 1
VALUE
Bit 15 = DIGITAL OUTPUT 2
VALUE
40015
14
CLOCK YEAR
SIGNED 16 BITS
READ ONLY
Year
40016
15
CLOCK MOUNTH
UNSIGNED 8 BITS
READ ONLY
Bit from 0 to 7 (LSB)
40017
16
CLOCK DAY
UNSIGNED 8 BITS
READ ONLY
Bit from 0 to 7 (LSB)
40017
16
CLOCK HOURS
UNSIGNED 8 BITS
READ ONLY
Bit from 8 to 15 (MSB)
40018
17
CLOCK MINUTES
UNSIGNED 8 BITS
READ ONLY
Bit from 0 to 7 (LSB)
40018
17
CLOCK SECONDS
UNSIGNED 8 BITS
READ ONLY
Bit from 8 to 15 (MSB)
40023
22
Totalizer value 1 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40024
23
Totalizer value 1
MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40025
24
Counter value 1 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40026
25
Counter value 1 MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40039
38
Worktime 1 LSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Less significant 16 bits
40040
39
Worktime 1 MSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Most significant 16 bits
40049
48
Totalizer value 2 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40050
49
Totalizer value 2
MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40051
50
Counter value 2 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40050
49
Counter value 2 MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40065
64
Worktime 2 LSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Less significant 16 bits
40066
65
Worktime 2 MSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Most significant 16 bits
40075
74
Totalizer value 3 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40076
75
Totalizer value 3
MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40077
76
Counter value 3 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
47
40078
77
Counter value 3 MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40091
90
Worktime 3 LSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Less significant 16 bits
40092
91
Worktime 3 MSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Most significant 16 bits
40101
100
Totalizer value 4 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40102
101
Totalizer value 4
MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40103
102
Counter value 4 LSW
UNSIGNED 16
BITS
READ ONLY
Less significant 16 bits
40104
103
Counter value 4 MSW
UNSIGNED 16
BITS
READ ONLY
Most significant 16 bits
40117
116
Worktime 4 LSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Less significant 16 bits
40118
117
Worktime 4 MSW
UNSIGNED 16
BITS
READ ONLY
Value in [Seconds]
Most significant 16 bits
40128
127
Battery Voltage
UNSIGNED 16
BITS
READ ONLY
[mV]
40130
129
Analog input 1
SIGNED 16 BITS
READ ONLY
Value in [mA] or [V]
40131
130
Scaled Analog Input 1
SIGNED 16 BITS
READ ONLY
Custom scaled value
40144
143
Analog input 2
SIGNED 16 BITS
READ ONLY
Value in [mA] or [V]
40145
144
Scaled Analog Input 2
SIGNED 16 BITS
READ ONLY
Custom scaled value
40158
157
GSM Field
SIGNED 16 BITS
READ ONLY
Value in [dBm]
41003
…
41203
1002
…
1202
External
Variables Tags
-
READ/WRITE
Use the compile output window
for Tags address position
49001
9000
COMMAND
UNSIGNED 16
BITS
READ/WRITE
Command Register
(see Table with supported
commands)
19.2. SUPPORTED COMMANDS FROM MODBUS
If you have enabled the Modbus TCP-IP server by Ethernet connection or the Modbus Slave RTU from a
serial port you are able to send commands to RTUs.
The register COMMAND is at holding address 49001 (holding register 9000)
COMMAND
VALUE (decimal)
RESET RTU
1
UNMOUNT SD CARD
7
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
48
STOP DATALOGGER
18
START DATALOGGER
17
COPY ALL LOGS FROM INTERNAL FLASH TO microSD
CARD
19
RESET LOG SESSION
20
ERASE ALL LOG FROM INTERNAL FLASH
16
FORCE MODEM RESET
65
STOP MODBUS TCP-IP AND MODBUS RTU LOG
98
START MODBUS TCP-IP AND MODBUS RTU LOG
97
DOWNLOAD AND UPDATE FIRMWARE FROM REMOTE
FTP SERVER
112
DOWNLOAD AND UPDATE FIRMWARE AND SETUP
FROM REMOTE FTP SERVER
113
DOWNLOAD AND UPDATE SETUP FROM REMOTE FTP
SERVER
114
DOWNLOAD AND UPDATE PHONEBOOK FROM FTP
SERVER
115
UPDATE FIRMWARE FROM SD
116
UPDATE SETUP FROM SD
117
UPDATE PHONEBOOK FROM SD
118
EXECUTE RING COMMAND
33
EXECUTE FAST COMMAND 0
48
EXECUTE FAST COMMAND 1
49
EXECUTE FAST COMMAND 2
50
EXECUTE FAST COMMAND 3
51
EXECUTE FAST COMMAND 4
52
EXECUTE FAST COMMAND 5
53
EXECUTE FAST COMMAND 6
54
EXECUTE FAST COMMAND 7
55
EXECUTE FAST COMMAND 8
56
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
49
EXECUTE FAST COMMAND 9
57
EXECUTE FAST COMMAND 10
58
EXECUTE FAST COMMAND 11
59
EXECUTE FAST COMMAND 12
60
EXECUTE FAST COMMAND 13
61
EXECUTE FAST COMMAND 14
62
EXECUTE FAST COMMAND 15
63
CLOSE DIGITAL OUTPUT1
Write with Write Multiple Register:
write 32 in register 49001
write 32 in register 49002
write 512 in register 49003
OPEN DIGITAL OUTPUT1
Write with Write Multiple Register:
write 32 in register 49001
write 16 in register 49002
write 512 in register 49003
CLOSE DIGITAL OUTPUT2
Write with Write Multiple Register:
write 32 in register 49001
write 8192 in register 49002
write 512 in register 49003
OPEN DIGITAL OUTPUT2
write 32 in register 49001
write 4096 in register 49002
write 512 in register 49003
20. SUPPORTED SMS COMMANDS (Z-GPRS3 and Z-UMTS only)
20.1. Set the Telephone Sms Character Alphabet
Some Smartphones send SMS with UNICODE characters instead of using the GSM alphabet.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
50
Z-GPRS3 only runs SMS commands with GSM alphabet.
In most cases, SMS characters are set to GSM alphabet by default. If Z-GPRS3 does not recognise any SMS
command, check the alphabet used by the phone.
For Android smartphones:
Press the Message icon -> Settings -> Change writing -> GSM alphabet
20.2. List of Supported Sms Commands
Z-GPRS3 lets you run commands if the SMS sender number is enabled.
Command list:
SMS COMMANDS FOR DIGITAL INPUTS/COUNTERS/TOTALIZERS
GET DIN
Status from all counters
GET DINn
All nth input counter status
GET DINn.TOT
All nth input totalizers status
GET DINn.CNT
All nth input counters status
RESET DIN
Reset all counters
RESET CNTn
Reset the nth counter
SMS COMMANDS FOR DIGITAL INPUTS/COUNTERS/TOTALIZERS
GET DIN
Status from all counters
GET DINn
All nth input counter status
GET DINn.TOT
All nth input totalizers status
GET DINn.CNT
All nth input counters status
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
51
RESET DIN
Reset all counters
RESET CNTn
Reset the nth counter
SMS COMMANDS FOR READ/WRITE EXTENDED VARIABLES
GET TAG <VARIABLE_LABEL>
Returns by SMS the value of the extended
variable named <VARIABLE_LABEL>
For example:
GET TAG PIPPO
Returns the PIPPO extended variable value
SET TAG <VARIABLE_LABEL> <VALUE>
Write <VALUE> to the external variable named
<VARIABLE_LABEL>
For example:
SET TAG PIPPO 345
Write 345 to the PIPPO extended variable
SMS COMMANDS FOR DIGITAL OUTPUTS
SET DOUTn.OPEN
Opens the nth digital output
SET DOUTn.CLOSE
Closes the nth digital output
SET TOGGLEn
Toggle the nth digital output
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
52
SET PULSEn.OPEN
Opens the nth timed output
SMS COMMANDS FOR ADDRESS BOOKS
SET PHONE +nnnnnnn
Add number +nnnnnn to address book as
administrator
RESET PHONE +nnnnnnn
Remove number +nnnnnn from the address
book
SET EMAIL nnn@nnn.nnn
Add email nnn@nnn.nnn to address book as
administrator
RESET EMAIL nnn@nnn.nnn
Delete email nnn@nnn.nnn from the address
book
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
53
VARIOUS SMS COMMANDS
CREDIT
Returns residual credit (for top-up SIM CARD only)
STATUS
Returns the variables set by setup software. All available variables
can be included. If the SMS text exceeds 160 characters, it will be
truncated (three dots “…” at the end of the SMS ).
SET GSM.APN apn_name
user password
Set the APN with the APN name, user and password. For example,
set vodafone APN that does not require user name and password:
SET GSM.APN web.omnitel.it
SET GSM.FTP path name_ip
port user password
Set FTP connection settings:
path the FTP server folder where files are sent
name_ip IP address or FTP server name
port FTP server gateway
user FTP server login user name
password FTP server login password
for example:
SET /prova/ 192.168.180.33 21 pippo pluto
SET GSM.SMTP name_ip port
user password
set SMTP server connection settings to send emails
name_ip IP address or FTP server name
port smtp server gateway
user FTP server login user name
password smtp server login password
for example:
SET GSM.SMTP out.alice.it 25 pippo pluto
GET AIN
Returns the two analog input values
EMAIL TEST
Forces an email sent with an attachment to the first administrator in the
email address book
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
54

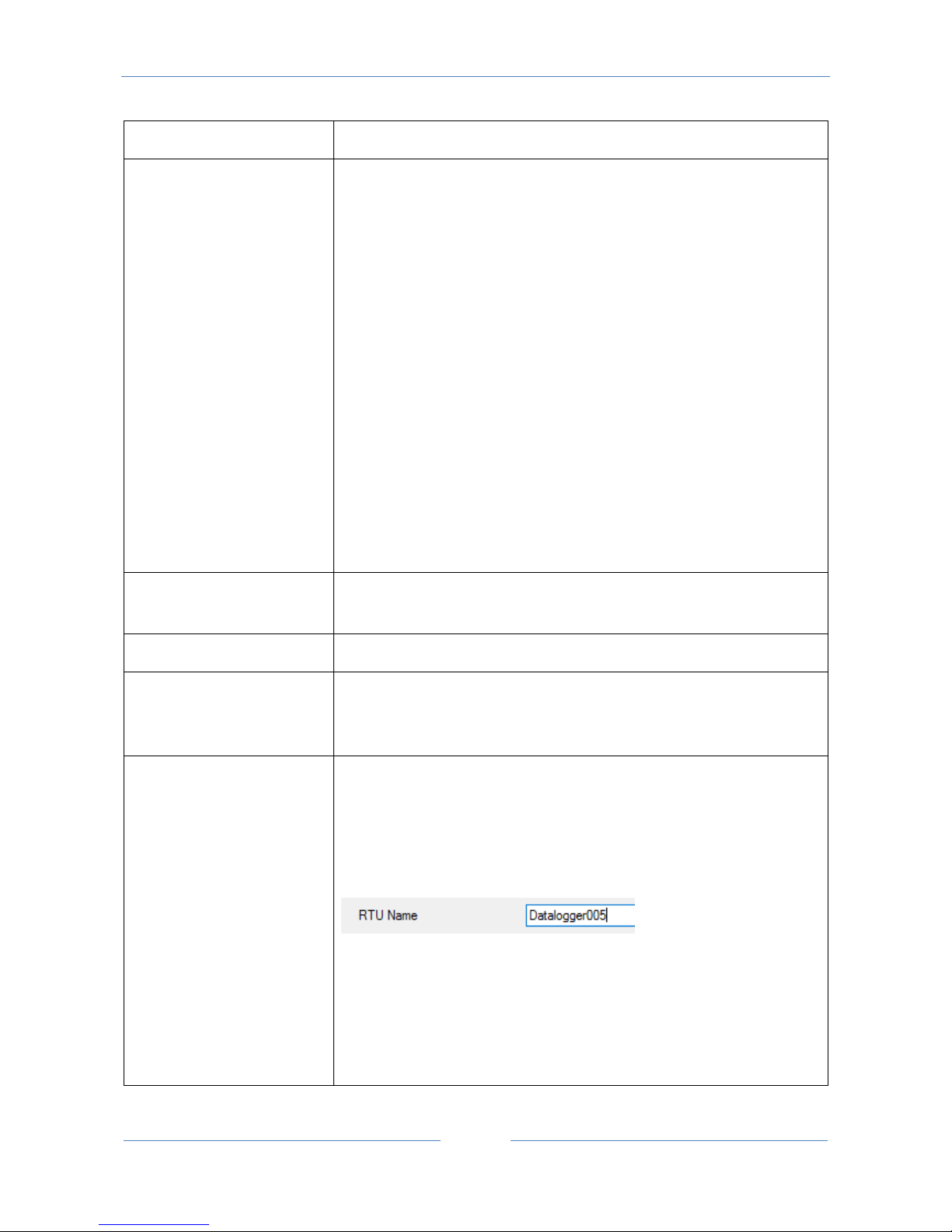

FTP TEST
Forces a text file sent to the currently set ftp server
EMAIL TAG
Sends the value indicated by "TAG" to the first email contact
EMAIL AIN sends an email with the value of the 2 analogs
EMAIL AIN1 sends an email with the value of the analog 1
EMAIL AIN2 sends an email with the value of the analog 2
EMAIL DIN sends an email with the value of the digital inputs
EMAIL DIN1 sends an email with the value of the digital input 1
EMAIL DIN2 sends an email with the value of the digital input 2
EMAIL DIN3 sends an email with the value of the digital input 3
EMAIL DIN4 sends an email with the value of the digital input 4
EMAIL TEMP sends an email with the internal temperature sensor value
EMAIL SYSLOG
Sends the last week syslog.csv log file on microSD via email (first
administrator address in the address book)
FTP SYSLOG
Sends the last week syslog.csv log file in the microSD via FTP
UPLOAD LOG
Create a dump of the actual internal flash log into the microSD
logdump.csv, then Sends this file to the actual upload channel (E-MAIL or
FTP).
DOWNLOAD FW
The RTU will download from the FTP download folder the
“RTUNAME_fwupdt.bin” firmware file (where RTUNAME is the name
inserted in the “Cloud” SEAL section) Then (if the release il different from
the installed) a firmware update is done.
for example:
The firmware file must be:
“Datalogger005_fwupdt.bin”
Note that if in the “Cloud” SEAL section you have flagged one of the
followed flags:
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
55

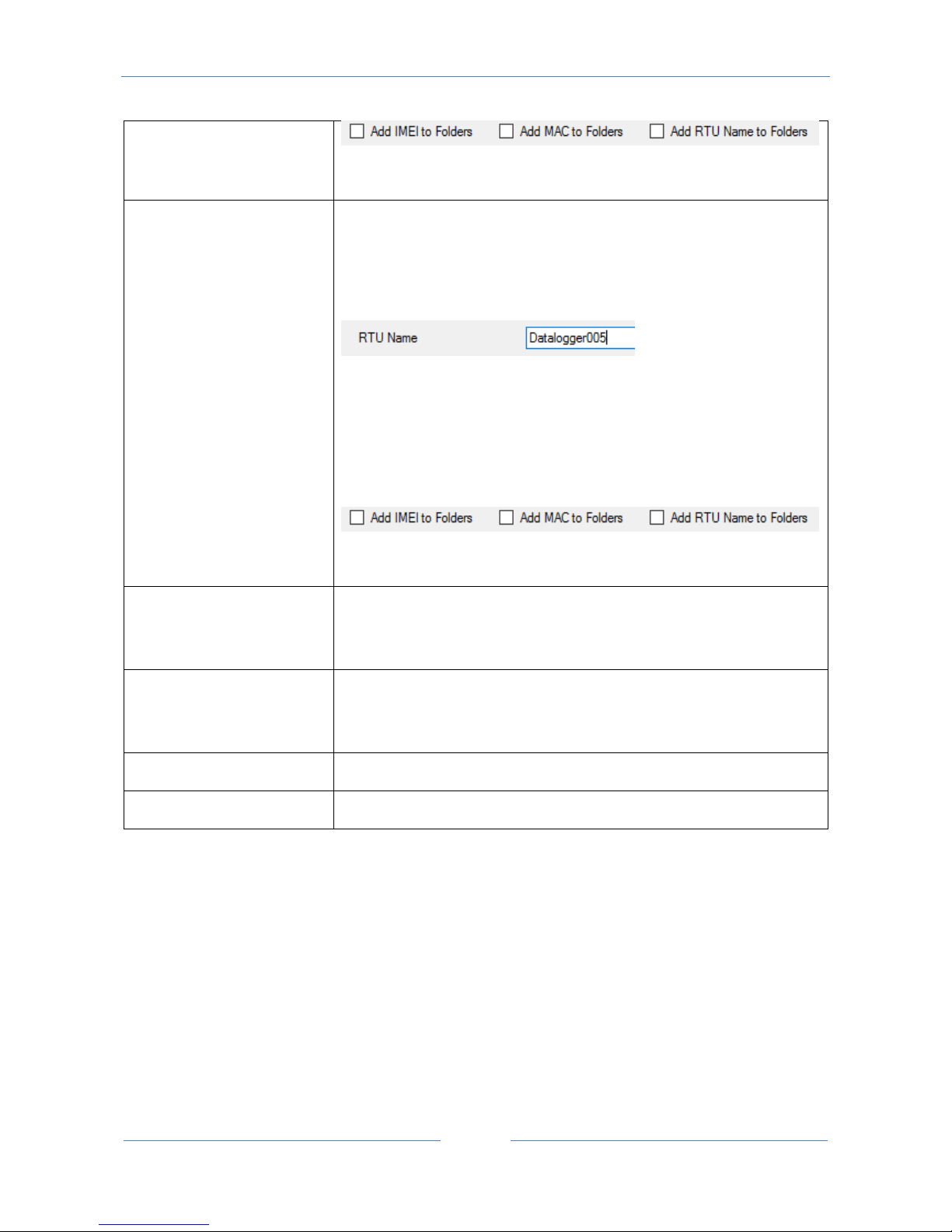

The firmware file must be only “fwupdt.bin”
DOWNLOAD SETUP
The RTU will download from the FTP download folder the “RTUNAME_
setup.tag” setup file (where RTUNAME is the name inserted in the
“Cloud” SEAL section) Then a configuration update is done.
For example:
The setup file must be:
“Datalogger005_setup.tag”
Note that if in the “Cloud” SEAL section you have flagged one of the
followed flags:
The setup file name must be only “setup.tag”
DOWNLOAD FW-SETUP
The RTU will download from the FTP download folder the firmware AND
the setup file. Then (if the release il different from the installed) the
firmware and the configuration are updated.
DOWNLOAD DATA
The RTU will download from the FTP download folder the “data.bin” with
the extended ring action phonebook (up to 1000 users). Then the
extended phonebook is updated.
RESET
Reset the RTU
NET
RTU will send actual Ethernet and modem PPP IP address
NOTE
If the command is not recognized by Z-GPRS3, an error SMS will be sent:
“COMMAND NOT RECOGNIZED”
You can configure Z-GPRS3 to send a confirmation (SMS or ring) when the command is
successfully completed.
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
56
CAUTION!
When a command is successfully completed, a ring can only be generate when a voice SIM is
used (data SIM do not permit voice call service).
21. EMERGENCY MODE
From firmware 1.2.1 Z-UMTS and 2.4.2 Z-GPRS3/Z-LOGGER3 it’s possible to disable the SEAL program
execution putting ALL dip switches to ON at boot-up.
This emergency mode is useful if a SEAL program does not allow to connect to SEAL (for example because
the board will reboot continuously).
In emegency mode the SEAL program is not executed and the datalogger is stopped.
For enter in the emergency mode follow the steps:
1) Power Down the Board
2) Put ALL the dip switches to “ON”
3) Power ON the Board
4) PWR led will flash until you exit from the emergency mode
5) Now you can connect to SEAL and send a new program
For exit from the emergency mode:
1) Power Down the Board
2) Put ALL the dip switches to “OFF”
3) Power ON the Board
4) Now the SEAL program is in execution
22. TROUBLESHOOTING
PROBLEM
SOLUTION
Sending the SMS command:
email test
no email reaches the administrator's email
address
-Make sure the set APN corresponds to the mobile service
provider's and whether access requires authorisation. See:
http://wiki.apnchanger.org/Main_Page
-Make sure the GSM signal is over 2/7
-The email ended up in SPAM
-The SMTP server supports SSL protection and the gateway
was not correctly set
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
57
Using the configuration software in the
"Test configuration" section when you
launch the command:
TEST E-MAIL COMMAND
no e-mail arrives at the administrator email address
If you send Log via Ethernet, Seneca recommended to
use an owner SMTP server.
-The email is in the SPAM directory
-The SMTP server supports only SSL security, in the
ethernet port or Modem PPP connection you can not
enable SSL protection
Sending the SMS command:
ftp test
no ftp file reaches the set ftp server
-The FTP server folder does not exist. Create the folder on
the ftp server first.
-Make sure the ftp server IP address/name are correct
-Make sure the ftp server login user name/password are
correct
Using the configuration software in the
"Test configuration" section when you
launch the command
TEST FTP
no ftp file arrives in the configured ftp
server
-The folder on the FTP server on which you created the
file does not exist, first create the folder in the ftp
server
-Check the correctness of the IP / name of the FTP
server
-Make sure that the username / password to access the
ftp server are correct
The GSM signal is always 0/7 and the GSM led
continues to flash fast
-The inserted SIM is not recognised. Clean or replace the SIM
-The SIM PIN is enabled. Insert the SIM in a mobile phone and
disable the PIN or enable it and insert the PIN code in the
setup software
The GSM signal is too low
-Wait at least 10 minutes from turning on the device before
reading the GSM value
-Try using another mobile service provider's SIM
-Move the Z-GPRS3 installation
-Use an optional external antenna: for further information,
contact Seneca or visit the Z-GPRS3 section at
www.seneca.it.
Residual credit is not sent for the SIM
-Check the method used to receive residual credit from the
mobile service provider (ring or SMS, SMS request text).
-The SIM is not top-up but subscription
USER MANUAL – Z-GPRS3, Z-UMTS, Z-LOGGER3
58
Z-GPRS3 or Z-UMTS worked correctly for a few
days/months but stopped sending SMS and
logs.
-No SIM credit. Top-up the SIM card.
-The SIM card expired, replace the SIM card or contact your
mobile phone provider.
You get the "NTP error"
The clock synchronization is activated, via ethernet this
is done via NTP (network time protocol), but you can
not contact the NTP server:
-Make sure that the UDP port 123 is open
-Check the configured NTP server address
The device is unable to send emails or ftp
files on the Internet through the
Ethernet port but a PC connected
to the same LAN can send emails and ftp
files.
-Try to change Router/Modem
-Update the Router/Modem Firmware
-Keep open on the router the ports:
UDP/TCP 25
UDP/TCP 21
UDP 123
Loading...
