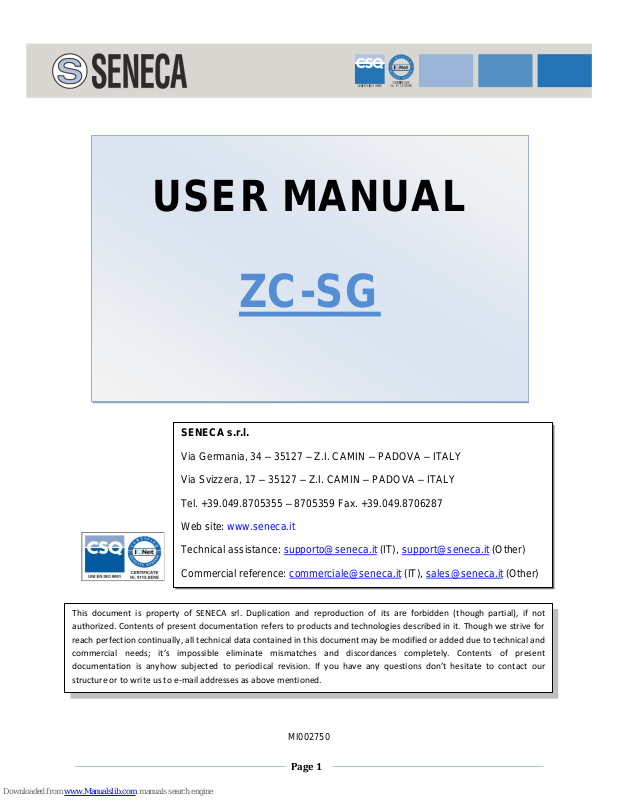

Seneca ZC-SG User Manual

Page 1

MI002750

SENECA s.r.l.

Via Germania, 34 – 35127 – Z.I. CAMIN – PADOVA – ITALY
Via Svizzera, 17 – 35127 – Z.I. CAMIN – PADOVA – ITALY
Tel. [phone] Fax. [phone]
Web site: www.seneca.it
Technical assistance: [e-mail] (IT), [e-mail] (Other)
Commercial reference: [e-mail] (IT), [e-mail] (Other)

This document is property of SENECA srl. Duplication and reproduction of its are forbidden (though partial), if not
authorized. Contents of present documentation refers to products and technologies described in it. Though we strive for
reach perfection continually, all technical data contained in this document may be modified or added due to technical and
commercial needs; it’s impossible eliminate mismatches and discordances completely. Contents of present

documentation is anyhow subjected to periodical revision. If you have any questions don’t hesitate to contact our

structure or to write us to e-mail addresses as above mentioned.

USER MANUAL

ZC-SG

USER MANUAL – ZC-SG

2

Seneca Z-PC Line module: ZC-SG

The ZC-SG module allows to manage the load cell signals and to process the weight value, with
two types of communication: CANopen protocol, ModBUS protocol (RS232 serial).

General characteristics

Hardware

 Sampling frequency settable from 12,53 Hz to 151,71 Hz.
 1500 VAC isolation amongst inputs, power supply and CAN interface.
 Protection against ESD discharge up to 4 kV.
 Adjustable rejection at 50 and 60Hz.
 Strain gauge directly powered by the instrument.
 Ratiometric measurement.
 Simplified power supply and serial bus wiring by means of the bus housed in the DIN rail.
 1 to 64mV/V sensitivity, settable by software for real/integer values.

Software

 Load cell calibration with known weight
 Load cell calibration is not necessary if the load cell sensibility is known.
 Configurable digital I/O.
 Stable weight indication via digital output / Modbus register / PDO
 Remote writing of the tare in volatile and/or non volatile memory through digital input / CAN

commands.

 Led Indications: Power Supply, CAN communication, MODBUS-RTU communication, Inputs

fault.

 Alarm generated when programmable threshold is exceeded.
 Measurement stabilization through a programmable number of samples, ±30000 points

hysteresis activable.

Communication

 CAN Interface with CANopen protocol: up to 1 Mbps speed.
 CANopen Baud rate and Node ID configurability by DIP-switches or software.
 Nodeguarding or heartbeat
 RS232 Serial Communication with MODBUS-RTU protocol
 Complete configurability through specific software downloadable in the website www.seneca.it.

USER MANUAL – ZC-SG

3

Features

INPUT

Type

6-wires or 4-wires differential measurement input

Full scale

±5 mV ..±320 mV

Error

Calibration: 0.01% of the full scale value
Linearity: 0.01% of the full scale value
Thermal drift: 25 ppm/°C

STRAIN GAUGE CHARACTERISTICS

Power supply voltage

5 Vdc

Minimum inpedance

87 Ω equivalent, eventually derived by a parallel of load cells (for

example four 350 Ω cells)

Sensitivity

From ± 1 mV/V to ± 64 mV/V

Terminals

4 or 6

DIGITAL INPUT OR OUTPUT

Digital input opto­isolated

Max voltage: 30 V

Digital output opto­isolated

Max current: 50 mA
Max voltage: 30 V

CONVERSION/ACCURACY SPECIFICATIONS

ADC

24 bit

Thermal drift

25 ppm/°C

Sampling frequency

Settable from 12.35 to 151.71 Hz

Interference rejection

Settable both at 50 and 60 Hz

CONNECTIONS

Removable terminals

Removable 3-way screw terminals, 5.08 mm pitch

IDC10 rear connector

CAN interface and power supply (for DIN rail)

Stereophonic frontal
jack

3.5 mm for RS232 connection (COM)

POWER SUPPLY

Supply voltage

10 – 40 Vdc or 19 – 28 Vac ( 50Hz - 60Hz)

Power
consumption

Max: 2 W

USER MANUAL – ZC-SG

4

NOTE: “0x” means an exadecimal number interpretation.

CANOpen features

TECHNICAL DATA

Baud rate

20, 50, 125, 250, 500, 800, 1000 kbps

Typical refresh time

20 ms

Sensibility supported

From ±1 mV/V to ±64 mV/V

CANOpen TECHNICAL DATA

NMT

Slave

Node guarding, heartbeat

Node ID

HW switch or software

Number of PDO

2 TX

PDO modes

Event triggered, Sync (cyclic), Sync (acyclic)

PDO mapping

Variable

PDO linking

supported

Number of SDO

1 server

Error message

yes

Supported application

Cia 301 v4.02

Layer

Cia 401 v2.01

CANOpen TPDOs transmission type supported

Object Value 0x180x Sub 2

TRANSMISSION TYPE

0

Synchronous - acyclic

From 1 to 240

Synchronous - cyclic

255

Asynchronous

USER MANUAL – ZC-SG

5

CANOpen PDOs mapping

OBJECTS FOR DEFAULT MAPPING

PDO NR

COB-ID

MAPPED

OBJECTS

INDEX

SUBINDEX

TPDO2

0x40000280

+

NodeId

Measure float

0x6403

1

ADC 16 bit

0x6401

2

TPDO3

0x40000380

+

NodeId

Measure integer

0x6401

1

STATUS

0x2120

0

Note that TPDO COB-ID must start with 0x4.

CANOpen emergency message

The Emergency message is composed by:
2 bytes of EEC (Emergency error code)
1 bytes of ER (Error register)
Max of 4 bytes of MEF (Manufacturer error filled)

For EEC code 0xFF10, the emergency message is:

EMERGENCY MESSAGE

BYTE 0

BYTE 1

BYTE 2

BYTE 3

BYTE 4

0xFF10

0x81

MEF

With this MEF:

MEF (Manufacturer-specific Error Field) for EEC 0xFF10

BIT

DESCRIPTION

15..6

NA

5

Generic communication with input error

4

CRC communication with input error

3

EEPROM error

2

Over weight error

1

Weight float < 0

0

Stable weight

USER MANUAL – ZC-SG

6

For a “timeout command” or “error command”, the emergency message is:

EMERGENCY MESSAGE

BYTE 0

BYTE 1

BYTE 2

BYTE 3

BYTE 4

0xFF11

0x81

Object 0x2103

For “CPU ERROR” the Emergency message will be:

EMERGENCY MESSAGE

BYTE 0

BYTE 1

BYTE 2

BYTE 3

BYTE 4

0xFF20

0x81

Object 0x1002

EEC

CODE

DESCRIPTION

0x0000

No error

0x1000

Generic error

0x4201

CPU temperature over HOT STOP ERROR

0x4202

CPU temperature over HOT STOP

0x4203

CPU temperature under COLD ERROR

0x8110

Communication Can Overrun

0x8120

Error passive

0x8130

Life Guard error

0x8140

Recovered from bus off

0xFF10

General input channels error

0xFF11

Command for input channel error

0xFF20

CPU error

ER

BIT 7

BIT 6

BIT 5

BIT 4

BIT 3

BIT 2

BIT 1

BIT 0

Generic

0

Voltage

temperature

communication

0

0

Manufacture

Where bit equal to “0” means “no error”.

Object 0x1002: manufacturer status register

Object 0x1002 is the CPU status.

OBJECT 1002

BIT

DESCRIPTION

31..3

NA

2

Communication with input error

1

NA

0

EEPROM CRC error

USER MANUAL – ZC-SG

7

Object 0x1006: communication window lenght

OBJECT 1006

MIN VAL [ms]

MAX VAL [ms]

10

10000

Object 0x1007: synchronous window lenght

OBJECT 1007

MIN VAL [ms]

MAX VAL [ms]

2

2000

CANOpen manufacturer specific profile

If dip-switches are in “from memory” mode, the node address is selectable by Object 0x2001.

NODE ADDRESS (Object 0x2001)

Object value

Description

0..127

Node address

If dip-switches are in “from memory” mode, the baud rate is selectable by Object 0x2002.

BAUDRATE (Object 0x2002)

Object value

Description

1

20 kbit/s

2

50 kbit/s

3

125 kbit/s

4

250 kbit/s

5

500 kbit/s

6

800 kbit/s

7

1 Mbit/s

Object 0x2030 can be used to monitor the CPU temperature.

CPU TEMPERATURE (Object 0x2030)

Subindex

Description

1

Actual temperature [°C/10]

2

Temperature for HOT STOP ERROR [°C/10] 95.0°C

3

Temperature for HOT ERROR [°C/10] 90.0°C

4

Temperature for COLD ERROR [°C/10] -25.0°C

The HOT STOP temperature sends in pre-operational the station.

USER MANUAL – ZC-SG

8

The HOT ERROR and the COLD ERROR temperature sends the Emergency Object.
The Object is Read Only.

Digital out logic

Digital out logic=0 the digital output it is normally opened.
Digital out logic=1 the digital output it is normally closed.

Object 0x2104: Execute

The object sends command to the CPU: the supported commands are:

Object 0x2104

COMMAND CODE

DESCRIPTION

0xC2FA

Tare acquisition ready to be saved in EEPROM

(allowed also in RUN)

0xC60C

Full scale/known weight acquisition ready to be

saved in EEPROM (allowed also in RUN)

0xC1BA

Tare acquisition (on RAM) (allowed also in RUN)

0xD180

Full scale acquisition (on RAM) (allowed also in

RUN)

0xBAB0

Save new values on EEPROM (allowed also in RUN)

Object 0x2105: Execute result

The object is used to know the command execution result (only for special commands).

Object 0x2107: Configuration register 1

The object is used to setup the measure and the digital input/output.

CONFIGURATION REGISTER 1 (Object 0x2107)

SUBINDEX

Description

1

Sample number

2

Mode

3

Cell sensibility

4

Digital out logic

5

Digital out mode

6

Digital IN or OUT selection

Sample NR

The sample number it is the number of sample that enters into the measure. Higher values
implies lower response speed but more stability.

USER MANUAL – ZC-SG

9

Mode

The station can be configured in two modes:
Mode=1: a known weight must be used to calibrate the system on site.
Mode=0: no need to use a known weight to calibrate the system, the station will use the factory

calibration values.

Cell sensibility

The object sets the cell mV/V sensibility:
0=±1 mV/V
1=±2 mV/V
2=±4 mV/V
3=±8 mV/V
4=±16 mV/V
5=±32 mV/V
6=±64 mV/V
7=from object 0x2108 sub1

Digital out logic

Defines the operation that will cause the switch to ON or OFF for the digital output.

DIGITAL OUT LOGIC

Value

Description

0

The output is normally opened

1

The output is normally closed

USER MANUAL – ZC-SG

10

Digital out mode

Defines the operation that will cause the switch to ON or OFF for the digital output.

DIGITAL OUT MODE

Value

Description

0

The gross weight exceeds the full scale

1

The weight is stable and the net weight exceeds the
threshold set

2

The weight it is stable

Digital in or out selection

The station can be configured with a digital input or a digital output:

- if IN or OUT selection=1: digital output enable/digital input disabled

- if IN or OUT selection=0: digital input enable/digital output disabled

Object 0x2108: configuration register 2

The object is used to setup the system measure.

CONFIGURATION REGISTER 2

Subindex

Description

1

Sense ratio

2

Cell full scale

3

Known weight value

4

Not used

5

Not used

6

Threshold value

7

Delta weight

8

Delta time

9

ADC speed

10

Resolution in number of points

Sense ratio

Sets the sense ratio for the strain gauge used in [mV/V] (floating point 32 bit format).

Cell full scale

If mode 1 is selected (object 0x2107) sets the full scale of the strain gauge in technical units of
weight (kg, pounds,etc…) (Floating point 32 bit format).

Known weight value

If mode 1 is selected (object 0x2107) sets the value of the weight used for the calibration in
technical units (kg, pounds, etc) (Floating point 32 bit format).

USER MANUAL – ZC-SG

11

Value for Maximum integer

Sets for what net weight (object 0x6403) the integer net value (object 0x6401 subindex 1) rise
the +30000 value. (floating point 32 bit format).

Value for Minimum integer

Sets for what net weight (object 0x6403) the integer net value (object 0x6401 subindex 1) rise
the zero value. (floating point 32 bit format).

Threshold value

If the net weight exceeds the threshold value set and the weight is stable, the digital output (if
subindex digital out mode=1) is closed or opened (depending subindex digital output logic)
(floating point 32 bit format).

Delta weight

Weight variation in technical units accepted for the condition of “stable weight” (floating point 32
bit format)

Delta time

Time in units of 100 ms used with delta weight to establish whether or not the weight is stable
[s/10].

ADC speed

The ADC speed and the frequency rejection can be customized by the table:

ADC CONFIGURATION

Value

Sampling frequency [Hz]

50 Hz rejection

60 Hz rejection

27

151.71

NO

NO

55

74.46

NO

NO

82

49.95

YES

YES

109

37.59

NO

YES

155

50.57

NO

NO

183

24.82

YES

NO

210

16.65

YES

YES

237

12.53

NO

YES

Hysteresis

The hysteresis can be used to stabilize the input value. If the hysteresis is activated the
resolution is limited to ±30000 points. If hysteresis is disabled, the resolution available is the full
24 bit ADC.

0x00=hysteresis disabled
0x80=hysteresis enabled

USER MANUAL – ZC-SG

12

Object 0x2120: status

The status object contains important information about the state of the measure and the station.

STATUS

Bit

Description

15..7

NA 6 Net weight > threshold

5

Generic communication with input channel error

4

CRC communication with input channel error

3

EEPROM error

2

Over weight error

1

Negative measure

0

Stable weight condition

DIP-SWITCH configuration

BAUD-RATE (Dip-Switches: SW1)

1 2 3

Meaning

Only Baud-Rate is acquired from memory(EEPROM)

20 kbps

50 kbps

125 kbps

250 kbps

500 kbps

800 kbps

1 Mbps

ADDRESS (Dip-Switches: SW1)

4 5 6 7 8 9 10

Meaning

Only address is acquired from memory(EEPROM)

Address=1

Address=2

Address=3

Address=4

Address=5

X X X X X X X

……………………………

Address=127

USER MANUAL – ZC-SG

13

CANOpen LED description

SERVICE (DIAGNOSTIC) LED DESCRIPTION

LED

LED status

Meaning

RUN

Blinking light

Pre-operational mode

Single flash

Stop mode

ON

Operational mode

ERROR

Single flash

At least one error counter has reached or exceed the warning
level

Double flash

Guard event

Triple flash

The SYNC has not received within the configurated
communication cycle timeout period

ON

The CAN controller is bus off

OFF

No error

FAIL

Blinking

Data receiving from RS232/overweight error

ON

Communication error with input channel

POWER

ON

Power supply

Object for analog data

Object 0x6401 contains the 16 bit (signed) values for the weight and the unsigned 16 bit ADC
value.

16 BIT INTEGER INPUT (Object 0x6401)

Subindex

Description

1

Net value signed

2

ADC value

Integer net value

Integer net value (signed): integer approximation of the floating point value.

ADC value

The ADC value scaled into 16 bit (unsigned) value.
Where if ADC = 0x8000 means 0 mV on input.
If ADC = 0xFFFF means max positive mV on input.
If ADC = 0 means max negative mV on input.

USER MANUAL – ZC-SG

14

Object 0x6403 32 bit float input value

Object 0x6403 contains the net weight in technical unit in agreement with the known weight
object (floating point 32 bit format).

Cell calibration procedure for mode=1 (calibration with a known
weight)

1) Set the right mV/V sensibility on object 0x2107 subindex 3

2) Save the new value by sending the command 0xBAB0 on object 0x2104 subindex 0

3) Send the Reset command by sending command 0xABAC on object 0x2104 subindex 0

4) Put the Tare on the cell

5) Get the Tare value by sending the command 0xC2FA on object 0x2104 subindex 0

6) Enter the known weight value in technical units (kg, pounds, etc) on object 0x2108 subindex
3

7) Put the known weight value on the cell

8) Get the known weight by sending the command 0xC60C on object 0x2104 subindex 0

9) Save the new values by sending the command 0xBAB0 on object 0x2104 subindex 0

10) Wait 5 seconds and Switch OFF and then ON the ZC-SG

Cell calibration procedure for mode=0 (calibration without a
known weight)

1) Set the value 7 on object 0x2107 subindex 3 (use object 2108 for sense ratio)

2) Set the right mV/V sensibility on object 0x2108 subindex1 in floating point value

3) Save the new values by sending the command 0xBAB0 on object 0x2104 subindex 0

4) Send the Reset command by sending command 0xABAC on object 0x2104 subindex 0

5) Put the Tare on the cell

6) Get the Tare value by sending the command 0xC2FA on object 0x2104 subindex 0

7) Save the new values by sending the command 0xBAB0 on object 0x2104 subindex 0

8) Wait 5 seconds and Switch OFF and then ON the ZC-SG

USER MANUAL – ZC-SG

15

CANOpen functional diagram

For integer values

USER MANUAL – ZC-SG

16

CANOpen Object dictionary

COMMUNICATION PROFILE AREA

INDEX

SUB

INDEX

NAME

DESCRIPTION

TYPE

ACCESS

DEFAULT

0x1000

0

Device type

Profile 401=0x191

UNSIGNED 32

RO

0x00040191

0x1001

0

Error register

Error register (DS401)

UNSIGNED 8

RO

0

0x1002

0

Station status

Status register

UNSIGNED 32

RO

0

0x1005

0

SYNC COB-ID

The device consumes
the SYNC message

UNSIGNED 32

RW

0x00000080

0x1006

0

Comm. window
lenght

Sync interval [us]

UNSIGNED 32

RW

0

0x1007

0

Synchronous
window lenght

The window [us] for
the PDO transmission
after the SYNC

UNSIGNED 32

RW

0

0x1008

0

Manufacturer
Device name

Device name

VISIBLE
STRING

RO

“ZC-SG”

0x1009

0

Manufacturer
HW version

Hardware version

VISIBLE
STRING

RO

“SC000000”

0x100A

0

Manufacturer
SW version

Software version

VISIBLE
STRING

RO

“SW001160”

0x100C

0

Guard Time

[ms]

UNSIGNED 16

RW

0

0x100D

0

Life time factor

Max delay between
two guarding
telegrams=
Guard_Time ·
Life_Time_Factor

UNSIGNED 8

RW

0

0x1010

0

Store
parameters/
number of
mapped object

Max subindex number

UNSIGNED 8

RO

5

1

Save all
parameters

Store not volatile
parameters (write in
ASCII “save” for store
process MSB
0x65766173 LSB)

UNSIGNED 32

RW

1

2

Save
communication
parameters

Store not volatile
parameters (write in

ASCII “save” for store

process MSB
0x65766173 LSB)

UNSIGNED 32

RW 1 3

Save application
parameters

Store not volatile
parameters (write in

ASCII “save” for store

process MSB
0x65766173 LSB)

UNSIGNED 32

RW

1

4

Save
manufacturer
parameters

Store not volatile
parameters (write in

ASCII “save” for store

process MSB
0x65766173 LSB)

UNSIGNED 32

RW

1

5

Save channel
parameters

Store not volatile
parameters (write in

ASCII “save” for store

process MSB
0x65766173 LSB)

UNSIGNED 32

RW

1

USER MANUAL – ZC-SG

17

0x1011

0

Restore default/
number of
mapped object

Max subindex number

UNSIGNED 8

RO

5

1

Restore all
parameters

Restore not volatile
parameters (write in

ASCII “load” for store

process MSB
0x64616F6C LSB)

UNSIGNED 32

RW 0 2

Restore
communication
parameters

Restore not volatile
parameters (write in

ASCII “load” for store

process MSB
0x64616F6C LSB)

UNSIGNED 32

RW

0

3

Restore
application
parameters

Restore not volatile
parameters (write in

ASCII “load” for store

process MSB
0x64616F6C LSB)

UNSIGNED 32

RW

0

4

Save
Manufacturer
parameters

Restore not volatile
parameters (write in

ASCII “load” for store

process MSB
0x64616F6C LSB)

UNSIGNED 32

RW 0 5

Restore slave
parameters

Restore not volatile
parameters (write in

ASCII “load” for store

process MSB
0x64616F6C LSB)

UNSIGNED 32

RW

0

0x1014

0

COB-ID
emergency
Object

UNSIGNED 32

RO

$NODEID+

0x80

0x1017

0

Heartbeat
producer time

Time (ms)
0x0000=there is not
heartbeat service

UNSIGNED 16

RW

0

0x1018

0

Identity object

Max subindex number

UNSIGNED 8

RO 4 1

Vendor ID

Seneca srl

UNSIGNED 32

RO

0x00000249

2

Product code

ZC-SG Machine ID
Code

UNSIGNED 32

RO

0x0000001F

3

Revision
number

UNSIGNED 32

RO

4

Serial number

UNSIGNED 32

RO

0x1200

0

1st SDO port/
number of
mapped object

Max subindex number

UNSIGNED 8

RO

2

1

COB-ID SDO
Client-> Server

COB-ID of receive
SDO

UNSIGNED 32

RO

$NODEID+

0x600

2

COB-ID SDO
Server-> Client

COB-ID of transmit
SDO

UNSIGNED 32

RO

$NODEID+

0x580

0x1801

0

2nd transmit
PDO
parameters

Number of mapped
objects

UNSIGNED 8

RO

3

1

COB-ID used by
PDO

COB-ID of TxPDO2

UNSIGNED 32

RW

$NODEID+

0x40000280

2

Transmission
type

Transmission type for
TxPDO2
0x00=synchronous –
acyclic

UNSIGNED 8

RW

0xFF

USER MANUAL – ZC-SG

18

0x01 to
0xF0=synchronous –
cyclic
0xFE=asynchronous
manufacturer specific

3

Inhibit time

Min delay for the next
PDO (ms/10)

UNSIGNED 16

RW

0x00

0x1802

0

3rd transmit PDO
parameters

Max subindex number

UNSIGNED 8

RO 3 1

COB-ID used by
PDO

COB-ID of TxPDO3

UNSIGNED 32

RW

$NODEID+

0x40000380

2

Transmission
type

Transmission type for
TxPDO3
0x00=synchronous –
acyclic
0x01 to
0xF0=synchronous –
cyclic
0xFE=asynchronous
manufacturer specific

UNSIGNED 8

RW

0xFF

3

Inhibit time

Min delay for the next
PDO (ms/10)

UNSIGNED 16

RW

0x0000

0x1A01

0

2nd transmit
PDO mapping
parameter

Number of mapped
objects

UNSIGNED 8

RW

2

1

1st object to be
mapped

First object (default:
weight float)

UNSIGNED 32

RW

0x64030120

Object=0x6403

Subindex=1

Length=32bit

2

2nd object to be
mapped

Second object (default:
ADC 16 bit value)

UNSIGNED 32

RW

0x64010210

Object=0x6401

Subindex=2

Length=16bit

0x1A02

0

3rd transmit PDO
mapping
parameter

Number of mapped
objects

UNSIGNED 8

RO

2

1

1st object to be
mapped

First object (default:
weight integer)

UNSIGNED 32

RW

0x64010110

Object=0x6401

Subindex=1

Length=16bit

2

2nd object to be
mapped

Second object (default:
status)

UNSIGNED 32

RW

0x21200010

Object=0x2120

Subindex=0

Length=16bit

MANUFACTURER PROFILE AREA

INDEX

SUB

INDEX

NAME

DESCRIPTION

TYPE

ACCESS

DEFAULT

0x2001

0

Module address

Station address (only
if dip switch
4,5,6,7,8,9,10 are
OFF)

UNSIGNED

8

RW

0x7F=127

USER MANUAL – ZC-SG

19

0x2002

0

Baudrate

Station Baudrate
(only if dip switch
1,2,3 are OFF)
1=20kbps
2=50kbps
3=125kbps
4=250kbps
5=500kbps
6=800kbps
7=1Mbps

UNSIGNED

8

RW

0x01

0x2003

0

Firmware
release

UNSIGNED

16

RO

1122

0x2030

0

Device
temperature/
number of
parameters

Max subindex
number

UNSIGNED

8

RO

4

1

Internal
temperature

Station internal
temperature
[°C/10]

INTEGER

16

RO

0

2

Hi Hi
temperature

Critical hot
temperature (all
operations stop)
[°C/10]

INTEGER 16

RO

950

3

Hi
temperature

Warning for too
hot temperature
[°C/10]

INTEGER 16

RO

900

4

Low
temperature

Critical low
temperature (all
operations stop)
[°C/10]

INTEGER 16

RO

-250

0x2104

0

Execute

Supported
commands:
0xC2FA=tare
acquisition (ready for
EEPROM saving)
0xC60C=full scale
acquisition (ready for
EEPROM saving)
0xC1BA=tare
acquisition (RAM)
0xD180=full scale
acquisition (RAM)
0xBAB0=save values
in EEPROM

UNSIGNED

16

RW

0

0x2105

Execute result

0=command done
1=command
executed with error

UNSIGNED

16

RW

0

0x2107

0

SETUP 1
channel

Number of
parameters

UNSIGNED

8

RO

6

1

SET1: sample
number

Number of
samples for filter
calculation
[1..100]

UNSIGNED

8

RW

100

2

SET1: mode

0=use the factory
calibration
1=use a known
weight

UNSIGNED

8

RW

1

USER MANUAL – ZC-SG

20

3

SET1: cell
sensibility

0=±1 mV/V
1=±2 mV/V
2=±4 mV/V
3=±8 mV/V
4=±16 mV/V
5=±32 mV/V
6=±64 mV/V
7= from object
0x2108 sub1

UNSIGNED

8

RW

1

4

SET1: digital out
logic

0=the output is
normally open
1=the output is
normally closed

UNSIGNED

8

RW

0

5

SET1: digital out
operation mode

0=the output is
switched when the
gross_weight >
full_scale
1=the output in
switched when the
weight is stable and
the net weight >
threshold
2=the output is
switched when the
weight is stable

UNSIGNED

8

RW

0

6

SET1: digital in
or out mode

0=digital input mode
1=digital output
mode

UNSIGNED

8

RW

0

0x2108

0

SETUP
Channel

Number of
parameters

UNSIGNED

8

RO

10

1

SET2: sense
ratio

Cell sense ratio in
mV/V measure

REAL 32

RW

2.0

2

SET2: cell full
scale

REAL 32

RW

10000.0

3

SET2: known
weight

Known weight [kg,
g, et c …]

REAL 32

RW

10000.0

4

SET2: not used

REAL 32

RO

10000.0

5

SET2: not
used

REAL 32

RO

0.0

6

SET2:
threshold

REAL 32

RW

5000.0

7

SET2: Delta
weight

Weight variation
for the stable
condition

REAL 32

RW

1.0

8

SET2: Delta
time

The variation
used for the
stable condition
Delta time ·100 ms

UNSIGNED

16

RW

1

9

SET2: ADC
speed

27=151.71 Hz
55=74.46 Hz
82=49.95 Hz
109=37.59 Hz
155=50.57 Hz
183=24.82 Hz
210=16.65 Hz
237=12.53 Hz

UNSIGNED

8

RW

82

10

SET2: 30000
points
hysteresis

0x00=full
resolution
0x80=30000 points
resolution

UNSIGNED

8

RW

0x80

USER MANUAL – ZC-SG

21

0x2120

0

Channel
status

Status object

UNSIGNED

16

RO

0x2125

0

Fault action

UNSIGNED

16

RW

0x8000

0x2160

0

Fault value

Number of
parameters

UNSIGNED

8

RO

0x01

1

Fault value

REAL 32

RW

850.0

STANDARD DEVICE PROFILE AREA

INDEX

SUB

INDEX

NAME

DESCRIPTION

TYPE

ACCESS

DEFAULT

0x6401

0

16 bit input

Number of input

UNSIGNED

8

RO 2 1

Weight
integer

Weight in integer

format

INTEGER

16

RO 2

ADC value
(scaled to 16 bit)

ADC scaled value

UNSIGNED

16

RO

0x6403

0

Float input

Number of input

UNSIGNED

8

RO 1 1

Weight real

Weight in real

format

REAL 32

RO

0x6423

0

Global
interrupt
enable

0=disable
asynchronous
TxPDO
1=enable
asynchronous
TxPDO

BOOLEAN

RW

0

0x6424

0

Analogue
interrupt
upper limit 16
bit

Number upper value
16 bit

UNSIGNED

8

RO

1

1

Analogue
interrupt
upper limit 16
bit

INTEGER

16

RW

0

0x6425

0

Analogue
interrupt
lower limit 16
bit

Number lower value
16 bit

UNSIGNED

8

RO

1

1

Analogue
interrupt
lower limit 16
bit

INTEGER

16

RW

0

0x6426

0

Analogue
interrupt delta
limit 16 bit

Number delta limit
value 16 bit

UNSIGNED

8

RO 1 1

Analogue
interrupt delta
limit 16 bit

INTEGER

16

RW

0

0x6429

0

Analogue
interrupt
upper limit
float

Number upper value
float

UNSIGNED

8

RO

1

1

Analogue
interrupt
upper limit
float

REAL 32

RW

0

USER MANUAL – ZC-SG

22

0x642A

0

Analogue
interrupt
lower limit
float

Number lower value
float

UNSIGNED

8

RO

1

1

Analogue
interrupt
lower limit
float

REAL 32

RW

0

0x642B

0

Analogue
interrupt delta
limit float

Number delta limit
value float

UNSIGNED

8

RO

1

1

Analogue
interrupt delta
limit float

REAL 32

RW

0

Easy-SETUP

To configure the Seneca Z-PC Line modules, it is possible to use Easy-SETUP software, free­downloadable from the www.seneca.it; the configuration can be performed by RS232 or RS485
bus communication.
