Page 1
SLOT0
SLOT4
SLOT8
SLOT1
SLOT5
SLOT9
SLOT2
SLOT6
SLOT10
SLOT3
SLOT7
SLOT11
DRIVE SLOT LOCATIONS
Online
Setting Alarms
Install Guide page 32
MIPO
Install Guide page 28
Connection to Server
Install Guide page 27
Hosts
Install Guide page 23
Volumes
Install Guide page 22
RAID Set or Pools
Install Guide page 16
Setting up the Network
Install Guide page 11
Login to GUI
Install Guide page 10
Mounting and Cabling
Install Guide page 5
*ST4000DQS*
ST4000DQS
ST4000DQS.0417

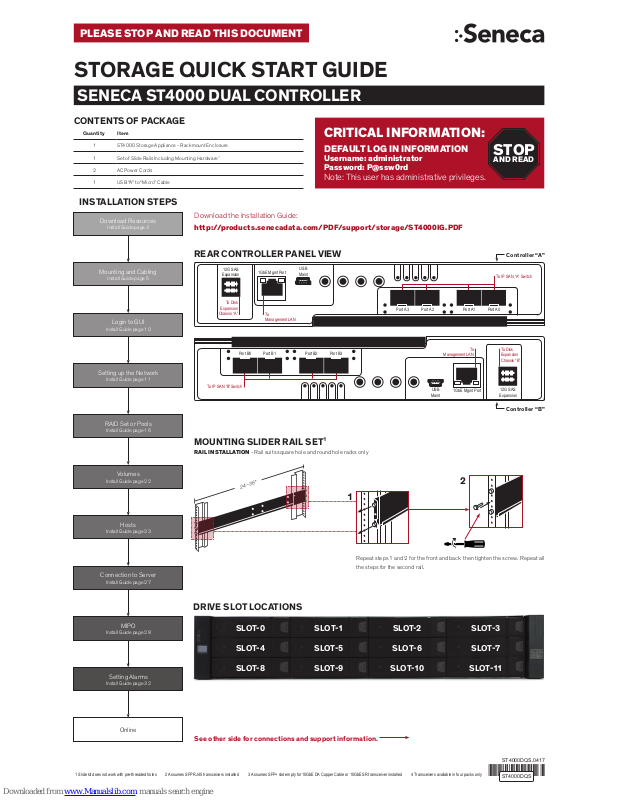

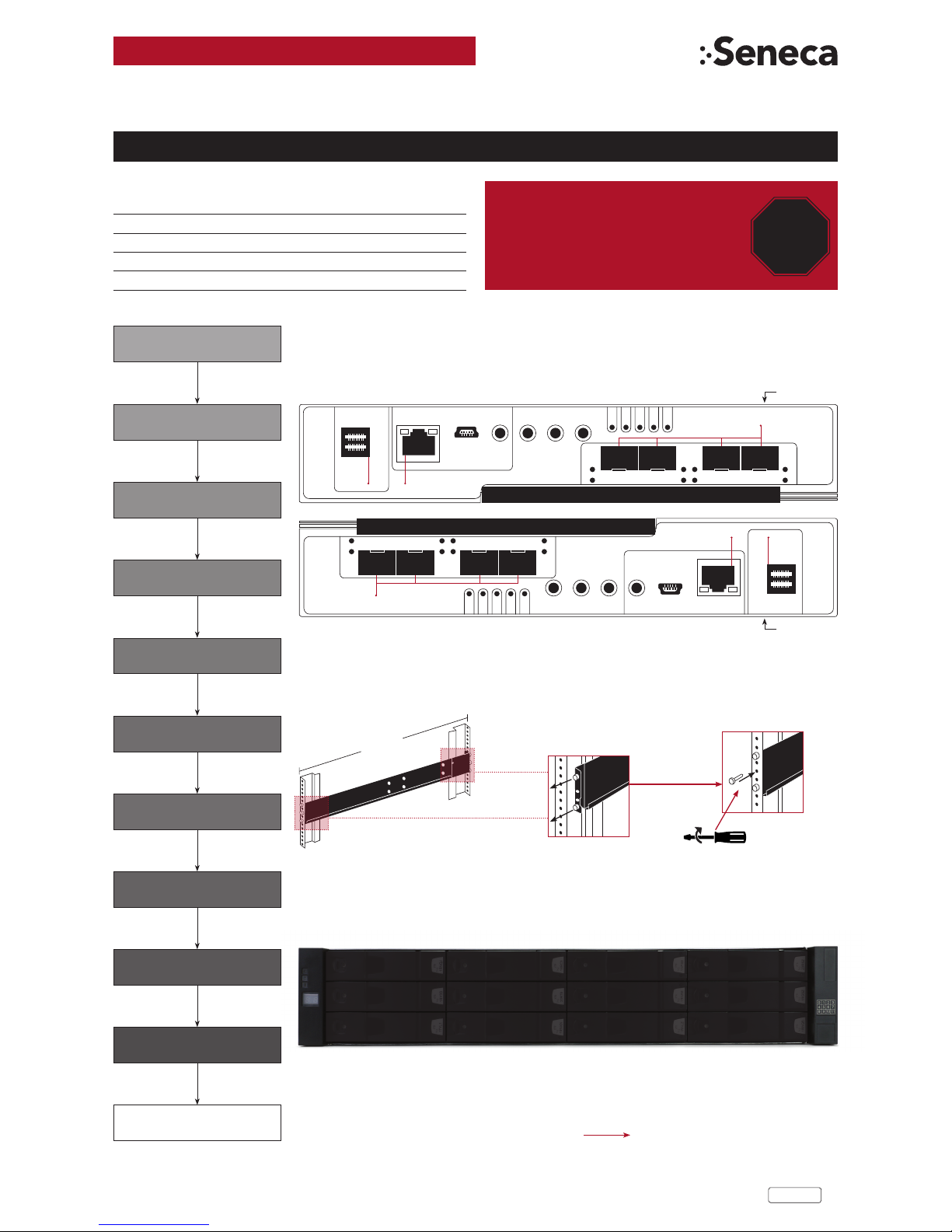

STORAGE QUICK START GUIDE
PLEASE STOP AND READ THIS DOCUMENT
CRITICAL INFORMATION:
DEFAULT LOG IN INFORMATION
Username: administrator
Password: P@ssw0rd
Note: This user has administrative privileges.
STOP
AND READ
SENECA ST4000 DUAL CONTROLLER
CONTENTS OF PACKAGE
Quantit y Item
1 ST4000 Storage Appl iance - Rackmount Enc losure
1 Set of Slide Rail s Including Mounting H ardware
1
2 AC Power Cords
1 USB “A” to “Micro” Cable
INSTALLATION STEPS
Download Resources
Install Guide page 3
Download the Installation Guide:
http://products.senecadata.com/PDF/support/storage/ST4000IG.PDF
MOUNTING SLIDER RAIL SET
1
RAIL INSTALLATION - Rail sui ts square hole and round hole r acks only
2436"
1
2
Repeat steps 1 and 2 for t he front and back then tighten the screw. Rep eat all
the steps for the seco nd rail.
REAR CONTROLLER PANEL VIEW
1 Slide kit does not work with pre-threaded holes 2 Assumes SFP RJ45 transceivers installed 3 Assumes SFP+ slot empty for 10GbE DA Copper Cable or 10GbE SR transceiver installed 4 Transceivers available in four packs only
1GbE Mgmt Port
Port A0Port A1Port A2Port A3
12G SAS
Expansion
USB
Maint
To Disk
Expansion
Chassis “A”
To IP SAN “A” Switch
Controller “A”
To
Management LAN
Controller “ B”
1GbE Mgmt Port
Port B0 Port B1 Port B2 Port B3
12G SAS
Expansion
USB
Maint
To Disk
Expansion
Chassis “B”
To
Management LAN
To IP SAN “B”Switch
See other side for connections and support information.
Page 2
MAIN BACK PANEL CONNECTIONS
LOWER CONTROLLER “B”
I/O Port Connection Port Usage
Port B0 SFP+ Host Por t 0
Port B1 SFP+ Host Por t 1
Port B2 SFP+ Host Por t 2
Port B3 SFP+ Host Por t 3
12G SAS Expansion Disk chass is expansion por t
MAIN BACK PANEL CONNECTIONS
UPPER CONTROLLER “A”
I/O Port Connection Port Usage
Port A0 SFP+ Hos t Port 0
Port A1 SFP+ Hos t Port 1
Port A2 SFP+ Hos t Port 2
Port A3 SFP+ Hos t Port 3
12G SAS Expansion Disk chass is expansion por t
HOST PORT TRANSCEIVERS AVAILABLE
4
Form Speed Cable & Connector Protocol
SFP+ 10GbE DA Copper, SFP+ iSCSI
SFP+ 10GbE Multi Mode, LCLC iSCSI
SFP 1GbE CAT6, RJ45 iSCSI
SFP+ 16GbE Multi Mode, LCLC Fibre Channe l
NOTE: No transce iver required when using SFP+ Coppe r Cable
SMB/CIFS & NFS protocols ar e NOT supported
CUSTOMER SUPPORT
Arrow customer care group sta nds ready to assist with any hardware and operating sys tem assistance.
Contact Seneca D igital Security and Surveillance Su pport:
Normal Business Hour s Outside Busines s Hours
800.227.3432 option 5 888.227.9994
Available Monday–Friday 8am–6pm EST
First level of data protection and integrity begins with AC power protection.
Please consult your Seneca Account Manager for properly sized, uninterruptable power supply (UPS).
1 Slide kit does not work with pre-threaded holes 2 Assumes SFP RJ45 transceivers installed 3 Assumes SFP+ slot empty for 10GbE DA Copper Cable or 10GbE SR transceiver installed 4 Transceivers available in four packs only
WARNING: ALL EIG HT PORTS MUST BE CONFIGUR ED IN DUAL CONTROLLER MODE & OS MPIO MU ST BE INSTALLED
DEFAULT 1GBE FIXED IP ADDRESSES
2
LOWER CONTROLLER “B”
Port IP Address Mask Gateway
Managemen t LAN 172.16.6.15 255.255.255.0 172.16.6.1
B0 10.0.10.34 255.255.255.0
B1 10.0.10.35 255.255.255.0
B2 10.0.10.36 255.255.255.0
B3 10.0.10.37 255.255.255.0
DEFAULT 1GBE FIXED IP ADDRESSES
2
UPPER CONTROLLER “A”
Port IP Address Mask Gateway
Managemen t LAN 172.16.6.14 255.255.255.0 172.16.6.1
A0 10.0.10.30 255.255.255.0
A1 10.0.10.31 255.255.255.0
A2 10.0.10.32 255.255.255.0
A3 10.0.10.33 255.255.255.0
WARNING: ALL EIG HT PORTS MUST BE CONFIGUR ED IN DUAL CONTROLLER MODE & OS MPIO MU ST BE INSTALLED
DEFAULT 10GBE FIXED IP ADDRESSES
3
LOWER CONTROLLER “B”
Port IP Address Mask Gateway
Managemen t LAN 172.16.6.15 255.255.255.0 172.16.6.1
B0 10.10.10.7 255.255.255.0
B1 10.10.10.8 255.255.255.0
B2 10.10.10.9 255.255.255.0
B3 10.10.10.10 255.255.255.0
DEFAULT 10GBE FIXED IP ADDRESSES
3
UPPER CONTROLLER “A”
Port IP Address Mask Gateway
Managemen t LAN 172.16.6.14 255.255.255.0 172.16.6.1
A0 10.10.10.3 255.255.255.0
A1 10.10.10.4 255.255.255.0
A2 10.10.10.5 255.255.255.0
A3 10.10.10.6 255.255.255.0
