INSTRUCTION MANUAL
MY-UT
Professional portable temperature and relative humidity probes
for Android devices with microUSB OTG port
SENECA S.r.l.
Via Austria 26 – 35127 – Z.I. - PADUA (PD) - ITALY
Tel. +39.049.8705355 – 8705359 Fax +39 049.8706287
www.seneca.it
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 2
GENERAL CONSIDERATIONS
This chapter provides important recommendations for the use of this Instruction Manual.
This document contains information of fundamental importance for the correct and safe
use of the instrument. Read this instruction manual carefully to familiarise yourself with the
instrument before its use. Keep the manual always handy and refer to it in case of need.
WARNINGS
Always use the instrument in the appropriate way and for its
intended purpose. Do not use force on components or control
elements that may appear jammed. The temperatures indicated for
probes/sensors only apply to the measurement range of the
sensors.
The warranty is null and void in the event that the module or devices
supplied by SENECA, necessary for correct operation, are
improperly used or tampered with and in any case if the instructions
contained in this manual are not followed.
Do not expose handles and cables to temperatures exceeding 70°C
if they are not specifically approved to withstand such temperatures.
Electrical and electronic waste disposal (applicable in the European
Union and other countries with recycling).
The symbol found on the product or package indicates that the
product must be handed over to an authorised collection centre for
the disposal of electrical and electronic waste.
This document is property of SENECA srl. Copies and reproduction are prohibited unless
authorised. The content of this document corresponds to the described products and
technologies. The details shown may be modified or supplemented for technical and/or sales
purposes.
MY-UT COMPLETE PROBE VERSIONS (with handpiece)
Code
Description
MY-UT
Portable temperature/humidity handpiece with UT-M12 probe
PT PROBE VERSIONS (accessories without handpiece)
Code
Description
UT-M12
Temperature/relative humidity probe, M12 connector
GENERAL DETAILS
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 3

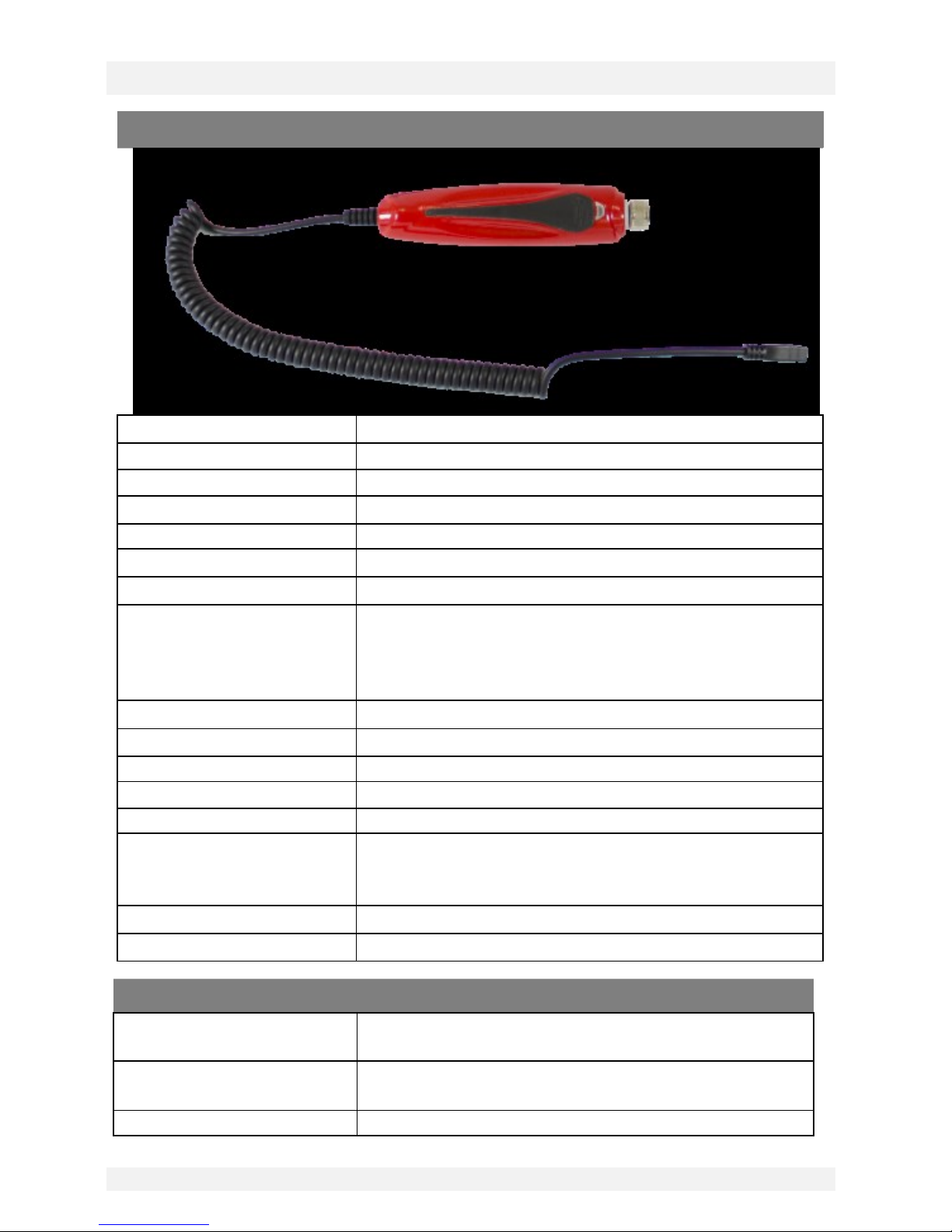

MY-UT TECHNICAL SPECIFICATIONS
Type of measurement
Temperature
Probe connector
M12 with rotating steel ring nut
Flashing LED
Connection and transmission with the Android device
Power supply
From the Android device through the microUSB OTG port
Consumption
25 mA
Ambient conditions
-20..+50°C (handle)
Interface
microUSB
Precision
±3% UR (20..80% UR)
±5% (<20%UR, >80%UR)
±0.5°C a 25°C
1.5°C between -10..+60°C
Measurement range
-40..+120°C
Response time
10 s
Storage temperature
-30..+70°C
Handpiece size
130.5 x 30 x 28 mm
Cable length
1 m
Configuration system
PIV App mobile application, available for download from
Google Play Store, for Android smartphone with USB
OTG port
Marking
CE
Standards
EN 61326
SENSOR TECHNICAL SPECIFICATIONS
Thermal element
Built-in capacitive temperature and relative humidity
sensor.
Electric connection
Compensated male moulded Nylon connector with
M12x1 metal thread screw connection (DIN-VDE0627)
Protection rating
IP67
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 4
SENSOR TECHNICAL SPECIFICATIONS
Construction
Compact mineral insulation (MgO) with insulated hot
coupling, Inconel 600 sheath
Diameter
6 mm
Length
120 mm
INTENDED
PURPOSE
The MY-PT Series is a range of portable transmitters capable of transforming, by means
of a dedicated mobile application, PIV App by SENECA (*), Android mobile devices like
smartphones or tablets into data acquisition systems. These probes give the possibility of
displaying on your device PT100 temperature values in analogue or digital format, and of
sharing the data through the most common communication channels, like e-mail, SMS,
etc.
These probes guarantee professional, certified and industrial measurements, both for
diagnostic purposes and for monitoring environmental parameters. The scopes for uses
are in connection with:
Machinery
Environmental chambers
Food storage and transport
Laboratories
HVAC systems
(*) the PIV App by SENECA can be downloaded free of charge from Google Play Store. In
order to download and install the application, and received future updates, access to the
Internet and a Google account are required.
ATTENTION! In order to be able to use MY Series probes
the mobile App must be installed on your Android device. The instrument cannot be
used without the App.
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 5
CONNECTING THE PROBE TO THE HANDPIECE
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 6

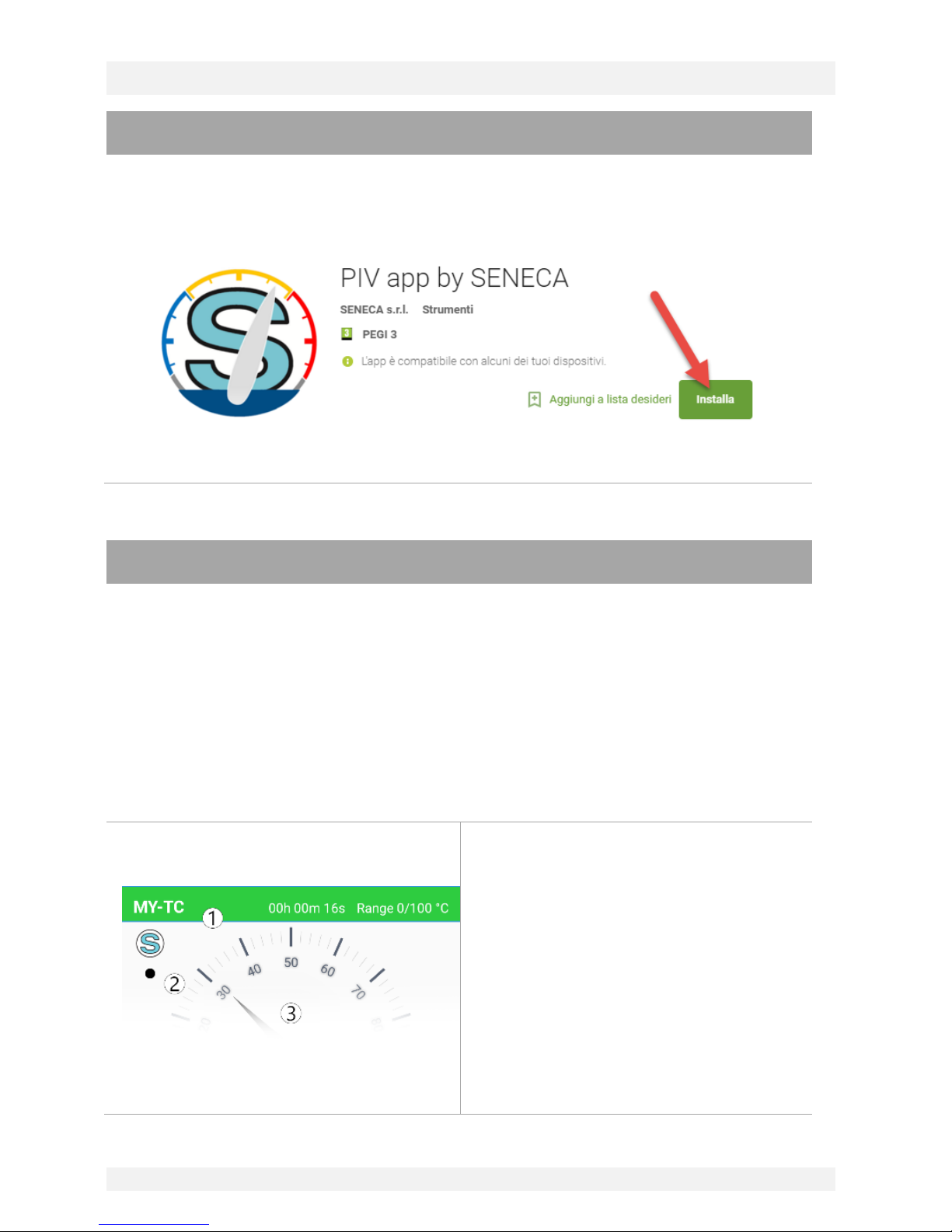

APP INSTALLATION
The dedicated mobile App for the use of Series MY probes, can be downloaded from
Google Play Store, available in your device menu. In the Google Play Store search field
enter PIV App by SENECA. Once the App is found, proceed with its installation.
APP INITIALISATION AND OPERATION
The application installed starts automatically when the connection of a probe through the
microUSB port is detected. The App immediately shows the instantaneous value detected,
both in analogue and digital format. The centre of the screen shows the function keys,
while the bottom provides a quick view of the data collected in real time in chart format.
During operation, the PIV App disables automatic screen lock, so that the measurements
can continue to be displayed for the user.
The display will only go off when the screen is manually put in stand-by mode by the user
by pressing the stand-by button. However, the App will continue its
measurement/datalogging activities. Simply take the device back out of stand-by mode to
view the measurements.
1) Type of probe; sampling session time;
operating range.
2) Flashing operation LED:
Black = detection;
Blue = detection/datalogger.
3) Analogue and digital format display(*)
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 7
APP INITIALISATION AND OPERATION
1) Toolbar:
play/pause: detection or datalogger.
reset: sampling time,
enable/disable: saves the value and
shows it as relative on the display,
both in analogue and digital format.
Capture screen: saves a screen
shot in the photo gallery, with the
option of exporting or sharing it
settings
2) MIN/AVG/MAX value panel.
Real-time chart of the detected value (*).
Using the settings button, it is possible to
read the model and the serial number of
the probe detected.
Below it is possible to configure:
Unit of measure
Datalogger enable/frequency
Measurement scale
Real time measurement log
Alarm thresholds, with and without
SMS, with warning sound and/or
vibration, recipients from address
book or direct entry.
The panel of the datalogger sessions
gives the possibility of exporting the data
in CSV format for processing on
spreadsheet, or for loading on an analysis
software like Easy Log Viewer.
CSV file format:
INDEX: row index, incremental
number.
TYPE: LOG row type.
TIMESTAMP: date and time of the
measurement (time and device
language settings).
MY Series Professional portable temperature probes for Android devices
SENECA
MI004351-E
page 8
APP INITIALISATION AND OPERATION
<<VALUES>>: shows the main and
accessory values depending on the
type of probe; the unit of measure is
in the column name.
ALM: this will be 1 or 0, depending
on whether at the time of sampling
the alarm was enabled or not.
The PIV App gives the possibility of saving
the value on SD card (device memory path
SENECA/PIVAPP), on a cloud storage
space provider like for example Dropbox,
or to forward it as an e-mail attachment.
When the set threshold is exceeded, a
flashing icon indicates that an alarm is
present, or that the threshold has been
exceeded. During this stage, if set to do
so, your device will send a notification
SMS to the recipients. The device will not
send any further SMS until the alarm is
"rearmed".
Touch icon 1) to scroll the alarm log.
The reset key can be used to reset/rearm
the alarm function.
(*) it is possible to change the values of the scales or the MIN/AVG/MAX values using the
settings button.
QUESTIONS AND ANSWERS
Technical support
support@seneca.it
Product information:
sales@seneca.it
For more information, visit the dedicated area of our website
http://www.seneca.it/products/my-ut or call +39 049 8705359.
