Sendo SND321 User Manual

Page 1

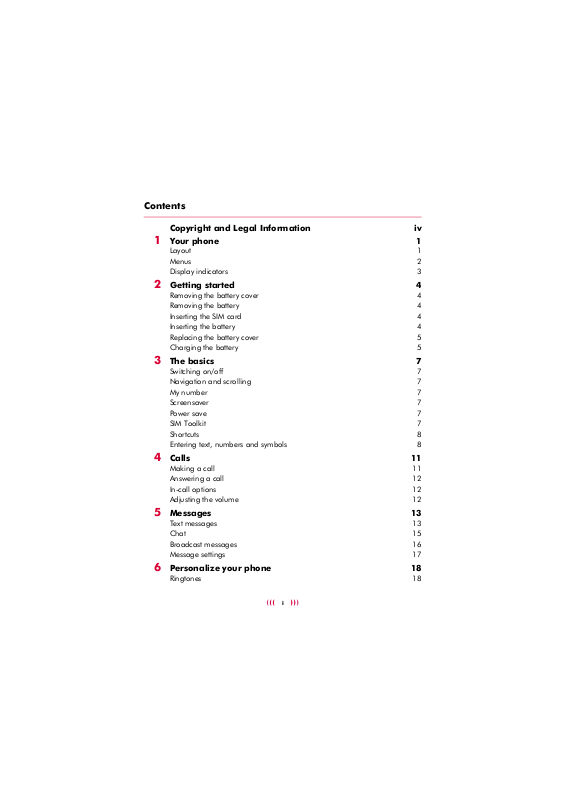

Contents

Copyright and Legal Information iv
1 Your phone 1
Layout 1 Menus 2 Display indicators 3
2 Getting started 4
Removing the battery cover 4 Removing the battery 4 Inserting the SIM card 4 Inserting the battery 4 Replacing the battery cover 5 Charging the battery 5
3 The basics 7
Switching on/off 7 Navigation and scrolling 7 My number 7 Screensaver 7 Power save 7 SIM Toolkit 7 Shortcuts 8 Entering text, numbers and symbols 8
4 Calls 11
Making a call 11 Answering a call 12 In-call options 12 Adjusting the volume 12
5 Messages 13
Text messages 13 Chat 15 Broadcast messages 16 Message settings 17
6 Personalize your phone 18
Ringtones 18
[[[
i
]]]
Page 2
Display 18 Covers 18 Sendo ScreenZ 20 Wrist/neck strap 21
7 Contacts list and calls list 22
Using the contacts list 22 Using the calls list 24
8 Sounds 26
Ringer 26 Melodies 26 Volume 26 Ramping 27 Key tones 27 On/Off melody 27 Vibrator 27 Events 27
9 Settings 28
Languages 28 Time/Date 28 Alarm 28 Call handling 28 Security 29 Display 29 Shortcuts 30
10 Services 31
Commands 31 Network sel. (selection) 31 Send number 31 Cost/timers 31 Divert 32 Call waiting 32
11 Extras 33
Games 33 Pictures and Animations 35
ii
[[[
]]]
Page 3
12 Troubleshooting 36 13 Safety Information 39 14 Warranty Statement 42 15 End User License Agreement 45 16 Regulatory Statements 47
[[[
iii
]]]
Page 4

Copyright and Legal Information

The wireless phone described in this manual is approved for use in GSM 850 and 1900 networks.
This manual is available for download from www.sendo.com.

Copyright Information

Part number: 8E30-00000-000xx S1-28 (Edition 1). Copyright Sendo 2005. All rights reserved. Printed in the Netherlands. Sendo, the Sendo logo, the Sendo “D” and the
Sendo model S1 phone are trademarks or registered trademarks of Sendo International Ltd. and/or its affiliates. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Sendo is prohibited.
T9 Text Input is a registered trademark of Tegic Communications. All rights reserved. T9 Text input is licensed under one or more of the following U.S. Patents: 5,818,437, 5,953,541, 5,945,928, 6,011,554 and additional patents are pending worldwide.

Disclaimer

The information contained in this user guide is written for the Sendo model S1 phone. Sendo reserves the right to make changes and improvements to the products and any of the features of the products described in this document, and/or this document itself, without prior notice.
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SENDO RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUMSTANCES SHALL SENDO BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED.

Export Information

This phone may be subject to export regulation of the United Kingdom and other countries. Diversion contrary to law is prohibited. You must comply with
all applicable export laws, restrictions and regulations of the United Kingdom or foreign agencies or authorities, and shall not export, or transfer for the purpose of re-export, the phone or any part of the phone in violation of any applicable restrictions, laws or regulations, or without all necessary approvals.

For Your Safety

You should observe and follow the guidelines given in this manual for the safe and efficient use of your phone. Failure to comply with these guidelines and requirements may void your warranty and may invalidate any approvals given to the phone. Please read the Safety Information chapter of this manual before you use your phone.
! Warning: Throughout the main body of this
manual, text in this format is used to act as a warning. Please read each warning carefully.

Approved Accessories Warning

Use only batteries, chargers and accessories approved by Sendo for use with this phone model. The use of any other types may invalidate any warranty applying to the phone, and may be dangerous. For availability of approved accessories, please check with your dealer or visit www.sendo.com.
When you disconnect the power cord of any accessory, grasp and pull the plug, not the cord.

Network Services

A number of features included in this guide are called network services. They are services provided by wireless service providers. Before you can take advantage of any of these network services, you must subscribe to these service(s) from your home wireless service provider and obtain instructions for their use. Some of these networ k services may not be available when roaming on a network other than your home network.

FCC/Industry Canada Notice

This phone may cause TV or radio interference (for example, when using the phone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using the phone if such interference cannot be eliminated.
This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.
iv
[[[
]]]
Page 5

1 Your phone

1
2
3
5
9
8
Colors and layout shown above may not exactly match the phone supplied.
4
6
7

Layout

1 Earpiece/Speaker – Used as the
earpiece during calls and also used as the speaker to play ringtones, alerts and sounds.
2 Display – Display indicators, menu
options and other information is shown here.
3 Left soft key g – This key performs the
function immediately above it on the display.
4 Right soft key/Power key d – A short
press of this key performs the function immediately above it on the display. A long press of this key will switch the phone on and off.
5 Quick access key f – Gives you quick
access to a feature such as creating a new text message.
6 Clear key c – This key erases text or
takes you back to your previous step, depending on what you’re doing. A long press of this key takes you back to the main screen.
7 Navigation keys : ; – Used to scroll
in menus and features.
7 Shortcut keys : ; [ ] – Press one
of the shortcut keys from the main screen to open the feature assigned to the key.
8 Charger/accessories connector – Insert
the charger connector here. This connector is also used to connect accessories such as a hands-free kit.
9 Wrist/neck strap aperture – Used to
attach a wrist strap or neck strap. See the Wrist/neck strap section on Page 21 for details.
1
Your phone
[[[
1
]]]
Page 6
1

Menus

Menus (press g, Menu from the main screen)
Your phone
Messages
Sounds
Ringer
1
Melodies
2
Volume
3 4
Ramping
5
Key tones
6
On/Off melody
7
Vibrator
8
Events
1
Send
2
Read
3
Chat
4
Delete all
5
Voice mail
6
Broadcast
7
Settings
Settings
Services
Extras
SIM Toolkit
Available menu items and features may vary by model of phone and network service provider. Please check your phone’s menu to see what menu items and features are available on your phone.
1
Commands
2
Network sel.
3
Send number
4
Cost/timers
5
Divert
6
Call waiting
1
Games
2
Pictures
3
Animations
2
[[[
]]]
1
Languages
2
Time/Date
3
Alarm
4
Call handling
5
Security
6
Display
7
Shortcut
Page 7

Display indicators

Main screen

Indicator Meaning
Battery level - low

Battery level - high
Battery charging (phone on)
Battery charging (phone off)
Signal strength - weak Signal strength - strong
New text message
New voice mail message (this icon is network dependent)
Indicates you had a missed call
Keypad locked
Silent mode active
Alarm clock set

Text entry

Indicator Meaning
α
β
η
ι
θ
Multitap text input - lower case
Multitap text input - upper case
T9 predictive text input (lower case)
T9 predictive text input (upper case)
Numeric mode

In messages list

Indicator Meaning
Message has not been read
Message has been read

In calls list

Indicator Meaning
Incoming call from a number
Outgoing call to a number
Missed call from a number

In lists

Indicator Meaning
Shows the currently selected option in a list. For example, the current ringtone.
1
Your phone
[[[
3
]]]
Page 8

2 Getting started

2
To use your phone, you must first insert the SIM card supplied by your network service provider, and then charge the battery.

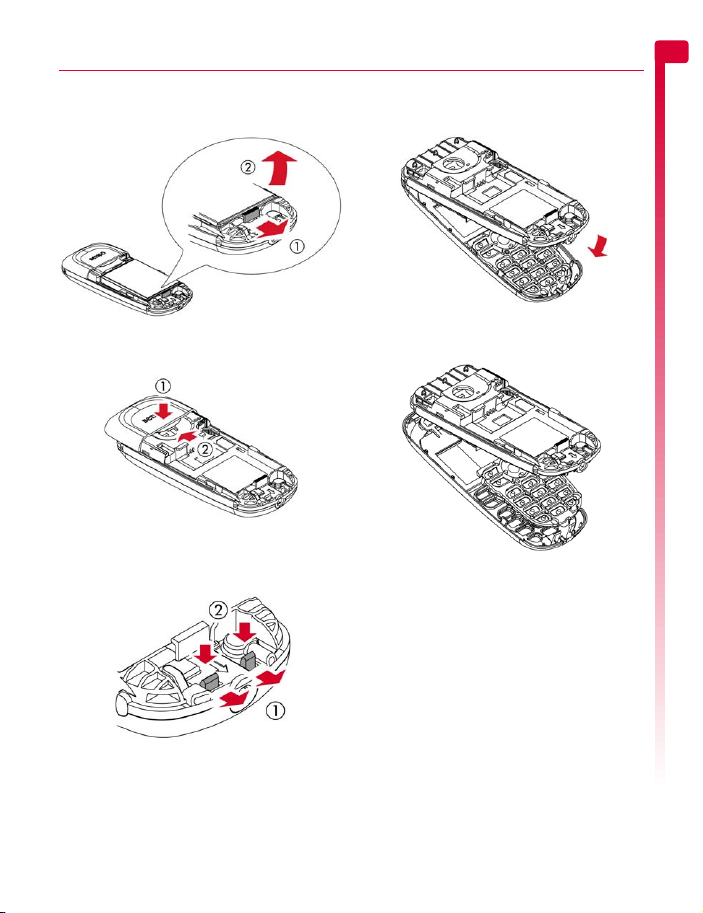

Removing the battery cover

Getting started
Press down on the area on the top of the battery cover as shown below, slide the cover down and lift off.

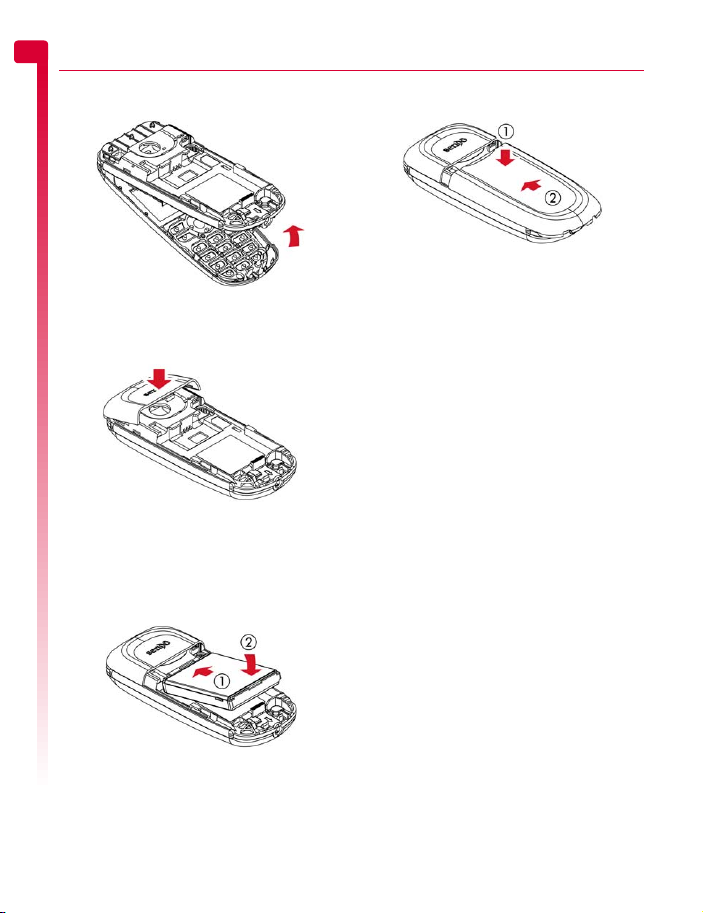

Removing the battery

If you need to remove the battery, press down on the tab at the centre of the bottom edge of the battery and lift out.
> Note: Always turn your phone off before
you remove the battery.
colored contacts of the card are facing down, touching the contacts of the phone.
! Warning: Keep all SIM cards out of reach
of small children. This small part can be a choking hazard or could be swallowed.
! Warning: The SIM card is easily damaged
by scratches or bending, so be careful when inserting and removing the card.

Inserting the battery

Insert the battery into the phone, starting with the top edge first. Align the tabs on the edge of the battery with the tabs on the back of the phone. Make sure the gold-colored contacts of the battery are touching the contacts on the phone. Push down into place.

Inserting the SIM card

> Note: You cannot insert or remove the
SIM unless you remove the battery. Always turn your phone off before you remove the battery. See the Removing the battery section above for details.
Slide the SIM into place, starting with the shorter edge first, making sure that the gold-
! Warning: Do not insert the battery with
the phone’s front cover removed.
4
[[[
]]]
Page 9

Replacing the battery cover

Place the cover onto the back of the phone and slide the cover into place, making sure the tab at the top of the cover clicks into place.

Charging the battery

You must charge the battery for at least 12 hours before using the phone for the first time. After this, the battery will normally take around 3 to 5 hours to charge.
Insert the connector on the charger lead into the connector on the bottom of the phone. Plug the charger into a wall socket. When charging commences, an animated charging icon or charger cable icon appears. When the battery is fully charged, a full battery icon will appear and you can disconnect the charger.
! Warning: Only use chargers designed for
use with your Sendo S1 and approved by Sendo. Incorrect use of chargers, or use of any other charger, may damage your phone and may invalidate your warranty.
Once you connect the charger, you can switch your phone on. If the battery is completely empty, it may take a few minutes before you can make or receive a call once you plug the phone into a charger.
> Note: When the battery is completely
discharged it ma y take some time for the battery charging icon to appear after you have connected the charger.

Charging and Discharging

Please observe the following notes and precautions regarding the use of batteries and related equipment.
Note
Do not charge the battery with either of the phone covers removed.
If you remove your battery you will find the phone’s label on the back portion of the phone. This label includes information about the phone, such as the model number.
Do not remove the phone’s label. In the unlikely event that you ever need to make a warranty claim or seek assistance with respect to use of your phone, you may be asked for this information.
Note that a new battery's full performance is achieved only after two or three complete charge and discharge cycles. The operation times provided are reasonable estimates and may be affected by network conditions, charging and phone usage.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the operating time (talk time and standby time) is noticeably shorter than normal, it may be time to buy a new battery.
Caution: Only use batteries approved by Sendo and recharge your battery only with the chargers approved by Sendo. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected after the battery indicator shows that the battery is full, or for longer than a single day, since overcharging may shorten its life. If left unused a fully charged battery will discharge itself over time.
For longer operation times, discharge the battery from time to time by leaving your phone switched on until it turns itself off and the battery is fully discharged.
Do not attempt to discharge the battery by any other means.
Use the battery only for its intended purpose. Never use any charger or battery that is damaged or worn out.
2
Getting started
[[[
5
]]]
Page 10
2
Note
Warning: Do not short circuit the battery. All batteries can cause property damage, injury or burns if a conductive material such as jewelry or keys comes
Getting started
into contact with the exposed terminals. The material may complete an electrical circuit and become quite hot. Exercise care in handling your phone battery. For example, avoid carrying your phone battery loose in a pocket or purse. This product is designed for use with Sendo-approved batteries only. Use of unapproved batteries may be dangerous and may cause damage to the battery or the phone and may void your warranty.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, may reduce the capacity and lifetime of the battery. A phone with a battery that has been exposed to temperature extremes may temporarily not work, even when the battery is fully charged.
Dispose of the battery properly. Comply with all local laws or regulations in disposing of your battery. Do not dispose of batteries in a fire.
[[[
6
]]]
Page 11

3 The basics

Switching on/off

To switch the phone on, press and hold d.
If the phone asks for a PIN code, enter the code that is supplied with the SIM card. The code will be displayed as asterisks. When complete, press g, OK.
When you switch the phone on for the first time (or after removing the battery) you may also be asked to enter the date (in the format mm/dd/yyyy). When complete, press g,
OK. You will then be asked to enter the time
(in 24 hour format). When complete, press g, OK.
> Note: If you make a mistake, use the :
and ; navigation keys to move between the characters.
Wait a few seconds while the phone searches for the network. Once the network has been found, the main screen appears and your phone is ready to be used. The main screen shows the network name and two icons giving the signal strength (top right) and battery level (top left).
To switch the phone off, press and hold d.

Navigation and scrolling

To enter the main menu on your phone, press g, Menu from the main screen.
You can scroll through menus using the up and down keys, : and ;. When you find the menu option that you are looking for, press g, Select to activate. Press d, Back or c to return to the previous level.
? Tip: See the Shortcuts section on Page 8
for details of useful menu shortcuts.
This manual uses “Find it” notes to take you direct ly to a fe ature. These notes always start at the main screen. For example, the note below indicates that you should press the left soft key g, labeled Menu in the main screen and then select the Messages menu option to open the Messages feature.
φ Find it: Menu g
X
Messages

My number

Your phone number is stored on your SIM card and should be stated in the documentation that came with the card.
If you need to remind yourself of your number, try calling another mobile phone and make a note of the number that appears on that phone’s display. Alternatively, contact your network service provider.
Your number may also be available through the My number feature (if set by your network service provider). Press d, Contacts from the main screen and select the My number option. Select Consult, press d, Options and select Details to display your phone number (press c to return to previous screens).

Screensaver

A screensaver is a picture or animation that is displayed when the phone has been idle for a certain amount of time.
When the screensaver is displayed, press the
c key to return to normal display (or press g, Unlock then * if the keypad is
locked).
To modify the screensaver settings, see the Display settings section on Page 29.

Power save

To get better battery performance, your phone will automatically switch to power save mode after it has been idle for a certain amount of time. In this mode, the screen’s backlight is switched off and only the status indicators are displayed.
When the power save mode is active, press the c key to return to normal display (or press g, Unlock then * if the keypad is locked).

SIM Toolkit

Your network service provider may offer some special services or features using the SIM Toolkit menu. However, the name of this
7
[[[
]]]
3
The basics
Page 12
3
menu may change to indicate the type of service, for example “Information”.
For more details, please contact your network
The basics
service provider.

Shortcuts

Shortcuts to some useful features:
Shortcut Description
Contacts list Press ; from the main screen to access
Calls list Press : from the main screen to access
Shortcut keys []
Lock keypad
Unlock keypad
Silent mode To enter/exit silent mode press g then
Silence ringtone
Language If the phone language is changed by
your contacts list. From here you can call, save and send messages to any of the entries.
the calls list. From here you can call and save a number, and send a message to an entry.
You can set what features are accessed when you press the [ or ] shortcut keys from the main screen. Try each key from the main screen to see what features they are currently set to. The Shortcuts section on Page 30 describes how to change the settings.
To lock the keypad, press g, then * from the main screen. The locked symbol, is displayed on the main screen when the phone is locked.
To unlock the keypad, press g,
Unlock then *.
# from the main screen. The silent
symbol, is displayed on the main screen when the phone is in silent mode.
If you can’t answer a call, but you don’t want to reject it, press ; to silence the ringtone.
mistake, press and hold * from the main screen to display the language list. Scroll to the language you want (using : and ;) and press g.

Entering text, numbers and symbols

You can enter text, numbers and symbols on your phone in a number of ways. The current input mode is indicated at the bottom of the screen (in features such as messaging) by one of these icons:
α Multitap text input - lower case β Multitap text input - upper case θ Numeric mode η T9 predictive text input (lower case) ι T9 predictive text input (upper case)
You can switch between Multitap, numeric and predictive text modes manually by repeatedly pressing *.
> Note: When you are in a screen that
requires text or numeric entry, the phone automatically changes to the appropriate input mode.
The table below lists the characters for each key on the numeric keypad:
Key List of characters available
1 1 . , @ ‘ ? ! " : ; ¿ ¡ 2 a b c 2 à ä å æ ç 3 d e f 3 é è 4 g h i 4 ì 5j k l 5 6 m n o 6 ñ ò ö ø 7 p q r s 7 ß 8 t u v 8 ü ù 9 w x y z 9 0 0 (numeric mode only) # Space (short press)
? Tip: For all input modes, a long press on
# displays a table showing all the symbols available. See the Entering symbols section below for details.
[[[
8
]]]
Page 13

Multitap standard text input

When you are in Multitap mode (sometimes called multipress mode), you enter a letter by pressing the number key on which the letter is printed. Press the key repeatedly until the required character is displayed. If you pass the character you want, keep pressing the key to scroll through all the characters again.
For example, to enter the letter “r” press 7 three times.
If a word you are entering contains two consecutive letters which are located on the same key, enter the first one and then wait for the cursor to reappear before entering the second.
Also, you will notice that some intelligent features are built in. For example, when entering the first word in a sentence, the text input mode changes automatically from upper case to lower case after the first letter.
Some punctuation marks (including periods, hyphens and apostrophes) are available on
1. Alternatively, press and hold # to pick a symbol to insert from the character table (see the Entering symbols section below).
When you have finished entering a word, press # to enter a space and move on to the next word.
For example, to enter the name "Ross" when you are in lower case mode:
1
Press * to enter upper case mode,
2
Press 7 three times, to display "R", you will then return to lower case mode.
3
Press 6 three times, to display "o".
4
Press 7 four times, to display "s". Now pause slightly until the cursor reappears.
5
Then press 7 four times, to display "s".

Predictive text input

To save time when you are writing a text message, your phone has a built-in dictionary feature which uses the letters that you are typing to complete the word.
This input method allows you to simply press each key once. For example, to write the name "Ross", press 7, then 6, then 7, then 7 just once each.
The word may change as you type, but don’t worry about what is on the screen until you have finished the word. Sometimes different words share the same sequence of key presses. If the finished word is wrong, press 0 to scroll through other possibilities. If the word that you are looking for is still not there, press * repeatedly to change the text mode to β or α and enter the word again.
After you have completed a word, press the space key # to enter a space and move on to the next word. Press and hold # to pick a symbol to insert from the character table (see the Entering symbols section below).
Some intelligent punctuation (including periods, hyphens and apostrophes) are also available on 1. The punctuation mark is completed when you enter the next keystroke.

Entering numbers

To enter a number in upper case or lower case text input mode, simply press the number key repeatedly until the number is displayed.
To enter a number in predictive text input mode, press the number key and then scroll through the characters (by pressing 0) until the number is displayed.
If you have multiple numbers to enter, it is often more convenient to use the numeric input mode. Press * repeatedly to change the mode to θ. Now whenever you press any of the number keys, only the number is entered.
γ
3
The basics
[[[
9
]]]
Page 14
3

Entering symbols

For all input modes, a long press on # displays a table, similar to the one below,
The basics
showing all the symbols available to you:
.,-!?@():
&‘ " /_;$%+
*=<>#£¥ƒ ¤
§ ì ËÀŒ—”÷
ÿŸ¿iадвжз
йиДЕЙтсЖ€
[]{}\|~^
123456789
X
To en te r a sy m b o l:
1
Press and hold # to display the symbol table.
2
Use the : and ; keys to scroll to the row containing the symbol you want.
3
Press the numeric key (1 to 9) to select the symbol.
[[[
10
]]]
Page 15

4 Calls

Making a call

Dialing a number

1
Key in the area code and number that you want to call, then press g, Call to dial.
If you make a mistake, press c to delete a single number.
To delete the entire number and return to the main screen, press and hold c.
2
To end the call, press d, End.

Making an international call

1
Press and hold 0 until the plus sign "+" is displayed. This replaces the international access code.
2
Enter the country code, area code, and phone number.
? Tip: Press and hold # until the letter p
appears to insert a pause of 3 seconds. This can be used, for example, in countries where a pause is required when dialing international numbers.
3
Press g, Call to dial.

Making an emergency call

1
Key in the emergency number for your present location (e.g. 911, 112 or other official emergency number). Emergency numbers vary by location.
2
Press g, Call to dial.
! Warning: To make an emergency call,
the phone must be switched on, properly charged and used in a service area with adequate signal strength. Also, emergency calls may not be possible when certain network services or phone features are in use. Do not rely on your mobile phone as your only method of emergency communications.

Making calls from the contacts list

φ Find it: d Contacts
X
Search
1
Type in the first letter(s) of the name or scroll (using : and ;) to the contact that you want.
2
Press g, Call to dial.
For more information about creating and using your contacts list, see the Contacts list and calls list chapter on Page 22.

Making a call from the calls list

The phone stores a list of your recent incoming, outgoing and missed calls. An icon on the left of the screen indicates the type of call:
Incoming call from a number
Outgoing call to a number
Missed call from a number
X
To dial a number from the calls list
1
Press the up : key from the main screen to open the calls list.
2
Scroll to the entry that you want and press g, Call to dial.
For more information about the calls list, see the Using the calls list section on Page 24.

Speed dialing

This feature allows you to dial a number simply by pressing and holding a single key.
For more information about creating and deleting speed dials, see the Contacts list and calls list chapter on Page 22.
X
To add a speed dial
φ Find it: d Contacts
1
Type in the first letter(s) of the name or scroll to the contact that you want.
2
Press and hold one of the keys 2 to 9 until the key number appears on the left of the screen, beside the name. This indicates that the speed dial is successfully assigned.
> Note: 1 is normally reserved for
voicemail.
X
Search
4
Calls
[[[
11
]]]
Page 16
4
X
To make a call using speed dial
Calls
1
From the main screen, press and hold the number key assigned to the contact you want to call.

Answering a call

To accept a call press g, Accept. To reject a call, press d, Reject.
! Warning: Avoid putting the earpiece
close to your ear when the phone is ringing. The phone will vibrate briefly to warn you before playing sounds.
> Note: If you can’t answer a call, but you
don’t want to reject it, press ; to silence the ringtone.

Call waiting

This feature will play a melody (through the earpiece) to inform you of a second incoming call.
> Note: Please refer to the Call waiting
section on Page 32 for more information on how to activate call waiting.
Press g, Accept to put the current call on hold and activate the second call.
Press d, Reject to reject the second call.
To end the active call and return to the held call, press d, End.
To switch between calls, press g, Options and then select the Swap option.
In the main screen, the active call is shown using the icon and the call on hold is shown using the icon.
> Note: Your network may not support call
waiting or may require you to subscribe to this feature. If you do not have call waiting or are roaming on another network, accepting a second call will end the first call (or you simply may not be able to accept another call). You will not be able to switch between calls.

Conference calls

This feature allows you to connect all parties when you have accepted two incoming calls.
During the call, press g, Options and select Conference to connect the callers.
To end the call, press d, End.
> Note: Conference calls is a network
service. You may have to subscribe to this service and it may not be available when roaming. Check with your network service provider for details.

In-call options

When you are in a call, you can press g,
Options. The possible menu options are
listed below.
Select this To
Contacts Access your contacts list.
Hold/Unhold Put the active call on hold/
Mute/Unmute Switch the microphone off/on.
Send message Send a text message.
Swap Swap between the current call
Conference Connect all current callers.
SIMToolkit Access the SIM Toolkit.
End all End all calls.

Adjusting the volume

The earpiece volume can be adjusted during a call. Press : to make the speech louder and ; to make it quieter.
reactivate the held call.
and the call on hold.
[[[
12
]]]
Page 17

5 Messages

This chapter shows you how to create, send, receive, and manage different types of messages:

Text messages

Simple and special text messages. See the Text messages section below.
Chat messages
Text messages sent during a chat session. See the Chat section on Page 15.
Voicemail messages
Voice messages from your voice mailbox. See the Calling your voice mail section on Page 16.
Broadcast messages
Information messages provided by your network service provider. See the Broadcast messages section on Page 16.
For information on using predictive text and multitap text input methods, see the Entering text, numbers and symbols section on Page 8.
> Note: The contents of the Messages menu
may vary by network service provider. Please check your phone’s menu to see what menu items and features are available on your phone.
Text messages
You can send and receive text messages to/ from any compatible phone. See the Compatible formats section on Page 15 for details of the types of text message you can send and receive.

Reading a text message

When you receive a text message, the envelope icon is displayed at the top of the main screen.
1
Press g, Read to display the new message directly from the main screen.
If you have received more than one message, the Inbox is displayed. Scroll to the message using the : and ; keys and then press g, Select.
To read old messages, go to your read messages:
φ Find it: g Menu
2
The message is displayed including any ringtones, pictures, logos, icons, animations or sounds. Use the : and ; keys to scroll through the message.
X
Messages X Read
> Note: Sounds cannot be saved from a text
message and are played once, when the sound is highlighted in the message.
3
Press g, Options to access the message options listed below:
Select this To
Delete Remove the message.
Chat Start a chat session.
Reply Send a text message to the sender.
Call Call the sender. Alternatively if
Save no. Add the sender’s phone number to
Save picture Save the highlighted picture in the
Save ringtone
there is a number in the message, highlight it and select this option to call the number.
your contacts list. Alternatively if there is a number in the message, highlight it and select this option to call the number.
incoming message. The picture is stored in your Pictures list. See the Pictures and Animations section on Page 35 for more details.
> Note: This option is only
displayed if a picture is included in the message and you are allowed to save it.
Save the highlighted ringtone in the incoming message. The ringtone is stored in your Melodies list. See the Sounds chapter on Page 26 for more details.
> Note: This option is only
displayed if a ringtone is included in the message and you are allowed to save it.
5
Messages
[[[
13
]]]
Page 18
5
Select this To
Time/date Display the date and time of the
Messages
Forward Send the message to someone

Sending a text message

X
To send a text message from Messages
φ Find it: g Menu
1
2
? Tip: You can save messages to your inbox
3
> Note: If you reply to a message, you do
4
X
To send a text message from the calls list
1
2
message.
> Note: If this option is not
displayed, the date and time information will be contained in the message.
else.
> Note: You may be prevented
from sending items that are copy protected.
X
Messages X Send
Select the New option to enter a new message or select the Saved option to choose from a list of messages that you can add to.
Write your message using the numeric keypad. See the Entering text, numbers and symbols section on Page 8 for details of entering text. When you have finished, press g, Send.
to send later. Press d, Options and select the Save option.
Enter the destination phone number, or press d, Contacts and select a name and number from your contacts list.
not have to re-enter the number. This is done automatically.
Press g, Send to send the message.
Press the up : key from the main screen to open the calls list.
Scroll to an entry in the calls list, press d,
Options and select Send message.
3
Enter your message and send it in the normal way.
X
To send a text message from contacts
φ Find it: d Contacts
1
Scroll to a contact, press d, Options and select Send message.
2
Enter your message and send it in the normal way.
X
To send a text message from the main screen
1
Enter the phone number you want to send a text message to.
2
Press d, Options and select Send
X
Search
message.
3
Enter your message and send it in the normal way.

Sending ringtones, pictures and more

You can send ringtones, simple pictures, animations, sounds, and contacts in your text messages to compatible phones. See the Compatible formats section on Page 15 for details of the types of text message you can send and receive.
From the message screen, select Options d and select the relevant option:
Select this To
Add picture Add a picture. Scroll to the picture
Add animation
you want to insert into the message. Press g Select to display the picture, and then press g Add to add it to your message.
Add an animation. Scroll to the animation you want to insert into the message. Press g Select to display the animation, and then press g Add to add it to your message.
[[[
14
]]]
Page 19
Select this To
Add contact Add a contact. Scroll to the contact
Add ringtone Add a ringtone. Scroll to the
Add sound Add a sound. Scroll to the sound to
you want to insert into the message. Press g Select to add it to your message. The contact information is added as text (name and number) to your message.
ringtone to insert into the message and press g Add.
insert into the message and press g Add.
> Note: You may be prevented from
sending items that are copy protected.

Compatible formats

You can send and receive text messages of up to 160 characters to any compatible phone. This is known as an SMS (Short Message Service) message and is supported by almost all mobile phones.
If a text message you send or receive is any longer than 160 characters, it is automatically broken down into several small messages, which are joined together as one message when all of the small messages have been received.
> Note: When you send a long text
message, if the phone receiving the messages does not support this feature, then the messages are received separately and may not be in the correct order.
You can also send and receive special text messages that can contain ringtones, contacts or simple messaging pictures, logos, icons, animations or sounds. These text messages are often referred to as EMS (Enhanced Messaging Service) messages or Smart messages. Your Sendo S1 phone can send SMS and EMS messages and receive SMS, EMS and Smart Messaging messages.
Any phone you send an EMS item to, must support EMS messages. EMS pictures can display differently on other mobile phone makes and models. If SMS only is supported, only the text content will be received by the other user.
The table below lists the compatible formats for EMS and Smart Messaging items supported by the Sendo S1.
> Note: You may be prevented from
sending items that are copy protected.
Item Format
Ringtone EMS (send and receive): sp-midi
Picture Logo Icon
Animation EMS only (send and receive):
Sound EMS only (send and receive):

Chat

Sendo chat allows y ou to send text messag es to another user, and view both sent and received text messages on a convenient Chat screen.
X
To start a chat session
φ Find it: g Menu
1
2
polyphonic ringtones, plus i-melody monophonic ringtones. Smart Messaging (receive only): Standard Smart Messaging monophonic format only.
EMS (send and receive): All bitmap formats (black and white, grayscale, color) supported.
Smart Messaging (receive only): Logos and icons only.
Standard EMS animations.
Standard EMS sounds.
X
Messages X Chat
Enter your chat name on the My chat name screen (this screen will not appear if you have already created a chat name).
Now enter the phone number of the person you want to chat to, or you can
d, Contacts to go to your contact
press list.
5
Messages
[[[
15
]]]
Page 20
5
3
Enter his/her chat name on the Enter chat
name screen (this screen will not appear if
you have already created a chat name for
Messages
this person).
X
To send/receive a chat message
1
To send a chat message enter the text in the chat editor field and then press
Send.
2
The sent text will appear in the chat history field and is sent to the other chat participant as a standard text message.
3
Received chat messages are displayed in the chat history field.
X
To edit a chat name
φ Find it: d Contacts
1
You can edit a chat name for a contact by selecting the desired name in the contact list and pressing
Change option and edit the chat name.
2
You can edit your chat name by selecting
My number from the Contacts menu.
Select the Consult option and then press
d, Options. Select the change option
and edit the chat name.

Chat options

d, Options. Select the
φ Find it: g Menu
d, Options from the Chat screen to
Press view the following chat options:
Select this To
Swap Change the active area between
Font size Select between normal and small
Exit Exit the chat session.
the text entry field and the chat history field.
font on the Chat screen.
g,
X
Search
X
Messages X Chat

Calling your voice mail

You can access your voice mailbox by doing one of the following:
> Note: Voice mail is a network service. You
may have to subscribe to this service and it may not be available when roaming. Check with your network service provider for details.
When you have a new message in your
voice mailbox, your phone displays either the voice mail icon in the main screen or a text message sent from the network. This depends on your network service provider. From the main screen press g,
Call (if available) to call your voice
mailbox or c to cancel the message.
From the main screen press and hold 1.Select the Voice mail option from the
Messages menu.
If the phone asks for the voice mailbox number, enter it and press g, Call. The number can be obtained from your network service provider.
To enter/change a voice mailbox number, see the Message settings section on Page 17.

Broadcast messages

Find it: g Menu X Messages X
φ
You can receive cell broadcast messages such as traffic information, weather reports or local information which is broadcast by the network to all mobiles in a specific area. When you enable this feature, you may receive messages about the selected topic.
Broadcast
> Note: This is a network service which may
not always be available. Check with service provider for details.
The options are as follows:
Read
Select this option to display the list of cell broadcast messages.
[[[
16
]]]
Page 21
Activate
Select On or Off to activate/deactivate cell broadcast messages.
Channel
This option is used to select cell broadcast subjects:
Select the Consult option to display the
list of subjects. Scroll through the list of subjects and press g, Select to change or remove the subject.
If the desired subject is not in the list,
select Add new and enter the subject and number. For details of subjects, contact your network service provider.
Delete all
Select this option to delete all cell broadcast messages.

Message settings

Find it: g Menu X Messages X
φ
Select this To
Status report Set whether or not you want to be
Centre number
Voice mail Enter or change the voice mailbox
Characters Choose whether you want to enter
Settings
informed when your correspondent has received your text message.
Enter or change the service centre number for text messaging.
number.
text in GSM (Latin characters) or
Unicode (Non Latin characters)
mode. Unicode characters take up more room on your phone so the length of a standard text message is restricted to half the usual number of characters.
5
Messages
[[[
17
]]]
Page 22

6 Personalize your phone

6
This chapter summarizes some of features that can be used to personalize your Sendo S1 phone. These include ringtones, wallpapers and screensavers as well as the covers, Sendo ScreenZ and wrist/neck strap.

Ringtones

Personalize your phone
X
To set a main ringtone
φ Find it: g Menu
1
Scroll through the list of ringtones. As you pause on each ringtone, it will be played.
! Warning: Avoid putting the earpiece
close to your ear when the phone is playing ringtones or alert sounds. The phone will vibrate briefly to warn you before playing sounds.
2
Press g, Select to select the ringtone.
? Tip: To set more sound options, see the
Sounds chapter on Page 26.
X
Sounds X Ringer

Display

You can change the wallpaper, screensaver and backlight settings for the display.
> Note: To change the background
X
To change your phone’s display settings
φ Find it: g Menu
1
Select from the following options to choose your display settings:
Backlight
You can specify default times for the backlight on the phone.
Wallpaper
Select this option to turn this feature On or
Off and select a picture from the phone’s
memory (using Select picture). The wallpaper is displayed in the main screen.
Screensaver
Turn this feature On or Off, set the delay before it becomes active and assign a screensaver picture or animation from the phone’s memory (using Assign). The
X
Settings X Display
screensaver settings do not affect power save mode.
> Note: When the screensaver is displayed,
press the c key to return to normal display (or press g, Unlock then * if the keypad is locked).

Covers

You can change the front and rear covers of your phone as described below. Check out the Sendo shop for compatible covers:
www.sendo.com/shop
Please observe the following warnings when removing and replacing covers:
! Warning: The covers are made of plastic
and can be broken. Take care when removing or replacing any part of your phone.
! Warning: When changing covers, you are
removing some of the phone’s outer protection. Therefore, take extra care with your phone and avoid exposure to dirt, dust, liquids (including condensation) and static electricity. Replace all covers as quickly as possible.
! Warning: Do not charge the battery with
either of the phone covers removed.
X
To change your covers
1
Remove the battery cover - press down on the area at the top of the battery cover, slide the cover down and lift off.
18
[[[
]]]
Page 23
2
Remove the battery - press down on the tab at the centre of the bottom edge of the battery and lift out.
3
Remove the top part of the rear cover ­press down on the area in the middle of the cover, slide the cover up and lift off.
4
Pull on the two tabs near the bottom of the phone at the same time, and press down. The bottom of the cover should now stand clear of the phone slightly.
5
Gently but firmly pull the bottom of the cover away from the phone, as illustrated below.
6
Separate the front cover, keypad and phone and place the keypad into the new cover.
> Note: If you want to clean the inside of
your cover, use a clean, soft, dry cloth. You should carefully blow off any remaining dust before replacing the cover.
7
To replace the front cover, place the top of the cover onto the phone and then press the bottom of the cover and the phone together (making sure the two tabs at the bottom of the cover are aligned correctly
6
Personalize your phone
[[[
19
]]]
Page 24
6
with the holes on the phone - the cover should click into place).
Personalize your phone
8
To replace the top part of the rear cover, place the cover onto the back of the phone and press into place, making sure the tabs on the sides of the cover click into place.
9
Insert the battery into the phone, starting with the top edge first. Align the tabs on the edge of the battery with the tabs on the back of the phone. Make sure the gold­colored contacts of the battery are touching the contacts on the phone. Push down into place.
the cover into place, making sure the tab at the top of the cover clicks into place.

Sendo ScreenZ

You can change the color background graphic behind the phone’s display (called Sendo ScreenZ) as described below. Check out the Sendo shop for compatible ScreenZ:
www.sendo.com/shop
! Warning: Only use ScreenZ designed for
use with your S1 phone and approved by Sendo. Use of any other ScreenZ may damage your phone and may invalidate your warranty.
X

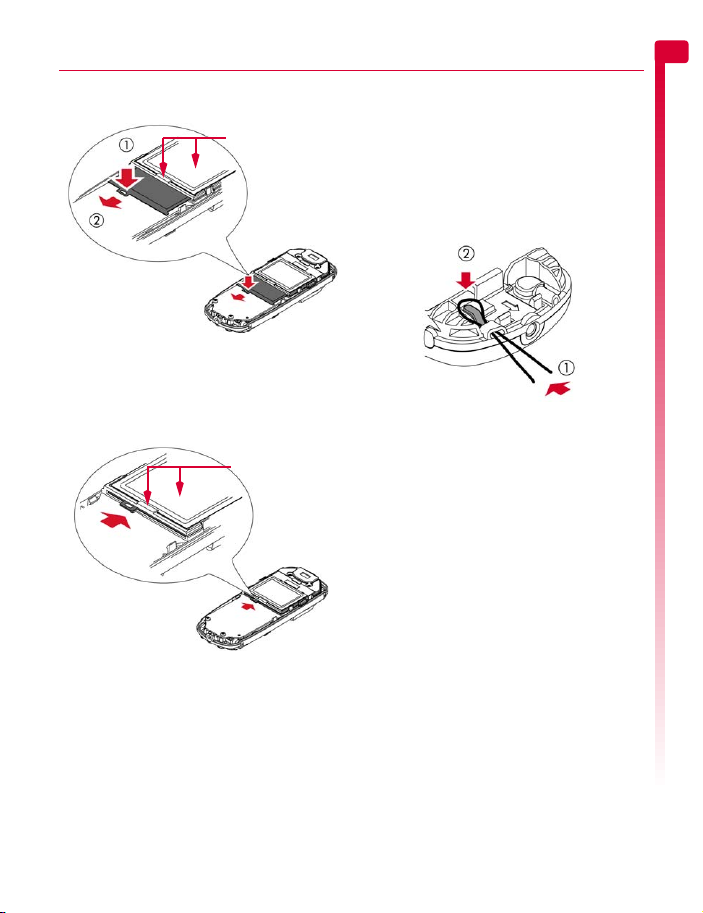

To change the ScreenZ
1
Remove the battery cover, battery and front cover as described above.
> Note: You do not have to remove the top
part of the rear cover to change the ScreenZ.
2
Insert a small, blunt, wooden or plastic instrument (such as a pencil tip) into the slot in the removal tab of the plastic ScreenZ. Gently pull the ScreenZ down and remove.
10
To replace the battery cover, place the cover onto the back of the phone and slide
[[[
20
]]]
Page 25
!
Warning: Avoid touching the LCD display
or surrounding frame.
Do Not Touch
3
Insert the new ScreenZ into place with the tab on the left as illustrated below. Ensure the ScreenZ graphic is fully inserted.
! Warning: Avoid touching the LCD display
or surrounding frame.
Do Not Touch

Wrist/neck strap

You can attach a wrist strap or neck strap to your Sendo S1 phone.
First remove the battery cover as described in the Covers section above. Now insert the strap loop into the aperture at the bottom of the phone, as illustrated below (1). Push the strap loop over the small plastic hook (2) to secure the strap in place.
6
Personalize your phone
4
Replace the front cover (with keypad), battery and battery cover as described in the section above.
[[[
21
]]]
Page 26

7 Contacts list and calls list

7

Using the contacts list

You can store up to 500 contacts in the contacts list on your phone.
> Note: For all contact phone numbers, you
should include the city or area code and phone number. You may want to store all contact phone numbers in international
Contacts list and calls list
format. That is, the international access code (+), the country code (without leading zeros), city or area code (some countries require the leading zeros to be omitted from the city/area code) and phone number. Press and hold 0 to enter a + symbol.

Phone contacts and SIM contacts

You can choose to store contacts to your phone or SIM card by default.
> Note: When you display your contacts list,
only the default list is displayed (SIM or Phone).
To set your default, press d, Contacts from the main screen and select the Default option:
Phone
This option will save new contacts to your phone. This allows you to save up to 500 contacts.
SIM
This option will save new contacts to your SIM card. You can only save a limited number of contacts to your SIM card. However, if you change phones but keep the same SIM card, you should be able to copy your SIM contacts to the other phone.
> Note: The number of contacts you can
store on your SIM will vary. Check with your network service provider.
? Tip: You can copy SIM contacts to your
phone. When a name is highlighted in the contacts list, press d, Options and select Copy to phone.

Adding a contact

X
To add a contact
φ Find it: d Contacts
1
Enter the contact’s phone number and press g, OK.
2
Enter the name you want to store for the contact, and press g, OK. Use the keypad as described in the Entering text, numbers and symbols section on Page 8, to enter the details.
3
Enter the chat name (if any) you want to assign to the contact, and press g, OK.
4
The contact information is now saved.
X
To add a contact from the main screen
1
From the main screen, enter the phone number you wish to store.
2
Press d, Options and select Save.
3
Enter the name you want to store in the contacts list, and press g, OK. Use the keypad as described in the Entering text, numbers and symbols section on Page 8, to enter the characters.
4
Enter the chat name that you wish to assign to the contact, and press g, OK.
5
The contact information is now saved.

Finding contacts

X
To find a contact
φ Find it: d Contacts
> Tip: You can also press the down ; key
from the main screen to display your contacts list.
1
Type in the first letters of the name or scroll to the contact that you want. You can call the contact directly from here or view the contacts list Options menu.
X
Add new
X
Search
[[[
22
]]]
Page 27

Contacts list options

φ Find it: d Contacts
When a name is highlighted in the contacts list, press d, Options to display the menu options listed below:
Select this To
Send message
Chat Start a Chat session with the
Change Edit the details for this contact.
Details View the details for this contact.
Copy to phone
Chat details Display the chat name and number
Delete Delete this contact.

Speed dials

> Note: You can assign speed dials to SIM
X
To add a speed dial
Send a text message directly to this contact.
contact.
Copy the contact from your SIM to your phone.
for the contact.
contacts but this information will not be stored in the SIM.
φ Find it: d Contacts
1
Type in the first letters of the name or scroll to the contact that you want.
2
Press and hold one of the keys 2 to 9 until the key number appears on the left of the screen, beside the name. This indicates that the speed dial has been set.
X
Search
X
Search
> Note: 1 is normally reserved for
voicemail.
X
To remove a speed dial
φ Find it: d Contacts
1
Type in the first letters of the name or scroll to the contact that you want.
X
Search
2
Press and hold the number key already assigned to the name, until the key number is removed from the left of the screen, beside the name.
X
To make a call using speed dial
1
From the main screen, press and hold the number key assigned to the contact you want to call.

Fixed names

> Note: This feature is only available if
supported by your network service provider/SIM card. Contact your service provider for details.
This option in the main Contacts menu provides access to a separate set of contacts, protected by your PIN2 code. Calls and messages are restricted to the numbers in your fixed names contacts list.
This feature can be useful, for example, for parents who want to restrict calls and messages for their children, or for corporate use.
> Note: Emergency numbers are NOT
restricted by the fixed names feature.
X
To use the fixed names feature
φ Find it: d Contacts
1
Select On and enter your PIN2 code (see the Your PIN2 code section below) to activate the feature.
2
You will only have access to your fixed name contacts and you will only have access to a limited Contacts menu.
3
You can use the Contacts menu options in the same way as the normal contacts feature. However, adding, changing and deleting contacts will require the PIN2 code.
> Note: All fixed name contacts are stored
in your SIM only.
X
Fixed names
7
Contacts list and calls list
[[[
23
]]]
Page 28
7
X
To disable the fixed names feature
φ Find it: d Contacts
1
Select Off to deactivate the feature - you will be asked for your PIN2 code.
2
When you return to your normal contacts list, the fixed names contacts are available for use. However, deleting or changing these contacts will require the PIN2 code.
Contacts list and calls list
Your PIN2 code
Your PIN2 (Personal Identity Number) code is a code that you can use to protect your phone. If you enter the wrong PIN2 code three times, the PIN2 code is locked and you may be asked to enter a PUK2 (Personal Unlock Key) code.
> Note: The number of incorrect entries
depends on your network service provider.
The PIN and PUK codes may be listed in the information that you received with your SIM card or they may only be available from your network service provider (these may be different for PIN and PIN2).
> Note: Sendo cannot provide your PIN or
PUK codes.

Additional Contacts menu options

φ Find it: d Contacts
The Contacts menu also provides the following options:
Memory
Displays the amount of used contacts memory.
Service numbers
Your network service provider may have pre-programmed some useful numbers into your SIM card. These numbers normally give access to special services. For more information contact your service provider.
X
Fixed names
> Note: This option is only displayed if your
network service provider supports service numbers.
My number
Your own mobile phone number may be available through the My number option:
If a number or name is listed here,
select Consult, press d, Options and select Details to display your phone number.
If no number or name is listed here,
contact your network service provider with your SIM number and they will advise you accordingly. You can then select the Add new option from the My
number menu to enter your mobile
number.

Using the calls list

The phone stores a list of your recent incoming, outgoing and missed calls. To display your calls list, press the up : key from the main screen.
The list stores up to 30 entries. If a number is stored in your contacts list, the contact name is also displayed.
An icon on the left of the screen indicates the type of call:
Incoming call from a number
Outgoing call to a number
Missed call from a number

Making a call from the calls list

1
Press the up : key from the main screen to display your calls list.
2
Scroll to the entry that you want and press g, Call to dial.
[[[
24
]]]
Page 29

Calls list options

When you have highlighted an entry in the calls list, press d, Options to display the menu options listed below.
Select this To
Save no. Save the number to your contacts
Chat Start a text chat with this entry.
Send message Send a text message directly to
Details View the details for this entry.
Delete Delete this entry.
Delete all Delete all entries in the calls list.
list.
this entry.
7
Contacts list and calls list
[[[
25
]]]
Page 30

8 Sounds

8
φ Find it: g Menu
This menu allows you to set a ringtone for
Sounds
incoming calls and set the various sounds that the phone plays when you receive a new text message, or some other event occurs.
Your phone already contains a number of sounds and ringtones, but there is also space for extra ringtones that you receive.
X
Sounds
> Note: See the Messages chapter on
Page 13 for information on ringtones and sounds in messages.

Ringer

Find it: g Menu X Sounds X Ringer
φ
Select this option to set a ringtone for incoming calls. Scroll through the list of ringtones. As you pause on each ringtone, it will be played. Press g, Select to select the ringtone.
! Warning: Avoid putting the earpiece
close to your ear when the phone is playing ringtones or alert sounds. The phone will vibrate briefly to warn you before playing sounds.
> Note: Your Sendo S1 phone supports sp-
midi polyphonic ringtones and i-melody monophonic ringtones.

Melodies

Find it: g Menu X Sounds X Melodies
φ
Select this option to display a list of ringtones which you have received via messages. The number of ringtones you can store depends on their size.
> Note: You can only select a ringtone for
incoming calls from the Ringer menu.
> Note: It is only possible to save a certain
number of extra ringtones which you have received as a message, depending on their size. To save new ringtones you
may need to overwrite an existing ringtone in the Melodies list.
Use the : and ; keys to highlight a ringtone and press d, Options to display the following:
Select this To
Send Send the ringtone in a text
Play Play the ringtone. Press c to stop
Delete Delete the ringtone.
Delete all Delete all the ringtones in the
Memory Display the number of ringtones in
message.
playback.
! Warning: Avoid putting the
earpiece close to your ear when the phone is playing ringtones or alert sounds. The phone will vibrate briefly to warn you before playing sounds.
Melodies list.
the Melodies list.

Volume

Find it: g Menu X Sounds X Volume
φ
Select this option to change the volume setting for ringtones and alert sounds. Use the : and ; keys to increase and decrease the volume level.
! Warning: Avoid putting the earpiece
close to your ear when the phone is playing ringtones or alert sounds. The phone will vibrate briefly to warn you before playing sounds.
To enter/exit silent mode, you can press g then # from the main screen. The silent symbol, is displayed on the main screen when the phone is in silent mode.
> Note: If the vibrate function is set to on,
the phone will still vibrate in silent mode.
[[[
26
]]]
Page 31
>
Note: If the phone is switched off, silent
mode is cancelled. This helps to ensure no calls are missed.

Ramping

Ringtones are played with a steadily increasing volume. Select this option to set the time it takes to reach the volume set using the Volume option described above.
! Warning: Avoid putting the earpiece
close to your ear when the phone is playing ringtones or alert sounds. The phone will vibrate briefly to warn you before playing sounds.

Key tones

Find it: g Menu X Sounds X Key tones
φ
This menu allows you to set the type of keypad tones that you would like to hear when pressing the keys:
Off
No sound emitted on a key press.
On
Short, low volume tone.
DTMF
These are standard tones, as used in touch tone phones. Each number has its own specific tone.

On/Off melody

Find it: g Menu X Sounds X
φ
The phone can play a melody whenever you switch it on or off. Select this option to switch this feature On or Off.
On/Off melody
On
Sets the phone to vibrate for an incoming calls or messages.
Vibrate then ring
Sets the phone to vibrate for a few seconds before the phone starts to ring.
> Note: None of the vibrate settings affects
any of the sounds settings.

Events

Find it: g Menu X Sounds X Events
φ
This option allows you to set the alert sounds to On or Off for the following events:
New messageNew broadcastLow batteryLow credit
> Note: Alert sounds can only be applied to
those services supported by your network service provider. When roaming, certain services may not be supported. Contact your service provider for details.
8
Sounds

Vibrator

Find it: g Menu X Sounds X Vibrator
φ
Select this menu to set the vibrate function for incoming calls and alert sounds:
Off
Deactivates the vibrate function.
[[[
27
]]]
Page 32

9 Settings

9
φ Find it: g Menu
This menu allows you to define the settings
Settings
for your phone.
X
Settings
> Note: The contents of the Settings menu
may vary by network service provider. Please check your phone’s menu to see what menu items and features are available on your phone.

Languages

Find it: g Menu X Settings X
φ
This menu allows you to change the language on the phone.
Languages
? Tip: If the phone language is changed by
mistake, press and hold * in the main screen to display the language list. Scroll to the language you want (using : and ;) and press g.

Time/Date

Find it: g Menu X Settings X
φ
Select this menu to set the time and date on your phone. The options are:
Set time
Enter the time and press g, OK. The time will be stored.
Set date
Enter the date and press g, OK. The date will be stored.
Time format
Use this to choose whether to display the time in AM/PM or 24hr format.
Display clock
Turn the time display in the main screen On or Off.

Alarm

Find it: g Menu X Settings X Alarm
φ
You can use your phone as an alarm clock.
Time/Date
Set the alarm to On and enter the time when you require the phone to ring (in 24 hour format). When it rings press:
d, Off to switch it off, or g, Snooze to stop the alarm for ten
minutes. The alarm will then sound again.
Please observe the following notes:
Note
When activated, the alarm will sound for approximately 45 seconds before switching off (if you do not press d, Off or g, Snooze).
If the alarm activates during a call, the phone will beep and the display will flash to indicate that the alarm is active. As described above, press d, Off to switch it off, or g, Snooze to stop the alarm for ten minutes.
If the volume is set to silent mode, the alarm will activate but there will be no sound. The phone will still vibrate if the vibrate feature is on.
The alarm will sound even if the phone is switched off. The phone will power on (if battery power is available) but you will not be able to receive or make calls. If the volume was set to silent mode before the phone was switched off, the alarm will still sound as silent mode is cancelled when the phone is switched off. Once the alarm finishes, the phone will switch off automatically.

Call handling

Find it: g Menu X Settings X
φ
Select this menu to define how you deal with calls. The options are as follows:
Auto redial
When auto redial is activated, the phone will automatically redial a number when the call attempt fails. If the other user’s phone is busy, the phone will wait a few seconds before each attempt, and then beep when it succeeds.
Auto answer
This function is only applicable when certain hands-free accessories (for
28
[[[
]]]
Call handling
Page 33
example, a personal hands-free headset) are connected to the phone. When you receive an incoming call with this feature activated, the phone rings three times before automatically accepting the call.
Any key answer
When this function is activated, you can answer an incoming call by pressing any key (except d Reject, ;, [, or ]).

Security

Find it: g Menu X Settings X Security
φ
Select this menu to define your PIN settings. Your PIN (Personal Identity Number) is a code that you can use to protect your phone against unwanted use. This is the number that the phone may ask for at switch on. The options are as follows (depending on what PIN activation settings you have selected):
Activate PIN
Enter your PIN at switch on (if your SIM card supports this).
Deactivate PIN
You do not have to enter your PIN at switch on.
Change PIN
Select this to change your PIN code.
Change PIN2
Some network services require a separate security code - the PIN2 code. Select this option to change your PIN2 code.
To activate, deactivate or change the PIN code, you need to enter the current PIN code. To change the PIN2 code, you need to enter the current PIN2 code. If you don’t know your PIN code or PIN2 code, contact your network service provider.
If you enter the wrong PIN o r PI N2 c ode thr ee times, the SIM card is locked and you may be asked to enter a PUK (Personal Unlock Key) code - these may be different for PIN and PIN2. The PUK codes may be listed in the information that you received with your SIM
card or they may only be available from your network service provider.
> Note: The number of incorrect entries
depends on your network service provider.
> Note: Sendo cannot provide your PIN or
PUK codes. Contact your network service provider for information.

Display

Find it: g Menu X Settings X Display
φ
This menu allows you to change the settings for your phone’s displays. The options are as follows:
Backlight
You can specify default times for the backlight on the phone.
> Note: The backlight timer settings do not
affect the backlight settings for games.
Wallpaper
Select this option to turn this feature On or
Off and assign a picture from the phone’s
memory (using Select picture).
Screensaver
Select this option to turn this feature On or
Off, set the Delay before it becomes active
and assign a screensaver picture or animation from the phone’s memory (using
Select picture). The screensaver is displayed
when the phone has been idle for the set delay. The screensaver settings do not affect power save mode.
> Note: When the screensaver is displayed,
press the c key to return to normal display (or press g, Unlock then * if the keypad is locked).
Startup/Shutdown
Select the animation to use when you switch your phone on or off.
9
Settings
[[[
29
]]]
Page 34
9

Shortcuts

Find it: g Menu X Settings X
φ
Settings
Select this option to set the features accessed when you press the [ or ] shortcut keys from the main screen.
Select the F1 or F2 option as required, scroll to the feature you want to assign to the key, and press g, Select.
Shortcuts
[[[
30
]]]
Page 35

10 Services

Select Services from the main menu. This menu allows you to set up network services such as call waiting.
> Note: The contents of this menu may vary
by network service provider. Please review your phone’s menu to determine the menu items and features available on your phone.

Commands

φ
Find it: g Menu X Services X
This menu allows you to send special commands to the network to get specific information. This could be information such as the time and date, your own phone number, or the amount of credit remaining on your SIM card.
The commands, and whether this feature is available, can be obtained from your network service provider.
You can store the number of the command and a name. Once stored, scroll to the command and press g, Send to get the required information from the network.

Network sel. (selection)

Find it: g Menu X Services X
φ
This menu allows you to choose how the phone searches for the network. The options are as follows:
> Note: The ability to select alternative
networks will depend on the service, or roaming, agreement of your network service provider.
Mode
Automatic - Sets the search mode to
automatic. The phone searches all available networks and automatically selects one.
Commands
Network sel.
Manual - Sets the search mode to manual.
This allows you to search available networks and select one - see below for details.
Search
Searches for and then displays all
available networks.
If you are in manual mode (see above),
you can select a network which will become your default network. To do this, scroll through the network list and press g, Select on the network that you wish to use. Once you select a network, your phone will always try to select this network. Network selection stays manual until you switch to automatic mode.

Send number

Find it: g Menu X Services X
φ
This menu allows you to select whether you hide your identity or not when you call someone. The options are as follows:
Network
This sets the phone to the Network default setting.
On
Your telephone number is sent to your correspondent when you call.
Off
Your telephone number is not sent to your correspondent when you call.
Send Number

Cost/timers

Find it: g Menu X Services X
φ
This menu contains information on the amount of time you have spent on calls.
The options are listed below. Once selected, press d, Reset to reset a counter to zero.
Cost/timers
> Note: The options listed in this menu are
dependent on your network service
10
Services
[[[
31
]]]
Page 36
10
provider. Contact your service provider
Services
for details.
Outgoing
Displays the total time that you have spent on your phone on outgoing calls.
Incoming
Displays the total time that you have spent on your phone on incoming calls.
> Note: The actual time and charges
invoiced for calls and services by your network service provider may vary, depending on network features to which you subscribe, rounding off, taxes and other fees and charges.

Divert

Find it: g Menu X Services X Divert
φ
This network feature allows you to divert your incoming calls to your voice mailbox or to another number. The options are as follows:
> Note: Your network may not support all
of these features. Any unsupported features will not be shown in the menu.
If busy
When activated, calls will be diverted if you are already in a call.
If no answer
When activated, calls will be diverted if you do not answer your phone.
Unreachable
When activated, calls will be diverted if your phone is off or if you are out of coverage.
All conditional
When activated, the calls which you have specified here are diverted. Select voice, fax, data or all calls.
All calls
When activated, all of your incoming calls will be diverted.
For each of the above, you can check, activate or cancel the service.
> Note: Certain divert features may not be
available if roaming on another network. Contact your network service provider for details.

Call waiting

Find it: g Menu X Services X
φ
This menu allows you to check, activate or deactivate the call waiting feature. For more information on call waiting, please see the
Answering a call section on Page 12.
Call waiting
> Note: Call waiting is a network service.
You may have to subscribe to this service and it may not be available when roaming. Check with your service provider for details.
[[[
32
]]]
Page 37

11 Extras

Games

Find it: g Menu X Extras X Games
φ
The Sendo S1 comes with some great games for you to play:
Tenpin - Score the perfect 300 in this
classic tenpin bowling game. See the Tenpin section below.
Splat - Stop the moles from digging up
your garden. Fast paced, hard hitting action. See the Splat section below.
FlippIT - Flip the discs to change color.
Puzzle action that needs some thought. See the FlippIT section on Page 34.
Splash - Ever wanted to be a plumber?
Quick thinking, puzzle action. See the Splash section on Page 34.
Quaddro - The classic four in a row game.
See the Quaddro section on Page 34.
Scizzors - Rock, paper, scissors. See the
Scizzors section on Page 35.
> Note: The actual games supplied with
your phone is dependent on your network service provider. Check the Games menu to see what games are listed.

Tenpin

φ Find it: g Menu
Games
you have two attempts to knock down all of the pins.
You can position the ball on the lane by pressing 4 or 6 to move across the lane.
To bowl the ball straight press 5 when the Swing bar is positioned in the centre of the bowling ball.
X
Extras X
X
Tenpin
To start a new game, select New.
The object of the game is to knock as many of the pins down as possible. The game is played over 10 frames and in each frame
To bowl at an angle press 5 when the Swing bar is to the left or right of the bowling ball.
Press the c key to exit the game.
Try to get the top score of 300 and enter your name on the Hi-score table! Type your name using the keypad and press g, OK to see the Hi-score table. Press OK again to return to the game menu.

Splat

φ Find it: g Menu
Games
digging up your garden. You will see a 3x3 grid of mole holes; when you see a mole peep through the hole, hit it by pressing the appropriate 1 to 9 key. For example, if a mole appears in the middle hole, press 5 because it is positioned in the middle of the 1 to 9 keys.
Points are awarded for each mole hit. Watch out for surrender flags, if you hit a mole that has surrendered, points will be deducted from your score. Your score and the game status are shown at the bottom of the display. The game can be paused by pressing the c key.
At the end of a level you will receive a bonus according to your accuracy. Get an accuracy score of 70% or more to progress to the next level.
The game ends when you fail to progress to the next level or you complete the final level. You may be able to enter your name on the hi-score table. Type your name using the keypad and select g, OK when finished.
X
Extras X
X
Splat
To start a new game, select New.
You will start on level 1. When you are ready to play, press any key.
The object of the game is to stop the moles from
11
Extras
[[[
33
]]]
Page 38
11

FlippIT

Extras
φ Find it: g Menu
change the white discs to black discs. You do this by selecting one of the discs by pressing
5 key. This turns a white disc to black or
the black to white, but also turns all of the discs directly above, below, to the left and to the right, to the opposite color.
You can move the cursor from one disc to another using the keys in the grid shown below. On the right of the screen you will see the number of moves that you have made so far, and also the smallest number of moves that it is possible to complete the level in.
With each higher level the grid gets bigger and bigger, and harder!
13 46 79
FlippIT and Splash keys

Splash

Games
2 5 8
φ Find it: g Menu
Games
water is slowly flowing towards the open end. The object of the game is to connect the open
X
Extras X
X
FlippIT
To start a new game, select
New.
There are 6 levels; 3x3 is the easiest.
The object of the game is to
X
Extras X
X
Splash
To start a new game, select
New.
An incomplete pipeline is displayed starting at the top left of the screen and
end of this pipe to the outlet at the bottom right of the screen, before the water overflows!
To do this you are supplied with pieces of straight and bent pipe, which are shown on the right of the screen.
The piece at the top of these is the next piece that you must place on the board. You move the cursor using the keys on the grid shown below. The position of the flashing cursor. However, be careful, once you have put down a piece you cannot move it.
The provided with 3 bombs. These bombs will delete the piece where the cursor is positioned. Use them wisely.
Once you have managed to complete the pipes, you can press water, to finish the level.
With each level, it gets faster and faster!

Quaddro

φ Find it: g Menu
the board, and try to make a line of four, horizontally, vertically or diagonally.
When you drop a counter, it will fall all the way to the bottom or sit on top of any other counters that are in that column. So, think carefully before you play!
You move the flashing cursor left and right along the top of the screen using the 4 and 6 keys. Pressing 5 will drop the counter into the column.
34
[[[
]]]
5 key places the section in the
# key drops your bombs. You are
* to speed up the
X
Quaddro
Games
To start a new game, select
New.
The object of the game is to drop your counters into the slots along the top of
X
Extras X
Page 39

Scizzors

φ Find it: g Menu
Games
X
Extras X
X
Scizzors
To start a new game, select
New.
The object of the game is to try and beat the computer
three objects - stone (1), paper (2) or scissors (3). When you do this, the phone
by selecting one of the
also selects one of the three objects.
The rules are simple:
Scissors (2 fingers out) cuts paper, so
scissors wins.
Paper (flat palm) wraps stone, so paper
wins.
Stone (fist) blunts scissors, so stone wins.Two of the same, results in a draw.

Pictures and Animations

You can send pictures and animations in text messages, or assign pictures to any main menu item, the wallpaper, the screensaver or a contact in your contacts list.
See the Messages chapter on Page 13 for details of sending and receiving pictures and animations.

Managing your pictures and animations

φ Find it: g Menu
Select the Pictures option to display all your pictures or select the Animations option to display all your animations. You can view the items in full screen mode by pressing g,
View. Use the : and ; keys to view each
item in turn. Use the : and ; keys to choose an item
and press g or d, Options to display the menu options listed below:
X
Extras
> Note: Not all options are available for
each item.
Select this To
Send Send the item in a text message.
Assign Assign the selected picture to any
Unassign Remove the association of the
Unassign all Removes the association of all
Delete Delete the selected item.
Delete all Delete all pictures or animations.
Memory Display the number of pictures or
> Note: You may be prevented
from sending pictures that are copy protected.
main menu item, the wallpaper, the screensaver or a contact in your contacts list. If you select the Main menu option a new sub-menu will be displayed. Select the menu name you would like to attach the picture to. If you select the Contacts option your contacts list will be displayed. Select the contact you would like to attach the picture to. When you make or receive a call to/from the contact, the picture will be displayed.
selected picture with an item.
pictures to any items. Press g,
OK to confirm.
animations on your phone.
11
Extras
[[[
35
]]]
Page 40

12 Troubleshooting

12
Problem Possible cause Possible corrective action
Phone does not power on/does not charge
Troubleshooting
Battery How long should I charge the
I don’t get as much battery life as I expected
“Insert SIM” is displayed when I switch on the phone
Delay in phone powering on No action required. Your Sendo S1 phone may take a
Battery empty Fully charge the battery and then press d.
Battery contacts dirty Clean contacts on battery and phone with a dry cloth,
Charger incorrectly connected Check the wall socket, and the connection to the
battery the first time?
The phone uses battery power when it is switched on even if it is not in a call. Making calls and playing with the different functions of the phone will run down the battery faster. The stated battery life is under optimum conditions.
SIM card is incorrectly inserted or missing.
few seconds to power up, this is normal.
Don’t worry if the battery icon does not change immediately, but do check if the charging icon has appeared after half an hour.
attach battery, wait a few seconds and press d.
phone.
12 hours continuous, while switched off.
Charge the phone regularly.For longer operation times, discharge the battery
from time to time by leaving your phone switched on until it turns itself off and the battery is fully discharged.
The battery can be charged and discharged
hundreds of times, but it will eventually wear out. When the operating time (talk time and standby time) is noticeably shorter than normal, it may be time to buy a new battery.
Check that the SIM card is positioned correctly. Try again.
The PIN code is blocked, or
My phone asks for a PUK code
The PIN2 code is blocked, or My phone asks for a PUK2 code
SIM card is damaged or dirty Visually check the SIM and clean the contacts with a
You have entered the PIN code incorrectly 3 times
You have entered the PIN2 code incorrectly 3 times
soft, dry cloth if necessary. Try again.
Enter the PUK (Personal Unlock Key) code supplied with the SIM card. If you do not have this code, contact your network service provider.
> Note: The number of incorrect entries depends on
your network service provider.
Enter the PIN2 PUK (Personal Unlock Key) code supplied with the SIM card. If you do not have this code, contact your network service provider.
> Note: The number of incorrect entries depends on
your network service provider.
36
[[[
]]]
Page 41
Problem Possible cause Possible corrective action
“NCK Code” is displayed on my handset
“Blocked” is displayed on my handset
There’s a problem with my received ringtone or picture
A key on the keypad is not working
Poor display Low temperature Move to a warmer place and let the phone warm up.
Can’t connect to network
Can’t make/receive calls
The handset is locked to a network and a SIM from another network has been placed in the phone
The NCK code has been entered incorrectly and the handset has been security disabled
Corrupt file Incompatible format Copy protected content
Key lock on The keypad may be locked. Check the screen for the
Screensaver is active Press c to return to normal display.
Wallpaper settings If you’ve added your own wallpaper, check that the
Weak signal You may be in an area of poor coverage. Move to an
Invalid SIM card Try switching your phone off and then back on.
Network not allowed Try reselecting the network. Switch off and then back
Weak signal Check that the service provider name is displayed on
Phone is switched off Press
Battery is low Phone can power down if the battery is very low.
Check the number Use the full area code and country code in the number.
Call key not pressed After dialing the number you must press
Network is busy If you hear rapid beeps, then the network is busy.
Remove the SIM and insert the correct network SIM. Sendo cannot supply your NCK code. If you wish to obtain your NCK code, contact the original network service provider the phone was purchased for use on.
! Warning: If you enter the wrong NCK code you
could block the phone.
Contact your network service provider for advice.
> Note: The number of incorrect NCK code entries
depends on your network service provider.
Contact your content provider for advice.
symbol. Press g and * in quick succession to
unlock the keypad.
picture does not clash with the text used on screen as this could make it difficult to read.
area with a better signal.
Try changing your network settings. See the
Network sel. (selection) section on Page 31 for details.
You may need to contact your network service
provider for advice.
on. If you are using your phone abroad, you may be restricted from certain networks - contact your network service provider for information.
the screen. If not, try to reconnect to the network or move to an area with a better signal.
d for a few seconds.
Charge the battery.
g, Call.
Hang up and try again or try in another area.
12
Troubleshooting
[[[
37
]]]
Page 42
12
Problem Possible cause Possible corrective action
Fixed names or call barring is activated
Troubleshooting
Not registered with network service provider
No credit left on your prepaid card
Low earpiece volume Low setting Press : when you are in a call to increase the volume.
Low ringtone volume or silent
Cannot enter some words
“Message list full” is displayed in the main screen
Some features do not work
Some menus are missing
My phone language is wrong
I can only enter names of up to 7 characters in my contacts list
“List full” is displayed on my Contacts screen
Note: For all other questions, support and service issues, please go to
>
www.sendo.com/support.
Low setting Go into the Sounds menu, select Volume and increase
Volume set to silent To enter/exit silent mode, you can press g then #
Wrong word displayed Your phone has T9 text input (i.e. it predicts what
Wrong entry mode To enter a special word press * repeatedly to
Your messages memory is full of text messages, therefore you cannot receive any more messages.
Feature not supported by the operator or your subscription.
There are restrictions on your SIM card or subscription.
Language changed by mistake or incorrect setting
Your phone is in Unicode mode. Change the Characters setting to GSM mode.
Contacts list full This will not cause problems using your phone, but if
Check the fixed names settings (in Contacts). Otherwise check the call barring settings with your network service provider.
φ Find it: d Contacts
After purchasing your phone, you may need to call your network service provider to activate the line.
Recharge your credit.
the setting.
φ Find it: g Menu
from the main screen. The silent symbol, is displayed on the main screen when the phone is in silent mode.
words you are trying to enter). When you finish a word, press 0 repeatedly to scroll through the possible words.
change to normal Multitap mode (α or β).
Go into the Inbox of the Messages menu and delete some of your messages.
φ Find it: g Menu
Contact your network service provider.
Contact your network service provider.
If the phone language is incorrect or changed by mistake, press and hold * from the main screen to display the language list. Scroll to the language you want (using : and ;) and press g.
φ Find it: g Menu
you want to add more contacts you must delete some existing contacts.
X
Fixed names
X
Sounds X Volume
X
Messages X Read
X
Messages X Settings
[[[
38
]]]
Page 43

13 Safety Information

IMPORTANT SAFETY INFORMATION You should observe and follow these guidelines for
the safe and efficient use of your phone. Failure to comply with these guidelines and requirements may void your warranty and may invalidate any approvals given to your phone.
! Warning: Read the phone’s User Guide before
using your phone.

Drive Safely

Do not use a hand-held phone while driving. Give your full attention to driving. If using a hand-held phone, pull over safely and park the vehicle in a safe location first. Always place the phone in its holder; do not place the phone on the passenger seat, near an airbag or where it can break loose in a collision or sudden stop.
Always obey local laws and regulations regarding the use of a cellular phone in the areas where you drive. In some areas, it is illegal to use a cellular telephone while driving, and hands-free operation is required in many other areas. Do not hold your phone in your hand while driving.
Do not use a headset (such as a headset that covers both ears) that interferes with your ability to hear emergency vehicle sirens or the warning horns of other vehicles. Driving safely always comes first!

Operation

Remember to follow any special regulations in force in any area and always switch off your phone whenever you are instructed not to use it, or when its use may be illegal or cause interference or danger. Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone.
Read the phone’s User Guide before using your phone. Also, read the user manual of any accessory or device and its operation and safety instructions before using it with your phone. Do not connect incompatible products.
Do not use your phone if the antenna is damaged. Replace the antenna only with one approved by the manufacturer. Unapproved antennas or modifications may damage your phone, degrade its performance causing SAR levels above the recommended limits (see the phone’s User Guide) and violate local regulations.
This phone is equipped with an internal antenna in the top part of the phone. Do not touch or cover the
antenna area unnecessarily while a call is in progress as it may interfere with reception. Contact with the antenna affects call quality and may cause your phone to transmit at a higher power level than otherwise needed and may shorten talk and standby times. Hold your phone as you would any other phone.
The charger is compatible only with power sources indicated on its label. Do not connect the charger to a power source of a different voltage, frequency or pin type. Do not use the charger outdoors or in areas where it may become wet. Unplug the charger from the wall socket using the body of the charger, not the cord. Locate the cord so that it will not be tripped over, stepped on or damaged. Do not use the charger if it is damaged. Unplug the charger from the wall socket before cleaning it. Use a slightly damp cloth for cleaning, and allow the charger to dry fully before plugging it in.
Only use accessories approved by Sendo. Using unapproved accessories with your phone may result in degraded performance, fire, electric shock or injury, and may void the warranty. Please check with your dealer for the availability of approved accessories. Your phone is intended for use only with chargers approved by the manufacturer. Any other use will invalidate any approval given to your phone and may be dangerous.

Children

Your phone is not a toy. Do not allow small children to play with it. They could hurt themselves or others. Children could also damage the phone or make calls that increase your telephone bill.

Pacemakers

Sendo recommends that a minimum separation of 6 inches (or 20 cm) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by, and recommendations of, Wireless Technology Research. Persons with pacemakers:
Should always keep the phone more than
6 inches (or 20 cm) from their pacemaker when the phone is switched on;
Should not carry the phone in a breast pocket;Should use the ear furthest away from the
pacemaker to minimize the potential for interference.
13
Safety Information
[[[
39
]]]
Page 44
13
If you have any reason to suspect that interference
is taking place, switch off your phone immediately.

Hearing Aids

Some wireless phones may interfere with some
Safety Information
hearing aids. In the event of such interference, you should consult your service provider.

Medical Equipment

Operation of wireless phones may interfere with inadequately protected medical devices. Consult a physician or the manufacturer of the medical device to determine if it is adequately shielded from external RF energy. Switch off your phone in hospitals and other health care facilities when any regulations posted in these areas instruct you to do so, as equipment that could be sensitive to external RF energy may be in operation.

Vehicles

RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles (e.g. electronic fuel injection systems, electronic anti-skid (anti-lock) braking systems, electronic speed control systems, air bag systems). Check with the supplier or its representative regarding your vehicle. You should also consult the supplier of any equipment that has been added to your vehicle.
Do not place your phone or any accessories in the area over an airbag or in the airbag’s deployment area. An airbag inflates with great force, and serious injury could occur.
Using your phone in a vehicle demands special considerations. The fitting of any accessories to a vehicle should only be undertaken by a suitably qualified person to ensure that vehicle systems are not adversely affected, and that the accessory gives optimum performance.
Only qualified personnel should service the phone, or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to the unit.
Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.
Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.
Switch off your phone before boarding a non­commercial aircraft or when instructed to do so on a
commercial airline. The use of wireless telephones in an aircraft may interfere with the operation of the aircraft and may be illegal.

Posted Areas

Switch off your phone in any area where posted notices so require.

Potentially Explosive Atmospheres

Switch off your phone and do not remove its battery when in any area with a potentially explosive atmosphere, and obey all signs and instructions. It is rare, but your phone or its accessories could generate sparks. Sparks in such areas could cause an explosion or fire resulting in property damage, bodily injury or even death. Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include: Fuelling areas, such as petrol stations, below deck on boats, and fuel or chemical transfer and storage facilities. Follow these guidelines also when you enter areas where fuel odors are present, such as when a gas leak occurs in a home; areas where the air contains chemicals or particles, such as grain, dust or metal powders; and any other area where you would normally be advised to switch off your vehicle engine.
Switch off your phone when at gas or petrol stations (service stations). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.

Blasting Areas

To avoid interfering with blasting operations, switch your phone off when in a “blasting area”or in areas posted “switch off two-way radio”. Obey all signs and instructions.

Emergency Calls

IMPORTANT! This phone, like any wireless phone, operates using
radio signals, wireless and landline networks as well as user-programmed functions that cannot guarantee connection in all conditions. Do not rely solely upon your wireless phone for emergency communications (e.g. medical emergencies).
Remember, to make or receive any calls, the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when
[[[
40
]]]
Page 45
certain network services and/or phone features are in use. Check with local service providers.
To make an emergency call:
1
If the phone is not on, switch it on.
> Note: Some networks may require that a valid
SIM card be properly inserted in the phone.
2
Key in the emergency number for your present location (e.g. 911, 112 or other official emergency number). Emergency numbers vary by location.
3
Press the phone’s Call key.
If certain features are in use (Key guard, Locking, Call Restricting, etc.), you may first need to switch those features off before you can make an emergency call.
When making an emergency call, follow all instructions of the emergency operation and do not hang up until requested to do so.

Servicing

Do not attempt to disassemble or repair your phone, as you may damage the phone or injure yourself and will void your warranty. Only qualified personnel at an authorized service centre should perform repairs. Your phone does not contain any consumer serviceable parts. Make back up copies of all data and delete security sensitive data before sending your phone in for repair.

Back Up Data

To avoid loss of important information, remember to make back up copies of all data regularly.

Disposal

Your battery and other components may require precautions to be taken for safe disposal. The battery type is indicated on the battery label. Please follow all local and/or governmental laws and regulations when disposing of your phone or battery.

Care and Maintenance

Follow these care and maintenance instructions to improve the performance and life of your phone. Failure to follow the suggestions may invalidate your phone’s warranty:
Keep it and all its parts and accessories out of
small children's reach.
Keep it dry.Do not use or store it in dusty or dirty areas.Do not attempt to take the phone apart. Do not drop, throw or shake it. Do not use soaps, chemicals, cleaning solvents,
or strong detergents to clean it. Use a moist cloth to wipe it.
Avoid exposing your phone to any severe shocks,
extreme (hot or cold) temperatures or moisture.
Keep your phone away from open flames such as
lit candles or cigarettes.
Use only the supplied or an approved
replacement antenna. Unauthorized antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.
If the phone, battery, or any accessory is not
working properly, take it to your nearest qualified service facility. Back up all data before taking your phone to a service centre as maintenance or recovery of data is not guaranteed. If you have any sensitive information, please back it up and then delete it from your phone before taking your phone to the service centre.
13
Safety Information
[[[
41
]]]
Page 46

14 Warranty Statement

14

Americas Warranty

Sendo America, Inc. ("SENDO”) warrants, subject to the exclusions and limitations set forth below, that this cellular phone ("Product") is free from defects in material and workmanship that result in Product failure during normal usage, according to the following terms and conditions:
Warranty Statement
1. The limited warranty for the Product extends for ONE (1) year beginning on the date of the purchase of the Product or FIFTEEN (15) months from the date of its manufacture as determined by the date code in the Product. Any repaired phone is only warranted for the remainder of the original warranty period or 90 days from the date of repair, whichever is longer.
2. The limited warranty extends to the original purchaser of the Product ("Consumer") and is not assignable or transferable to any subsequent purchaser or user.
3. The Limited warranty extends only to Consumers who purchase the Product in the market for its intended sale.
4. During the limited warranty period, SENDO will repair, or replace, at SENDO's sole option, any defective parts, or any parts that will not properly operate for their intended use with new or refurbished replacement items if such repair or replacement is needed because of malfunction or failure of the Product during normal usage. No charge will be made to the Consumer for any such parts. SENDO will also pay for the labor charges incurred by SENDO in repairing or replacing the defective parts. The limited warranty does not cover defects in appearance, cosmetic, decorative or structural items, including framing, and any non­operative parts. This limited warranty does not apply to any damage or failure to operate caused by use of the product other than in accordance with the instructions contained in the User Manual or this booklet, or for periodic maintenance or repair due to normal wear and tear. SENDO's limit of liability under the limited warranty shall be the actual cash value of the Product at the time the Consumer returns the Product for repair, determined by the price paid by the Consumer for the Product less a reasonable amount for usage. SENDO shall not be liable for any other losses or damages. These remedies are the Consumer's exclusive remedies for breach of warranty. Replaced parts become Sendo’s property.
5. Upon request from SENDO, the Consumer must prove the date of the original purchase of the Product by a dated bill of sale or dated itemized receipt.
6. The Consumer shall bear the cost of taking or shipping the Product to the place of purchase or the
Customer Service Department of SENDO. If the Product was taken to the place of purchase, the Consumer shall bear the cost of retrieving the Product. If shipped to SENDO, SENDO shall bear the cost of shipping the Product back to the Consumer after the completion of service under this limited warranty and provided that repairs were required to be performed under this limited warranty.
7. The Consumer shall have no coverage or benefits under this limited warranty if any of the following conditions are applicable:
a) The Product has been subject to extreme high or low temperatures, abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of SENDO, including damage caused by shipping.
b) Physical damage to the surface of the Product, including scratches or cracks in or to the outside casing or LCD, or damages caused by dropping the Product.
c) The Product has been damaged from external causes such as liquid, water, humidity, collision with an object, or from fire, flooding, sand, dirt, windstorm, lightening, earthquake or damage from exposure to weather conditions, an Act of God, or battery leakage, theft, blown fuse, or improper use of any electrical source, damage caused by computer or internet viruses, bugs, worms, Trojan Horses, cancelbots or damage caused by the connection to other products not recommended for interconnection by SENDO or damage caused by use of non SENDO-approved accessories.
d) The Product has been altered or repaired by anyone other than an approved SENDO service center or if it has been used with unapproved accessories or other ancillary items.
e) For adaptations or adjustments made to the Product to comply with local standards in any country other than one for which the Product was designed and manufactured.
f) Loss or integrity of any user data stored in the Product or any storage device used in conjunction with the Product at any time.
g) The Customer Service Department at SENDO was not advised by the Consumer in writing of the alleged defect or malfunction of the Product within fourteen (14) days after the expiration of the applicable limited warranty period.
[[[
42
]]]
Page 47
h) The Product serial number plate or the accessory data code has been removed, defaced or altered.
i) The defect or failure to operate was caused by defective function of the cellular system or by inadequate signal reception.
8. If a problem develops during the limited warranty period, the Consumer shall take the following step­by-step procedure:
a) The Consumer shall return the Product to the place of purchase for repair or replacement processing. Back up all data before returning the Product for repair. If the Consumer has sensitive information stored on the Product, the Consumer must copy it to another device and delete it from the Product before repair.
b) If "a" is not convenient because of distance (more than 50 miles) or for other good cause, the Consumer may contact the Customer Service Department at SENDO, at the phone number listed on the bottom of the next page, for further instructions.
c) The Consumer shall ship the Product prepaid and insured. Expenses related to removing the Product from an installation are not covered under this limited warranty.
d) The Consumer will be billed for any parts or labor charges not covered by this limited warranty. The Consumer will be responsible for any expenses related to reinstallation of the Product.
e) SENDO will repair or authorize the repair of the Product under the limited warranty within 30 days after receipt of the Product by SENDO or an SENDO authorized service center. If SENDO cannot perform repair covered under this limited warranty within 30 days, or after a reasonable number of attempts to repair the same defect, SENDO at its sole option, will provide a replacement Product or refund the purchase price of the Product less a reasonable amount for usage.
f) If the Product is returned to the Customer Service Department at SENDO during the limited warranty period, but the problem with the Product is not covered under the terms and conditions of this limited warranty, the Consumer will be notified and given an estimate of the charges the Consumer must pay to have the Product repaired, with all shipping charges billed to the Consumer. If the estimate is refused, the Product will be returned freight collect. If the Product is returned to the Customer Service Department at SENDO after the expiration of the limited warranty period, SENDO's normal service policies shall apply and the Consumer will be responsible for all shipping charges.
[[[
9. The Product consists of newly assembled equipment that may contain used components that have been reprocessed to allow machine compliance with Product performance and reliability specifications.
10. ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY. OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE CONSUMER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. SENDO DOES NOT WARRANT UNINTERRUPTED OR ERROR FREE VOICE, INTERNET OR DATA CONNECTIONS. SENDO SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO, LOSS OF ANTICIPATED BENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, LOSS OF DATA, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR FACILITIES, DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING CUSTOMERS, AND INJURY TO PROPERTY, RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE THEORY, EVEN IF SENDO KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. SENDO SHALL NOT BE LIABLE FOR DELAY IN RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE PRODUCT IS BEING REPAIRED OR LOSS OF DATA.
11. Some jurisdictions do not allow limitation of how long an implied warranty lasts, so the above one year warranty limitation may not apply to you (the Consumer). Some jurisdictions do not allow the exclusion or limitation of incidental and consequential damages, so certain of the above limitations or exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may also have other rights that vary from jurisdiction to jurisdiction.
12. SENDO neither assumes nor authorizes any authorized service center or any other person or entity to assume for it any other obligation or liability beyond that which is expressly provided for in this limited warranty including the provider or seller of any extended warranty or service agreement.
43
]]]
14
Warranty Statement
Page 48
14
13. This is the entire warranty between SENDO and the Consumer, and supersedes all prior and contemporaneous agreements or understandings, oral or written, and all communications relating to the Product, and no representation, promise or condition not contained herein shall modify these terms.
Warranty Statement
14. This limited warranty allocates the risk of failure of the Product between the Consumer and SENDO. The allocation is recognized by the Consumer and is reflected in the purchase price of the Product.
15. Any action or lawsuit for breach of warranty must be commenced within eighteen (18) months following delivery of the Product.
16. Questions concerning this limited warranty may be directed to: www.sendo.com/warranty.
17. The limited warranty period for SENDO accessories are specifically defined within their own warranty cards and packaging.
> Note: If you require more information or further
assistance then visit www.sendo.com/support.
[[[
44
]]]
Page 49

15 End User License Agreement

END USER SOFTWARE LICENSE AGREEMENT This Software License Agreement (“Agreement”) is
between You and Sendo International Ltd and/or one of its affiliates (“Licensor”). The Agreement authorizes you to use the Software specified in Clause 1 below, which may be included on your phone, stored on a CD-ROM, sent to you by electronic mail, downloaded from Licensor's Web pages or servers or from other sources under the terms and conditions set forth below. This is an agreement on end user rights and not an agreement for sale. Licensor continues to own the copy of the Software and any other copy that you are authorized to make pursuant to this Agreement.
Read this Agreement carefully before installing, downloading or using the Software. Further, by installing, downloading and/or using the Software, you agree to the terms and conditions of this Agreement.
1. SOFTWARE. As used in this Agreement, the term “Software”
means, collectively: (i) all the software in your phone, all of the contents of the disk(s), CD-ROM(s), electronic mail and its file attachments, or other media with which this Agreement is provided; (ii) related Licensor or third party software; (iii) digital images, stock photographs, clip art or other artistic works (“Stock Files”) (iv) related explanatory written materials (“Documentation”); (v) fonts (vi) upgrades, modified versions, updates, additions and copies of the Software, if any, licensed to you by Licensor (collectively “Updates”) and (vii) any other possible documentation related thereto.
2. END USER RIGHTS AND USE. Licensor grants to you a non-exclusive, non-
transferable end user right to install the Software or use the Software installed on the phones. The Software is licensed with the phone as a single integrated product and may be used with the phone only as set forth in these licensing terms.
3. LIMITATIONS ON END USER RIGHTS. (a) You may not copy, distribute, or make derivative
works of the Software. (b) You may not use, modify, translate, reproduce or
transfer the right to use the Software or copy the Software except as expressly provided in this Agreement.
(c) You may not resell, sublicense, rent, lease or lend the Software; except you may permanently transfer all of your rights as set forth in the Agreement only as part of a permanent sale or transfer of the phone,
provided the recipient agrees to the terms of this Agreement.
(d) You may not reverse engineer, reverse compile, disassemble or otherwise attempt to discover the source code of the Software (except to the extent that this restriction is expressly prohibited by law) or create derivative works based on the Software.
(e) You shall not display, modify, reproduce and distribute any of the Stock Files included with the Software.
(f) You agree that you shall only use the Software in a manner that complies with all applicable laws in the jurisdiction in which you use the Software, including, but not limited to, applicable restrictions concerning copyright and other intellectual property rights.
4. COPYRIGHT. Licensor and/or its software suppliers own the
Software and all rights, without limitation including proprietary rights therein, and their respective affiliates and are protected by international treaty provisions and other applicable national laws of the country in which it is being used. The structure, organization and code of the Software are valuable trade secrets and confidential information.
5. MULTIPLE COPIES / UPDATES. If the Software supports multiple platforms or
languages, if you receive the Software on multiple media, or if you otherwise receive multiple copies of the Software, the number of phones on which all versions of the Software are installed shall be one phone. If the Software is an Update to a previous version of the Software, you must possess a valid end user right to such previous version in order to use the Update and you may use the previous version for ninety (90) days after you receive the Update in order to assist you in the transition to the Update. After such time you no longer have a right to use the previous version, except for the sole purpose of enabling you to install the Update.
6. COMMENCEMENT & TERMINATION. This Agreement is effective from the first date you use
or install the Software. Your end user rights automatically and immediately terminate without notice from Licensor if you fail to comply with any provision of this Agreement. In such event, you must immediately delete, destroy or return at your own cost and expense, and without entitlement to any refund of the purchase price, the phone and the Software, and all related material to Licensor.
7. EXCEPT AS EXPRESSLY PROVIDED IN THE LIMITED WARRANTY FOR THE PHONE, YOU
15
End User License Agreement
[[[
45
]]]
Page 50
15
ACKNOWLEDGE THE SOFTWARE IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW NEITHER LICENSOR, LICENSOR’S SOFTWARE SUPPLIERS OR THEIR RESPECTIVE AFFILIATES, NOR THE COPYRIGHT HOLDERS MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A P ARTICULAR PURPOSE OR THAT THE SOFTWARE WILL NOT
End User License Agreement
INFRINGE ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADEMARKS OR OTHER RIGHTS. THERE IS NO WARRANTY BY LICENSOR OR BY ANY OTHER PARTY THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR­FREE.
8. NOT FAULT TOLERANT THE SOFTWARE MAY CONTAIN TECHNOLOGY
THAT IS NOT FAULT TOLERANT AND IS NOT DESIGNED, MANUFACTURED, OR INTENDED FOR USE IN ENVIRONMENTS OR APPLICATIONS IN WHICH THE FAILURE OF THE LICENSED SOFTWARE COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE OR FINANCIAL LOSS.
9. LIMITATION OF LIABILITY. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO EVENT SHALL LICENSOR OR LICENSOR’S SOFTWARE SUPPLIERS OR THEIR RESPECTIVE AFFILIATES AND EMPLOYEES BE LIABLE FOR ANY LOST PROFITS, REVENUE, SALES, DATA OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, PROPERTY DAMAGE, PERSONAL INJURY, INTERRUPTION OF BUSINESS, LOSS OF BUSINESS INFORMATION OR FOR ANY SPECIAL, DIRECT, INDIRECT, INCIDENTAL, ECONOMIC, COVER, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND WHETHER ARISING UNDER CONTRACT, TORT, NEGLIGENCE, OR OTHER THEORY OF LIABILITY ARISING OUT OF THE USE OF OR INABILITY TO USE THE SOFTWARE, EVEN IF LICENSOR OR ITS SOFTWARE SUPPLIERS ARE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME COUNTRIES/STATES/ JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY, BUT MAY ALLOW LIABILITY TO BE LIMITED, IN SUCH CASES, THE LIABILITY OF LICENSOR, ITS SOFTWARE SUPPLIERS AND THEIR RESPECTIVE AFFILIATES AND EMPLOYEES SHALL BE LIMITED TO, AT LICENSOR’S
OPTION, EITHER (A) RETURN OF THE PRICE PAID LESS A REASONABLE AMOUNT FOR USAGE, OR ( B) REPAIR OR REPLACEMENT OF THE SOFTWARE THAT DOES NOT MEET THE LIMITED WARRANTY PROVIDED WITH THE PHONE AND WHICH IS RETURNED IN ACCORDANCE WITH THE REQUIREMENTS OF THE LIMITED WARRANTY. Nothing contained in this Agreement shall prejudice the statutory rights of any party dealing as a consumer. Nothing contained in this Agreement limits Licensor's liability to You in the event of death or personal injury resulting from Licensor's negligence if law prohibits such a limitation. Licensor is acting on behalf of its software suppliers and their respective employees and affiliates for the purpose of disclaiming, excluding and/or restricting obligations, warranties and liability as provided in this clause 9, but in no other respects and for no other purpose.
10. TECHNICAL SUPPORT. Licensor has no obligation to furnish You with
technical support except as agreed in writing between You and Licensor in the Limited Warranty provided with the phone.
11. EXPORT CONTROL. The Software may be subject to export regulation of
the United Kingdom and other countries. You agree that You shall comply with all applicable export laws, restrictions and regulations of the United Kingdom or foreign agencies or authorities, and shall not export, or transfer for the purpose of re-export, any Software, product or technical data received under this Agreement or any Software or product produced by use of such technical data, including processes and services, in violation of any applicable restrictions, laws or regulations, or without all necessary approvals.
12. APPLICABLE LAW & GENERAL PROVISIONS. This Agreement shall be governed by and construed
in accordance with the internal laws of the United Kingdom without regard to its conflicts of laws rules.
This is the entire agreement between Licensor and you relating to the Software and it supersedes any prior representations, discussions, undertakings, end user agreements, communications or advertising relating to the Software.
46
[[[
]]]
Page 51

16 Regulatory Statements

The U.S. Food and Drug Administration’s Center for Devices and Radiological Health, Consumer Update on Mobile Phones

FDA has been receiving inquiries about the safety of mobile phones, including cellular phones and PCS phones. The following summarizes what is known— and what remains unknown—about whether these products can pose a hazard to health, and what can be done to minimize any potential risk. This information may be used to respond to questions.

Why the concern?

Mobile phones emit low levels of radiofrequency energy (i.e. radiofrequency radiation) in the microwave range while being used. They also emit very low levels of radiofrequency energy (RF), considered non-significant, when in the stand-by mode. It is well known that high levels of RF can produce biological damage through heating effects (this is how your microwave oven is able to cook food). However, it is not known whether, to what extent, or through what mechanism, lower levels of RF might cause adverse health effects as well. Although some research has been done to address these questions, no clear picture of the biological effects of this type of radiation has emerged to date. Thus, the available science does not allow us to conclude that mobile phones are absolutely safe, or that they are unsafe. However, the available scientific evidence does not demonstrate any adverse health effects associated with the use of mobile phones.

What kinds of phones are in question?

Questions have been raised about hand-held mobile phones, the kind that have a built-in antenna that is positioned close to the user’s head during normal telephone conversation. These types of mobile phones are of concern because of the short distance between the phone’s antenna—the primary source of the RF— and the person’s head. The exposure to RF from mobile phones in which the antenna is located at greater distances from the user (on the outside of a car, for example) is drastically lower than that from hand-held phones, because a person’s RF exposure decreases rapidly with distance from the source. The safety of so-called "cordless phones," which have a base unit connected to the telephone wiring in a house and which operate at far lower power levels and frequencies, has not been questioned.

How much evidence is there that hand-held mobile phones might be harmful?

Briefly, there is not enough evidence to know for sure, either way; however, research efforts are on­going. The existing scientific evidence is conflicting and many of the studies that have been done to date have suffered from flaws in their research methods. Animal experiments investigating the effects of RF exposures characteristic of mobile phones have yielded conflicting results. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. In one study, mice genetically altered to be predisposed to developing one type of cancer developed more than twice as many such cancers when they were exposed to RF energy compared to controls. There is much uncertainty among scientists about whether results obtained from animal studies apply to the use of mobile phones. First, it is uncertain how to apply the results obtained in rats and mice to humans. Second, many of the studies that showed increased tumor development used animals that had already been treated with cancer­causing chemicals, and other studies exposed the animals to the RF virtually continuously—up to 22 hours per day.
For the past five years in the United States, the mobile phone industry has supported research into the safety of mobile phones. This research has resulted in two findings in particular that merit additional study:
1
In a hospital-based, case-control study, researchers looked for an association between mobile phone use and either glioma (a type of brain cancer) or acoustic neuroma (a benign tumor of the nerve sheath). No statistically significant association was found between mobile phone use and acoustic neuroma. There was also no association between mobile phone use and gliomas when all types of types of gliomas were considered together. It should be noted that the average length of mobile phone exposure in this study was less than three years.
When 20 types of glioma were considered separately, however, an association was found between mobile phone use and one rare type of glioma, neuroepithelliomatous tumors. It is possible with multiple comparisons of the same sample that this association occurred by chance. Moreover, the risk did not increase with how often the mobile phone was used, or the length of the
47
[[[
]]]
16
Regulatory Statements
Page 52
16
calls. In fact, the risk actually decreased with cumulative hours of mobile phone use. Most cancer-causing agents increase risk with increased exposure. An ongoing study of brain cancers by the National Cancer Institute is expected to bear on the accuracy and repeatability of these results1.
2
Researchers conducted a large battery of laboratory tests to assess the effects of exposure
Regulatory Statements
to mobile phone RF on genetic material. These included tests for several kinds of abnormalities, including mutations, chromosomal aberrations, DNA strand breaks, and structural changes in the genetic material of blood cells called lymphocytes. None of the tests showed any effect of the RF except for the micronucleus assay, which detects structural effects on the genetic material. The cells in this assay showed changes after exposure to simulated cell phone radiation, but only after 24 hours of exposure. It is possible that exposing the test cells to radiation for this long resulted in heating. Since this assay is known to be sensitive to heating, heat alone could have caused the abnormalities to occur. The data already in the literature on the response of the micronucleus assay to RF are conflicting. Thus, follow-up research is necessary2.
FDA is currently working with government, industry, and academic groups to ensure the proper follow-up to these industry-funded research findings. Collaboration with the Cellular Telecommunications Industry Association (CTIA) in particular is expected to lead to FDA providing research recommendations and scientific oversight of new CTIA-funded research based on such recommendations.
Two other studies of interest have been reported recently in the literature:
1
Two groups of 18 people were exposed to simulated mobile phone signals under laboratory conditions while they performed cognitive function tests. There were no changes in the subjects’ ability to recall words, numbers, or pictures, or in their spatial memory, but they were able to make choices more quickly in one visual test when they were exposed to simulated mobile phone signals. This was the only change noted among more than 20 variables compared3.
2
In a study of 209 brain tumor cases and 425 matched controls, there was no increased risk of brain tumors associated with mobile phone use. When tumors did exist in certain locations, however, they were more likely to be on the side of the head where the mobile phone was used. Because this occurred in only a small number of
cases, the increased likelihood was too small to be statistically significant4.
In summary, we do not have enough information at this point to assure the public that there are, or are not, any low incident health problems associated with use of mobile phones. FDA continues to work with all parties, including other federal agencies and industry, to assure that research is undertaken to provide the necessary answers to the outstanding questions about the safety of mobile phones.
What is known about cases of human cancer that have been reported in users of hand­held mobile phones?
Some people who have used mobile phones have been diagnosed with brain cancer. But it is important to understand that this type of cancer also occurs among people who have not used mobile phones. In fact, brain cancer occurs in the U.S. population at a rate of about 6 new cases per 100,000 people each year. At that rate, assuming 80 million users of mobile phones (a number increasing at a rate of about 1 million per month), about 4800 cases of brain cancer would be expected each year among those 80 million people, whether or not they used their phones. Thus it is not possible to tell whether any individual’s cancer arose because of the phone, or whether it would have happened anyway. A key question is whether the risk of getting a particular form of cancer is greater among people who use mobile phones than among the rest of the population. One way to answer that question is to compare the usage of mobile phones among people with brain cancer with the use of mobile phones among appropriately matched people without brain cancer. This is called a case-control study. The current case-control study of brain cancers by the National Cancer Institute, as well as the follow-up research to be sponsored by industry, will begin to generate this type of information.

What is FDA’s role concerning the safety of mobile phones?

Under the law, FDA does not review the safety of radiation-emitting consumer products such as mobile phones before marketing, as it does with new drugs or medical devices. However, the agency has authority to take action if mobile phones are shown to emit radiation at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of mobile phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists. Although the existing scientific data do not justify FDA
48
[[[
]]]
Page 53
regulatory actions at this time, FDA has urged the mobile phone industry to take a number of steps to assure public safety. The agency has recommended that the industry:
support needed research into possible biological
effects of RF of the type emitted by mobile phones;
Design mobile phones in a way that minimizes
any RF exposure to the user that is not necessary for device function; and
cooperate in providing mobile phone users with
the best possible information on what is known about possible effects of mobile phone use on
human health. At the same time, FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of mobile phone safety to ensure a coordinated effort at the federal level. These agencies are:
National Institute for Occupational Safety and
Health
Environmental Protection AgencyFederal Communications CommissionOccupational Health and Safety AdministrationNational Telecommunications and Information
Administration The National Institute of Health also participates in
this group. In the absence of conclusive information about any
possible risk, what can concerned individuals do? If there is a risk from these products—and at this
point we do not know that there is—it is probably very small. But if people are concerned about avoiding even potential risks, there are simple steps they can take to do so. For example, time is a key factor in how much exposure a person receives. Those persons who spend long periods of time on their hand-held mobile phones could consider holding lengthy conversations on conventional phones and reserving the hand-held models for shorter conversations or for situations when other types of phones are not available.
People who must conduct extended conversations in their cars every day could switch to a type of mobile phone that places more distance between their bodies and the source of the RF, since the exposure level drops off dramatically with distance. For example, they could switch to
a mobile phone in which the antenna is located
outside the vehicle,
a hand-held phone with a built in antenna
connected to a different antenna mounted on the outside of the car or built into a separate package
or
a headset with a remote antenna to a mobile
phone carried at the waist. Again, the scientific data do not demonstrate that mobile phones are harmful. But if people are
concerned about the radiofrequency energy from these products, taking the simple precautions outlined above can reduce any possible risk.

Where can I find additional information?

For additional information, see the following websites:
Federal Communications Commission (FCC) RF Safety Program (select "Information on Human Exposure to RF Fields from Cellular and PCS Radio Transmitters"): http://www.fcc.gov/oet/rfsafety
World Health Organization (WHO) International Commission on Non-Ionizing Radiation Protection (select Qs & As): http://www.who.int/emf
United Kingdom, National Radiological Protection Board: http://www.nrpb.org.uk
Cellular Telecommunications Industry Association (CTIA): http://www.wow-com.com
U.S. Food and Drug Administration (FDA) Center for Devices and Radiological Health: http://www.fda.gov/cdrh/consumer/
1 Muscat et al. Epidemiological Study of Cellular Telephone Use and Malignant Brain Tumors. In: State of the Science Symposium;1999 June 20; Long Beach, California.
2 Tice et al. Tests of mobile phone signals for activity in genotoxicity and other laboratory assays. In: Annual Meeting of the Environmental Mutagen Society; March 29, 1999, Washington, D.C.; and personal communication, unpublished results.
3 Preece, AW, Iwi, G, Davies-Smith, A, Wesnes, K, Butler, S, Lim, E, and Varey, A. Effect of a 915-MHz simulated mobile phone signal on cognitive function in man. Int. J. Radiat. Biol., April 8, 1999.
4 Hardell, L, Nasman, A, Pahlson, A, Hallquist, A and Mild, KH. Use of cellular telephones and the risk for brain tumors: a case-control study. Int. J. Oncol., 15: 113-116, 1999.
16
Regulatory Statements
[[[
49
]]]
Page 54
16

Sendo SAR Statement

THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Regulatory Statements
Communications Commission of the U.S. Government and by Health Canada for Canada. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by Health Canada is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC and Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public in the US and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by the government­adopted requirement for safe exposure. The tests are performed in positions and locations (for example, at the ear and worn on the body) as required by the FCC and Industry Canada for each model. The highest SAR value for this model phone as reported to the FCC and Industry Canada when tested for use at the ear is 0.931 W/kg, and when worn on the body, as described in this user guide, is 0.767 W/kg. ** (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http:// www.fcc.gov/oet/fccid after searching on P6PSND321. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with the Sendo accessories supplied or designed for this product, or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body.
Use of non-Sendo-approved accessories may violate FCC RF exposure guidelines and should be avoided.
* In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/ kg) averaged over one gram of tissue and allows for testing and other tolerances. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements and during production.
** The value stated is for the samples tested, and applies to the GSM 850 MHz and 1900 MHz bands. Your phone may contain other bands that allow it to operate in other regions and complies with specific absorption rate (SAR) limits, applicable in those regions.

Regulatory compliance

Your phone has been designed to comply with applicable standards when used correctly in accordance with the user instructions. Sendo GSM 850/1900 phones and accessories have been tested and certified for compliance with the following FCC and international standards, as applicable:

FCC (USA) Standards

FCC Part 24 (47CFR): 2004 - Sections: 24.232;
24.235; 24.238 FCC Part 22 (47CFR): 2004 - Sections: 22.355;
22.913; 22.197 FCC Part 15 (47CFR): 2004 Class B - Sections:
15.107; 15.109 FCC Part 2 (47CFR): 2004 - Sections: 2.1046;
2.1049; 2.1051; 2.1055
[[[
50
]]]
Page 55

International Standards

IEC/UL60950 (Electrical Safety) CSA C22.2 No 60950-00:2000, 3rd Edition
(Canada electrical safety) 3GPP TS 51.010-1 - V5.0.0 September 2002
Release 5 3GPP TS 51.010-1 - V5.0.0 September 2002
Release 5

International SAR (Human Exposure) Standards

IEEE Std. C95.1 / C95.3 (USA) OET Bulletin 65 Supplement C: (2001-01)
16
Regulatory Statements
[[[
51
]]]
Loading...
