SendFar Technology OAP-02002 Users Manual

Download

■

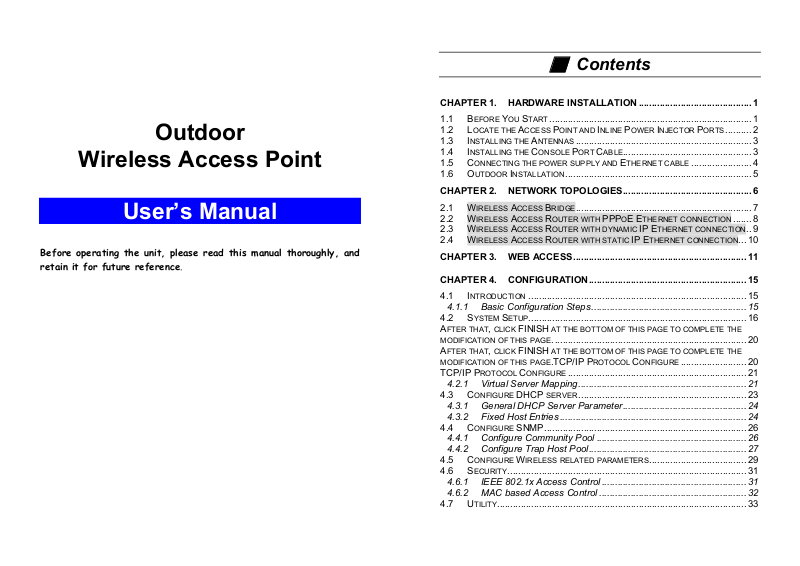

Contents

CHAPTER 1. HARDWARE INSTALLATION ........................................... 1

Outdoor

Wireless Access Point

User’s Manual

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

1.1 B

1.2 L

1.3 I

1.4 I

1.5 C

1.6 O

EFORE YOU START

OCATE THE ACCESS POINT AND INLINE POWER INJECTOR PORTS NSTALLING THE ANTENNAS NSTALLING THE CONSOLE PORT CABLE

ONNECTING THE POWER SUPPLY AND ETHERNET CABLE

UTDOOR INSTALLATION

............................................................................. 1

.......... 2

................................................................... 3

................................................. 3

....................... 4

....................................................................... 5

CHAPTER 2. NETWORK TOPOLOGIES................................................. 6

IRELESS ACCESS BRIDGE

2.1

2.2 W

2.3 W

2.4 W

IRELESS ACCESS ROUTER WITH IRELESS ACCESS ROUTER WITH DYNAMIC IRELESS ACCESS ROUTER WITH STATIC

................................................................... 7

PPPOE E

THERNET CONNECTION

IP E

THERNET CONNECTION

IP E

....... 8

.. 9

... 10

CHAPTER 3. WEB ACCESS.................................................................. 11

CHAPTER 4. CONFIGURATION............................................................ 15

4.1 I

NTRODUCTION

................................................................................... 15

4.1.1 Basic Configuration Steps........................................................... 15

4.2 S A

MODIFICATION OF THIS PAGE

TCP/IP P

YSTEM SETUP

FTER THAT, CLICK

ROTOCOL CONFIGURE

................................................................................... 16

FINISH

AT THE BOTTOM OF THIS PAGE TO COMPLETE THE

. ......................................................................... 20

FINISH

AT THE BOTTOM OF THIS PAGE TO COMPLETE THE

.TCP/IP P

ROTOCOL CONFIGURE

......................... 20

.................................................................... 21

4.2.1 Virtual Server Mapping................................................................ 21

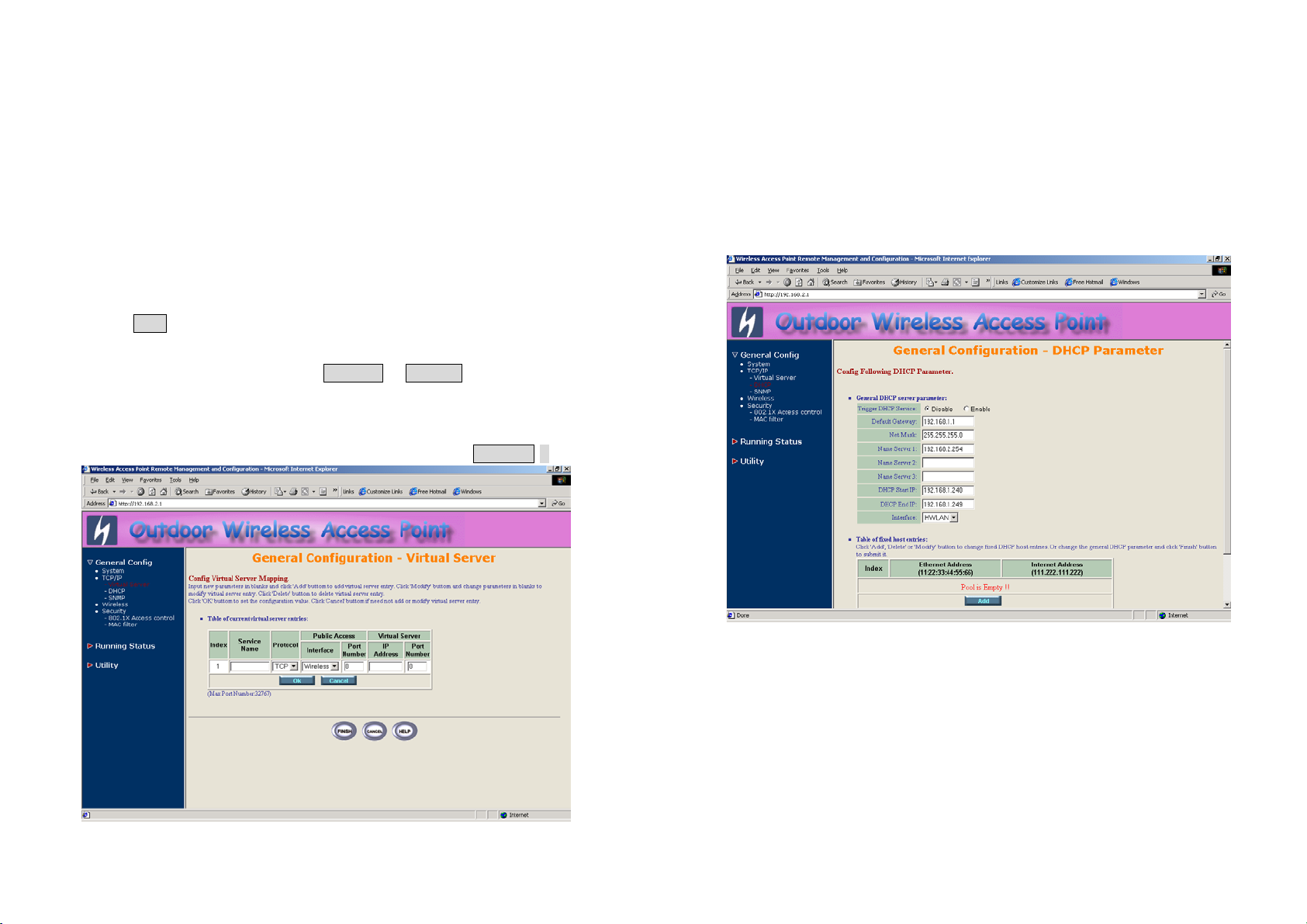

4.3 C

ONFIGURE

DHCP

SERVER

................................................................ 23

4.3.1 General DHCP Server Parameter............................................... 24

4.3.2 Fixed Host Entries ....................................................................... 24

4.4 C

ONFIGURE

SNMP............................................................................. 26

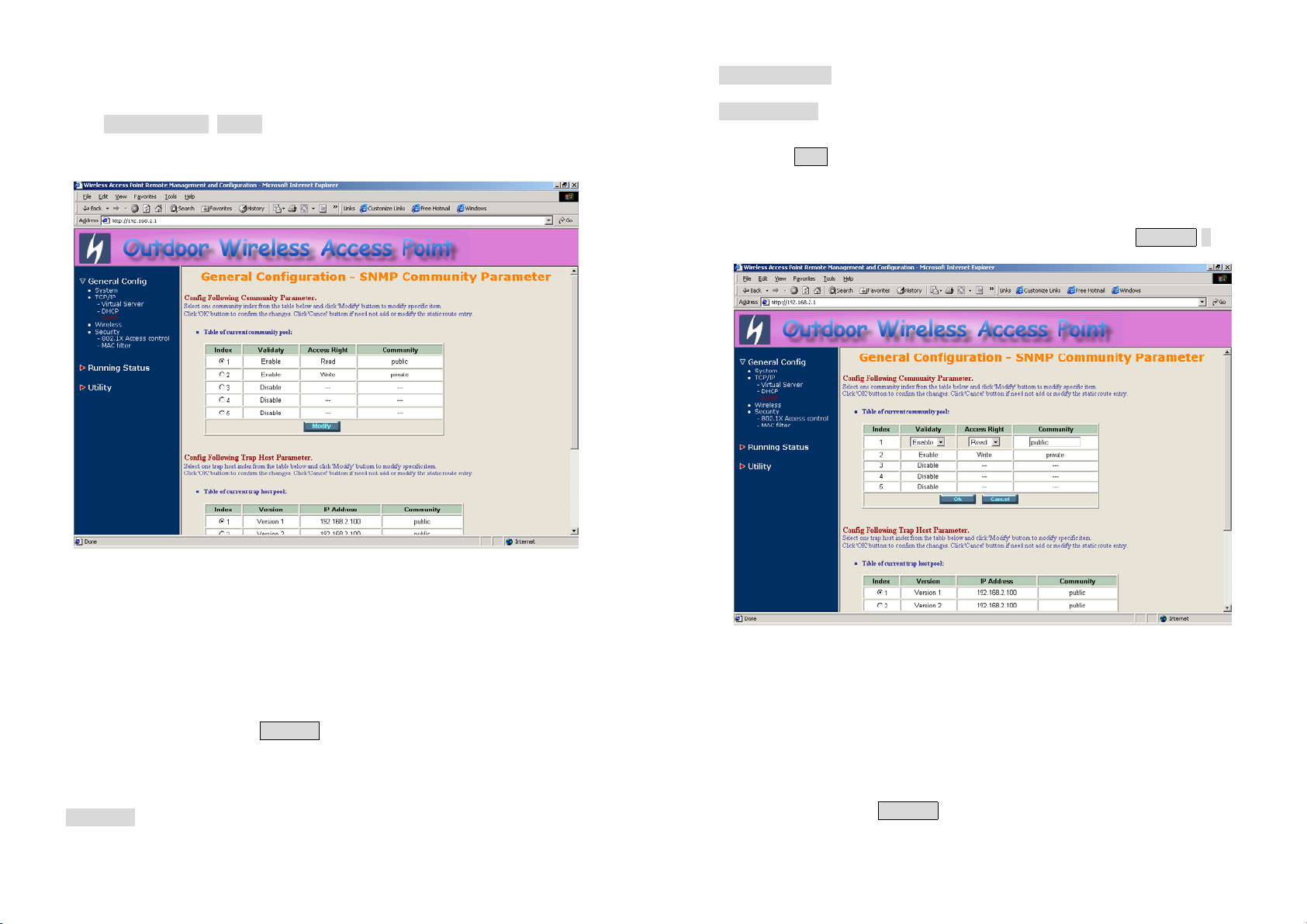

4.4.1 Configure Community Pool ......................................................... 26

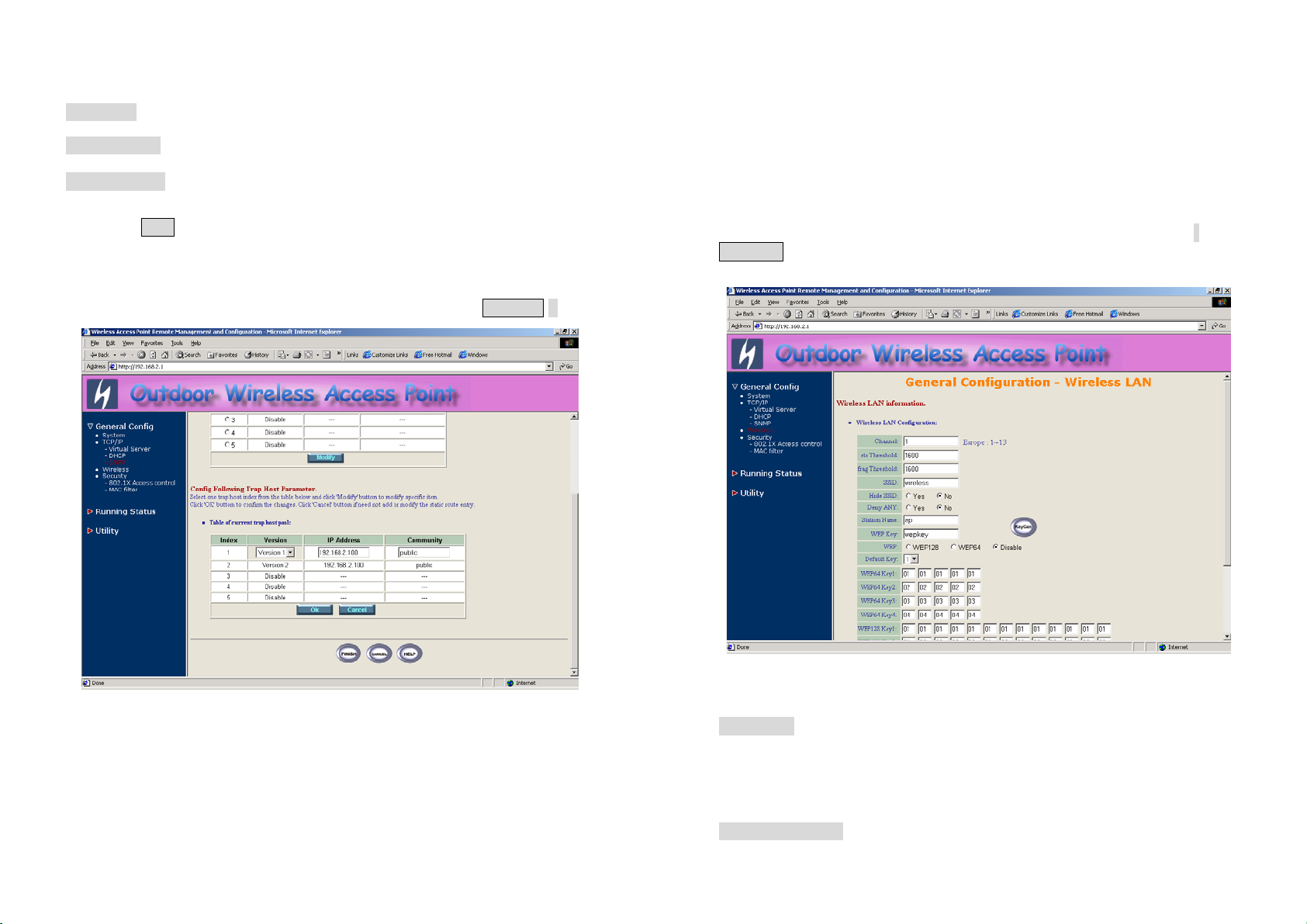

4.4.2 Configure Trap Host Pool............................................................ 27

4.5 C

4.6 S

ONFIGURE WIRELESS RELATED PARAMETERS ECURITY

........................................................................................... 31

..................................... 29

4.6.1 IEEE 802.1x Access Control ....................................................... 31

4.6.2 MAC based Access Control ........................................................32

4.7 U

TILITY

............................................................................................... 33

4.7.1 Software Upgrade ....................................................................... 33

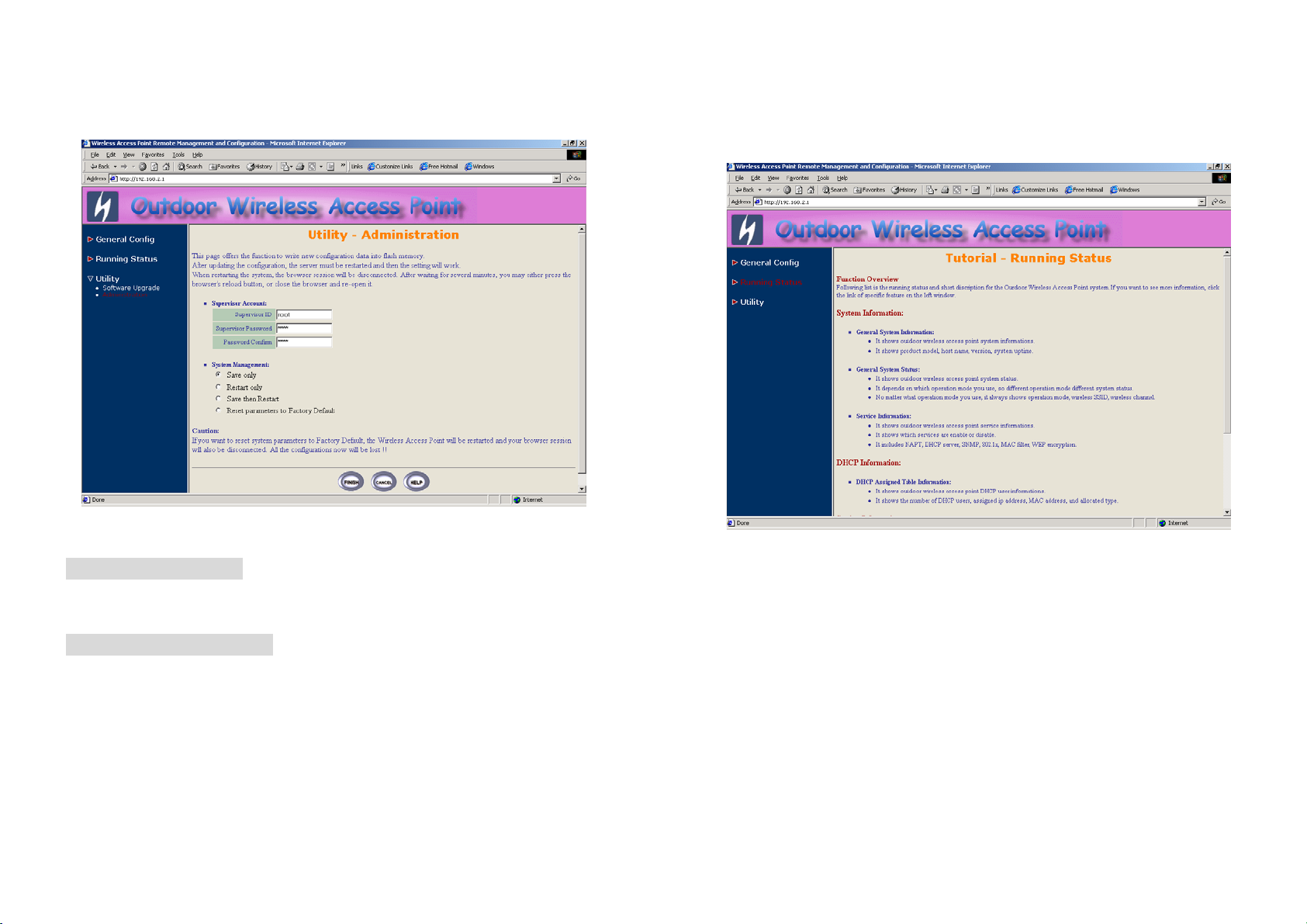

4.7.2 Administration.............................................................................. 34

CHAPTER 5. STATUS MONITOR.......................................................... 35

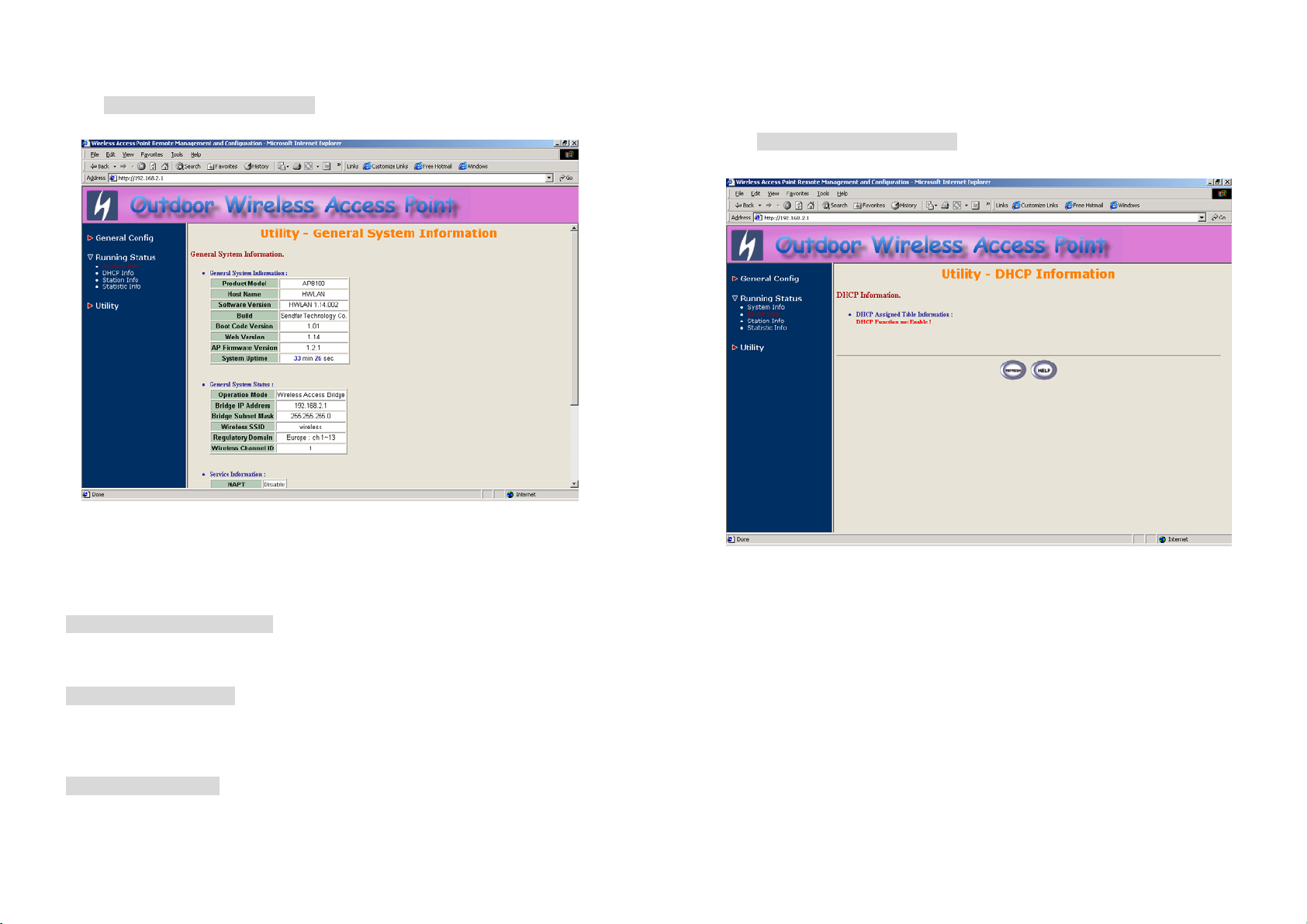

5.1 S

YSTEM INFORMATION

5.2 DHCP I

5.3 S

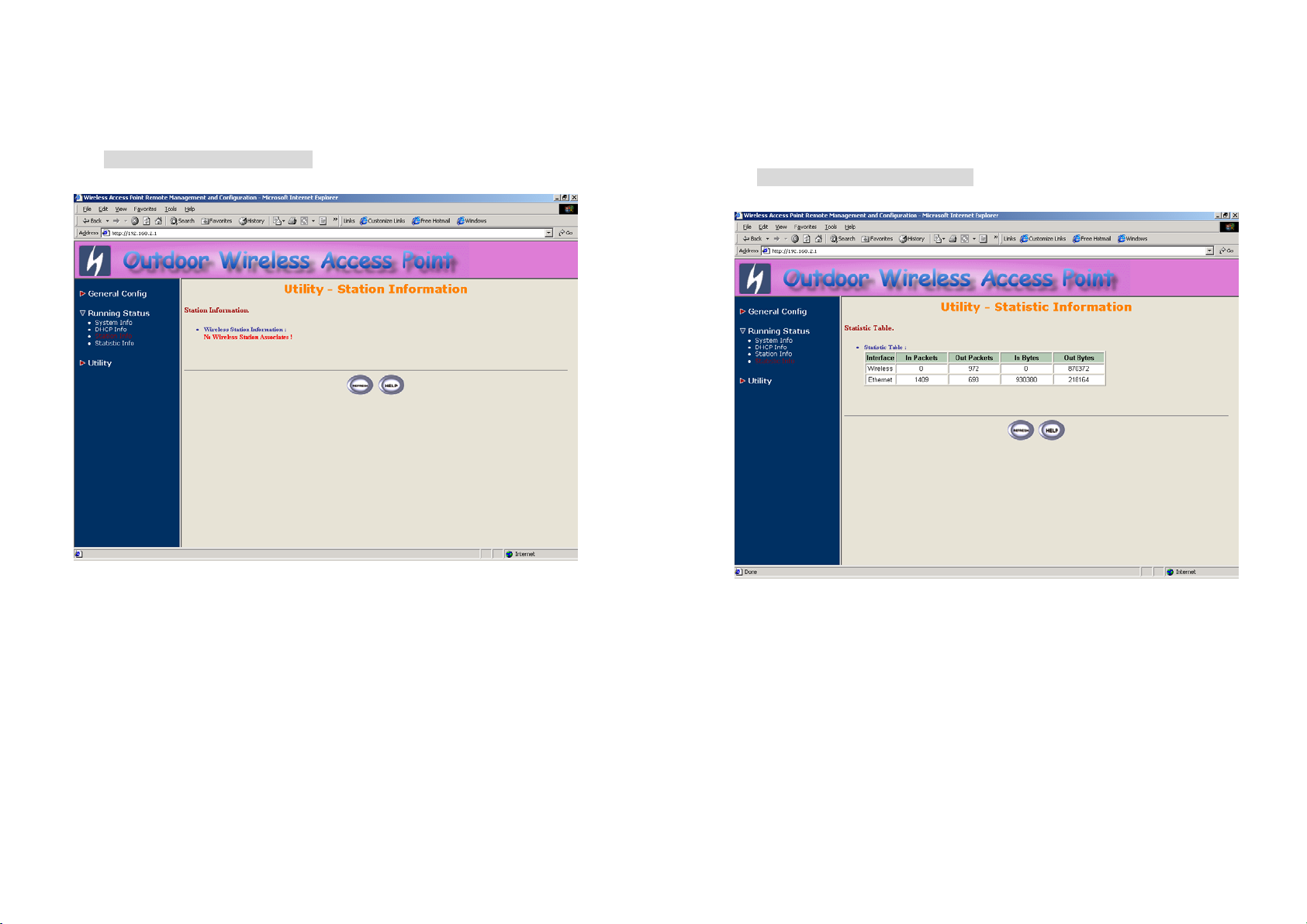

5.4 S

TATION INFORMATION TATISTIC INFORMATION

NFORMATION

........................................................................ 36

.......................................................................... 37

........................................................................ 38

..................................................................... 39

CHAPTER 6. SPECIFICATIONS ............................................................ 40

CHAPTER 7. DEFAULT SETTINGS ......................................................42

7.1 G

ENERAL CONFIGURATION

.................................................................. 42

7.1.1 System......................................................................................... 42

7.1.2 Virtual Server Mapping................................................................ 43

7.1.3 DHCP ..........................................................................................44

7.1.4 SNMP .......................................................................................... 45

7.1.5 Wireless LAN............................................................................... 47

7.2 U

TILITY

............................................................................................... 48

7.2.1 Software Upgrade ....................................................................... 48

7.2.2 Administration.............................................................................. 48

CHAPTER 8. REGULATORY COMPLIANCE INFORMATION............. 49

Chapter 1. Hardware Installation

This chapter describes the procedures for installing the SendFar Outdoor Access Point.

1.1 Before You Start

After unpacking the system, make sure the following items are present and in good condition.

1. Access Point

2. Inline Power Injector

3. AC Power Cord

4. MIL-C-5015 style RS232 Console Port Cable

5. Grounding Wire

6. Cross over Ethernet Cable

7. Two rubber dipole antenna

7. 30M MIL-C-5015 style Ethernet Cable

8. Mast Mounting Kit

10. Wall Mounting Kit

11. User’s Manual Disk

12. Simple Spanner

1.2 Locate the Access Point and Inline Power Injector Ports

z Grounding port 3 z Special N-Type connector 4 z Power & Data output port 5

z Data input port 6

Ethernet port 1 for connecting the MIL-C-5015 style Ethernet

Special

Cable

serial port 2 for connecting the MIL-C-5015 style RS-232

Special

console port cable

for connecting the antenna or RF cable.

for connecting the other of the MIL-C-

5015 style Ethernet Cable

for connecting the Ethernet Cable to a Hub Switch

Router or a PC.

1.3 Installing the Antennas

Step 1: connector as shown in Figure 1.3.

NOTE: Do not over-tighten; finger tight is sufficient. Position the antenna

vertically for best omni-directional signal reception.

With the unit powered off, attach the dipole antenna to the antenna

Figure 1.3.

Before installing your WLAN system, we recommend that you test the Access Point using the dipole antenna included in your package. Once testing is completed, install your Access Point for use with the appropriate antenna for your application.

1.4 Installing the Console Port Cable

Step 2: Attach the Console Port cable to the Serial Port. Attach the other cable end to the Serial Port on a PC running a terminal emulation program,

and set the terminal to 15200 Baud, No-Parity, 8 data bits, 1 Stop bit, and ANSI compatible. NOTE: This connection is required for setting up initial configuration information. After configuration is completed, this cable may be removed until additional configuration is required via the Serial Port.

1.5 Connecting the power supply and Ethernet cable

1.6 Outdoor Installation

Outdoor Access Point device can be mounted on the side of a building or mounted to an mast as shown in following:

Step 3

and then plug the male end of the power cord into a power outlet or power strip. The Power LED on the front of the Inline Power Injector will light up.

Step 4

Data Input Port (on the front of the Inline Power Injector) to the Ethernet Port on the PC we mentioned above.

NOTE: This connection is required for setting up initial configuration information. After configuration is completed, this cable will be removed, and then you should run an Ethernet cable from Data Input Port (on the front of the Inline Power Injector) to the LAN connection (such as a hub or concentrator).

Step 5

Ethernet port on the back of the access point.

Step 6

Ethernet cable) into the Power & Data Output Port on the front of the Inline Power Injector. When the Access Point receives power over the Ethernet cable, the Access Point will start its boot sequence and the Active LED on the front of the Inline Power Injector will light up.

Plug the female end of the power cord into the Inline Power Injector,

Run the cross over Ethernet cable (included in your package) from

Plug the MIL-C-5015 style Ethernet connector into the Special

Plug the RJ-45 Ethernet connector (the other end of the Special

A wall (side) mount allows for mounting the Outdoor AP on the side of a building. This will provide a convenient mounting location when the roof overhang is not excessive and/or the location is high enough to provide a clear line of sight.

Grounding

A safety grounding system is necessary to protect your outdoor installation from lightning strikes and the build-up of static electricity. So direct grounding of the antenna mast, Outdoor AP and Surge Arrester is very important. And so mounting the Outdoor AP on the antenna mast, you have to connect the Outdoor AP to the same grounding system with the AC wall outlet. The grounding system must comply with the National Electrical Code and safety standards that apply in your country. Always check with a qualified electrician if you are in doubt as to whether your outdoor installation is properly grounded.

Chapter 2. Network Topologies

This chapter describes several main types of installations commonly

implemented using the Outdoor Wireless Access Point (OWAP). This is

by no means intended to be an exhaustive list of all possible configurations,

but rather shows examples of some of the more common implementations

(as shown in following figuration).

The OWAP can perform in router or bridge modes. In a wireless topology, all communication between network stations is done through a centralized Access Point. To show some possibilities of wireless topologies, the following examples are provided:

Wireless Access Bridge

2.1 Wireless Access Bridge

1. Set the OWAP as a bridge (bridge IP address is 192.168.2.1).

2. Set Wireless parameters on OWAP: Channel (1) and SSID (wireless)

3. Set Wireless parameters on client stations PC1, PC2 and PC3: SSID (wireless).

4. Left side stations are transparent to the right side network.

5. DHCP server assigns IP address to PC1, PC2 and PC3.

Wireless Access Router with PPPoE Ethernet connection

Wireless Access Router with dynamic IP address Ethernet

Wireless Access Router with static IP address Ethernet

2.2 Wireless Access Router with PPPoE Ethernet connection

2.3 Wireless Access Router with dynamic IP

Ethernet connection

1. Set the OWAP as a Router (Wireless Interface IP is 192.168.1.1, Ethernet Interface IP is 192.168.2.1, must turn on NAT on Ethernet Interface, default route is 0.0.0.0).

2. Choose the PPPoE connection mode and specify that your personal ISP provided PPPoE Username and PPPoE Password to enable ADSL broadband access.

3. Set Wireless parameters on OWAP: Channel (1) and SSID (wireless)

4. Turn on DHCP server on the OWAP and assign IP address to PC1, PC2 and PC3.

5. Set Wireless parameters on client stations PC1, PC2 and PC3: SSID (wireless).

1. Set the OWAP as a Router (Wireless Interface IP is 192.168.1.1, must turn on NAT on Ethernet Interface).

2. Enable DHCP client on the Ethernet Interface of the OWAP (This OWAP will got IP / Gateway / DNS from the DHCP server).

3. Set Wireless parameters on the OWAP: Channel (1) and SSID (wireless)

4. Turn on DHCP server on the OWAP and assign IP address to PC1, PC2 and PC3.

6. Set Wireless parameters on client stations PC1, PC2 and PC3: SSID (wireless).

2.4 Wireless Access Router with static IP Ethernet connection

1. Set the OWAP as a Router (Wireless Interface IP is 192.168.1.1, Ethernet Interface IP is 192.1682.1, must turn on NAT on Ethernet Interface, default route is 192.168.2.254).

2. Set Wireless parameters on OWAP: Channel (1) and SSID (wireless)

3. Turn on DHCP server on the OWAP and assign IP address to PC1, PC2 and PC3.

Chapter 3. Web Access

Web Connection

The SendFar Wireless Access Point (OWAP) supports access to the configuration system through the use of an HTTP Interface (web browser). Before configuring the OWAP, you need to know the IP Address assigned to the unit. When shipped from the factory, the IP Address (192.168.2.1) was assigned to the OWAP by default. To start a web connection use:

http://192.168.2.1/

Identify the IP Address assigned to the unit

However, the IP Address may be changed and you cannot connect the unit using the default IP Address. In this case, you must identify the OWAP IP Address before configuration. To identify the IP Address, you can use the Serial Port to gain access the current network status. To start a Serial Port connection:

1. Attach a serial data (RS-232) cable to the Serial Port Adapter. Connect the other cable end to a terminal or a PC running a terminal emulation program. Use a 9-pin female to 9-pin female NULL Modem cable.

2. Set the terminal to 115200 Baud, No-Parity, 8 data bits, 1 Stop bit, and ANSI compatible.

4. Set Wireless parameters on client stations PC1, PC2 and PC3: SSID (wireless).

Note: Running a terminal emulation program on your PC, such as

HyperTerminal, and then set the following connection properties:

z Click the Start icon > Program > Accessories >

Communication > Terminal.

z Create a new connection file, and then select a Com Port

<COM1, COM2, etc., depending on your PC> with 115200bps /

8-bits / 1-stop.

z Click the properties icon in the Tool Bar > setting > select

Emulation terminal VT100 > ok.

3. Reboot or turn on your OWAP

4. When the OWAP is powered up, the “Current Network Status” will be

displayed.

Figure 3-1 Current Network Status

Web Access Procedure

Figure 3-2 Login Screen

3. Enter

root in the User Name and the Password fields. And then the

web configuration user interface screen appears.

Once you identify the IP Address assigned to your OWAP, use your web browser to configure the OWAP through the HTTP Interface.

The following procedure explains how to configure each item.

1. Open your browser and enter the IP Address

2. Press ENTER and the OWAP Login screen appear.

Figure 3-3 Web User Interface

Web Configuration Structure

The web configuration user interface be grouped in a tree structure, and contains the following settings or information:

▽ General Configuration

●

System

●

TCP/IP

－ Virtual Server － DHCP － SNMP

● Wireless

●

Security － 802.1x Access Control

－ MAC Filter

▽ Running Status

●

System Info

●

DHCP Info

●

Station Info

●

Statistic Info

Chapter 4. Configuration

4.1 Introduction

What you Need to Know

▽ Utility

●

Software Upgrade

●

Administration

Move through the tree by clicking on an icon to expand or collapse the tree. The nodes on the tree represent web pages that allow you to view and modify the parameters.

Figure 3-4 Web Configuration Structure

Since each network is unique, the OWAP must be configured to operate in your network environment. Before configuring the OWAP, you need to know the role of the OWAP on your network.

The OWAP can be configured into four operation modes:

1. Wireless Access Bridge

2. Wireless Router with PPPoE Client Ethernet connection

3. Wireless Router with DHCP Client Ethernet connection

4. Wireless Router with Static IP Ethernet connection

4.1.1 Basic Configuration Steps

Modify the Default Settings and Apply the New

This section will describe a 5-step configuration to setup your Outdoor Wireless Access Point (OWAP) workable.

1. Select an operation mode for your OWAP on the web page “/General Config/System/”, and click

2. Modify the factory-set default parameters on the web page “/General Config/System/”page, and click

3. Modify the factory-set default parameters on the web page “/General Config/Wireless/”page, and click

4. (Optional) Modify others parameters on the web page “/General

Config/”page, and click

FINISH

to refresh this page.

FINISH

to save your changes.

5. Move on page “/Utility/Administration/”, select the and then click changes.

FINISH

to take effect the previous configuration

Save then Restart

4.2 System Setup

When setting up a SendFar Wireless Access Router (OWAP), you must decide which operation mode that your OWAP works. This feature is available in the “/General Config/System/” page. Figure 4-1 & 4-2 show the “General Configuration – System Setup” page.

Figure 4-1 General Configuration – System Setup-1

Figure 4-2 General Configuration – System Setup-2

Host Information

- Host Name. The Host Name is not an essential setting, but it helps

identify the device in network. Use this setting to assign a name to the device.

Operation Mode

The First Thing You Have To Do

Select an operation mode, and click

FINISH

to refresh this page.

Wireless Access Bridge

Select the Wireless Access Bridge mode. And then set the corresponding parameters.

- Bridge IP Address.

address.

Use this setting to assign or change the bridge’s IP

- Bridge Subnet Mask. Enter an IP subnet mask to identify the sub network so the IP address can be recognized on the LAN.

Default Route IP

- IP Address. Enter the default Gateway IP Address.

After that, click FINISH at the bottom of this page to complete the modification of this page.

Wireless Router with PPPoE Client Ethernet connection

If you are an ADSL subscriber, you need to specify that you personal ISP PPPoE Username and Password to enable ADSL broadband access.

Default Route IP

- IP Address. Enter the default Gateway IP Address.

DNS Server IP

- Primary DNS Server IP. Enter the Primary Domain Name Server IP

Address.

- Secondary DNS Server IP.

IP Address.

After that, click FINISH at the bottom of this page to complete the modification of this page.

Enter the Secondary Domain Name Server

- PPPoE User Name. This setting allows you to enter the user name that

your ISP assigns to your account.

- PPPoE Password. Enter the password that your ISP assigns to your account.

- Password Confirm. Enter the PPPoE Password once more again.

Wireless Interface Address

- IP Address. Use this setting to assign or change the wireless interface’s

IP address.

- Subnet Mask. Enter an IP subnet mask to identify the sub network so the IP address can be recognized on the WLAN.

Ethernet Interface Address

- IP Address. Use this setting to assign or change the Ethernet interface’s

IP address

- Subnet Mask. Enter an IP subnet mask to identify the sub network so the IP address can be recognized on the WAN.

NAPT performs on which interface?

There are three interfaces. You can select one to use or select "None" to disable it.

Wireless Router with DHCP Client Ethernet connection

Wireless Interface Address

- IP Address. Use this setting to assign or change the wireless interface’s

IP address.

- Subnet Mask. Enter an IP subnet mask to identify the sub network so the

IP address can be recognized on the WLAN.

NAPT performs on which interface?

There are three interfaces. You can select one to use or select "None" to disable it.

Default Route IP

- IP Address. Enter the default Gateway IP Address.

DNS Server IP

- Primary DNS Server IP. Enter the Primary Domain Name Server IP

Address.

- Secondary DNS Server IP.

IP Address.

Enter the Secondary Domain Name Server

After that, click FINISH at the bottom of this page to complete the modification of this page.

TCP/IP Protocol Configure

4.2.1 Virtual Server Mapping

Wireless Router with static IP Ethernet connection

Wireless Interface Address

- IP Address. Use this setting to assign or change the wireless interface’s

IP address.

- Subnet Mask. Enter an IP subnet mask to identify the sub network so the IP address can be recognized on the WLAN.

Ethernet Interface Address

- IP Address. Use this setting to assign or change the Ethernet interface’s

IP address

- Subnet Mask. Enter an IP subnet mask to identify the sub network so the IP address can be recognized on the WAN.

NAPT performs on which interface?

There are three interfaces. You can select one to use or select "None" to disable it.

Default Route IP

- IP Address. Enter the default Gateway IP Address.

Sometimes, the operator can expose the internal servers on the local intranet to the public Internet. For this, you must create the Virtual Server Mapping for these invisible internal servers.

Select the “/General Config/ Virtual Server/”, and then the General Configuration - Virtual Server screen appears. Figure 4-3 show the current virtual server entry table. (Default Virtual Server Mapping pool is empty)

DNS Server IP

- Primary DNS Server IP. Enter the Primary Domain Name Server IP

Address.

- Secondary DNS Server IP.

IP Address.

After that, click FINISH at the bottom of this page to complete the modification of this page.

Enter the Secondary Domain Name Server

Figure 4-3 General Configuration - Virtual Server

1. Click

2. To edit the Virtual Server Entry, specify all the entry fields to allow

Add . The Virtual Server Entry Edit page Figure 4-4 appears.

Internet user to access the Internal servers.

Service Name: Alias name of this internal server, such as FTP.

Access Interface: Indicate the translation occurs on which interface (Wireless interface / Ethernet interface), such as Ethernet.

Protocol: Indicate which protocol (TCP/UDP) you want to translate from outside to internal server, such as TCP.

Public Access Port number: Indicate which socket port (1 ~ 65535) you want to translate from outside to internal server, such as 21.

Virtual Server IP address: Specify the private IP address of the internal server, such as 192.168.1.100.

Virtual Server Port number: Specify the socket port (1 ~ 65535) of the internal server, such as 21.

. The Virtual Server Entry Table appears with the entries list.

3. Click

4. To modify or delete a virtual server entry, click the select button beside

5. To add another entry to the Virtual Server Mapping Pool, repeat step 1

the entry index number and click

through step 3.

Modify

Delete

4.3 Configure DHCP server

Sometimes, the operator want to managing a large TCP/IP network requires maintaining accurate and up-to-date IP address and domain name information. In this situation, it needs manually configure and enable the DHCP server service. Select the General Configuration – DHCP Parameter screen appears. Figure 4-5 shows the general DHCP parameters and the fixed host entry table. (Default fixed host entry pool is empty).

“/General Config/ DHCP/”

and then the

6. When you have included all the entries you need, click

Figure 4-4 Add Virtual Server Entry

FINISH .

Figure 4-5 DHCP Parameter

4.3.1 G

- Trigger DHCP Service.

IP Addresses from IP Pool Table. Select Disable to prevent IP Address assignment from the OAP

- Default Gateway. Enter the default Gateway IP Address.

- Subnet Mask. Configure the subnet for the client.

- Name Server 1, 2, 3. Configure the DNS servers IP for the client.

- DHCP Start IP address. Enter the starting IP Address for this IP Pool

Table.

- DHCP End IP address. Enter the ending IP Address for this IP Pool Table.

- Apply Interface. Enable DHCP server service on Wireless or Ethernet interface.

eneral DHCP

Server Parameter

Select Enable to allow the OAP to assign

4.3.2 Fixed Host Entries

Figure 4-5 shows the general DHCP parameters and the fixed host entry table. (Default fixed host entry pool is empty).

5. To add another entry to the Fixed Host Mapping Pool, repeat step 1

through step 3.

6. When you have included all the entries you need, click

Figure 4-6 Add Fixed Host Entry

FINISH .

1. Click

2. To edit the Fixed Host Entry, specify the Ethernet and Internet Address

- Ethernet Address. Enter the MAC address for a fixed IP user.

- Internet Address. Assign a fixed IP Address to this special user.

3. Click

4. To modify or delete a fixed host entry, click the select button beside the

Add . The Fixed Host Entry Edit page Figure 4-6 appears.

fields.

. The Fixed Host Entry Table appears with the entries list.

entry index number and click

Modify

Delete

4.4 Configure SNMP

Click General Config, SNMP, and then the General Configuration – SNMP Community Parameter screen appears. Figure 4-7 shows the current SNMP community pool and trap host pool.

- Access Right. Select a command from the pull down menu for this field.

- Community. Enter the password related the Access Right in this field.

3. Click

4. To modify another community entry to the current community pool,

repeat step 1 through step 3.

. To refresh the current community pool.

Figure 4-7 General Configuration – SNMP Community Parameter

4.4.1 Configure Community Pool

The SNMP Community Pool has five entries.

5. When you have modified all the entries you need, click

Figure 4-8 Modify SNMP Community Parameter

FINISH .

1. To modify a entry, click the select button beside the entry index number and then click appears.

2. Specify the Validity, Access Right and Community field.

Select Enable or Disable to control this community.

- Validity.

Modify , the configuration page Figure 4-8

4.4.2 Configure Trap Host Pool

The Trap Host Pool has five entries.

1. To modify a entry, click the select button beside the entry index number and click appears.

Modify

. The configuration page Figure 4-9

2. Specify the Version, IP Address and Community field.

Select Disable, Version 1 or Version 2 to control this trap host.

- Version.

- IP Address. Enter the Trap Host IP Address.

- Community. Enter the password in this field.

3. Click

4. To modify another trap host entry to the current trap host pool, repeat

. To refresh the current trap host pool.

step 1 through step 3.

4.5 Configure Wireless related parameters

Click General Cofig, Wireless. The Wireless LAN information page Figure 4-10 appears. In here, enter the Channel (default is 1), rts Threshold

(default is 1600), frag Threshold (default is 1600), SSID (default is wireless) and Station Name (default is ap) that are suitable for your radio

network and then you can clicked radio button to disable WEP or enable 64/128 bit WEP services (default is disable), if WEP is enabled, you must input corresponded Default Key index and WEP Key and then click

KeyGen FINISH at the bottom of this page to complete the modification.

to generate the WEP64 & WEP128 key patterns. After that, click

5. When you have modified all the entries you need, click

Figure 4-9 Modify SNMP Trap Host Parameter

FINISH .

Figure 4-10

The factory setting is Radio Channel 1 transmitting at 2412 MHz.

- Channel.

The channel set appears on the screen installed on your access. Each channel covers 22 MHz. The bandwidth for channels 1, 6, and 11 does not overlap, so you can set up multiple access point in the same vicinity without causing interference.

- RTS Threshold. This setting determines the packet size at which the

bridge issues a request to send (RTS) before sending the packet. A low RTS Threshold setting can be useful in areas where many client devices are associating with the access point, or in areas where the clients are far apart and can detect only the bridge and not each other. Enter a setting ranging from 0 to 2339 bytes.

- Frag Threshold. This setting determines the size at which packets are fragmented (sent as several pieces instead of as one block). Enter a setting ranging from 256 to 2338 bytes. Use a low setting in areas where communication is poor or where there is a great deal of radio interference.

4.6 Security

4.6.1 IEEE 802.1x Access Control

You can configure Authenticator on AP:

1. Click General Config, select 802.1x Access Control page, and choice

the IEEE 802.1x services is Enable or Disable (as shown in Figure 4-

11).

The

- SSID.

sensitive entry from two to 32 characters long. This string functions as a password to joint the radio network.

- Hide SSID. You use this setting to choose whether devices that do not specify an SSID are allowed to associate with the access point. With Yes selected, the SSID used by other devices must match exactly the AP’s SSID.

- Deny Any. You use this setting to choose whether devices that specify

the well define SSID keyword ‘ANY’ or ‘any’ are allowed to associate

with the access point. With Yes selected, the SSID ‘ANY’ or ‘any’ used by other devices are not allowed to associate with the access point

- Station Name. Enter any alphanumeric, case-sensitive entry.

- WEP Key. Enter 1~15 characters for 64 and 128 bits WEP KEY

encryption, and then click key patterns.

- WEP. Disable or enable 64/128 bit WEP services.

- Default Key. Select an encryption key from the pull down menu.

- WEP64 Key1~4 & WEP128 Key1~4. The keys in these fields can be

generated automatically by 10 hexadecimal digits; for 128-bit encryption, enter 26 hexadecimal digits. Hexadecimal digits include the numbers 0 through 9 and the letters A through F. Your 40-bit WEP keys can contain any combination of 10 of these characters; your 128-bit WEP keys can contain any combination of 26 of these characters. The letters are not case-sensitive.

Service Set ID (SSID)

KeyGen

can be any alphanumeric, case-

to generate the WEP64 & WEP128

function. For 40-bit encryption, enter

Figure 3-11

2. The OWAP supporting authentication which based on two kinds of user

information base, Local User Database or Remote Radius Servers. You can specify which user database you want to use.

3. You can specify the username/password of an accessible 802.1x

user. All user information entries in the Local User Database are permitted to connect into the OWAP. You can also click ADD, DELETE, MODIFY button to maintain this User Information table.

4. Some Radius server implements EAP authentication, like Microsoft

Windows 2000 server or Cisco ACS. To set up the Radius server and OWAP for authentication, you must specify the Radius server IP

address, Share key between OWAP and Radius server, authentication port and accounting port on this Radius server.

5. Click FINISH at the bottom of this page to complete the modification of this page.

4.6.2 MAC based Access Control

1. Click Basic Config, select MAC Filter page, and choice the MAC Filter services is Enable or Disable (as shown in Figure 4-12).

2. You can specify the MAC address of a wireless client station. All MAC entries in the MAC address table are permitted to connect into the OWAP. You can also click ADD, DELETE, MODIFY button to maintain this MAC address table. After that, click FINISH at the bottom of this page to complete the modification of this page.

4.7 Utility

4.7.1 Software Upgrade

1. Click Utility, select Software Upgrade page (as shown in Figure 4-

13), and then you can use TFTP to upgrade your AP. In here, you must

specify the TFTP server IP and select which file you want to upgrade it (Program image, Web image), then click OK button to start the TFTP upgrade process.

2. If the upgrade process is success, the AP will apply the new settings and start rebooting right away.

Hint: You must set up a TFTP server and this server must contain one latest new image.

Figure 4-12

Figure 4-13

4.7.2 Administration

Click Utility, Administration. Figure 4-14 shows the Utility – Administration page.

Chapter 5. Status Monitor

You can see the system running status and the some information on this windows. Click the Running Status link on the left window (as shown in

Figure 5-1), you can choose which function that you want to monitor.

Figure 4-14 Utility – Administration

Supervisor Account

Change the supervisor’s user name & password in the Supervisor Account field, and Click FINISH. To take effect the previous configuration changes.

Apply the New Settings

1. Click Utility, Administration, select the Save then Restart to apply the new configuration settings.

2. Click FINISH. To take effect the previous configuration changes.

Hint: It takes about 10 seconds, to complete the restart process.

Figure 5-1 Running Status

5.1 System Information

Click

Running Status, System Info. Figure 5-2 shows the System

Information page.

5.2 DHCP Information

Click

Running Status, DHCP Info. Figure 5-3 shows the DHCP assigned

IP Information page.

Figure 5-2 Running Status – System Info

In this page, you can see the system information and most running parameters.

This block displayed the Product Model,

General System Information

Host Name, Software Version, Build, Boot Code Version, Web Version, AP Firmware version and System Uptime.

General System Status

Interface IP/Net mask and brief wireless parameters, if the operator turn on the DHCP or PPPoE services, you can also see the related information on here.

This block displayed which service is turn on or not.

Services Information

It is includes the NAPT, DHCP server, SNMP, 802.1x access control, MAC Filter and WEP encryption.

This block displayed the Operation Mode,

Figure 5-2 Running Status – DHCP Info

In this page, you can see the DHCP server assigned table, includes MAC address, corresponded IP address and IP assigning type (Dynamic or Fix).

5.3 Station Information

Click

Running Status, Station Info. Figure 5-3 shows the associated

stations information page.

5.4 Statistic Information

Click

Running Status, Statistic Info. Figure 5-3 shows the statistic of

interface page.

Figure 5-3 Running Status – Station Info

In this page, you can see how many wireless stations associated to this AP, this association table includes the associated station MAC address and the corresponded connection time.

Figure 5-4 Running Status – Statistic Info

In this page, you can see the packet statistic of each interface, Wireless and Ethernet. This statistic table includes the In Packets, Out Packets, In Bytes and Out Bytes.

Chapter 6. Specifications

General

Compatibility Fully interoperable with IEEE802.11b

compliant products

Regulation Certifications FCC Part 15, ETSI 300/328

Power Supply

Temperature Range

Humidity (non-condensing)

Interface LAN ports: 3 Switching

Radio

Frequency Band 2.4 – 2.484 GHz Radio Type Direct Sequence Spread Spectrum

Modulation CCK (11, 5.5Mbps)

Operation Channels 11 for North America, 14 for Japan,

Receiver Sensitivity -84dBm for 11Mbps @ 8% PER

RF Output Power

RF Connector

Output: DC 5V/3A

Input: 100/240 VAC; 50/60 Hz

0 to 55 ℃ (operating)

-20 to 75 ℃ (storage)

10% ~ 90%

(10Base-T/100Base-TX) WAN port: 1 (10Base-T/100Base-TX) Console port: RS-232 x 1

(DSSS)

DQPSK (2Mbps)

DBPSK (1Mbps)

13 for Europe

(Packet Error Rate)

-90dBm for 2Mbps @ 8% PER

(Packet Error Rate) 19dBm typically (including antenna gain), ETSI

14.2dBm typically (including antenna

gain), FCC

Reversed N Type

Network Information

Protocol Supported TCP/IP

NAT/NAPT Virtual Server DHCP client DHCP server PPPoE Bridge

Security PPP PAP/CHAP/MS-CHAP

Authentication in Web-Based manager IEEE 802.1x Port-Based network access control Radius client (Authentication & Accounting) MAC address based access control 64-bit, 128-bit WEP encryption

802.11 SSID hidden Denial 802.11 “Any” station

Management

Local Configuration RS-232 serial port Remote Configuration HTTP, SNMP Firmware Upgrade Upgrade via Serial Interface or TFTP

Physical Specifications

Dimensions 211(L) mm x 151(W) mm x 40(H) mm Weight 1000 g

Chapter 7. Default Settings

7.1 General Configuration

7.1.1 System

Parameter Description Default Value

Host Name Host name for the OWAP HWLAN

1. Wireless Access Bridge

2. Wireless Access Router with PPPoE client Ethernet connection

Operation Mode

3. Wireless Access Router with DHCP client Ethernet connection

4. Wireless Access Router

with Static IP Ethernet connection

Bridge IP Address Bridge Subnet Mask

PPPoE User Name

PPPoE Password

Password Confirm

Wireless Interface Address

Ethernet-WAN Interface Address

Ethernet-LAN Interface Address

NAPT Interface

Default Route IP IP address of the gateway for 192.168.2.254

For Wireless Access Bridge Operation Mode

For Wireless Access Router with PPPoE client Ethernet connection

IP Address

Subnet Mask

IP Address

Subnet Mask

IP Address

Subnet Mask

1. None

2. Wireless LAN

3. Ethernet

4. PPPoE

Wireless Access

Bridge

192.168.2.1

255.255.255.0

user

pass

192.168.1.1

255.255.255.0

192.168.2.1

255.255.255.0

192.168.2.1

255.255.255.0

None

default route when TCP/IP

filtering

Primary DNS Server IP 192.168.2.254

Second DNS Server IP

IP addresses of the DNS Servers of your Local ISP

7.1.2 Virtual Server Mapping

Parameter Description Default Value

Service Name

Protocol

Public Access

Virtual Server

Note: (Maximum Entry: 10, Maximum Port Number: 32767)

Specify the service for public access

Select a protocol for public access

Interface NULL

Port Number NULL

IP address NULL

Port Number NULL

NULL

7.1.3 DHCP

Parameter Description Default Value

Disable or Enable automatic IP

Trigger DHCP Service

Default Gateway

Net Mask

Name Server 1: 192.168.2.254

Name Server 2: Null

Name Server 3:

DHCP Start IP IP starting address

DHCP End IP IP ending address 192.168.1.249

Interface

Fixed Host Entries

(Max 10)

address assignment to wireless stations

IP address of the gateway for default route when TCP/IP filtering

Consists of four sets of digits that help divide a network into subnetworks and simplify routing and data transmission

IP address of the DNS host

1. Wireless

2. Ethernet

Ethernet Address

IP Address

Disable

192.168.1.1

255.255.255.0

Null

192.168.1.240

Wireless

Empty

7.1.4 SNMP

7.1.4.1 Table of SNMP Community Pool:

Parameter Description Default Value

Index 1 Enable Index 2

Index 3

Index 4

Index 5

Index 1 Read Index 2

Index 3

Index 4

Index 5

Index 1 public Index 2

Index 3

Index 4

Index 5

Validity

Access

Right

Community

Enable or disable the function

of the corresponding community

index

Select the access right

(Deny/Read/Write/Create) for

SNMP Manager

Specify the type of community

(public or private) for SNMP

Manager

Enable

Disable

Write

---

private

---

7.1.4.2 Table of SNMP Trap Community Host Pool:

Parameter Description Default Value

Index 1 Version1 Index 2

Index 3

Index 4

Index 5

Index 1 192.168.2.100 Index 2

Index 3

Index 4

Index 5

Index 1 public Index 2

Index 3

Index 4

Index 5

Version

IP Address

Community

Select or disable the SNMP

Version

Version 1: MIB1

Version 2: MIB2

Specify the IP address of the

SNMP Manager for SNMP Trap

Report

Specify the type of community

(public or private) for SNMP

Manager

Version2

---

192.168.2.100

---

public

---

7.1.5 Wireless LAN

Parameter

Regulatory Domain

Channel USA: 1~11, Europe: 1~13 1

RTS Threshold

Fragmentation

Threshold

SSID

Hide SSID Yes or No No

Deny ANY Yes or No No

Station Name Show the name of the AP ap

WEP Key

WEP

Default Key

Key Panel

Description

Define the regulatory domain to

Which this NIC may be deployed

Set RTS (Request To Send)

threshold value

Set fragmentation threshold

value

Wireless LAN service area

identifier of the OWAP (case

sensitive)

Push the “KeyGen” button to generate the WEP key patterns automatically

1. WEP128

2. WEP64

3. Disable

Select a WEP key to encrypt

each frame transmitted from

the radio using one the of the 4

Keys from the Key Panel

When you use WEP to

communicate with the other

wireless clients, all the wireless

devices in this network must

have the same encryption key

or pass phrase.

Note: each key must consist

of hex digits, it means that

only digit 0 -9 and letters A-F

Default Value

1600

wireless

wepkey

Disable

are valid entries. If entered

incorrectly, program will not

write keys to a driver.

7.2 Utility

7.2.1 Software Upgrade

Parameter Description Default Value

TFTP Server IP

Address

Upgrade Filename

Specify the IP address of the

TFTP server to upgrade the

firmware of the OWAP

Program Image soho.bin

Web Image pfs.img

7.2.2 Administration

Parameter Description Default Value

Supervisor ID Supervisor’s identity code root

Supervisor Password Supervisor’s password root

Password Confirm Confirm the password again root

192.168.2.100

Chapter 8. Regulatory Compliance Information

Radio Frequency Interference Requirements

This device complies with Part 15 of FCC Rules and Canada RSS-210. Operation is subject to the following conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna of transmitter.

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules and Regulation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to nearby TV’s, VCR’s, radio, computers, or other electronic devices. To minimize or prevent such interference, this equipment should not be placed or operated near these devices. If interference is experienced, moving the equipment away from them will often reduce or eliminate the interference.

However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Professional Installation

Per the recommendation of the FCC, the installation of high gain directional antenna to the system, which are intended to operated solely as a point-topoint system and whose total power exceeds +30dBm EIRP, require professional installation. It is the responsibility of the installer and the end user that the high power systems are operated strictly as a point-to-point system. Systems operating as a point-to-multipoint system or use non directional antennas cannot exceed +30dBm EIRP power requirement under any circumstances and do not require professional installation.

Information to user

The users manual or instructionmanual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approve by the party responsible for compliance could void the user's authority to operatethe equipment

SendFar Technology OAP-02002 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
