Sencor SRD 1100 User Manual

SRD 1100

BRAND

AM FM TUNING POCKET RADIO

EN - 1

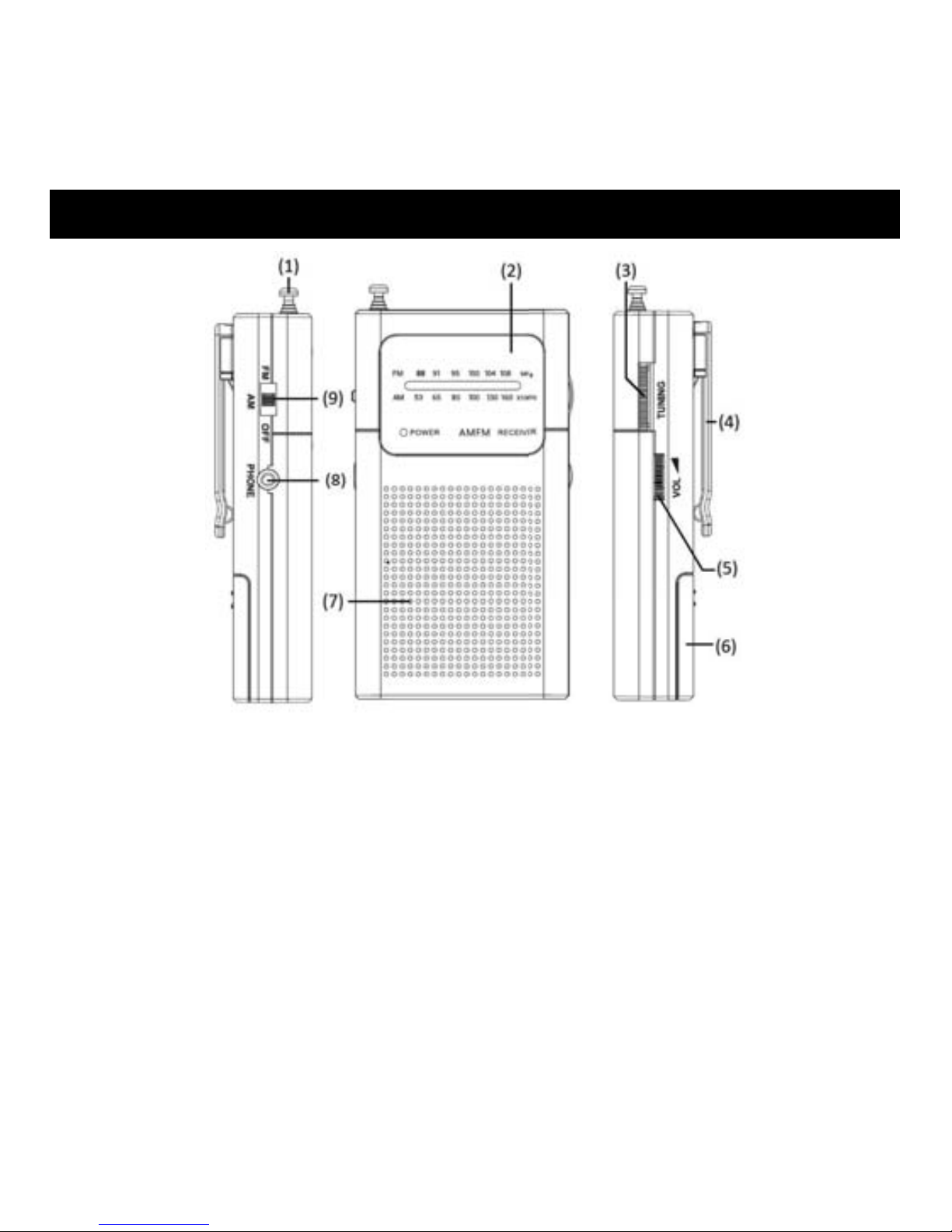

CONTROL LOCATION

1. ANTENNA

2. FREQUENCY SCALE

3. FREQUENCY TUNING

4. BELT CLIP (AT REAR)

5. VOLUME CONTROL

6. BATTERY COMPARTMENT DOOR (AT REAR)

7. SPEAKER

8. HEADPHONE JACK

9. RADIO BAND SELECTOR (FM / AM / OFF)

EN - 2

OPERATING INSTRUCTION

DC (battery) Operation

Insert 2 x AAA cells (not included) into battery compartment and then close
the compartment door.

Note:
Check your batteries regularly. Old or discharged batteries should be
replaced. If the unit is not to be used for some time, remove batteries from the
battery compartment to avoid leakage.

Radio

1. Select FM or AM wave band by switching RADIO BAND SELECTOR.

2. Adjust the sound level with using VOLUME.

3. Tune to a radio station with using TUNING.

To improve reception:

- For FM, pull out the telescopic aerial.

- For AM, the set is provided with a built-in aerial, so there is no need to use
the telescopic aerial. Turn the set to fi nd the best position.

Volume

Adjust the volume level with using VOLUME.
You may connect headphones (not included) to 3.5mm HEADPHONE JACK.
The loudspeaker is then muted.

Avoid listening to headphones at high volume levels to prevent possible
hearing damage.

EN - 3

SPECIFICATIONS

Speaker: 1.5 inches, 8 ohm dynamic speaker
Power Output: 0.3W RMS
DC Battery Operate: DC 3V (2 x 1.5V AAA)

PRECAUTIONS:

1. Do not leave the batteries in the compartment for a long time. Remove the

batteries to avoid leakage and damage.

2. Do not expose the unit to extreme temperature nor high humidity to ensure

normal functioning for a long lifetime.

For instances, never place the unit in bathing areas nor around stoves and

radiators.

3. If you fi nd the unit is not working properly, please take it to your nearest

services center. Do not attempt to repair by yourself.

WARNING:

To prevent fi re or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet, refer to service agent or
qualifi ed engineer only.

EN - 4

Hereby, FAST ČR, a.s. declares that the radio equipment type SRD 1100 is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the
following internet address: www.sencor.eu

EN - 5

EN

Warranty conditions

Warranty card is not a part of the device packaging.

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to
the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim
for service can be applied either at dealer’s shop where the product was bought, or at below mentioned authorized
service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end
of warranty period. The end user is obligated to cooperate to certify the claiming defects. Only completed and clean
(according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will
be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or
the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to
certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.

This warranty is void especially if apply as follows:

 Defects which were put on sale.
 Wear-out or damage caused by common use.
 The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction

manual, used in contrary to legal enactment and common process of use or used for another purpose which has
been designed for.

 The product was damaged by uncared-for or insufficient maintenance.
 The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
 Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
 The product was mechanically damaged (e.g. broken button, fall).
 Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working

conditions (e.g. high temperatures, high humidity, quakes).

 Repair, modification or other failure action to the product by unauthorized person.
 End-user did not prove enough his right to claim (time and place of purchase).
 Data on presented documents differs from data on products.
 Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial

number or the warranty seal has been damaged).

Authorized service centers

Visit www.sencor.eu for detailed information about authorized service centers.

Copyright © 2017, Fast ČR, a.s. Revision 01/2017
