RETRO RADIO
USER'SMANUAL
SRD 020
EN
Important safety conditions
CAREFULLY READ THIS USER'SMANUAL BEFORE PUTTING THE DEVICE INTO OPERATION. KEEP IT FOR FUTURE USE.
RECORD THE MODEL NUMBER AND THE SERIAL NUMBER. SEE THE LABEL ON THE REAR COVER AND PROVIDE THIS
INFORMATION TO YOUR VENDOR IN THE EVENT THAT YOU REQUIRE REPAIRS.
1. Important safety conditions
EN
The lightning symbol located in aframe formed
by aequilateral triangle informs the user about the
existence of an uninsulated "dangerous voltage" inside
the device, which can have such an intensity as to cause
injury by electrical shock.
– The power plug is used as adisconnecting device, which must for this reason remain easily accessible.
– Do not expose the device to the effects of dripping or sprayed water and do not place objects filled with aliquid
(e.g. vases) on the device.
–
The device'sconnector is used as adisconnecting device, which must for this reason remain easily accessible.
Remember to always disconnect the power plug from the power socket before disconnecting the power cable from
–
the rear side of the device.
– An open flame must not be placed on the device, e.g. burning candle.
WARNING:
To prevent afire hazard or injury by electric shock, do not expose the device to rain or humidity. Never attempt to open
the case of the device – there is dangerously high voltage inside; have all repairs carried out by aqualified service centre.
1. Please read the instructions
You should read all safety and operating instructions before you start using the device. You should keep the safety and
operating instructions for future reference. All warnings shown on the product and included in the user'smanual must
be adhered to. You should proceed according to all operating instructions.
2. Cleaning
Before cleaning this device, disconnect it from the power socket. Do not use liquid cleaning agents or cleaning agents
in sprays. Use adamp cloth for cleaning.
The exclamation mark symbol located inside
an equilateral triangle informs the user about
important instructions for operation and
maintenance found in the documentation that
comes with the device.
3. Accessories
Only use accessories recommended by the manufacturer, because non-recommended accessories may lead to
ahazardous situation.
4. Water and humidity
Do not use this product near water – for example near abath tub, washbasin, kitchen sink or laundry containers,
in damp underground environments or near swimming pools, etc.
5. Additional information
Do not place this product on an unstable cart, pedestal, stand, bracket or table. The product could fall and cause serious
injury to children or adults, or could be seriously damaged. Only use the product with acart, pedestal, stand or table
recommended by the manufacturer or sold together with the device. Any mounting of the product must be carried out
according to the manufacturer'sinstructions and the mounting accessories recommended by the manufacturer should
be used.
EN 1
2016
08/2016
EN
Important safety conditions
6. Ventilation
The cut-outs and openings in the case of the device are used to ventilate the device and to provide for the reliable
operation of the device and its protection against overheating – these openings must not be blocked or covered. These
openings must never be blocked by placing the device on abed, sofa, rug or other similar surface. This device should
not be located in aclosed-off area such as for example bookshelf or shelf, if sufficient ventilation is not provided for or
the instructions of the manufacturer are not followed. The ventilation must not be impeded by covering the ventilation
openings with objects such as newspapers, tablecloths, curtains, etc.
7. Power supply
This device may only be powered by the source of energy indicated on the type label. If you are not certain about the
parameters of the power sources in your home, contact your retailer or alocal energy company. Devices designed for
battery operation or other power sources - see user'smanual.
8. Grounding or polarisation
This product may be equipped with apolarised plug for alternating current (the plug has one pin that is wider than the
others). This plug can be inserted into the power socket in only one way. This is asafety measure. If the plug does not
fully fit into the socket, try turning the plug. If it is still not possible to insert the plug into your socket, contact aqualified
electrician and request your wall sockets to be changed for asuitable type. Do not negate the safety purpose of the
polarised plug.
9. Protection of the power cord
Power cords should be lead in such away that they are not stepped on or that no items are placed on or under them
– at the same time it is important to take special care when handling power cord plugs, power sockets and in places
where power cords exit devices.
10. Lightning thunderstorms
For increased protection during alightning thunderstorm or for longer periods when the device will not be used,
disconnect the power cord from the power socket. In this way you will prevent damage to the device caused by
atmospheric electricity or by impact on the power lines.
11. Overload
Do not overload the power socket, extension cords or integrated sockets, because this could cause afire or injury by
electric shock.
12. Entry of items or liquids
Never insert any foreign items into this device through any openings because they could come into contact with points
with dangerous voltage levels or cause ashort circuit of parts, which could cause afire or injury by electric shock. Never
pour liquids into this device.
13. Damage requiring repairs
Under the following circumstance disconnect the device from the power socket and contact aqualified service centre:
a) If the power cord or power plug is damaged.
b) If aliquid was poured on to the device or an item entered into the device.
c) If the device was exposed to rain or water.
d) If the device is not working normally according to the user'smanual. Only set the elements described in the
user'smanual as incorrect settings of other elements may result in damage and often will require extensive repairs
by aqualified technician to return the device to normal working condition.
e) If you dropped the device on to the floor or if it has been damaged in any other way.
f) If the device is evidently behaving differently, then repairs are necessary.
14. High temperature
This device must be located away from sources of heat such as heaters, convection heaters, stoves or similar
appliances (including amplifiers) that produce heat.
2 EN
2016
08/2016

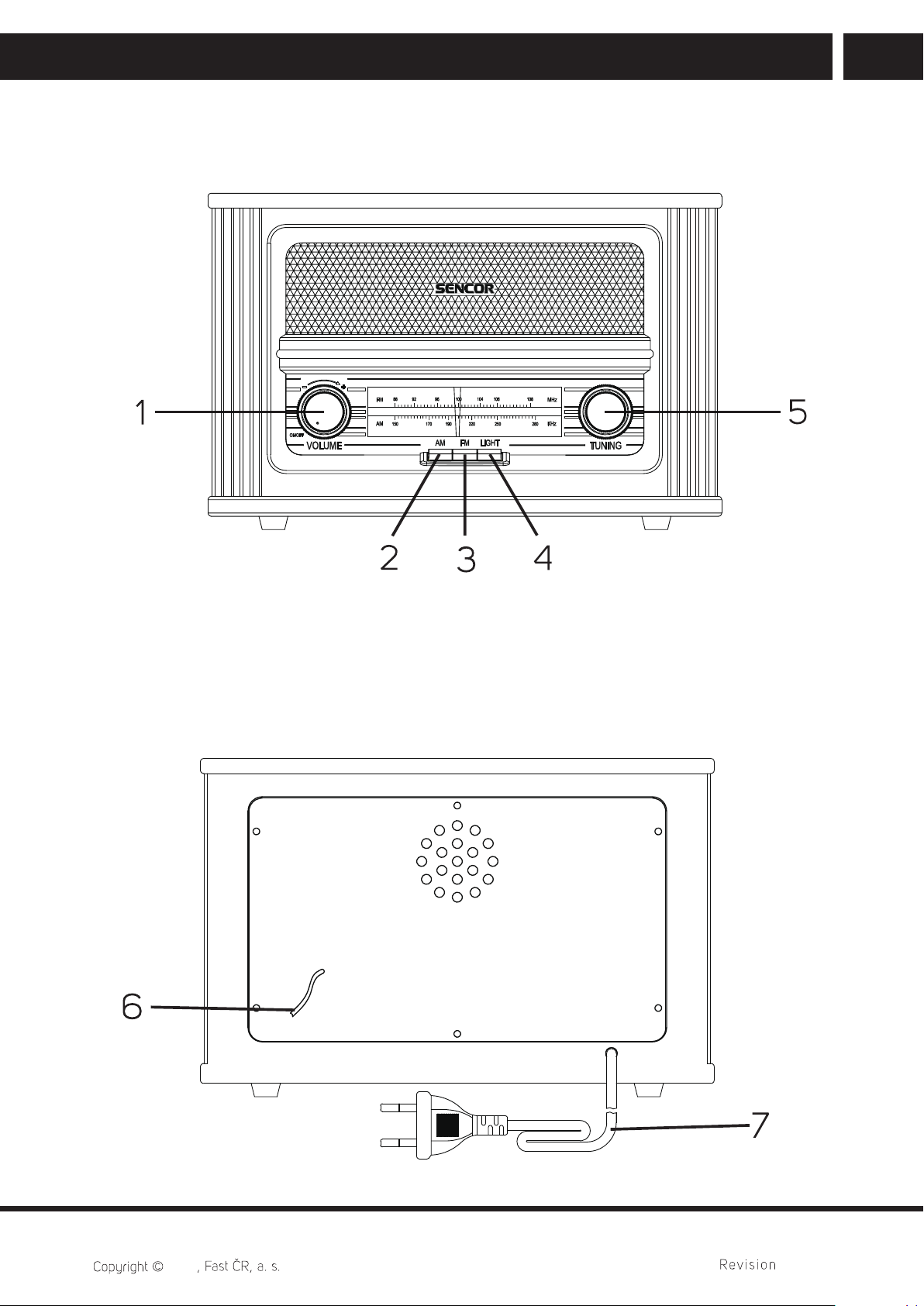

2. Description of the device
Front panel
Description of the device
EN
1. Volume dial
2. Button for tuning in the AM band
3. Button for tuning in the FM band
4. Light button
Rear panel
5. Tuning dial
6. FM antenna
7. Power cord
2016
EN 3
08/2016
EN
EN
Warranty conditions
Warranty card is not a part of the device packaging.
This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to
the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim
for service can be applied either at dealer’s shop where the product was bought, or at below mentioned authorized
service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end
of warranty period. The end user is obligated to cooperate to certify the claiming defects. Only completed and clean
(according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will
be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or
the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to
certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.
This warranty is void especially if apply as follows:
Defects which were put on sale.
Wear-out or damage caused by common use.
The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction
manual, used in contrary to legal enactment and common process of use or used for another purpose which has
been designed for.
The product was damaged by uncared-for or insufficient maintenance.
The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
The product was mechanically damaged (e.g. broken button, fall).
Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working
conditions (e.g. high temperatures, high humidity, quakes).
Repair, modification or other failure action to the product by unauthorized person.
End-user did not prove enough his right to claim (time and place of purchase).
Data on presented documents differs from data on products.
Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial
number or the warranty seal has been damaged).
Authorized service centers
Visit www.sencor.eu for detailed information about authorized service centers.
Operation / Technical specications
3. Operation
Power supply connection
Before turning it on, make sure that the voltage in your power grid corresponds to the voltage indicated on the rating label.
In the interest of your own safety, carefully read the following instructions before rst connection of this device to the power grid.
If you wish to operate this device, insert the power cord (7) into apower socket with avoltage of 230 V50 Hz and turn it on by
turning the main power switch / turn dial (1).
Controlling the radio
1. To turn on the device (1), turn the volume dial clockwise.
2. Pull out the antenna (6) for the FM band. To optimise FM reception, turn the radio horizontally until the best reception is
achieved.
3. Select the desired broadcast band: AM (2) or FM (3).
4. Tune into the desired station using the tuning dial (5).
5. Set the volume by turning the VOLUME dial (1).
6. Press button (4) to switch the lighting range.
4. Technical specifications
Power source: 230 V~ 50 Hz
AM band: 530 – 1,600 KHz
FM band: 87.5 – 108 MHz
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS
Dispose of used packaging material at asite designated for waste in your municipality.
Changes in the text, design and technical specications may be made without prior notice and we reserve the right to make
these changes.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that used electric or electronic products must not be added
to ordinary municipal waste. For proper disposal, renewal and recycling hand over these products to determined
collection points. Or as an alternative in some European Union states or other European countries you may return
your products to the local retailer when buying an equivalent new product. Correct disposal of this product helps save
valuable natural resources and prevents damage to the environment caused by improper waste disposal. Ask your local
authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for
the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.
Disposal in other countries outside the European Union
This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information
about the correct disposal method from the local council or from your retailer.
This product meets all the basic requirements of EU directives related to it.
Address of the manufacturer: FAST CR, a. s., Černokostelecká 1621, 251 01 Říčany
The original version is in the Czech language.
4 EN
2016
08/2016
Warranty conditions
EN
Warranty conditions
Warranty card is not a part of the device packaging.
This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to
the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim
for service can be applied either at dealer’s shop where the product was bought, or at below mentioned authorized
service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end
of warranty period. The end user is obligated to cooperate to certify the claiming defects. Only completed and clean
(according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will
be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or
the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to
certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.
EN
This warranty is void especially if apply as follows:
Defects which were put on sale.
Wear-out or damage caused by common use.
The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction
manual, used in contrary to legal enactment and common process of use or used for another purpose which has
been designed for.
The product was damaged by uncared-for or insufficient maintenance.
The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
The product was mechanically damaged (e.g. broken button, fall).
Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working
conditions (e.g. high temperatures, high humidity, quakes).
Repair, modification or other failure action to the product by unauthorized person.
End-user did not prove enough his right to claim (time and place of purchase).
Data on presented documents differs from data on products.
Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial
number or the warranty seal has been damaged).
Authorized service centers
Visit www.sencor.eu for detailed information about authorized service centers.
2016
EN 5
08/2016
Designed in Europe by Sencor®, Made in China
