FINE WIRE
SFW10XP
M E M B E R
STAPLER
Repair Kits
YK0321
YK0322
Senco Products, Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244
Visit our Website www.senco.com
* Schematic Drawings inside
NFG01D Revised August 5, 2005 (Replaces 7/29/04) © 2004, 2005 by SENCO Products, Inc. Cincinnati, Ohio 45244—U.S.A.
Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596
(North & South America only) or e-mail: toolprof@senco.com
Page 2
SFW10XP
Fine Wire Stapler
BC0349
LB0057
BC0350
LB5051
LB0860
1/16”CSK DRIVER ASSEMBLY
C06-C10 EA0147 1/16” CSK
F06-F08 EA0148 1/16
BC0351
LB0890
LB0069
LB0033
” CSK
Model A B C
1D0001N A06-D10 EA0144 BF0222
1D2001N A06-D10 EA0144 BF0222
1D0011N E06-E10 EA0058 BF0222
1D2011N E06-E10 EA0058 BF0222
1D0021N C06-C10 EA0036 BF0218
1D2021N C06-C10 EA0036 BF0218
1D0031N G06-G10 EA0038 BF0221
1D2031N G06-G10 EA0038 BF0221
1D0041N B06-B08 EA0039 BF0220
1D2041N B06-B08 EA0039 BF0220
1D0051N F06-F08 EA0037 BF0221
1D2051N F06-F08 EA0037 BF0221
1D0061N AT06-AT10 EA0130 BF0220
1D2061N AT06-AT10 EA0130 BF0220
B
BB0200
C
* Does Not Include O-rings
* No incluye sellos de gomas
* Ohne Dichtringe
* Joints exclus
AB0123
A
KC0027
KB5249
CA0105
LB0019
CF0041
CF0044
CF0040
LB0057
LB0021
KB0010
LB0903
CF0043
LB0903
LB0007
CF0042
LB5008
AC0216
GC0833
HF0082

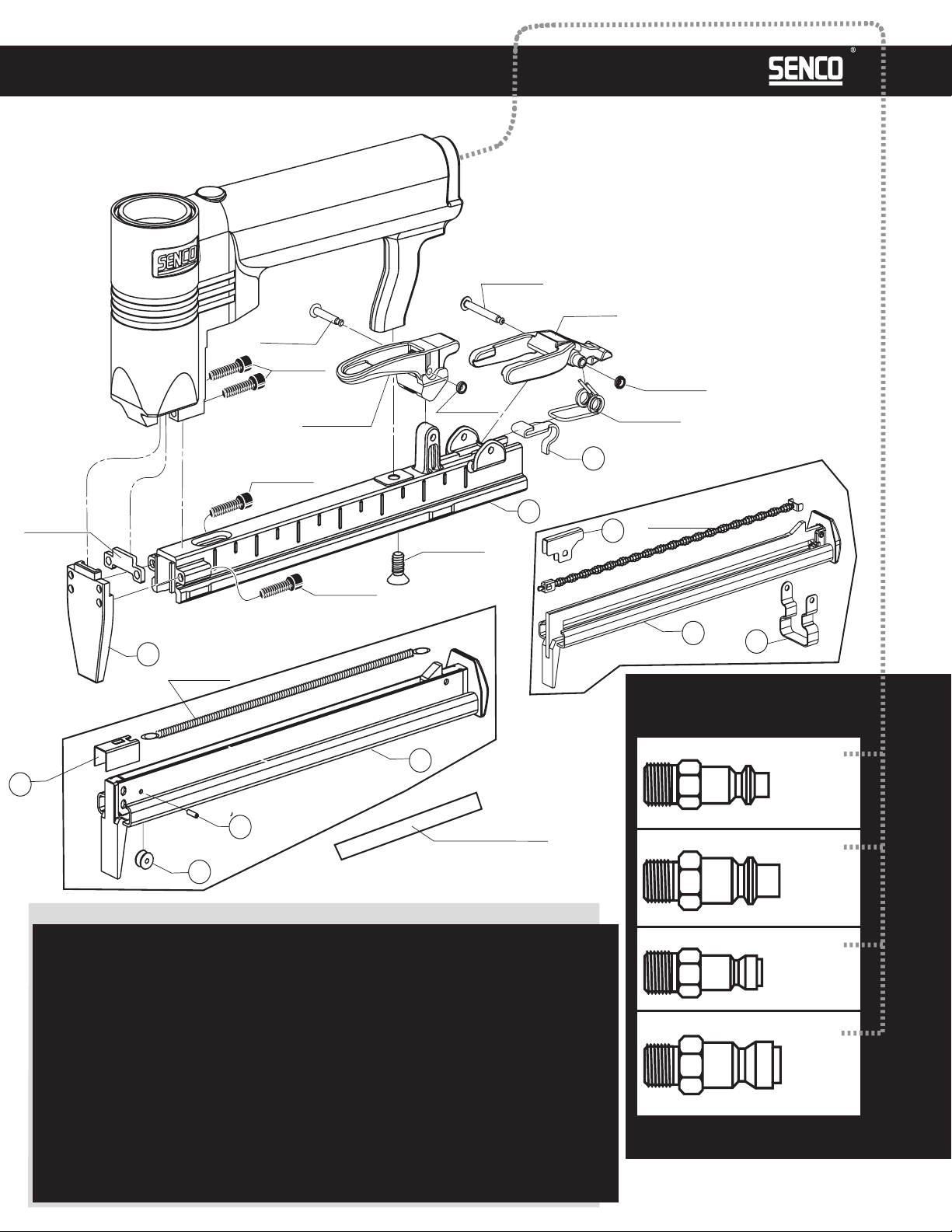

Page 3
SFW10XP
HC0307
KB0147**
HC0315
Fine Wire Stapler
HC0273
KC0062
GB0512
GC0833
KB4300
GC0735
I
F
KB4293
E
KB0147**
D
KB0147**
KB0817**
**Use Loctite # 243 &
Cover threads.
G
HG0078 (US)
HG0085 (EU)
J
H
GB0271
I
G
J
NFG01D Revised August 5, 2005 (Replaces 7/29/04) © 2004, 2005 by SENCO Products, Inc. Cincinnati, Ohio 45244—U.S.A.
Available Plugs
(Not Included with Tool)
PC0479 �
1⁄4"
Body
Ind. Interchange 1/4" NPT
3⁄8"
Body
PC0486
Model A D E F G H I J
1D0001N A06-D10 N/A N/A FC0425 GB0526 GB0532 GC0770 GC0769
1D2001N A06-D10 N/A N/A FC0425 GB0536 GB0532 GC0770 GC0769
1D0011N E06-E10 N/A N/A FC0426 GB0526 GB0533 GC0770 GC0769
1D2011N E06-E10 N/A N/A FC0426 GB0536 GB0533 GC0770 GC0769
1D0021N C06-C10 KB5145 GC0759 FC0418 GB0473 GB0527 GC0758 GC0763
1D2021N C06-C10 KB5145 GC0759 FC0418 GB0475 GB0527 GC0758 GC0763
1D0031N G06-G10 KB5145 GC0759 FC0419 GB0473 GB0528 GC0758 GC0763
1D2031N G06-G10 KB5145 GC0759 FC0419 GB0475 GB0528 GC0758 GC0763
1D0041N B06-B08 KB5144 GC0756 FC0420 GB0474 GB0529 GC0755 GC0763
1D2041N B06-B08 KB5144 GC0756 FC0420 GB0476 GB0529 GC0755 GC0763
1D0051N F06-F08 KB5144 GC0756 FC0421 GB0474 GB0530 GC0755 GC0763
1D2051N F06-F08 KB5144 GC0756 FC0421 GB0476 GB0530 GC0755 GC0763
1D0061N AT06-A
1D2061N AT06-A
T10 KB5144 GC0756 FC0422 GB0474 GB0531 GC0755 GC0763
T10 KB5144 GC0756 FC0422 GB0476 GB0531 GC0755 GC0763
Ind. Interchange 1/4" NPT
PC0468 �
1⁄4"
Body
Tru-Flate 1/4" NPT
PC0474
3⁄8"
y
Bod
Tru-Flate 1/4" NP
T
� Recommended Plugs
Plugs shown smaller than actual size
Page 4
SFW10XP Fine Wire Stapler
REPLACEMENT PARTS LIST•LISTA DE PARTES DE REPUESTO•ERSATSTEILE-LISTE•LISTE DE PIÈCES DE RECHANGE
PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION
AB0123 .............BODY ..................................CARCASA ......................................GEHÄUSE ....................................... CORPS
AC0216 ............. PLATE .................................PLACA .........................................PLATTE .......................................... PLAQUE
BB0200 ............. STOP ..................................TOPE ..........................................PUFFER ......................................... ARRÊT
BC0349 ............. CAP ...................................TAPA ...........................................KAPPE ........................................... BOUCHON
BC0350 ............. VALVE ASSEMBLY .....................ASAMBLE DE VALVULA .......................VENTIL-ZUSAMMENBAU ....................... VALVE D'ASSEMBLÉE
BC0351 ............. CYLINDER ............................CILINDRO .....................................ZYLINDER ....................................... CYLINDRE
BF0218 ............. SEAL(C) ...............................SELLO .........................................DICHTUNG ...................................... JOINT
BF0220 ............. SEAL(B & AT) ........................SELLO .........................................DICHTUNG ...................................... JOINT
BF0221 ............. SEAL(C & F) ..........................SELLO .........................................DICHTUNG ...................................... JOINT
BF0222 ............. SEAL(A,D&E) .........................SELLO .........................................DICHTUNG ...................................... JOINT
CA0105 ............. PISTON, UPPER ......................PISTON ........................................KOLBEN ......................................... PISTON
CF0040 ............. PISTON, LOWER .....................PISTON ........................................KOLBEN ......................................... PISTON
CF0041 ............. HOUSING .............................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
CF0042 ............. REMOTE CORE .......................VÁSTAGO .....................................VENTILSTIFT ................................... NOYAU
CF0043 ............. HOUSING, REMOTE .................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
CF0044 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
EA0036 ............. PISTON ASSY (C) .....................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0037 ............. PISTON ASSY (F) .....................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0038 ............. PISTON ASSY (G) ....................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0039 ............. PISTON ASSY (B) .....................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0058 ............. PISTON ASSY (E) .....................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0130 ............. PISTON ASSY (AT) ...................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0144 ............. PISTON ASSY (A&D) .................ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0147 ............. PISTON ASSY (C) 1/16"CSK .........ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0148 ............. PISTON ASSY (F) 1/16"CSK .........ASAMBLE DE PISTON ........................KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
FC0418 ............. GUIDE BODY (C) .....................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
FC0419 ............. GUIDE BODY (G) .....................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
FC0420 ............. GUIDE BODY (B) .....................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
FC0421 ............. GUIDE BODY (F) .....................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
FC0422 ............. GUIDE BODY (AT) ...................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
FC0425 ............. GUIDE BODY (A&D) .................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
FC0426 ............. GUIDE BODY (E) .....................PLACA DE NARIZ .............................KLAMMERFÜHRUNG ........................... FRONT
GB0271 ............ SPRING ...............................RESORTE ......................................FEDER ........................................... RESSORT
GB0473 ............ RAIL ASSY (C&G) ....................ASAMBLE DE CARRIL ........................SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GB0474 ............ RAIL ASSY(B,F & AT) ...............ASAMBLE DE CARRIL ........................SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GB0475 ............ RAIL ASSY (C&G) (Euro) ............ASAMBLE DE CARRIL ........................SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GB0476 ............ RAIL ASSY(B,F & AT) (Euro) .......ASAMBLE DE CARRIL ........................SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GB0512 ............ LATCH ................................UÑETA .........................................VERSCHLUSS ................................... DOIGT DE RETENUE
GB0526 ............ RAIL ASSY (A,D&E) ..................ASAMBLE DE CARRIL ........................SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GB0527 ............ HOUSING (C) .........................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0528 ............ HOUSING (G) ........................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0529 ............ HOUSING (B) .........................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0530 ............ HOUSING (F) .........................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0531 ............ HOUSING (AT) .......................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0532 ............ HOUSING (A&D) .....................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0533 ............ HOUSING (E) .........................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GB0536 ............ RAIL ASSY (A,D&E) (Euro) ..........ASAMBLE DE CARRIL ........................SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GC0735 ............ PLATE .................................PLACA .........................................PLATTE .......................................... PLAQUE
GC0755 ............ FEEDER SHOE (B,F & AT) ..........ALIMENTADOR ................................KLAMMERSCHIEBER ........................... POUSSOIR
GC0756 ............ ROLLER (B,F & AT) ..................RODILLO ......................................ROLLE ........................................... GALET
GC0757 ............ HOUSING (B,F & AT) ................ALOJAMIENTO ................................GEHÄUSE ....................................... CORPS
GC0758 ............ FEEDER SHOE (C&G) ................ALIMENTADOR ................................KLAMMERSCHIEBER ........................... POUSSOIR
GC0759 ............ ROLLER (C&G) .......................RODILLO ......................................ROLLE ........................................... GALET
GC0763 ............ RETAINER (C,G,B,F & AT) ..........JUNTA TÓRICA ...............................SICHERUNGSRING ............................. RETENUE
GC0769 ............ RETAINER (A,D & E) ................JUNTA TÓRICA ...............................SICHERUNGSRING ............................. RETENUE
GC0770 ............ FEEDER SHOE (A,D&E) .............ALIMENTADOR ................................KLAMMERSCHIEBER ........................... POUSSOIR
GC0833 ............ RETAINER ............................RETÉN .........................................SICHERUNGSRING ............................. RETENUE
HC0273 ............ PIN ....................................PASADOR ......................................STIFT ............................................ GOUPILLE
HC0307 ............ PIN ....................................PASADOR ......................................STIFT ............................................ GOUPILLE
HC0315 ............ LEVER .................................PALANCA ......................................HEBEL ........................................... LEVIER
HF0082 ............. TRIGGER .............................GATILLO ......................................AUSLÖSER ...................................... GACHETTE
HG0078 ............SAFETY LABEL (US) .................ETIQUETA .....................................AUFKLEBER ..................................... ÉTIQUETTE
HG0083 ............SAFETY LABEL (Euro) ...............ETIQUETA .....................................AUFKLEBER ..................................... ÉTIQUETTE
KB0010 ............. SCREW ................................TORNILLO .....................................SCHRAUBE ...................................... VIS
KB0147 ............. SCREW ................................TORNILLO .....................................SCHRAUBE ...................................... VIS
KB0817 ............. SCREW ................................TORNILLO .....................................SCHRAUBE ...................................... VI
KB4293 ............. SPRING ...............................RESORTE ......................................FEDER ........................................... RESSORT
KB4300 ............. SPRING ...............................RESORTE ......................................FEDER ........................................... RESSORT
KB5144 ............. PIN (C&G) ............................PASADOR ......................................STIFT ............................................ GOUPILLE
KB5145 ............. PIN (B,F & AT) .......................PASADOR ......................................STIFT ............................................ GOUPILLE
KB5249 ............. SPRING ...............................RESORTE ......................................FEDER ........................................... RESSORT
KC0027 ............. PIN ....................................PASADOR ......................................STIFT ............................................ GOUPILLE
LB0007 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0019 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0021 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0033 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0057 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0069 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0860 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0890 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB0903 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB5008 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
LB5051 ............. SEAL ..................................SELLO .........................................DICHTUNG ...................................... JOINT
