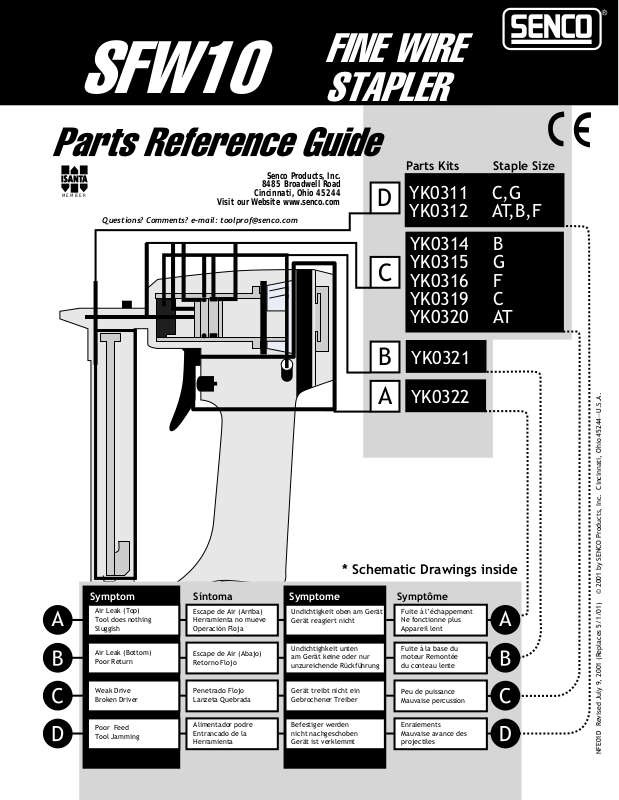

Page 1
FINE WIRE
SFW10
MEMBER
Questions? Comments? e-mail: toolprof@senco.com
STAPLER
Senco Products, Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244
Visit our Website www.senco.com
Parts Kits Staple Size
D
YK0311
YK0312
YK0314
YK0315
C
YK0316
YK0319
YK0320
B
YK0321
C,G
AT,B,F
B
G
F
C
AT
Air Leak (Top)
Tool does nothing
Sluggish
Air Leak (Bottom)
Poor Return
Weak Drive
Broken Driver
Escape de Air (Arriba)
Herramienta no mueve
Operación Floja
Escape de Air (Abajo)
Retorno Flojo
Penetrado Flojo
Lanzeta Quebrada
* Schematic Drawings inside
Symptome Symptom
Undichtigkeit oben am Gerät
Gerät reagiert nicht
Undichtighkeit unten
am Gerät keine oder nur
unzureichende Rückführung
Gerät treibt nicht ein
Gebrochener Treiber
A
YK0322
SymptômeSíntoma
Fuite à l’échappement
Ne fonctionne plus
Appareil lent
Fuite à la base du
moteur Remontée
du conteau lente
Peu de puissance
Mauvaise percussion
Poor Feed
Tool Jamming
Alimentador podre
Entrancado de la
Herramienta
Befestiger werden
nicht nachgeschoben
Gerät ist verklemmt
Enraiements
Mauvaise avance des
projectiles
NFE01D Revised July 9, 2001 (Replaces 5/1/01) © 2001 by SENCO Products, Inc. Cincinnati, Ohio 45244—U.S.A.
Page 2
SFW10 Fine Wire Stapler
BC0349
BC0351
LB0057
BC0350
LB5013
Model A B C
1D2021N C06-C10 EA0036 BF0218
1D2031N G06-G10 EA0038 BF0221
1D2041N B06-B08 EA0039 BF0220
1D2051N F06-F08 EA0037 BF0221
1D2061N AT06-AT10 EA0130 BF0220
LB0860
LB5051
B
BB0196
C
* Does Not Include O-rings
* No incluye sellos de gomas
* Ohne Dichtringe
* Joints exclus
LB0069
LB0033
AB0123
A
KC0027
KB5249
CF0039
LB0019
CF0041
CF0044
CF0040
LB0057
LB0021
KB0010
LB5015
LB0016
CF0043
LB0016
LB0007
CF0042
LB5008
AC0216
HF0082
KC0062
Page 3
HC0307
KB0147
KB0147
HC0315
KC0062
HC0273
GF0083
GC0763
KC0062
KB4300
GC0735
KB0817
KB0147
KB4293
F
I
D
E
Model A D E F G H I
1D2021N C06-C10 KB5145 GC0759 ZY0293 GB0475 GC0734 GC0758
1D2031N G06-G10 KB5145 GC0759 ZY0303 GB0475 GC0734 GC0758
1D2041N B06-B08 KB5144 GC0756 ZY0302 GB0476 GC0757 GC0755
1D2051N F06-F08 KB5144 GC0756 ZY0304 GB0476 GC0757 GC0755
1D2061N AT06-AT10 KB5144 GC0756 ZY0305 GB0476 GC0757 GC0755
H
NFE01D Revised July 9, 2001 (Replaces 5/1/01) © 2001 by SENCO Products, Inc. Cincinnati, Ohio 45244—U.S.A.
Available Plugs
G
(Not Included with Tool)
PC0479 ✔
1⁄4"
Body
Ind. Interchange 1/4" MPT
PC0486
3⁄8"
Body
Ind. Interchange 1/4" MPT
1⁄4"
Body
PC0468
Tru-Flate 1/4" MPT
✔
PC0474
3⁄8"
Body
Tru-Flate 1/4" MPT
✔ Recommended Plugs
Plugs shown smaller than actual size
Page 4
SFW10 Fine Wire Stapler
REPLACEMENT PARTS LIST•LISTA DE PARTES DE REPUESTO•ERSATSTEILE-LISTE•LISTE DE PIÈCES DE RECHANGE
PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION
AB0123 ............ BODY ................................ CARCASA .................................... GEHÄUSE ....................................... CORPS
AC0216 ............PLATE ............................... PLACA ....................................... PLATTE ......................................... PLAQUE
BB0196 ............ STOP ................................. TOPE ......................................... PUFFER ......................................... ARRÊT
BC0349 ............ CAP .................................. TAPA ......................................... KAPPE .......................................... BOUCHON
BC0350 ............ VALVE ASSEMBLY .................. ASAMBLE DE VALVULA ..................... VENTIL-ZUSAMMENBAU ....................... VALVE D'ASSEMBLÉE
BC0351 ............ CYLINDER ........................... CILINDRO .................................... ZYLINDER ....................................... CYLINDRE
BF0218 ............. SEAL(C) ............................. SELLO ........................................ DICHTUNG ..................................... JOINT
BF0220 ............. SEAL(B & AT) ....................... SELLO ........................................ DICHTUNG ..................................... JOINT
BF0221 ............. SEAL(C & F) ......................... SELLO ........................................ DICHTUNG ..................................... JOINT
CF0039 ............ PISTON, UPPER ..................... PISTON ...................................... KOLBEN ......................................... PISTON
CF0040 ............ PISTON, LOWER .................... PISTON ...................................... KOLBEN ......................................... PISTON
CF0041 ............ HOUSING ............................ ALOJAMIENTO .............................. GEHÄUSE ....................................... CORPS
CF0042 ............ REMOTE CORE ...................... VÁSTAGO .................................... VENTILSTIFT ................................... NOYAU
CF0043 ............ HOUSING, REMOTE ................ ALOJAMIENTO .............................. GEHÄUSE ....................................... CORPS
CF0044 ............ SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
EA0036 ............ PISTON ASSY (C) ................... ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0037 ............ PISTON ASSY (F) ................... ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0038 ............ PISTON ASSY (G) ................... ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0039 ............ PISTON ASSY (B) ................... ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
EA0130 ............ PISTON ASSY (AT) .................. ASAMBLE DE PISTON ....................... KOLBEN-ZUSAMMENBAU ...................... PISTON D'ASSEMBLÉE
GB0475 ............ RAIL ASSY (C&G) ................... ASAMBLE DE CARRIL ....................... SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GB0476 ............ RAIL ASSY(B,F & AT) .............. ASAMBLE DE CARRIL ....................... SCHIENE-ZUSAMMENBAU ..................... RAIL D'ASSEMBLÉE
GC0734 ............ HOUSING (C&G).................... ALOJAMIENTO .............................. GEHÄUSE ....................................... CORPS
GC0735 ............ PLATE ............................... PLACA ....................................... PLATTE ......................................... PLAQUE
GC0755 ............ FEEDER SHOE (B,F & AT) ......... ALIMENTADOR .............................. KLAMMERSCHIEBER ........................... POUSSOIR
GC0756 ............ ROLLER (B,F & AT) ................ RODILLO ..................................... ROLLE ........................................... GALET
GC0757 ............ HOUSING (B,F & AT)............... ALOJAMIENTO .............................. GEHÄUSE ....................................... CORPS
GC0758 ............ FEEDER SHOE (C&G)............... ALIMENTADOR .............................. KLAMMERSCHIEBER ........................... POUSSOIR
GC0759 ............ ROLLER (C&G)...................... RODILLO ..................................... ROLLE ........................................... GALET
GC0763 ............ RETAINER ........................... JUNTA TÓRICA .............................. SICHERUNGSRING ............................. RETENUE
GF0083 ............LATCH ............................... UÑETA ....................................... VERSCHLUSS ................................... DOIGT DE RETENUE
HC0273 ............ PIN................................... PASADOR .................................... STIFT ........................................... GOUPILLE
HC0307 ............ PIN................................... PASADOR .................................... STIFT ........................................... GOUPILLE
HC0315 ............ LEVER ............................... PALANCA .................................... HEBEL........................................... LEVIER
HF0082 ............TRIGGER ............................ GATILLO ..................................... AUSLÖSER ...................................... GACHETTE
KB0010 ............ SCREW .............................. TORNILLO ................................... SCHRAUBE ...................................... VIS
KB0147 ............ SCREW .............................. TORNILLO ................................... SCHRAUBE ...................................... VIS
KB0817 ............ SCREW .............................. TORNILLO ................................... SCHRAUBE ...................................... VI
KB4293 ............ SPRING .............................. RESORTE .................................... FEDER ........................................... RESSORT
KB4300 ............ SPRING .............................. RESORTE .................................... FEDER ........................................... RESSORT
KB5144 ............ PIN (C&G) ........................... PASADOR .................................... STIFT ........................................... GOUPILLE
KB5145 ............ PIN (B,F & AT) ..................... PASADOR .................................... STIFT ........................................... GOUPILLE
KB5249 ............ SPRING .............................. RESORTE .................................... FEDER ........................................... RESSORT
KC0027 ............PIN ................................... PASADOR .................................... STIFT ........................................... GOUPILLE
KC0062 ............RETAINER ........................... RETÉN ....................................... SICHERUNGSRING ............................. RETENUE
LB0007 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0016 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0019 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0021 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0033 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0057 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0069 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB0860 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB5008 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB5013 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB5015 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
LB5051 ............. SEAL ................................. SELLO ........................................ DICHTUNG ..................................... JOINT
ZY0293 ............ GUIDE BODY (C) .................... PLACA DE NARIZ ............................ KLAMMERFÜHRUNG ........................... FRONT
ZY0302 ............ GUIDE BODY (B) .................... PLACA DE NARIZ ............................ KLAMMERFÜHRUNG ........................... FRONT
ZY0303 ............ GUIDE BODY (G) ................... PLACA DE NARIZ ............................ KLAMMERFÜHRUNG ........................... FRONT
ZY0304 ............ GUIDE BODY (F) .................... PLACA DE NARIZ ............................ KLAMMERFÜHRUNG ........................... FRONT
ZY0305 ............ GUIDE BODY (AT) .................. PLACA DE NARIZ ............................ KLAMMERFÜHRUNG ........................... FRONT
