PalletPro 57
SM
Repair Kit
YK0446
Senco Products, Inc.
8485 Broadwell Rd.
Cincinnati, Ohio 45244
Visit our Website www.senco.com

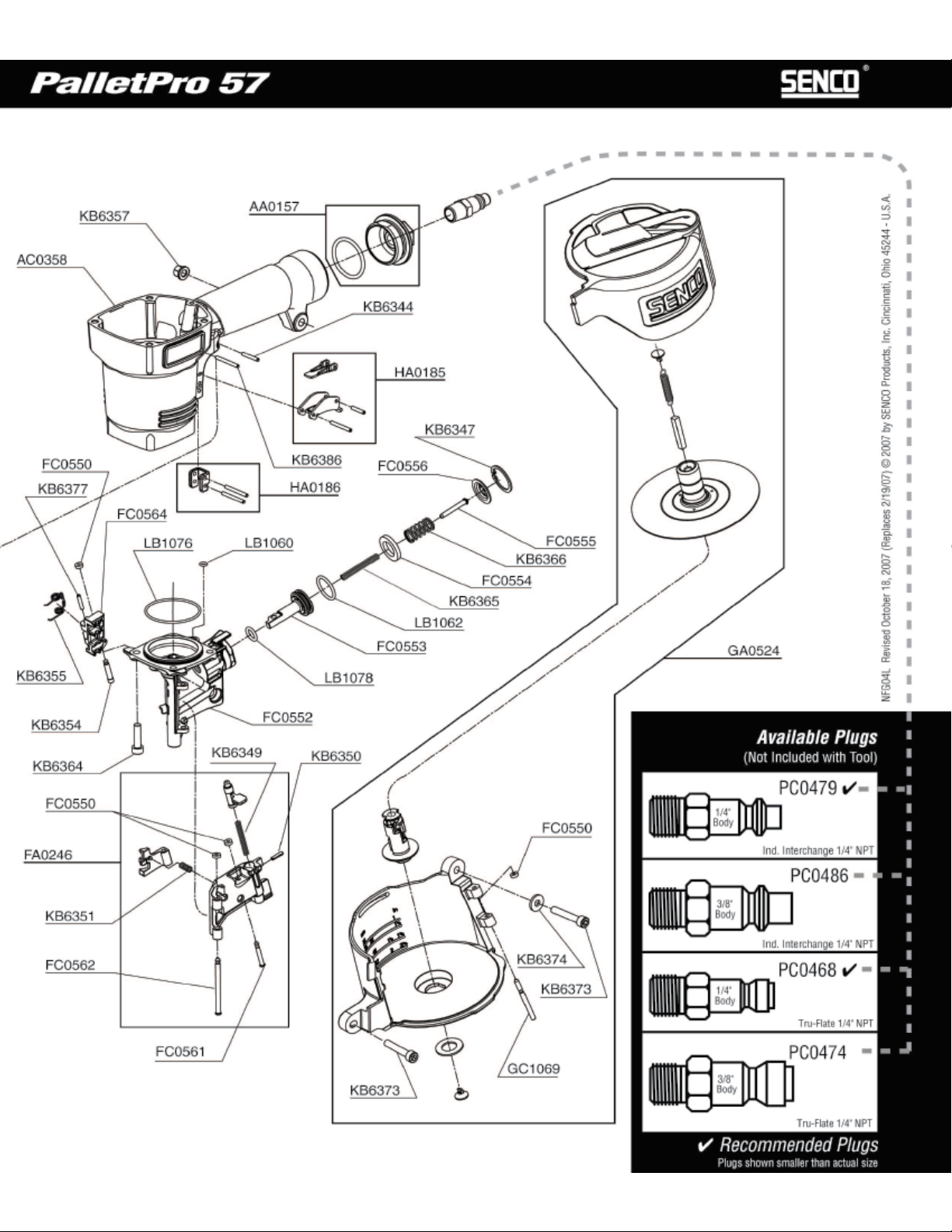

* Schematic drawings inside
NFG04L October 18, 2007 (Replaces 2/19/07) © 2007 by SENCO Products, Inc. Cincinnati, Ohio 45244 - U.S.A.
Questions? Comments? call SENCO’s toll-free Action-line:
1-800-543-4596 (North & South America only)
or e-mail: toolprof@senco.com
PalletPro 57
REPLACEMENT PARTS LIST • LISTA DE PARTES DE REPUESTO • ERSATSTEILE-LISTE • LISTE DE PIÈCES DE RECHANGE
PART NO. DESCRIPTION DESCRIPCIÓN BESCHREIBUNG DÉSIGNATION
AA0157 ................... END CAP ASY .................................... ASAMBLE DE TAPA ........................................ KAPPE-ZUSAMMENBAU ....................................BOUCHON D’ASSEMBLÉE
AC0355 .................... WEAR GUARD ................................... PLACA ............................................................ SCHUTZPLATTE .................................................BOUCLIER ANTIABRASIF
AC0357 ................... SEAL ................................................. SELLO ............................................................DICHTUNG ...................................... .................. JOINT
AC0358 ................... MAIN BODY ...................................... CARCASA .......................................................GEHÄUSE ....................................... ................... CORPS
AC0359 ................... CAP .................................................. TAPA ............................................................... KAPPE ........................................... .................... BOUCHON
BA0173 ................... DEFLECTOR ASY ............................... ASAMBLE DE DESVIADOR ............................. ABWEISER-ZUSAMMENBAU .............................. DÉFLECTEUR D’ASSEMBLÉE
BC0531 ................... SEAL ................................................. SELLO ...........................................................DICHTUNG ...................................... .................. JOINT
BC0534 .................... MUFFLER .......................................... SILENCIADOR ................................................DÄMPFER ........................................................... SILENCIEUX
BC0535 ................... SEAL ................................................. SELLO ...........................................................DICHTUNG ...................................... .................. JOINT
BC0536 .................... SEAL ................................................. SELLO ............................................................DICHTUNG ...................................... .................. JOINT
BC0537 ................... WASHER ..........................................ARANDELA .....................................................SCHEIBE ......................................... ................... RONDELLE
BC0538 ................... VALVE ............................................... VÁLVULA .......................................................VENTIL ......................................... .....................VALVE
BC0539 ................... CYLINDER COLLAR .......................... CILINDRO ...................................................... ZYLINDER ......................................... ................ CYLINDRE
BC0540 ................... CYLINDER ........................................ CILINDRO ...................................................... ZYLINDER ....................................... ..................CYLINDRE
BC0541 .................... RING, CYLINDER............................... ANILLO ........................................................... REIFEN ............................................................... ANNEAU
BC0542 ................... SPACER ............................................ SEPARADOR .................................................DISTANZSTÜCK ................................. ................ ENRETOISE
BC0543 ................... STOP, PISTON .................................. TOPPE ........................................................... PUFFER ......................................... ....................ARRÊT
CA0112 ................... VALVE ASSEMBLY.............................ASAMBLE DE VALVULA .................................. VENTIL-ZUSAMMENBAU ...................................VALVE D'ASSEMBLÉE
EA0171 ...................DRIVER ASSY ...................................PERCUSOR .................................................... TREIBER ........................................ .................... COUTEAU
FA0246 ..................... LATCH ASY ........................................ ASAMBLE DE UÑETA ................................. .....VERSCHLUSS-ZUSAMMENBAU .......................... DOIGHT DE RETUNUE D’ASSEMBLÉE
FC0522 .................... GUIDE BODY ..................................... PLACA DE NARIZ ...........................................NAGELFÜHRUNG ...............................................FRONT
FC0550 .................... RETAINER ........................................JUNTA TÓRICA ............................................... SICHERUNGSRING.............................................RETENUE
FC0553 ..................... PISTON, FEED ...................................PISTON...................................................... .....KOLBEN ............................................................... PISTON
FC0554 .................... STOP ................................................ TOPPE ........................................................... PUFFER ......................................... .................... ARRÊT
FC0555 ..................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
FC0556 .................... CAP, FEED PISTON ...........................TAPA ............................................................... KAPPE ........................................... .................... BOUCHON
FC0561 ..................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
FC0562 ..................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
FC0564 .................... FEED PAWL ....................................... ALIMENTADOR ..............................................VORSCHIEBER .................................. ................POUSSOIR
FC0565 .................... COVER ..............................................CUBIERTA ...................................................... ABDECKUNG .................................... .................COUVERCLE
GA0524 ................... MAGAZINE ASY ................................ ASAMBLE DE CARGADOR ............................. MAGAZIN-ZUSAMMENBAU ................................MAGASIN D’ASSEMBLÉE
GC1069 .................... PIN ................................................... PASADOR ...................................................... STIFT .................................................................. GOUPILLE
HA0185 ................... TRIGGER ASSEMBLY ........................ ASAMBLE DE GATILLO...................................AUSLÖSER-ZUSAMMENBAU ................... ......... GÂCHETTE D’ASSEMBLÉE
HA0186 .................... SAFETY ELEMENT ASSEMBLY ..........ASAMBLE DE SEGURO...................................SICHERHEITSVORRICHTUNG-ZUSAMMENBAU ENSEMBLE PALPEUR DE SÉCURITÉ
HA0203 ................... COVER ASY ...................................... ASAMBLE DE CUBIERTA ............................... ABDECKUNG-ZUSAMMENBAU ...........................COUVERCLE D’ASSEMBLÉE
HC0480 .................... PLUG ................................................. PASADOR .......................................................STIFT ................................................................... GOUPILLE
HC0482 ................... SPACER ............................................ SEPARADOR .................................................DISTANZSTÜCK ................................. ................ ENRETOISE
HC0485 ................... SAFETY ELEMENT ............................. SEGURO ......................................................... SICHERHEITSVORRICHTUNG ................. .......... PALPEUR DE SÉCURITÉ
KB6342 .................... SCREW ............................................. TORNILLO .....................................................SCHRAUBE ...................................... .................. VIS
KB6344 ................... PIN ................................................... PASADOR ...................................................... STIFT .................................................................. GOUPILLE
KB6347 .................... RING ................................................. ANILLO ........................................................... REIFEN ...............................................................ANNEAU
KB6349 ................... SPRING ............................................ RESORTE .......................................................FEDER ........................................... .................... RESSORT
KB6350 .................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
KB6351 ................... SPRING ............................................ RESORTE .......................................................FEDER ........................................... .................... RESSORT
KB6354 .................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
KB6355 .................... SPRING ............................................ RESORTE .......................................................FEDER ......................................................... ...... RESSORT
KB6357 ................... NUT ................................................... TUERCA .......................................................... MUTTE .......................................... ....................ÉCROU
KB6361 .................... SCREW ............................................. TORNILLO .....................................................SCHRAUBE ...................................... .................. VIS
KB6362 .................... SPRING ............................................ RESORTE .......................................................FEDER ......................................................... ...... RESSORT
KB6364 .................... SCREW ............................................. TORNILLO .....................................................SCHRAUBE ...................................... .................. VIS
KB6365 .................... SPRING ............................................. RESORTE........................................................FEDER ......................................................... ...... RESSORT
KB6366 .................... SPRING ............................................ RESORTE .......................................................FEDER ......................................... ...................... RESSORT
KB6371 ................... SPRING ............................................ RESORTE .......................................................FEDER ........................................... .................... RESSORT
KB6373 .................... SCREW ............................................. TORNILLO .....................................................SCHRAUBE ...................................... .................. VIS
KB6374 ................... WASHER ..........................................ARANDELA .....................................................SCHEIBE ......................................... ................... RONDELLE
KB6377 .................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
KB6386 .................... PIN .................................................... PASADOR ....................................................... STIFT .................................................................. GOUPILLE
LB1060 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1062 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1063 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1064 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1065 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1066 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1067 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1076 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
LB1078 ....................SEAL .................................................SELLO ............................................................ DICHTUNG ...................................... .................. JOINT
