SENA TECHNOLOGIES IW02 Users Manual
Bluetooth Class 1 OEM Module
Parani-BCD110
Product Datasheet
Version 1.0.0
February 9, 2012
Sena Technologies, Inc.
PARANI-BCD110
Copyright
Copyright 2012, Sena Technologies, Inc. All rights reserved.
Sena Technologies reserves the right to make changes and improvements to its product without providing
notice.
Trademark
Parani™ is a trademark of Sena Technologies, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Notice to Users
When a system failure may cause serious consequences, protecting life and property against such
consequences with a backup system or safety device is essential. The user agrees that protection against
consequences resulting from system failure is the user's responsibility.
This device is not approved for life-support or medical systems.
Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's
authority to operate this device.
Precautions and Safety
Do not drop or subject the device to impact. Damage to your products may result from improper use.
Keep away from harsh environments including humid, dusty, and smoky areas. Damage to your products
may result from improper use.
Do not use excessive force on the buttons or attempt to disassemble the device. Damage to your products
may result from improper use.
Do not place heavy objects on the product. Damage to your products may result from improper use.
Contact Information
Technical support email: support@sena.com
Company website: http://www.sena.com
Page 2 of 26
PARANI-BCD110
Contents
1. General .......................................................................................................................................................... 4
1.1 Features ............................................................................................................................................... 4
1.2 Applications .......................................................................................................................................... 4
1.3 Device Diagram .................................................................................................................................... 5
1.4 Pin Diagram .......................................................................................................................................... 5
1.5 Pin Descriptions.................................................................................................................................... 6
1.6 Dimensions and PCB land pattern ....................................................................................................... 8
2. Electrical characteristics ............................................................................................................................... 11
2.1 Absolute maximum ratings .................................................................................................................. 11
2.2 Recommended operating conditions ................................................................................................... 11
2.3 Power Consumptions .......................................................................................................................... 11
3. RF Characteristics ....................................................................................................................................... 12
3.1 Basic Data Rate .................................................................................................................................. 12
3.1.1 Transmitter Performance .......................................................................................................... 12
3.1.2 Transceiver ............................................................................................................................... 12
3.1.3 Receiver Performance ............................................................................................................. 12
3.2 Enhanced Data Rate .......................................................................................................................... 13
3.2.1 Transmitter performance .......................................................................................................... 13
3.2.2 Receiver performance .............................................................................................................. 14
4. Device Terminal Descriptions ...................................................................................................................... 15
4.1 UART Interface ................................................................................................................................... 15
4.2 USB Interface ..................................................................................................................................... 15
4.3 I2C Interface ....................................................................................................................................... 16
4.4 PCM CODEC Interface ...................................................................................................................... 16
4.5 I/O Parallel Ports ................................................................................................................................ 16
4.6 Reset Interface ................................................................................................................................... 17

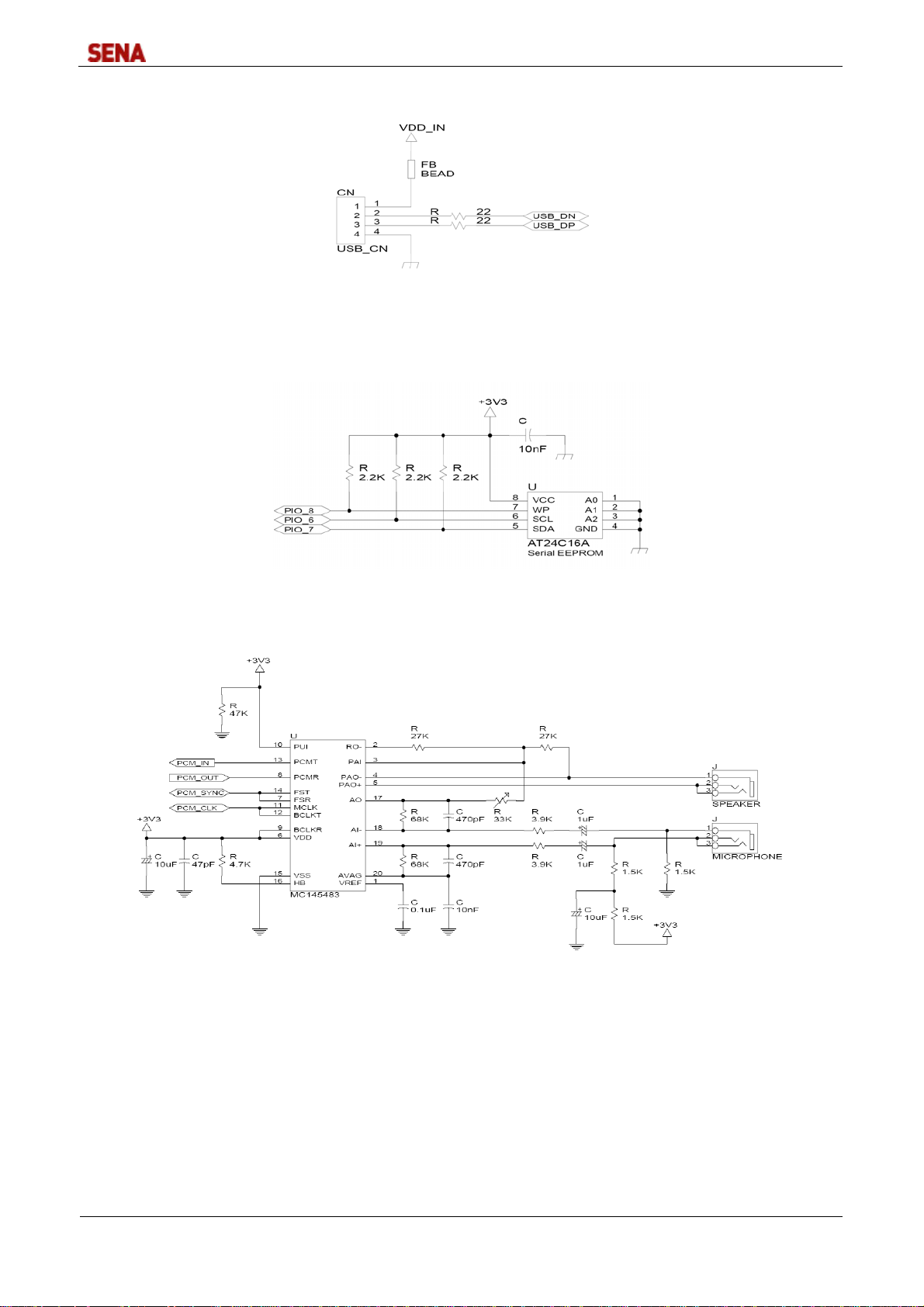

5. Application Schematic.................................................................................................................................. 18
6. Software Stack ............................................................................................................................................. 21
7. Solder Profiles ............................................................................................................................................. 22
8. Packaging Information ................................................................................................................................. 23
9. Certificate Information ................................................................................................................................. 25
9.1 FCC .................................................................................................................................................... 25
9.1.1 FCC Compliance Statement ............................................................................................... 25
9.1.2 RF Exposure Statement ..................................................................................................... 25
9.1.3 Do not ................................................................................................................................. 25
9.2 CE .................................................................................................................................................. 26
9.3 IC ................................................................................................................................................... 26
9.4 KC .................................................................................................................................................. 26
9.5 TELEC ........................................................................................................................................... 26
9.6 SIG ................................................................................................................................................. 26
Page 3 of 26
PARANI-BCD110
1. General
The Parani-BCD110 is a Bluetooth Class 1 OEM module for OEM manufacturers who want to implement
Bluetooth Class 1 functionality with their products cost effectively and also in timely manner. Users can build
their own antenna circuit around the BCD110 to lower the overall cost while benefit from the BCD110’s field-
proven standard SPP (Serial Port Profile) firmware provided with no additional cost.
The BCD110 supports Class 1 Bluetooth transmission level for longer communication distance typically
ranges from 100 m up to 1 km. The BCD110 supports UART, USB, I2C, PCM, PIO interfaces for the
communication with the OEM products.
The BCD110 is provided with Bluetooth v2.0 compatible firmware runs internally for SPP (Serial Port
Profile) applications by default. The SPP firmware supports up to 4 simultaneous multiple connections and is
designed to work out-of-box for real world SPP applications such as POS (Point-of-sales), industrial
automation, remote metering and other various applications. Optionally, the BCD110 can be supplied with
only software stack up to HCI level so entire Bluetooth stack runs on the host side for the application such as
USB dongles for computers, or OEM manufacturers can even develop and embed their own firmware into
the BCD110.
The BCD110 is fully qualified with Bluetooth v.2.0+EDR specification so OEM manufacturers can save cost
and time for overall OEM product certifications, which makes the BCD110 ideal solution for larger volume
and cost sensitive applications.
1.1 Features
Bluetooth Class 1
Fully qualified with Bluetooth v2.0 + EDR specification
Transmit Power: max. +20dBm
Receive sensitivity: -90dBm (0.1% BER)
Size: DIP type 16.8 x 34.6 x 7.5mm - with shield can
SMD type 14.8 x 34.6 x 3.0mm - with shield can
Extended operating temperature range: -40˚C ~ +85˚C
Integrated variable antennas
Integrated 8Mbit Flash Memory
USB, Dual UART, I2C, PCM, PIO interfaces
802.11 co-existence
Field-proven SPP (Serial Port Profile) firmware supporting up to 4 simultaneous multiple
connections
RoHS Compliant
1.2 Applications
High-speed data transceiver systems for long distance communication
PCs/Personal Digital Assistants (PDA)
Bluetooth USB dongle
Bluetooth serial dongle
Bluetooth access points
Industrial automation devices
Remote metering devices
POS (Point-of-sales) devices
Page 4 of 26
1.3 Device Diagram
PARANI-BCD110
2402 ~ 2480MHz
2.4GHz
Antenna
5dBi dipole
3dBi dipole
1dBi stub
0dBi chip
1.4 Pin Diagram
RF_IN/OUT
Parani-BCD110
RF Amplifier
Circuit
LNA
PA PIO
Crystal
26MHz
2.4GHz
Radio
Voltage
Regulator
1.8V core
BlueCore4 External
Figure 1-1 Device Diagram
RAM
Baseband
DSP
MCU
Flash Memory
8Mb
IO
USB
UART
SPI
Interface Pad
or connector
PCM
VCC 3.3V
Figure 1-2 Pin diagram
Page 5 of 26
1.5 Pin Descriptions
Function Pin Name Pin Number Description
USB Interface
UART Interface
PCM Interface
SPI Interface
PIO Interface
AIO
Power
Others
USB_DP 11 USB data plus
USB_DN 10 USB data minus
UART_TXD 8 UART data output
UART_RXD 7 UART data input
UART_RTS 6 UART request to send active low
UART_CTS 9 UART clear to send active low
PCM_OUT 15 Synchronous data output
PCM_IN 12 Synchronous data input
PCM_SYNC 13 Synchronous data sync
PCM_CLK 14 Synchronous data clock
SPI_MISO 20 SPI data output
SPI_MOSI 23 SPI data input
SPI_CSB 22 Chip select for SPI, active low
SPI_CLK 21 SPI clock
PIO_2 29 Programmable input/output line
PIO_3 28 Programmable input/output line
PIO_4 24 Programmable input/output line
PIO_5 25 Programmable input/output line
PIO_6 26 Programmable input/output line
PIO_7 27 Programmable input/output line
PIO_8 30 Programmable input/output line
PIO_9 31 Programmable input/output line
PIO_10 32 Programmable input/output line
PIO_11 33 Programmable input/output line
AIO_0 4 Analogue programmable input/output line
AIO_1 5 Analogue programmable input/output line
PVCC 3 Power supply for power amplifier, 3.3V
+3V3 16 Power supply for system, 3.3V
GND 1, 2, 17, 19
34, 35, 36
RESETB 18 Reset, active low, > 5ms to cause a reset
Table 1-1 Pin descriptions
PARANI-BCD110
Ground
Page 6 of 26
Function Pin Name STATE
USB
UART
PCM
SPI
PIO
AIO
Others
USB_DP -
USB_DN -
UART_TXD UART_TXD Output Tri-stated with weak pull-up
UART_RXD UART_RXD Input Weak pull-down
UART_RTS UART_RTS Output Tri-stated with weak pull-up
UART_CTS UART_CTS Input Weak pull-down
PCM_OUT - Output Tri-stated with weak pull-down
PCM_IN - Input Weak pull-down
PCM_SYNC - Input Weak pull-down
PCM_CLK - Input Weak pull-down
SPI_MISO - Output Tri-stated with weak pull-down
SPI_MOSI - Input Weak pull-down
SPI_CSB - Input Weak pull-up
SPI_CLK - Input Weak pull-down
PIO_2 UART_DCD Output Weak pull-down
PIO_3 UART_DTR Output Weak pull-down
PIO_4 UART_DSR Input Weak pull-up
PIO_5 FACTORY_RESET Input Weak pull-up
PIO_6 BT_MODE Input Weak pull-up
PIO_7 F/C_CTRL Output Weak pull-up
PIO_8 -
PIO_9 -
PIO_10 STATUS_LED0 Output Weak pull-down
PIO_11 STATUS_LED1 Output Weak pull-down
AIO_0 -
AIO_1 -
RESETB RESETB Input Weak pull-up
PARANI-BCD110
Define (SPP) Direction Pull-up/down
Input Weak pull-up
Input Weak pull-up
Input Weak pull-down
Input Weak pull-down
Output Driving low
Output Driving low
Table 1-2 Pin States on Reset (SPP)
Page 7 of 26

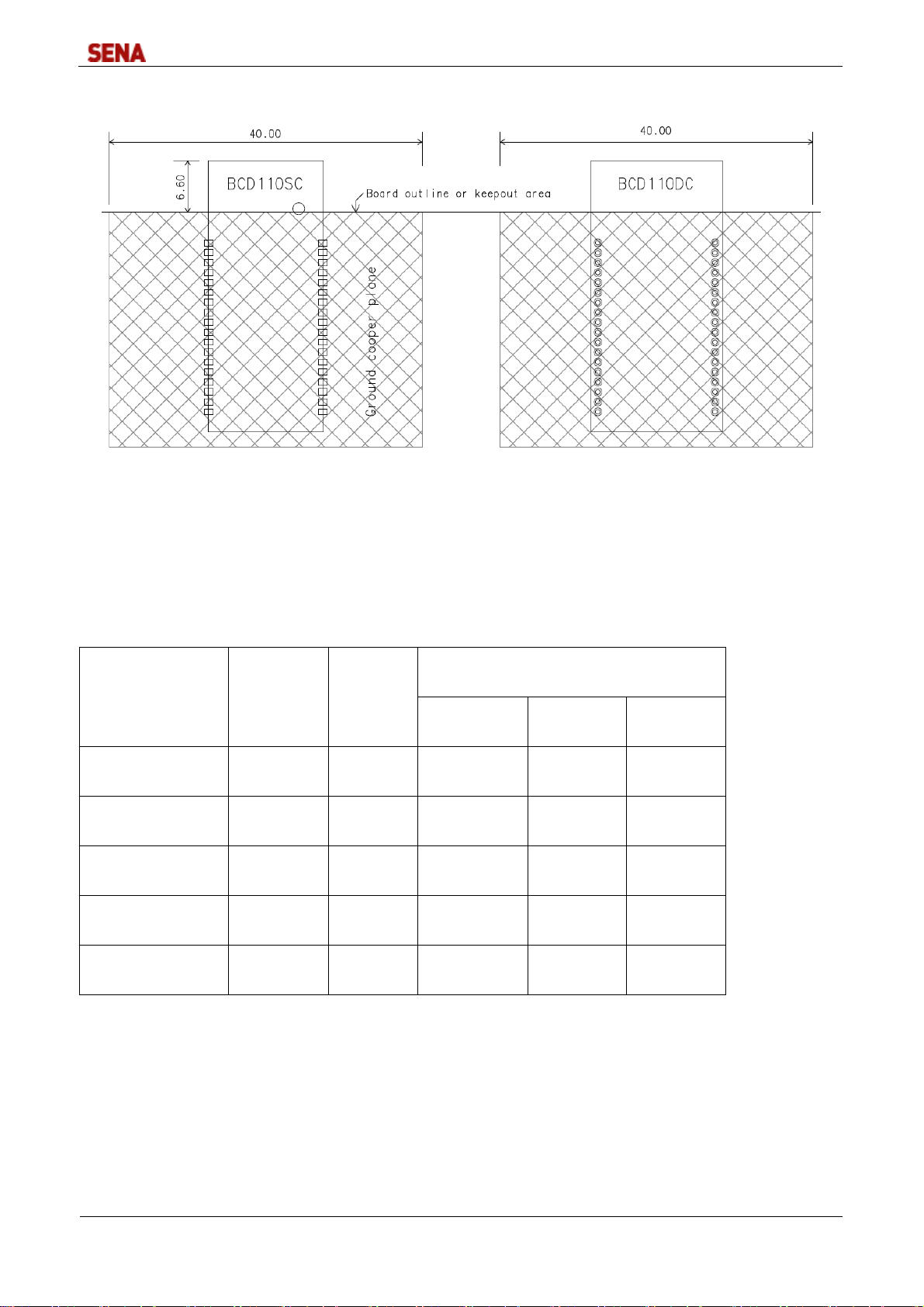

1.6 Dimensions and PCB land pattern
PARANI-BCD110
Figure 1-3 BCD110SU Dimensions Figure 1-4 BCD110DU Dimensions
Figure 1-5 BCD110SC Dimensions Figure 1-6 BCD110DC Dimensions
