SENAO

Wireless Outdoor Bridge

SL-2511BG PLUS

User’s Manual

Before operating the unit, please read this manual thoroughly, and retain it
for future reference.

Chapter 1 – Hardware Installation

Before You Start .................................................................................... 1-1

Locate the Router/Bridge and Inline Power Injector Ports ………............ 1-2

Preparing Installation ………....................................................….......... 1-3

Outdoor Installation ...........................…………………………………… 1-5

Chapter 2 – Quick Setup

Configure Requirements ........................................................................ 2-1

Configure the RB ......…………………………….................…...….......... 2-4

Configure the RB as bridge mode Root AP .......................…...….......... 2-

5
Configure the RB as Root AP

Configure the RB as Root AP with dynamic IP address Ethernet …..... 2-13

Configure the RB as Root AP with static IP address Ethernet ….......... 2-15

Configure the RB as Remote Extension Bridge ....................…...…..... 2-17

Chapter 3 – Further Configuration

Configure Requirements ........................................................................ 3-2

Configure the RB ......…………………………….................…...….......... 3-5

Security ……………………………………........................…...…......…. 3-20

Configure DHCP server …………………........................…...…......…. 3-24

Configure Virtual Server ………………….......................…...…......…. 3-25

Configure Routing Table …………………………….........…...…......…. 3-27

Configure Bridge …………………………........................…...…......…. 3-28

Configure SNMP………………………………………..........…...…......…. 3-29

Configuration Review and Apply the New Settings …………….…..…. 3-30

Utility …………………………………….........……............…...…......…. 3-31

with PPPoE Ethernet connection ........ 2-11

Chapter 4 – Command Line Interface

Appendix A – Specifications

Appendix B – Default Settings

Appendix C – Regulatory Compliance Information

Chapter 1 Hardware Installation

This chapter describes the procedures for installing the Outdoor
Router/Bridge.

Note: Before you mount the Router/Bridge to a mast or on the side of a
building, be sure to configure and test the device first.

Here’s what you’ll find in this chapter:
_ Before You Start
_ Locate the Router/Bridge Ports
_ Preparing for Installation
_ Outdoor Installation

Before You Start

After unpacking the system, make sure the following items are present and
in good condition, as shown in Figure 1.1:

1. MIL-C-5015 style Ethernet Cable 2. Router/Bridge

3. Reverse Polarity-N Female RF Cable 4. Cross over Ethernet Cable

5. Mast Mounting Kit 6. Wall Mounting Kit

7. MIL-C-5015 style RS232 Console Port Cable

8. Inline Power Injector 9. AC Power Cord

10. User’s Manual

Locate the Router/Bridge and Inline Power
Injector Ports

Special

z

z

z Reverse Polarity-N Male connector 3

z Power & Data output port 4

z Data input port 5

z AC power input port 6

Ethernet port 1 for connecting the MIL-C-5015 style Ethernet

Cable

Special

serial port 2 for connecting the MIL-C-5015 style RS-232

console port cable

cable.

style Ethernet Cable

Router or a PC.

as shown in Figure 1.2

for connecting the antenna or RF

for connecting the other of the MIL-C-5015

for connecting the Ethernet Cable to a Hub Switch

for connecting the power cord.

1 - 1

1 - 2

Preparing Installation

Before installing your Outdoor Wireless LAN system for your outdoor
application in a hard-to-reach location, we recommend that you configure
and test all the devices first.

For configuring the Outdoor Router/Bridge, you need follow the quick steps
below to power up your Router/Bridge:

Step 1:

antenna connector and then connect the antenna to the other end of the RF
cable as shown in Figure 1.3.

With the unit powered off, attach one end of the RF cable to the

information. After configuration is completed, this cable will be removed, and
then you should run an Ethernet cable from Data Input Port (on the front of
the Inline Power Injector) to the LAN connection (such as to a hub, bridge or
directly into a patch panel).

Plug the MIL-C-5015 style Ethernet connector into the Special

Step 4

Ethernet port on the back of the Router/Bridge.

Plug the RJ-45 Ethernet connector (the other end of the Special

Step 5

Ethernet cable) into the Power & Data Output Port on the front of the Inline
Power Injector.

When the Router/Bridge receives power over the Ethernet cable, the
Router/Bridge will start its boot sequence and the Active LED on the front of
the Inline Power Injector will light up.

You can configure the Router/Bridge using the HTML browser, such as
Internet Explorer or Netscape Navigator from a remote host or PC.
(Please consult the “Quick Setup” section).

Plug the female end of the power cord into the Inline Power Injector,

Step 2

and then plug the male end of the power cord into a power outlet or power
strip. The Power LED on the front of the Inline Power Injector will light up.

Run the cross over Ethernet cable (included in your package) from

Step 3

Data Input Port (on the front of the Inline Power Injector) to the Ethernet Port
on a PC.

NOTE: This connection is required for setting up initial configuration

1 - 3

1 - 4

Outdoor Installation

Outdoor Router/Bridge device can be mounted on the side of a
building or mounted to an antenna mast as shown in Figure 1.5 and
Figure 1.6.

A wall (side) mount
allows for mounting an
antenna (mast) on the
side of a building or on
the side of an elevator
penthouse. This will
provide a convenient
mounting location
when the roof
overhang is not
excessive and/or the
location is high
enough to provide a
clear line of sight.

In most situations
mounting an antenna
directly to the wall will
not allow you to
properly align the
antenna with the
corresponding antenna
at the opposite end of
your wireless link. As

poor alignment will
typically result in poor performance, we advise you to always mount
the Outdoor Router/Bridge and antenna to a mast.

Antenna Mast Requirements

To accommodate the outdoor antennas, the antenna mast must satisfy
the following requirements:

a. The construction of the mast must be of a sturdy, weatherproof and
no corrosive material like for example galvanized or stainless steel
construction pipe.

1 - 5

b. Typical diameter of the mast should be between 35 mm (1.4 in.) and
41 mm (1.625 in.). Subject to the type of antenna that you intend to
install other diameters may be possible as well.

c. The height of the antenna mast must be sufficient to allow the
antenna to be installed at least 1.5 m (5 ft.) above the peak of roof. If the
roof is metal, then the height of the antenna should be a minimum of 3
m (10 ft) above the roof.

d. The mast or wall-bracket must be free from any substance that may
prevent
a good electrical connection with the antenna; for example, paint.

Grounding

A safety grounding
system is necessary to
protect your outdoor
installation from
lightning strikes and
the build-up of static
electricity.
So direct grounding of
the antenna mast,
Outdoor Router/Bridge
and
Surge Arrester is very
important. The
Outdoor Router/Bridge
has built in Surge
Arrester. So Mounting
the Outdoor
Router/Bridge on the
antenna mast, you
have to connect the
Outdoor Router/Bridge
to the same grounding
system with the AC

wall outlet.

The grounding system must comply with the National Electrical Code
and safety standards that apply in your country. Always check with a

1 - 6

qualified electrician if you are in doubt as to whether your outdoor
installation is properly grounded.

Antenna Alignment

For optimal performance of your wireless link, make sure that the
antennas are properly aligned (facing one another “eye-to-eye”). To
align the antennas:

_ Use a pair of binoculars and/or a map of the area and compass to
point the antennas to one another.

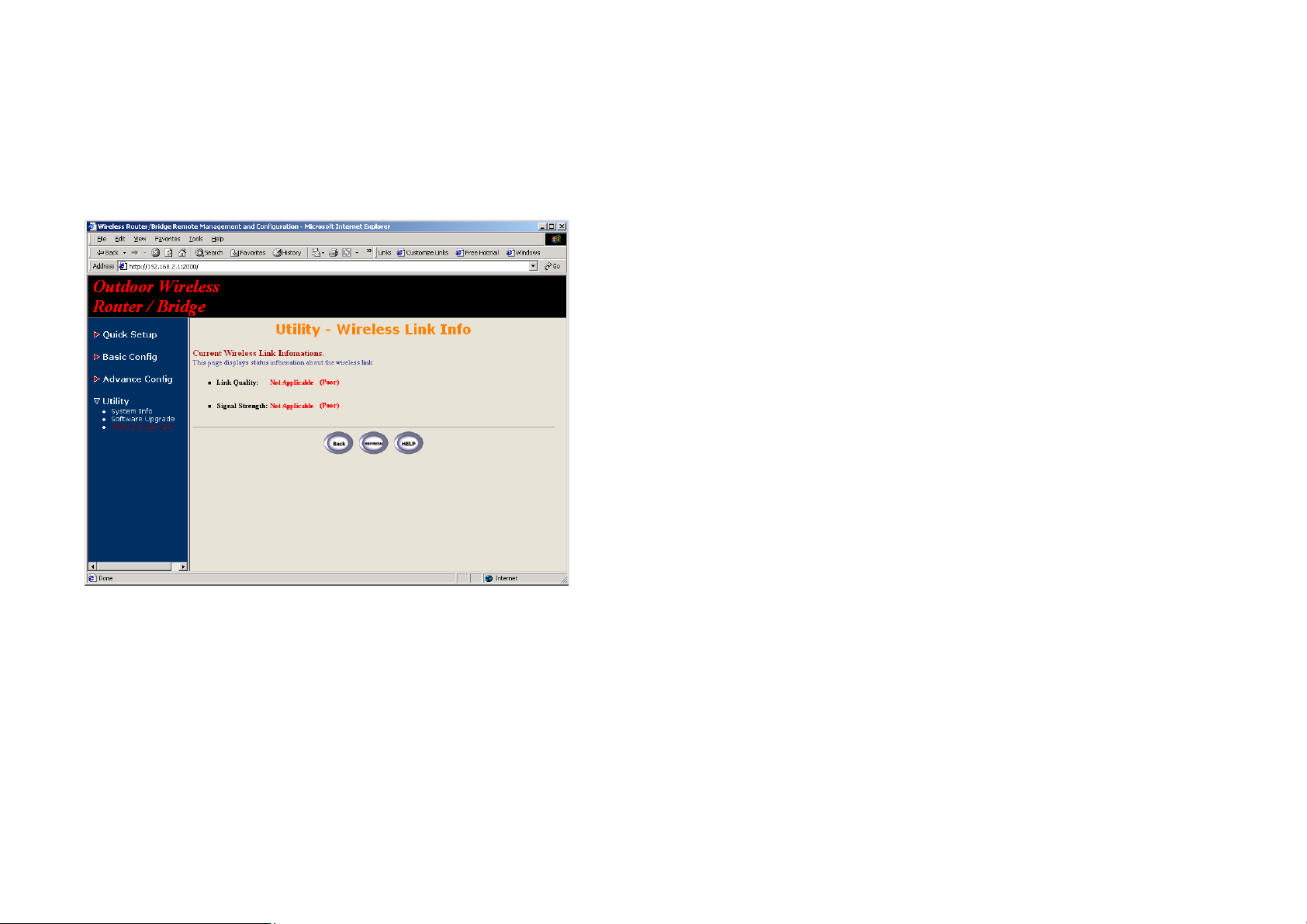

_ Use the Utility- “Wireless Link Info” in the Web Configure as
described in the "Utility " section to analyze the radio link quality.
The “Wireless Link Info” will enable you to display the levels of signal
strength and link quality.
Looking at the Wireless Link Info screen, you can interactively
optimize antenna alignment if required, by making small modifications
in the antenna orientation.

_ Alternatively, consult a professional Antenna Installation Service to
optimize the antenna alignment.
Omni-directional antennas are characterized by a wide radiation
pattern. Therefore alignment of this type of antennas is less critical
than for directional antennas.

1 - 7

Chapter 2 Quick Setup

This chapter describes how to easy setup and configure the Outdoor

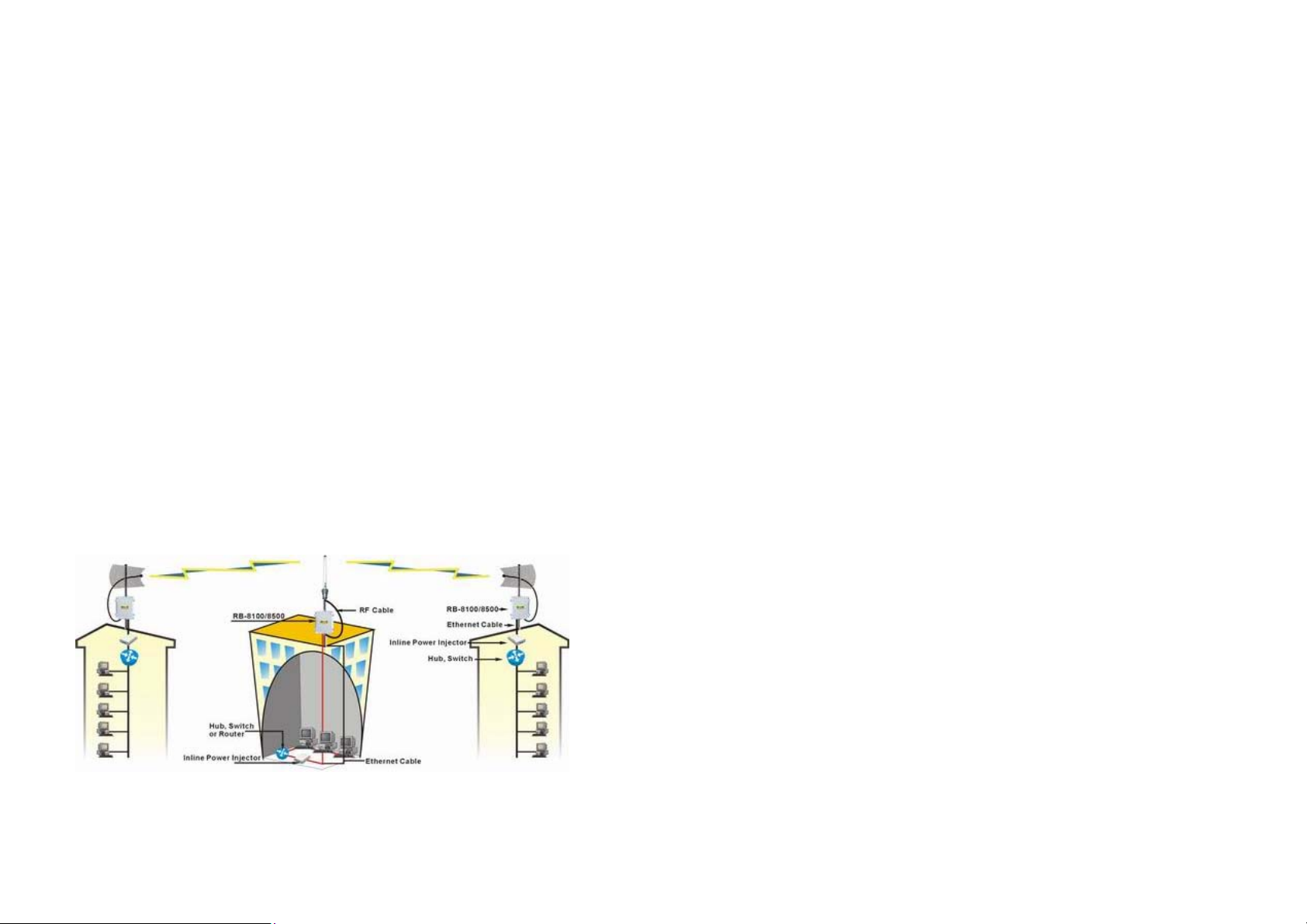

Wireless Router/Bridge System (RB). The RB can be configured into two
roles: Root Access Point (Root AP) and Remote Extension Bridge (Remote
RB) to accomplish the broadband wireless point-to-point and multipoint
systems (as shown in Figure 2-1.). Users can use a LAN-attached (wired or
wireless) computer to configure the RB through a web browser or a telnet
session on a LAN computer.

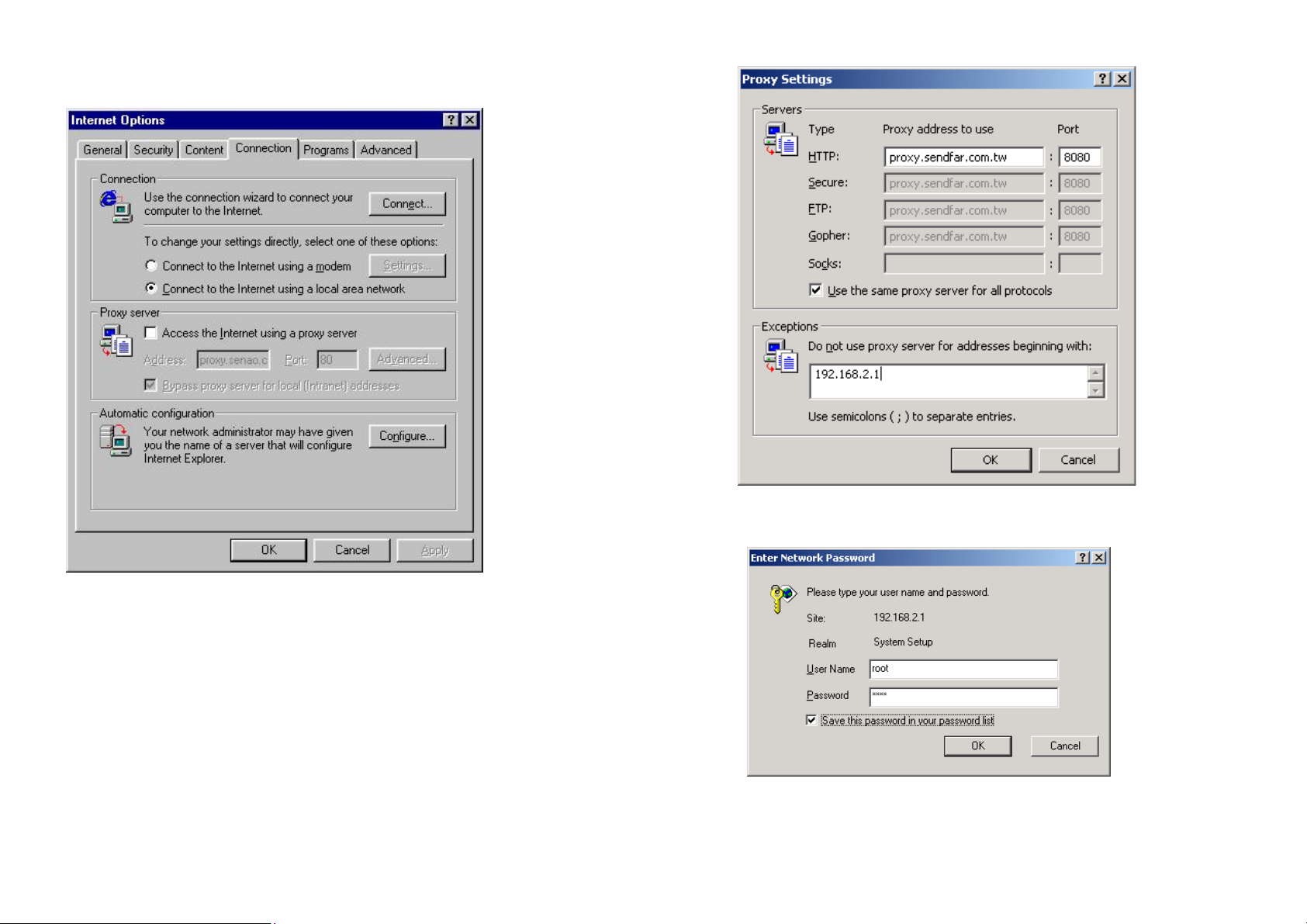

3. Connect a computer to the same network with this RB

4. Start your Microsoft Internet Explorer web browser program from a
LAN-attached computer. To access the web interface of the RB, you
have to disable Access the Internet using a proxy server function in
View / Internet Options / Connection as shown in Figure 2-2 or add
the IP address of the AP (default IP address is 192.168.2.1) to Bypass
proxy server for local addresses as shown in Figure 2-3.

5. Type the IP address and HTTP port of the RB (default IP address is

192.168.2.1) in the address field (http://192.168.2.1:2000/) and press
Enter. Make sure that the IP addresses of RB and your computer are in

the same subnet.

6. After the connection is established, you will see the User Identification
Window as shown in Figure 2-4 Enter the proper User Name and
Password to see the web user interface of the RB. The default user
name and password is root and root, respectively.

Figure 2-1

In this chapter, we only describe how to quickly configure the RB with a web
browser. For detailed descriptions of the many configuration parameters and
network configuration, refer to Chapter 3.

Configure Requirements

Before setup, we must install RB first

1. Connect power adaptor and power on the RB

2. Connect the Ethernet cable for connecting the RB to the network

2-1

2-2

Figure 2-2

Figure 2-4

2-3

Figure 2-3

2-4

Configure the RB

The RB can be configured into two operation roles:
Root Access Point ( Root AP ) and Remote Extension Bridge ( Remote RB ),
the Root AP can performed in four operation modes

1. Wireless Access bridge

2. Wireless Access router with PPPoE Ethernet connection

3. Wireless Access router with dynamic IP address Ethernet

4. Wireless Access router with static IP address Ethernet
The RB is shipped with default configuration is as a bridge between an

Ethernet and wireless network. Users simply need to attach the RB to your
wired LAN. If users would like to configure the RB, please refer to the
following procedures.

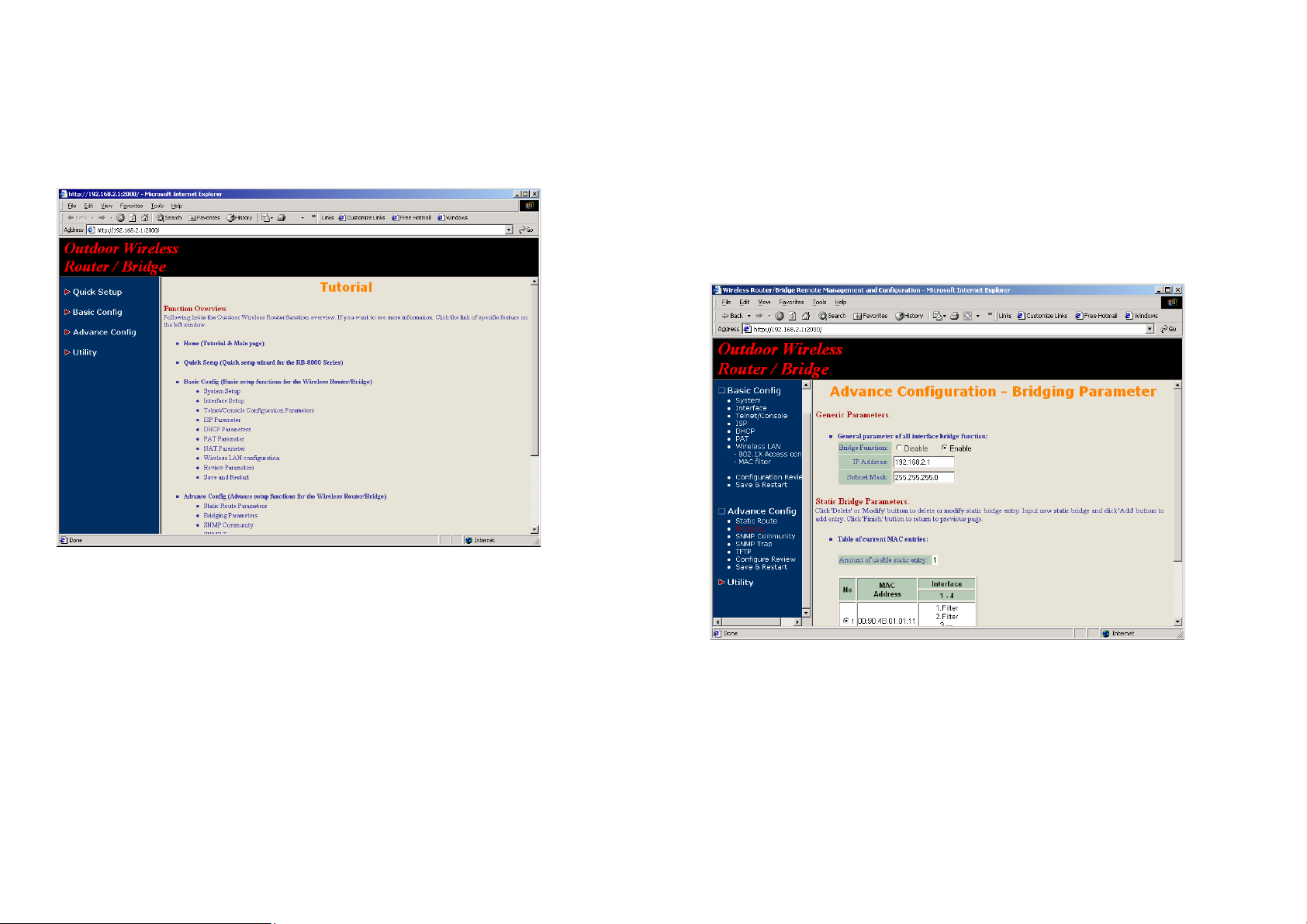

The web user interface can be grouped into Quick setup, Basic

Configuration, Advanced Configuration and Utility as shown in Figure
2-5.

The left frame contains, in a tree structure, the contents of the RB web
configuration interface. Move through the tree by clicking on an icon to
expand or collapse the tree. The nodes on the tree represent web pages
that allow you to view and modify the parameters of the RB. In here, you can
click the Quick setup and following the setup wizard flow to configure this
RB step by step.

Configure the RB as bridge mode Root AP

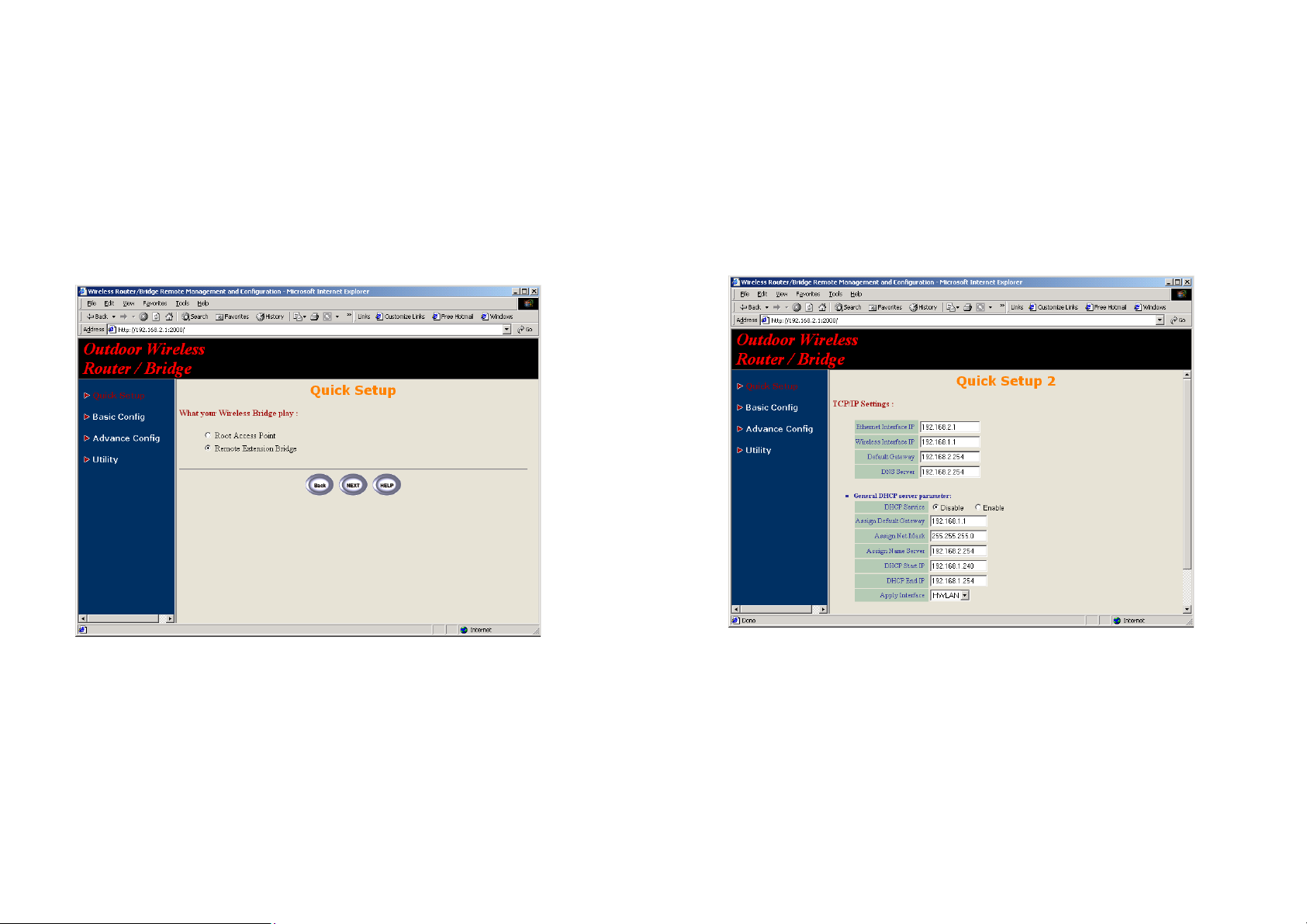

Step 1: Configure the operation role of this RB (as shown in Figure 2-6)

Click Quick Config, select Root Access Point to setup this RB which play
the Root AP role and then click NEXT at the bottom of this page to complete
the modification of this page.

Figure 2-5

2-5

Figure 2-6

2-6

Step 2: Configure the operation mode of this RB (as shown in Figure 2-7)
Click Quick Config, select Wireless Access Point (Bridge mode) to select
the bridge operation mode and then click NEXT at the bottom of this page to
complete the modification of this page.

Step 3: Configure TCP/IP parameters (as shown in Figure 2-8)
In this page, enter the Bridge IP Address (default is 192.168.2.1) and
Bridge Subnet Mask (default is 255.255.255.0) that are suitable for your
network domain. After that, click NEXT at the bottom of this page to
complete the modification of this page.

Figure 2-7

2-7

Figure 2-8

2-8

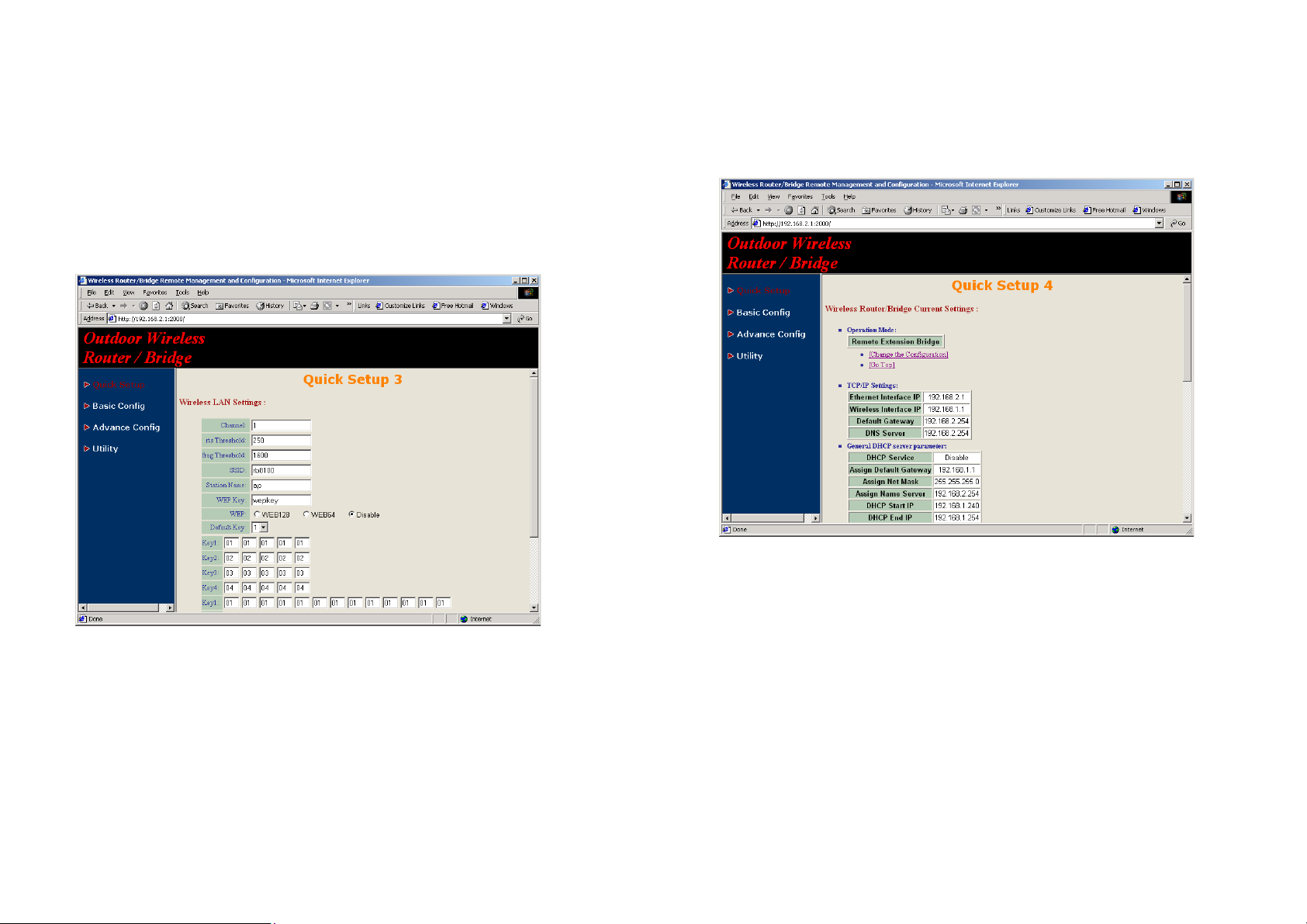

Step 4: Configure IEEE 802.11b WLAN parameters (as shown in Figure 2-

9)
In this page, enter the Channel (default is 1), rts Threshold (default is 250),
frag Threshold (default is 1600), SSID (default is rb8100) and Station
Name (default is ap) that are suitable for your radio network and then you

can clicked radio button to disable WEP or enable 64/128 bit WEP services
(default is disable), if WEP is enabled, you must input corresponded
Default Key index and WEP Key. After that, click NEXT at the bottom of this
page to complete the modification of this page.

Step 5: Preview the configured setting of this RB (as shown in Figure 2-10)
This page will present the current settings of the RB to the system
administrator, the operator can easy to view all running configuration in here.
After that, click Save button to store the changes to the RB.

Figure 2-9

2-9

Figure 2-10

2-10

Step 6: Restart this RB (as shown in Figure 2-11)
In this page, you can click the RESTART button at the bottom of this page to
take effect the previous configuration changes.

Figure 2-11

Configure the RB as Root AP with PPPoE Ethernet
connection

Step 1: Configure the operation role of this RB (as shown in Figure 2-6)

Click Quick Config, select Root Access Point to setup this RB which play
the Root AP role and then click NEXT at the bottom of this page to complete
the modification of this page.

Step 2: Configure the operation mode of this RB (as shown in Figure 2-7)
Click Quick Config, select Wireless Access Point (Router mode) to setup
this RB operated in routing mode, you also need to select the Ethernet
connection type in PPP over Ethernet (PPPoE), and then click NEXT at the
bottom of this page to complete the modification of this page.

Step 3: Configure TCP/IP parameters (as shown in Figure 2-12)
In this page, enter the Wireless interface IP (default is 192.168.1.1) and
Wireless interface Net Mask (default is 255.255.255.0) that are suitable for
your wireless network, and specify the Ethernet IP address (default is

192.168.2.1) and Ethernet Net Mask (default is 255.255.255.0) of the

Ethernet interface. And then, if you are an ADSL subscriber, you may
specify that your personal ISP provided PPPoE Username and PPPoE
Password to enable ADSL broadband access.
Sometimes users have to conFigure 2-correct network settings in Gateway
and DNS tab of your wireless client computers to surf the Internet, or you
can enable DHCP server services for all wireless clients (default DHCP
server setting of the RB is disable in wireless network). In general DHCP
server parameters segment, input Assign Default Gateway (default is

192.168.2.254), Assign Net Mask (default is 255.255.255.0), Assign Name

Server (default is 192.168.1.1), DHCP Start IP (default is 192.168.1.240),
DHCP End IP (default is 192.168.1.250) and choice Apply Interface on
HWLAN to made your DHCP server services available for wireless network,

at finally click NEXT at the bottom of this page to complete the modification
of this page.

2-11

2-12

Figure 2-12

Step 4: Configure IEEE 802.11b WLAN parameters (as shown in Figure 2-

9)
In this page, enter the Channel (default is 1), rts Threshold (default is 250),

frag Threshold (default is 1600), SSID (default is rb8100) and Station
Name (default is ap) that are suitable for your radio network and then you

can clicked radio button to disable WEP or enable 64/128 bit WEP services
(default is disable), if WEP is enabled, you must input corresponded
Default Key index and WEP Key. After that, click NEXT at the bottom of this
page to complete the modification of this page.

Step 5: Preview the configured setting of this RB (as shown in Figure 2-10)
This page will present the current settings of the RB to the system
administrator, the operator can easy to view all running configuration in here.
After that, click Save button to store the changes to the RB.

Step 6: Restart this RB (as shown in Figure 2-11)
In this page, you can click the RESTART button at the bottom of this page to
take effect the previous configuration changes.

Configure the RB as Root AP with dynamic IP address
Ethernet

Step 1: Configure the operation role of this RB (as shown in Figure 2-6)

Click Quick Config, select Root Access Point to setup this RB which play
the Root AP role and then click NEXT at the bottom of this page to complete
the modification of this page.

Step 2: Configure the operation mode of this RB (as shown in Figure 2-7)
Click Quick Config, select Wireless Access Point (Router mode) to setup
this RB operated in routing mode, you also need to select the Ethernet
connection type in Dynamic IP address (DHCP Client), and then click
NEXT at the bottom of this page to complete the modification of this page.

Step 3: Configure TCP/IP parameters (as shown in Figure 2-13)
In this page, enter the Wireless interface IP (default is 192.168.1.1) and
Wireless interface Net Mask (default is 255.255.255.0) that are suitable for
your wireless network.
Sometimes users have to configure correct network settings in Gateway and
DNS tab of your wireless client computers to surf the Internet, or you can
enable DHCP server services for all wireless clients (default DHCP server
setting of the RB is disable in wireless network). In general DHCP server
parameters segment, input Assign Default Gateway (default is

192.168.1.1), Assign Net Mask (default is 255.255.255.0), Assign Name

Server (default is 192.168.2.254), DHCP Start IP (default is 192.168.1.240),
DHCP End IP (default is 192.168.1.250) and choice Apply Interface on
HWLAN to made your DHCP server services available for wireless network,

at finally click NEXT at the bottom of this page to complete the modification
of this page.

Step 4: Configure IEEE 802.11b WLAN parameters (as shown in Figure 2-

9)

In this page, enter the Channel (default is 1), rts Threshold (default is 250),
frag Threshold (default is 1600), SSID (default is rb8100) and Station
Name (default is ap) that are suitable for your radio network and then you

can clicked radio button to disable WEP or enable 64/128 bit WEP services
(default is disable), if WEP is enabled, you must input corresponded
Default Key index and WEP Key. After that, click NEXT at the bottom of this
page to complete the modification of this page.

Step 5: Preview the configured setting of this RB (as shown in Figure 2-10)

2-13

2-14

This page will present the current settings of the RB to the system
administrator, the operator can easy to view all running configuration in here.
After that, click Save button to store the changes to the RB.

Figure 2-13

Step 6: Restart this RB (as shown in Figure 2-11)

In this page, you can click the RESTART button at the bottom of this page to
take effect the previous configuration changes.

Configure the RB as Root AP with static IP address
Ethernet

Step 1: Configure the operation role of this RB (as shown in Figure 2-6)

Click Quick Config, select Root Access Point to setup this RB which play
the Root AP role and then click NEXT at the bottom of this page to complete
the modification of this page.

Step 2: Configure the operation mode of this AP (as shown in Figure 2-7)
Click Quick Config, select Wireless Access Point (Router mode) to setup
this RB operated in routing mode, you also need to select the Ethernet
connection type in Static IP address (Fixed IP), and then click NEXT at the
bottom of this page to complete the modification of this page.

Step 3: Configure TCP/IP parameters (as shown in Figure 2-14)
In this page, enter the Wireless interface IP (default is 192.168.1.1) and
Wireless interface Net Mask (default is 255.255.255.0) that are suitable for
your wireless network, and specify the Ethernet IP address (default is

192.168.2.1) and Ethernet Net Mask (default is 255.255.255.0) of the

Ethernet interface. Specify the Default Gateway (Default is 192.168.2.254)
as the IP Address of the ADSL/Cable modem connected to the RB or the IP
Address of the Gateway in your Ethernet environment and the IP address of
the DNS servers provided by your ISP in the DNS server (Default is

192.168.2.254) parameter.

Sometimes users have to configure correct network settings in Gateway and
DNS tab of your wireless client computers to surf the Internet, or you can
enable DHCP server services for all wireless clients (default DHCP server
setting of the RB is disable in wireless network). In general DHCP server
parameters segment, input Assign Default Gateway (default is

192.168.1.1), Assign Net Mask (default is 255.255.255.0), Assign Name

Server (default is 192.168.2.254), DHCP Start IP (default is 192.168.1.240),
DHCP End IP (default is 192.168.1.250) and choice Apply Interface on
HWLAN to made your DHCP server services available for wireless network,

at finally click NEXT at the bottom of this page to complete the modification
of this page.

2-15

2-16
