7,500 & 15,000 Watt TVS Module
© 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
TEL:805-498-2111 FAX:805-498-3804
PIP/PHP 8.4
thru
PIP/PHP 500
DESCRIPTION
The PIP & PHP series of transient voltage suppression
modules are designed to protect military and
commercial electronic equipment from overvoltages
caused by lightning, power interrupt, inductive load
switching, AC line fluctuations, and NEMP. These
modules find applications in both commercial and
military environments, including telecommunications,
shipboard and aircraft, power distribution, computers,
and power supplies. For military applications, the PHP
module sub-assemblies are metallurgically bonded and
packaged in a hermetically sealed package.
TVS modules are most often used in applications where
discrete TVS diodes do not have high enough surge
handling capabality to suppress large power surges.
SCREENING:
100% Screening is available per MIL-S-19500/516. For
ordering use the following suffix:
H1 - Submodule screening
H2 - Submodule & module screening
H3 - Submodule & module screening + Group B & C
FEATURES:
• 7500 & 15000 watts Peak Pulse Power
(tp = 10 x 1000µs)
• PIP series designed for industrial applications.
• PHP series designed for aerospace applications.
• Bidirectional
• Custom voltages available from factory.
MECHANICAL CHARACTERISTICS:
• Molded Case
• Readily solderable terminals
• Marking : Logo, part number, and date code

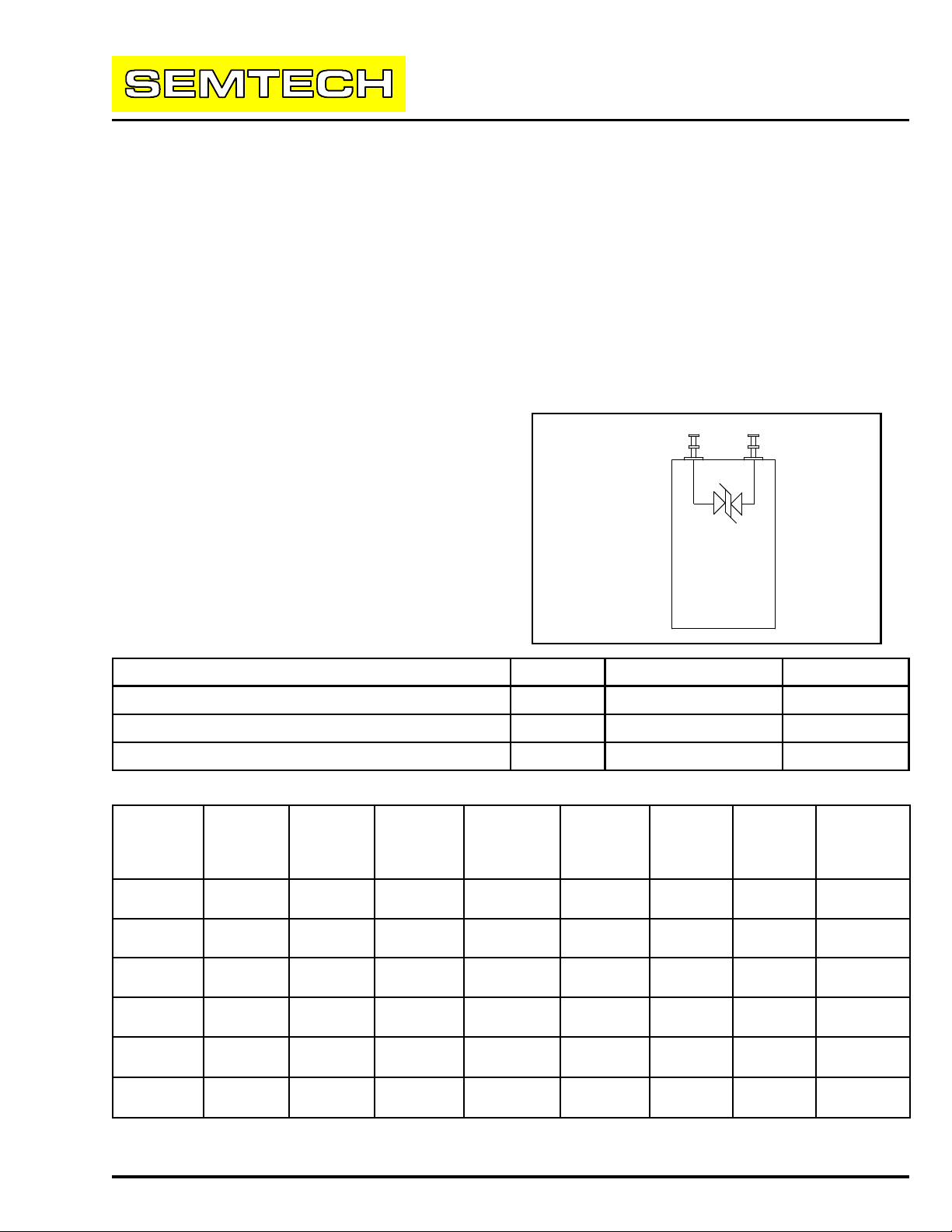

SCHEMATIC
MAXIMUM RATINGS
RATING SYMBOL VALUE UNIT
Peak Pulse Power (tp = 10 x 1000µs) Ppk 7500 & 15000 Watts
Operating Temperature Tj -65 to +150 °C
Storage Temperature Tstg -65 to +150 °C
ELECTRICAL CHARACTERISTICS @ 25°C
PART
NUMBER
(COMMERCIAL)
PIP 8.4 8.4 12.0 250 14 10 22 341 7.5
PIP 24 24.0 34.0 250 40 10 67 112 7.5
PIP 30 30.0 42.5 250 50 1 84 90 7.5
PIP 60 60.0 85.0 250 100 1 167 90 15.0
PIP 120 120.0 170.0 250 200 1 319 47 15.0
PIP 208 208.0 295.0 250 347 1 536 28 15.0
PIP 250 250.0 354.0 250 418 1 652 23 15.0
PIP 440 440.0 623.0 250 735 1 1138 13.2 15.0
PIP 500 500.0 708.0 250 835 1 1292 11.6 15.0
PHP 8.4 8.4 12.0 250 14 10 22 341 7.5
PHP 24 24.0 34.0 250 40 10 67 112 7.5
PHP 30 30.0 42.5 250 50 1 84 90 7.5
PHP 60 60.0 85.0 250 100 1 167 90 15.0
PHP 120 120.0 170.0 250 200 1 319 47 15.0
PHP 208 208.0 295.0 250 347 1 536 28 15.0
PHP 250 250.0 354.0 250 418 1 652 23 15.0
PHP 440 440.0 623.0 250 735 1 1138 13.2 15.0
PHP 500 500.0 708.0 250 835 1 1292 11.6 15.0
AVERAGE RMS
VOLTAGE
VOLTS AC
(V) (V) (µA) (V) (mA) (V) (A) (kw)
REVERSE
STAND-OFF
VOLTAGE
VRWM
REVERSE
LEAKAGE
CURRENT
IR
MINIMUM
BREAKDOWN
VOLTAGE
VBR @ IT
TEST
CURRENT
IT
MAXIMUM
CLAMPING
VOLTAGE
Vc @ Ipp
PEAK PULSE
CURRENT
Ipp
tp = 10/1000µs
MAXIMUM
PEAK PULSE
POWER
tp = 10/1000µs
MILITARY APPLICATIONS : PHP series sub-assemblies are packaged in a hermetically sealed case.
COMMERCIAL APPLICATIONS : PIP series sub-assemblies are packaged in a molded epoxy case.
7,500 & 15,000 Watt TVS Module
© 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
PEAK PULSE POWER vs. PULSE TIME
1000kw
100000
100kw
10000
P
P
10kw
1000
1kw
100
1us
10us
8.4V, 24V, 30V
100us
PULSE TIME (tp)
PIP/PHP 8.4
thru
PIP/PHP 500
TEL:805-498-2111 FAX:805-498-3804
ALL OTHERS
1ms 10ms
PULSE DERATING CURVE
100
Pp or
Ipp in %
of max
ratings
70
60
50
40
30
20
10
0
0 50 100 150 200
25 75 125 175
Tj (oC)
MECHANICAL OUTLINE
Pulse Conditions as
defined by 10 x 1000us
Impulse waveform
10x1000µs IMPULSE WAVEFORM
DIMENSIONS
INCHES MM
N
DIM
A 2.22 2.28 56.3 58.0
B 1.35 1.40 34.2 35.6
C .47 .53 11.9 13.5
D 1.93 1.97 49.0 50.1
E .135 .165 3.4 4.2
F .66 .72 16.7 18.3
G .77 .83 19.5 21.1
H .22 .28 5.5 7.2
J .325 .365 8.2 9.3
K .120 .130 3.0 3.3 DIA.
MAXMIN MAXMIN
NOTE
