Contents
03
04
06
08
09
10
11
12
14
15
16
17
Parts
Important Safeguards
Warnings &Cautions
Assembling the Units
How to Assemble
How to Use
Warnings & When the screw stops while the machine is in use
Disassembling, Cleaning, and Caring for the product
The points you have to know before using Vita Juice™
Trouble Shooting
Specifications
Warranty
02
Hopper
Container
Cover
Screw
Parts
WARNINGS
Only when the Main Unit and the
Container Cover are correctly assembled as
in the picture, the inner safety switch
and the machine operates.
Squeezing
Basket
Residue
Outlet
Rotating
Brush
Sweezing Bowl
Juice Outlet
Safety Link
Pusher
Cleaning
Brush
Main Unit
Juice
Cup
Residue
Cup
03
IMPORTANT SAFEGUARDS
# Do not let children or Infirm persons use the product without supervision
- Must read and follow this safeguard before using the product for safety issue
- Please follow the instructions for your safety
- Please contact our service representative for any inconvenience or malfuctioning
- Please leave this instruction in a place where anyone can locate this booklet easily
WARNINGS & CAUTIONS
WARNINGS
Death and serious injury
might occur
when not followed
CAUTIONS
Physical injury or damage
on property might occur
when not followed
Index
• Following directions must be followed for your own safety
Prohibition Do not disassemble Do not touch
Must be followed

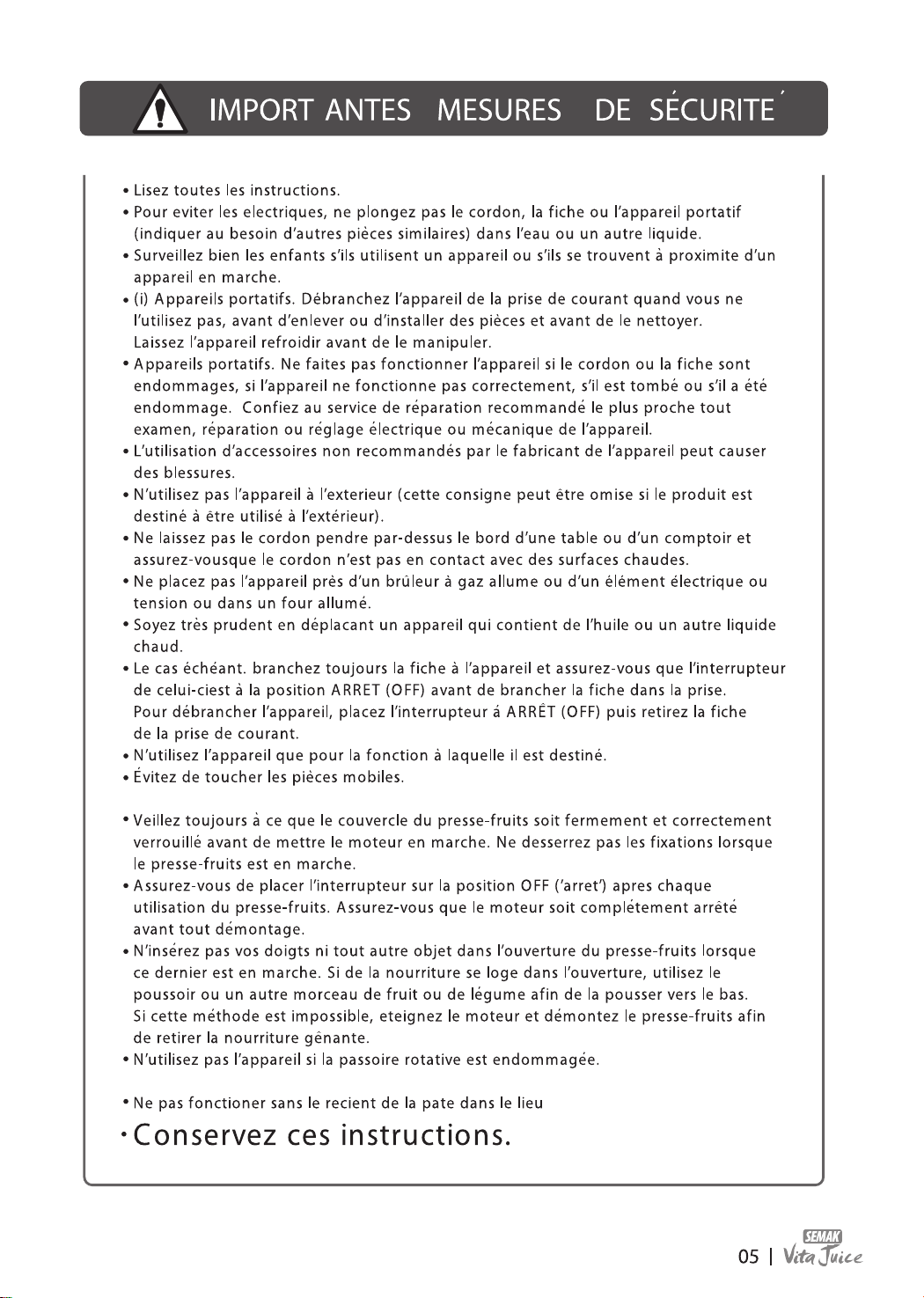

• Read the instructions
• To protect against electrical shock do not immerse cord, plug, portable appliances in water or
other liquid.
• Close supervision is necessary when any appliance is used by or near children or Infirm persons.
• Unplug from outlet when the appliance is not in use, before putting on or taking off parts, and
before cleaning. Allow to cool before handling.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or
is dropped or damaged in any manner. Return appliance to the nearest authorized service
facility for examination, repair, or electrical or mechanical adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause
injuries.
• Do not use outdoors.
• Do not let cords hang over edge of table or counter or touch hot surfaces.
• Do not place on or near hot gas or electric burner or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to the appliance and check that the control is OFF before plugging cord into
wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Avoid contacting moving parts.
• Always make sure the juice cover is clamped securly in place before motor is turned on.
• Do not unfasten clamps while juicer is in operation.
• Be sure to turn switch to OFF position after each use of your juicer. Make sure the motor stops
completely before disassembling.
• Do not put your fingers or other objects into the juicer opening while it is in operation. If food
becomes lodged in opening, use food pusher or other piece of fruit or vegetable to push it down.
When this method is not possible turn the motor off and disassemble juicer to remove the
remaining food.
• Do not use the appliance if the rotating sieve is damaged.
• Do not operate if the pulp container is not in place.
Unplug from outlet
B
Precautions for electric shock
04
•
SAVE THESE INSTRUCTIONS.
WARNINGS
Do not disassemble, fix or alter
the product, otherwise, fire
or electric shock or injury
may occur; contact
the seller for the
repair.
Do not put foreign substance
into the crack or hole of
the main unit;
otherwise, a fire or
electric shock or injury
may occur.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified
persons in order to
avoid a hazard.
Do not place fire or pour
water near/into
the main unit;
otherwise, an
electric shock or
injury may occur.
While the machine is in use,
do not disassemble or insert
fingers or foreign objects into
the inlet or juice outlet;
otherwise, injury or
accident may result in.
Do not plug/unplug the
machine while hands are
wet which might
result in electric
shock or injury.
Use only 240V AC,
otherwise, electric
shock or fire may occur.
CAUTIONS
Do not operate the machine
while the container cover is
not assembled properly;
otherwise, injury or accident
may result.
Plug the cord correctly;
otherwise, electric shock
or fire may occur
Do not bend or tie the cord by force. Do not
jerk or place the cord near high temperature.
Do not place the cord under a heavy object
or plug into narrow place. Do not process the
cord arbitrary; otherwise,
the cord may be destroyed
which may result in
electric shock or fire.
Do not operate the machine
when there is a gas leak,
and ventilate the room properly
before putting the power on;
otherwise, injury or accident
may result in.
06
CAUTIONS
This product must be
operated on even surface;
otherwise, injury or
accident may result.
Do not move the machine
while operation which may
result in a fire, electric shock,
or injury. Please contact
the distributor for repair.
Do not assemble or disassemble
the parts while in use which may
result in injury or malfuctioning.
Please assemble or disassemble
parts after the machine stops, and
unplug the cord from the outlet.
Do not place utensils into the juice
outlet under any
circumstances;
otherwise, injury
or accident may
result.
When the screw stops while
the machine is in use, push the
reverse rotation button for 2~3
seconds; then push the rotation
button. If the status continues,
it may overheat the motor
resulting in malfunctioning.
Do not use other than pusher
while inserting ingredients
into the inlet; otherwise,
injury or accident may
result.
Do not operate the machine more
than 30 minutes consecutively;
otherwise, the overheated motor
may result in malfunctioning.
Please re-operate the machine
after 5 minute's pause.
Please unplug the machine
B
when not in use, and do not
unplug it by the cord;
otherwise, an injury
or accident or
malfunctioning may
result.
This product weights approximately
6.45kg, and one must move it
with both hands; you may drop
this product by moving it with one
hand, and this may result in injury
or malfunctioning.
Do not apply excessive impact
on the machine or drop it;
otherwise, an electric shock,
impairment, or fire may occur.
Stop operating the machine
when weird noise or excessive
heats or smoke is noticed,
and contact the distributor
or customer center.
Do not wash this product
with water higher than 80ºc
which may result in
malfunctioning
or products modification.
07
Assemble the
container with
the main unit.
Safety Link
Rotate the
container clockwise
toward safety link.
Plug the screw
into the middle
of the
squeezing
basket.
Assembling the Units
Container
Main Unit
Screw
Squeezing Basket
Container
Place the squeezing
basket into the rotating
brush before
assembling the
rotating brush
with the container.
Assemble the container
with the rotating brush
by mating marks on
each of the units as
shown on the picture.
Assembling the
container cover.
Match the
container cover marks
with the container
marks, and then rotate
the container cover
towards the container
handle marks as shown
on the picture.
Squeezing
Basket Marks
Container
Cover Marks
Container
Handle Marks
Squeezing Basket
Main Unit
Main UnitMain Unit
Rotating
Brush
Container
Marks
Container
Cover
Container
Marks
08
Container
Handle Marks
Match the container cover marks
with the container marks, and
then rotate the container cover
towards the container handle
marks as shown on the picture.
Container
Cover
Container
Cover Marks
Container
Marks
C
AUTIONS
Container
Cover Marks
Container
Handle Marks
Container
Cover
°
Assemble the
container cover lastly.
°
When the container cover
is closed, the container
and the main unit
cannot be assembled.
°Disassembling of the parts is the reversal of the assembling sequence.
How to Assemble
How to assemble extraction.
After cleaning the extraction packing
after disassembling, link it as the direction
shown on the picture before inserting
it towards the arrow-marked
packing home.
Link Connection
Container Face
after Assembling
Link
Insertion Direction
Residue Cup
Juice Cup
Packing Home
Inserting into Packing Home
Plugging into outlet
Plug the cord into the
power outlet.
Place the cups
Place both the juice cup and the
residue cup as shown on the picture.
The both cups look identical.
CAUTIONS
Extraction
Packing
Assemble the container
cover lastly.
When the container cover
is closed, the container
and the main unit cannot
be assembled.
09
How to Use
Pusher
Switch
ON
REV
ON
Push the rotation button
Assemble the container cover
Rotation : pushing ingredients towards
downside extracting juice
Reverse Rotation : pushing the ingredients
upwards.
Rotation
OFF
Push
REV
OFF
Reverse
Rotation
CAUTIONS
Do not operate the machine
with wet hands; otherwise,
an electric shock or short circuit
or fire may occur.
Insert the clean ingredients into
the inlet with pusher.
Tip
Be advised that use as fresh ingredients as possible
for extraction.
10
Rotation
While extracting juices from fruits with hard seeds as
persimmon or plum, remove the seed before using them.
Switch
ON
REV
After the extracting process
is done, turn the power off
Do not preserve the extracted
juices for long time.
This machine may be used
for preparing seasonings
(garlic or pepper), yet do not
OFF
ON
CAUTIONS
OFF
use it for grinding grains. (It
REV
may result in malfunctioning)
Do not operate the machine
with wet hands; otherwise, an
Push
Reverse
Rotation
electric shock or short circuit
or fire may occur.
WARNINGS
Do not operate the machine more than 30 minutes consecutively
otherwise the overheated motor may result in malfunctioning.
Please re-operate the machine after 5 minutes pause.
Do not place untensils or spoons into the juice outlet under any
circumstances; Placing foreign objects into juice outlet may result
in destruction of parts.
Do not use other than pushing pole while inserting ingredients
into the inlet;
otherwise, injury or accident may result.
Do not insert grains or fruits with hard seed into the inlet;
it may result in destruction or malfunctioning of the container or
screw or extraction net
- While extracting juices f
persimmon or plum, remove the seed before using them.
rom fruits with hard seeds as
When the screw stops while the machine is in use
If the machine stops abruptly while in use, turn off
ON
OFF OFF
REV
By removing reverse rotation button,
the machine stops.
Rotation
OFF
Reverse
Rotation
the machine first. Then, push the reverse rotation
button in order to remove the ingredients blocking
the screws, and push the rotation button.
Push the rotation button only after the screws
stopped reverse rotation.
If this process does not work, unplug the machine
first and then clean the machine after
disassembling the units. Refer to page 11.
Do not operate the machine with wet
hands; otherwise, an electric shock
CAUTIONS
or short circuit or fire may occur.
11
Disassembling, Cleaning, and Caring for Product
Stop the machine first, and then unplug the machine
Disassemble the container cover
first by rotating it toward counter
clockwise as the direction
in the picture, and disassemble
the container from the main unit as
direction in the picture.
Disassemble the parts as
the reverse sequence
of assembling.
1. Disassemble the container cover by
rotating it toward counter clockwise
2. Remove the screw
3. Disassemble the sqeezing basket
4. Remove the rotating brush
Clean the parts with
cleaning brush and
running water.
PROHIBITION
Only after
disassembling the
container cover,
CAUTIONS
Do not use steel brush, abrasive,
solvent, or sharp cleaning device
while cleaning.
Do not use automatic dish washer
or dish dryer.
the container may
be removed from
the main unit.
Please be aware that if cleaned right after
being used, the residue may lower the
performance of the machine or cause
difficulties in cleaning.
Do not clean the main
unit with running water.
Remove
the stains
only with
dried or
smooth cloth.
After cleaning each part,
dr
y each part completely
and place it in a
clean place.
12
The points you have to know before using Vita Juice.
1. For assembly and disassembly (Order of assembly and disassembly)
◆ Assembly :
◆ Disassembly :
2. How to put the material for operation
◆ The material shall be put slowly because Vita Juice juicer revolves 47 times per
minute. It is not overloaded and squeezing properly when the hard or sticky fiber
is cut into small pieces.
◆ The reverse button shall be pressed for 2~5 seconds before disassembly after
use and it will be opened when it is disassembled after removing the leftover
with normal direction operation.
Attach the container to the closing direction (Clockwise) of container grip
part on the main body. Install the Rotaiting brush →Sqeezing Basket
→Screw and assemble the lid of the container completely
to the closing direction (Clockwise) of container grip part.
Disassemble the container lid by turning to opening direction
(Counterclockwise) and separate the main body and container.
Clean it with brush and keep it after complete drying.
Make sure attach according to the assembly order surely because
the assembled container set can not be attached on main body.
3. In case of stop during operation
◆ It can be created by putting large quantity of hard and sticky fiber material comparing
to the RPM, or material is jammed in between the screw and juice strainer.
Press the stop button and press the reverse button 3~5 seconds and start it again
with button for normal direction. (It can be repeated in 2~3 times.)
4. When the container lid is not opened after operation
See paragraph 3. Press the reverse button 2~3 times and start it in normal
direction to remove the leftover food completely and it will be opened smoothly.
5. How to prepare the material
◆ Hard vegetables (Carrot, beat, radish and sweet potato etc.)
☞ It is proper to cut straight in 2 cm of thickness.
◆ Material of sticky fiber (Angelica)
☞ The leaves and stem of angelica shall be divided and the stem shall be cut in 2cm.
◆ How to prepare fruit
☞ It is good to cut into many pieces after washing according to the size of input hole and
it is good to remove the seeds when they are big and hard (Peach, mango and jujube).
◆ The hard grains (Bean, red bean and lentil) shall be used after soaking into the water.
It will be a reason for overloading or damage on the machine.
14
# Before contacting service center, please read the following lists first.
When the machine
does not work
Trouble Shooting
Check whether the cord is properly plugged in
Check whether each part is assembled in proper
sequence (please refer to page 8,9)
Contact customer center
When the extraction
process is not properly
done and the residue
contains much moist.
When the machine
stops while in use
If the container is
shaking while in use
Check whether the extraction packing is properly inserted
(refer to page 9)
Check whether the ingredients used were fresh
Place the refrigerated vegetables in the drinking water
at least 10 minutes before use
Check whether the amoun
or whether the fruits contained hard seed When the screw
stops while the machine is in use, push the reverse rotation
button for 2~3 seconds; then push the rotation button.
If this does not work, turn off the machine and cleaning
the parts after properly disassembling the machine
More or less shaking container while in use is a normal
operation, and is not a sign of malfunctioning
t of the ingredients w
ere adequate
Strange noise
while in use
When the
container cover is not
disassembled easily
Depending on ingredients, noise may be generated in the
course of extractionThis noise may be generated while the
ingredients were bumping against each other
Grab the lower part of the hopper firmly and rotate
it towards counter clockwise with force
15
Service & Maintenance
For Service and Repair, contact Semak for your nearest Authorised Service Agent
The Foodservice Industry is deemed a hostile environment within the scope of AS/NZS
3760:2003. Semak Juicer MUST be routinely electrically tested for compliance with this
standard if used commercially.
It is recommended that a Food Safety program such as HACCP be employed and that
routine service and repair be undertaken at the time of electrical testing to ensure the
correct operation and function of all parts.
Electrical Specifications
Product Name Semak VitaJuice Model VJ2012
Length 280mm
Dimensions Width 540mm
Height 310mm
Voltage 240V / 50 HZ
Wattage 200W
Motor Single Phase 10 amp
RPM 47
Certification CE, ISO9001
Electrical Compliance
Semak Vitafruit complies with:
IEC 60335-2-14:2011 Electrical Safety
CISPR14-1:2000 Electromagnetic Compatibility
Warranty
The Semak VitaJuice VJ2012 is a domestic appliance which may be used for light
commercial use in some circumstances. This product is guaranteed for 10 Years from the
date of purchase against mechanical and electrical defects. If the fault is deemed caused
by MISUSE/ABUSE the terms of the warranty are invalidated. If the product has been
opened or tampered with (ie. In an attempt to repair it) the warranty is invalidated. All
warranty repairs should be undertaken by Dimark Commercial Pty. Ltd.
It is against company policy to authorize warranty repairs over the phone. Service Agents
will require a work order number from Semak to conduct warranty repairs.
16
Warranty
SEMAK® WARRANTY
THIS WARRANTY APPLIES ONLY TO PRODUCTS MANUFACTURED AND SOLD IN AUSTRALIA
The benefits conferred by this warranty are an alternative to all other rights and
remedies in respect of the product which the consumer has under the Trade Practices
Act and similar State and Territory Laws.
Semak Australia. Warrant each new SEMAK appliance manufactured by SEMAK to be
free from defects in materials or manufacturing process for a period of 10 years from
the date of original purchase.
Should defects due to faulty materials or manufacturing process develop within the
warranty period. The warranty covers the repair of the appliance or replacement of any
defective part, insofar as the defect is the fault of the manufacturer and is not due to
misuse or incorrect operation.
1. Proof of Purchase and Warranty card must be retained and available on request.
2. This Warranty is void if the equipment has been damaged due to misuses neglect
or is used for a purpose for which it was not suited; and no repairs, alterations or
modifications have been attempted by other than Semak or its authorised Service
Agent.
3. Semak Australia. Reserves the right to reject a claim for warranty if service is
required due to misapplication, improper installation, inadequate wiring, and
incorrect voltage conditions. Under no circumstances shall SEMAK or its agents
bear responsibility for consequential damages of any kind.
4. Where required by Statute or local authority, equipment must be installed by
qualified person in accordance with all relevant regulations. Failure to do this will
void product warranty.
5. Cost of transport of any appliance or part to and from SEMAK or its Service Agent is
to be paid by the owner.
6. A charge will be made where failure is due to neglect, abuse or accidental damage
on the part of the operator, or when no fault can be found or the fault is due to
causes outside the control of Semak Australia.
7. The above does not preclude the purchaser from their Statutory rights as a
consumer.
Semak Australia
Factory 18
87-91 Hallam South Road
HALLAM VIC 3803
Ph 61 3 9796 4583
Fax 613 9796 4586
Email technical@semak.com.au
17
Warranty Registration
Retain for Future Reference
DO NOT SEND
Please complete one registration for each Semak appliance.
You may be required to provide this information when requesting after sales service. Please staple
your proof of purchase to this page.
Company Name: __________________________________________________________
Company Address: __________________________________________________________
Business Type: __________________________________________________________
Contact: __________________________________________________________
Phone: __________________________________________________________
Fax: __________________________________________________________
Email: __________________________________________________________
Product: __________________________________________________________
Serial Number: __________________________________________________________
Date of Purchase: __________________________________________________________
Place of Purchase: __________________________________________________________
18
NOTES
19
www.semak.com.au
Semak Australia
18 /87-91A Hallam South Road, Hallam Vic 3803
Telephone: +61 3 9796 4583
Facsimile: +61 3 9796 45836
Email: sales@semak.com.au
Hours: Monday to Friday 9 am - 5 pm
© 2012
Loading...
