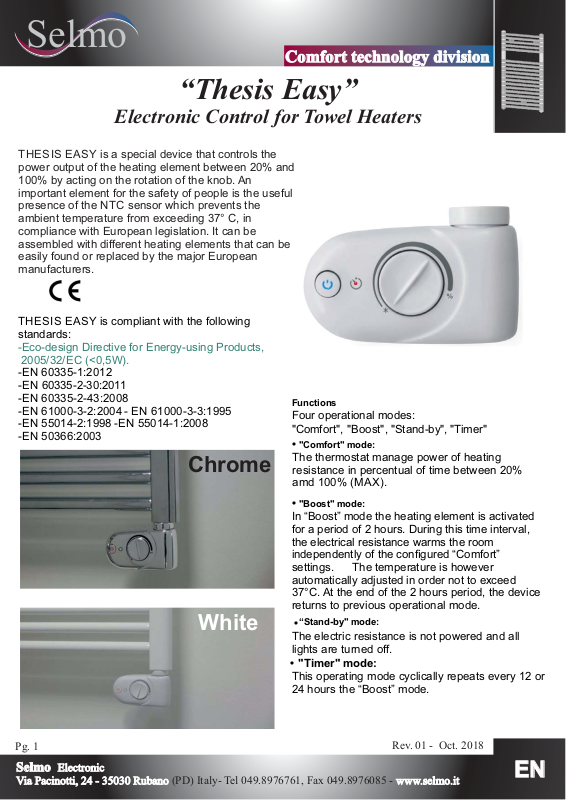

Selmo Thesis Easy Manual

Selmo

Comfort technology division

“Thesis Easy”

Electronic Control for Towel Heaters

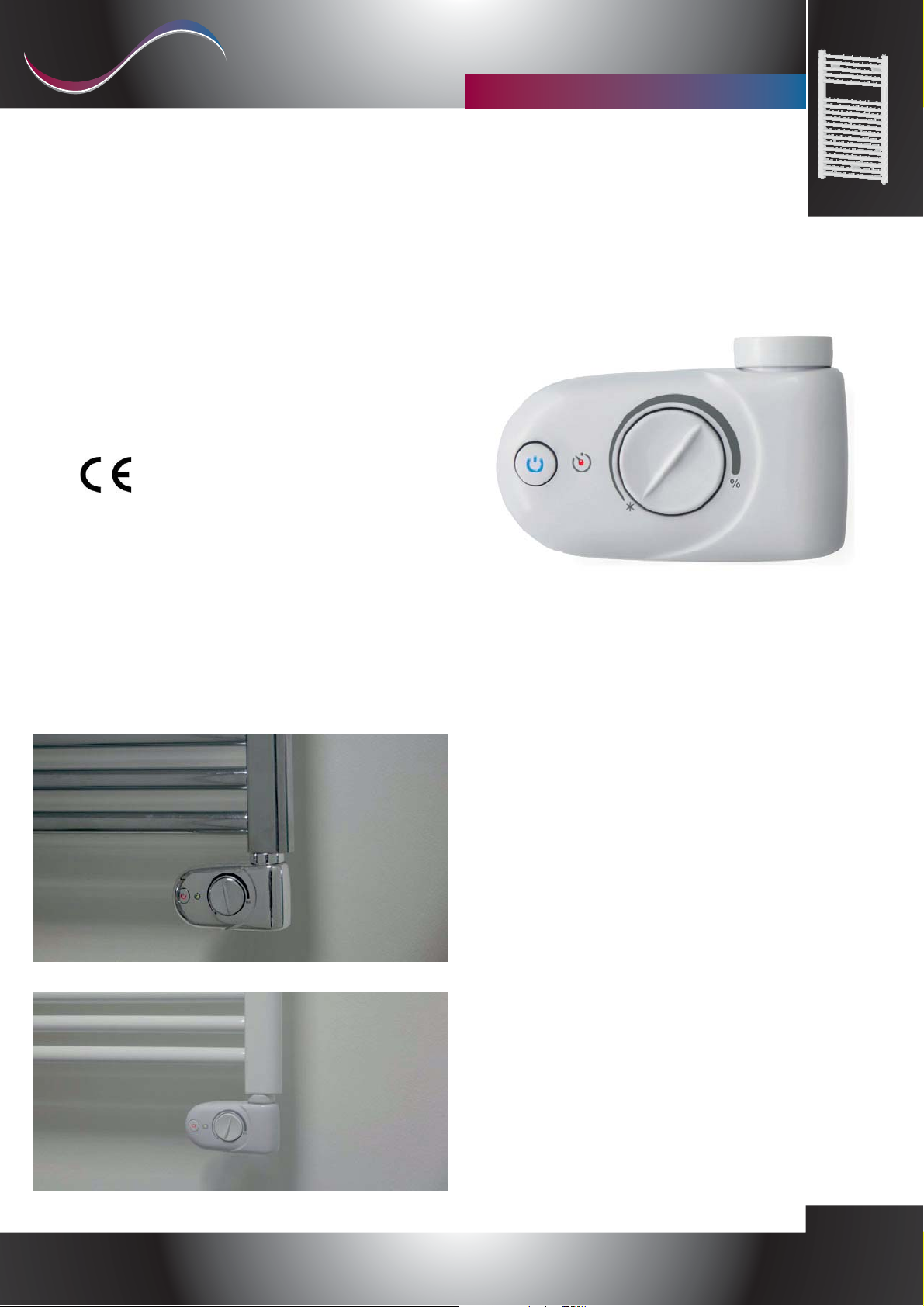

THESIS EASY is a special device that controls the
power output of the heating element between 20% and
100% by acting on the rotation of the knob. An
important element for the safety of people is the useful
presence of the NTC sensor which prevents the
ambient temperature from exceeding 37° C, in
compliance with European legislation. It can be
assembled with different heating elements that can be
easily found or replaced by the major European
manufacturers.

THESIS is compliant with the followingEASY
standards:

-Eco-design Directive for Energy-using Products,
2005/32/EC (<0,5W).

-EN 60335-1:2012

-EN 60335-2-30:2011

-EN 60335-2-43:2008

-EN 61000-3-2:2004 - EN 61000-3-3:1995

-EN 55014-2:1998 -EN 55014-1:2008

-EN 50366:2003

Chrome

White

Functions

Four operational modes:
"Comfort", "Boost", "Stand-by", "Timer"

•

"Comfort" mode:

The thermostat manage power of heating
resistance in percentual of time between 20%
amd 100% (MAX).

•

"Boost" mode:

In “Boost” mode the heating element is activated
for a period of 2 hours. During this time interval,
the electrical resistance warms the room
independently of the configured “Comfort”
settings. The temperature is however
automatically adjusted in order not to exceed
3 °C. At the end of the 27 hours period, the device
returns to previous operational mode.

“Stand-by" mode:

•

The electric resistance is not powered and all
lights are turned off.

"Timer" mode:

•

This operating mode cyclically repeats every 12 or
24 hours the “Boost” mode.

Pg. 1

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

Rev. 01 - Oct. 2018

EN

Selmo

“Thesis Easy”

Electronic Control for Towel Heaters

Technical specifications

Comfort technology division

Supply voltage

Maximal power 2000W - 230VAC

Selectable power range
Operational temperature

IP degree IP44
Insulation class
Certification mark

Environment
Size

Product
Control type Electronic control

Type of applications
Temperature setting

Signaling Led /
operational modes

Connector of the heating element

Temperature sensor 10KOhm a 25°C, Type NTC

Compliant standards

Warranty

Plastic box / knobs / buttons

230VAC - 50Hz

20% 100%÷

-10°C ÷ +40°C

Class I, Class II

CE

WEEE, RoHS

113x73x39mm (plastic case)
Electronic control for electric towel radiators

Towel radiators

Analog through rotating knob

-Red/Blue backlit button "On/Stand-by”.

-Amber/green/red Led.

-Operational modes: Comfort, Stand-by, Boost 2h, Timer.

6,3x0.8mm Faston: Neutral, , (Class I)Phase Ground

EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3,
EN60335-1, EN60335-2-30, EN60335-2-43, EN50336.

2years

ABS-V0 Silver, ABS-V0 White RAL9003

Power cable

Available electric plugs

Available colors

Pg. 2

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

H05VVF <HAR> L=900mm; 3x1mmq - Class I; 2x1mmq - Class II;

IT-UK-Shucko-CH (Cable length =1200mm)
White White cable RAL 9003
Chrome Gray cable RAL 7001

Rev. 01 - Oct. 2018

EN

Selmo

Comfort technology division

“Thesis Easy”

Electronic Control for Towel Heaters

WARNING

RISK OF ELECTRIC SHOCK!

Disconnect power supply before proceeding with installation.

Preserve with care the present instruction sheet and read carefully before using the device.

• The present device has been designed for exclusive use on a towel radiator.

• The thermostat is designed for heating the liquid contained inside a towel radiator in
combination with a heating element. Any other use is forbidden.

• Before using, carefully ensure that the line voltage is the same as that specified for

the device (see technical specifications).

• Only use heating elements compatible with the type of used towel radiator.

• Disconnect power supply before cleaning or performing maintenance of the product.

• In case of damage of the power supply cable shut down the device and do not tamper
with it. The damaged power supply cables can be replaced exclusively by the
manufacturer or by an authorized service center. Failure to comply with the above

rules could lead to compromised system safety and void the warranty.

• Store and transport the heating element exclusively in the protecting packaging.

• Replacement of the heating element can be done exclusively by the product manufacturer.

Pg. 3

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

Rev. 01 - Oct. 2018

EN

Selmo

Electronic Control for Towel Heaters

Installation instructions

WARNING:
Disconnect the power supply before proceeding with installation.
The installation has to be performed only by authorized personnel.

Comfort technology division

“Thesis Easy”

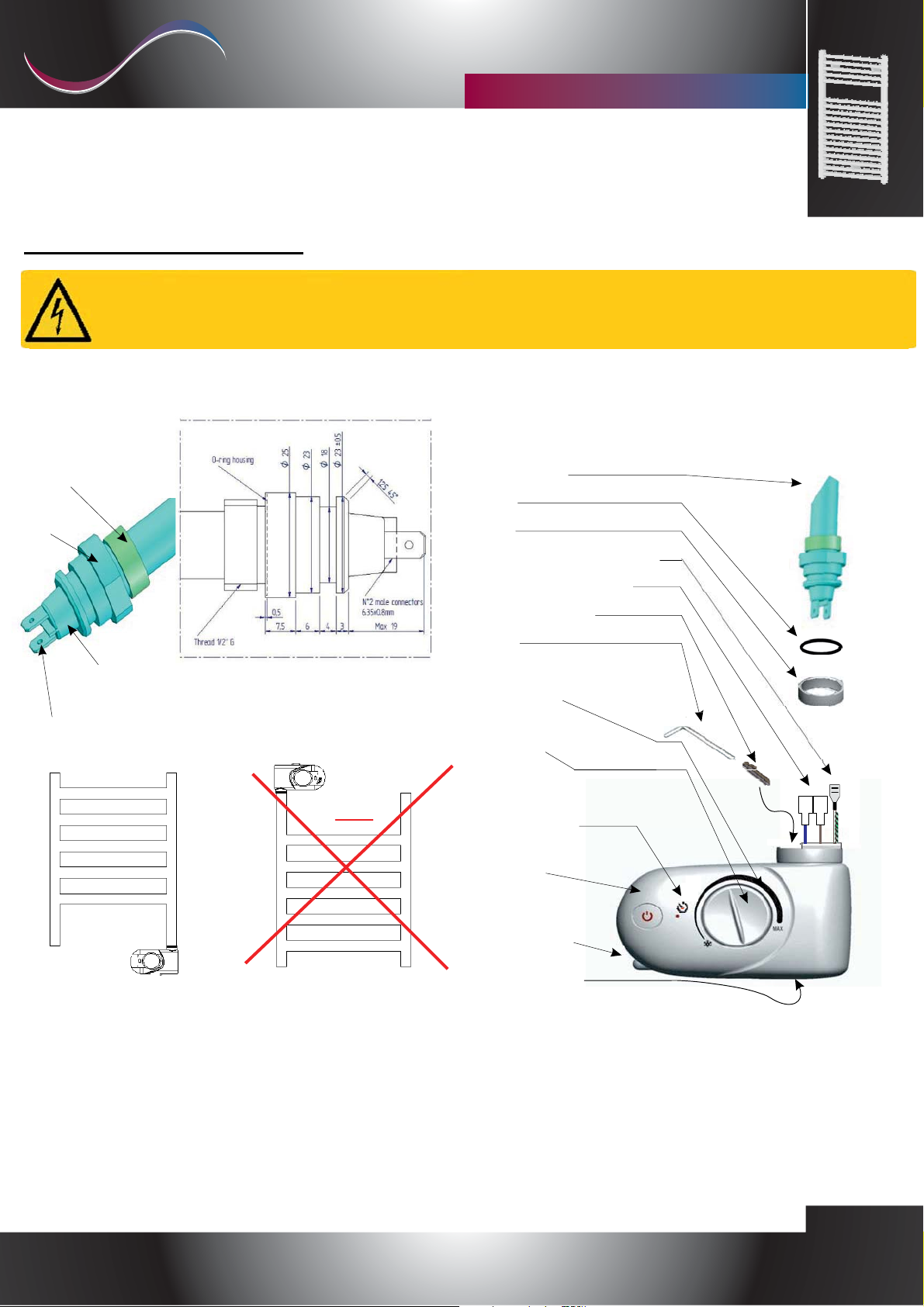

"Thesis plus" is an electronically controlled thermostat compatible with the

heating element types showed in the picture below.

Thread

Fastening
area

Puls

Insulation

Connector 2 Faston 6,3x0,8mm.

.

YES

.

NO

IMPORTANT: Pay attention to the maximal length of the

19mm connector (see picture on the left). Longer
connectors could damage the device.

Heating Element

“O-Ring”

Ring

Earth connection (only Class I)

Heating element connector

Back fastening screw

Wrench

Temperature setting knob
(Range 7°C–32°C)

Button for “Boost 2h” and
“Timer” modes

“Boost” and “Timer” LED

Backlit "On/Stand-by" button

Temperature Sensor

Power supply cable

CLEANING

• Disconnect the device from the electrical power supply before cleaning or performing maintenance
operations.

•Use only gentle cleaning agentsand no abrasive cleaning t

Pg. 4

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

ool

s.

Rev. 01 - Oct. 2018

EN

Selmo

Comfort technology division

“Thesis Easy”

Electronic Control for Towel Heaters

• Disconnect power supply before installation.

• Only qualified personnel can connect the electronic device to the heating element.

• Make sure that the power of the electric resistance does not exceed the maximum power allowed
by the electronic control device.

1. Make sure that the towel radiator does not have leakage or air lock.

2. The device shall not be positioned directly in front of an electric plug.

3. Prevent water jets from hitting the equipment.

4. Connect the temperature controller only to a suitable heating element.

5. Ensure that the mains voltage is the same as indicated in the technical specifications.

6. Make sure that the type of electric resistance is compatible with the model of towel radiator
being used (check the product specifications provided by the manufacturer). The usage of a
heating element with higher power:

- Does not increase the actual power of the towel radiator;

- Might shorten life of the heating element;

- Could damage the equipment.

7. Make sure that the power of the electric resistance does not exceed the maximum power

of the towel radiator (check the label on the heating element).

8. When installed in a room with bathtub or shower, respect the “Protection Zones” according to

IP44 insulation class (in UK according to IEE cabling directives). Furthermore, make sure to
respect all local safety directives.

9. The device has to be protected by a 30mA circuit breaker (RCD).

10. Power the device with the recommended voltage (see technical specifications).

11. If a device is directly connected to a fixed electric installation, install an isolating switch
compliant with local directives for power supply disconnection.

12. Place the "O-Ring" before the fastening area.

13. After ensuring that the "O-Ring" is correctly positioned, screw the electric resistance in the
relevant threaded hole of the towel radiator, properly secure it and insert the cover ring.

14. Extract the connecting cables from the device. The two Faston connectors and the Class I
ground connector.

15. Insert the 2 Faston into the relevant connectors of the heating element.

16. Connect the female Faston connector to Earth (only Class I).

17. Insert the lower part of the heating element into the ready connected thermostat.

18. Align the device to the towel radiator. Warning! Do not rotate the device more than 30
degrees on both directions.

19. Push the device against the base of the heating element to compress the “O-Ring”, properly
fix the related fastener so that the device remains well secured and does not rotate around
the heating element.

20. Connect the power supply cable.

DISPOSAL
This product may not be treated as ordinary household waste. It has to be disposed in proper waste
collection sites. In case of replacement it shall be returned to the distributor.
Such an end-of-life treatment of the product will preserve the environment and will reduce
consumption of natural resources.
This symbol applied to the present product indicates the obligation to bring it to a proper waste
collection site, in order to let it be disposed according to 2002/96 / CE (RAEE - WEEE) directives.

Pg. 5

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

Rev. 01 - Oct. 2018

EN

Selmo

Water protection:

The IP44 protection level is
guaranteed by a special
design of the connection
parts.

Comfort technology division

“Thesis Easy”

Electronic Control for Towel Heaters

Small dimensions:

Reduced device volume and thickness.

Cable locking system:

According to the IEC
directives and fulfilling the
IP44 requirements, this
mechanism extends life of
the power cable.

External sensor:

Guarantees a stable room temperature and a prompt reaction in case of strong temperature
variation.

Blue / red backlit button: The
backlight indicates the status of
the system.

Internal buzzer:

For acoustic
warnings
according to
EN60335-1
directive.

Plastic cover: The
connecting part to the
heating element is kept
hidden by this special
layout, so that the device
fits perfectly to the towel

.

radiator

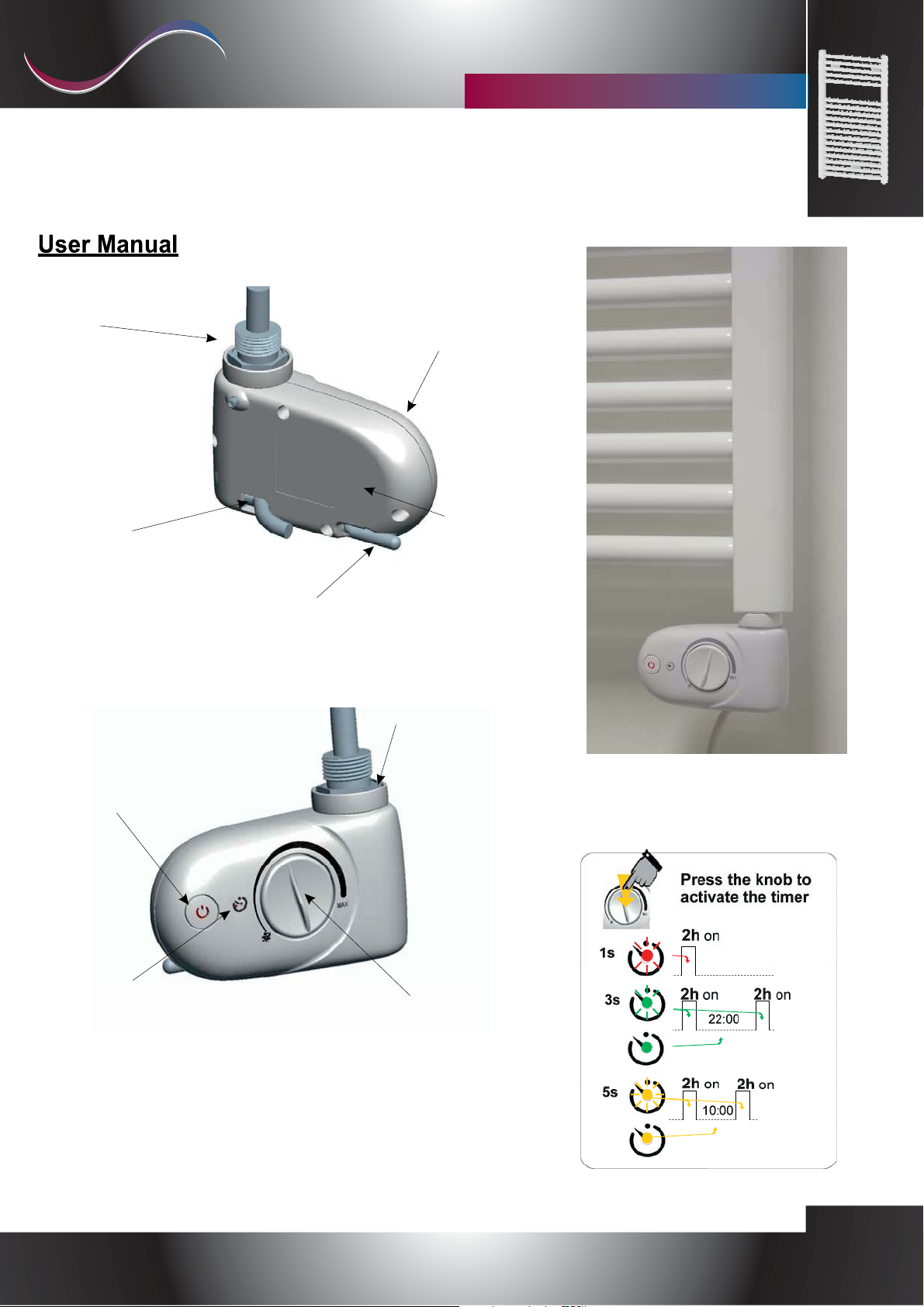

Quick Guide

Red / green / amber Boost Led:

A small light indication informs the user
when “Boost” and “Timer” modes are
active.

Pg. 6

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

Thermostat knob with button:

For easily setting the desired
“Comfort” and forpower
activating the “Boost” and “Timer”
modes.

Rev. 01 - Oct. 2018

Off

Off

Off

EN

Selmo

Comfort technology division

“Thesis Easy”

Electronic Control for Towel Heaters

• “On/Stand-by” button: Pressing the “On/Stand-by” button it is possible to switch between “Stand-by”

mode and “Comfort” mode.
NOTE: When the device goes into “Stand-by” mode it beeps twice for 0.5s.

When the device is activated it beeps once for 1s.

“Stand-by” mode.

“Comfort” mode: Heating element is ON (red light).

“Comfort” mode: Heating element is OFF (blue light).

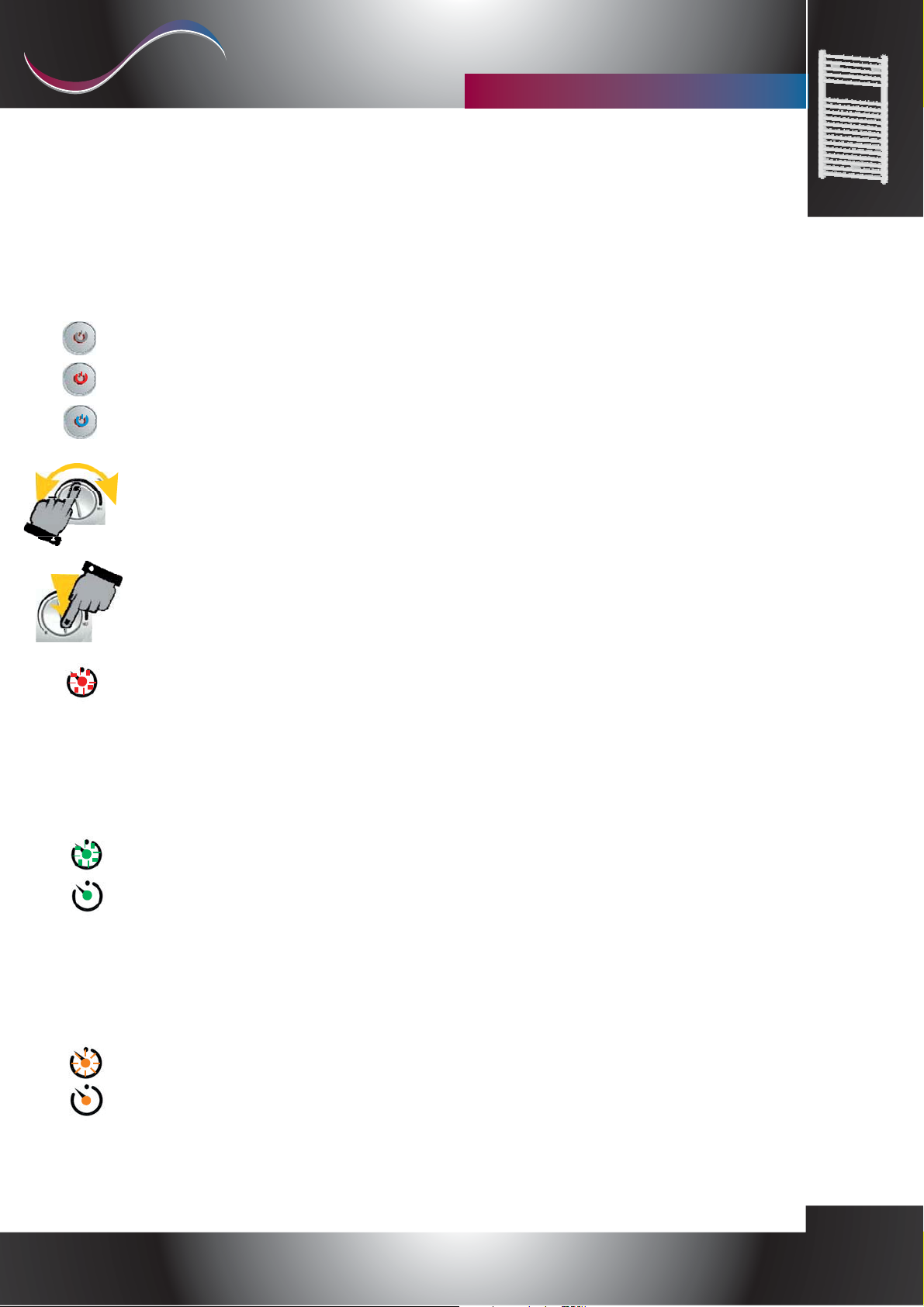

Knob rotation:

•

The rotation of the knob sets the desired power output
increases the set value (power 100%)
set vapower lue (20%).

. tationAn anticlockwise ro

. A clockwise rotation

decreases the

•

Knob button:

- “Boost” mode (2h). Press once the knob button in order to activate this operating mode (the

heating element will be activated at maximum power for 2h). To deactivate this operating mode,

press again the button.

“Boost” mode ‘’Boost2h’’for 2 hours of 100% continuous heating;

- “Timer-24h” mode: Press the knob for 3 seconds to activate this function. The control

system activates the heating element for 2 hours regardless of the set temperature

value (the maximal reachable temperature is 3 °C), after that7iOff’’t returns into “

mode and after 22 hours the “Boost” mode is started again for 2 hours. This sequence

will repeat endlessly.

“Timer-24h” mode T24h command starts 2h Boost automatically every day at the same time

(2h on, 22h off) (typically for morning showers);

- “Timer-12h” mode: Press the knob for 5 seconds to activate this function.

The control system activates the heating element for 2 hours regardless of the set

temperature value (the maximal reachable temperature is 3 °C), after that it returns into7
‘’Off ‘’ mode and after 10 hours the “Boost” mode is started again for 2 hours. This

sequence will repeat endlessly.

“Timer-12h” mode: T12h command starts 2h Boost automatically every 12 hours

(2h on, lOh off, 2h on, lOh off (typically morning and evening showers).

Operating mode deactivation: To exit any time from the operating modes “Boost”, “Timer-12h”,
“Timer-24h”, press the knob button or the “On/Stand-by” button.

NOTE. The maximal reachable temperature in “Boost” mode is 3 °C.7

Pg. 7

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

Rev. 01 - Oct. 2018

EN

Selmo

Electronic Control for Towel Heaters

Comfort technology division

“Thesis Easy”

Control Led

Backlit on/off button

STATUS

Red led ON

Blue led ON

Switched off

Blinking
Red/Blue

Blinking red

Blinking
green

Permanent
green

Heating element turned on.

Power rating reached
heating element turned off.

"Stand-by" mode active.

Error message. The
heating element is
turned off. Contact
assistance.

"Boost" mode active. The heating
element remains active for 2h. For
safety reasons, the maximum
temperature is of 3 °C.7

"Boost" mode active (Timer 24). The
heating element remains active for
2h. For safety reasons, the
maximum temperature is of 3 °C.7

Back to " " mode for 22h.Off

*

Blinking
amber

Permanent
amber

"Boost" mode active (Timer 12). The
heating element remains active for
2h. For safety reasons, the
maximum temperature is of 3 °C.7

Back to " " mode for 10h.off

**

* The duration of the first "Comfort" cycle is of 21h.

** The duration of the first "Comfort" cycle is of 9h.

Repairs carried out by unauthorized personnel invalidate warranty.
The manufacturer reserves the right to make any changes to the
manual, at any time, and without prior warning.

Pg. 8

Selmo Electronic

Selmo Electronic

Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -

Via Pacinotti, 24 - 35030 Rubano www.selmo.it

product

Rev. 01 - Oct. 2018

described in this

EN
