Selmo
Comfort technology division

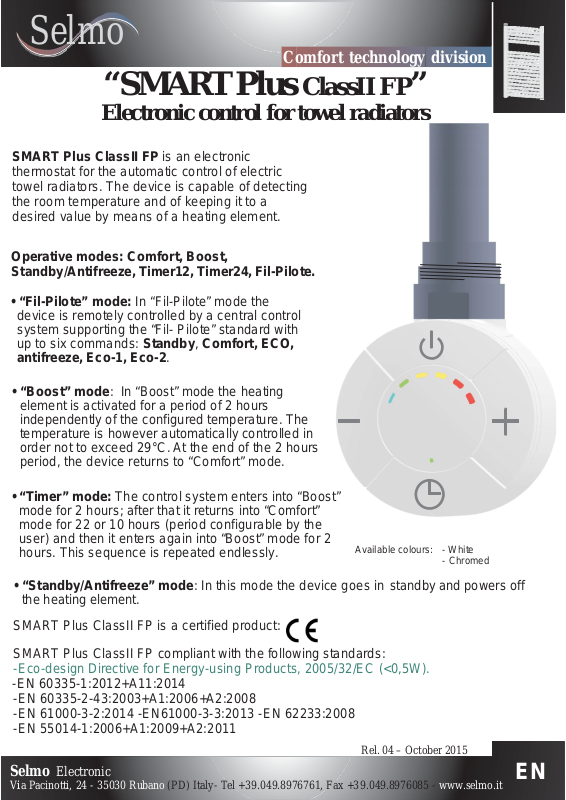

“SMART Plus ClassII FP”
Electronic control for towel radiators

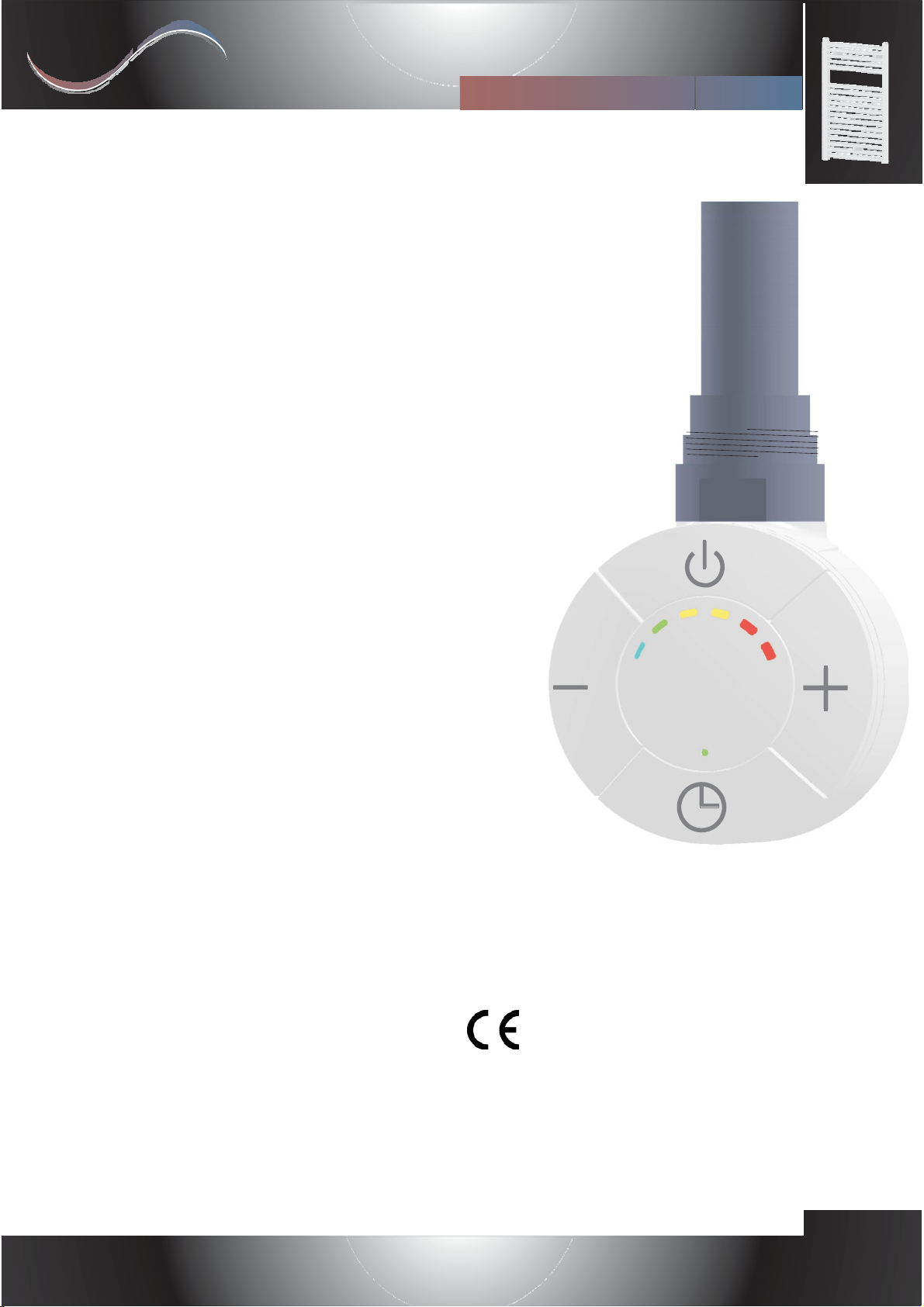

SMART Plus ClassII FP is an electronic
thermostat for the automatic control of electric
towel radiators. The device is capable of detecting
the room temperature and of keeping it to a
desired value by means of a heating element.
Operative modes: Comfort, Boost,
Standby/Antifreeze, Timer12, Timer24, Fil-Pilote.
• “Fil-Pilote” mode: In “Fil-Pilote” mode the
device is remotely controlled by a central control
system supporting the “Fil- Pilote” standard with
up to six commands: Standby, Comfort, ECO,
antifreeze, Eco-1, Eco-2.
• “Boost” mode: In “Boost” mode the heating
element is activated for a period of 2 hours
independently of the configured temperature. The
temperature is however automatically controlled in
order not to exceed 29°C. At the end of the 2 hours
period, the device returns to “Comfort” mode.

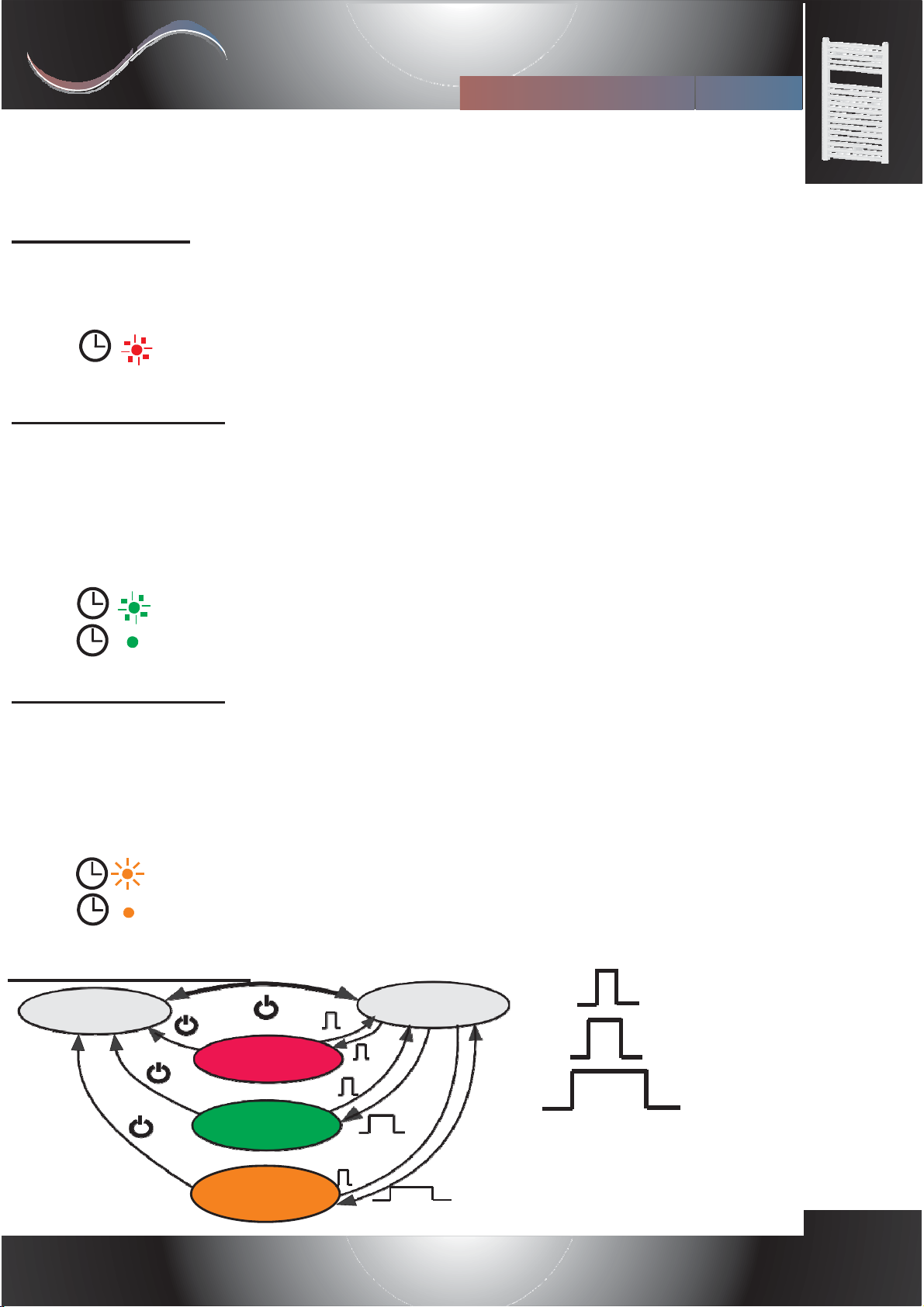

• “Timer” mode: The control system enters into “Boost”
mode for 2 hours; after that it returns into “Comfort”
mode for 22 or 10 hours (period configurable by the
user) and then it enters again into “Boost” mode for 2
hours. This sequence is repeated endlessly.
• “Standby/Antifreeze” mode: In this mode the device goes in standby and powers off
the heating element.
SMART Plus ClassII FP is a certified product:
SMART Plus ClassII FP compliant with the following standards:
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
-EN 60335-1:2012+A11:2014
-EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011
Available colours: - White
- Chromed
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Page 2
A
A
Selmo
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators

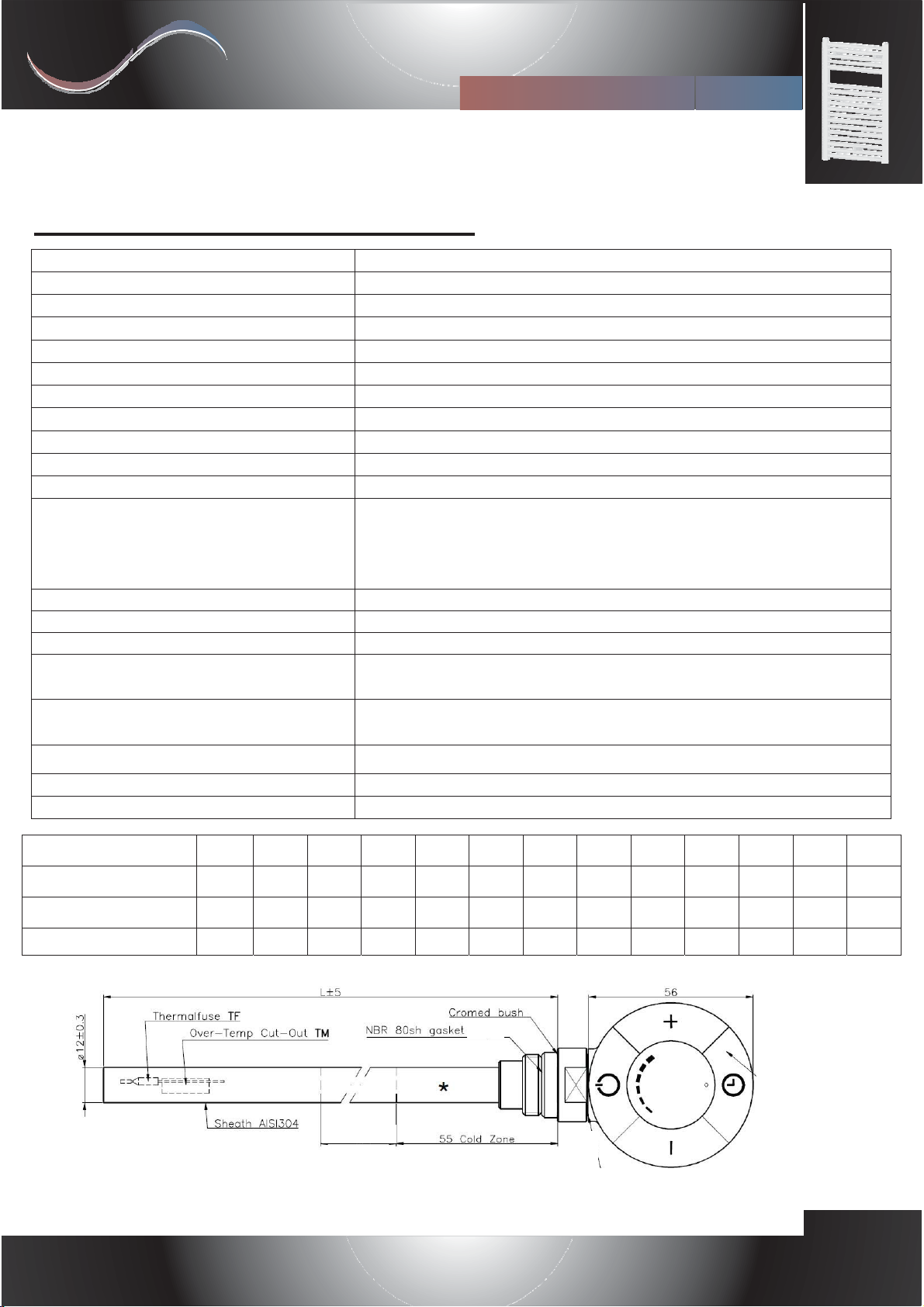

TECHNICAL CHARACTERISTICS
Product Electronic control for towel radiators
Applications Towel radiators
Insulation class Class II with Fil-Pilote
IP level
Temperature setting
Selectable temperature range
Operational temperature
Maximal power See table below
Supply voltage 230VAC 50Hz
Size See figure below
Warranty 2 years
Standards
pproval mark CE
Case
Environmental directive WEEE, RoHS
Operative modes Comfort, Boost2h, Timer12h, Timer24h,
Thermostat status indicators
IP44
Digital
7°C ÷ 29°C
-10°C ÷ 40°C
-EN 60335-1:2012+A11:2014 -EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011
-EN 55014-2:1997+A1:2001+A2:2008
BS-VO
Standby/Antifreeze, Fil-Pilote.
Boost/Timer LED (red/green/amber).
Comfort Bar with 6 LEDs: 1 blue, 1 green, 2 yellows, 2 reds
Connection to mains
Available colours
Maximal temperature of the thermal
Power (W) 100 200 250
2
Watt density
temperature Limit
L
max
(heating element)
W/cm
(mm) 350 350 370
°C 80 80 80
1.1 2.3 4
3 Cables (neutral, live, Fil-Pilote); Length 120cm.
White (RAL 9016) Chrome
152°C
300 400 500 600 700
3.2 3.4 4 3.6 3.6
90 90 90 90 90
370 430 450 560 630
White
white
Heathing part
Rel. 04 – October 2015
750 800 900 1000
4
3.6
90 90 100 100
700
700
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
3.7
760
Electronic
control
3.7
830
EN
Page 3
Selmo
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators
Preserve with care the present instruction sheet and read carefully before using the
device.
• The present device has been designed for exclusive use on a towel radiator.
• The thermostat is designed for heating the liquid contained inside a towel
radiator in combination with a heating element. Any other use is forbidden.
• Before using, carefully ensure that the line voltage is the same as that specified
for the device (see technical specifications).
• Only use heating elements compatible with the type of used towel radiator.
• Disconnect power supply before cleaning or before performing maintenance of
the product.
• In case of damage of the power supply cable shut down the device and do not
tamper with it. The damaged power supply cables can be replaced exclusively by
the manufacturer or by an authorized service center. Failure to comply with the
above rules could lead to compromised system safety and void the warranty.
• Store and transport the heating element exclusively in the protecting packaging.
• Replacement of the heating element can be done exclusively by the product
manufacturer.
Disconnect power supply before proceeding with installation.
RISK OF ELECTRIC SHOCK!
WARNING
•Children aged under 8 years old and people with reduced physical, sensory or
mental abilities, can use the device only under supervision. Children should not play
with the device.
•Cleaning and maintenance meant to be carried out by the user should not be done
by children without supervision.
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Page 4
a
Selmo
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators
Installation Guide
To be used by installer only
•
Disconnect the device from power supply before proceeding with installation.
•
Protect the device with a 30mA RCD circuit breaker.

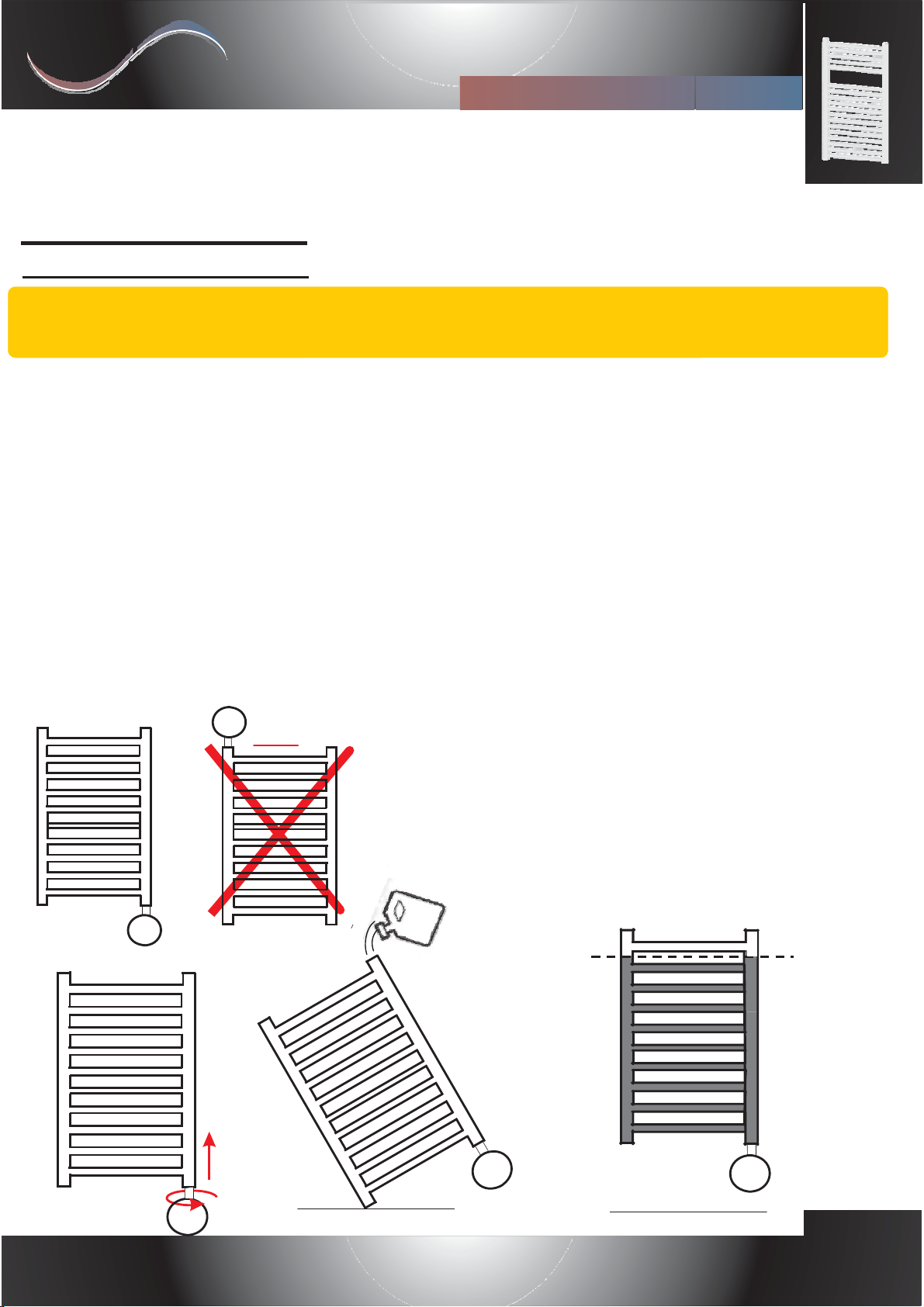

1. Insert the heating element in the threaded opening located on the bottom part of the radiator.
2. Securely fasten the electric resistance to the body of the towel radiator with a 22mm wrench.
3. The special sheath ensures a secure mounting and eventually allows a slight supplemental torsion to
perfectly align the thermostat with the radiator.
4. Tilt the radiator as in fig. 3, making sure that the opening on top of the radiator is located on the highest
side. WARNING. Do not lean the radiator on the electronic control!
5. Fill the radiator with the specific liquid.
6. Put the radiator back in vertical position and check the internal level of the liquid (fig. 4).
7. Ensure a proper fastening of the heating element in the radiator.
8. Connect the device to mains and start heating (the top opening of the radiator must remain open!).
9. Set the maximal temperature and check the level of the internal liquid.
- Due to thermal expansion the liquid could brim over the radiator.
- Remove the exceeding liquid (be careful to avoid burns!) in order to keep the thermostat
dry and avoid the liquid reaching the border.
For models having no plug it is
Yes
NO
10. When the level of the liquid stops growing wait for additional 5
minutes then stop heating.
11. If necessary, top up the radiator before the liquid cools down
the temperature of the internal liquid checked all the time).
12. Close the top opening of the radiator with the appropriate cap.
13. Hook the radiator to the wall.
14. Connect the device to the mains.
necessary to install a suitable omnipolar disconnection switch ensuring
complete disconnection in case of category III overvoltage (that means
switch with at least 3 mm of space between open contacts).
(keep
(3)
(1)
(4)
(2)
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
Rel. 04 – October 2015
EN
Page 5
Selmo
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators
Accessory: To allow a mixed usage of the SMART device,
connect the T-piece to the towel radiator, insert
the SMART device into the vertical manifold of
the T-piece and connect the return line of the
heating circuit to the orthogonal connector of the
T-piece.
Available Colours: White, Chromed.

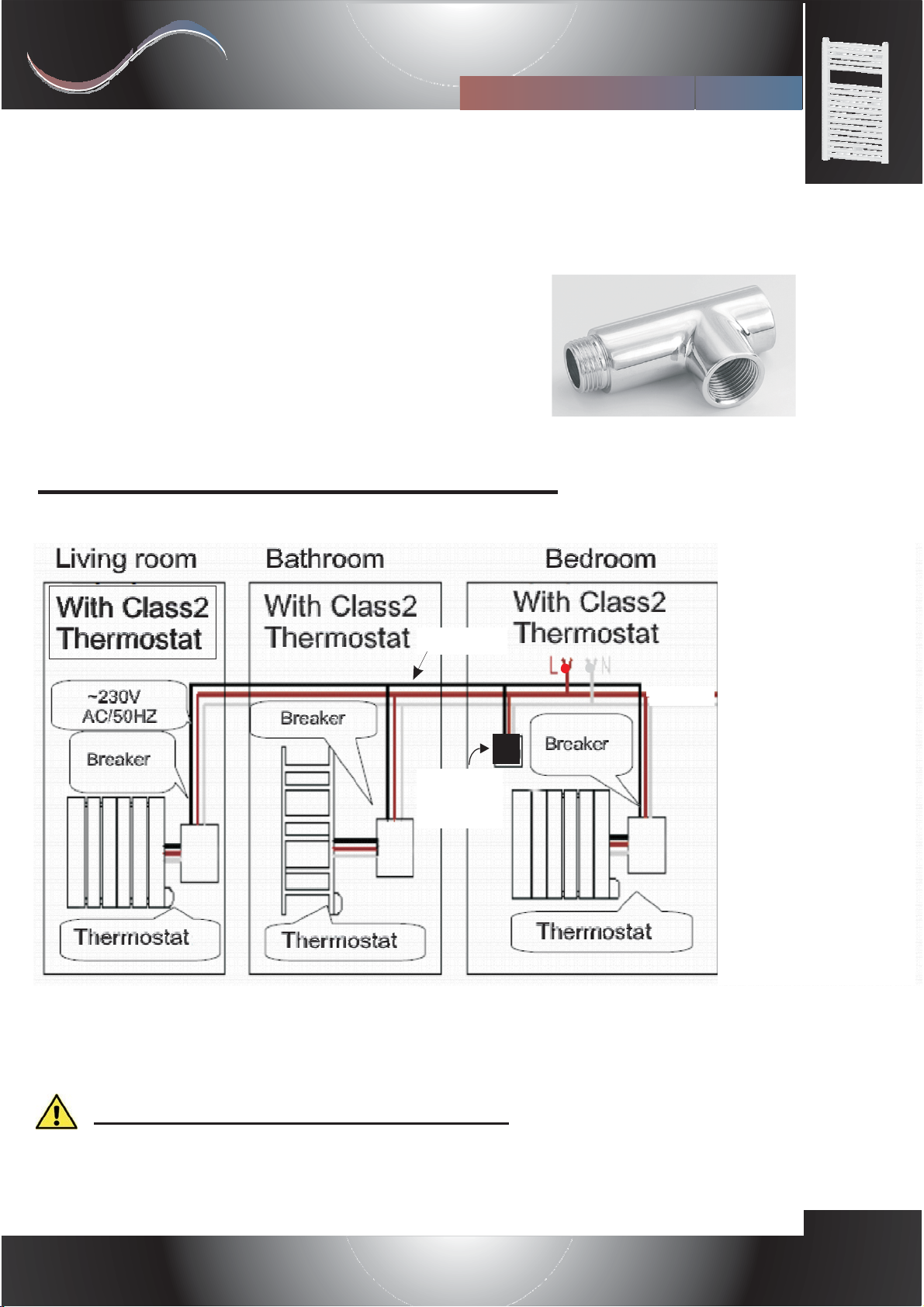

Connection to Fil-Pilote system
Example
"Fil-Pilote"
“Fil-Pilote”
Station
1
A control unit supporting the "Fil-Pilote" system can remotely control a Smart Plus classII device
with "Fil-Pilote" functionality (Class II). The brown wire is the Live wire (L), the gray wire is the
Neutral wire (N) and the black wire is used for receiving the Fil-Pilote signal.
Do not connect the black wire to the ground.
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Page 6
Selmo
“SMART Plus ClassII FP”
Electronic control for towel radiators
User Manual
Comfort technology division

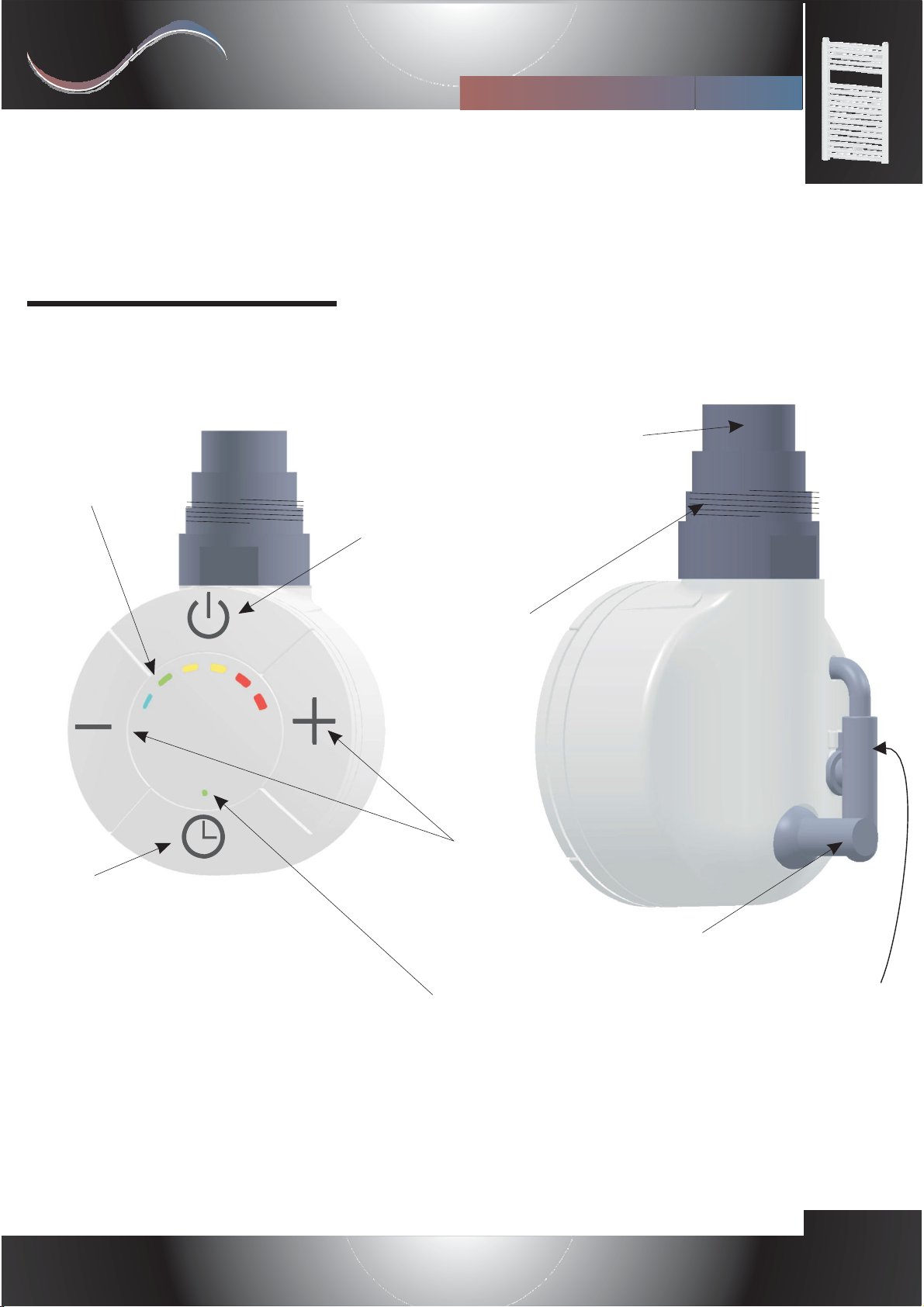

“Comfort Bar”:
Indicates the
selected
temperature and
further accessory
information
Heating element
[On/Standby] button
1/2" GAS thread
for fastening on
the radiator
[Bost/Timer] button: To
select one of “Boost”,
“Timer12” and “Timer24”
modes
[+] and [-] buttons:
For setting the desired
temperature
“Boost/Timer” LED:
Small red/green/amber light
indicator to inform about the current
active mode
Power cord
External temperature sensor:
For detecting the room
temperature
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Page 7
Selmo
Comfort bar
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators
17°C
15.5°C*
18.5°C*
20°C
21.5°C*
23°C
24.5°C*
26°C
27.5°C*
14°C
29°C
7°C
* Blinking LED
On/Standby
Press the [On/Standby] button to turn on the device or to activate the “Standby”
mode.
NOTE: When the device is switched to "Standby/Antifreeze" mode, it beeps twice for 0.5sec.
When the device is switched to “On” mode (i.e. it is turned on), it beeps for 1sec.
Fil-Pilote mode
The “Fil-Pilote” sub-function allows managing the device by a central control
system that sets the operating mode for all the connected devices. The device
supports the most advanced “Fil-Pilote” standard with six commands which allows
the following functions:
1. Standby (Arrêt): power off the heating element, the device remains active.
2. Comfort (Confort): maintains the “Comfort” temperature set by the user.
3. ECO (Eco) : maintains the room temperature 3,5°C below the “Comfort”
4. Antifreeze (Hors Gel): prevents the room temperature from falling below 7°C.
5. Comfort-1 (Confort-1°C): maintains the room temperature 1°C below the
6. Comfort-2 (Confort-2°C): maintains the room temperature 2°C below the
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
temperature.
"Comfort" temperature.
"Comfort" temperature.
Rel. 04 – October 2015
EN
Page 8
Selmo
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators
Temperature setting: This function allows the selection of the “comfort” mode
tem peratur e o f t h e “ F i l - p i l o t e”. The t e m p e r a t u r e is set through the [+] and [-] buttons to one of
the following temperature values: 7°C; 14°C; 15,5°C; 17°C; 18,5°C; 20°C; 21,5°C; 23°C;
24,5°C; 26°C; 27,5°C; 29°C.

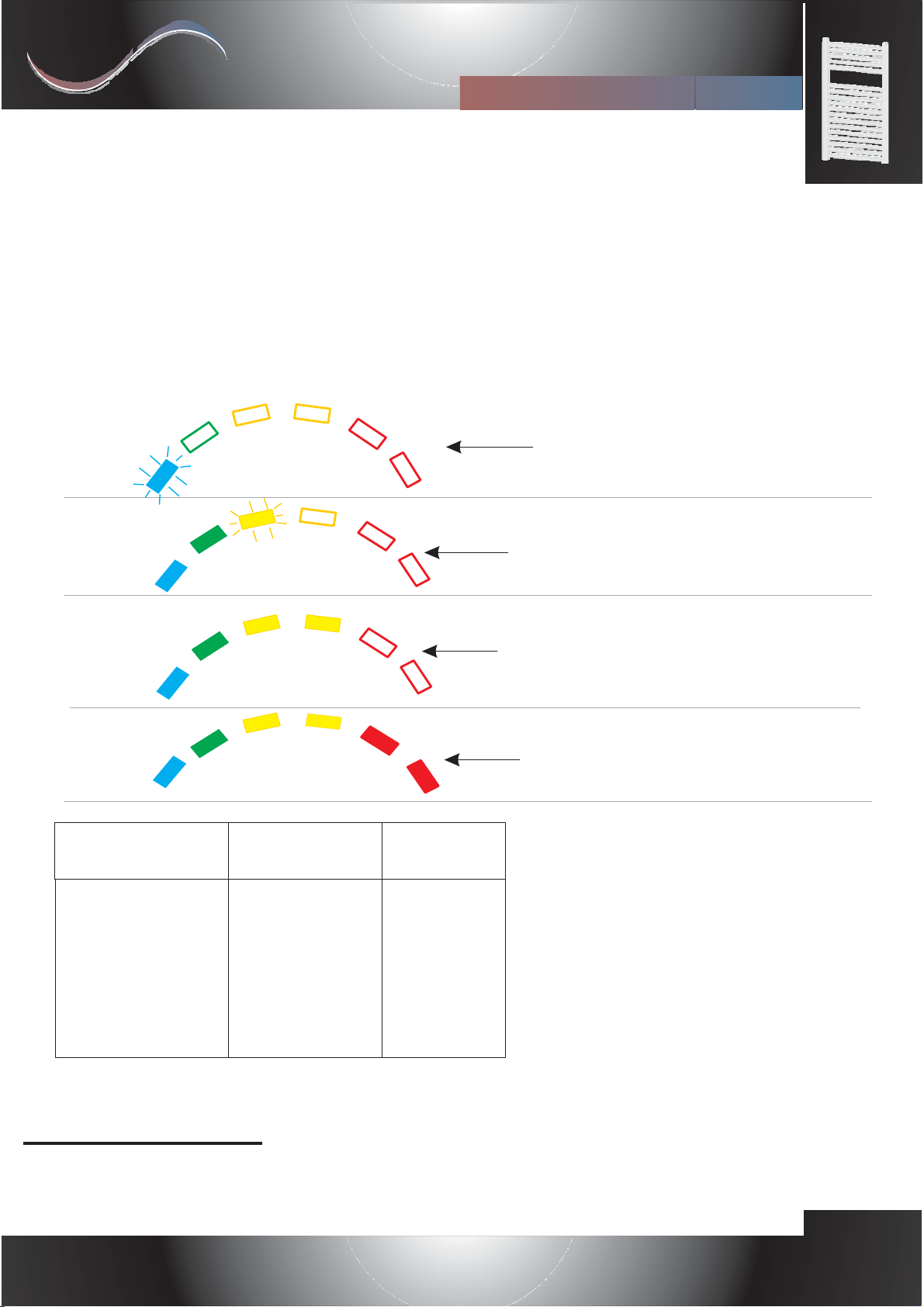

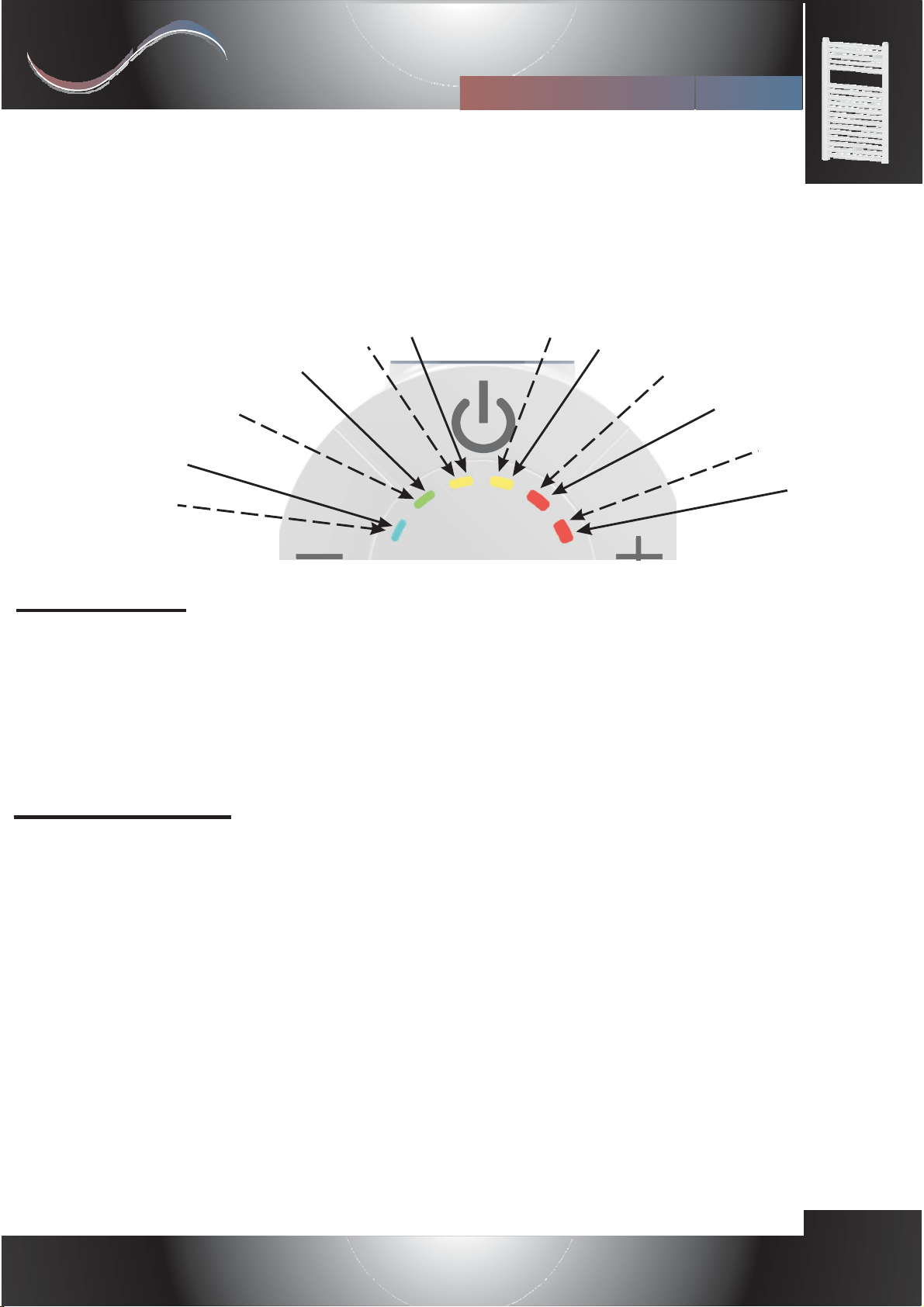

The rightmost lit or blinking LED in the “Comfort bar” indicates the selected temperature.
Minimum configurable
temperature in
“Comfort” mode: 7°C.
Led of the
Comfort bar
Blue--------------
Green------------
st
1
Yellow-------
st
Yellow-------
2
st
Red----------
1
nd
Red----------
2
Blinking Led
7°C------------
15.5°C,-------
18.5°C,-------
21.5°C,-------
24.5°C,-------
27.5°C,-------
Led
always on
14°C,
17°C,
20°C,
23°C,
26°C,
29°C.
The selected temperature is of
18.5°C (first yellow LED blinking).
Press 3 times the [+] button.
The selected temperature is of
23°C (second yellow LED remains
lit). Press 6 times the [+] button.
Maximum configurable
temperature in “Comfort”
mode: 29°C.
Note: While in “Fil-Pilote”
mode, the “Comfort
Bar” still shows the
“Comfort” temperature
“Standby” mode
In this mode the device goes in standby and the heating element is powered off.
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Page 9
Selmo
Comfort technology division
“SMART Plus ClassII FP”
Electronic control for towel radiators
“Boost” mode: Press the [Boost/Timer] button to activate this operative mode.
This mode activates the heating element to the maximum power for 2hrs (for safety reasons
the maximal temperature is limited to 29°C).
To exit the “Boost” mode press the [Boost/timer] button.
“Timer24” mode: Press the [Boost/Timer] button for 3 seconds to activate this mode.
The control system activates the “Boost” mode for 2 hours, after that it returns into “Comfort”
mode and after 22 hours the “Boost” mode is started again for 2 hours. This sequence will
repeat endlessly.
To exit the “Timer24” mode press the [Boost/Timer] button.
NOTE: During the first cycle the duration of the “Comfort” mode is of 21 hours.
“Boost” mode indication: "Boost/Timer" LED has red color and it blinks.
“Timer24” indication during 2hrs “Boost”: “Boost/Timer” LED blinking green.
During 22hrs “Comfort”: “Boost/Timer” LED always green.
“Timer12” mode: Press the [Boost/Timer] button for more than 5 seconds to activate it.
The control system activates the “Boost” mode for 2 hours, after that it returns into “Comfort”
mode and after 10 hours the “Boost” mode is started again for 2 hours. This sequence will
repeat endlessly.
To exit the “Timer12” mode press the [Boost/Timer] button.
NOTE: During the first cycle the duration of the “Comfort” mode is of 9 hours.
NOTE: For safety reasons, the maximal temperature of the radiator during the 2hrs boost is limited to 29°C.
Functional diagram
Stand-by
“Timer12” indication during 2hrs “Boost”: “Boost/Timer” LED blinking amber.
During 10hrs “Comfort”: “Boost/Timer” LED always amber.
BOOST
BOOST
Timer 24
2h
Comfort
Press once
Press for 3 sec
Press for at least 5
sec
BOOST
Timer 12
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Page 10
Selmo
“SMART Plus ClassII FP”
Electronic control for towel radiators
Boost/Timer LED functioning summary
Comfort technology division
Blinking red
Blinking Green
Always green
Blinking amber
Always amber
“Boost” mode active. The heating element is powered for 120 minutes (temperature of the
radiator automatically limited to 29°C).
“Boost” function active in Timer24 mode. The heating element is powered for 120 minutes
(temperature of the radiator automatically limited to 29°C).
Return to “Comfort” mode for 22hrs.
“Boost” function active in Timer12 mode. The heating element is powered for 120
minutes (temperature of the radiator automatically limited to 29°C).
Return to “Comfort” mode for 10hrs.
Key lock function
It is possible to lock the buttons of the device to avoid inadvertent modifications of the
settings. Press together the [+] and [-] buttons for 3 seconds to lock all the buttons except
the [On/Standby] button.
To unlock the buttons press again together the [+] and [-] buttons for 3 seconds. When key
lock is activated the device beeps twice. When key lock is deactivated, the device beeps
four times.
Additional indications provided by the “Comfort Bar”:
- The two central (yellow) LEDs blink when a button is pressed: Key lock is active.
- The external (blue and red) external LEDs blink: Failure on the temperature sensor, the
heating element is deactivated. Contact customer support.
Notes
In case of interruption of power supply, the system will recover from the previous operative
mode*, with the exception of "Boost" and "Timer" modes.
*The status of the device is saved 5 seconds after a modification occurs.
Repairs carried out by unauthorized personnel invalidate warranty
The manufacturer reserves the right to make any changes to the product described in this
manual, at any time, and without prior warning.
DISPOSAL
This product may not be treated as ordinary household waste. It has to be disposed in proper
waste collection sites. In case of replacement it shall be returned to the distributor.
Such an end-of-life treatment of the product will preserve the environment and will reduce
consumption of natural resources.
This symbol applied to the present product indicates the obligation to bring it to a proper waste
collection site, in order to let it be disposed according to 2002/96 / CE (RAEE - WEEE)
directives.
Rel. 04 – October 2015
Selmo Electronic
Viia Pacinotti, 24 - 35030 Rubano (PD) Italy- Tel +3 9 . 049.8976761, Fax + 3 9 . 049.8976085 - www.selmo.it
EN
Loading...
