ENGLISH
User’s manual
TRAVELER KIT
Oceania-REV. 1.0
www.self-sat.com
ENGLISH
Contents
What is SELFSAT-Traveler Kit?
...............................................................................What is SELFSAT-Traveler Kit?
2
｜
Safety Instructions
...........................................................................................Safety Instructions
2
｜
Box Content
.................................................................................................Box Content
3
｜
How to Install?
...............................................................................................
....................................................................................
..................................................................................
................................................................................
.....................................................
........................................................................
...............................................................
....................................................
...................................................................
....................................
........................................................................
How to Install?
Step 1 : Where to Install?
Step 2 : Check Information
Step 3 : Assembly Instruction
Step 4 : Connecting the Antenna and the Set top box
Step 5 : Fine Tuning and Fix the Bracket
｜
｜
｜
｜
｜
｜
A)
B)
C)
A)
B)
Assembling the Multi-Functional Base
Installing and xing the base of the camping set
Adjusting azimuth and elevation
How to prepare the cable?
How to connect the cable to the antenna and the set top box?
4
4
5
5
13
14
5
7
12
13
13
Troubleshooting Check List for Initial Installation
..........................................................Troubleshooting Check List for Initial Installation
15
｜
Loss of Signal / Rain Fade
....................................................................................Loss of Signal / Rain Fade
15
｜
2
Warning
Antennas improperly installed or installed to an inadequate structure are very susceptible to wind
damage. This damage can be very serious or even life threatening. The owner and installer assumes full
responsibility that the installation is structurally sound to support all loads (weight, wind & ice) and
properly sealed against leaks. The manufacturer will not accept liability for any damage caused by a
satellite system due to the many unknown variable applications.
Before using this product please read this manual carefully and follow exactly all installation, mounting &
orientation instructions.
All the instructions should be followed in order to avoid any technical problems.
Any electric or magnetic eld close to the SELFSAT-Traveler Kit may cause a bad reception or even cut o the
signal completely.
Do not drill the plastic cover of the antenna, which seals the antenna from moisture.
Handle the antenna with care as any impact will cause damage to the electronics.
Do not open the cover, any attempt to repair by a non-qualied person can be dangerous and void the warranty.
Any obstacle (buildings, trees, etc....) will block the reception of the signal from the satellite to the antenna.
Do not paint or add any substance on the antenna cover, this will block the reception of the signal from the
satellite.
The cable between the antenna and the Satellite receiver should not exceed 30m as it will decrease the quality of
the signal.
The use non- isolated jacks will result in a loss of the signal level.
Tighten all the screws of the antenna once you have nished the adjustments.
This product contains one universal LNB, it is forbidden to add, change or modify the LNB.
For more precise details on the above points or for any information, please ask your retailer or customer service.
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety Instructions
What is SELFSAT-Traveler Kit ?
SELFSAT Traveler Kit is
the most focused on portability that is born after the combination of SELFSAT antenna,
which already has been proved the high eciency by using horn array wave guide technology, and brand new portable bracket which is ecient and has various usage.
SELFSAT antenna is using Horn array wave guide technology that can receive major satellite
broadcast replacing dish shaped parabola antenna, can install easily and has high eciency
for its size.
Also the brand new portable bracket has innovative design which allow many type of install
position, such as stand type, window type etc. that is able to counteract diverse install
surroundings exibly.
This combination of SELFSAT & bracket will be new paradigm.
3
ENGLISH

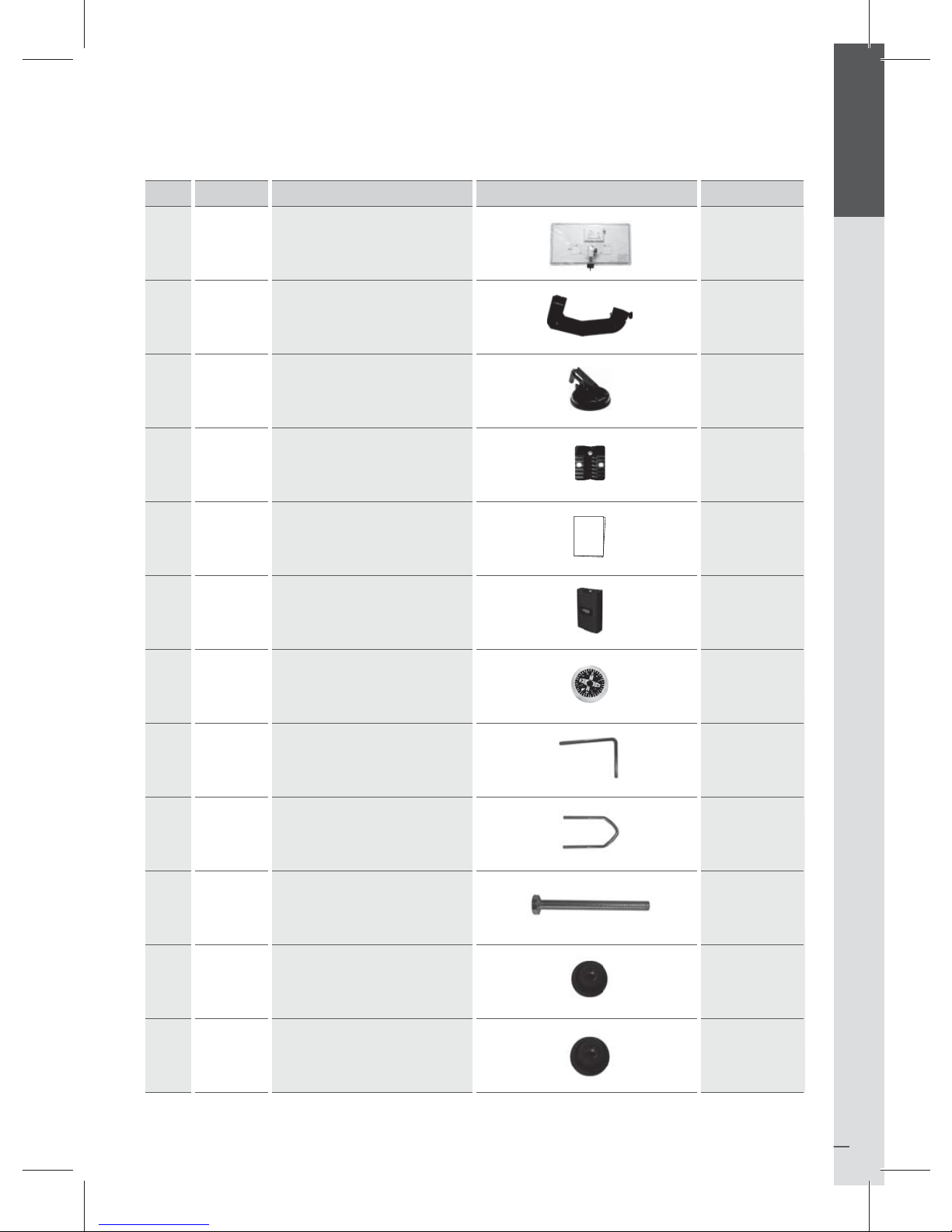

Contents
No
1
2
3
4
5
6
7
8
9
10
11
12
A1
B1
B2
B4
B5
B6
C1
S1
S2
S3
S4
S5
1
1
1
1
1
1
1
1
1
2
4
1
Antenna Body
(Antenna, Angle Bracket)
Multi-Functional Base
Suction cup
Fix Plate
Manual
Carrying case
Compass
L type bolt
U type bolt
M6x65 Hex
M6 Knob Nuts
M8 Knob Nuts
Symbol Part name Image Quantity
4

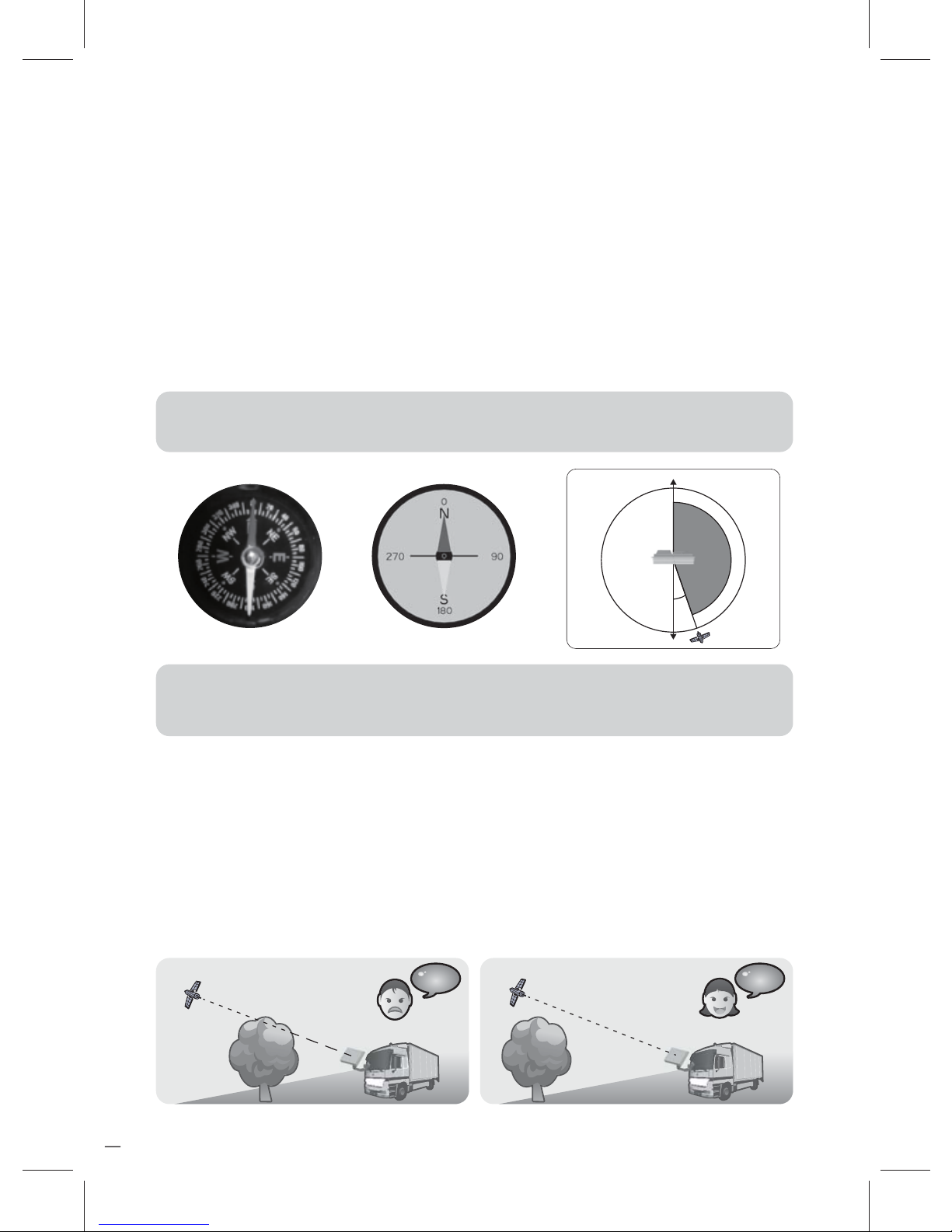

Note
please take reference to the table of the Azimuth angles specied in the back pages of this manual.
Note
< Compass > < Azimuth Angle >
To ensure an accurate compass reading, stay away from large metal objects, specically electrical cables
and then make multiple readings.
Bad Quality Signal Reception
BAD!BAD!
Good Quality Signal Reception
GOOD!GOOD!
Azimuth
Angle
S 180
o
N 0
o
Satellite position
How to Install?
By following the instructions step by step, you can proceed easily to install SELFSATTraveler Kit by yourself or with the help of a professional antenna installer.
Step 1: Where to Install?
In order to receive a signal from the Satellite, SELFSAT-Traveler Kit is to be installed in an open loop space
(outside the house or the apartment), in the direction of the satellite towards the equator, for which, you will
need a compass to exactly orient SELFSAT-Traveler Kit toward the satellite.
Make sure that there are no obstacles in front of SELFSAT-Traveler Kit which can decrease the signal reception
quality, such as buildings or trees (you may keep in mind that trees will grow and may block the signal).
In order to be able to x and install your antenna easily, you might choose an easily accessible place without any
potential danger for installation.
Think about the way you might pass your cable in a discreet way from the SELFSAT-Traveler Kit to your Set top Box.
The antenna should not be too distant from your satellite receiver; a cable longer than 30 meters may decrease the
quality of the signal.
Before installing your antenna, you check that SELFSAT-Traveler Kit box contains all the items listed above in
the ‘Box Content’. In the event of any missing parts, please contact your distributor.
5
ENGLISH

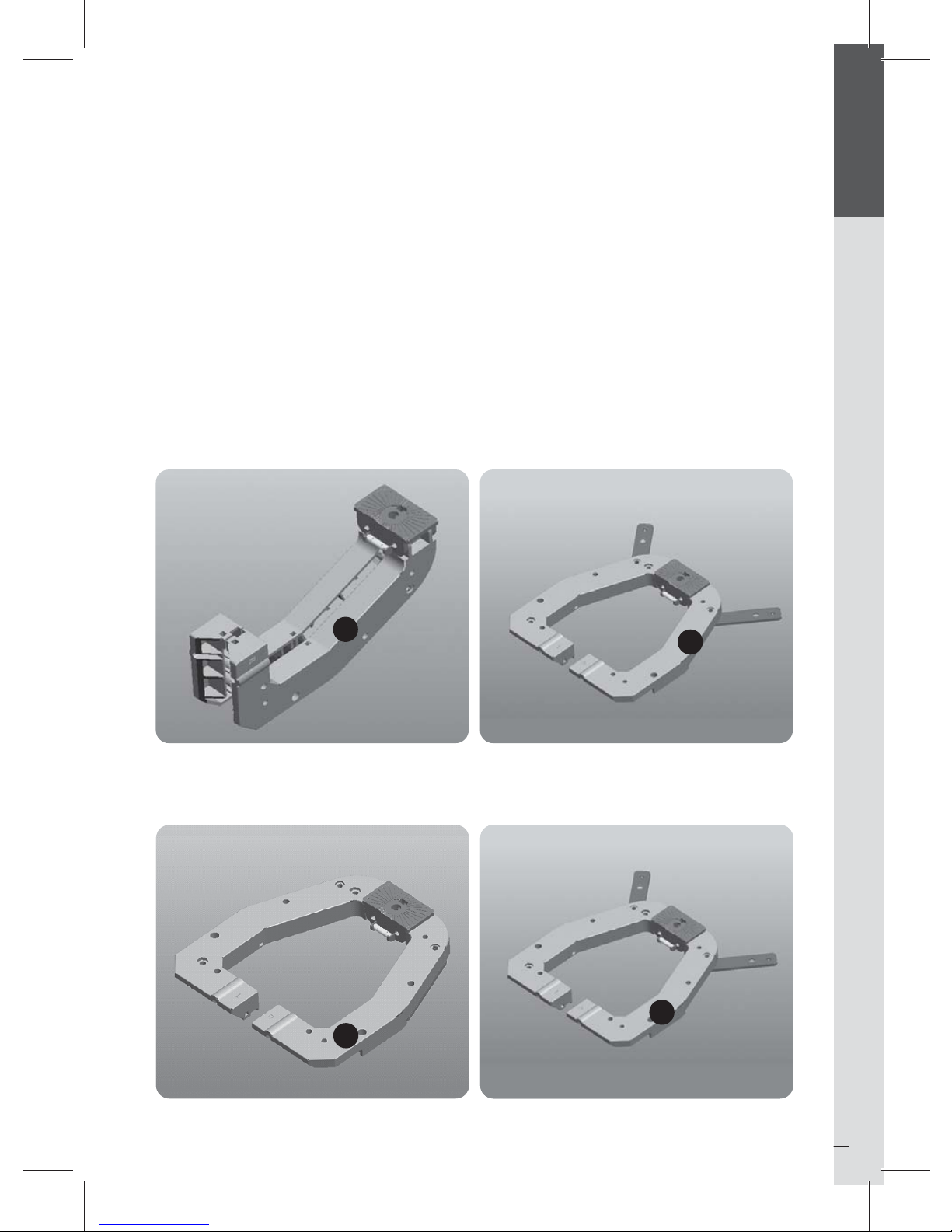

Step 3 : Assembly Instruction
A) Assembling the Multi-Functional Base
Open the Multi-Functional Base
- Open the two wings of the Multi-Functional
1)
B1
B1
-
Pull out the Base Support, then put it on the plane
B1
B1
Step 2: Check Information
In order to install antenna, you need to nd skew, elevation and azimuth angle by referring the table on the
back of the manual. If you can’t nd your location, please refer to the information of the nearest place from
your location. This manual will show you the installation example to receive Optus D3 satellite in Sydney
region of Australia. The angle information for Sydney region is Skew : -37.9°, El : 50.°, Az : 8.6°
