User manual
www.selfsat.com
SAT>IP™ Wi-Fi Dongle
Safety Notes
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
As the product of wireless device, there may be difference in
performance
after the usage environment.
Read thoroughly the manual before use.
Do not touch the device during operations to avoid risk of burns.
Keep the device unplugged if unused.
Do not access to power adaptor or cable with wet hands.
Do not give physical impact may cause malfunction.
Keep the device away from magnetic materials.
Do not place or install the device where high humidity.
Keep the device in well-ventilation space for use.
Do not install the device under direct sun light.
Do not open or disassemble the device discretionally.
Do not use power equipment except ones in the manual.
Connection to the device may differ depends on user’s device.
Disconnect smart device before unplug the device from TV.
Use of smart device connection is recommended in 3m.
ENGLISH ENGLISH - 3
Contents
1. SAT>IP Wi-Fi Dongle
•
•
•
•
Specification / Components
Name of parts – SAT>IP Wi-Fi Dongle
Name of parts – Bluetooth remote control
Operation diagram of SAT>IP Wi-Fi Dongle
04
05
05
06
...............................................................
.................................................
.........................................
........................................
3. Main function - SAT>IP
4. Entertainment functions
5. SAT>IP Wi-Fi Dongle settings
09
10
11
.........................................................................
.....................................................................
..............................................................
6. Troubleshooting for Bluetooth remote control
7. Common Q & A
14
15
.................................
....................................................................................
2. SAT>IP Wi-Fi Dongle preparation
• •SAT>IP Wi-Fi Dongle set up
Wi-Fi setting of Bluetooth remote control
07
08
.................................................................
...........................................
•
•
•
Remote control application for Android
Remote control application for iOS
Name of parts – Remote control application
12
12
13
.............................................
.....................................................
......................................
ENGLISH - 4
Model name
CPU
System / FLASH Memory
Input device
Audio/Video Output
Wi-Fi
Bluetooth
Power
DC Input type
Size
Weight
SELFSAT-IPD30A
ARM Cortex A5 833MHz
512MB / 2.5GB
SELFSAT SAT>IP RCU application
/ Bluetooth remote controller
HDMI 1.4
Wi-Fi 802.11n, 2.4 / 5GHz Dual Band
Bluetooth 4.0
DC 5V 1A / 5W
Mini USB Adaptor
100 × 42 × 15 mm
40g
• Specification
1. SAT>IP Wi-Fi Dongle
• Components
USB power cableHDMI extension cable
Power adaptorMain unit
User manual
Bluetooth remote
control
1
ENGLISH - 5
• Name of parts – SAT>IP Wi-Fi Dongle
Protective Rubber
1
HDMI connector
Connect the device to HDMI port of TV
2
Micro USB power port
To supply power to the device
3
Air vent
4
LED lamp
5
Power : On / OFF
LED lamp : Red light during operation
LANG* :
Change to other supportive language
Direction keys : Up/Down/Left/Right
OK : Perform the selected menu
Volume : Adjust volume
Channel : Move to other channels
Mute : Delete / Restore volume
BACK : Go to the previous menu
HOME : Go to the main screen
Leave : Finish & go back to previous stage
Color keys** : For custom usage of occasions
Number keys : Go to the desire channel or
other setting
1
2
3
4
5
6
7
8
9
10
11
12
13
• Name of parts – Bluetooth remote control
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
Pull the rubber to take out HDMI connector
and micro USB power port
Discharge heat during operation
Blue light on if the device is properly plugged
and reliably supplied power
1
*LANG : This is only supportive for bilingual broadcast of SAT>IP
**Color keys : Only available at SAT>IP. Different functions at each stage
ENGLISH - 6
• Operation diagram of SAT>IP Wi-Fi Dongle
√
√
√
√
√
To watch SAT>IP satellite broadcasting, [SELFSAT>IP antenna,
SAT>IP Wi-Fi Dongle and Wi-Fi AP] are required and
recommended.
SELFSAT>IP antenna and Wi-Fi AP are not included.
If SELFSAT>IP antenna is not used for the connection, [SAT>IP
server, antenna, SAT>IP Wi-Fi Dongle and Wi-Fi AP] are required
instead.
SAT>IP Dongle and Bluetooth remote control in the package are
1:1 paired for initial operation. No need further pairing except
case of factory reset.
Be aware of possibility of Wi-Fi interference during operations.
SELFSAT>IP Flat antenna
WLAN-Router
ENGLISH - 7
2. SAT>IP Wi-Fi Dongle preparation
①
②
Plug SAT>IP Wi-Fi Dongle direct into HDMI port of TV/monitor or
using HDMI extension cable.
Connect SAT>IP Wi-Fi Dongle and TV/monitor using USB power
cable. If TV/monitor does not have USB port to supply power,
connect SAT>IP Wi-Fi Dongle to wall socket using USB power
cable
and power adaptor included.
See below.
③
Make sure that required equipment and AP’s network ID/password
are prepared to add SAT>IP Wi-Fi Dongle to the Wi-Fi network. W-Fi
AP must be the one connected from SELFSAT>IP antenna which is
pointing the satellite.
√
√
√
In case TV/monitor outputs below than 1A(1,000mA), an
operation may not be smooth due to lack of power.
Use HDMI extension cable is recommended instead of direct
connection between SAT>IP Wi-Fi Dongle and TV/monitor .
Parts’ name and location may differ from stated in this manual.

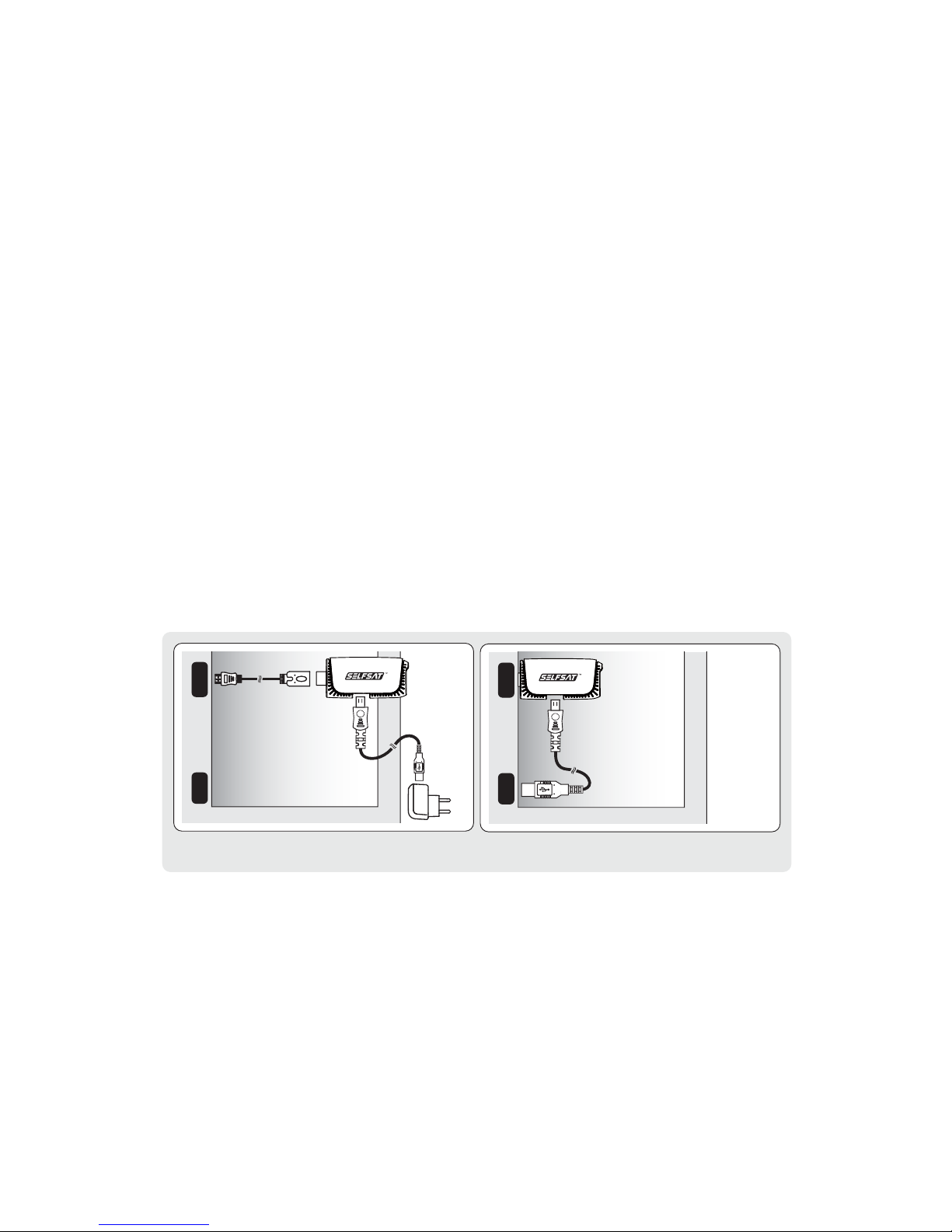

• SAT>IP Wi-Fi Dongle set up
Example①, ②
USB HDMI
USB HDMI
ENGLISH - 8
①

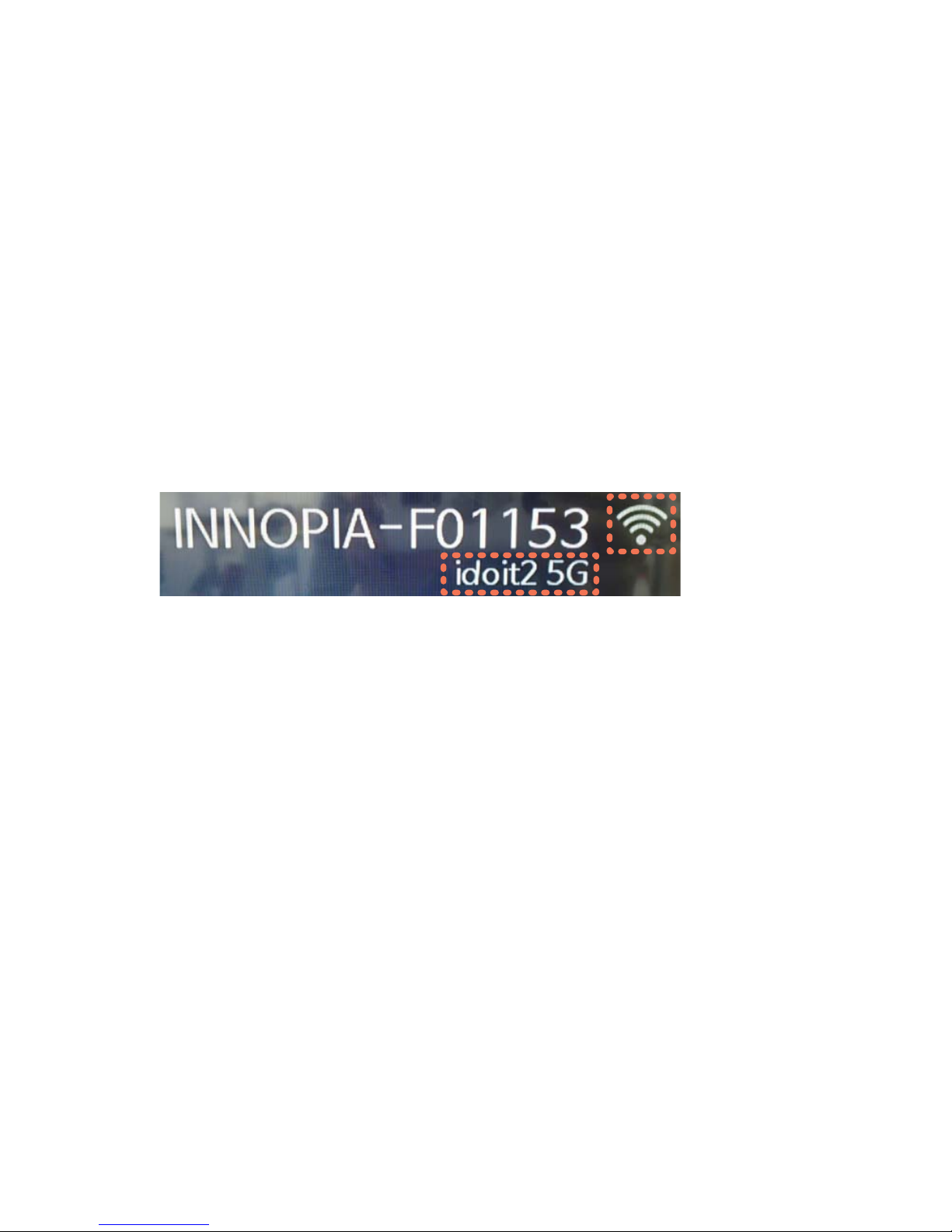

Select “Setting” > “Set up Wi-Fi” on the right bottom at main screen
using Bluetooth remote control.
②
③
Find and select Wi-Fi AP’s network ID in Wi-Fi list available.
If the selected Wi-Fi is locked, input password to join to the network.
√
√
√
To add Wi-Fi network manually to the list, select “Add Wi-Fi
network” at the bottom to pop up related screen → Input Wi-Fi
name → Select security type among None, WEP and WPA/WPA2
(recommended) → Enter password → press “Connection”
button. If there is no security option, input Wi-Fi name and press
“Connection” button.
Wi-Fi AP must be the one connected from SELFSAT>IP antenna
which is pointing the satellite.
SAT>IP function is fully manageable by Bluetooth remote
control but other entertainment functions and setting of the
device will need “SELFSAT SAT>IP RCU”, relative mobile application.
√
SAT>IP Wi-Fi Dongle and Bluetooth remote control packed in a
box are 1:1 paired for initial operation. No need further pairing
except case of factory reset.
• Wi-Fi setting of Bluetooth remote control
1
23
ENGLISH - 9
3. Main function - SAT>IP
①
Select “SAT>IP” function at main screen of SAT>IP Wi-Fi Dongle
display.
SAT>IP is the main function of the device which enables live
streaming of target satellite channels.
②
③
Press Red key to see available SAT>IP server list and choose one to
connect.
Press Green key to select one satellite that SELFSAT>IP antenna is
pointing among all listed.
④
⑤
⑥
Default channel of the satellite will be shown.
Press Blue key to see all available channel list for selected satellite
and change using direction keys.
To make favorite channels list, press Yellow key and create list (up tp
9 lists) on your own.
√
When user plug SAT>IP Wi-Fi Dongle in TV/monitor and supply
power, the device boots and main screen is shown and default
(center) option is SAT>IP.
SAT>IP
23
45
ENGLISH - 10
4. Entertainment functions
①
②
Select “SmartShare” function at main screen of the device.
Select user’s device among the connected available devices in same
Wi-Fi AP.
To watch contents of mobile devices, connected in same AP,
using DLNA function.
If Wi-Fi AP is not available to use, go to “Setting” >”Set up system”
>”Phone to TV / SlideShow mode” and change from “Router” to
“Direct” to enjoy entertainment functions.
SmartShare connection
①
②
Select “SlideShow” function at main screen of the device.
Check the user’s device is connected in same Wi-Fi connection of
SAT>IP Wi-Fi Dongle.
Duplicating service of smart device contents onto bigger
screen as transferring to SAT>IP Wi-Fi Dongle.
SlideShow connection
①
②
The connection may takes time depends on Wi-Fi condition.
Video is recommended not to exceed 2GB some contents may not
be played if codec is not supportive.
Streaming service of smart device contents onto TV via
SAT>IP Wi-Fi Dongle.
Phone to TV connection
