English
www.self-sat.com
SELFSAT-H10D
SELFSAT-H21D
Flat Satellite Antenna
with
Dual Linear Polarization
SELFSAT-H10D/H21D
SELFSAT-H10D/H21D
SELFSAT-H10D/H21D
User’s manual
What is SELFSAT-H10D/H21D?
Contents
.............................................................................What is SELFSAT-H10D/H21D?
3
Safety Instructions
..........................................................................................Safety Instructions
4
Box Content
................................................................................................Box Content
5
Troubleshooting Check List for Initial Installation
.........................................................Troubleshooting Check List for Initial Installation
16

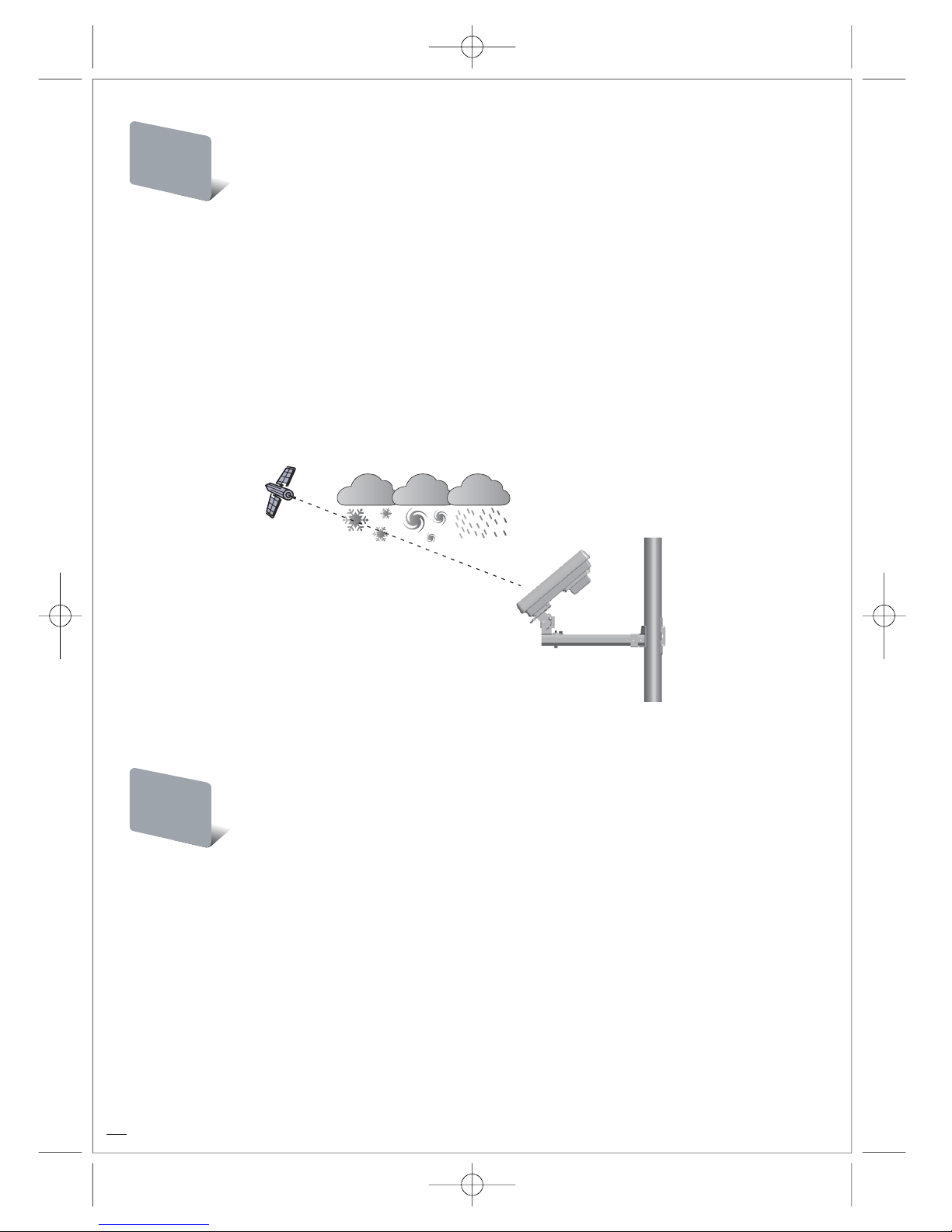

Loss of Signal / Rain Fade
..................................................................................Loss of Signal / Rain Fade
17
Installation Using Long Cable
.............................................................................Installation Using Long Cable
17
Install
..............................................................................................
...................................................................................
.............................................................................
....................................................
..........................................................................
..........................
.
...........................
............................................................
..................................................................................
.........................................................................................
..............................................................................
...........................................................................
...................................
......................................................................
.......................................................................................
...............................................................................................
How to Install?
Step 1 : Where to Install?
Step 2 : Installation Choice
Step 3 : Connecting the Antenna and the Set top box
Step 4 : Antenna Pointing Menu
Step 5 : Pointing and location the Signal (rst without Attenuation Thin Pad)
Step 6 : Optimum Pointing & Finding the Signal (with Attenuation Thin Pad)
A) Table Stand Type (On a Horizontal Plain)
B) Wall Mounting Type
C) Window Type

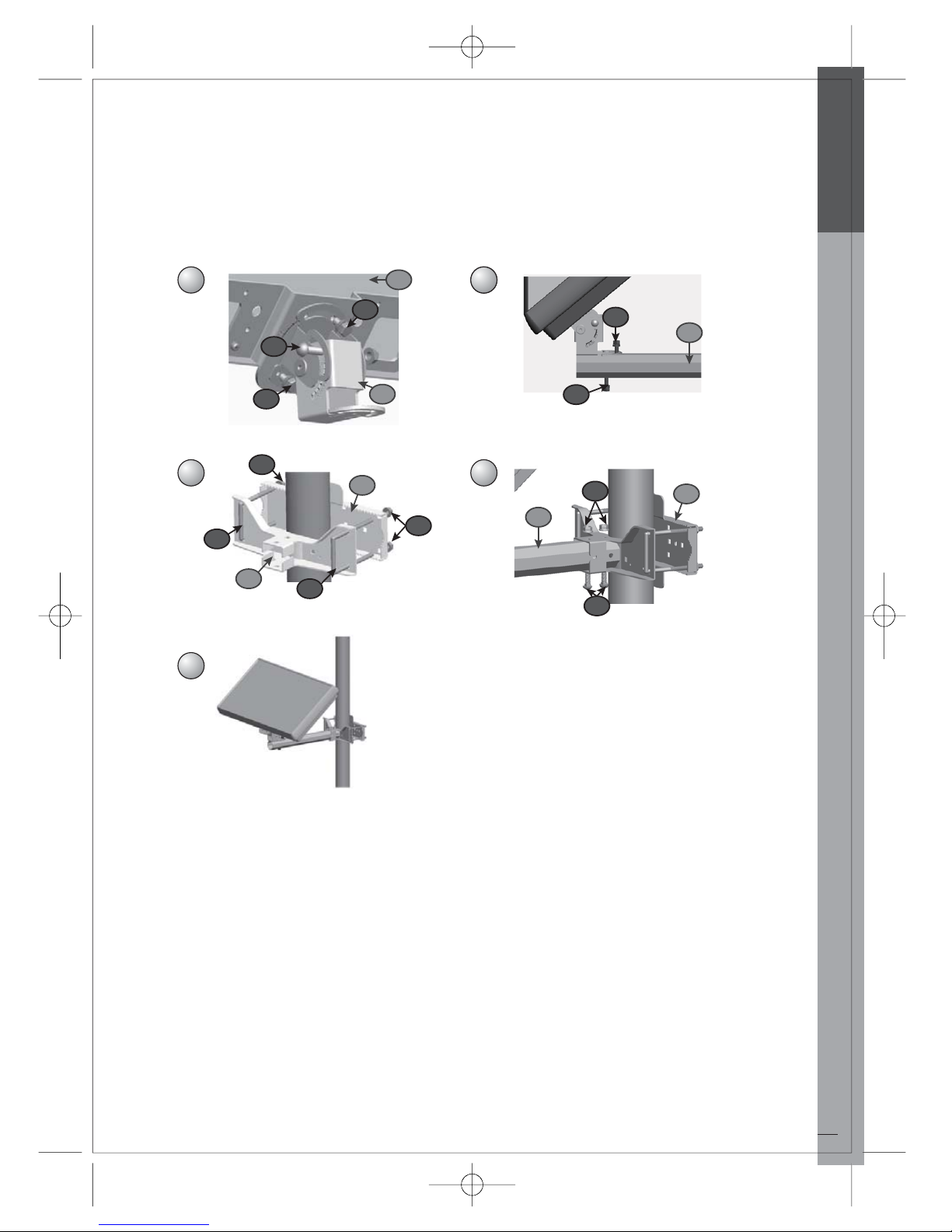

D) Clamp on Balcony Type

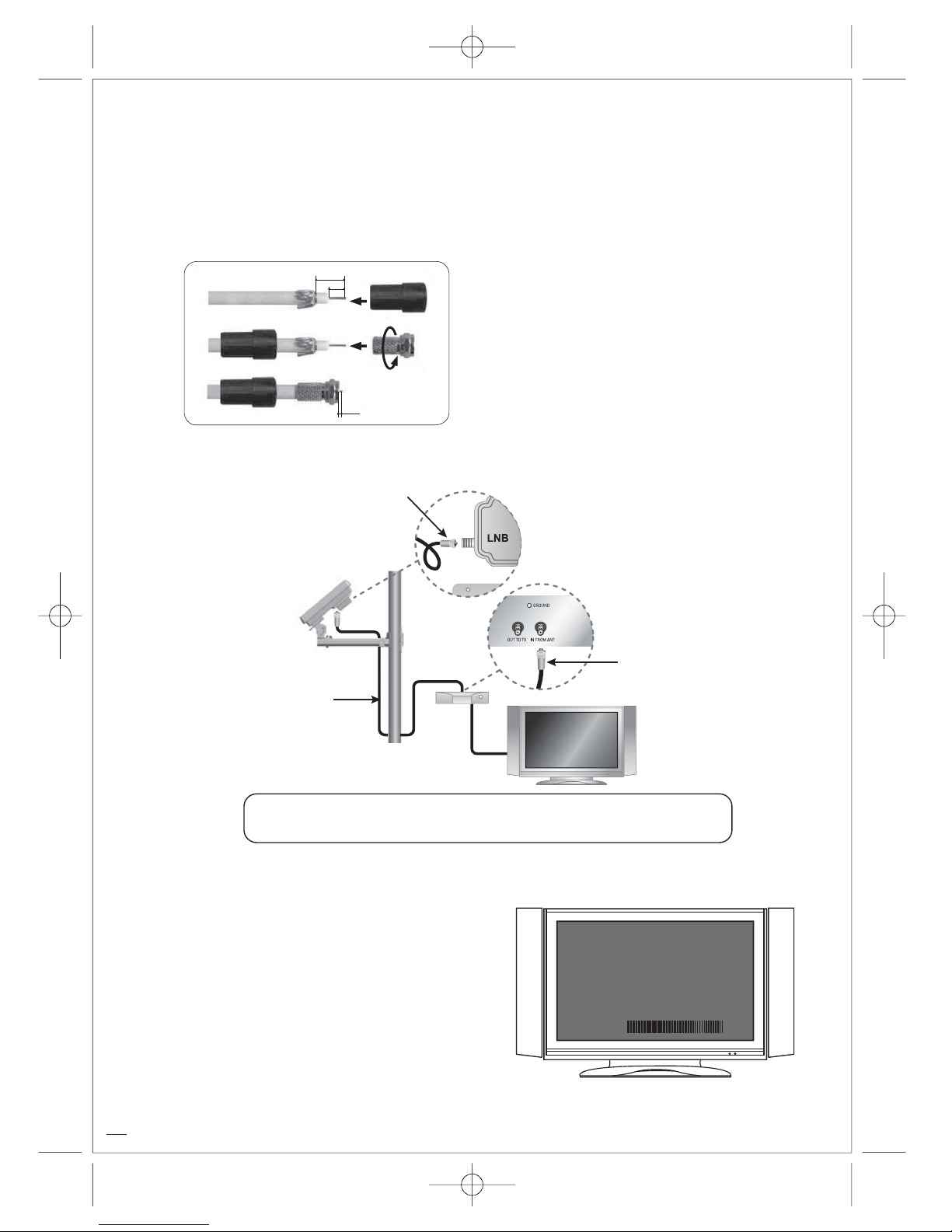

A) How to prepare the cable?
B) How to connect the cable to the antenna and the set top box?

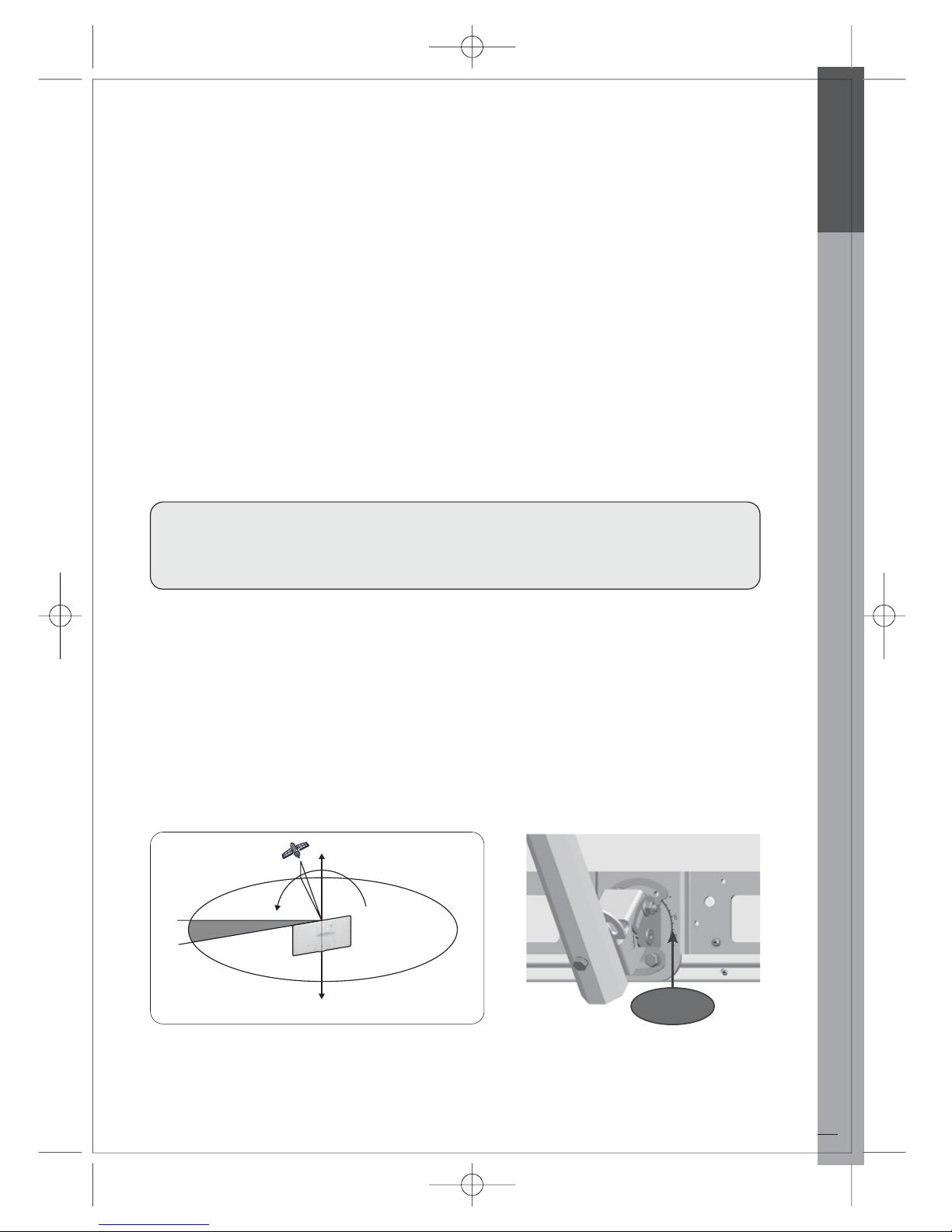

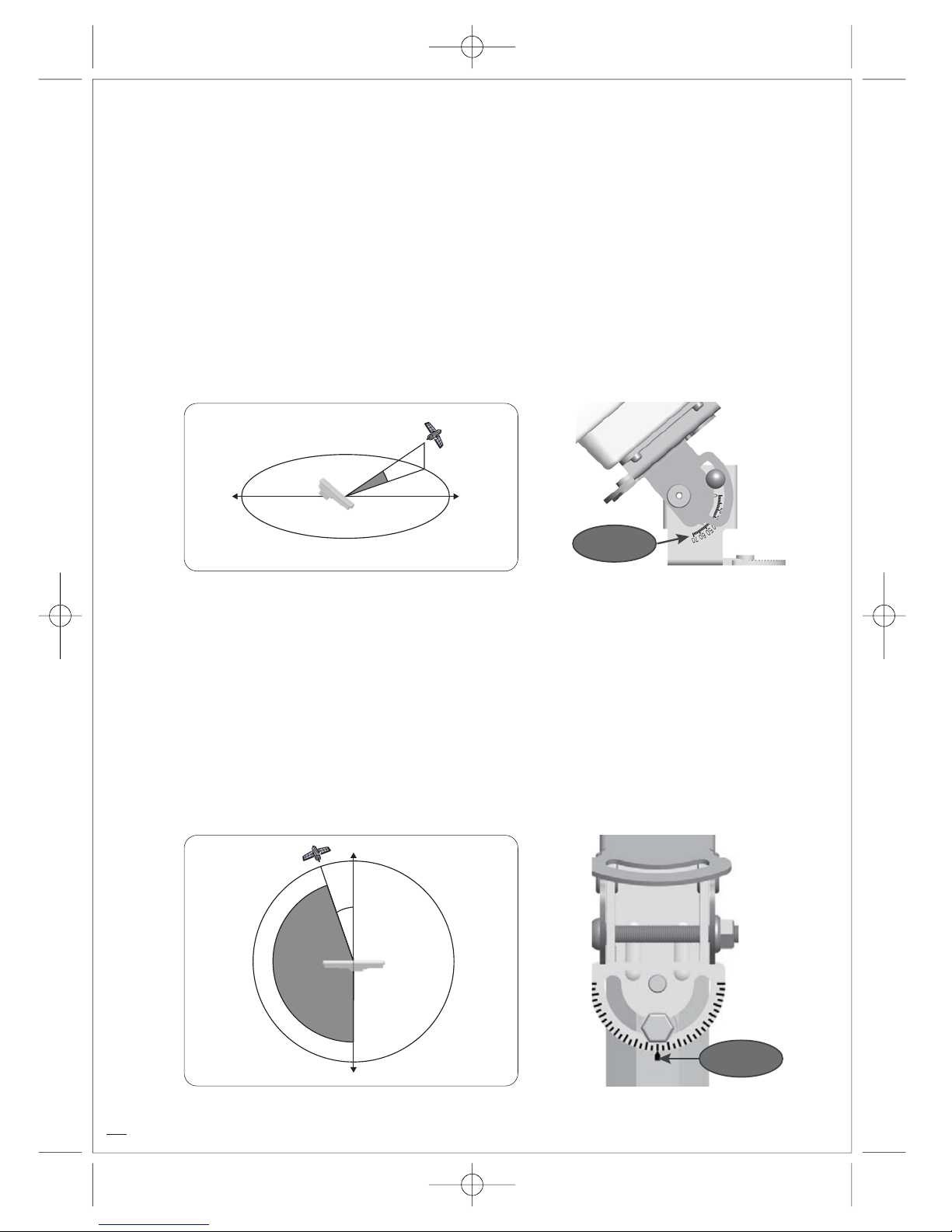

A) Cross Polarization (Skew Angle)
B) Elevation Angle
C) Azimuth
7
7
8
10
11
12
15
8
9
9
10
11
11
12
13
13
English
SELFSAT-H10D/H21D
3
What is SELFSAT-H10D/H21D?
SELFSAT-H10D/H21D is a Horn Array Type Satellite Antenna with Dual Linear Polarization, it
can receive signal from major Satellites and would replace a normal former Parabolic Dish.
Small, discreet and easy to use, it can be installed in a few minutes and used as a portable
antenna for all satellite receptions.
SELFSAT-H10D/H21D can be used for both free to Air and encrypted (requiring a subscription with an operator) channel reception; it can also receive all High Denition channels
with a superior image quality.
For the use and installation, please read the following instructions and installation materials
carefully.

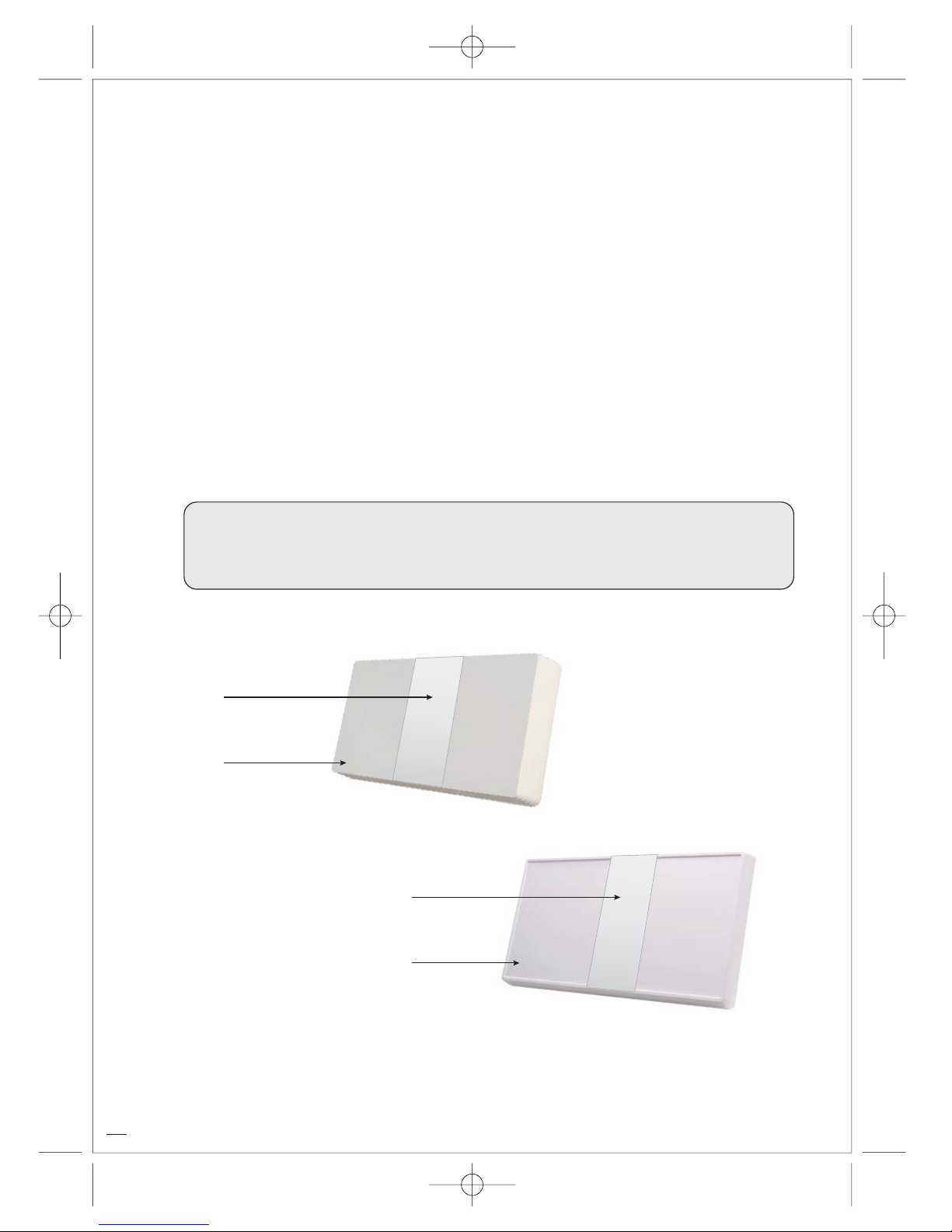

Product introduction
Do you have a TV’s at home more than one?
Then, take SELFSAT built in multi LNB output
Watching 2 channels is possible through H10D2/H21D2
Even enjoying 4 channels is possible through H21D4
H10D2
/ H21D2
H21D4
Built in Twin LNB output
Built in Quad LNB output
www.self-sat.com
4
English
Warning
Antennas improperly installed or installed to an inadequate structure are very susceptible to
wind damage. This damage can be very serious or even life threatening. The owner and installer
assumes full responsibility that the installation is structurally sound to support all loads (weight,
wind & ice) and properly sealed against leaks. The manufacturer will not accept liability for any
damage caused by a satellite system due to the many unknown variable applications.
Before using this product please read this manual carefully and follow exactly all installation,
mounting & orientation instructions.
All the instructions should be followed in order to avoid any technical problems.
Any electric or magnetic eld close to the SELFSAT-H10D/H21D may cause a bad reception or even
cut o the signal completely.
Do not drill the plastic cover of the antenna, which seals the antenna from moisture.
Handle the antenna with care as any impact will cause damage to the electronics.
Do not open the cover, any attempt to repair by a non-qualied person can be dangerous and void
the warranty.
Any obstacle (buildings, trees, etc....) will block the reception of the signal from the satellite to the
antenna.
Do not paint or add any substance on the antenna cover, this will block the reception of the signal
from the satellite.
The cable between the antenna and the Satellite receiver should not exceed 30m as it will decrease
the quality of the signal.
The use non- isolated jacks will result in a loss of the signal level.
For an optimum signal reception please use the Attenuation Thin Pad for the rst installation.
(for more details, please refer to step 6)
Do not forget to adjust the antenna and the bracket to the cross-polarity (skew angle please refer
to step 5).
Tighten all the screws of the antenna once you have nished the adjustments.
This product contains one universal LNB, it is forbidden to add, change or modify the LNB.
For more precise details on the above points or for any information, please ask your retailer or
customer service.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety Instructions
5
No
1 1
SELFSAT-H21DSELFSAT-H10D
Antenna
Body
2 1
Attenuation
PAD
AT-PAD
AT-PAD
3
A1
P1
B1 1
Angle
Bracket
4B2 1
Main
Support
5B3 1
Window
Bracket A
6B4 1
Window
Bracket B
Fix
Bracket A
Fix
Bracket B
7B5 1
8B6 1
Symbol Part name Image Quantity
9B7 1
Spanner
Box Content
www.self-sat.com
6
English
No
10 1
Hex Bolt
M6x18 SEMS2
11 4
Hex Bolt
M4X10 SEMS2
Hex Bolt
M6X50 SEMS2
12
C1
S2
S1
S3
3
Round Head
SquareNeck Bolt
M6x50
Round Head
SquareNeck Bolt
M6x30
13
S4
1
14 1
Flanged Nut
M6
15 S5 3
16 S6 2
U-Bolt
M6x85
17 N1 7
18 E1 4Rubber
Symbol Part name Image Quantity
Compass
7
How to Install?
By following the instructions step by step you can proceed easily to install SELFSAT-H10D/H21D by
yourself or with the help of a professional antenna installer.

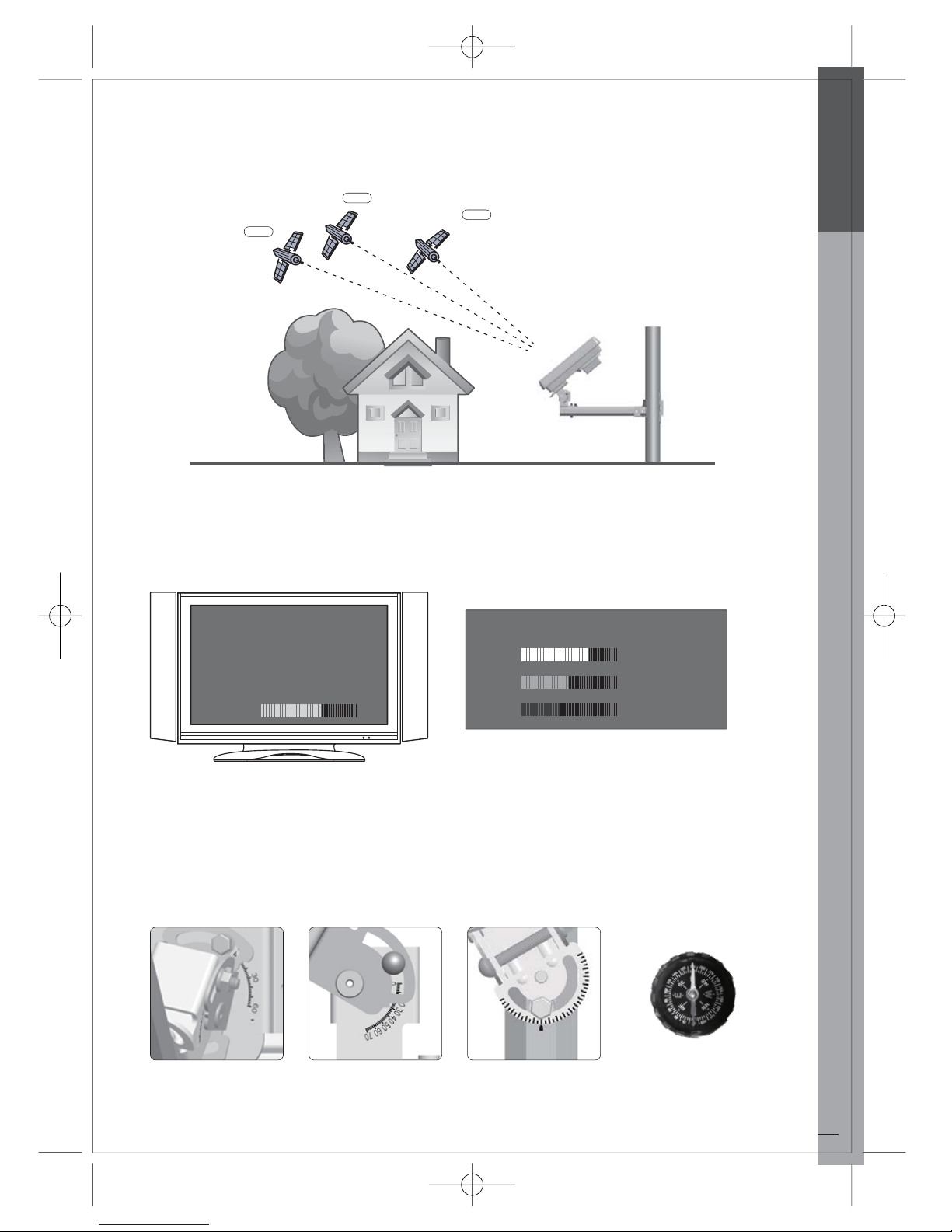

Step 1: Where to Install?
Bad Quality Singnal Reception
Note
In order to receive a signal from the Satellite, SELFSAT-H10D/H21D is to be installed in an open loop
space (outside the house or the apartment), in the direction of the satellite towards the equator, for
which, you will need a compass to exactly orient SELFSAT-H10D/H21D toward the satellite (Note;
please take reference to the table of the Azimuth angles specied in the back pages of this manual)
Make sure that there are no obstacles in front of SELFSATH10D/H21D which can decrease the signal reception quality, such as buildings, or trees (you may
keep in mind that trees will grow and may block the signal).
In order to be able to x and install your antenna easily you might choose an easily accessible place
without any potential danger for installation.
Think about the way you might pass your cable in a discreet way from the SELFSAT-H10D/H21D to
your Set top Box. The antenna should not be too distant from your satellite receiver; a cable longer
than 30 meters can decrease the quality of the signal.
Before installing your antenna, you check that SELFSAT-H10D/H21D box contains all the items listed
above in the ‘Box Content’. In the event of any missing parts, please contact your distributor.
To ensure an accurate compass reading, stay away from large
metal objects, specically electrical cables and then make
multiple readings
BAD!BAD!
Install
www.self-sat.com
8
English
Step 2: Installation Choice
A) Table Stand Type (on a Horizontal Plain)
12
3
S2
S5
S2
N1
B1
B5
B1
A1
S1
S2
S4
N1
Depending on the choice of installation position for the SELFSAT-H10D/H21D, you can then decide
on the mounting type, all parts are included.
Good Quality Singnal Reception
GOOD!GOOD!
9
C) Window Type
12
3
S2
S5
S5
N1
S2
N1
B1
B2
B6
B2
A1
S2
S3
B) Wall Mounting Type
2
4
Attention
Part number B6 bracket has 2 holes for H10D model & 4 holes for H21D model respectively.
N1
S4N1
12
3
S2
S5
S2
S1
S5
N1
B1
B4
B6
B2
A1
S2
S3
2
4
B2
B3
