Selfsat H50M, H50D, H30D, H21D+ User Manual

Make it easy for yourself

www.i-do-it.co.kr

Flat Satellite Antenna HOME

Why Choose SELFSAT?

Conventional SELFSAT

Extremely Small

16 times smaller than a normal dish!

New standard antenna to replace the old dishes.

Small & Powerful,

SELFSAT-H10D

475mm × 259mm × 74mm 566mm × 300mm × 65mm 600mm × 600mm × 500mm

SELFSAT-H21D

Normal Parabolic Antenna

Make it Easy for Yourself!

Can be installed in many ways with various brackets

Flat Satellite AntennaHOME

Window

AZIMUTH CONTROL ELEVATION CONTROL SKEW CONTROL

StandBalconyWall Mount

Decorate by Yourself!

With Stickers that you like

Flat Satellite Antenna MODELHOME

●

SELFSAT-H21D / H21D2 / H21D4

Powerful Performance

●

More powerful signal reception technology

Modern Design

●

Best t to your house

Interchangeable LNB

●

Can change LNB by yourself from a single to a Twin, to a Quad

Interchangeable

LNB

TWIN LNB QUAD LNB

SELFSAT-H10D / H10D2

All Types of Various Brackets Included

●

Easily installed in a few minutes anywhere you please

Easy and Convenient

●

Can be installed with a variety of brackets

Portable and Light

●

Transportable for use on vacation, camping

Adaptable and Fits

●

Fit with your home's design...

SELFSAT-H30D / H30D2 / H30D4

●

MODEL Flat Satellite AntennaHOME

Super Slim & Smallest

The world’s slimmest & smallest dual polarization antenna
437(W) x 235(H) x 40(D)mm

Intense Signal Reception

●

Small size & extremely slim but high performance

Intelligent Performance

●

Support Ku-band channels reception of major satellites

SELFSAT-H05V

Featherlight

●

Surprisingly lighter than conventional dish

Single Polarization

●

Single polarization at satellite antenna

Sleek Design

●

Compact & light

Flat Satellite Antenna MOBILE

Get Live on Driving!

You can enjoy HD quality broadcasting everywhere you go

Get Live!

The Ultimate In-motion Satellite Antenna

In-motion Automatic Signal Tracking System

Sleek and Sharp Design Crystal Clear View

Enjoy your favorite channels on the road

Designed for …

Environmentally Shield

●

Streamlined and unique dome shape helps to prevent from rain, wind or dust

Aesthetic Satisfaction

●

Various color line-ups and up-to-dated fashionable design is the best choice for
automobile’s appearance

Smart in-motion tracking system…

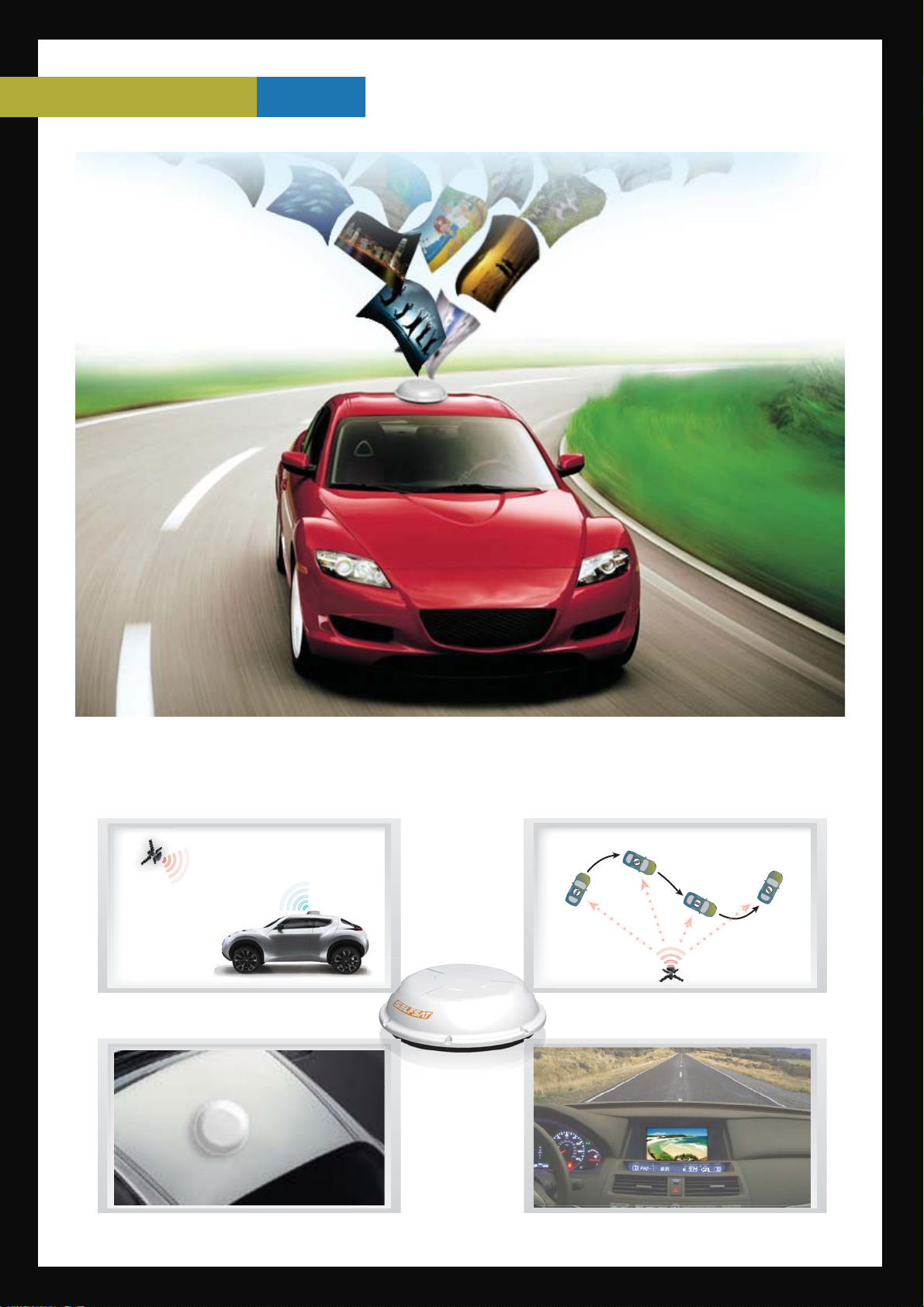

Flat Satellite AntennaMOBILE

Operation On Move

●

The enhanced detection sensor to nd satellite position rapidly and accurately

Live Channels In Travelling

●

Revolutionary in-motion technology enables to watch variety of live TV channels while driving

Vivid Broadcast with HDTV Programming…

HDTV Compatibility

●

It allows you experience all digital worlds on the road. It’s super wide range of
channel makes shorten your long trip

Full HD Screen

●

Our enhanced superior satellite acquisition technology makes you experience live HD
world during your boring long trip

Flat Satellite Antenna MODELMOBILE

SELFSAT-M03D

SELFSAT-M03L

Being Small

●

Looks sleek and sharp

●

Be discreet and low-prole

●

Be a natural match to any automobile

Suit Your Color Right

●

Various colors which go well with your automobile

Get Smart In-motion

●

Experience automatic signal tracking system with
imbedded motor and gyroscope

SELFSAT-M03D

●

Stable performance during high speed and turning
around

Get Simple

●

Easy installation by magnetic plate / No additional brackets

●

Just mount to any at surface of your automobile

●

Do not need additional power cable / Only one signal
cable is needed

SELFSAT-M02D SELFSAT-M04D

SELFSAT-M20D / M21D

S

SA

T

MODEL Flat Satellite AntennaMOBILE

In-motion : M21D
Stationary : M20D

Luxurious Dome Design

●

Rened look and unique dome shape

Intelligent Automatic Tracking System

●

Equipped with the superior tracking technology

Vivid Broadcast with HDTV Programming

●

Support ultra clear viewing HDTV broadcasting

No Limitation on Satellite Searching

●

Provide strong signal reception of all satellites in the world

In-motion

SELFSAT-M21D

Stationary

SELFSAT-M20D

ELF

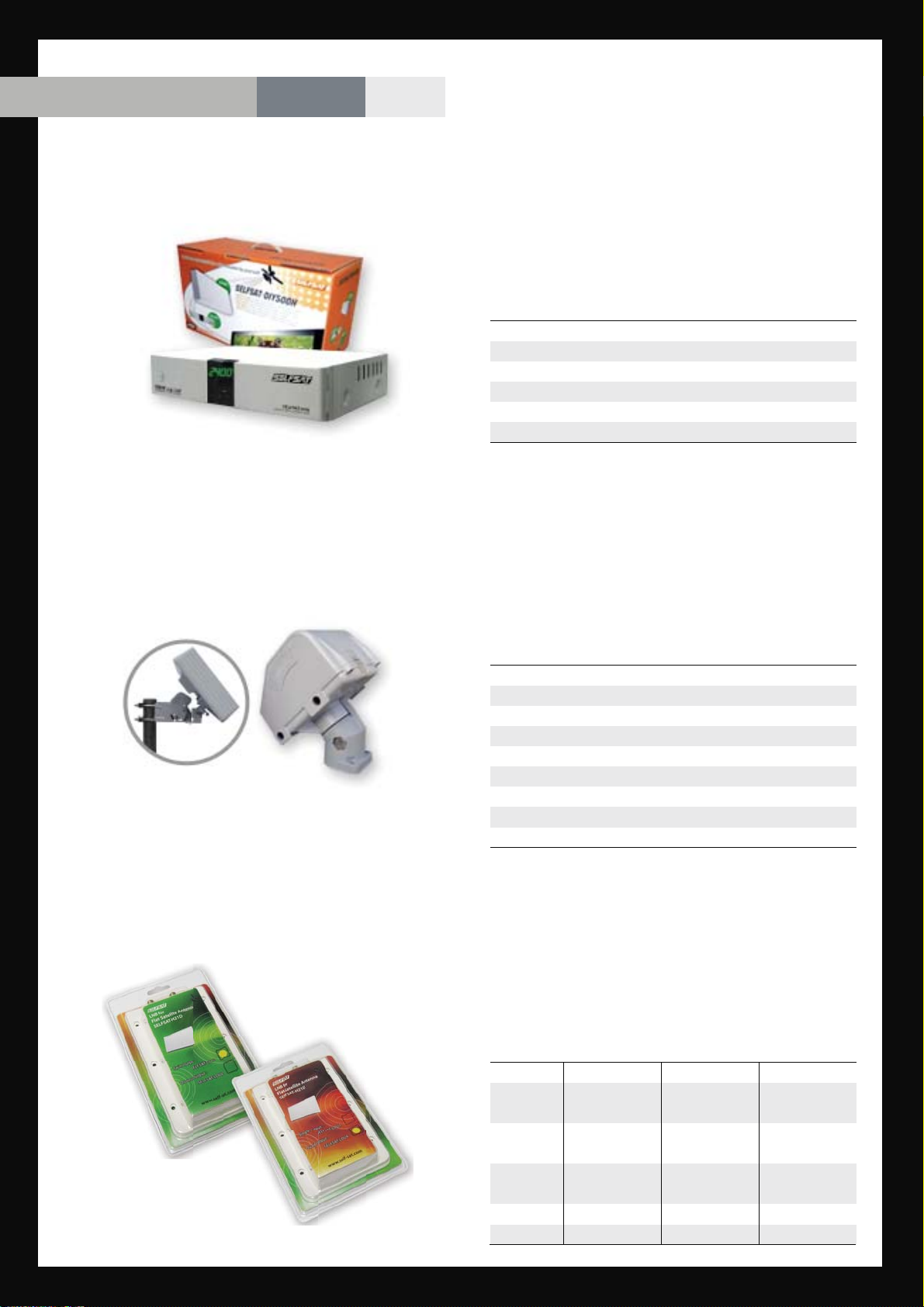

Flat Satellite Antenna MODELETC.

SELFSAT-DIY500H

SELFSAT-HH90(ROTOR)

●

All in one package for self installation

●

Selfsat H10D, Selfsat STB2400, 10m cable,
2 x F connectors, and carrying bag

SET TOP BOX SPECIFICATION

●

MPEG-2 / DVB Compliant

●

Oering 4,000 TV and Radio channels

●

Auto searcthing function & Manual searching function

●

Electronic Program Guide (EPG) for On Screen Channel Information

●

DVB Teletext & supported

●

Friendly OSD in your Ianguage with Help Sentence

SELFSAT-LDU

●

Specially designed for the Selfsat antenna

●

Protocol : DiSEqC 1.2

●

Rotation angle : 130°

SPECIFICATION

Protocol

Weight support

Rotating Angle

Voltage

Temperature

Humidity

Programmable positions

Pre- Programmed positions

Rotor Weight

●

Change your LNB by yourself

●

Single, Twin, Quad, Quattro version

●

Only for SELFSAT-H21D series

DiSEqC 1.2

10 Kg

±65°

13 – 18 V

-40°C - +80°C

95%

49 Satellites

28 Satellites

2.2 Kg

SPECIFICATION

INPUT (GHz)

IF (MHz)

IF (MHz)

SINGLE LNB

10.7 ~ 11.7

11.7 ~ 12.75

950 ~ 1950

1100 ~ 2150

9.75

10.6

60dBGAI N

0.2dB

TWIN LNB

10.7 ~ 11.7

11.7 ~ 12.75

950 ~ 1950

1100 ~ 2150

9.75

10.6

60dB

0.2dB

QUAD LNB

10.7 ~ 11.7

11.7 ~ 12.75

950 ~ 1950

1100 ~ 2150

9.75

10.6

60dB

0.2dBN/F

HOME Flat Satellite AntennaSpecication

Model Name

Frequency

Polarization

Antenna gain

Size

LNB

LNB output Frequency

Temperature

Model Name

Frequency

Polarization

Antenna gain

Size

LNB

LNB output Frequency

Temperature

SELFSAT-H21D / H21D2 / H21D4

10.7 ~ 12.75 GHz

Vertical & Horizontal

34.5 dBi at 12.7GHz

566(W ) x 300(H) x 65(D)mm

Dual Universal LNB

950~1,950MHz / 1,100~2,150MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

SELFSAT-H10D / H10D2

10.7 ~ 12.75 GHz

Vertical & Horizontal

32.8 dBi at 12.7GHz

475(W ) x 259(H) x 74(D)mm

Dual Universal LNB

950~1,950MHz / 1,100~2,150MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

Model Name

Frequency

Polarization

Antenna gain

Size

LNB

LNB output Frequency

Temperature

Model Name

Frequency

Polarization

Antenna gain

Size

LNB

LNB output Frequency

Temperature

SELFSAT-H30D / H30D2 / H30D4

10.7 ~ 12.75 GHz

Vertical & Horizontal

33.7 dBi at 12.7GHz

512(W ) x 272(H) x 52(D)mm

Dual Universal LNB

950~1,950MHz / 1,100~2,150MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

SLEFSAT-H05V

10.7~12.75 GHz

Vertical

32.1 dBi at 12.7GHz

437(W ) x 235(H) x 40(D)mm

Universal LNB

950~1,950MHz / 1,100~2,150MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

MOBILE SpecicationFlat Satellite Antenna

Model Name
Frequency
Polarization
Antenna gain
Size
Axis
LNB output
Temperature

Single power cable for voltage and signal reception

Model Name
Frequency
Polarization
Antenna gain
Size
Axis
LNB output
Temperature

Single power cable for voltage and signal reception

Model Name
Frequency
Polarization
Antenna gain
Size
Axis
LNB output
Temperature

Single power cable for voltage and signal reception

SELFSAT-M03D

11.7GHz ~ 12.75GHz
Vertical or Horizontal

25.7dBi at 12.7GHz
300(D) x 95(H)mm
1 Axis
950 ~ 1,450MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

SELFSAT-M03L

11.7GHz ~ 12.75GHz
LHCP

25.0dBi at 11.9GHz
300(D) x 120(H)mm
2 Axis
950 ~ 2,000MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

SELFSAT-M02D

11.7GHz ~ 12.75GHz
Vertical or Horizontal

25.7dBi at 12.7GHz
268(D) x 106(H)mm
1 Axis
950 ~ 1,450MHz

-30°C to +60°C (Operating) / -40°C to +80°C (Storage)

Model Name
Frequency
Polarization
Antenna gain
Size
Axis
LNB output
Temperature

Single power cable for voltage and signal reception

Model Name
Frequency
Polarization
Antenna gain
Size
Axis
LNB output
Temperature

Single power cable for voltage and signal reception

Model Name
Frequency
Polarization
Antenna gain
Size
Axis
LNB output
Temperature

Single power cable for voltage and signal reception

SELFSAT-M04D

10.7GHz ~ 12.75GHz
Vertical & Horizontal

28.3dBi at 12.7GHz
426(D) x 130(H)mm
1 Axis
950~1,950MHz / 1,100~2,150MHz
30°C to +60°C (Operating) / -40°C to +80°C (Storage)

SELFSAT-M20D (Stationary Model)

10.7GHz ~ 12.75GHz
Vertical & Horizontal
34dBi at 12.7Ghz
750(D) x 330(H)mm
2 Axis
950~1,950MHz / 1,100~2,150MHz
30°C to +60°C (Operating) / -40°C to +80°C (Storage)

SELFSAT-M21D (In-motion Model)

10.7GHz ~ 12.75GHz
Vertical & Horizontal
34dBi at 12.7Ghz
750(D) x 330(H)mm
2 Axis
950~1,950MHz / 1,100~2,150MHz
30°C to +60°C (Operating) / -40°C to +80°C (Storage)
