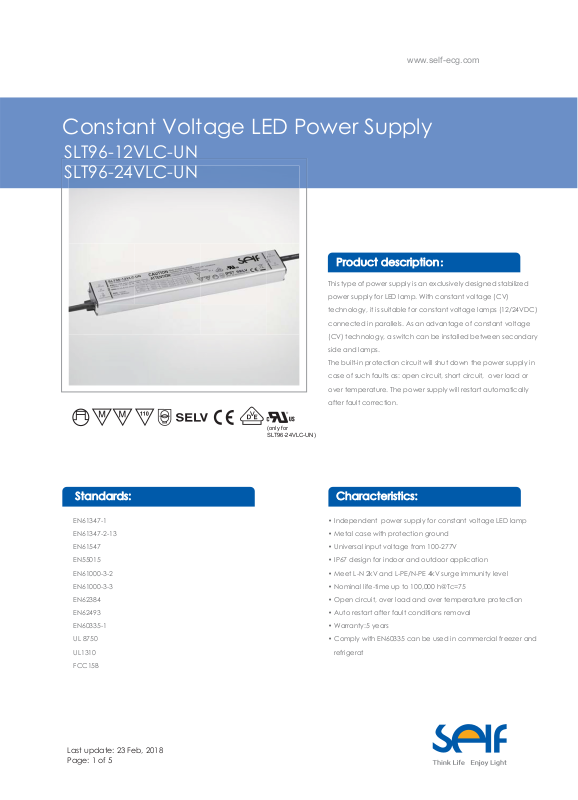

Page 1
Characteristics:
www.self-ecg.com
Standards:
Product description：
Constant Voltage LED Power Supply
SLT96-12VLC-UN
SLT96-24VLC-UN
Product description
This type of power supply is an exclusively designed stabilized
power supply for LED lamp. With constant voltage (CV)
technology, it is suitable for constant voltage lamps (12/24VDC)
connected in parallels. As an advantage of constant voltage
(CV) technology, a switch can be installed between secondary
side and lamps.
The built-in protection circuit will shut down the power supply in
case of such faults as: open circuit, short circuit, over load or
over temperature. The power supply will restart automatically
after fault correction.
Standards:
EN61347-1
EN61347-2-13
EN61547
EN55015
EN61000-3-2
EN61000-3-3
EN62384
EN62493
EN60335-1
UL 8750
UL1310
FCC15B
(only for
SLT96-24VLC-UN)
Characteristics:
• Independent power supply for constant voltage LED lamp
• Metal case with protection ground
• Universal input voltage from 100-277V
• IP67 design for indoor and outdoor application
• Meet L-N 2kV and L-PE/N-PE 4kV surge immunity level
• Nominal life-time up to 100,000 h@Tc=75
• Open circuit, over load and over temperature protection
• Auto restart after fault conditions removal
• Warranty:5 years
• Comply with EN60335 can be used in commercial freezer and
refrigerat
Last update: 23 Feb, 2018
Page: 1 of 5
Page 2
Input
Other
Note
Ambient
and Life
Protection
Output
Model
Specifications
Specifications：
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(℃) )
Tc max.(℃) )
Storage Temperature(℃) )
ambient humidity range
audible noise(dB)
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
SLT96-12VLC-UN
SLT96-24VLC-UN
www.self-ecg.com
In
Note
SLT96-24VLC-UN
SLT96-12VLC-UN
turn on time(S)
output power(W)
output votage(V)
output voltage tolerance
ripple voltage(mV)
working current range(A)
dimming interface
dimming range
rated supply voltage(Vac)
voltage range(Vac)
line frequency(Hz)
input current(mA)
efficiency
average efficiency
no load power consumption(W)
power factor
inrush current(Ipk)
over voltage protection
short circuit protection
over temperature protection
automatic restart
over load protection
surge capacity
Ta(
Tc max.(
Storage Temperature(
ambient humidity range
audible noise(dB)
nominal life-time(hrs)
weight(g)
dimensions (L×W×H)(mm)
casing material
housing colour
type of protection
protection class
1. Tolerance:includes set up tolerance, line regulation and load regulation.
2. Tested at full load,230Vac(Input current tested at full load,120Vac).Refer to"Power Factor" and "EFFICIENT"curve graphs.
3. Calculate the model’s average efficiency for each test voltage by testing at 100%, 75%, 50%, and 25% of
rated current and then computing the simple arithmetic erage of these four values.
4. All parameters NOT specially mentioned are measured at nominal voltage input, rated load and 25 of
ambient temperature.
5. The power supply is considered as a component that will be operated in combination with final equipment.
Since EMC performance will be affected by the complete installation, the final equipment manufacturers must
re-qualify EMC Directive on the complete installation again."
2
2
1
2
3
≤ 0.5
96
12
+/-5%
500（Vp-p)
0-8
No
n/a
100-277
90-305
50/60
900
92.0%
88.0%
0.3
0.95
75A/200us
320Vac,1 hours.
Yes
Yes
Yes
Yes
L-N: 2KV L,N-PE: 4KV
-40…60
90 85
-40...80
5%...85%RH，Not condensing
≤25 @20cm
100'000@Tc=75℃
500
262×40×23
Metal
Silver
IP67
Class I
≤ 0.5
96
24
+/-5%
500（Vp-p)
0-4
100-277
90-305
50/60
900
92.5%
89.0%
0.3
0.95
75A/200us
Last update: 23 Feb, 2018
Page: 2 of 5
Page 3
Wiring diagram:
Dimensions: mm
Dimensions: mm
www.self-ecg.com
23(15/16″)
40(1-9/16″)
10(3/8″)
AC L(BROWN)
AC N(BLUE)
150(5-15/16″)
Wiring diagram:
GREEN YELLOW
100-277VAC
50/60Hz
252(9-15/16″)
262(10-5/16″)
LED POWER SUPPLY
PRI
150(5-15/16″)
Vo-(BLUE)
SEC
Vo+(BROWN)
Last update: 23 Feb, 2018
Page: 3 of 5
Page 4
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
102030405060708090
100
PPF
PF vs load[230Vac]
24V
12V
Electrical curves:
Electrical curves:
65
70
75
80
85
90
95
100
10
20
30
40
50
60
70
80
90
100
Efficiency[%]
Efficiency vs load[230Vac]
24V
12V
65
70
75
80
85
90
95
100
10
20
30
40
50
60
70
80
90
100
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
102030405060708090
100
P
www.self-ecg.com
Efficiency vs load[120Vac]
24V
Efficiency[%]
12V
PF vs load[120Vac]
PF
24V
12V
note
For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage.
For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.
Last update: 23 Feb, 2018
Page: 4 of 5
Page 5
Sales & Technical Support:
Sales & Technical Support:
Se lf Electr onics Co. ,Ltd .
SE LF ELECTR ONICS GER MANY G MBH
Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e
Self Electronics Co.,Ltd.
Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,
China
Tel: 0086-574-28805765,28805658(For English Assistance)
0086-574-28805678 (For Chinese Assistance)
Fax: 0086-574-28805656
E-mail: [email protected]
http://www.self-ecg.com
SELF ELECTRONICS GERMANY GMBH
Add:August-Horch-Str. 7,51149 Koeln
Tel: 0049 2203 18501-0
Fax: 0049 2203 18501-199
E-mail: [email protected]
www.self-ecg.com
Self Electronics Co.,Ltd.,Shenzhen Office
Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming
Road,Futian District,Shenzhen
Tel: 0086-755-83558850, 83558851
Fax: 0086-755-83558840
*Due to continuous improvements and innovations,specifications
are subjected to change without notice.
