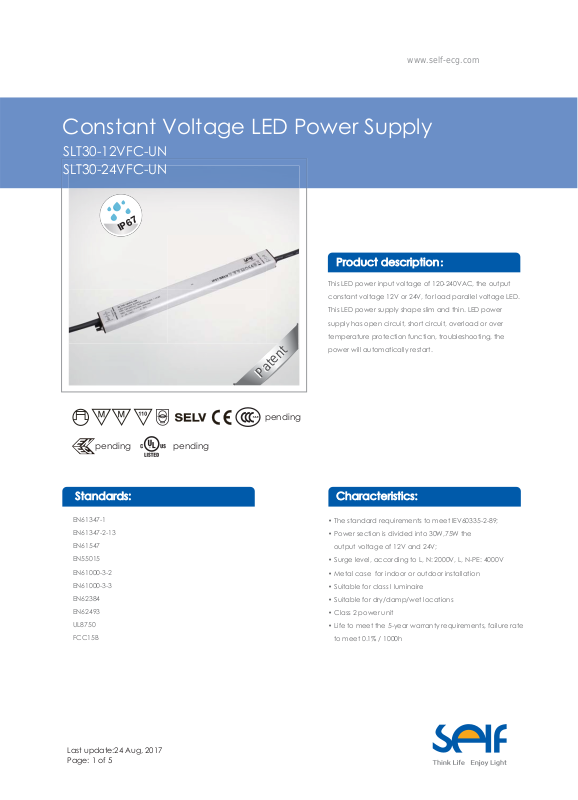

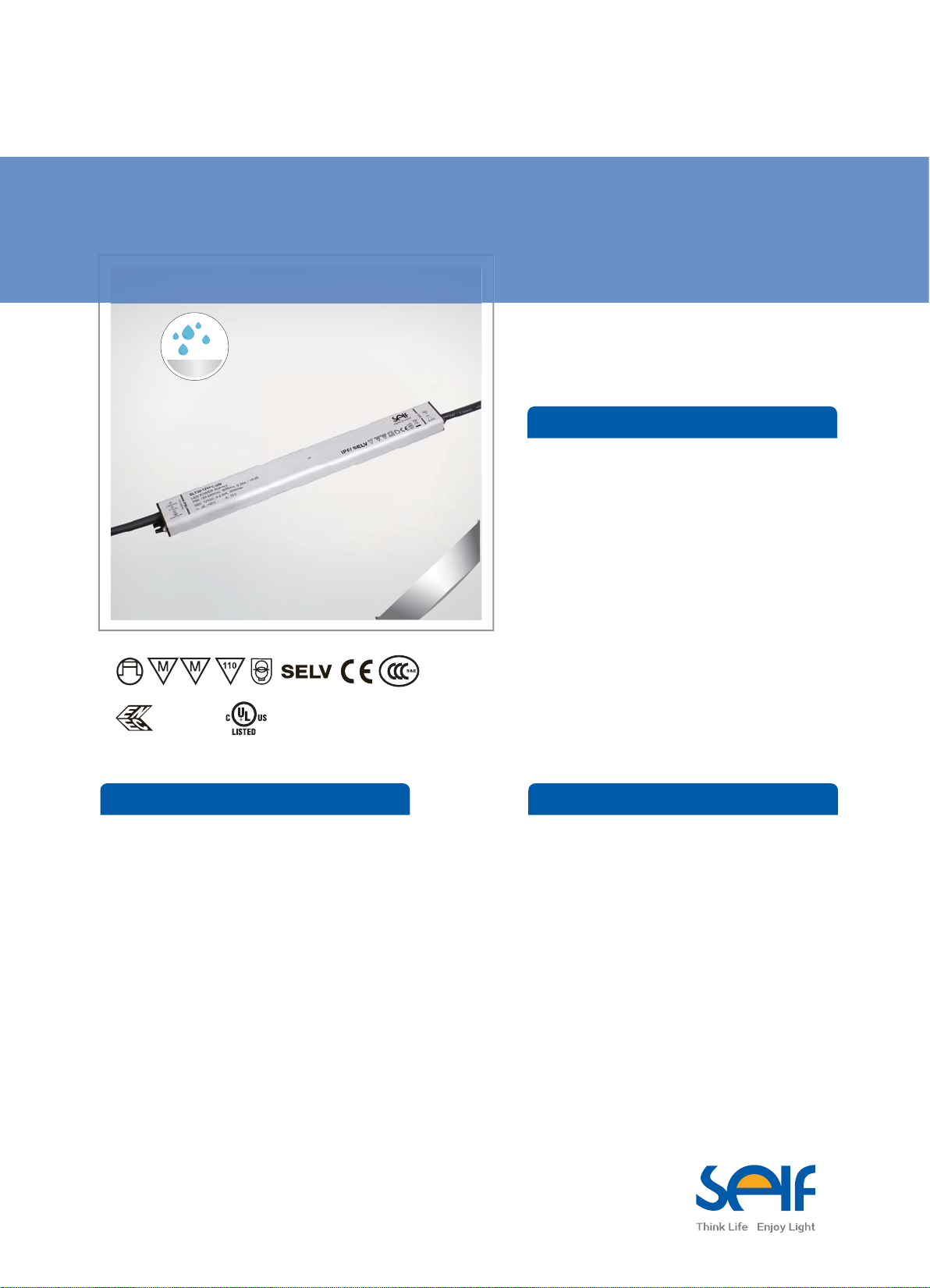

Page 1

Characteristics:

www.self-ecg.com

Standards:

Product description：

Constant Voltage LED Power Supply

SLT30-12VFC-UN SLT30-24VFC-UN

IP67

Product description

This LED power input voltage of 120-240VAC, the output

constant voltage 12V or 24V, for load parallel voltage LED.

This LED power supply shape slim and thin. LED power

supply has open circuit, short circuit, overload or over

temperature protection function, troubleshooting, the

power will automatically restart.

pending

Standards:

EN61347-1

EN61347-2-13

EN61547

EN55015

EN61000-3-2

EN61000-3-3

EN62384

EN62493

UL8750

FCC15B

pending

Patent

pending

Characteristics:

• The standard requirements to meet IEV60335-2-89;

• Power section is divided into 30W,75W the

output voltage of 12V and 24V;

• Surge level, according to L, N: 2000V, L, N-PE: 4000V

• Metal case for indoor or outdoor installation

• Suitable for class I luminaire

• Suitable for dry/damp/wet locations

• Class 2 power unit

• Life to meet the 5-year warranty requirements, failure rate

to meet 0.1% / 1000h

Last update:24 Aug, 2017 Page: 1 of 5

Page 2

Input

Other

Note

Ambient and Life

Protection

Output

Model

Specifications

Specifications：

turn on time(S )

output power(W )

output votage( V)

output voltage tolerance

ripple voltage (mV)

working curren t range(A)

dimming interf ace

dimming range

rated supply v oltage(Vac)

volta ge range( Vac)

line frequency (Hz)

input current( mA)

effic iency

average effici ency

no load power consumption(W)

power factor

inrush current (Ipk)

over voltage p rotection

short circuit protection

over temperature protection

autom atic restart

over load prot ection

surge capacity

Ta(℃) )

Tc ma x.(℃) )

Stora ge Temperature(℃) )

ambient humidi ty range

nominal life-t ime(hrs)

guarantee(year s)

MTBF( hrs)

audible noise(dB)

weight(g)

dimensions (L× W×H)(mm)

casing materia l

housing colour

type of protection

prote ction cla ss

SLT30-24VFC-UN

SLT30-12VFC-UN

www.self-ecg.com

turn on time(S)

output power(W)

output votage(V)

output voltage tolerance

ripple voltage(mV)

working current range(A)

dimming interface

dimming range

rated supply voltage(Vac)

voltage range(Vac)

line frequency(Hz)

input current(mA)

efficiency

average efficiency

no load power consumption(W)

power factor

inrush current(Ipk)

over voltage protection

short circuit protection

over temperature protection

automatic restart

over load protection

surge capacity

Ta(

Tc max.(

Storage Temperature(

ambient humidity range

nominal life-time(hrs)

guarantee(years)

MTBF(hrs)

audible noise(dB)

weight(g)

dimensions (L×W×H)(mm)

casing material

housing colour

type of protection

protection class

SLT30-12VFC-UN

≤0.5

+/-5%

90(Vp-p)

0-2.5

120-240

108-264

50/60

350

83.5%

79.5%

≤0.5

0.95

18A/180us

-20…50

5%...85%RH，Not condensing

n/a

YES

L-N: 2KV L,N-PE: 4KV

-30...80

50'000@Tc=75℃

100'0000

<25dBA

200

275x30x16.5

Aluminum

Silver

IP67

Class I

SLT30-24VFC-UN

≤0.5

+/-5%

100(Vp-p)

0-1.25

120-240

108-264

50/60

350

84.5%

80.0%

≤0.5

0.95

18A/180us

-20…50

1. Tolerance:includes set up tolerance, line regulation and load regulation.

2. Tested at full load,230Vac.Refer to"Power Factor" and "EFFICIENT"curve graphs.

3. Calculate the model’s average efficiency for each test voltage by testing at 100%, 75%, 50%, and 25% of rated current and then computing the simple arithmetic erage of these four values.

Note

4. All parameters NOT specially mentioned are measured at nominal voltage input, rated load and 25 of ambient temperature.

5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again."

Last update:24 Aug, 2017 Page: 2 of 5

Page 3

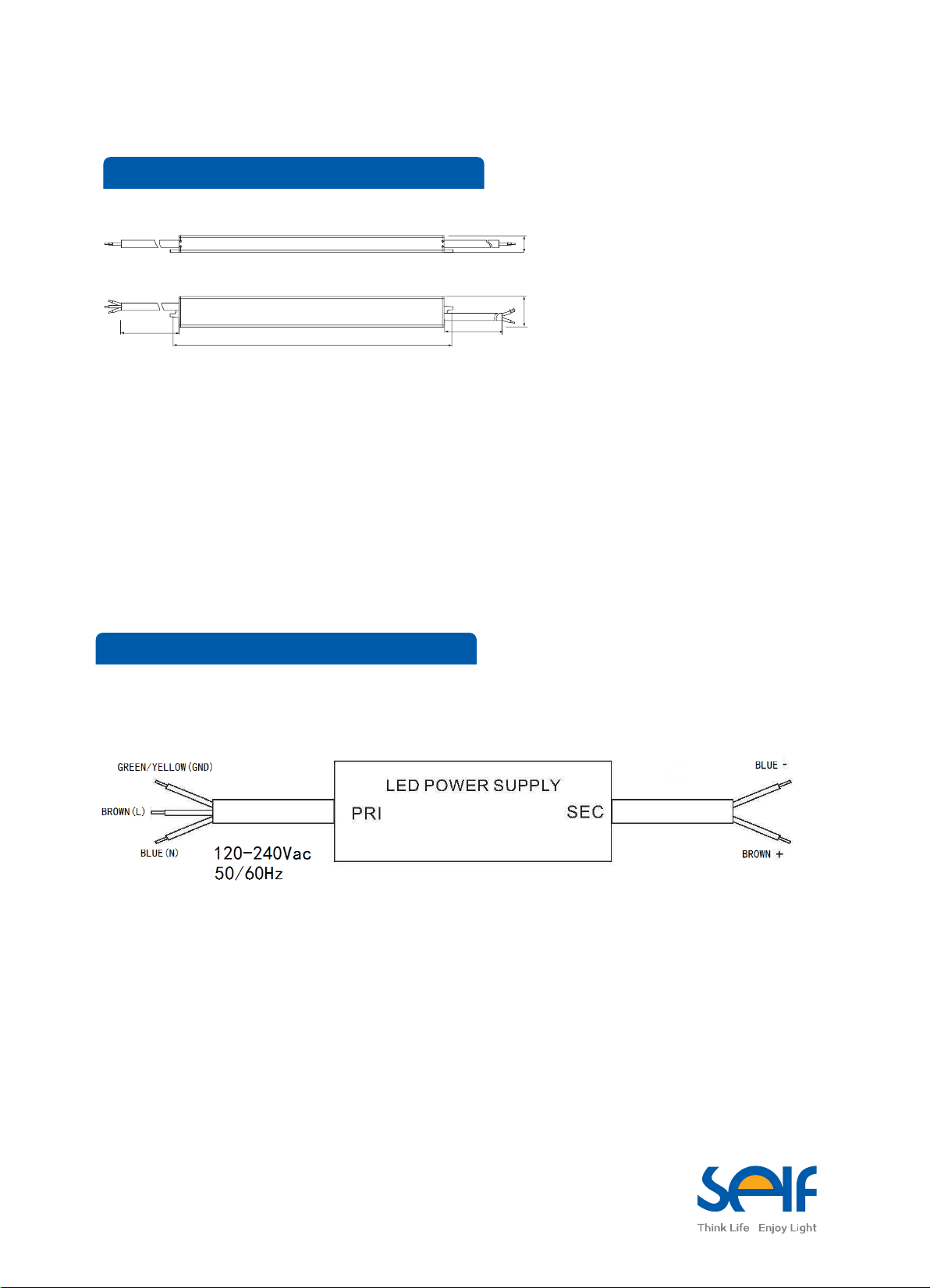

Wiring diagram:

Dimensions: mm

www.self-ecg.com

3016.5

150

Wiring diagram:

275

150

Last update:24 Aug, 2017 Page: 3 of 5

Page 4

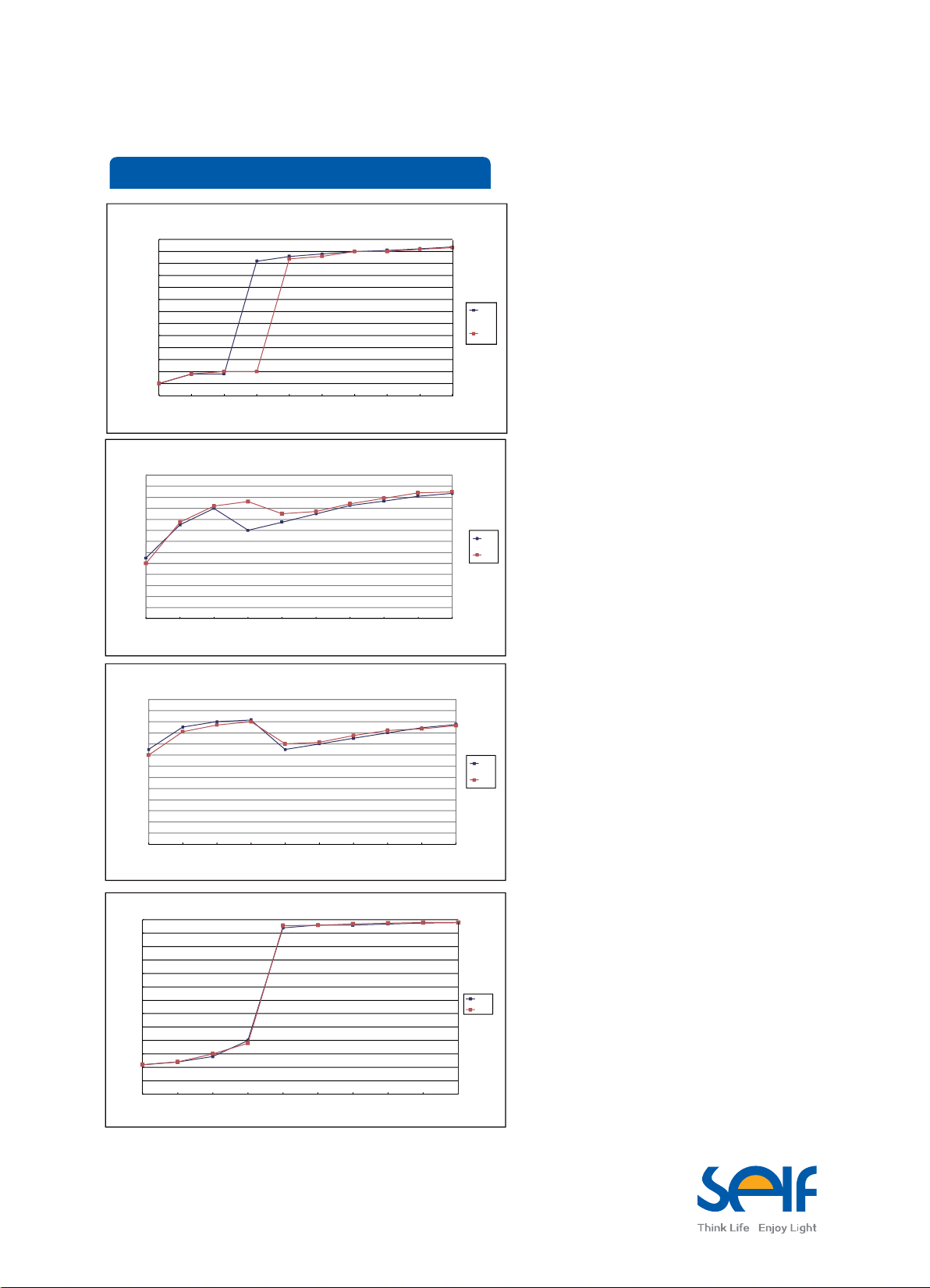

EFFICIENCY(%)

LOAD

EFFICIENCY vs LOAD(120Vac)

EFFICIENCY(%)

LOAD

EFFICIENCY vs LOAD(230Vac)

Electrical curves:

LOAD

PF vs LOAD(230Vac)

LOAD

PF vs LOAD(120Vac)

www.self-ecg.com

1.00

0.95

0.90

0.85

0.80

0.75

0.70

0.65

0.60

0.55

0.50

0.45

0.40

0.35 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

12V

24V

12V

24V

12V

24V

10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

1.00

0.95

0.90

0.85

0.80

0.75

0.70

0.65

0.60

0.55

0.50

0.45

0.40

0.35 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

note For constant current power supply,"LOAD" means the percentage of the maximum rated output voltage. For constant voltage power supply,"LOAD" means the percentage of the maximum rated output current.

Last update: 24 Aug, 2017 Page: 4 of 5

12V 24V

Page 5

Sales & Technical Support:

Se lf Electr onics Co. ,Ltd .

SE LF ELECTR ONICS GER MANY G MBH

Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e

Self Electronics Co.,Ltd.

Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,

China

Tel: 0086-574-28805765,28805658(For English Assistance)

0086-574-28805678 (For Chinese Assistance)

Fax: 0086-574-28805656

E-mail: [email protected]

http://www.self-ecg.com

SELF ELECTRONICS GERMANY GMBH

Add:August-Horch-Str. 7,51149 Koeln

Tel: 0049 2203 18501-0

Fax: 0049 2203 18501-199

E-mail: [email protected]

www.self-ecg.com

Self Electronics Co.,Ltd.,Shenzhen Office

Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming

Road,Futian District,Shenzhen

Tel: 0086-755-83558850, 83558851

Fax: 0086-755-83558840

*Due to continuous improvements and innovations,specifications are subjected to change without notice.

Last update: 24 Aug, 2017 Page: 5 of 5
