SELF SLF SLT3-700ISC Datasheet

Characteristics:

www.self-ecg.com

Standards:

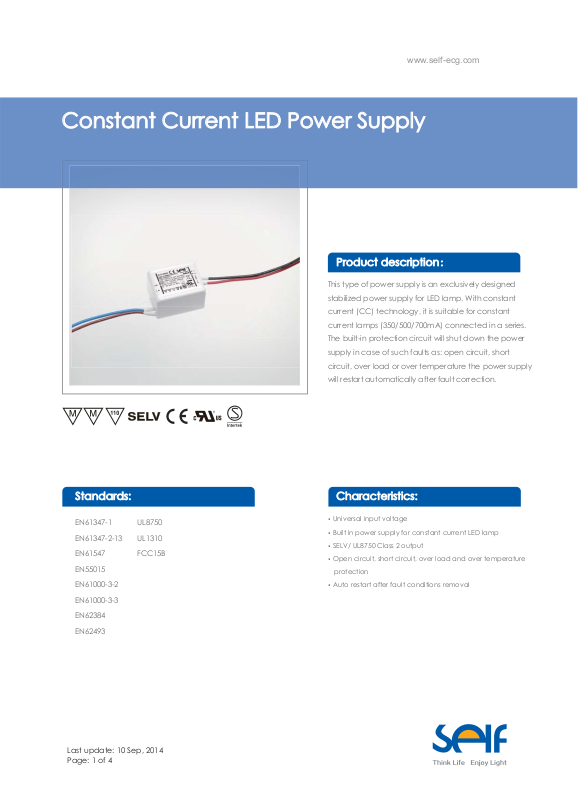

Product description：

Constant Current LED Power Supply

Constant Current LED Power Supply

Product description

This type of power supply is an exclusively designed

stabilized power supply for LED lamp. With constant

current (CC) technology, it is suitable for constant

current lamps (350/500/700mA) connected in a series.

The built-in protection circuit will shut down the power

supply in case of such faults as: open circuit, short

circuit, over load or over temperature the power supply

will restart automatically after fault correction.

Standards:

EN61347-1

EN61347-2-13

EN61547

EN55015

EN61000-3-2

EN61000-3-3

EN62384

EN62493

UL8750

UL1310

FCC15B

Characteristics:

• Universal input voltage

• Built in power supply for constant current LED lamp

• SELV/ UL8750 Class 2 output

• Open circuit, short circuit, over load and over temperature

protection

• Auto restart after fault conditions removal

Last update: 10 Sep, 2014
Page: 1 of 4

Specifications

Specifications：

Input

Other

Note

Ambient
and Life

Protection

Output

Model

turn on time(S)

output current(mA)

output current tolerance

ripple current(mA)

working voltage range(V)

Max. output voltage(V)

dimming interface

dimming range

rated supply voltage(Vac)

voltage range(Vac)

line frequency(Hz)

input current(mA)

efficiency

power factor

inrush current(Ipk)

over voltage protection

short circuit protection

over temperature protection

automatic restart

over load protection

surge capacity

Ta(℃) )

Tc max. (℃) )

Storage Temperature(℃) )

ambient humidity range

nominal life-time(hrs)

weight(g)

dimensions (L×W×H)(mm)

casing material

housing colour

type of protection

protection class

SLT3-350ISC

SLT3-500ISC

SLT3-700ISC

www.self-ecg.com

In

turn on time(S)

output current(mA)

output current tolerance

ripple current(mA)

working voltage range(V)

Max. output voltage(V)

dimming interface

dimming range

rated supply voltage(Vac)

voltage range(Vac)

line frequency(Hz)

input current(mA)

efficiency

power factor

inrush current(Ipk)

over voltage protection

short circuit protection

over temperature protection

automatic restart

over load protection

surge capacity

Ta(

Tc max. (

Storage Temperature(

ambient humidity range

nominal life-time(hrs)

weight(g)

dimensions (L×W×H)(mm)

casing material

housing colour

type of protection

protection class

3

3

1

2

SLT3-350ISC

≤0.5

350

+/-10%

55(Ip-p)

3-12

16

100-240

90-264

50/60

60

66.00%

0.45

30A/60us

YES

YES

YES

YES

YES

L-N: 500V

SLT3-500ISC

≤0.5

500

+/-10%

70(Ip-p)

3-9.5

13

No

n/a

100-240

90-264

50/60

60

63.00%

0.45

30A/60us

YES

YES

YES

YES

YES

L-N: 500V

-20...50

85

-30...80

5%...85%，Not condensing

35'000@Tc=80℃

42

52×30×23

Plastic

White

IP66

CLASS II(Euro Standard)+Class2 output(NA Standard)

SLT3-700ISC

≤0.5

700

+/-10%

100(Ip-p)

3-4.5

8

100-240

90-264

50/60

60

49.00%

0.45

20A/80us

YES

YES

YES

YES

YES

L-N: 500V

1.Tolerance : includes set up tolerance, line regulation and load regulation.

2.Tested at 100Vac input.

Note

3.Tested at full load.Refer to"Power Factor" and "EFFICIENT"curve graphs.

4.All parameters NOT specially mentioned are measured at nominal voltage input, rated load and 25 of ambient
temperature.

5.The power supply is considered as a component that will be operated in combination with final equipment. Since
EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify
EMC Directive on the complete installation again.

Last update: 10 Sep, 2014
Page: 2 of 4

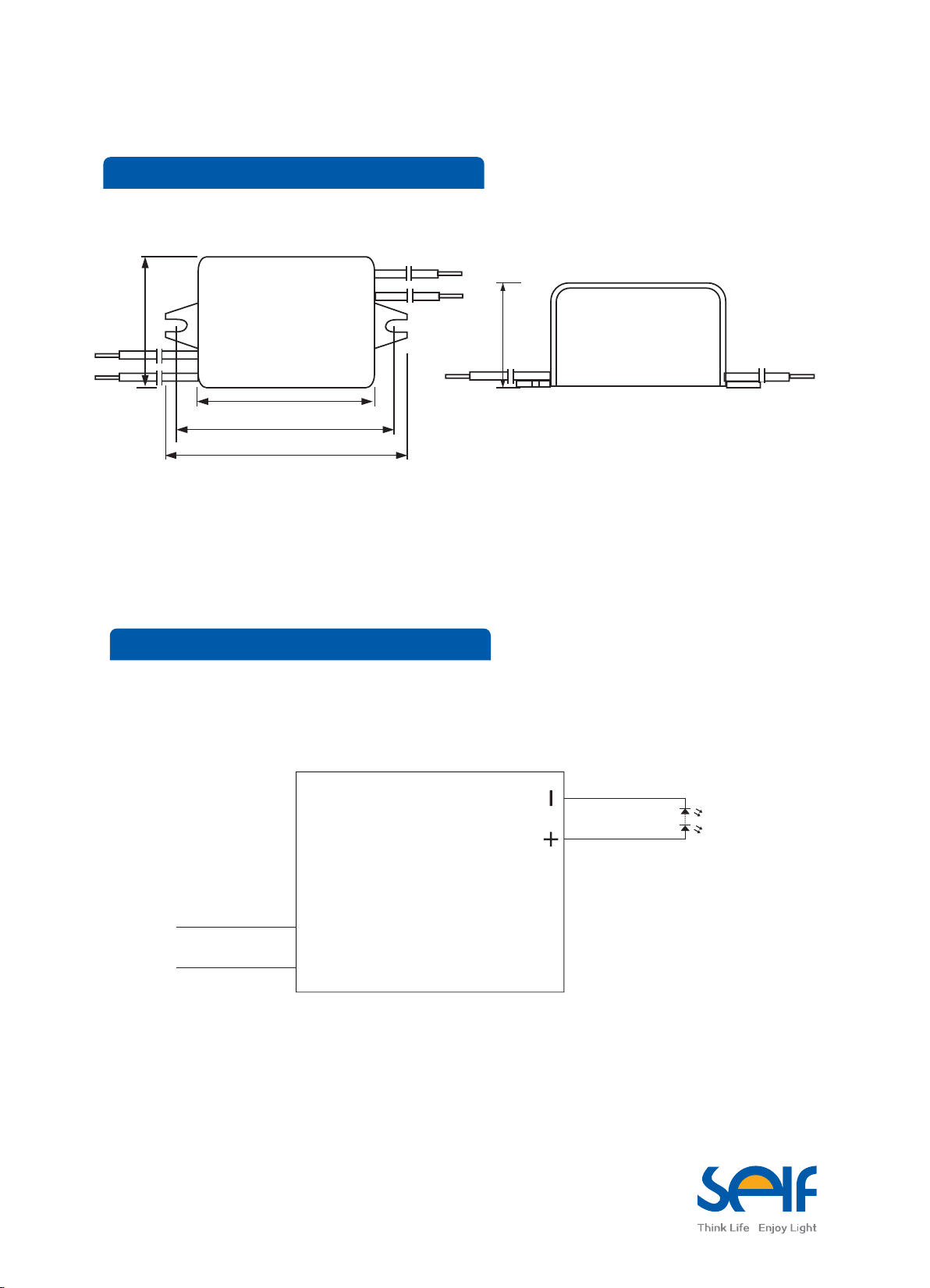

Dimensions(mm/inches):

Dimensions(mm/inches):

Wiring diagram:

30(1-3/16″)

38(1-1/2″)

46(1-13/16″)

52(2-1/16″)

www.self-ecg.com

23(15/16″)

Wiring diagram:

Blue

Brown

LED POWER SUPPLY

N

100-240VAC
50/60Hz

L

Black

Red

Last update: 10 Sep, 2014
Page: 3 of 4

Sales & Technical Support:

Sales & Technical Support:

Se lf Electr onics Co. ,Ltd .

SE LF ELECTR ONICS FRA NCE BR ANCH OFFI CE

SE LF ELECTR ONICS GER MANY G MBH

Se lf Electr onics Co. ,Ltd .,Shenz hen Offic e

Self Electronics Co.,Ltd.

Add: No. 1345 Ju Xian Road, Ningbo Hi Tech Park, Ningbo,

China

Tel: [phone](For English Assistance)

0086-574-28805678 (For Chinese Assistance)

Fax: [phone]

E-mail: [e-mail]

http://www.self-ecg.com

SELF ELECTRONICS FRANCE BRANCH OFFICE

www.self-ecg.com

Self Electronics Co.,Ltd.,Shenzhen Office

Add: Room2007,Xinglang Xuan,Xinghe Mingju,Fuming

Road,Futian District,Shenzhen

Tel: [phone]

Fax: [phone]

SELF ELECTRONICS GERMANY GMBH

Add:12-14 rue Raymond Ridel, 92250 La Garennes Colombes

Tel: [phone]

E-mail: [e-mail]

Add:August-Horch-Str. 7,51149 Koeln

Tel: [phone]

Fax: [phone]-199

E-mail: [e-mail]

*Due to continuous improvements and innovations,specifications
are subjected to change without notice.

Last update: 10 Sep, 2014
Page: 4 of 4
