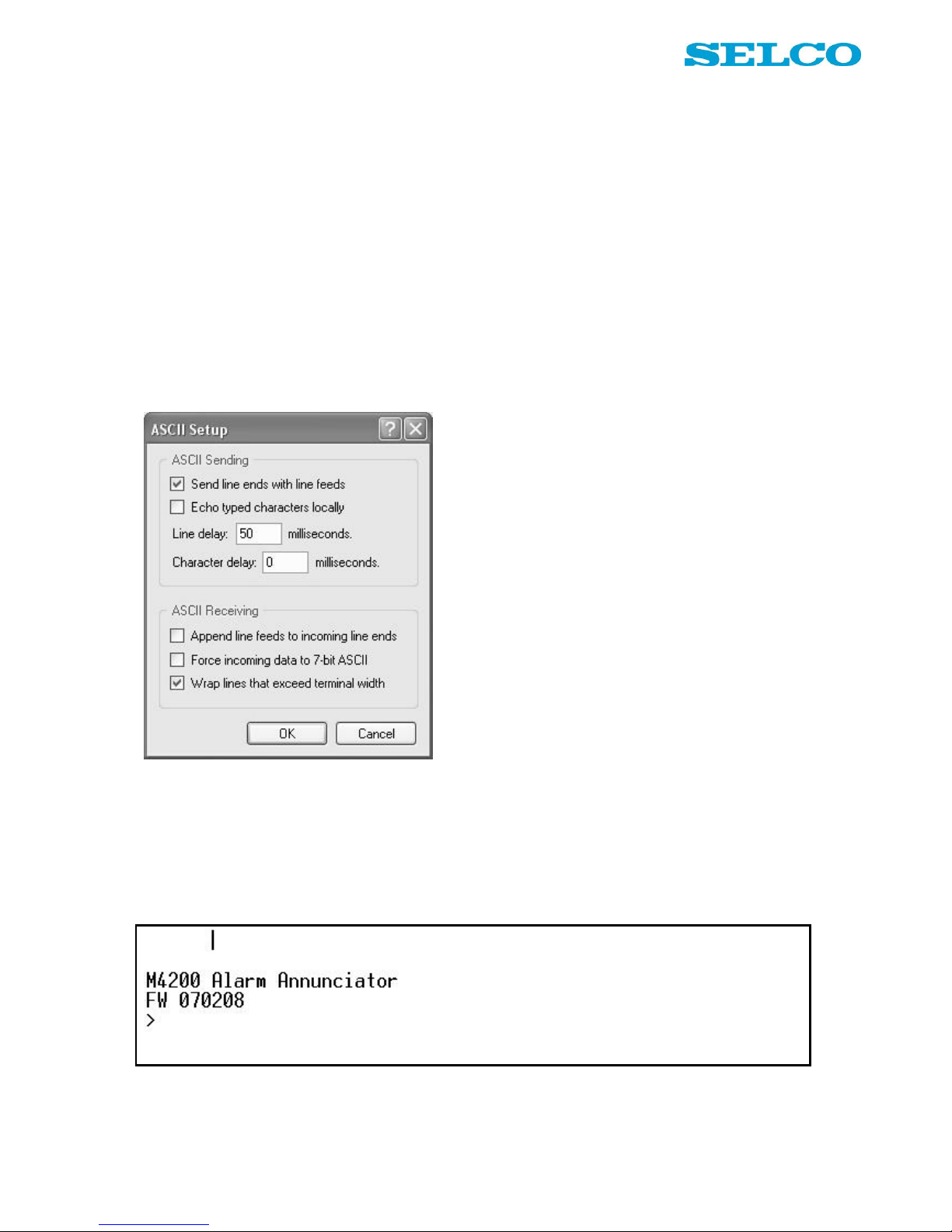

ASCI settings .................................................................................................................................................................. 24
SAVE CONNECTION ............................................................................................................................................................. 25
INTRODUCTION TO MICROSOFT
®
HYPERTERMINAL ......................................................................................................... 25
Icon explanation ............................................................................................................................................................. 25
Page 3
M4200 - User manual
Revision: 07.03.2017 Page 2
PROGRAMMING BY PC .................................................................................................................................................. 26
READ CONFIG ...................................................................................................................................................................... 26
SYSTEM PARAMETERS......................................................................................................................................................... 27
Channel functions .......................................................................................................................................................... 27
Input contact type ........................................................................................................................................................... 27
Input reference ............................................................................................................................................................... 27
Cable monitoring ........................................................................................................................................................... 28
Input delay ...................................................................................................................................................................... 28
LED colour ..................................................................................................................................................................... 28
Block function 1 .............................................................................................................................................................. 29
Block function 2 .............................................................................................................................................................. 29
Alarm 1 (output relay 1) ................................................................................................................................................ 29
Alarm 2 (output relay 2) ................................................................................................................................................ 30
Siren (relay) .................................................................................................................................................................... 30
Output 1 - 4 ..................................................................................................................................................................... 30
Output relay 1 (contact)* ............................................................................................................................................... 31
Output relay 2 (contact)* ............................................................................................................................................... 31
Siren relay (contact)* ..................................................................................................................................................... 31
Output 1 – 4 (contact)* .................................................................................................................................................. 31
Output relay 1 (signal)* ................................................................................................................................................. 31
Output relay 2 (signal)* ................................................................................................................................................. 31
Siren relay (signal)* ....................................................................................................................................................... 31
Unblock delays ............................................................................................................................................................... 32
Reset functions ................................................................................................................................................................ 32
Factory default ............................................................................................................................................................... 32
SAVE SETTINGS IN A TEXT FILE ........................................................................................................................................... 33
LOAD SETTINGS FROM A TEXT FILE .................................................................................................................................... 34
Page 4
M4200 - User manual
Revision: 07.03.2017 Page 3
Introductory notes
This manual describes installation and operating instructions together with dip switch configuration of the
Alarm Monitor M4200.
This manual also includes information about how to configure the product, using the included RS232 cable
and a Windows® PC running Microsoft® HyperTerminal.
Layout

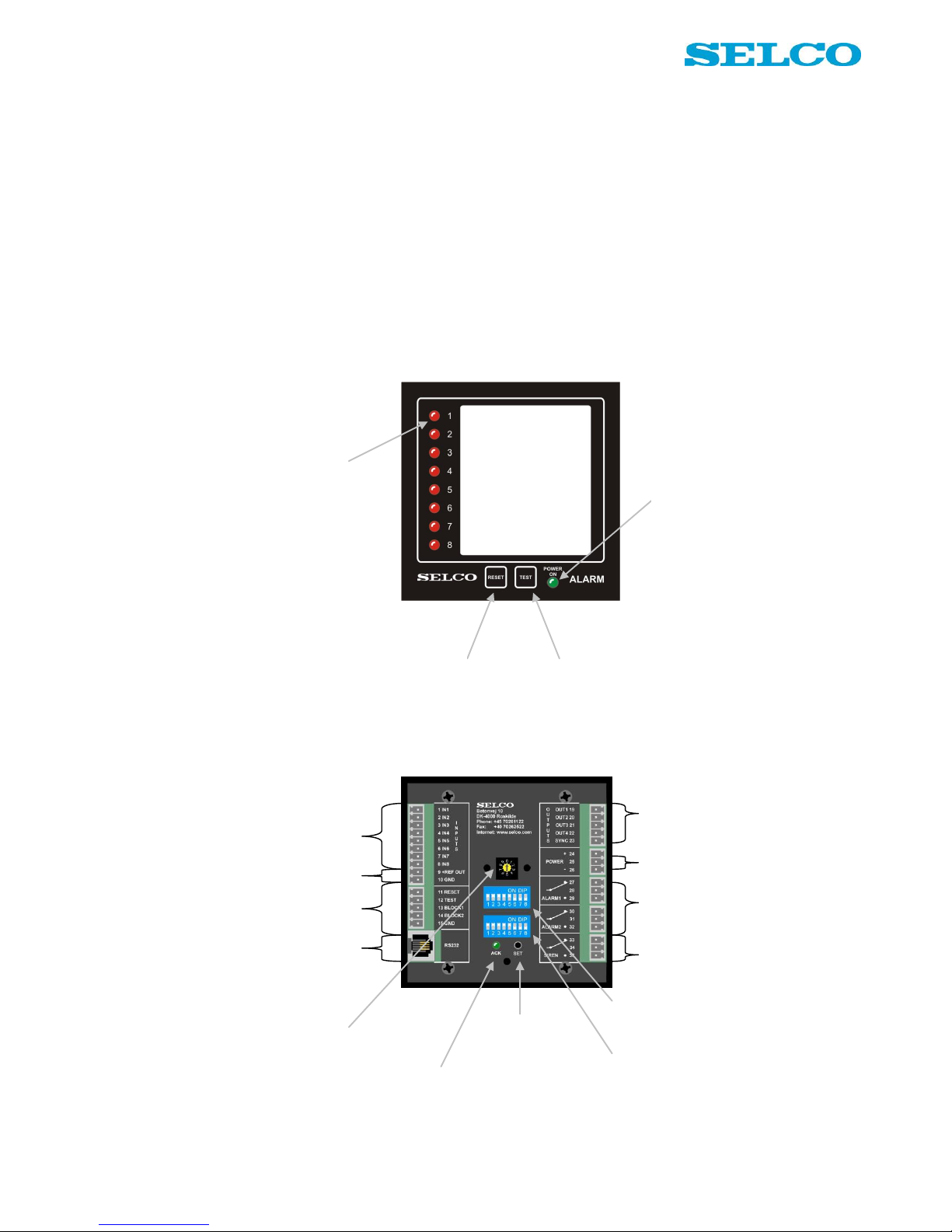

Below is a description of the facilities on the front and the rear of the unit.
Facilities on the front
Facilities on the rear
Output terminals. 4 open collector outputs for
remote control of external lamps or relays.
Sync. Used for synchronization of flashing LEDs
on multiple M4200 units.
8 LEDs, one for each input
terminal. By programming it
is possible to change the
colour individually for each
LED, into red, green or
yellow.
When reset button is pushed,
all relay outputs go off and
LED status change from
flashing to steady mode
When test button is pushed, all LEDs
show steady light. Hold down the button
and test status will change from red into
green and into yellow.
Keep down the button and dimming of all
LEDs can be done in 8 consecutive levels.
Green LED. Active
when power is on.
+REF and GND. Reference to inputs. +REF is
the same as positive power reference. GND is
galvanically separated from the negative power
reference.
Reset, test and block functionality for remote
activation. GND is common reference.
RS232 interface. Used for connection with PC.
Power. Terminal 24 is positive reference.
Terminal 26 is negative reference. Terminal 25 is
not in use.
Output relays. Alarm 1 is default activated when
inputs are active. It is possible to set up activation
mode for both alarm 1 and 2.
Siren relay. Default activated when inputs are
active. It is possible to set up activation mode for
the siren relay.
Input terminals. Used for connection of potential
free contacts. Both NO and NC contacts are
supported.
10 channel rotary switch. Used for
switch configuration of the unit:
0: Operational mode
1 - 8: Set input 1 - 8
9: Set general functions
Acknowledge LED.
Indicates that programming
by set button is accepted.

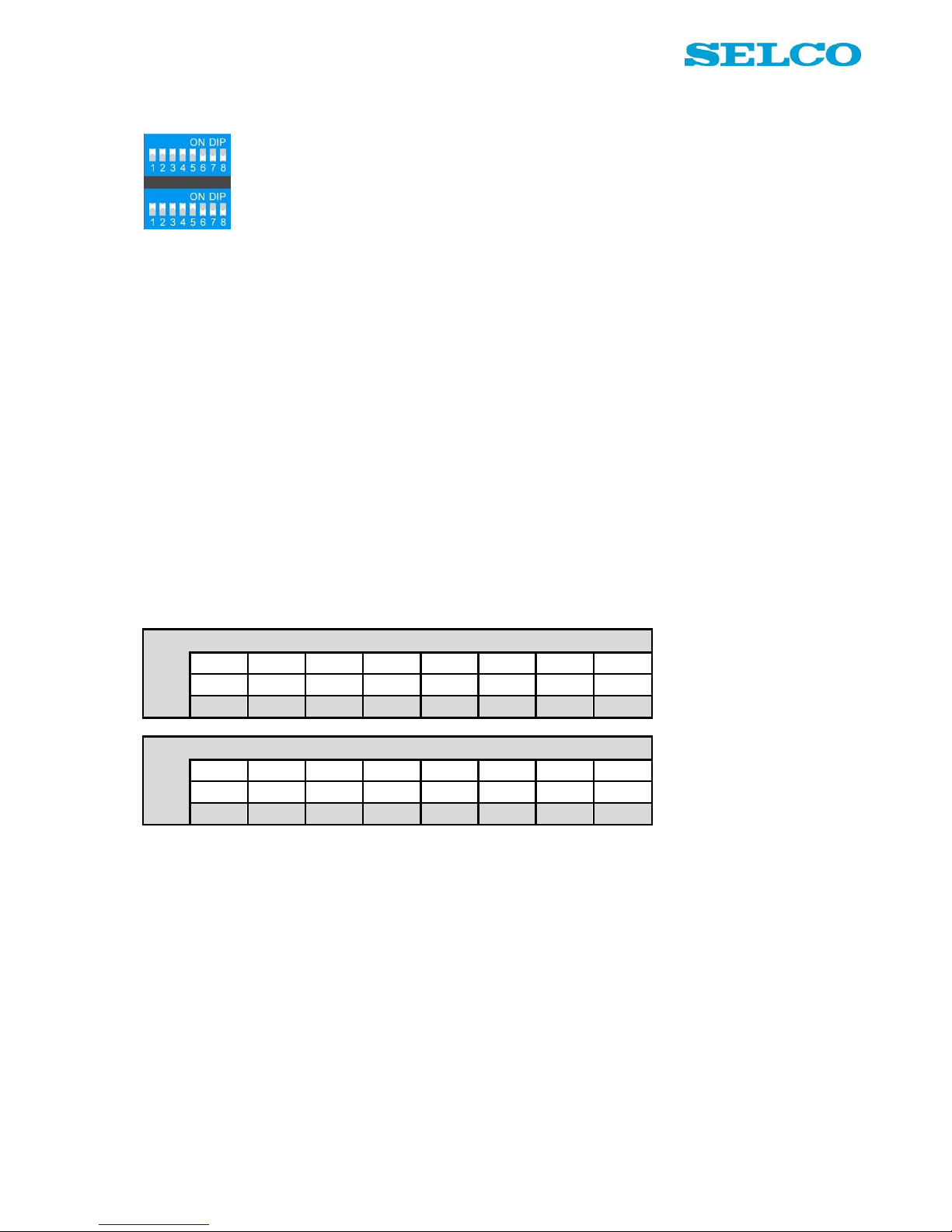

8 dip switches. Used for configuration of
the unit. Named in documentation as 1-1
to 1-8.
Set button. Used for
accept of rotary and dip
switch settings.
8 dip switches. Used for configuration of
the unit. Named in documentation as 2-1
to 2-8.
Page 5
M4200 - User manual
Revision: 07.03.2017 Page 4
Function
The Alarm Monitor M4200 provides the possibility of monitoring 8 individual processes. All inputs will accept
any combination of NO or NC contacts.
It is possible to programme each input, e.g. to activate the siren relay, the two alarm relays or the four open
collector outputs. The delays for the inputs can be selected between 25 milliseconds and 60 seconds.
With the default configuration on M4200, the alarm scenario will unfold as shown in Figure 1.

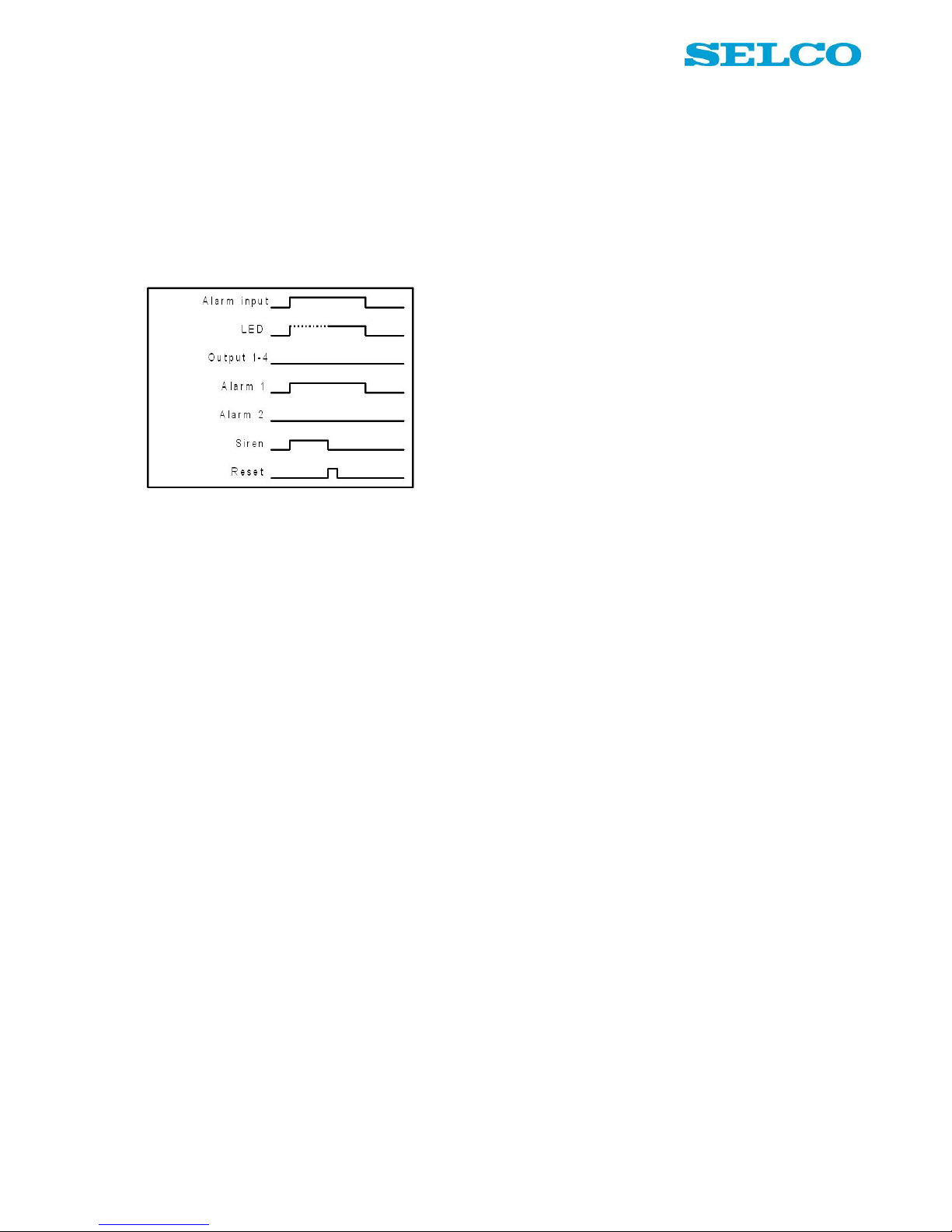

Figure 1. Function diagram, default scenario.
Function diagram
When alarm input is activated, the LED goes flashing, alarm relay 1 and the siren relay goes ON.
When reset button is activated, the LED goes steady and the siren goes OFF.
When alarm input is de-activated, LED goes OFF, together with alarm 1.
Page 6
M4200 - User manual
Revision: 07.03.2017 Page 5
Installation instructions
This section contains information about how to install the alarm monitor.
Single unit

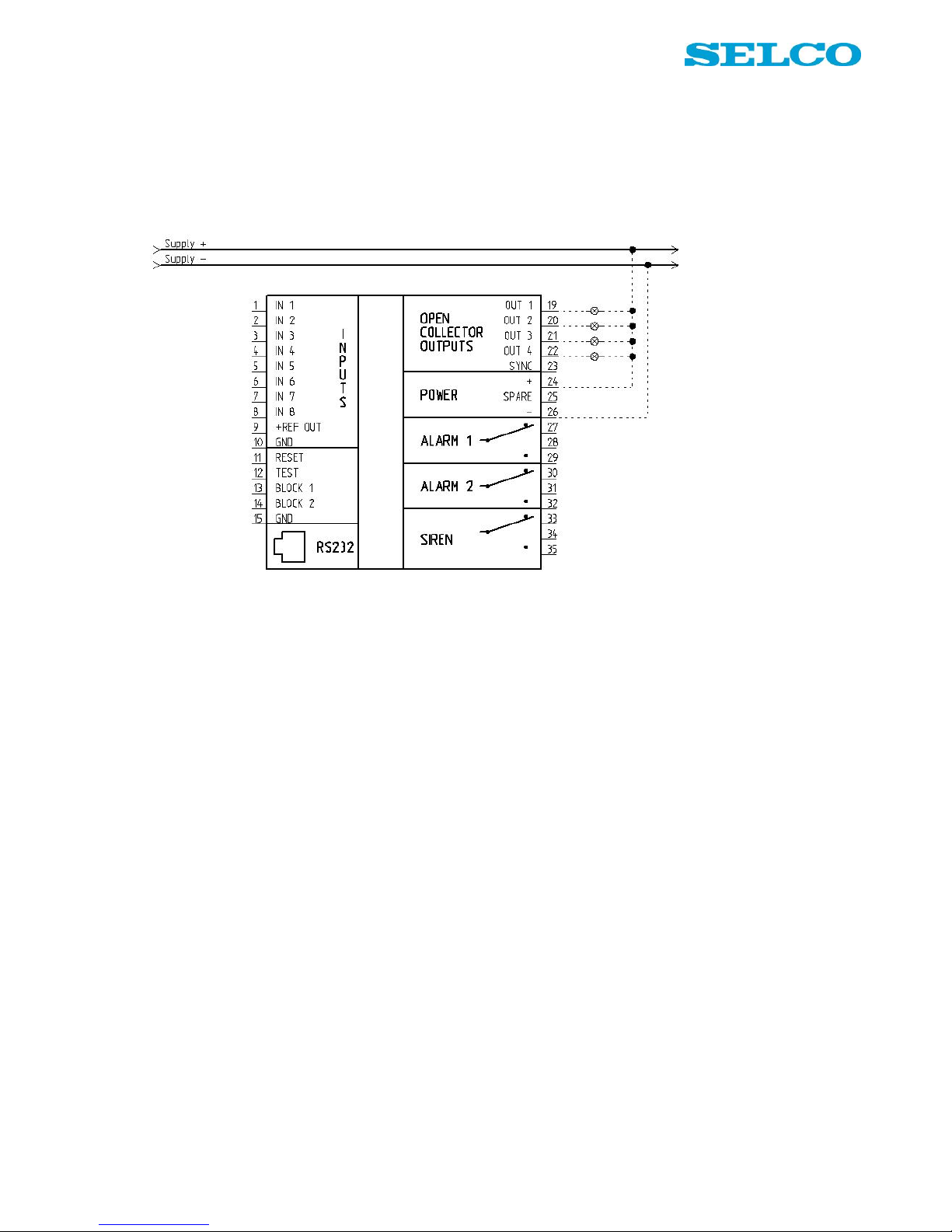

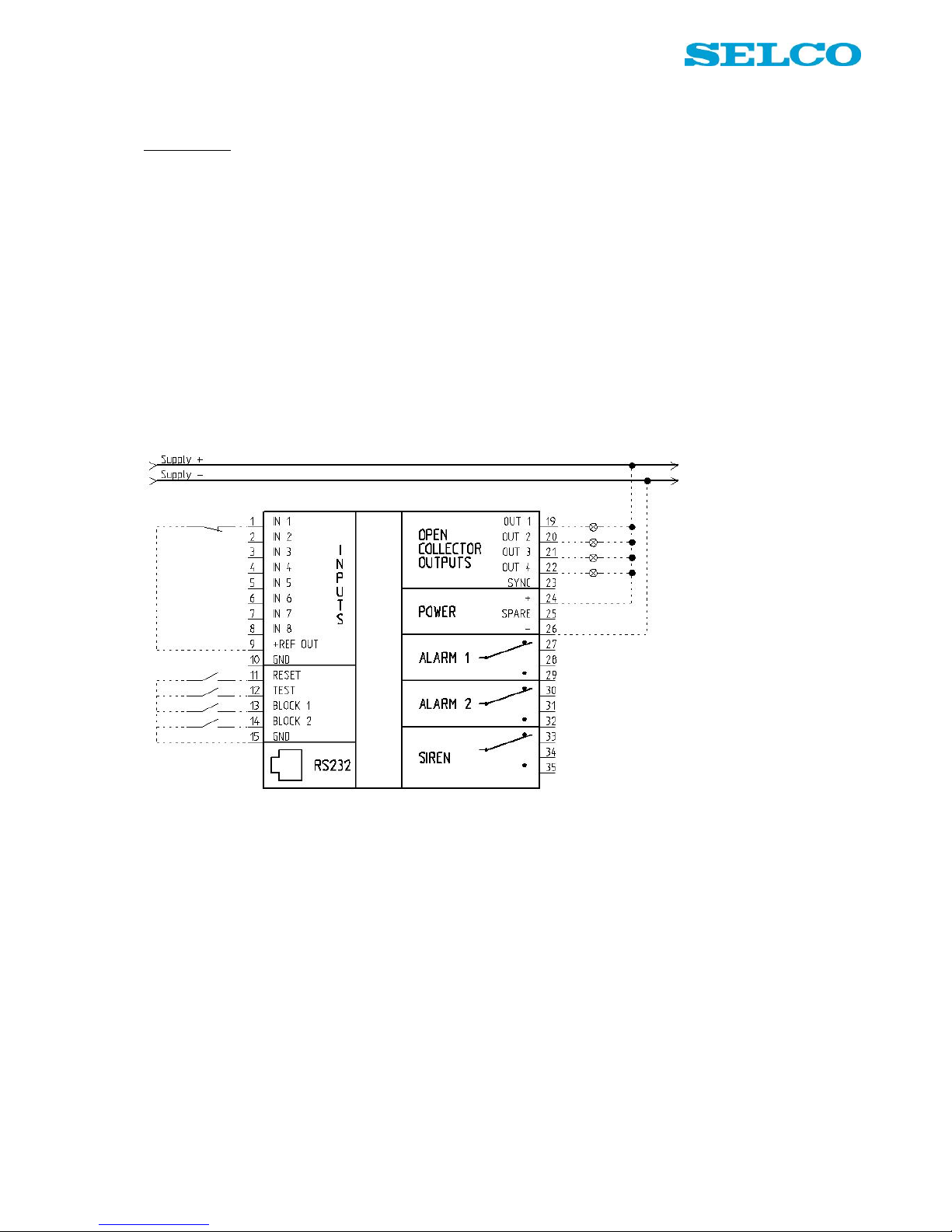

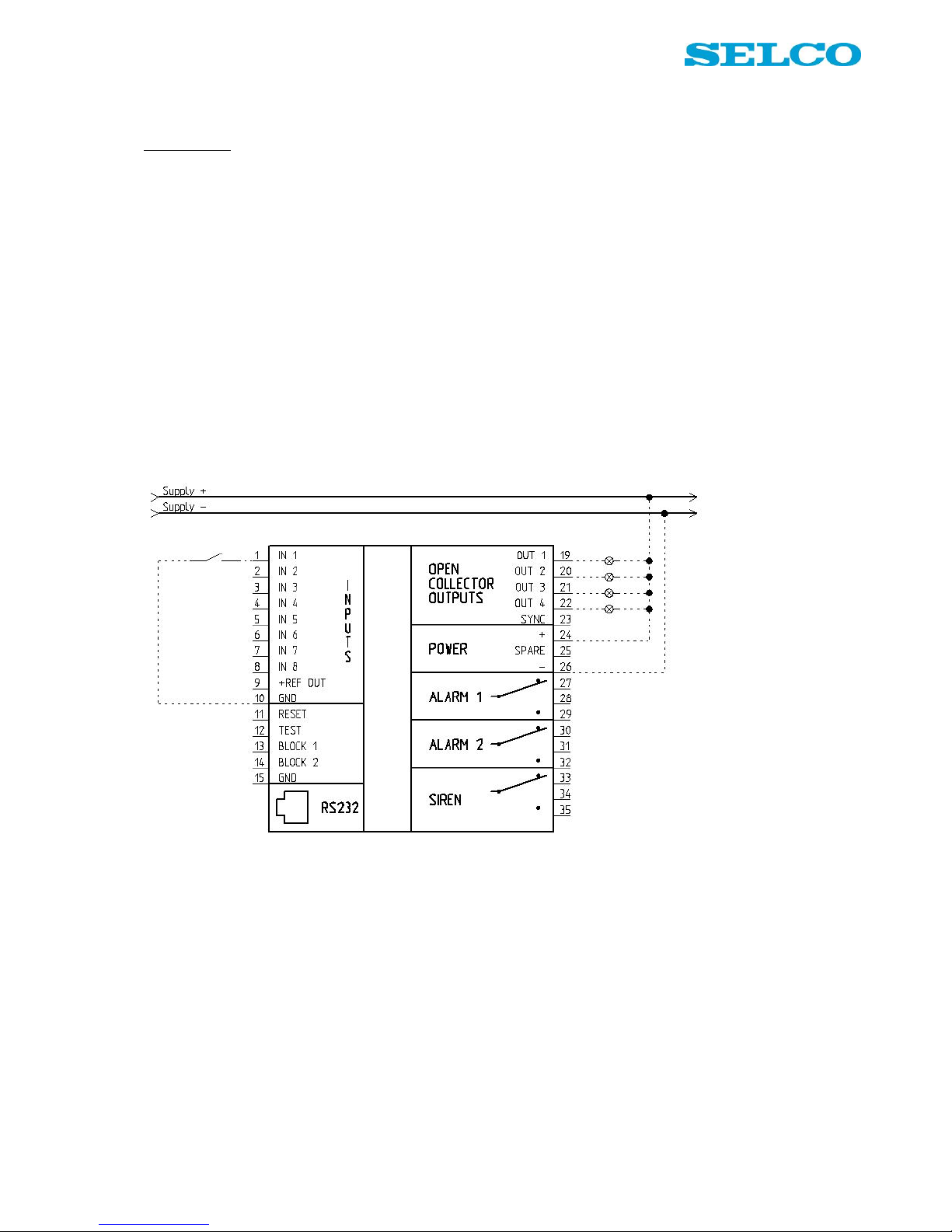

Figure 2 shows the default connection of the input and output terminals on the alarm monitor. Input terminals
1 - 8 are connected to +REF OUT (positive supply) via potential free contacts.
Reset, test and block terminals are connected to GND via potential free contacts.
Lamps are connected to the outputs; the lamps are supplied from same source as the unit. Terminal 26 is
connected to ÷ (negative supply).

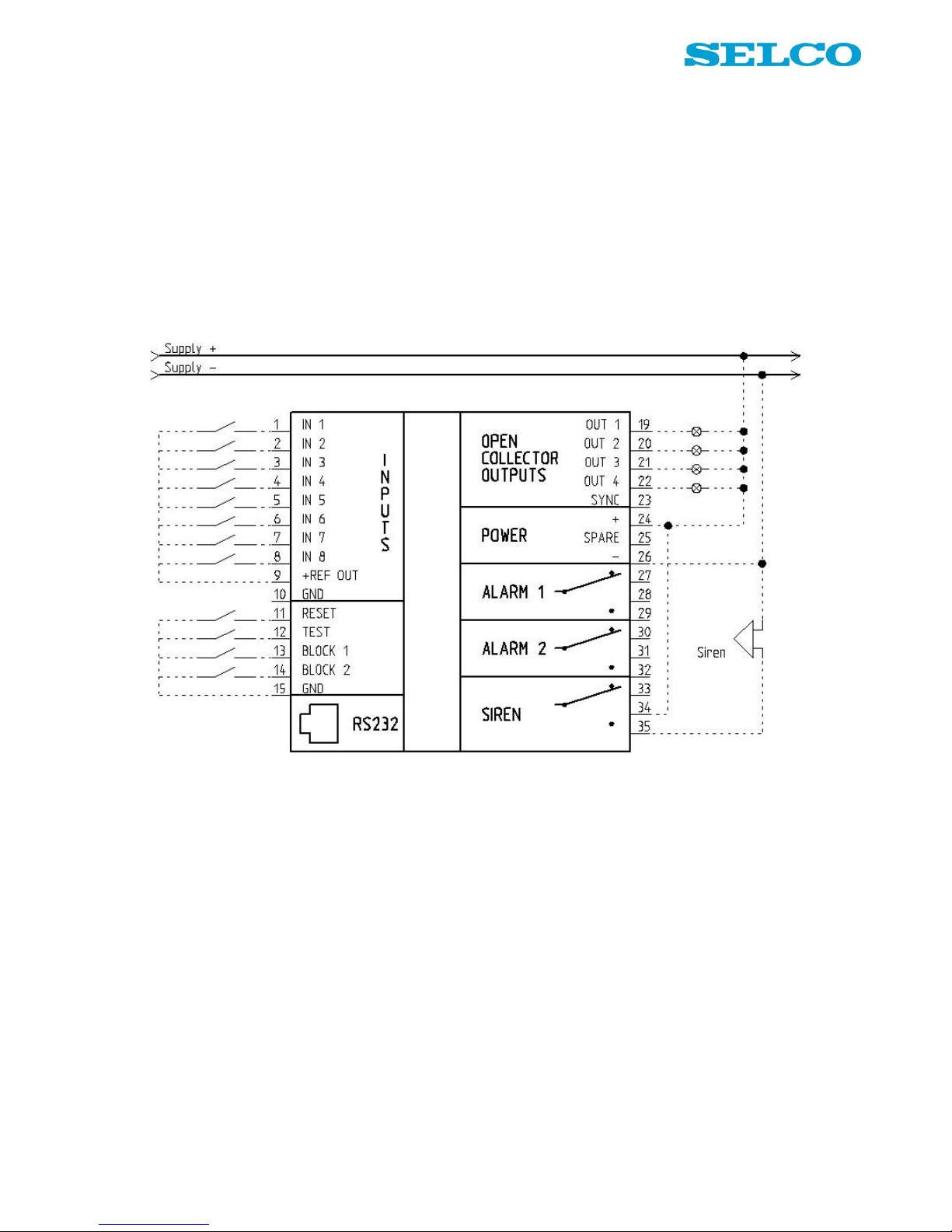

Figure 2. Wiring example, single unit (default connection).
Page 7
M4200 - User manual
Revision: 07.03.2017 Page 6
Multiple units

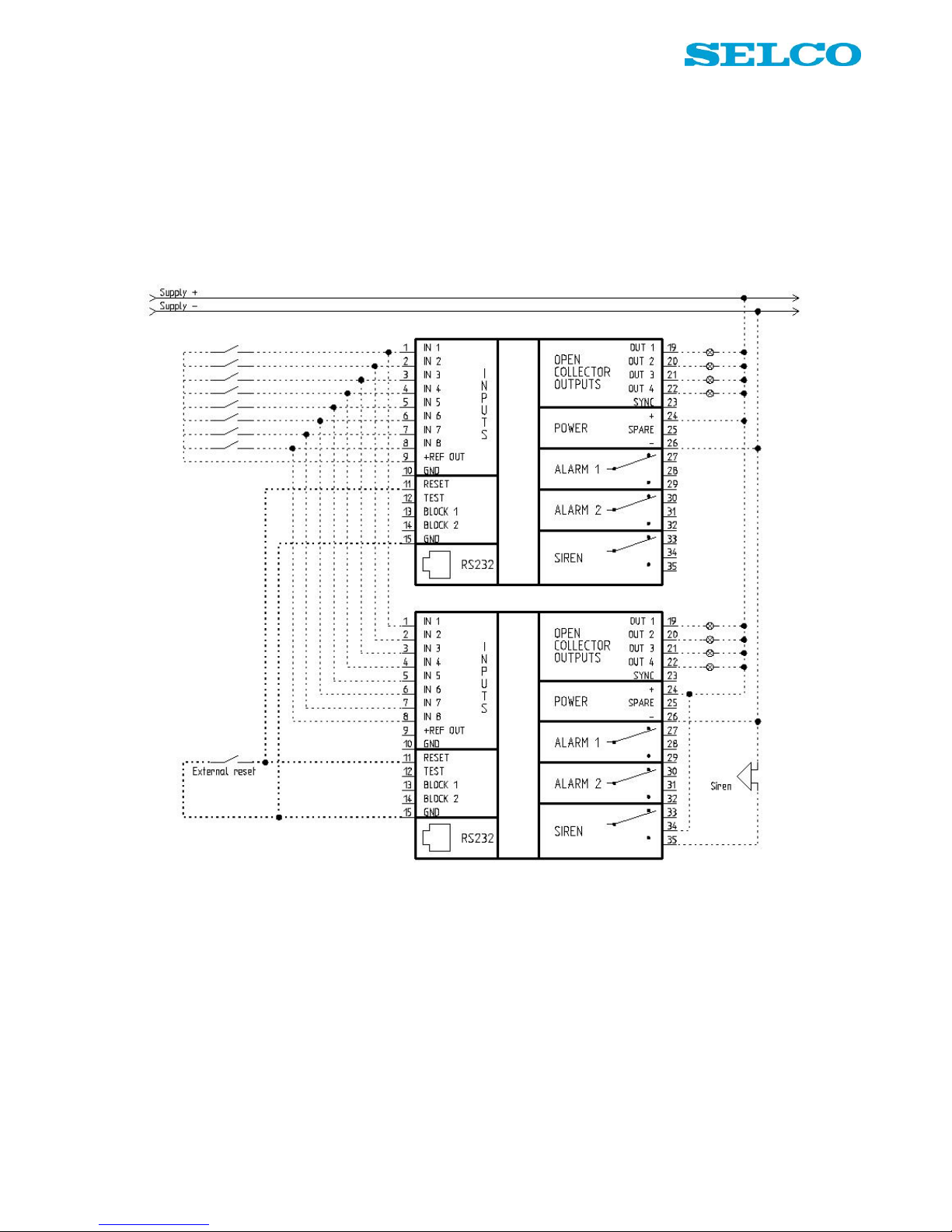

Figure 3 shows the default connection of the input and output terminals on two M4200 units. Input terminals
1 - 8 are connected to +REF OUT (positive supply) on one of the units via potential free contacts.
Test terminals are connected to GND on both units via potential free contacts (test and block terminals can
be connected by the same method).
Lamps are connected to the outputs; the lamps are supplied from same source as the units. Terminal 26 is
connected to ÷ (negative supply).
Figure 3. Wiring example, multiple units with external reset (default connection).
Synchronisation
If multiple units are positioned side by side it can be desirable that all LEDs, on all the units are flashing with
the same speed rate.
If all Sync terminals (23) on all the multiple units are connected with each other, all LEDs will operate with the
same speed rate.
No further configuration is needed. The Sync functionality has no other importance than providing visual
continuity.
Page 8
M4200 - User manual
Revision: 07.03.2017 Page 7
Relay outputs
The alarm monitor has 3 output relays; all of them can be activated by any of the 8 alarm inputs. The relays
can work as de-energized or energized, when the power is on the alarm monitor. The alarm monitor is
delivered with all output relays operating in normally de-energized mode.
This section contains information about the 2 principles and how and when to use them.
This section only contains information about the relay outputs (terminal 27 - 35). The examples in this
section are based on the siren relay, but all of the 3 output relays can be used individually with the same
functionality.
Normally de-energized

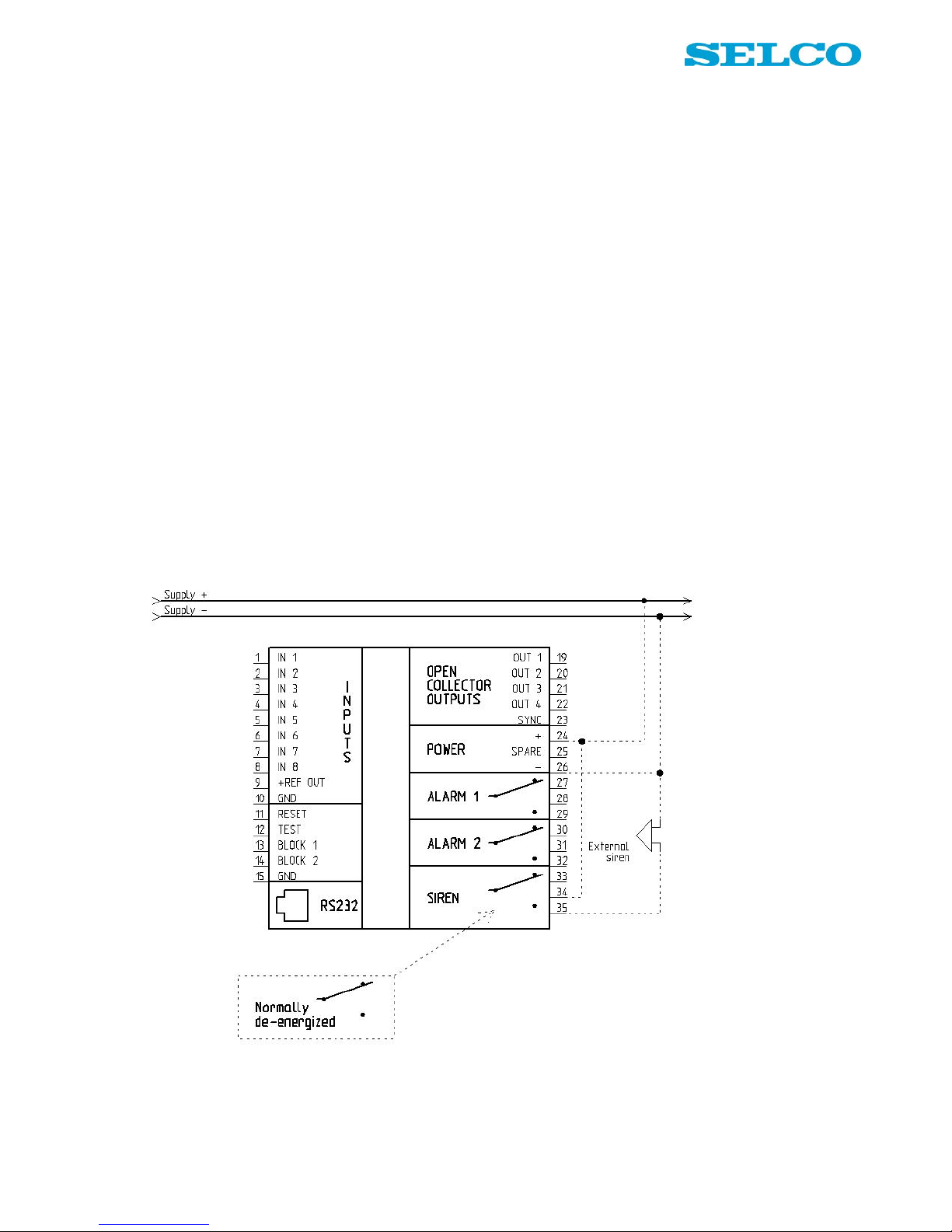

Figure 4 shows the default connection of the output terminals on the alarm monitor.
The alarm monitor is delivered with all output relays operating in normally de-energized mode. This means
that the relay stays in the same position, whether the power is on or off. When an incoming alarm activates
the relay, the position will change from terminal 33 to 35 (siren relay).
The output relay is supplied from same source as the unit. The siren is connected to the output relay.
Terminal 26 and the siren are connected to ÷ (negative supply).
NOTE:
Regarding load capacity for the output relays, please refer to the section Load capacity on page 9 in this
manual.
Figure 4. Wiring example, normally de- energized relay (default connection).
Page 9
M4200 - User manual
Revision: 07.03.2017 Page 8
Normally energized

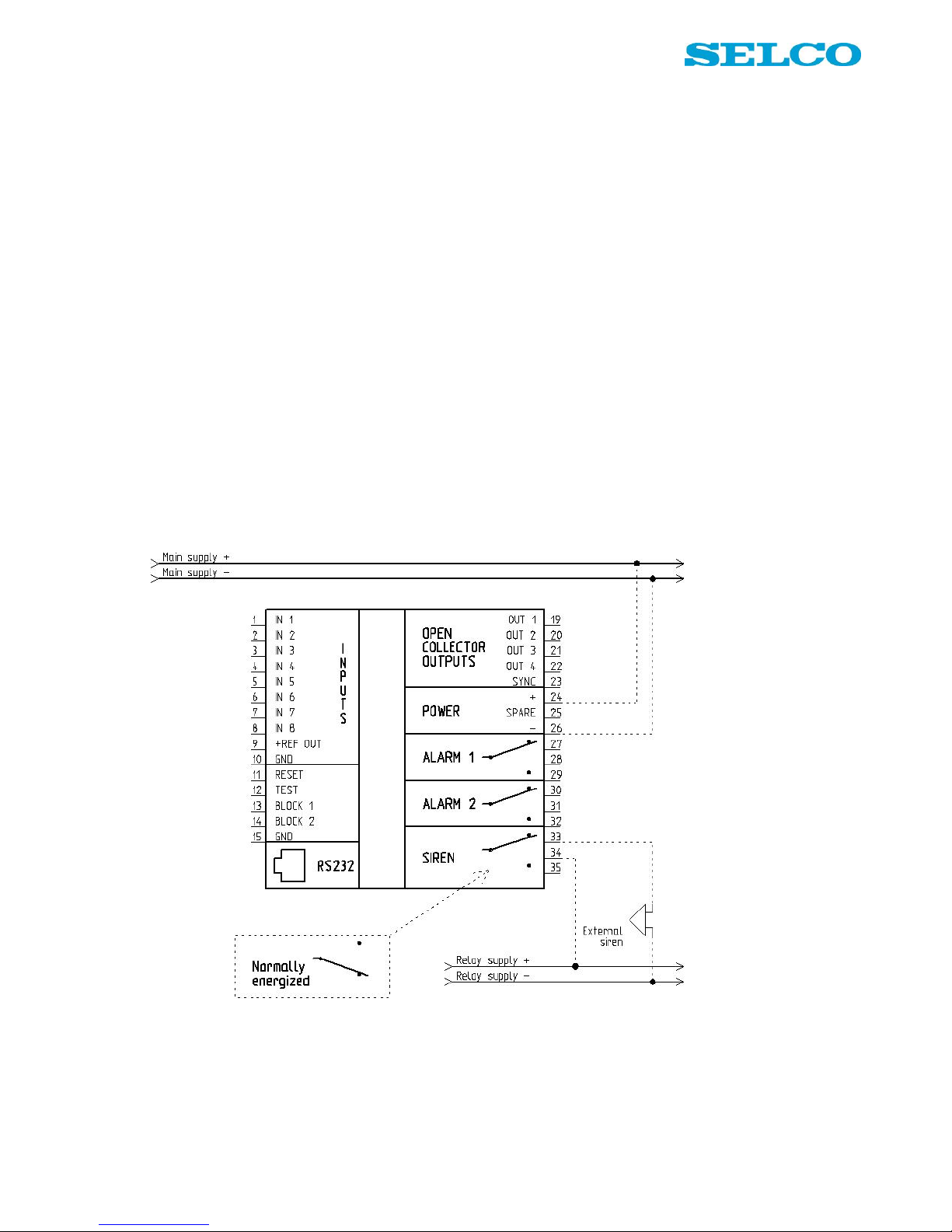

Figure 5 shows the connection of the output terminals when the relay is programmed to be normally
energized.
It is possible to programme each of the output relays to operate individually as normally energized. This
means that the relay changes position from terminal 33 to terminal 35 (siren relay) when the power is
switched on.
When an incoming alarm activates the relay, the position will change from terminal 35 to 33 (siren relay).
The same scenario will appear if the supply voltage disappears from the alarm monitor. This is a big
advantage when alarm is needed, if breakdown of the alarm system occurs.
If supply voltage disappears from the alarm monitor and alarm is needed, it is very important to use another
supply unit for the output relays, than used for the supply voltage of the alarm monitor.
The output relay is supplied from another source than the alarm monitor. The siren is connected to the
output relay. The siren is connected to another ÷ (negative supply) than that of the alarm monitor.
NOTE:
Regarding load capacity for the output relays, please refer to the section Load capacity on page 9.
To use any of the three output relays as normally energized, programming is needed. For further information
about programming please refer to the section Programming by switches on page 14 or Programming by
PC on page 26.
Figure 5. Wiring example, normally energized relay.
Page 10
M4200 - User manual
Revision: 07.03.2017 Page 9
Load capacity
The output relays are able to manage any kind of resistive load. The load capacity depends on whether AC
or DC voltage is connected to the relay.
Below is listed the maximum load capacity for AC and DC voltage respectively:
Max. AC load:
250VAC / 4A
Max. DC load:
Readings of DC load
capacity curve above:
VDC
Ampere
10
4
12
4
24
4
48
2
110
0,5
300
0,1
Page 11
M4200 - User manual
Revision: 07.03.2017 Page 10
Open collector outputs
The alarm monitor has 4 open collector outputs; all of them can be activated by any of the 8 alarm inputs.
These outputs are able to work as energized or de- energized, similar to the output relays. This section
contains information about the 2 principles and how to use them.
Figure 6 shows the connection diagram of the output terminals (terminal 19 - 22) on the alarm monitor.
Figure 6. Wiring example, open collector outputs.
Normally de-energized
The alarm monitor is delivered with all open collector outputs operating as normally de-energized.
This means that the output has no reference whether power is on or off. When an incoming alarm activates
the output, status is changing to negative (÷) reference.
Normally energized
It is possible to programme each of the open collector outputs to operate individually as normally energized.
This means that the output changes to negative (÷) reference when the power is switched on. When an
incoming alarm activates the output, status is changing and the negative (÷) reference disappears.
Load capacity
Maximum load capacity for the open collector outputs is 60VDC / 700mA.
Page 12
M4200 - User manual
Revision: 07.03.2017 Page 11
NC input contacts
IMPORTANT: It is only recommended to use the example below if the alarm monitor is still in factory default
mode. If there is any possibility that the alarm monitor has been programmed previously, please refer to the
section Factory default - dip switches on page 15.
Example
Input 1 - 8 accept any combination of NO or NC contacts. Default configuration only supports NO contacts. If
NC contacts are used, please follow the example below regarding input 1, terminal 1:
1. Set rotary switch in position 1 (acknowledge LED change into red colour).
2. Set dip switch 1-1 to On (NC contact).
3. Press Set button until Acknowledge LED shortly turns into green light.
4. Release Set button.
Now it is possible to connect input 1 as shown in Figure 7:
Figure 7. Wiring example, NC input
If NC contacts are needed on any other input channels, please select the input number on the rotary switch
and follow step 3 and 4 above.
Page 13
M4200 - User manual
Revision: 07.03.2017 Page 12
Cable monitoring
Cable monitoring provides extra security to the alarm system. Cable faults are indicated with short flashing
pulses on the corresponding alarm channels. Cable fault indications will be overridden by activation of input
alarms and indicated with normal alarm flash or steady light indication.
IMPORTANT: It is only recommended to use the example below if the alarm monitor is still in factory default
mode. If there is any possibility that the alarm monitor has been programmed previously, please refer to the
section Factory default - dip switches on page 15.
Example
The example below refer to input 1, terminal 1:
1. Set rotary switch in position 1 (acknowledge LED change into red colour).
2. Set dip switch 1-3 to On (Cable monitoring).
3. Press Set button until Acknowledge LED shortly turns into green light.
4. Release Set button.
Now it is possible to connect input 1 as shown in Figure 8 and

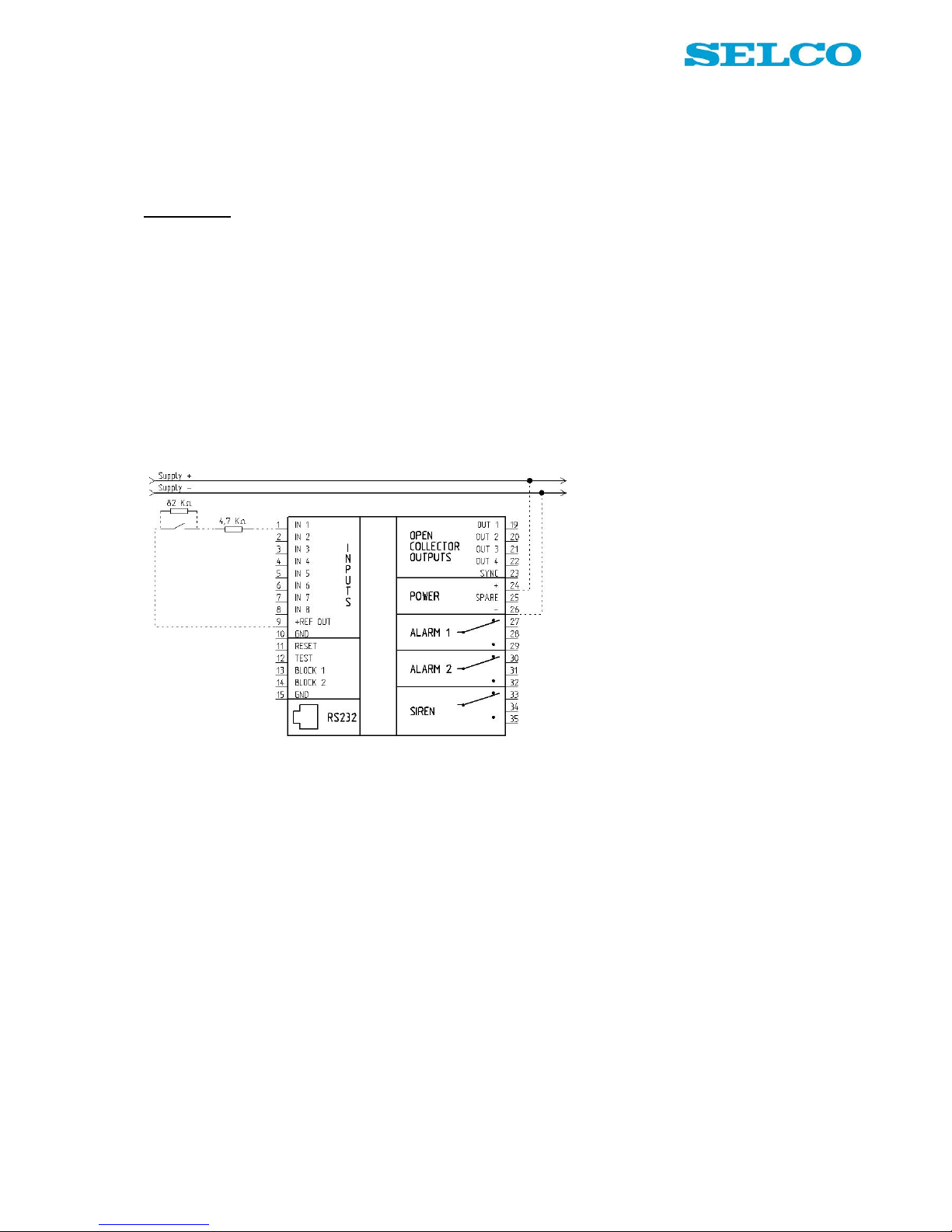

Figure 8. Wiring example, cable monitoring on input 1
If cable monitoring is needed on any other input channel, please select the input number on the rotary switch
and follow step 3 and 4 above.
Notice that two measuring resistors (1 in series and 1 in parallel) are needed for each of the inputs operating
with cable monitoring. It is very important that both resistors are mounted close to the input contact.
Input reference
In the example above + REF OUT (9) is used as input reference. It is possible to use both + Ref (9) and
GND Ref (10) with cable monitoring without further configuration.
Normally open inputs
The resistor in parallel is monitoring cable break.
The resistor in serial is monitoring short circuit.
Normally closed inputs
The resistor in parallel is monitoring short circuit.
The resistor in serial is monitoring cable break.
Inputs in general
However the input is operating as, normally open or normally closed, same size of resistors is used.
Page 14
M4200 - User manual
Revision: 07.03.2017 Page 13
Input reference
IMPORTANT: It is only recommended to use the programming example below if the alarm monitor is still in
factory default mode. If there is any possibility that the alarm monitor has been programmed before, please
refer to the section Factory default - dip switches on page 15.
Example
It is possible to set up input 1-8 individually to positive or negative reference. Default configuration is positive
reference via the terminal +REF OUT.
If negative reference is needed, please follow the example below regarding input 1, terminal 1:
1. Set rotary switch in position 1 (acknowledge LED change into red colour).
2. Set dip switch 1-2 to Off (GND reference).
3. Press Set button until Acknowledge LED shortly turns into green light.
4. Release Set button.
Now it is possible to connect input 1 as shown in Figure 9:
Figure 9. Wiring example, GND
If GND reference is needed on any other input channel, please select the input number on the rotary switch
and follow step 3 and 4 above.
Page 15
M4200 - User manual
Revision: 07.03.2017 Page 14
Programming by switches
There are two ways of programming the alarm monitor; by dip switches on the rear of the unit or by any
standard ANSI compatible terminal application e.g. Microsoft® HyperTerminal (which is supplied with the
Windows® operating system) or any other ANSI terminal.
When using a standard ANSI compatible terminal application, the configuration is done through a PC, via the
special RS232 cable, which is delivered with the M4200 unit.
This section only contains information about programming by dip switches.
Switches
All switches needed for programming are located on the rear of the alarm monitor. There is 1 rotary switch
with 10 channels for mode selection and 2 rows of dip switches with each 8 dip switches for choosing
different programming facilities.
Below is a description of the functions, both on the rotary switch and the dip switches.
Rotary switch - operational principle
Below is an explanation of the different modes on the rotary switch. Figure 10 illustrates the different modes
schematically.
Position “0” is operational mode. This mode is default selected and means that the alarm monitor is running
in alarm mode.
Position 1 – 8 is programming mode for each of the input channels. Programming functions into channel 1,
set the rotary switch in position 1 etc.
Position 9 is programming mode for general functions, such as block, delay and reset functions.
Position
Mode
0
Operational (alarm)
1
Set input 1
2
Set input 2
3
Set input 3
4
Set input 4
5
Set input 5
6
Set input 6
7
Set input 7
8
Set input 8
9
Set general functions
Figure 10. Modes on rotary switch.
Page 16
M4200 - User manual
Revision: 07.03.2017 Page 15
Dip switches - operational principle
There are 16 dip switches spread on 2 rows with 8 in each row. Each dip switch has 2 positions; ON and
OFF (2 functions per dip switch).
The functions of each dip switch depend on the position of the rotary. This means that 2 × 16 (on/off)
different settings are available on each of the 9 positions on the rotary switch (no programming facilities are
available when the rotary switch is in position 0, operational mode).
When the rotary switch is in position 1 – 8, each dip switch has the same functions because the same
functions are needed on each input channel.
Factory default - dip switches
Figure 11 shows how all the dip switches are set, when the alarm monitor leaves the SELCO factory. Before
starting any programming session on the alarm monitor, it is recommended to set all dip switches as shown
in Figure 11.
The reason is that when saving is done by the set button, all settings will be saved even though only a few
dip switch positions have been changed.
Top row of dip switches (1)
ON X X
OFF X X X X X X 1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
Bottom row of dip switches (2)
ON X X
OFF X X X X X X 2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
Figure 11. Dip switch settings (factory default).
Factory default – all settings
It is possible to return all settings on the alarm monitor into factory default by 1 operating cycle:
1. Set the rotary switch in position 0.
2. Press the button “Set” (the colour of the “Ack” LED changes into red light).
3. Hold “Set” button down in 5 seconds.
4. The colour of the “Ack” LED changes into green light.
5. Release the “Set” button.
Now all settings are returned to factory default. It is still necessary to set up all dip switch contacts manually
(please refer to the previous section in this manual).
8 dip switches (1. row). Named in
documentation as 1.1 to 1.8.
8 dip switches (2. row). Named in
documentation as 2.1 to 2.8.
Page 17
M4200 - User manual
Revision: 07.03.2017 Page 16
Set button
The set button is positioned on the rear of the alarm monitor, below the dip switches.
This push button is used for accept of rotary and dip switch settings. Set button is related to the rotary switch,
which means that all dip switch settings made, in the selected position of the rotary switch, will be saved
when the set button is pushed.
IMPORTANT
It is very important to check the position of all 16 dip switches before set button is pushed.
Acknowledge LED
Acknowledge LED is positioned on the rear of the alarm monitor, beside the save button.
When the rotary switch is in programming mode (Position 1 - 9) the LED gives a constant red light.
When set button is pushed and held down, the LED will flash 2 times and change into green light until set
button is released. Green light indicates that saving the settings done by set button is accepted.
Page 18
M4200 - User manual
Revision: 07.03.2017 Page 17
Dip switch - programming
This section lists all possible settings that can be done by the switches on the rear of the alarm monitor.
Before starting the programming session please read the previous section Dip switches - operational
principle on page 15.
Input settings
Before programming the input settings please select the position number on the rotary switch (position 1 - 8).
In the table below the default settings are marked with bold type.
Switch row 1
Function
Switch setting
Switch setting
Switch setting
Description
Input type
SW1.1
OFF
Normally Open
ON
Normally Closed
Input reference
SW1.2
OFF
GND
ON
+VREF OUT
Cable monitoring
SW1.3
OFF
Inactive
ON
Active
Input Delay
SW1.4
SW1.5
SW1.6
OFF
OFF
OFF
25 ms
OFF
OFF
ON
500 ms
OFF
ON
OFF
1 s OFF
ON
ON
2 s ON
OFF
OFF
5 s ON
OFF
ON
10 s
ON
ON
OFF
30 s
ON
ON
ON
60 s
LED Colour
SW1.7
SW1.8
OFF
OFF
No light
OFF
ON Red
ON
OFF
Green
ON
ON Yellow
Page 19
M4200 - User manual
Revision: 07.03.2017 Page 18
Switch row 2
Function
Switch setting
Description
Block1
SW2.1
OFF
No effect
ON
Block
Block2
SW2.2
OFF
No effect
ON
Block
Alarm1
SW2.3
OFF
No effect
ON
Activate
Alarm2
SW2.4
OFF
No effect
ON
Activate
Siren
SW2.5
OFF
No effect
ON
Activate
Out1
SW2.6
OFF
No effect
ON
Activate
Out2
SW2.7
OFF
No effect
ON
Activate
Out3
SW2.8
OFF
No effect
ON
Activate
Page 20
M4200 - User manual
Revision: 07.03.2017 Page 19
General settings
Before programming the general settings please select the position number on the rotary switch (position 9).
In the table below the default settings are marked with bold type.
Switch row 1
Function
Switch setting
Description
Alarm Relay 1
SW 1.1
OFF
Normally De-energized
ON
Nomally Energized
Alarm Relay 2
SW 1.2
OFF
Normally De-energized
ON
Nomally Energized
Siren Relay
SW 1.3
OFF
Normally De-energized
ON
Nomally Energized
Open Collector 1
SW 1.4
OFF
Normally De-energized
ON
Normally low
Open Collector 2
SW 1.5
OFF
Normally De-energized
ON
Normally low
Open Collector 3
SW 1.6
OFF
Normally De-energized
ON
Normally low
Open Collector 4
SW 1.7
OFF
Normally De-energized
ON
Normally low
Spare
SW 1.8
OFF
No effect
ON
No effect
Page 21
M4200 - User manual
Revision: 07.03.2017 Page 20
Switch row 2
Function
Switch setting
Switch setting
Description
UnBlock Delay Gr1
SW 2.1
SW 2.2
OFF
OFF
1 Sec
OFF
ON
5 Sec
ON
OFF
10 Sec
ON
ON
15 Sec
UnBlock Delay Gr2
SW 2.3
SW 2.4
OFF
OFF
1 Sec
OFF
ON
5 Sec
ON
OFF
10 Sec
ON
ON
15 Sec
Reset button
SW 2.5
OFF
One push: Reset all.
ON Two push: First siren, second LEDs
Alarm relay 1*
SW 2.6
OFF
Steady (no pulse)
ON New alarm: 2 second pulse
Alarm relay 2*
SW 2.7
OFF
Steady (no pulse)
ON New alarm: 2 second pulse
Siren relay*
SW 2.8
OFF
Steady (no pulse)
ON New alarm: 2 second pulse
(Relays) *
These functions are available from firmware version; January 2008.
Page 22
M4200 - User manual
Revision: 07.03.2017 Page 21
Windows® software
There are two ways of programming the alarm monitor; by dip switches on the rear of the unit or by any
standard ANSI compatible terminal application e.g. Microsoft® HyperTerminal (which is supplied with the
Windows® operating system) or any other ANSI terminal.
Windows® NT, 2000, XP and Vista will normally install HyperTerminal by default. Windows® 95, 98 and ME
will in contrast not install HyperTerminal by default.
This section describes how to locate and eventually install Microsoft® HyperTerminal on a PC. All information
regarding wiring and communication between a PC and the alarm monitor is also available in this section.
Locate HyperTerminal on the PC
It is important to make sure that an ANSI terminal application is installed on the PC. To find out if Microsoft®
HyperTerminal is already installed:
1. Click on the Start button (in the lower left corner of the Windows® screen).
2. Click on the menu item All programs*).
3. Click on the menu item Accessories.
4. Click on the menu item Communication.
5. Check if there is a menu item named: HyperTerminal.
If you have already installed Microsoft® HyperTerminal, please continue in the section Wiring on page 22.
*) On Windows® XP the button is named All programs. If the operating system is older than Windows® XP, the button is only named
Programs.
Page 23
M4200 - User manual
Revision: 07.03.2017 Page 22
Installing HyperTerminal
This section describes the procedure for installing HyperTerminal, which is supplied on the Windows® 9x
CD-ROM.
Please note that the installing procedure for HyperTerminal might be a little different depending on which
version of Windows® you have installed. It should, however, be possible to configure the system using this
procedure:
1. Click on the Start button (in the lower left corner of the Windows® screen).
2. Click on the menu item Control panel.
When the Control Panel appears on the screen:
3. Double-click on the Add/Remove Programs icon.
When the Add/Remove Programs Properties dialogue appears on the screen:
4. Click on the tab Windows Setup.
5. Click on Communications components.
6. Click on the button Details.
7. Enable the check box just left of the HyperTerminal application.
8. Click on the button OK.
Windows will now ask for the installation CD-ROM. After inserting the CD-ROM, Windows will install the files
needed for the HyperTerminal application.
Wiring
HyperTerminal is now fully installed and it is time for connecting the alarm monitor with the PC:
1. Plug one end of the supplied RS232 cable into the grey RJ plug (located in the lower left corner on the
rear of the alarm monitor).
2. The other end of the cable (with the DB9 plug) connects to a PC COM port (COM1 is used in this
manual).
Page 24
M4200 - User manual
Revision: 07.03.2017 Page 23
Create a new connection
HyperTerminal is now fully installed and it is time for creating a new connection:
1. Click on the Start button (in the lower left corner of the Windows® screen).
2. Click on the menu item All programs*).
3. Click on the menu item Accessories.
4. Click on the menu item Communication.
5. Click on the menu item HyperTerminal.
When the New connection dialogue appears on the screen:
6. Type in Direct COM1 (assuming that COM1 is used for the connection) in the input field Name.
7. Click on the button OK.
When the Connect to dialogue appears on the screen:
8. Click on the drop down menu, opposite the input field Connect to, and choose which COM port you
want to connect to, e.g. .
9. Click on the button OK.
When the Port Settings dialogue appears on the screen:

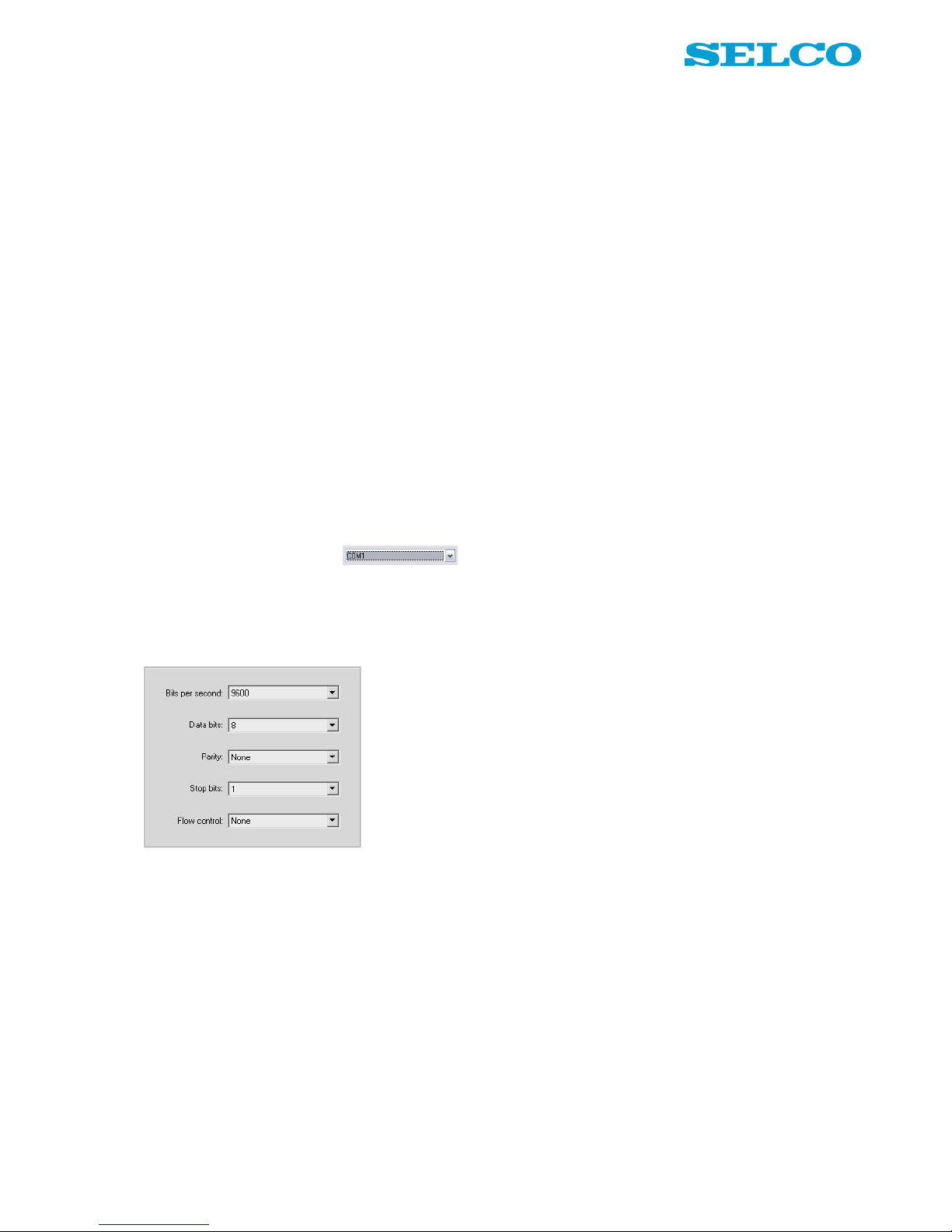

Please make sure that the dialog is filled out exactly like the picture above!
10. Click on the button OK.
*) On Windows® XP the button is named All programs. If the operating system is older than Windows® XP, the button is only named
Programs.
Page 25
M4200 - User manual
Revision: 07.03.2017 Page 24
ASCI settings
The HyperTerminal dialogue appears on the screen.
To make sure that communication between Microsoft® HyperTerminal and the alarm monitor will work
properly, some settings regarding transmission of data are needed:
1. Click on the menu Files.
2. Click on the menu item Properties.
When the properties dialog appears on the screen:
3. Click on the tab Settings.
4. Click on the button ASCII-settings.
When the ASCII Setup dialogue appears on the screen:
Please make sure that the dialog is filled out exactly like the picture above!
5. Click on the button OK.
The alarm monitor is now connected to the PC through RS232. The screen dump below shows the welcome
message, transmitted by the M4200 alarm monitor, which indicates that it is ready for configuration.
Page 26
M4200 - User manual
Revision: 07.03.2017 Page 25
Save connection
In order to avoid the starting and configuration procedure every time you start up the Microsoft®
HyperTerminal in the future, it is practical to save the setup. To save setup:
1. Click on the menu File (in the upper left corner of the HyperTerminal dialogue).
2. Click on the menu item Save as...
The Save as… dialogue will appear on the screen:
3. Note that the name Direct COM1 is already typed into the input field Filename.
4. Click on the button Save.
The configuration has been saved as a HyperTerminal shortcut icon. This icon (named Direct COM1) can be
accessed directly through the start menu (same location as HyperTerminal).
Introduction to Microsoft® HyperTerminal
Below you will find an explanation for the frequently used icons in Microsoft® HyperTerminal.
Icon explanation
Icon
Description
Use this icon if you need to create a new connection
e.g. if you need to communicate through another
COM port than your default connection does
Use this icon if you need to open a new connection
e.g. the connection you have saved as Direct COM1
Use this icon if you need to connect to the unit
related to the pc e.g. M4200
Use this icon if you need to disconnect to the unit
related to the pc e.g. M4200
Use this icon if you need to correct some of the
properties for the active connection e.g. Direct
COM1
Page 27
M4200 - User manual
Revision: 07.03.2017 Page 26
Programming by PC
There are two ways of programming the alarm monitor; by dip switches on the rear of the unit or by any
standard ANSI compatible terminal application e.g. Microsoft® HyperTerminal (which is supplied with the
Windows® operating system) or any other ANSI terminal.
When using a standard ANSI compatible terminal application, the configuration is done through a PC, via the
special RS232 cable which is delivered with the alarm monitor.
The 16 dip switches have a limited number of combinations and provide only restricted combinations for e.g.
channels and delays. Otherwise the RS232 based configuration is unrestricted.
In this section, all necessary information regarding programming of the alarm monitor from a PC is available.
Read config
It is possible to read out the present configuration of the alarm monitor, by writing a single command into the
terminal window.
Make sure that the RS232 port on the alarm monitor is connected to the PC serial port (COM1), and the
power is turned on.
To start up the programming window (Microsoft® HyperTerminal):
1. Click on the Start button (in the lower left corner of the Windows® screen).
2. Click on the menu item All programs*).
3. Click on the menu item Accessories.
4. Click on the menu item Communication.
5. Click on the menu folder HyperTerminal.
6. Click on the menu item Direct COM1.

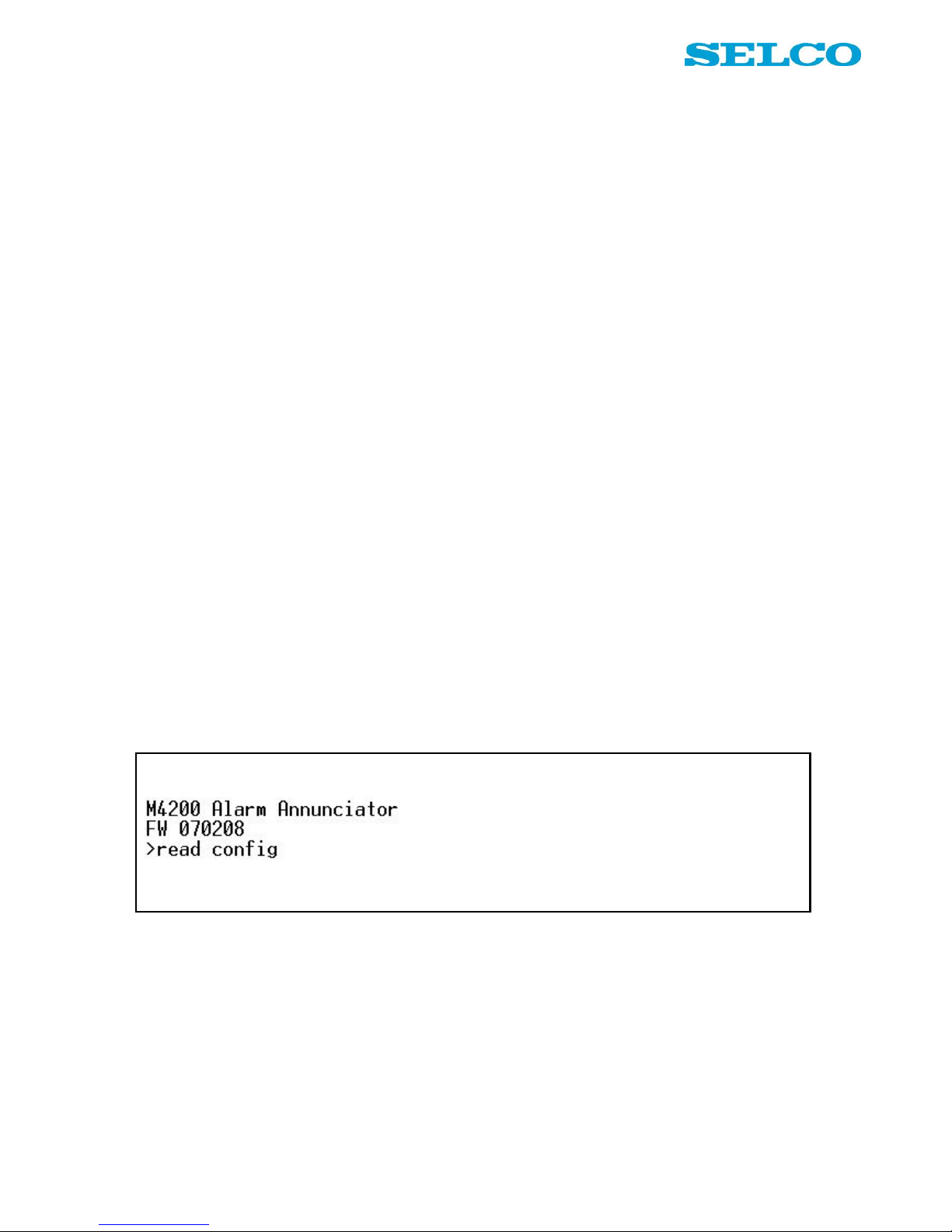

The HyperTerminal dialogue will appear on the screen:
7. Type the text read config in the terminal window.
8. Press the Enter key on the keyboard.
All parameters are now listed in the terminal window. All parameters can be changed or activated according
to the descriptions on every single parameter, which you are able to read about on the following pages.
Please type the complete command and press ENTER. The parameter is automatically saved into the unit.
*) On Windows® XP the button is named All programs. If the operating system is older than Windows® XP, the button is only named
Programs.
Page 28
M4200 - User manual
Revision: 07.03.2017 Page 27
System parameters
In the table below every possible parameter is listed followed by a detailed explanation of the use of the
parameter:
Parameter
Command
Description
Channel functions
WRITE IN1 FUNC ALR
Channel 1 will function as normal alarm channel
WRITE IN2 FUNC ALR
Channel 2 will function as normal alarm channel
WRITE IN3 FUNC ALR
Channel 3 will function as normal alarm channel
WRITE IN4 FUNC ALR
Channel 4 will function as normal alarm channel
WRITE IN5 FUNC ALR
Channel 5 will function as normal alarm channel
WRITE IN6 FUNC ALR
Channel 6 will function as normal alarm channel
WRITE IN7 FUNC ALR
Channel 7 will function as normal alarm channel
WRITE IN8 FUNC ALR
Channel 8 will function as normal alarm channel
WRITE IN1 FUNC IND
Channel 1 will function only as indicator channel
WRITE IN2 FUNC IND
Channel 2 will function only as indicator channel
WRITE IN3 FUNC IND
Channel 3 will function only as indicator channel
WRITE IN4 FUNC IND
Channel 4 will function only as indicator channel
WRITE IN5 FUNC IND
Channel 5 will function only as indicator channel
WRITE IN6 FUNC IND
Channel 6 will function only as indicator channel
WRITE IN7 FUNC IND
Channel 7 will function only as indicator channel
WRITE IN8 FUNC IND
Channel 8 will function only as indicator channel
Input contact type
WRITE IN1 TYPE NO
Channel 1 supports a normally open input contact
WRITE IN2 TYPE NO
Channel 2 supports a normally open input contact
WRITE IN3 TYPE NO
Channel 3 supports a normally open input contact
WRITE IN4 TYPE NO
Channel 4 supports a normally open input contact
WRITE IN5 TYPE NO
Channel 5 supports a normally open input contact
WRITE IN6 TYPE NO
Channel 6 supports a normally open input contact
WRITE IN7 TYPE NO
Channel 7 supports a normally open input contact
WRITE IN8 TYPE NO
Channel 8 supports a normally open input contact
WRITE IN1 TYPE NC
Channel 1 supports a normally closed input contact
WRITE IN2 TYPE NC
Channel 2 supports a normally closed input contact
WRITE IN3 TYPE NC
Channel 3 supports a normally closed input contact
WRITE IN4 TYPE NC
Channel 4 supports a normally closed input contact
WRITE IN5 TYPE NC
Channel 5 supports a normally closed input contact
WRITE IN6 TYPE NC
Channel 6 supports a normally closed input contact
WRITE IN7 TYPE NC
Channel 7 supports a normally closed input contact
WRITE IN8 TYPE NC
Channel 8 supports a normally closed input contact
Input reference
WRITE IN1 REF VREF
Channel 1 is configured for positive reference (terminal 9)
WRITE IN2 REF VREF
Channel 2 is configured for positive reference (terminal 9)
WRITE IN3 REF VREF
Channel 3 is configured for positive reference (terminal 9)
WRITE IN4 REF VREF
Channel 4 is configured for positive reference (terminal 9)
WRITE IN5 REF VREF
Channel 5 is configured for positive reference (terminal 9)
WRITE IN6 REF VREF
Channel 6 is configured for positive reference (terminal 9)
WRITE IN7 REF VREF
Channel 7 is configured for positive reference (terminal 9)
WRITE IN8 REF VREF
Channel 8 is configured for positive reference (terminal 9)
WRITE IN1 REF GND
Channel 1 is configured for negative reference (terminal 10)
WRITE IN2 REF GND
Channel 2 is configured for negative reference (terminal 10)
WRITE IN3 REF GND
Channel 3 is configured for negative reference (terminal 10)
WRITE IN4 REF GND
Channel 4 is configured for negative reference (terminal 10)
WRITE IN5 REF GND
Channel 5 is configured for negative reference (terminal 10)
WRITE IN6 REF GND
Channel 6 is configured for negative reference (terminal 10)
WRITE IN7 REF GND
Channel 7 is configured for negative reference (terminal 10)
WRITE IN8 REF GND
Channel 8 is configured for negative reference (terminal 10)
Page 29
M4200 - User manual
Revision: 07.03.2017 Page 28
Parameter
Command
Description
Cable monitoring
WRITE IN1 CABLE OFF
There is no monitoring of cable faults on Channel 1
WRITE IN2 CABLE OFF
There is no monitoring of cable faults on Channel 2
WRITE IN3 CABLE OFF
There is no monitoring of cable faults on Channel 3
WRITE IN4 CABLE OFF
There is no monitoring of cable faults on Channel 4
WRITE IN5 CABLE OFF
There is no monitoring of cable faults on Channel 5
WRITE IN6 CABLE OFF
There is no monitoring of cable faults on Channel 6
WRITE IN7 CABLE OFF
There is no monitoring of cable faults on Channel 7
WRITE IN8 CABLE OFF
There is no monitoring of cable faults on Channel 8
WRITE IN1 CABLE ON
Channel 1 gives alarm at cable fracture or short-circuit on input cable
WRITE IN2 CABLE ON
Channel 2 gives alarm at cable fracture or short-circuit on input cable
WRITE IN3 CABLE ON
Channel 3 gives alarm at cable fracture or short-circuit on input cable
WRITE IN4 CABLE ON
Channel 4 gives alarm at cable fracture or short-circuit on input cable
WRITE IN5 CABLE ON
Channel 5 gives alarm at cable fracture or short-circuit on input cable
WRITE IN6 CABLE ON
Channel 6 gives alarm at cable fracture or short-circuit on input cable
WRITE IN7 CABLE ON
Channel 7 gives alarm at cable fracture or short-circuit on input cable
WRITE IN8 CABLE ON
Channel 8 gives alarm at cable fracture or short-circuit on input cable
Input delay
WRITE IN1 DELAY 25MS
Channel 1 has a delay of 25ms. from input to respond
25ms - 999ms.
WRITE IN2 DELAY 25MS
Channel 2 has a delay of 25ms. from input to respond
are accepted
WRITE IN3 DELAY 25MS
Channel 3 has a delay of 25ms. from input to respond
values
WRITE IN4 DELAY 25MS
Channel 4 has a delay of 25ms. from input to respond
WRITE IN5 DELAY 25MS
Channel 5 has a delay of 25ms. from input to respond
WRITE IN6 DELAY 25MS
Channel 6 has a delay of 25ms. from input to respond
WRITE IN7 DELAY 25MS
Channel 7 has a delay of 25ms. from input to respond
WRITE IN8 DELAY 25MS
Channel 8 has a delay of 25ms. from input to respond
WRITE IN1 DELAY 1S
Channel 1 has a delay of 1sec. from input to respond
WRITE IN2 DELAY 1S
Channel 2 has a delay of 1sec. from input to respond
1s - 999s are
WRITE IN3 DELAY 1S
Channel 3 has a delay of 1sec. from input to respond
accepted values
WRITE IN4 DELAY 1S
Channel 4 has a delay of 1sec. from input to respond
WRITE IN5 DELAY 1S
Channel 5 has a delay of 1sec. from input to respond
WRITE IN6 DELAY 1S
Channel 6 has a delay of 1sec. from input to respond
WRITE IN7 DELAY 1S
Channel 7 has a delay of 1sec. from input to respond
WRITE IN8 DELAY 1S
Channel 8 has a delay of 1sec. from input to respond
LED colour
WRITE LED1 COLOR RED
The colour of the LED of channel 1 gives a red light
Red, green and
WRITE LED2 COLOR RED
The colour of the LED of channel 2 gives a red light
Yellow is possible
WRITE LED3 COLOR RED
The colour of the LED of channel 3 gives a red light
colours
WRITE LED4 COLOR RED
The colour of the LED of channel 4 gives a red light
WRITE LED5 COLOR RED
The colour of the LED of channel 5 gives a red light
RED, GREEN and
WRITE LED6 COLOR RED
The colour of the LED of channel 6 gives a red light
YELL are accepted
WRITE LED7 COLOR RED
The colour of the LED of channel 7 gives a red light
values
WRITE LED8 COLOR RED
The colour of the LED of channel 8 gives a red light
Page 30
M4200 - User manual
Revision: 07.03.2017 Page 29
Parameter
Command
Description
Block function 1
WRITE ALM1 BLOCK1 OFF
Blocking alarm input 1 is not possible (by block function 1)
WRITE ALM2 BLOCK1 OFF
Blocking alarm input 2 is not possible (by block function 1)
WRITE ALM3 BLOCK1 OFF
Blocking alarm input 3 is not possible (by block function 1)
WRITE ALM4 BLOCK1 OFF
Blocking alarm input 4 is not possible (by block function 1)
WRITE ALM5 BLOCK1 OFF
Blocking alarm input 5 is not possible (by block function 1)
WRITE ALM6 BLOCK1 OFF
Blocking alarm input 6 is not possible (by block function 1)
WRITE ALM7 BLOCK1 OFF
Blocking alarm input 7 is not possible (by block function 1)
WRITE ALM8 BLOCK1 OFF
Blocking alarm input 8 is not possible (by block function 1)
WRITE ALM1 BLOCK1 ON
Blocking alarm input 1 is possible via external button (terminal 13)
WRITE ALM2 BLOCK1 ON
Blocking alarm input 2 is possible via external button (terminal 13)
WRITE ALM3 BLOCK1 ON
Blocking alarm input 3 is possible via external button (terminal 13)
WRITE ALM4 BLOCK1 ON
Blocking alarm input 4 is possible via external button (terminal 13)
WRITE ALM5 BLOCK1 ON
Blocking alarm input 5 is possible via external button (terminal 13)
WRITE ALM6 BLOCK1 ON
Blocking alarm input 6 is possible via external button (terminal 13)
WRITE ALM7 BLOCK1 ON
Blocking alarm input 7 is possible via external button (terminal 13)
WRITE ALM8 BLOCK1 ON
Blocking alarm input 8 is possible via external button (terminal 13)
Block function 2
WRITE ALM1 BLOCK2 OFF
Blocking alarm input 1 is not possible (by block function 2)
WRITE ALM2 BLOCK2 OFF
Blocking alarm input 2 is not possible (by block function 2)
WRITE ALM3 BLOCK2 OFF
Blocking alarm input 3 is not possible (by block function 2)
WRITE ALM4 BLOCK2 OFF
Blocking alarm input 4 is not possible (by block function 2)
WRITE ALM5 BLOCK2 OFF
Blocking alarm input 5 is not possible (by block function 2)
WRITE ALM6 BLOCK2 OFF
Blocking alarm input 6 is not possible (by block function 2)
WRITE ALM7 BLOCK2 OFF
Blocking alarm input 7 is not possible (by block function 2)
WRITE ALM8 BLOCK2 OFF
Blocking alarm input 8 is not possible (by block function 2)
WRITE ALM1 BLOCK2 ON
Blocking alarm input 1 is possible via external button (terminal 14)
WRITE ALM2 BLOCK2 ON
Blocking alarm input 2 is possible via external button (terminal 14)
WRITE ALM3 BLOCK2 ON
Blocking alarm input 3 is possible via external button (terminal 14)
WRITE ALM4 BLOCK2 ON
Blocking alarm input 4 is possible via external button (terminal 14)
WRITE ALM5 BLOCK2 ON
Blocking alarm input 5 is possible via external button (terminal 14)
WRITE ALM6 BLOCK2 ON
Blocking alarm input 6 is possible via external button (terminal 14)
WRITE ALM7 BLOCK2 ON
Blocking alarm input 7 is possible via external button (terminal 14)
WRITE ALM8 BLOCK2 ON
Blocking alarm input 8 is possible via external button (terminal 14)
Alarm 1 (output relay 1)
WRITE ALM1 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 1 is ON
WRITE ALM2 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 2 is ON
WRITE ALM3 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 3 is ON
WRITE ALM4 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 4 is ON
WRITE ALM5 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 5 is ON
WRITE ALM6 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 6 is ON
WRITE ALM7 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 7 is ON
WRITE ALM8 RELAY1 ON
Alarm 1 (output relay 1) is active when alarm on input 8 is ON
WRITE ALM1 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 1 is ON
WRITE ALM2 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 2 is ON
WRITE ALM3 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 3 is ON
WRITE ALM4 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 4 is ON
WRITE ALM5 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 5 is ON
WRITE ALM6 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 6 is ON
WRITE ALM7 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 7 is ON
WRITE ALM8 RELAY1 OFF
Alarm 1 (output relay 1) is NOT active when alarm on input 8 is ON
Page 31
M4200 - User manual
Revision: 07.03.2017 Page 30
Parameter
Command
Description
Alarm 2 (output relay 2)
WRITE ALM1 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 1 is ON
WRITE ALM2 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 2 is ON
WRITE ALM3 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 3 is ON
WRITE ALM4 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 4 is ON
WRITE ALM5 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 5 is ON
WRITE ALM6 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 6 is ON
WRITE ALM7 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 7 is ON
WRITE ALM8 RELAY2 OFF
Alarm 2 (output relay 2) is NOT active when alarm on input 8 is ON
WRITE ALM1 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 1 is ON
WRITE ALM2 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 2 is ON
WRITE ALM3 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 3 is ON
WRITE ALM4 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 4 is ON
WRITE ALM5 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 5 is ON
WRITE ALM6 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 6 is ON
WRITE ALM7 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 7 is ON
WRITE ALM8 RELAY2 ON
Alarm 2 (output relay 2) is active when alarm on input 8 is ON
Siren (relay)
WRITE ALM1 SIREN ON
Siren is active when alarm on input 1 is ON
WRITE ALM2 SIREN ON
Siren is active when alarm on input 2 is ON
WRITE ALM3 SIREN ON
Siren is active when alarm on input 3 is ON
WRITE ALM4 SIREN ON
Siren is active when alarm on input 4 is ON
WRITE ALM5 SIREN ON
Siren is active when alarm on input 5 is ON
WRITE ALM6 SIREN ON
Siren is active when alarm on input 6 is ON
WRITE ALM7 SIREN ON
Siren is active when alarm on input 7 is ON
WRITE ALM8 SIREN ON
Siren is active when alarm on input 8 is ON
WRITE ALM1 SIREN OFF
Siren is NOT active when alarm on input 1 is ON
WRITE ALM2 SIREN OFF
Siren is NOT active when alarm on input 2 is ON
WRITE ALM3 SIREN OFF
Siren is NOT active when alarm on input 3 is ON
WRITE ALM4 SIREN OFF
Siren is NOT active when alarm on input 4 is ON
WRITE ALM5 SIREN OFF
Siren is NOT active when alarm on input 5 is ON
WRITE ALM6 SIREN OFF
Siren is NOT active when alarm on input 6 is ON
WRITE ALM7 SIREN OFF
Siren is NOT active when alarm on input 7 is ON
WRITE ALM8 SIREN OFF
Siren is NOT active when alarm on input 8 is ON
Output 1 - 4
WRITE ALM1 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 1 is ON
It is possible to replace
WRITE ALM2 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 2 is ON
“OUTPUT1” with
WRITE ALM3 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 3 is ON
“OUTPUT2”,
WRITE ALM4 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 4 is ON
“OUTPUT3” or
WRITE ALM5 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 5 is ON
“OUTPUT4”
WRITE ALM6 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 6 is ON
WRITE ALM7 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 7 is ON
WRITE ALM8 OUTPUT1 OFF
Open collector output 1 is NOT active when alarm on input 8 is ON
WRITE ALM1 OUTPUT1 ON
Open collector output 1 is active when alarm on input 1 is ON
WRITE ALM2 OUTPUT1 ON
Open collector output 1 is active when alarm on input 2 is ON
WRITE ALM3 OUTPUT1 ON
Open collector output 1 is active when alarm on input 3 is ON
WRITE ALM4 OUTPUT1 ON
Open collector output 1 is active when alarm on input 4 is ON
WRITE ALM5 OUTPUT1 ON
Open collector output 1 is active when alarm on input 5 is ON
WRITE ALM6 OUTPUT1 ON
Open collector output 1 is active when alarm on input 6 is ON
WRITE ALM7 OUTPUT1 ON
Open collector output 1 is active when alarm on input 7 is ON
WRITE ALM8 OUTPUT1 ON
Open collector output 1 is active when alarm on input 8 is ON
Page 32
M4200 - User manual
Revision: 07.03.2017 Page 31
Parameter
Command
Description
Output relay 1
(contact)*
WRITE IORELAYS RELAY1 CONTACT ND
Alarm 1 (output relay 1) operates as normally de-
energized
WRITE IORELAYS RELAY1 CONTACT NE
Alarm 1 (output relay 1) operates as normally energized
Output relay 2
(contact)*
WRITE IORELAYS RELAY2 CONTACT ND
Alarm 2 (output relay 2) operates as normally de-
energized
WRITE IORELAYS RELAY2 CONTACT NE
Alarm 2 (output relay 2) operates as normally energized
Siren relay
(contact)*
WRITE IORELAYS SIREN CONTACT ND
Siren (siren relay) operates as normally de-energized
WRITE IORELAYS SIREN CONTACT NE
Siren (siren relay) operates as normally energized
Output 1 – 4
(contact)*
WRITE IORELAYS OUTPUT1 ND
Open collector output 1 operates as normally de-
energized
WRITE IORELAYS OUTPUT1 NE
Open collector output 1 operates as normally energized
WRITE IORELAYS OUTPUT2 ND
Open collector output 2 operates as normally de-
energized
WRITE IORELAYS OUTPUT2 NE
Open collector output 2 operates as normally energized
WRITE IORELAYS OUTPUT3 ND
Open collector output 3 operates as normally de-
energized
WRITE IORELAYS OUTPUT3 NE
Open collector output 3 operates as normally energized
WRITE IORELAYS OUTPUT4 ND
Open collector output 4 operates as normally de-
energized
WRITE IORELAYS OUTPUT4 NE
Open collector output 4 operates as normally energized
Output relay 1
(signal)*
WRITE IORELAYS RELAY1 SIGNAL STEADY
Alarm 1 (output relay 1) operates in steady mode (new
incoming alarms is not registered)
WRITE IORELAYS RELAY1 SIGNAL PULSE
Alarm 1 (output relay 1) operates in pulse mode
If another alarm input is activated (meanwhile an existing
alarm input is still active), output relay 1 will become silent
in about 2 seconds and start again.
This scenario will occur every time a new input is
activated.
Output relay 2
(signal)*
WRITE IORELAYS RELAY2 SIGNAL STEADY
Alarm 2 (output relay 2) operates in steady mode (new
incoming alarms is not registered)
WRITE IORELAYS RELAY2 SIGNAL PULSE
Alarm 2 (output relay 2) operates in pulse mode
If another alarm input is activated (meanwhile an existing
alarm input is still active), output relay 2 will become silent
in about 2 seconds and start again.
This scenario will occur every time a new input is
activated.
Siren relay
(signal)*
WRITE IORELAYS SIREN SIGNAL STEADY
Siren (siren relay) operates in steady mode (new
incoming alarms is not registered)
WRITE IORELAYS SIREN SIGNAL PULSE
Siren (siren relay) operates in pulse mode
If another alarm input is activated (meanwhile an existing
alarm input is still active), the siren relay will become silent
in about 2 seconds and start again.
This scenario will occur every time a new input is
activated as long as the unit has not been reset.
(contact)*
If the firmware is dated before January 2008, leave out CONTACT from the command line.
(signal)*
Available from firmware version; January 2008.
Page 33
M4200 - User manual
Revision: 07.03.2017 Page 32
Parameter
Command
Description
Unblock
delays
WRITE SYS BLOCK1 UBDELAY 1S
Block function 1 has a delay on 1sec . from unblock to
respond (unblocked)
1s – 999s
WRITE SYS BLOCK2 UBDELAY 1S
Block function 2 has a delay on 1sec . from unblock to
respond (unblocked)
are accepted
values
Reset
functions
WRITE SYS RESET PUSH 1
1 push on reset button: Resets all
WRITE SYS RESET PUSH 2
2 push on reset button: First reset siren Second reset
LEDs
Factory
default
WRITE SYS SETUPDEFAULT NO
This command is used to undo the command: WRITE
SYS SETUPDEFAULT YES (before the power supply
has been disconnected)
WRITE SYS SETUPDEFAULT YES
Cancels all settings. The complete configuration will
return to factory default (the factory default setting will take
effect, when power supply has been disconnected)
NOTE
The first set of commands in each parameter group in the table above is always the factory default settings
of the alarm monitor.
Page 34
M4200 - User manual
Revision: 07.03.2017 Page 33
Save settings in a text file
It is often practical to make a backup copy of the module configuration. The copy can be used for safe
keeping and documentation, or it can be sent to colleagues for evaluation and trouble shooting.
It can also be edited and changed in Notepad for later upload in the M4200.
The procedure below describes how to transfer the configuration from Microsoft® HyperTerminal:
1. Click on the menu Transfer.
2. Click on the menu item Capture Text.
3. Click on the button Browse.
Select a location and filename for the text file containing the configuration.
4. Click on the button Save.
When the Capture Text dialog appears on the screen:
5. Click on the button Start.
When the Capture Text dialog disappears from the screen:
6. Type the text read config in the terminal window
7. Press Enter on the keyboard and wait 5 seconds
The current configuration is listed in the terminal window. The configuration has simultaneously been
captured in the text file.
To stop the transmission to the text file:
8. Click on the menu Transfer.
9. Click on the menu item Capture Text.
10. Click on the menu item Stop.
The configuration is now accessible as a readable text file. The file contains all parameters necessary to reestablish the configuration of the module.
Find and open the text file to check the content. It is necessary to scroll through the contents of the notepad
window in order to view the full content of the file.
NOTE
In order to restore the configuration from the text file into the alarm monitor, please refer to the section Load
settings from a text file on page 34.
Page 35
M4200 - User manual
Revision: 07.03.2017 Page 34
Load settings from a text file
By using an ANSI compatible terminal application e.g. Microsoft® HyperTerminal (which is supplied with the
Windows® operating system) or any other ANSI terminal, it is possible to load single commands or the
complete configuration from a text file.
Important:
There are two commands that need special attention when loading configuration from a text file:
1. READ CONFIG
2. WRITE SYS SETUPDEFAULT YES
READ CONFIG is the first command in the text file. It is recommended to delete this command from the text
file before loading the configuration. If it is not deleted the loading procedure will start read out the
configuration instead of loading it into the alarm monitor!
WRITE SYS SETUPDEFAULT YES is the last command I the text file. It is recommended to delete this
command from the text file before loading the configuration. If it’s not deleted the complete configuration will
be loaded into the alarm monitor but at the end of the loading procedure the loaded configuration will be
deleted and replaced by the factory default configuration.
Load configuration:
The procedure below describes how to load the configuration into the alarm monitor via Microsoft
®
HyperTerminal:
1. Click on the menu Transfer.
2. Click on the menu item Send Text File…
3. Click on the button Browse.
Select the text file containing the configuration.
4. Click on the button Open.
The commands in the text file will now be retransmitted to the alarm monitor. This will take several seconds
or maybe even a few minutes depending on the amount of commands in the text file.
Loading...
