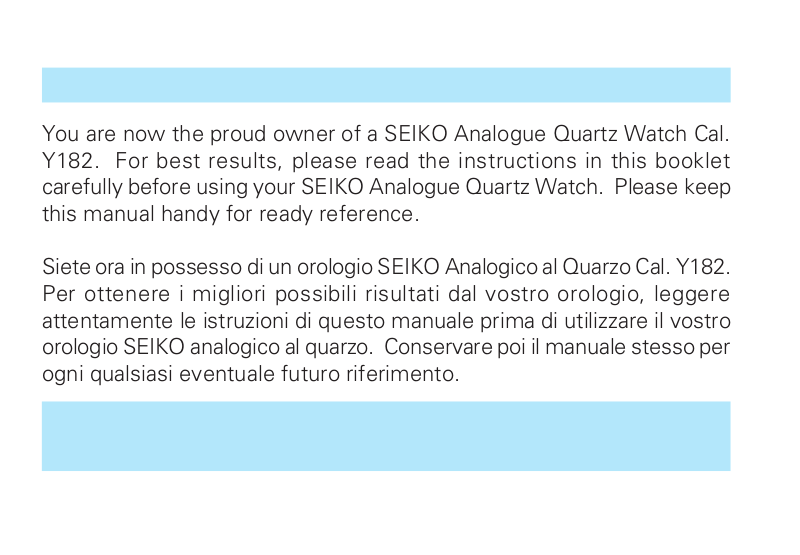

You are now the proud owner of a SEIKO Analogue Quartz Watch Cal.
Y182. For best results, please read the instructions in this booklet
carefully before using your SEIKO Analogue Quartz Watch. Please keep
this manual handy for ready reference.
Siete ora in possesso di un orologio SEIKO Analogico al Quarzo Cal. Y182.
Per ottenere i migliori possibili risultati dal vostro orologio, leggere
attentamente le istruzioni di questo manuale prima di utilizzare il vostro
orologio SEIKO analogico al quarzo. Conservare poi il manuale stesso per
ogni qualsiasi eventuale futuro riferimento.
Page 2
CONTENTS
English
ENGLISH
FEATURES .................................................................................................................. 3
DISPLAY AND CROWNS/BUTTONS .......................................................................... 4
DATE SETTING ........................................................................................................... 5
TIME SETTING ............................................................................................................ 6
ALARM ....................................................................................................................... 7
STOPWATCH .............................................................................................................. 10
TACHYMETER ............................................................................................................ 13
ADJUSTING THE HAND POSITION ............................................................................ 15
RESETTING THE BUILT-IN IC ..................................................................................... 16
BATTERY LIFE INDICATOR ........................................................................................ 17
BATTERY CHANGE ..................................................................................................... 17
SPECIFICATIONS........................................................................................................ 18
✩
For the care of your watch, see “TO PRESERVE THE QUALITY OF YOUR
WATCH” in the attached Worldwide Guarantee and Instruction Booklet.
2
Page
Page 3
SEIKO ANALOGUE QUARTZ
Cal. Y182
FEATURES
TIME/CALENDAR STOPWATCH
●
Hour & minute hands with small
second hand
●
Date displayed in numerals
●
●
English
Measures up to 30 minutes in 1/5
second increments.
Can measure repeatedly up to 6
hours.
ALARM
●
Can be set on a 12-hour basis
with small alarm hands.
TACHYMETER
●
For models with tachymeter scale
3
Page 4
DISPLAY AND CROWNS/BUTTONS
There are three buttons and two crowns.
English
B
25
Hour hand
(MAIN TIME)
Second hand
(MAIN TIME)
20
9
8
STOPWATCH 1/5 second handSTOPWATCH minute hand
Minute hand
(MAIN TIME)
30
5
10
MIN
.
12
1
11
2
10
3
ALARM
4
7
5
6
a b c
A
a b c
CROWN 1
Date
C
CROWN 2
ALARM hour hand ALARM minute hand
4
a: Normal position b: First click c: Second click
Page 5
DATE SETTING
Date
1
➠
1
➡
2
CROWN 1
3
➠
➠
4
NOTES
1 Do not set the date between 9:00 p.m. and 3:00 a.m. Otherwise, the date may not
change properly.
* If it is necessary to set the date during that time period, first change the time to any time outside
this period, set the date and then reset the correct time.
2 It is necessary to adjust the date at the end of February and 30-day months.
CROWN 1
1
Pull out to
▼
2
Turn clockwise until the date for
the previous day appears.
▼
3
Pull out to
until the desired date appears.
▼
4
Push back in to
first click
second click
normal position
.
and turn
English
.
5
Page 6
TIME SETTING
Hour hand
English
Second hand
Minute hand
1
60
15
45
30
➠
➠
3
CROWN 1
CROWN 1
Pull out to
1
Second hand is at the 12 o’clock
position.
2
▼
Turn to set Hour and Minute
2
hands.
▼
Push back in to
3
in accordance with a time signal.
second click
NOTES
1 When setting Hour hand, check that AM/PM is correctly set.
* The watch is so designed that the date changes once in 24 hours. Turn the hands past the 12
o’clock marker to determine whether the watch is set for the A.M. or P.M. period. If the date
changes, the time is set for the A.M. period. If the date does not change, the time is set for
the P.M. period.
2 When setting Minute hand, advance it 4 to 5 minutes ahead of the desired time and
then turn it back to the exact minute.
6
when
normal position
Page 7
ALARM
● Alarm time is set on a 12-hour basis.
● ALARM hands move independently of MAIN TIME hands.
ALARM SETTING
1 Adjustment of ALARM hands
• After the main time is adjusted, follow the procedure below, and then set the
alarm.
* The following procedure is necessary only after the main time is adjusted.
11
10
9
ALARM
8
7
12
1
2
3
4
5
6
3
Minute hand
(MAIN TIME)
ALARM
minute hand
1
➠
➠
CROWN 2
1
Pull out to
▼
2
Turn clockwise or counterclockwise
to set ALARM hands to the current
time (MAIN TIME).
▼
3
CROWN 2
2
Push back in to
▼
second click
normal position
.
Hour hand
(MAIN TIME)
ALARM
hour hand
English
.
7
Page 8
2 Alarm time setting
* Once ALARM hands are adjusted to the main time, alarm time setting can be made only by
following the procedure below.
English
CROWN 2
Pull out to
first click
▼
C
12
1
11
2
10
3
9
ALARM
8
7
C
6
➠
4
5
➠
CROWN 2
▼
CROWN 2
Press to set ALARM hands to
the desired alarm time.
Push back in to
.
tion
NOTES
1 When setting ALARM minute hand to the current time in 2 , advance it 4 to 5
minutes ahead of the desired time and then turn it back to the exact minute.
2 Alarm hands move quickly if Button C is kept pressed.
3 If CROWN 2 is pulled out to first click within 1 minute after being pushed back in
to normal position in
3
, the alarm sounds.
8
.
normal posi-
Page 9
ALARM ENGAGEMENT/DISENGAGEMENT
• Alarm engagement • Alarm disengagement
Pull out to
first click
.
CROWN 2CROWN 2
Push back in to
position
English
normal
.
Designated
alarm time
12
1
11
2
10
3
9
ALARM
8
4
7
5
6
[Alarm engaged]
➠
Current time
[Alarm disengaged]
12
1
11
2
10
3
9
ALARM
8
4
7
5
6
➠
NOTES
1 Alarm rings at the designated time for 20 seconds.
* To stop it manually, press Button A, B or C, or push CROWN 2 back in to normal position.
2 If CROWN 2 is pulled out to second click, the designated alarm time is canceled
with a warning beep.
* In that case, set ALARM hands to MAIN TIME again, push CROWN 2 back in to normal position,
and then, pull it out to first click and set the desired alarm time again. However, if CROWN 2
is pushed back in to normal position before the warning beep stops, the designated alarm time
will not be canceled.
9
Page 10
STOPWATCH
● Stopwatch measures up to 30 minutes in 1/5 second increments.
● After 30 minutes, it will start counting again from “0” repeatedly up to 6 hours.
English
STOPWATCH OPERATION
STOPWATCH
minute hand
1/5 second hand
10
B
STOPWATCH
30
5
25
20
MIN.
A
10
CROWN 1
CROWN 2
•
Before using the stopwatch:
•
Check that CROWNS 1 and 2
are set at normal position.
•
Press Button B to reset STOP-
WATCH hands to “0” position.
* If the hands do not return to “0”
position, follow the procedure in
“ADJUSTING THE HAND POSITION” (page 15).
Page 11
BA
1 Standard measurement
English
AAB
START STOP RESET
2 Accumulated elapsed time measurement
A
START RESTART
* Restart and stop of stopwatch can be repeated by pressing Button A.
3 Split time measurement
A
START
* Measurement and release of split time can be repeated by pressing Button B.
▼
AAAB
STOP RESET
▼
BBAB
SPLIT
▼
▼
SPLIT
RELEASE
▼
○○○
○○○
▼
STOP
▼
STOP
▼
▼
▼
RESET
11
Page 12
4 Measurement of two competitors
English
12
A
START RESET
NOTES
1 If CROWN 1 is pulled out to second click, STOPWATCH hands are reset to “0”
position.
2 If CROWN 2 is pulled out to first or second click, STOPWATCH hands are reset to
“0” position.
3 When stopwatch has been reset and Button A is pressed before the hands reach
“0” position, stopwatch still starts counting when Button A is pressed.
▼
BA B
FINISH TIME
OF 1ST
COMPETITOR
▼
2ND
COMPETITOR
FINISHES
▼
FINISH TIME
OF 2ND
COMPETITOR
▼
B
Page 13
TACHYMETER
(for models with tachymeter scale on the dial)
To measure the hourly average speed of a vehicle
Use the stopwatch to determine
1
how many seconds it takes to go
1 km or 1 mile.
2
Tachymeter scale indicated by
STOPWATCH second hand gives
the average speed per hour.
* Tachymeter scale can be used only when the time required is less than 60 seconds.
Ex. 2: If the measuring distance is extended to 2 km or miles or shortened to 0.5 km or miles
and STOPWATCH second hand indicates “90” on tachymeter scale:
“90” (tachymeter scale figure) x 2 (km or mile) = 180 km/h or mph
“90” (tachymeter scale figure) x 0.5 (km or mile) = 45 km/h or mph
Ex. 1Ex. 1
STOPWATCH
second hand:
40 seconds
30
5
25
20
10
MIN.
Tachymeter scale: “90”
“90” (tachymeter scale figure) x 1 (km or mile)
= 90 km/h or mph
English
13
Page 14
To measure the hourly rate of operation
Use the stopwatch to measure
1
English
the time required to complete 1
job.
2
Tachymeter scale indicated by
STOPWATCH second hand gives
the average number of jobs accomplished per hour.
Ex. 2: If 15 jobs are completed in 20 seconds:
“180” (tachymeter scale figure) x 15 jobs = 2700 jobs/hour
14
Ex. 1Ex. 1
30
5
25
20
10
MIN.
STOPWATCH
second hand:
20 seconds
Tachymeter scale: “180”
“180” (tachymeter scale figure) x 1 job
= 180 jobs/hour
Page 15
ADJUSTING THE HAND POSITION
● If STOPWATCH hands will not return to the 12 o’clock position when the stopwatch is
reset or when the battery is replaced with a new one, follow the procedure below.
English
CROWN 1
BA
30
5
25
20
10
MIN.
➠
➠
CROWN 1
▼
A
▼
B
Pull out to
Press repeatedly to reset
STOPWATCH minute hand to
the 12 o’clock position.
Press repeatedly to reset
STOPWATCH second hand to
the 12 o’clock position.
▼
CROWN 1
Push back in to
tion
.
NOTES
1 Hands move quickly if the respective buttons are kept pressed.
2 After adjusting the hand position, set the main time.
second click
normal posi-
.
15
Page 16
RESETTING THE BUILT-IN IC
● In case any of the hands should move improperly, follow the procedure below to adjust
the hand movement.
English
BA
30
5
25
20
10
MIN.
➠
➠
CROWN 1
CROWN 1
▼
AND Press simultaneously.
A
▼
CROWN 1
Pull out to
B
Push back in to
tion
NOTE
Before using the watch again, be sure to adjust the position of STOPWATCH hands and
set the main time and alarm.
16
second click
normal posi-
.
.
Page 17
BATTERY LIFE INDICATOR
● When the battery nears its end, the small second hand moves at two-second intervals
instead of normal one-second intervals to indicate that the battery needs to be replaced
with a new one.
* If the alarm is used while the second hand is moving at two-second intervals, the watch
may stop operating. Therefore, if you see the second hand moving at two-second intervals,
replace the battery with a new one as soon as possible.
BATTERY CHANGE
2
Years
The miniature battery which powers your watch should last approximately
2 years. However, because the battery is inserted at the factory to check
the function and performance of the watch, its actual life once in your
possession may be less than the specified period. When the battery
expires, be sure to replace it as soon as possible to prevent any malfunction.
For battery replacement, we recommend that you contact an AUTHORIZED
SEIKO DEALER and request SEIKO SR927W battery.
WARNING
● Do not remove the battery from the watch.
● If it is necessary to take out the battery, keep it out of the reach of children. If
a child swallows it, consult a doctor immediately.
English
17
Page 18
CAUTION
● Never short-circuit, heat or otherwise tamper with the battery, and never
English
expose it to fire. The battery may burst, become very hot or catch fire.
● The battery is not rechargeable. Never attempt to recharge it, as this may cause
battery leakage or damage to the battery.
SPECIFICATIONS
1 Frequency of crystal oscillator ........... 32,768 Hz (Hz = Hertz ... Cycles per second)
2 Loss/gain (monthly rate) ..................... Less than 20 seconds at normal temperature range (5°C ~
3 Accuracy of alarm ............................... ±1 minute
4 Operational temperature range .......... –5°C ~ +50°C (23°F ~ 122°F)
5 Driving system ................................... Step motor, 4 pieces
6 Display system
Time ............................................ Three hands (Hour, minute and small second hands)
Date ............................................. Displayed in numerals.
Stopwatch ................................... Minute and 1/5 second hands
Alarm ........................................... Small hour and minute hands
7 Battery ............................................... SEIKO SR927W, 1 piece
8 IC (Integrated Circuit) ......................... C-MOS-LSI
* The specifications are subject to change without prior notice for product improvement.
18
35°C) (41°F ~ 95°F)
The stopwatch can measure up to 30 minutes in 1/5 seconds.
The alarm is set on a 12-hour basis.
Loading...
