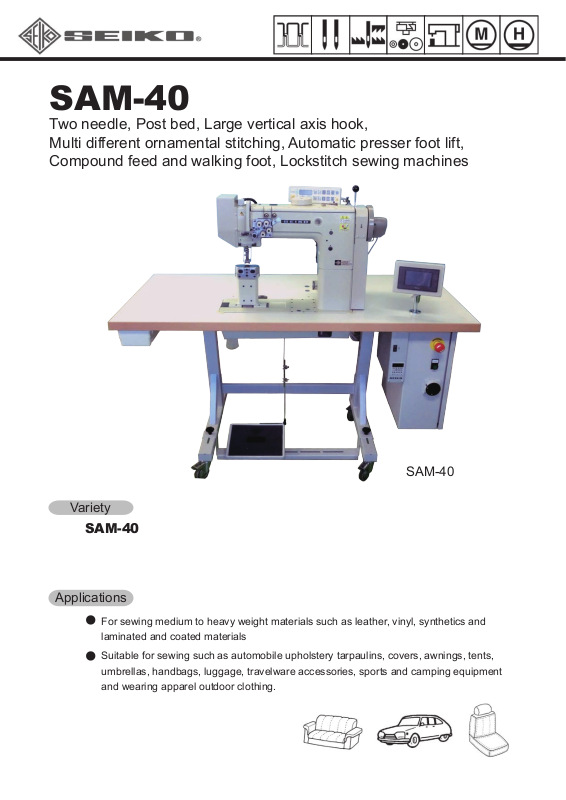

Page 1
SAM-40
Two needle, Post bed, Large vertical axis hook,
Multi different ornamental stitching, Automatic presser foot lift,
Compound feed and walking foot, Lockstitch sewing machines
Variety
SAM-40
Applications
●
For sewing medium to heavy weight materials such as leather, vinyl, synthetics and
laminated and coated materials
Suitable for sewing such as automobile upholstery tarpaulins, covers, awnings, tents,
●
umbrellas, handbags, luggage, travelware accessories, sports and camping equipment
and wearing apparel outdoor clothing.
SAM-40
Page 2
Features
●
Wide range of ornamental stitch
* 12 standard stitch patterns
* User designed stitch patterns can be registerd (Max.99 patterns)
●
Easy operation of stitch pattern change by touch panel display
●
Max.10mm stitch length
Stitch patterns Touch panel display and
Specifications
SAM-40
12 standard stitch patterns
Variety
Number of needle
Max. sewing speed
Max.stitch length
Clearance under
presser foot
Needle bar stroke
Thread take up lever
Amount of walking foot
Walking foot movement
change switch
Bobbin winder
Auto presser foot lifting device
NOTE： (1) Speed depends on threads, materials and type of operation
(2) Specifications subject to change without notice
by hand
by automatic foot lifter
Needle
Thread
Hook
Post height
movement
Safety device
Lubrication
Bed size
Working space
Motor
PF x 134KS #21 - #23 (Standerd #23)
#20 - #1 (Standard #5)
Large vertical axis hook (2.0 times)
By touch panel display
Built-in type located at the top of the sewing machine
Semi-automatic lubrication type
SAM-40
Two needle
450 s.p.m.
10 mm
9 mm
16 mm
34 mm
178 mm
Link type
1 - 7mm
Pneumatic
Standard
475 x 178 mm
260 x 120 mm
AC Servo motor
SEIKO SEWING MACHINE CO., LTD.
2-13-6, Sakaecho, Funabashi-shi
Chiba Prefecture, 273-0018, Japan
Phone
Fax
E-mail
:
+81-47-420-3561
+81-47-420-3560
:
:
(Overseas dept.)
Printed in Japan 2016.04
http://www.seiko-sewing.co.jp/
